Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.

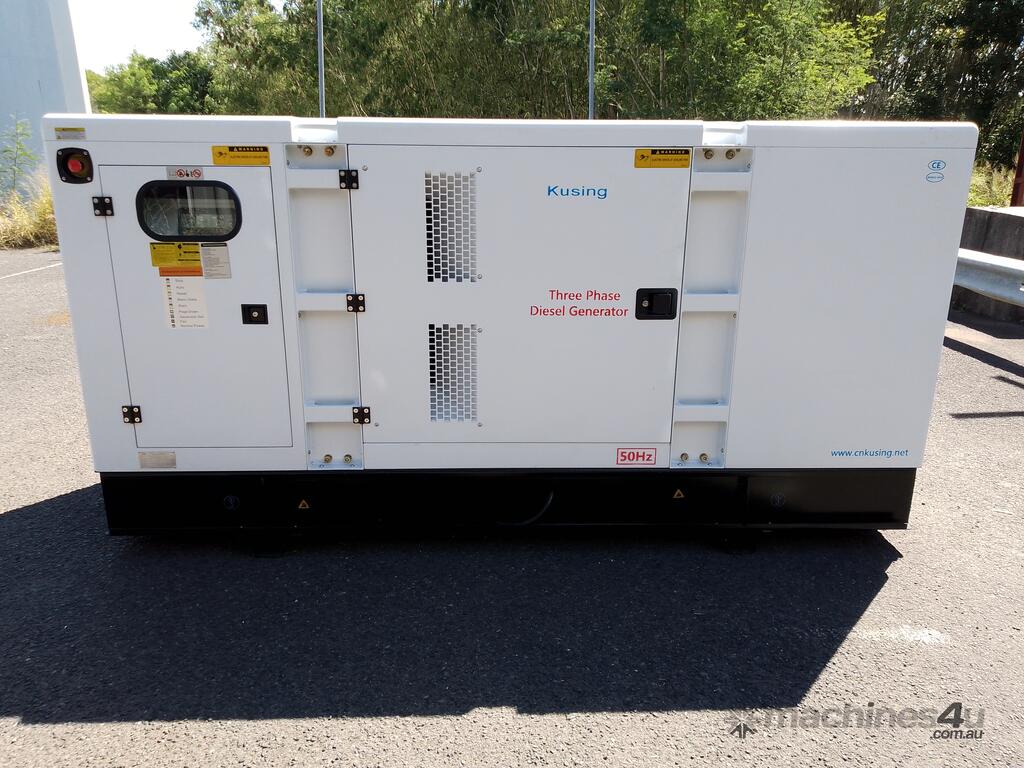

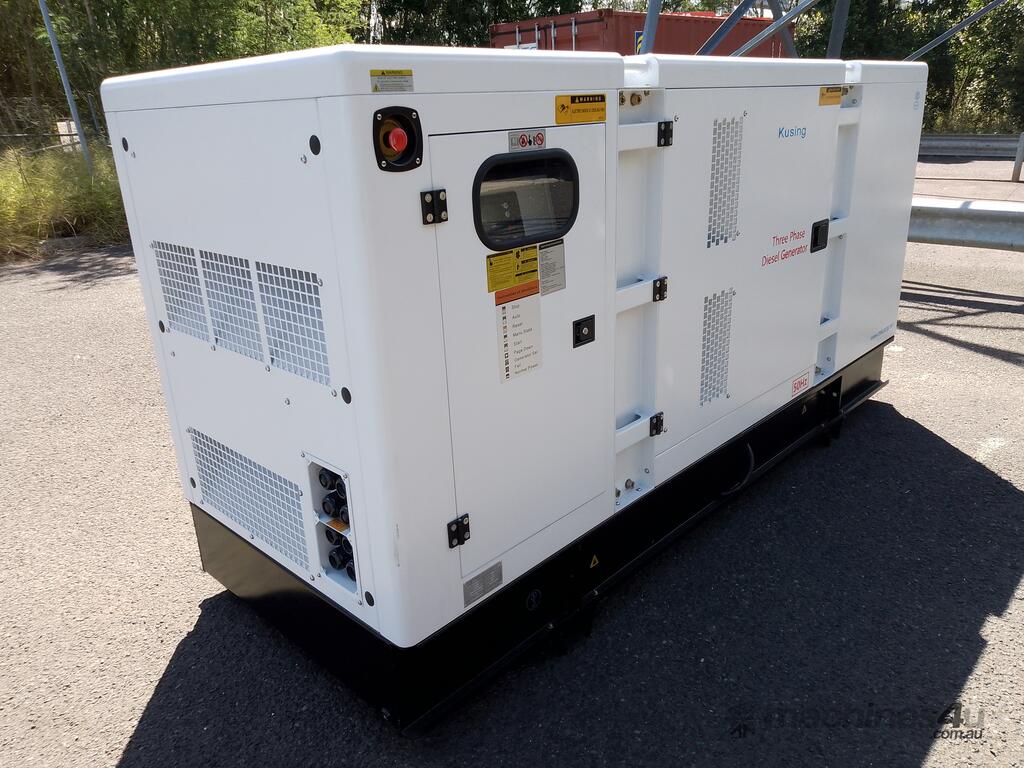

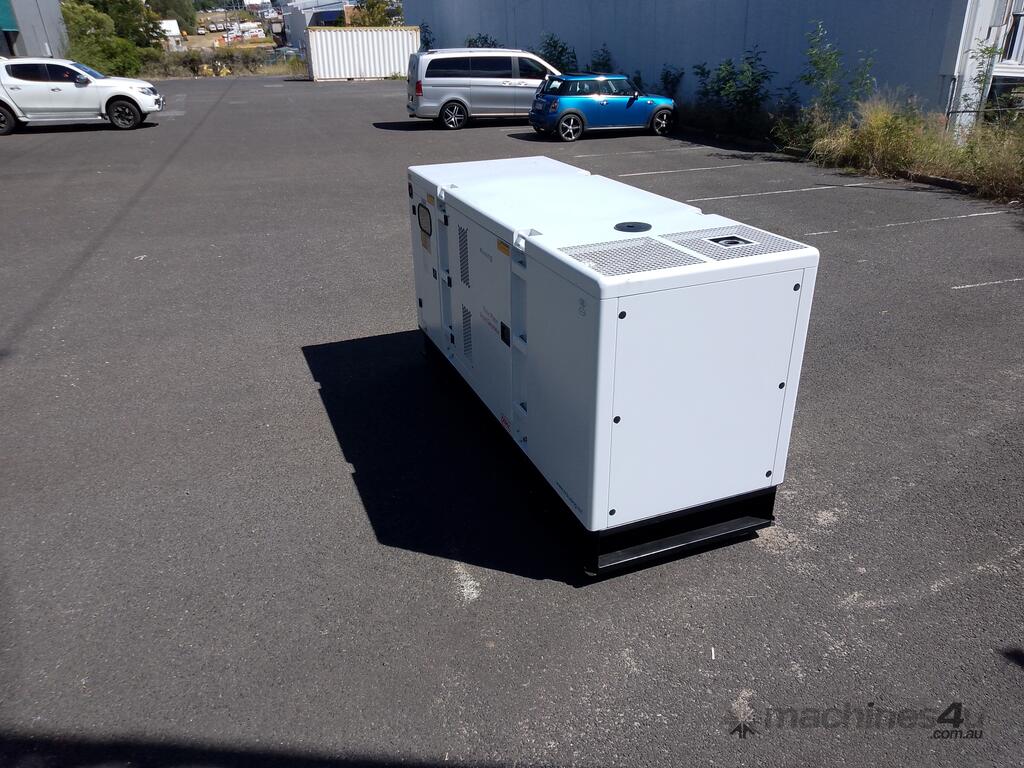

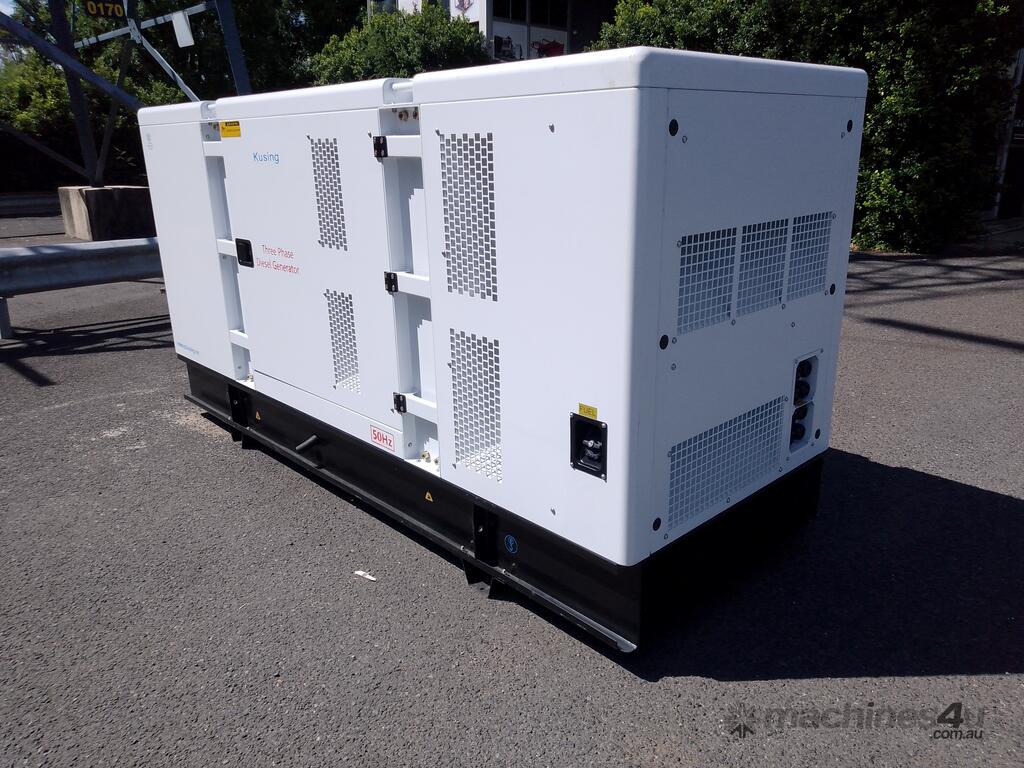

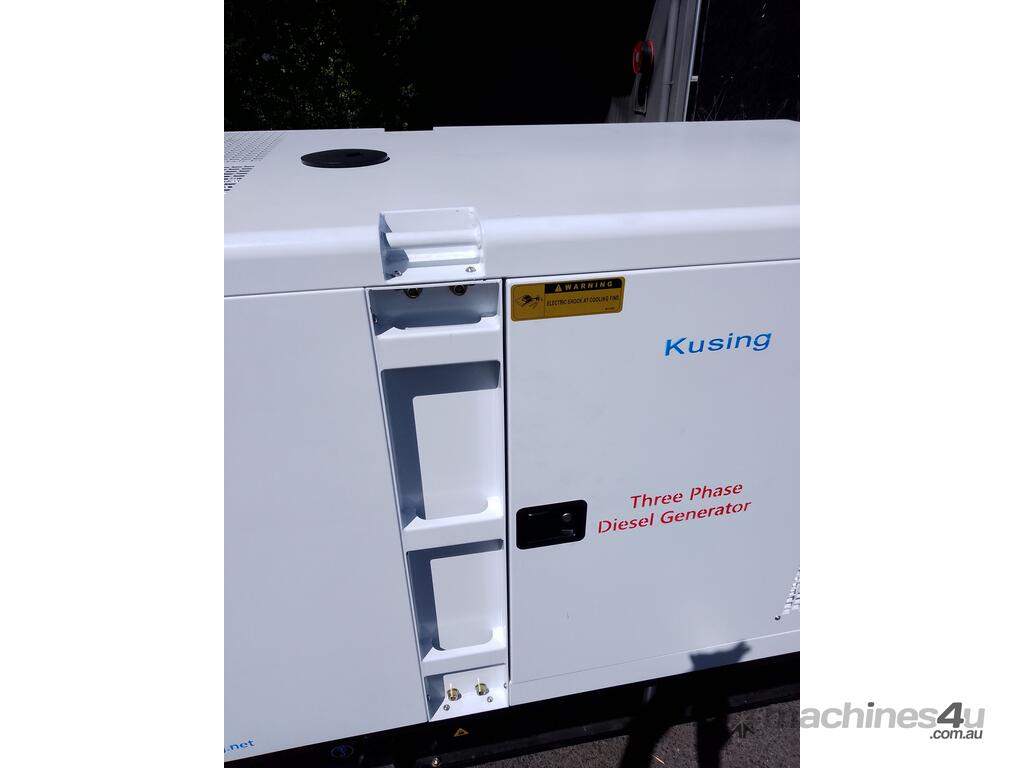

• Strong weatherproof silent canopy with various lifting locations
Recommendations
• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection

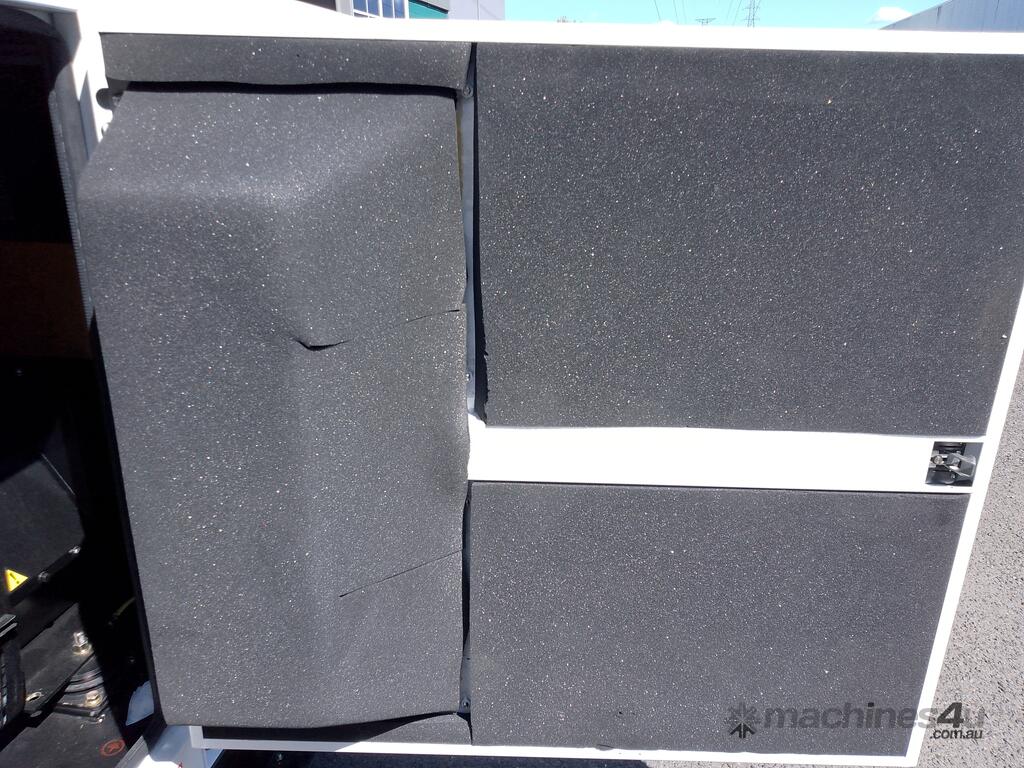

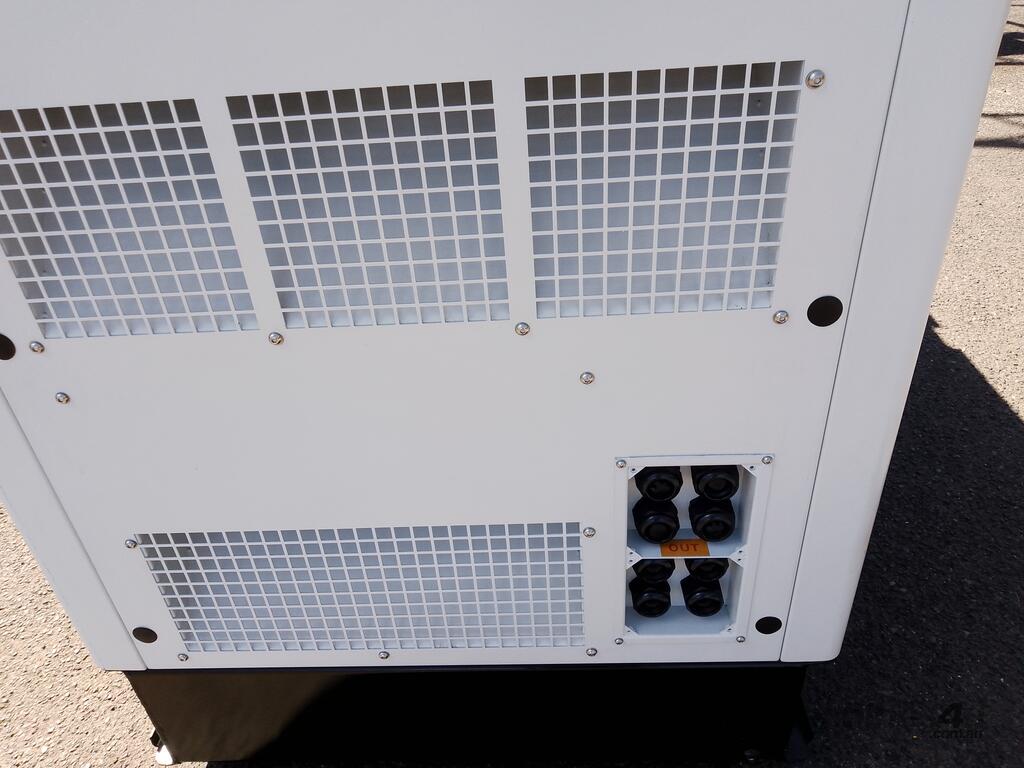

• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

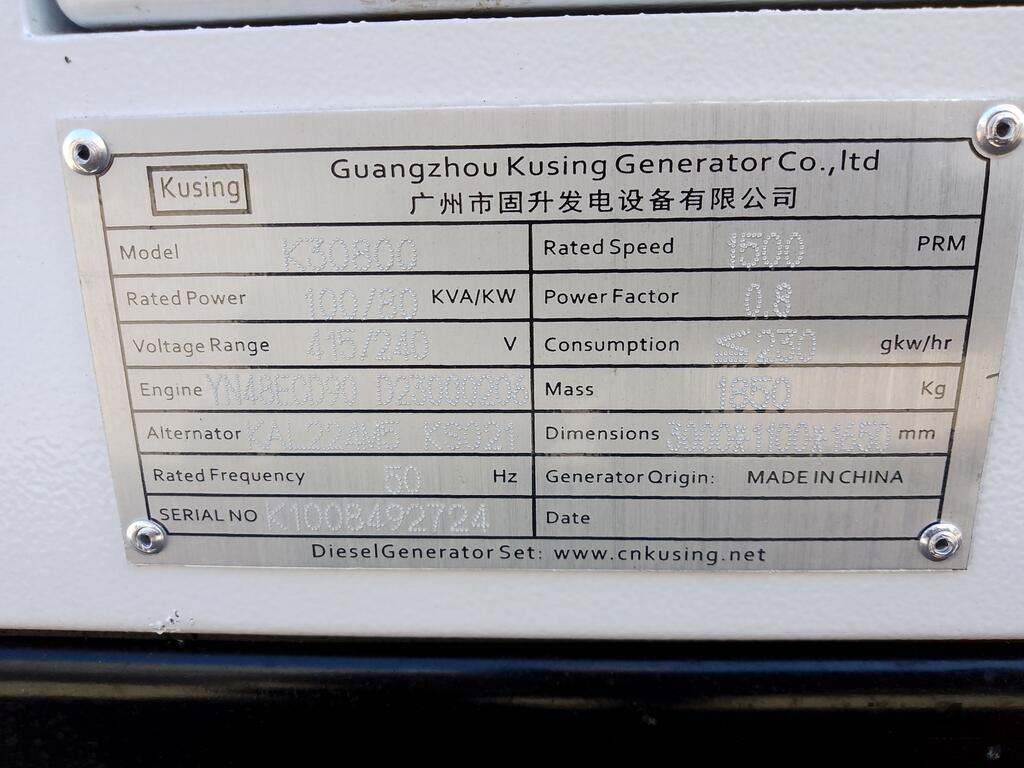

Generator Model K30800
Prime Power 100KVA
Standby Power 110KVA
Rated Current 144 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) Inbuilt
Fuel Tank Capacity Est. 280 Litres
Noise Level 75dB 7m

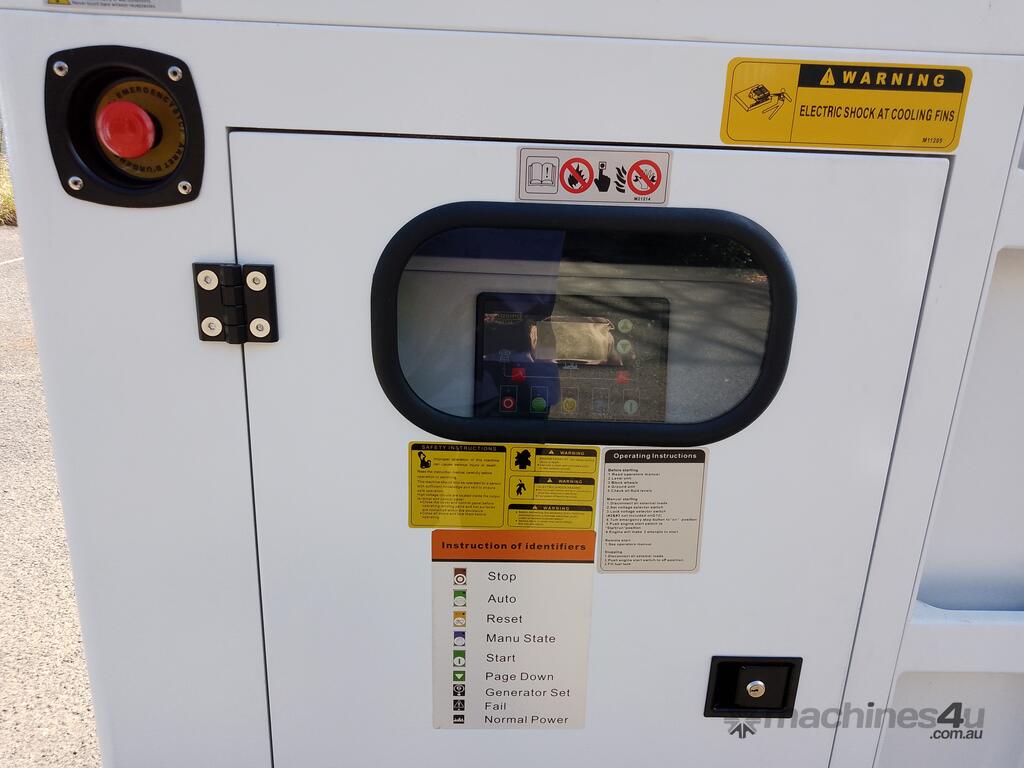

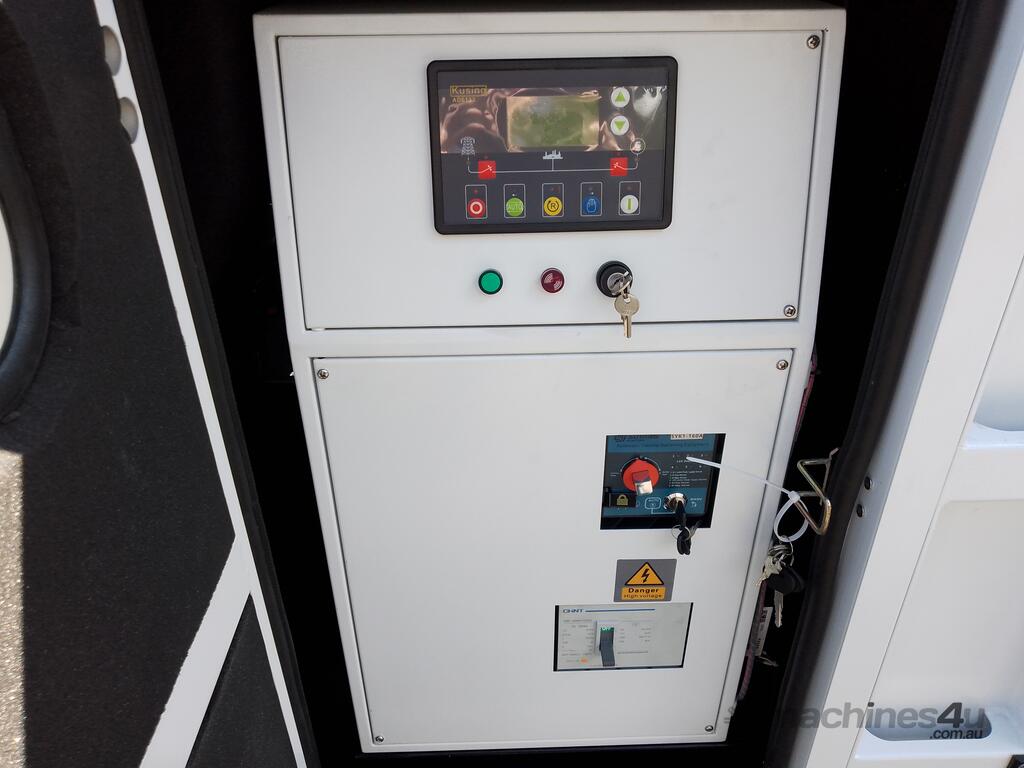

Controller Kusing AD6132
Main Breaker Switch Chint NM1205S/4300, 160A
Internal Protection IP22
Dimensions 3000L x 1100W x 1650H mm
Weight 1850kg

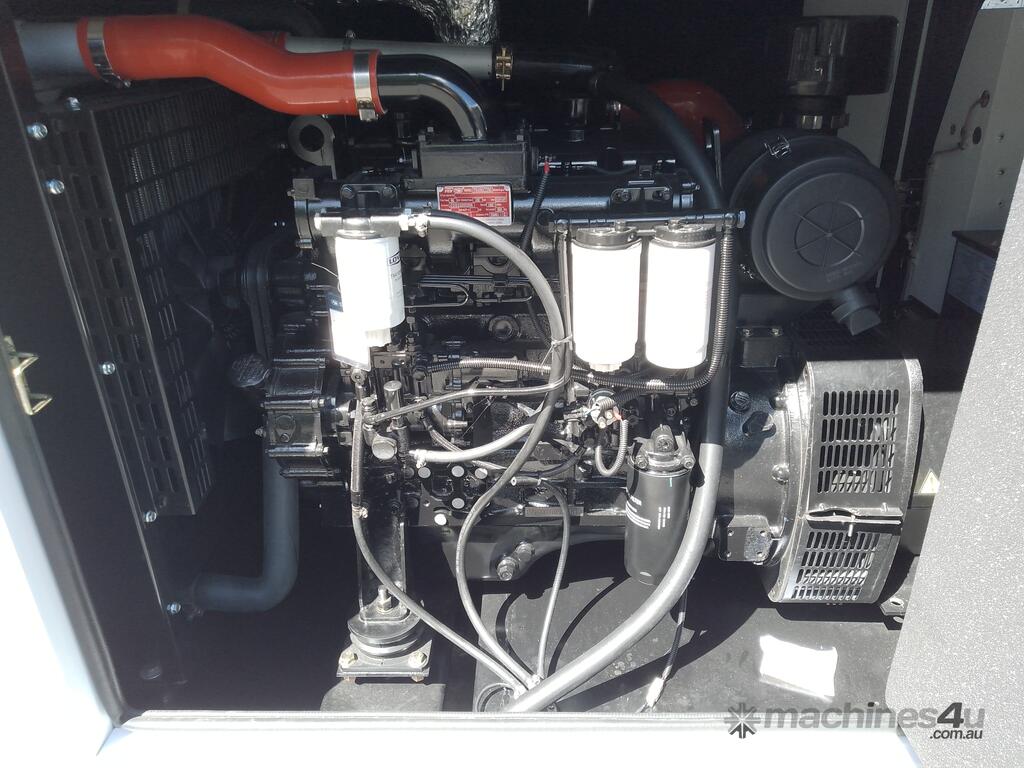

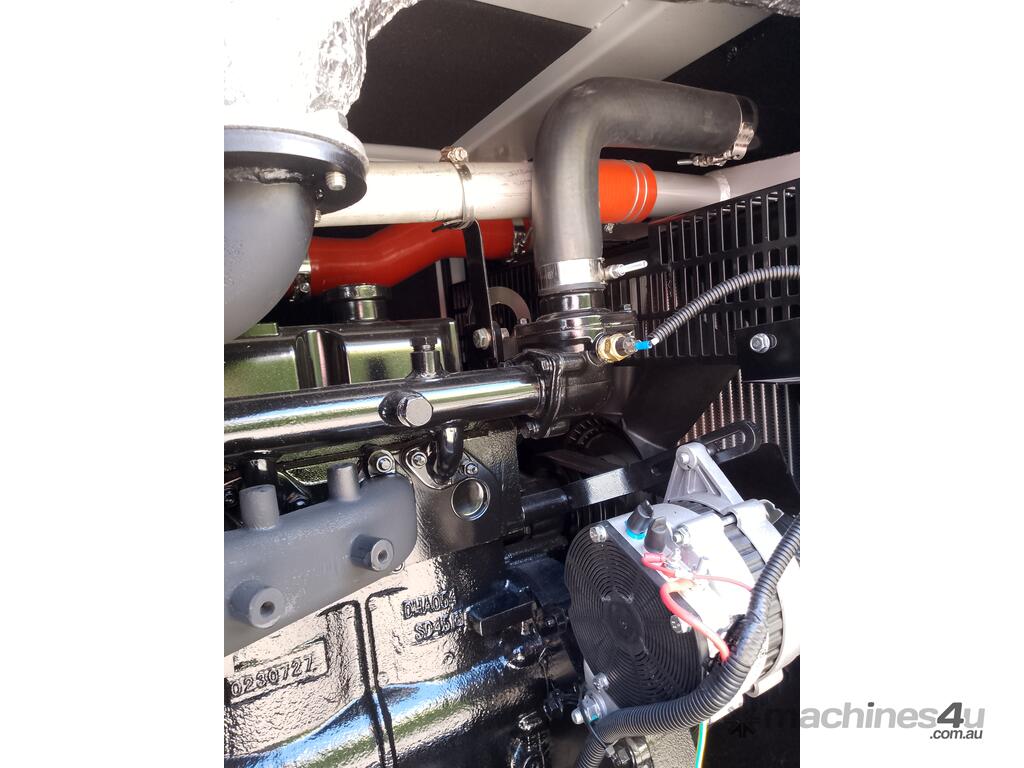

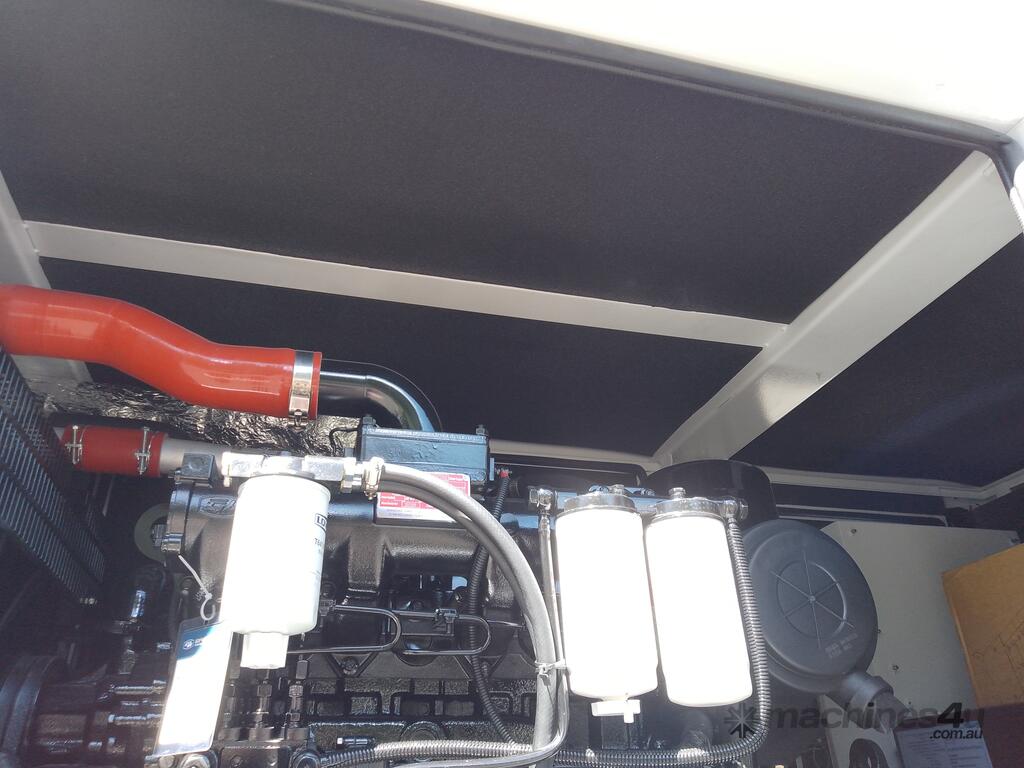

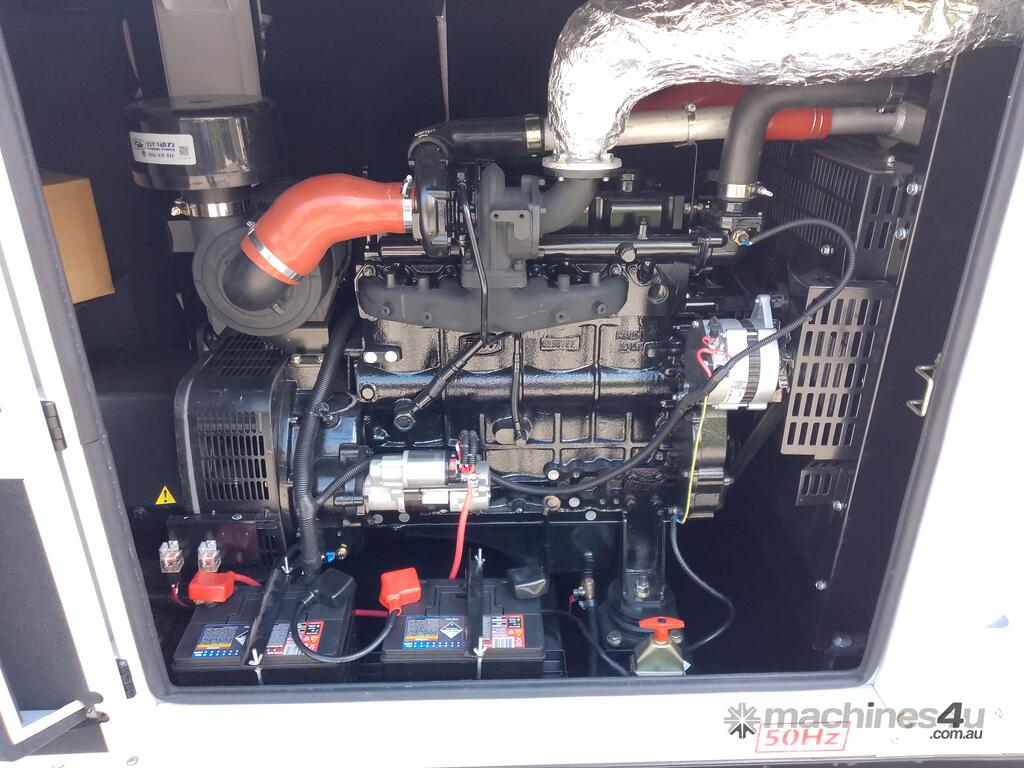

Engine Make Yunnei

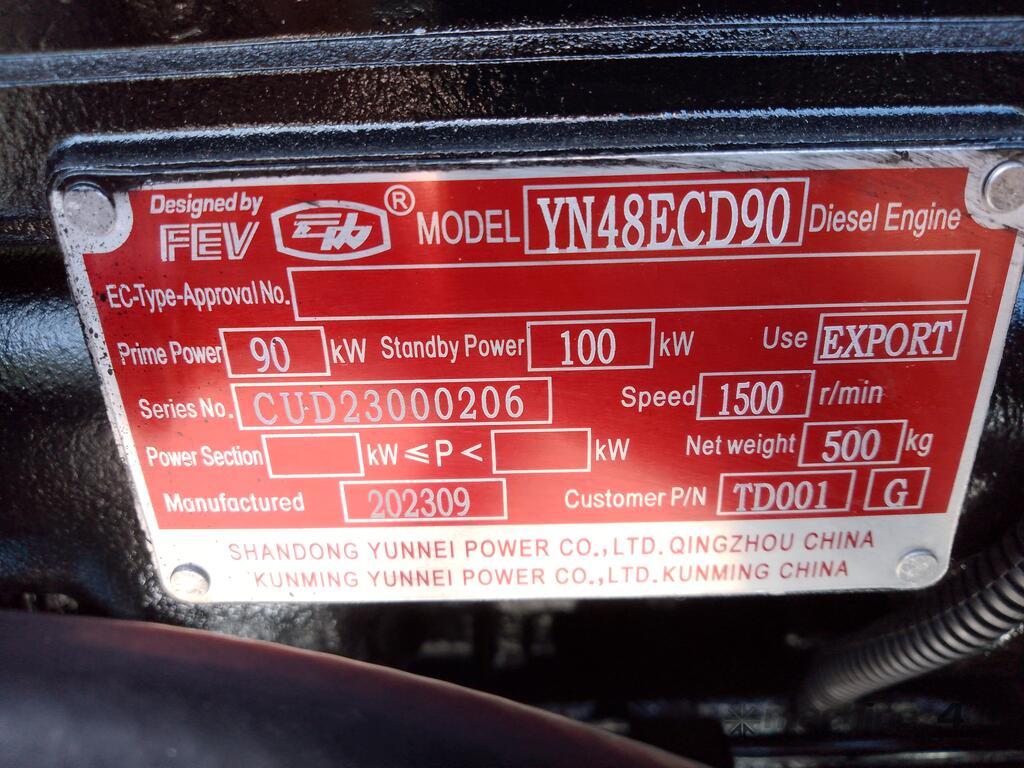

Engine Model YN48ECD90 D23000206
Bore 108mm
Stroke 132mm

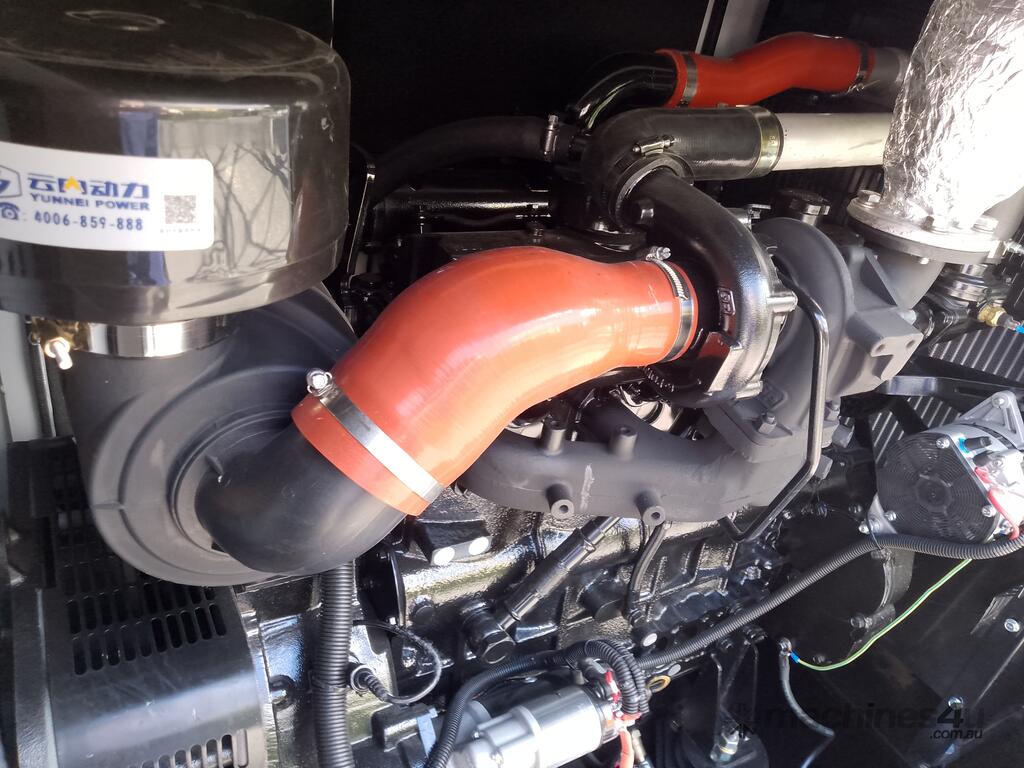

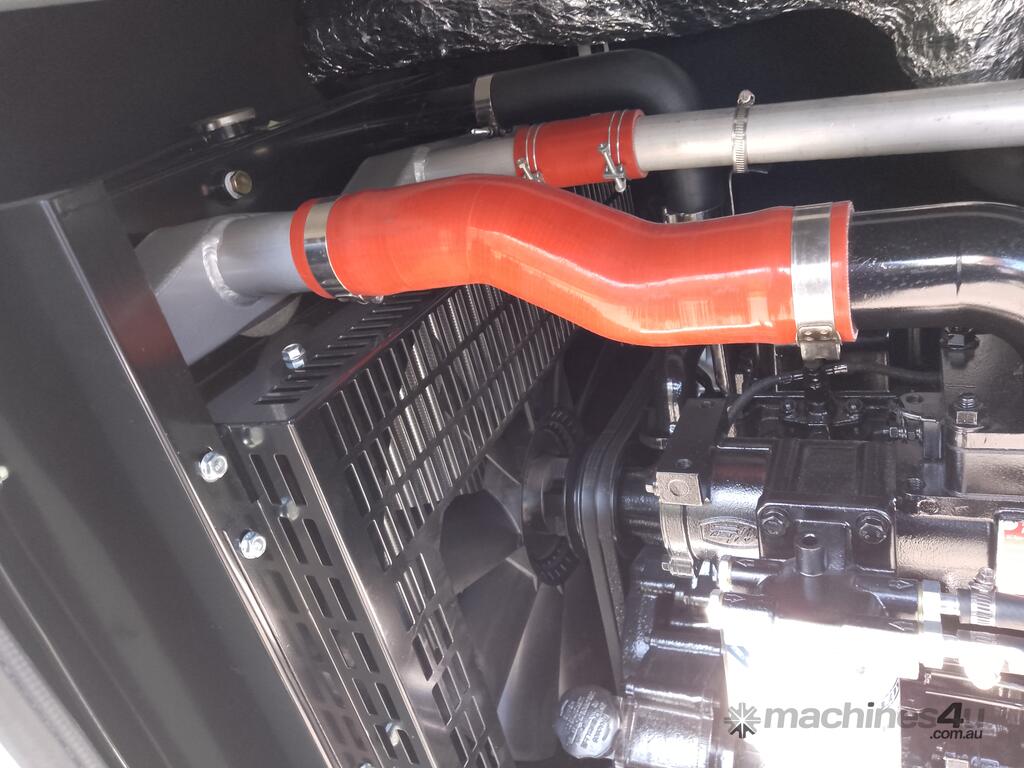

Air Aspiration Turbo Charged - Intercooled
RPM 1500

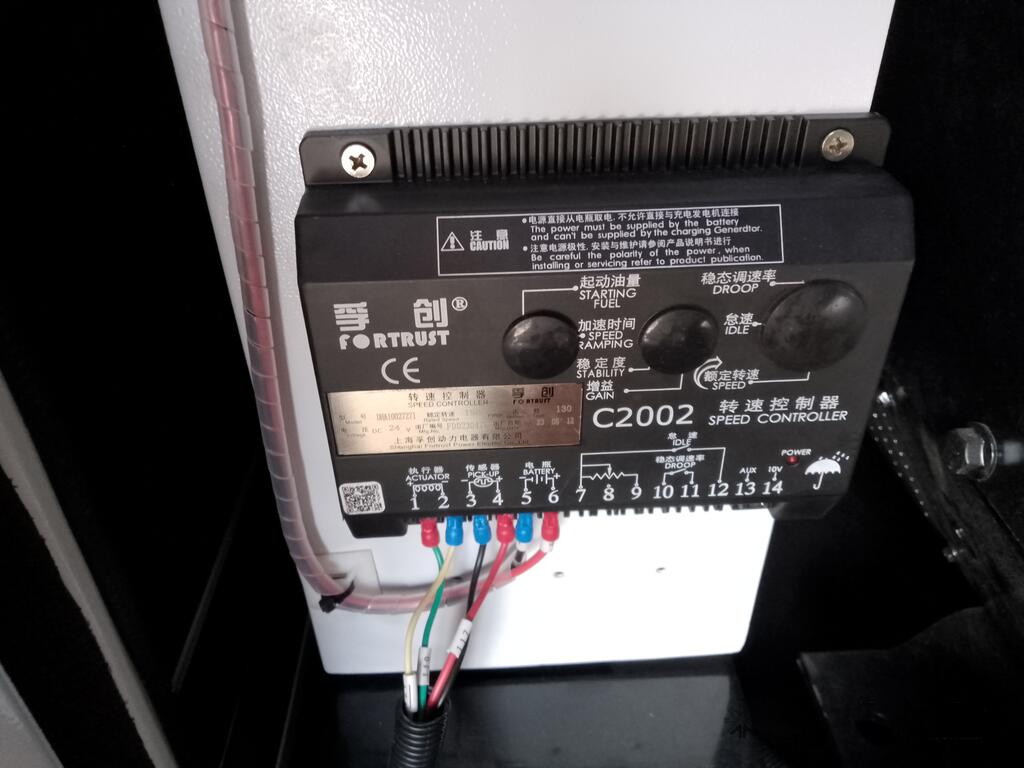

Speed Governor Electronic

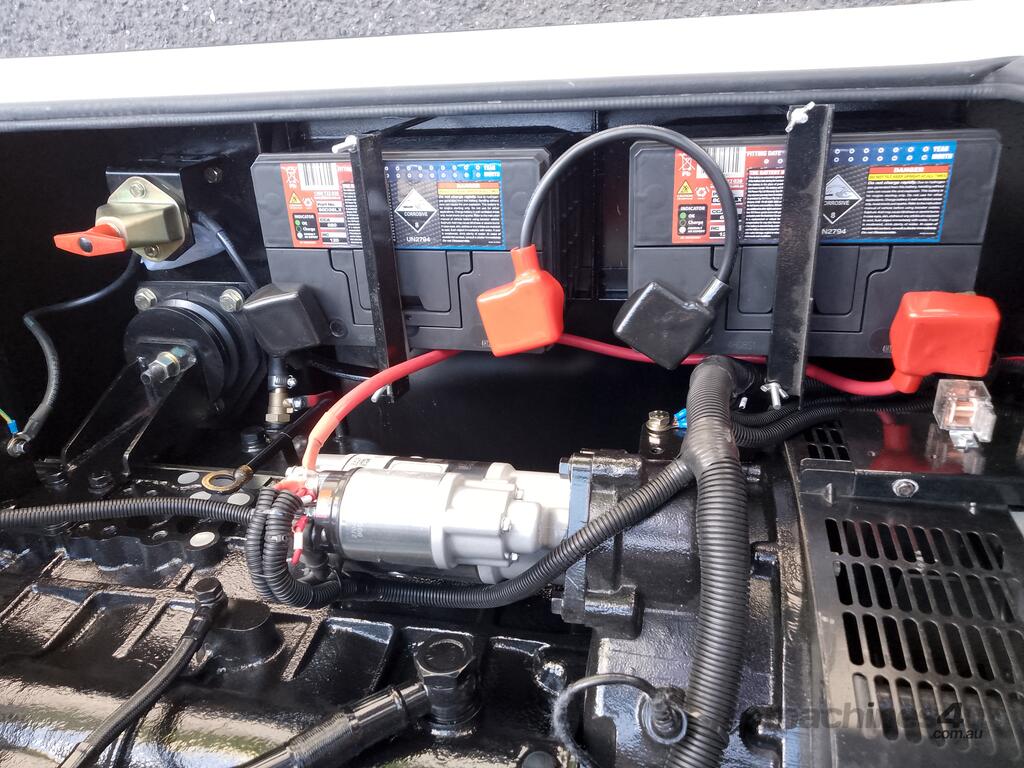

Start System 24V Batteries included
Fuel Consumption 19.8 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity N/A
Coolant Capacity N/A

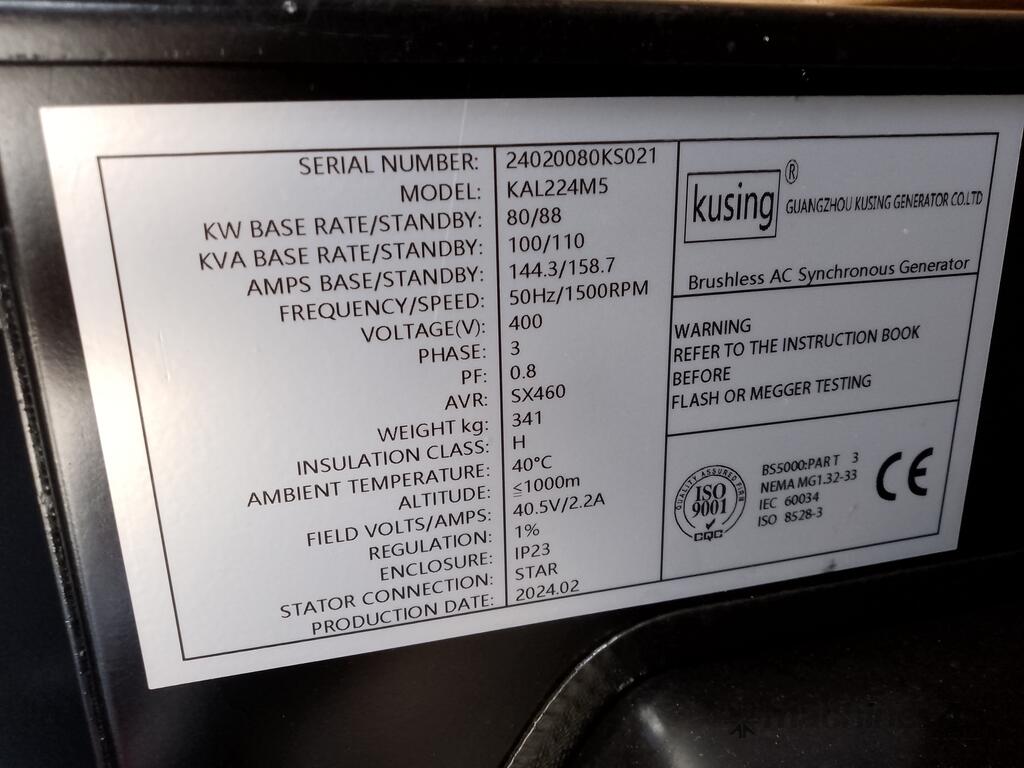

Alternator Make Kusing
Alternator Model KAL224M5 KS021 4 Pole Synchronous + AVR
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H
