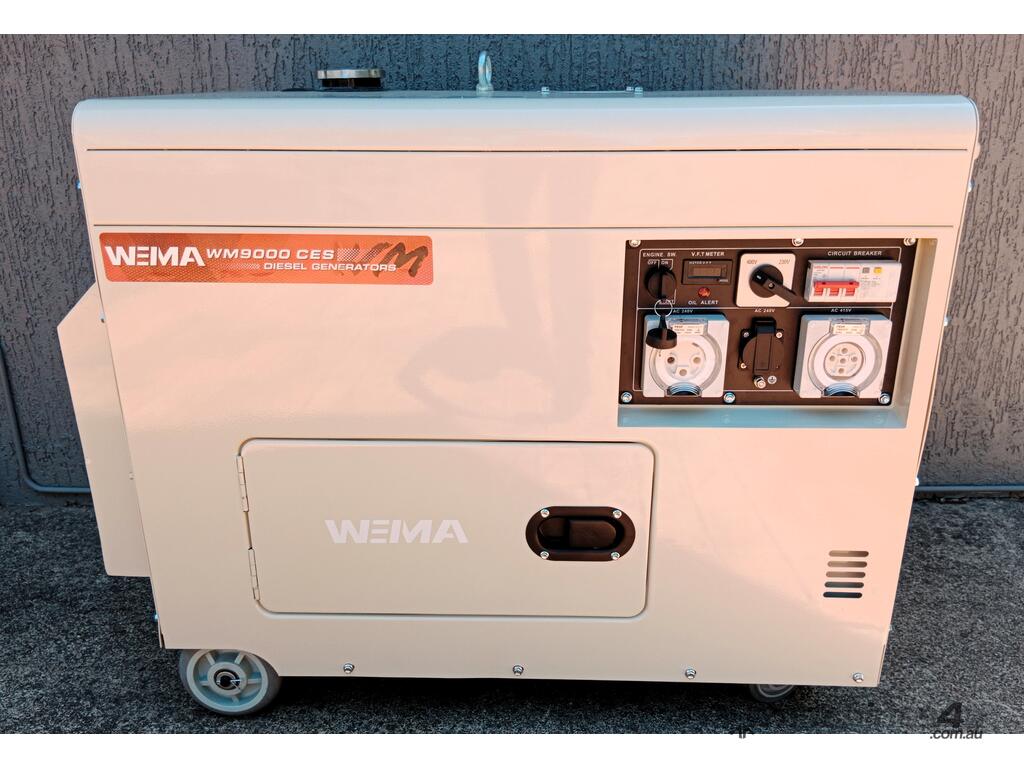

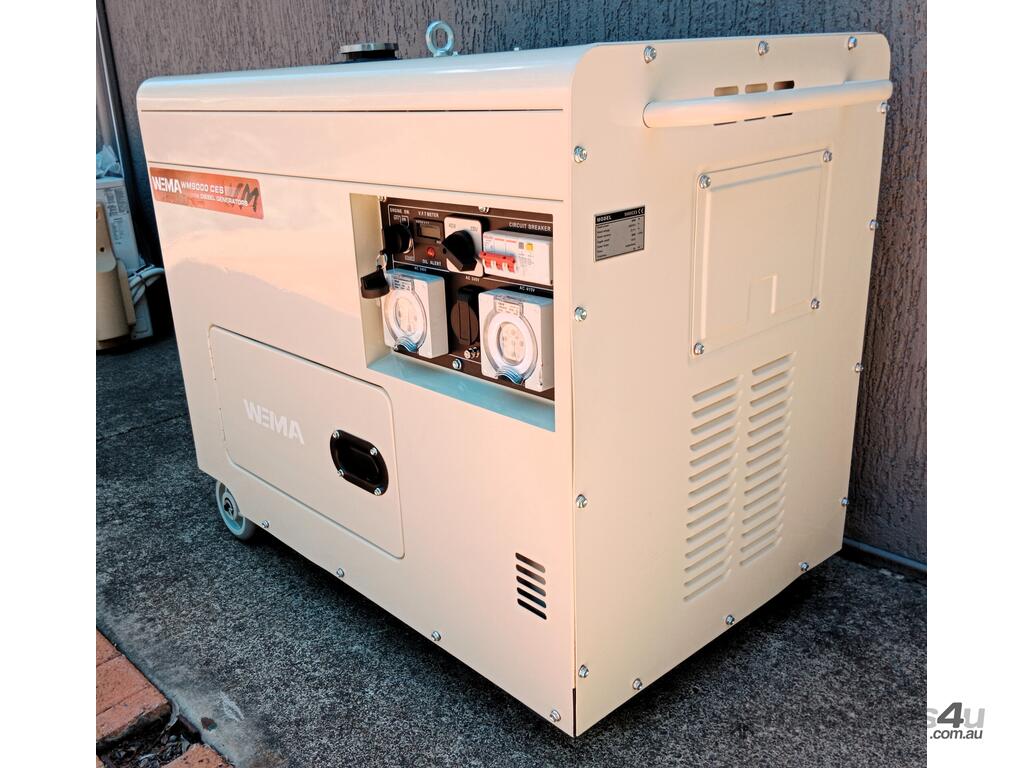

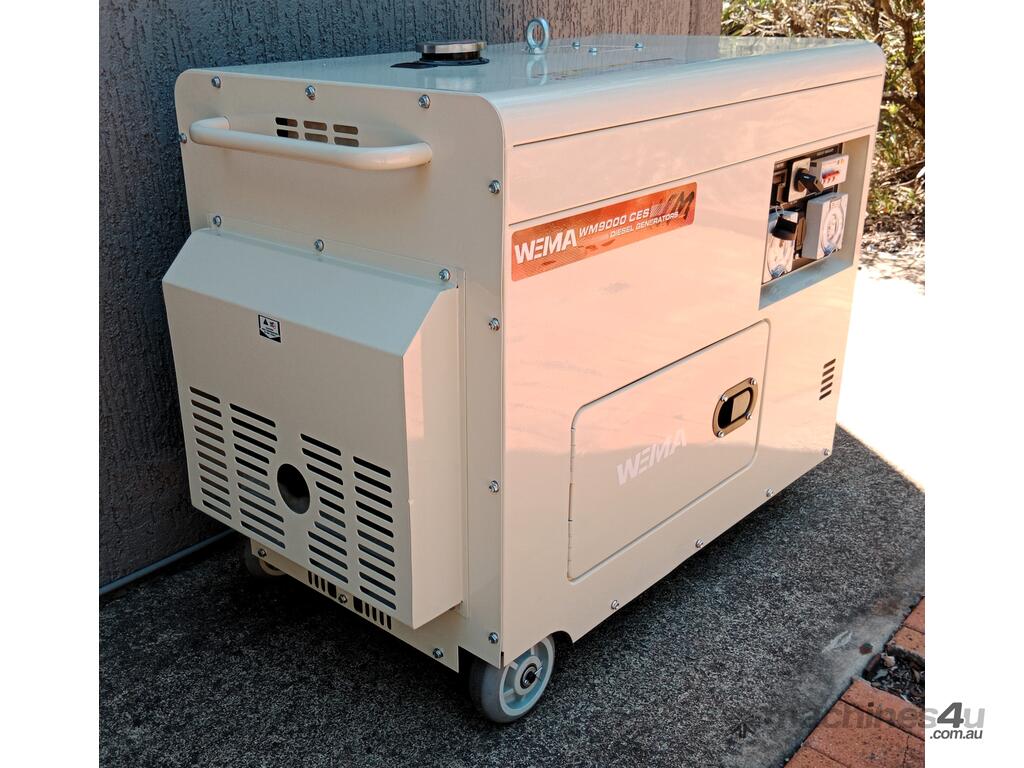

10KVA 3 Phase Standby Diesel Generator 240V / 415V

Introducing our new silenced standby 3 phase diesel generator.

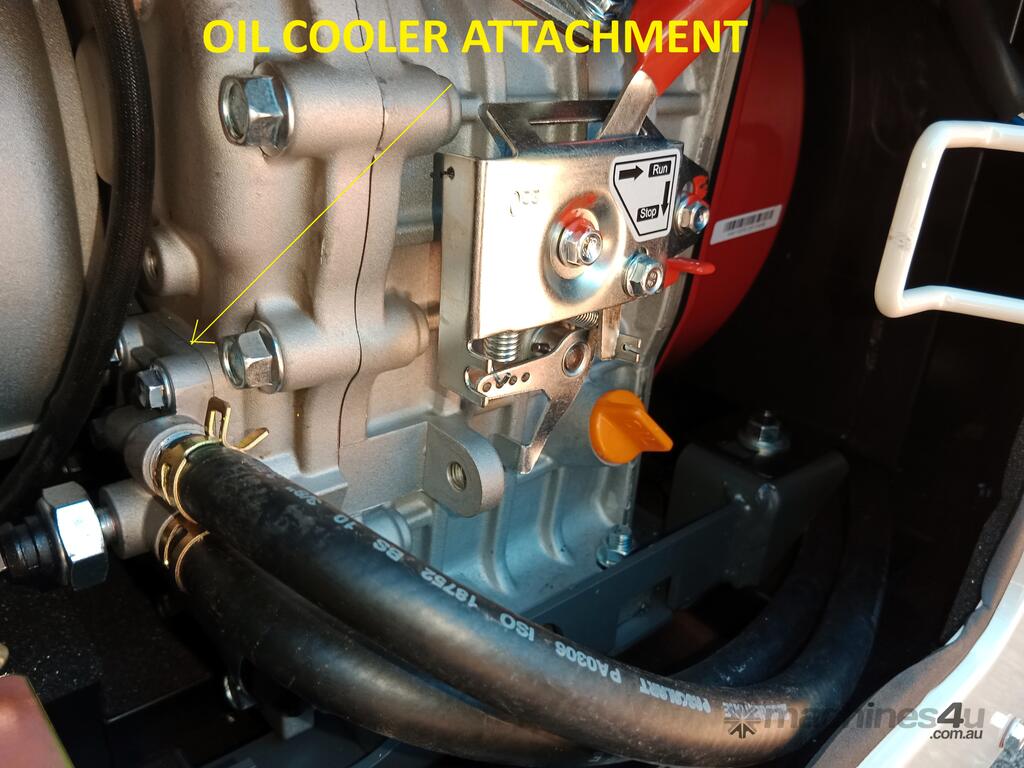

This unique air cooled diesel generator has the oil cooler attachment which assists cooling the engine oil via the fan flywheel.

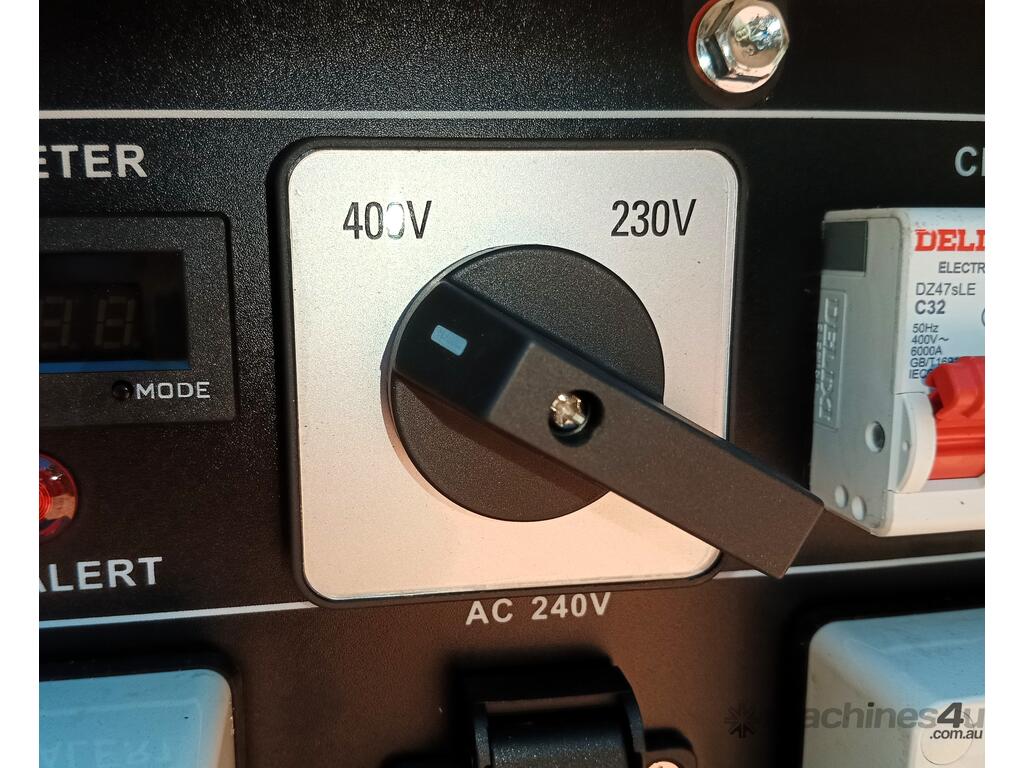

With the convenience of utilizing this generator for single phase 240V application, simply turn the changeover switch from 415V to 240V.
Suitable for back up power when the mains power is interrupted or for providing power in remote places where mains power is unavailable.
Not recommended for prime power use.

Specifications
Generator Model WM9000CES-3P
Prime Power 10KVA / 8KW
Standby Power 11KVA / 8.8KW
Rated Current 13.9 Amps per Phase

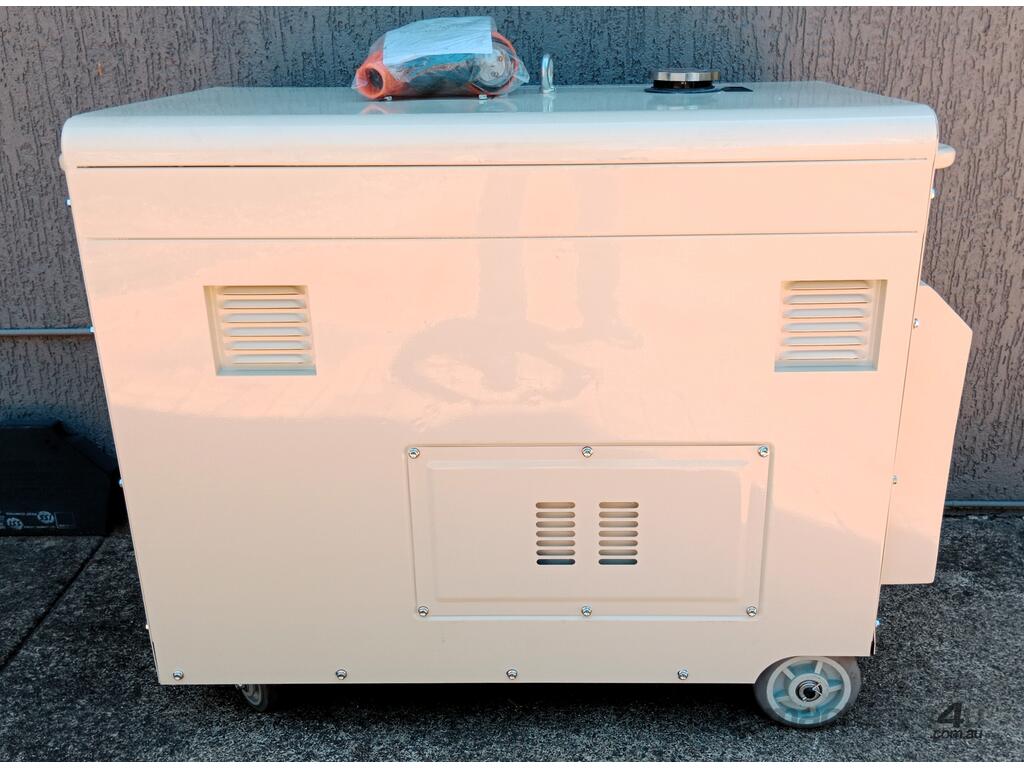

Canopy Silenced

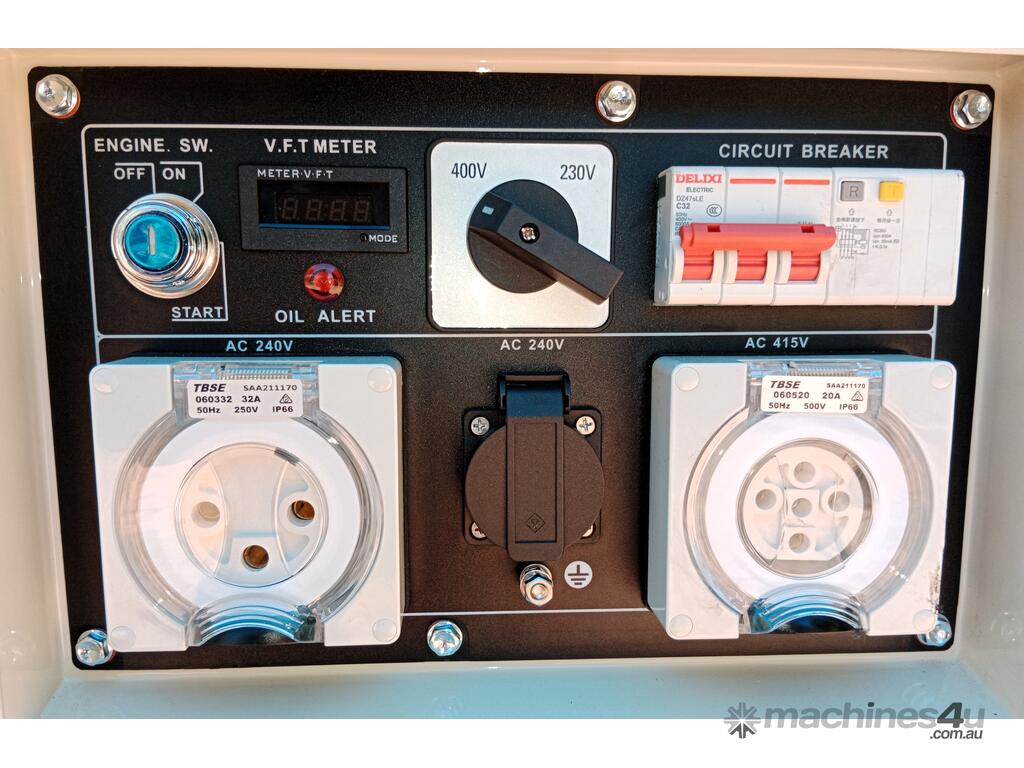

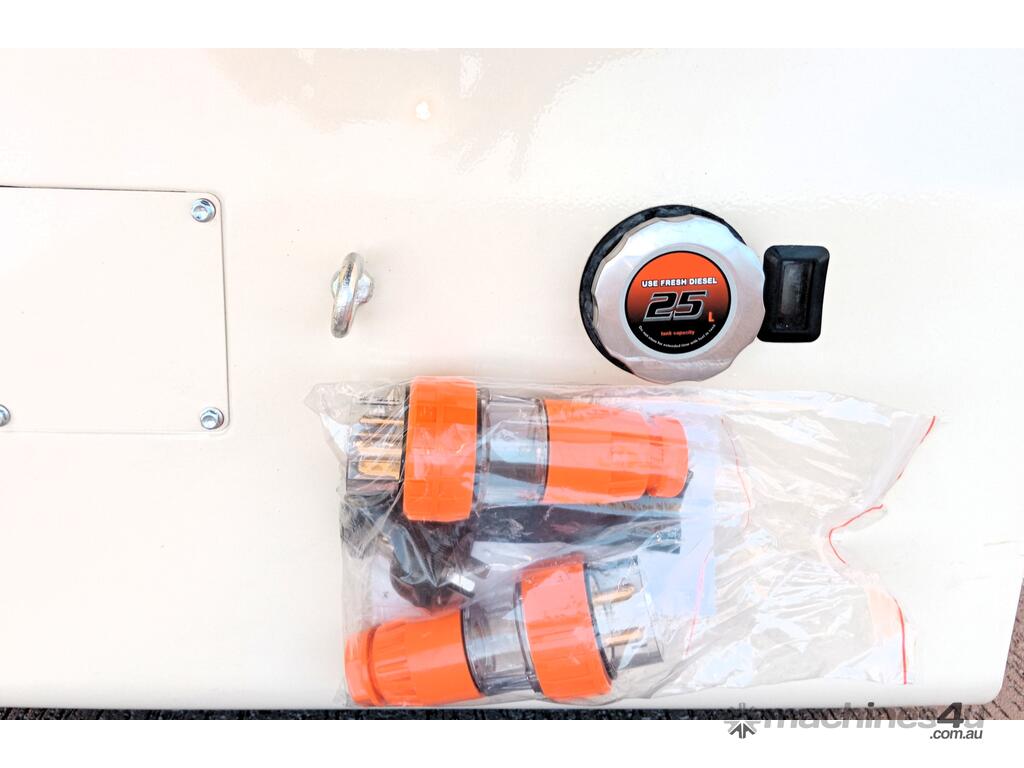

Power Outlets IP66 32A 240V,,, 15A 240V,,, IP66 20A 415V
Fuel Tank Capacity 25 Litres
Noise Level 75dB 7m
Controller Display Multi-function LED
Main Circuit Breaker (RCD) 32A
Dimensions 114 x 60 x 86cm
Shipping Dimensions 116 x 64 x 88cm
Weight 220Kg
Shipping Weight 240Kg
Engine Make Weima
Engine Model Air Cooled Diesel WM1100FE with Oil Cooler
Displacement 668cc
Maximum Horsepower 13
RPM 3000
Speed Governor Mechanical
Start System 12V Electric Start
Fuel Consumption Est. 1.2 L/hr
Oil Specification 15W/40
Oil Sump Capacity 2 Litres
Fuel Type Diesel
Low Oil Alarm Yes
Alternator Type Brushed
Voltage Regulator AVR
Voltage Output 240V / 415V
Phase Output Single & 3 phase - Changeover Switch
Frequency 50Hz
Power Factor 0.8
Insulation Class F

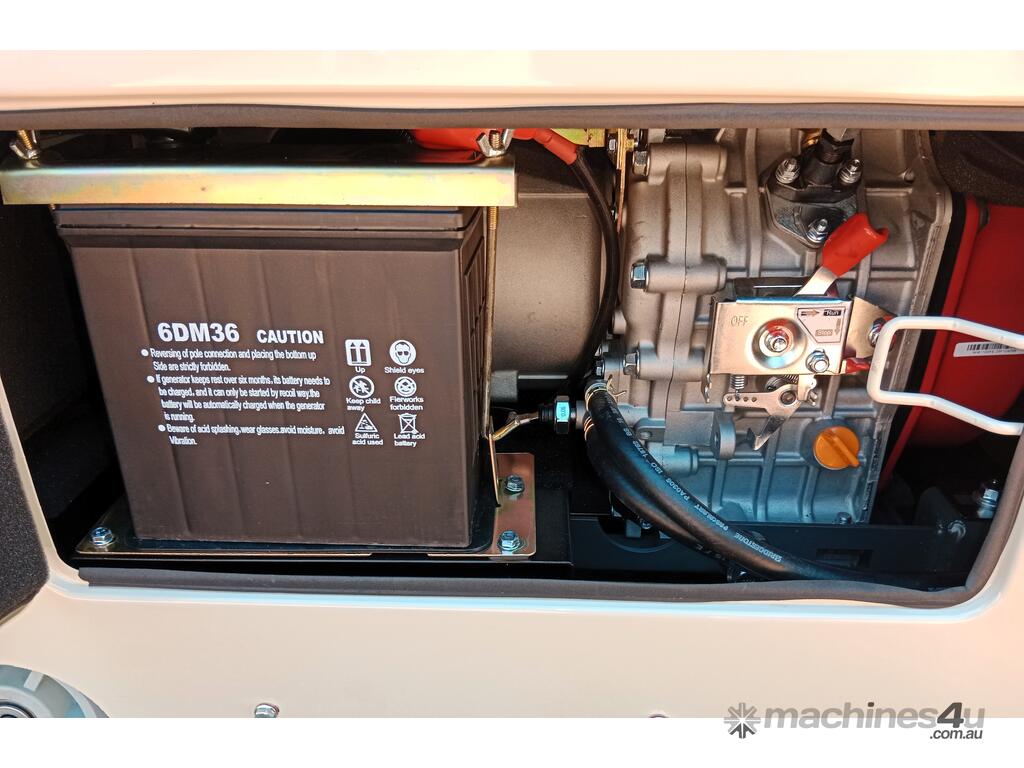

12V Battery Included

Warranty is 12 months parts replacement
Spare parts readily available from our warehouse in Darra QLD
We can offer shipping to most places throughout Australia
