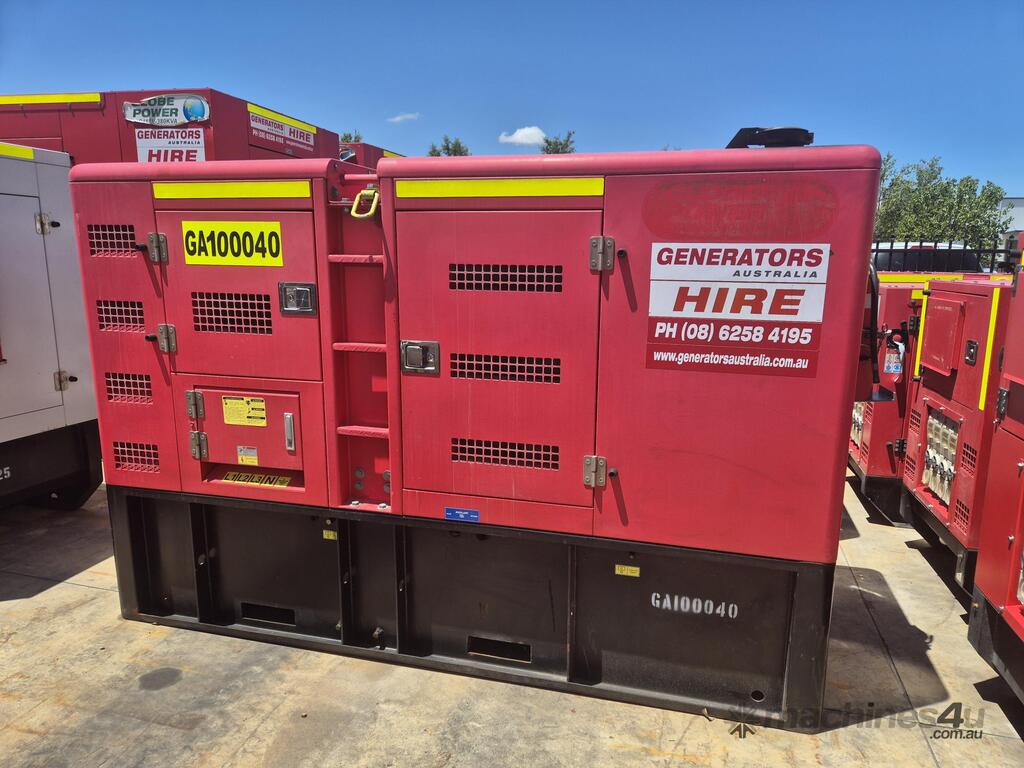

Our YNS110DZ generator delivers 100 kVA prime power and 110 kVA standby power, driven by a reliable Deutz BF4M1013EC engine. Designed for commercial, construction and onsite applications, it operates efficiently with after-cooled turbocharging and low fuel consumption of 24.5 L/h at full load. Built with a 50°C rated radiator, powder-coated canopy and anti-vibration mounting, this unit is engineered for durability in Australian conditions. The DSE controller provides automatic start/stop, alarms, and remote monitoring for simple and safe operation.
Features:

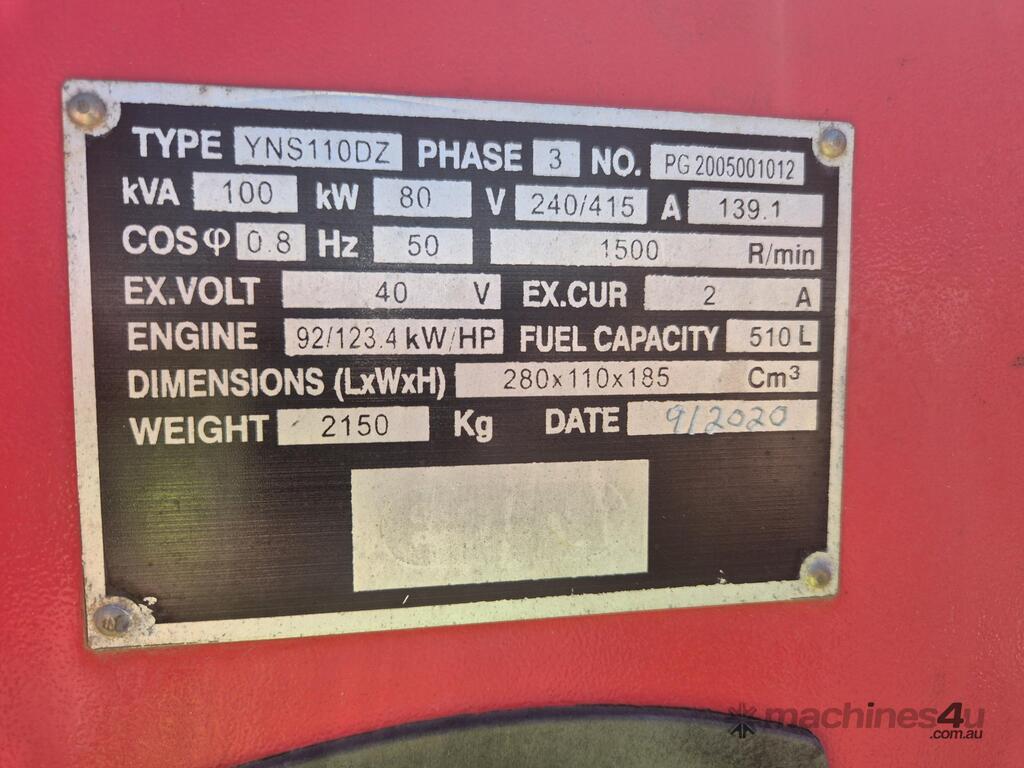

- Prime Power: 80 kW / 100 kVA
- Standby Power: 88 kW / 110 kVA

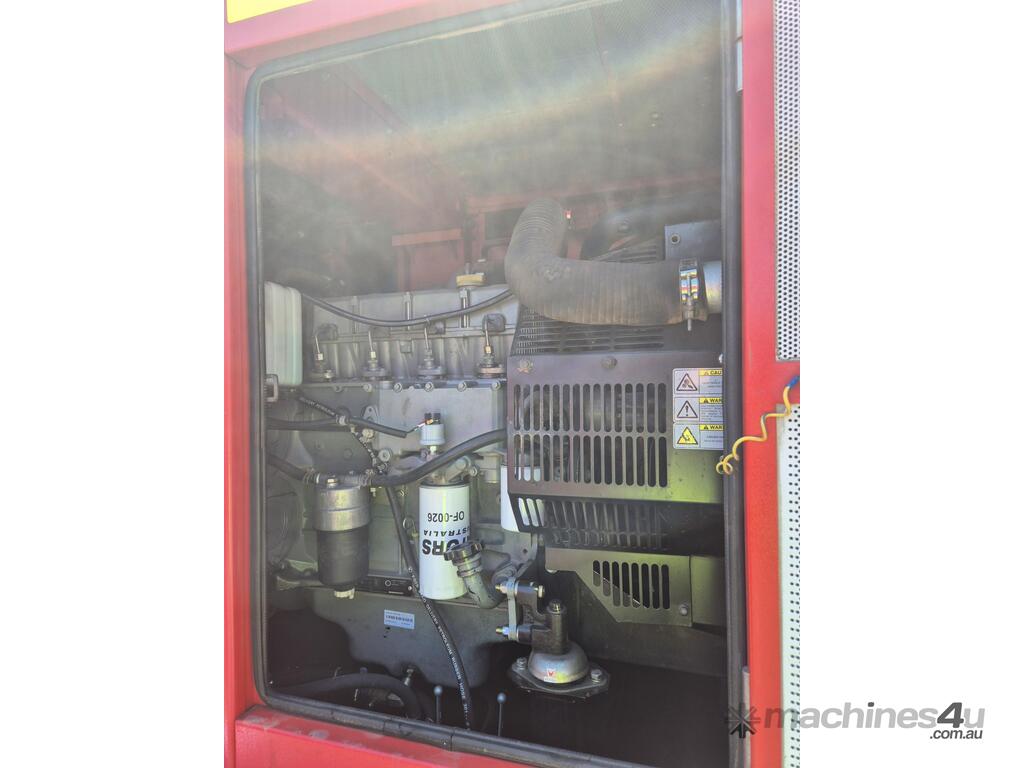

- Engine: Deutz BF4M1013EC, 4-cylinder turbocharged
- Fuel Consumption: 24.5 L/h (100% load)
- Displacement: 4.76 L
- Compression Ratio: 19:1
- Alternator: Yanan SLG224C1, self-excited
- Voltage Regulation: ±0.5%
- Protection: IP21 alternator protection, Class H insulation
Standard Features:
- 50°C rated radiator
- Powder-coated finish
- Double muffler
- Emergency stop

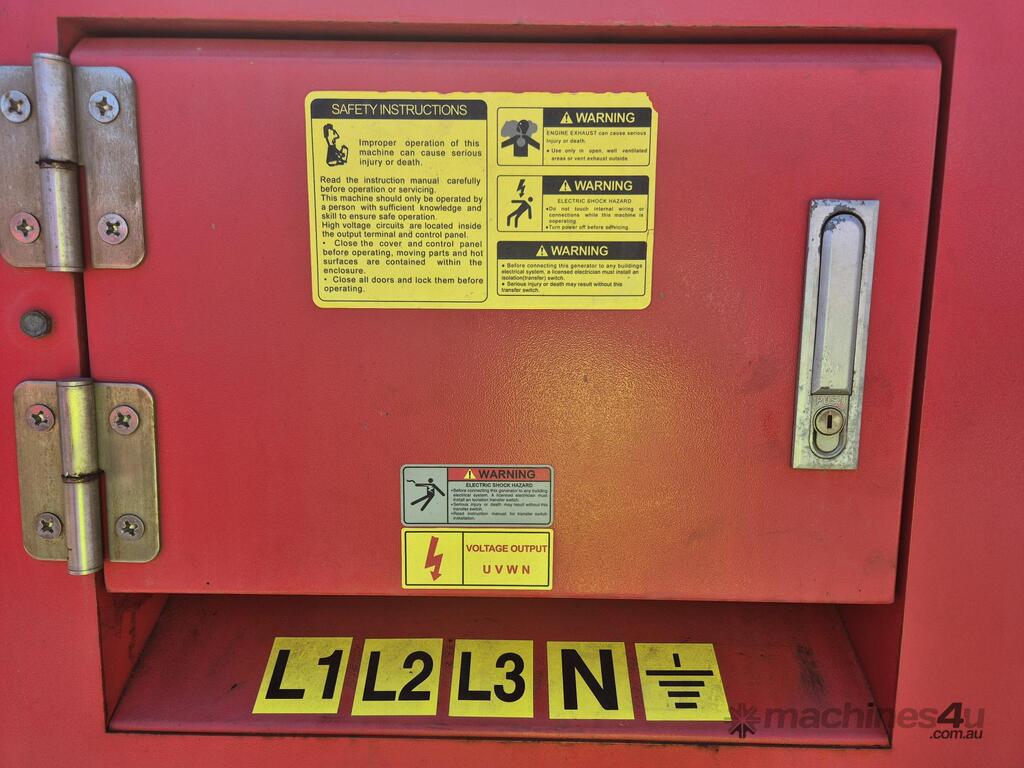

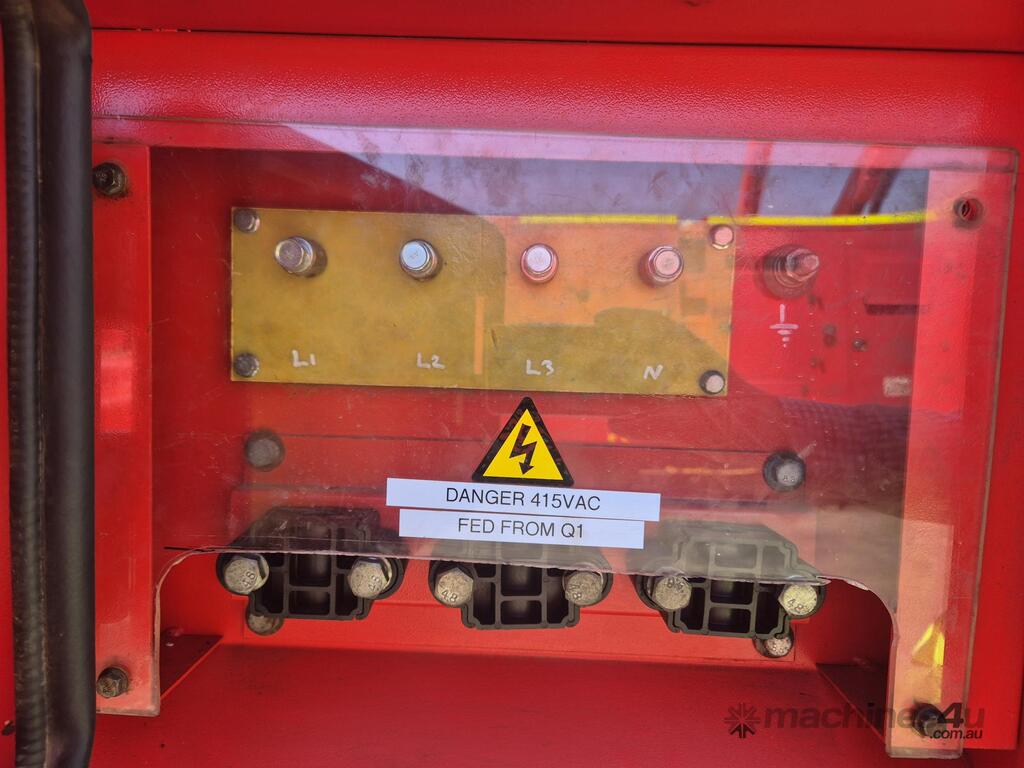

- Outlets: 1 x 3-phase 32A, 2 x 1-phase 15A
- ATS available
- Noise Level: 75 dB at 7m
- Dimensions (L x W x H): 3.2 x 1.1 x 1.47 m
- Dry Weight: 2100 kg
Applications:
- Construction sites
- Commercial backup power
- Rural operations
- Workshops and small industrial facilities
- Portable temporary power
Call Mark for more information.
