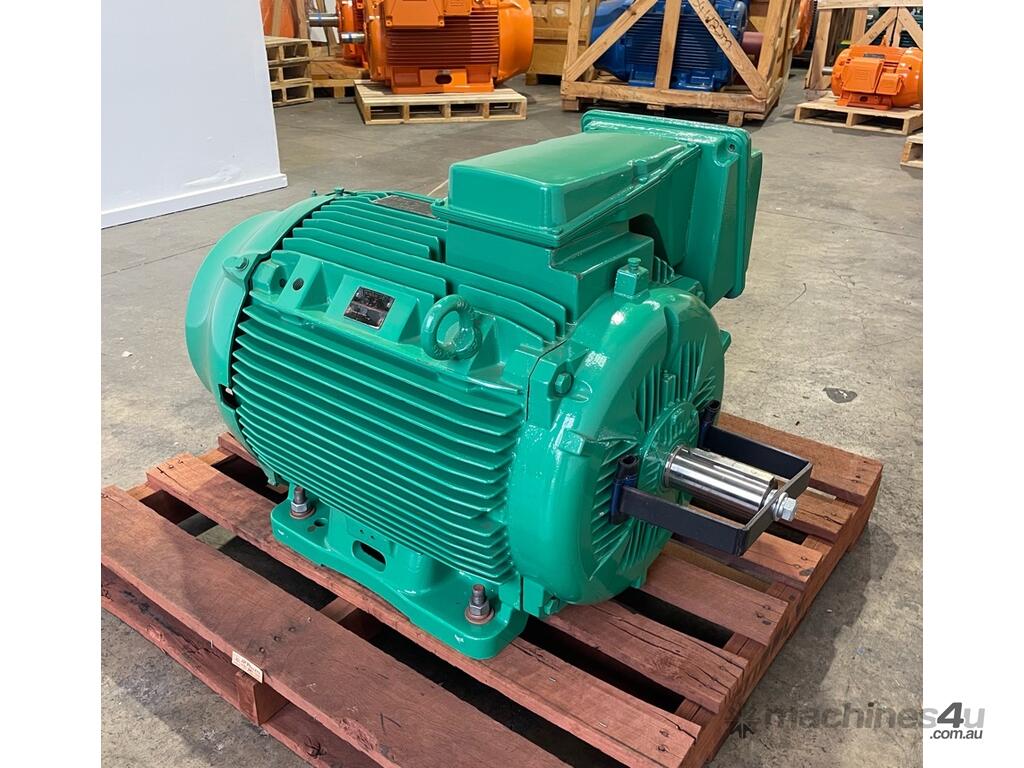

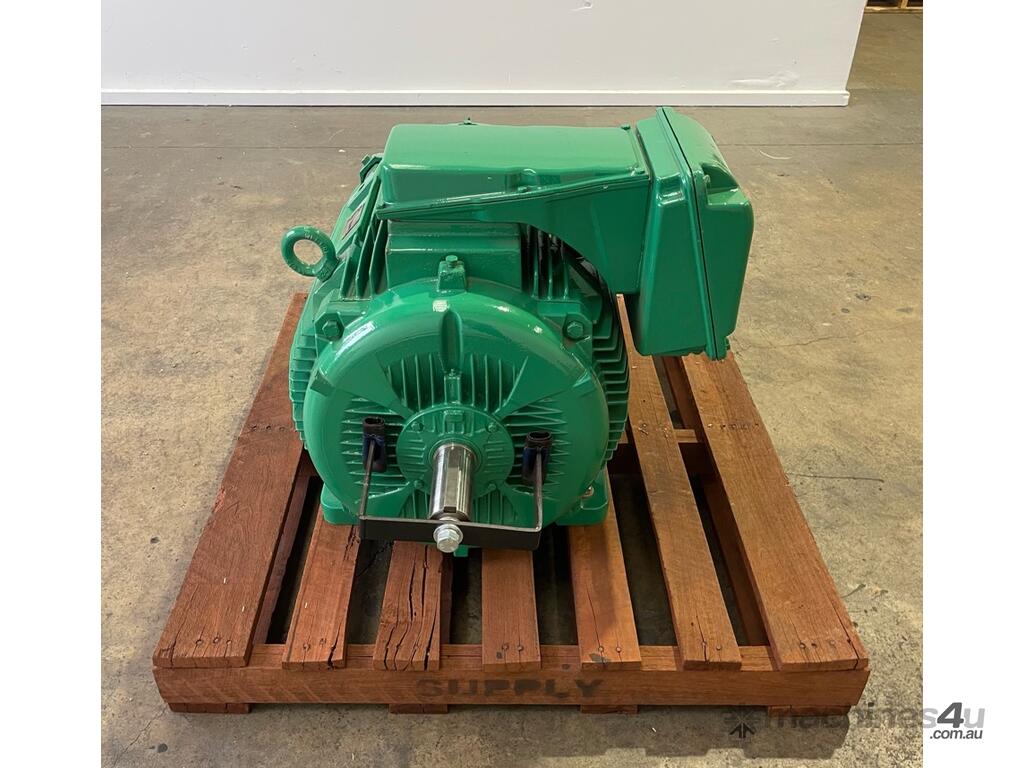

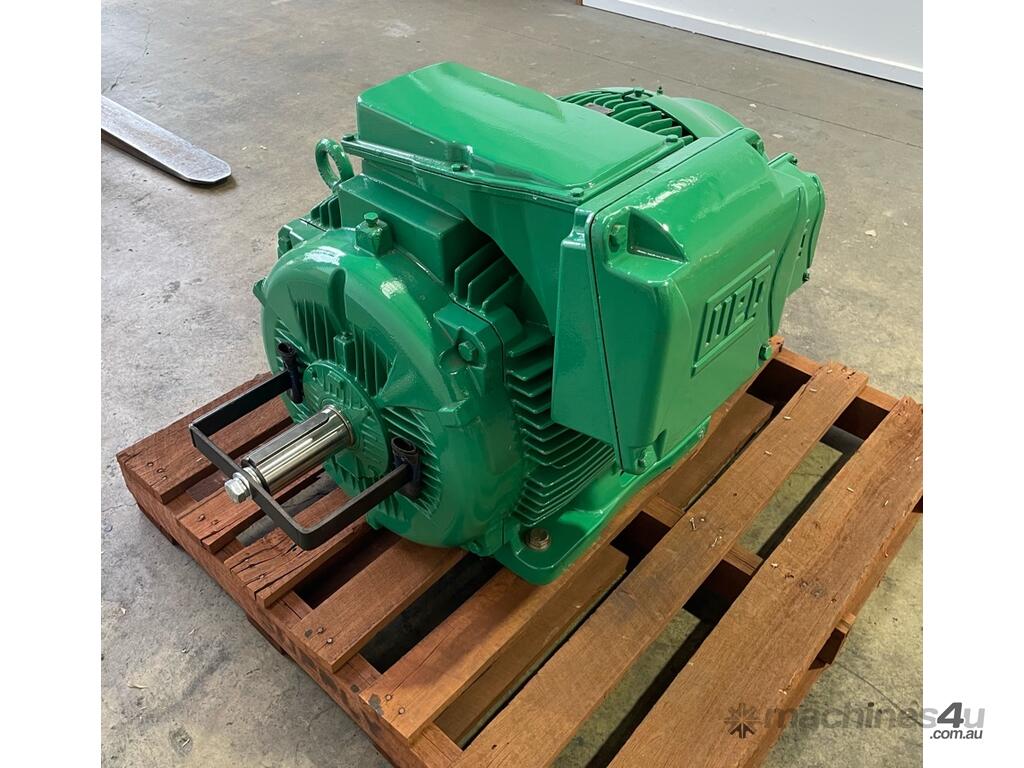

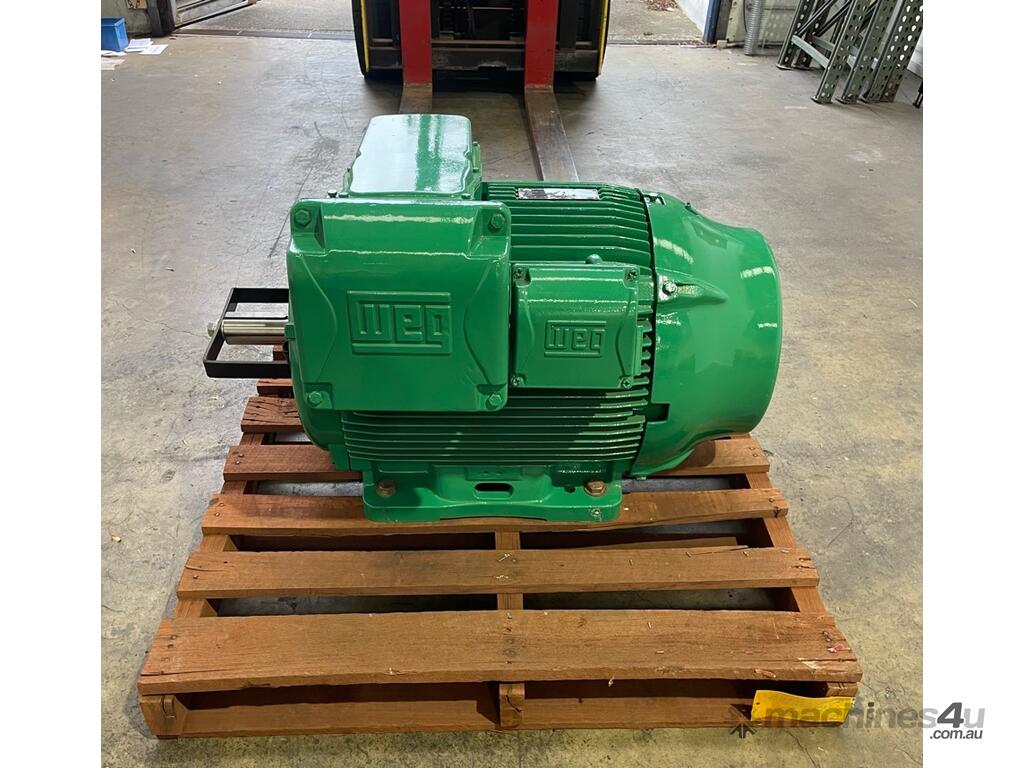

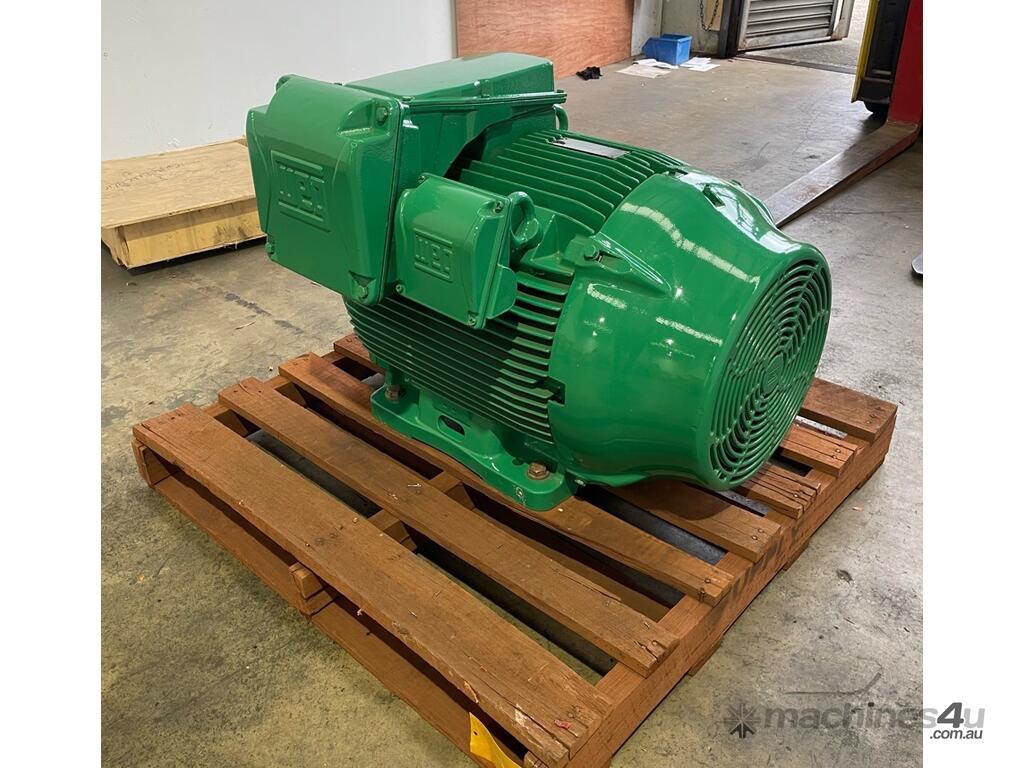

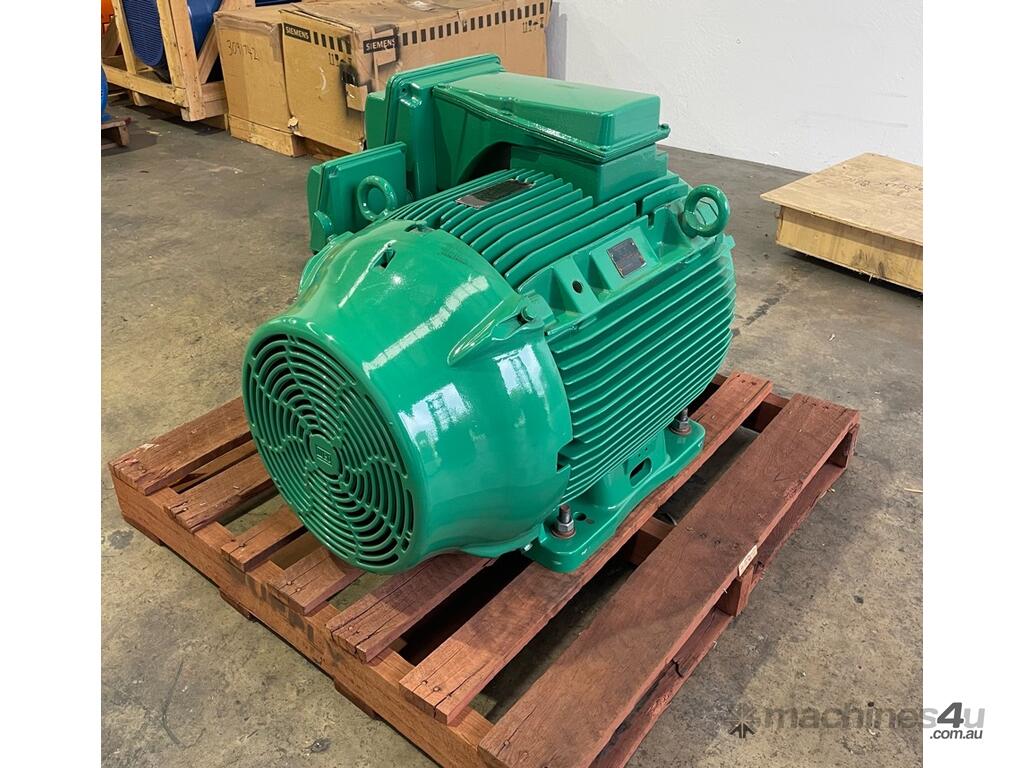

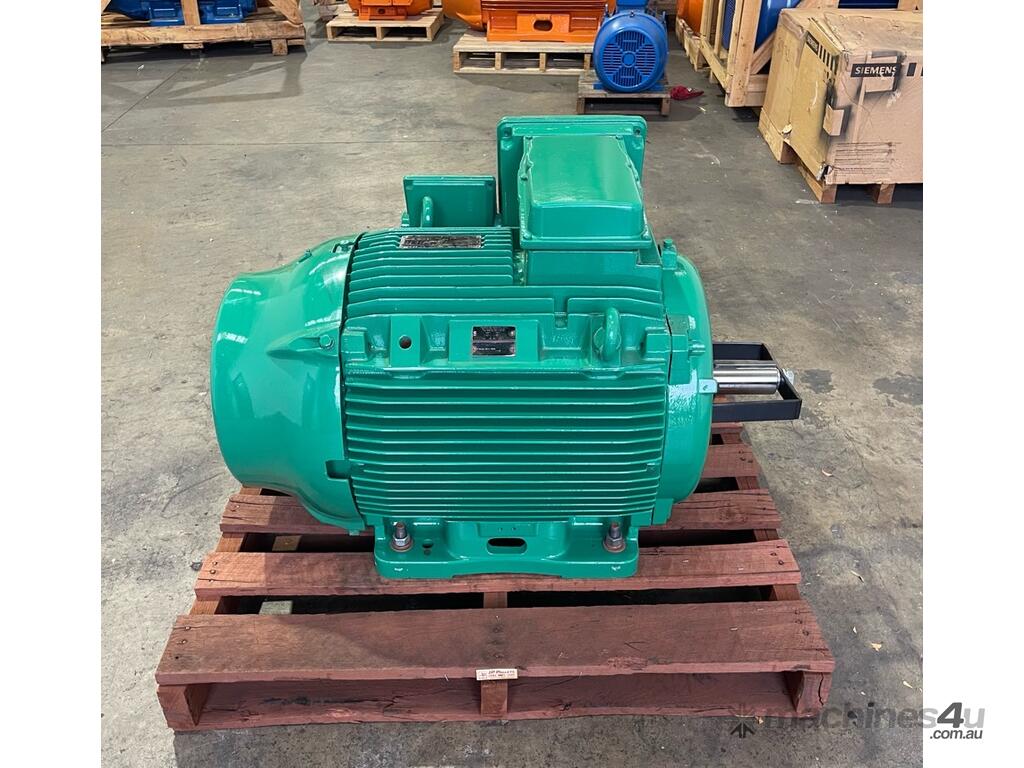

110 kw 150 hp 2-pole 2980 rpm 415v Foot Mount 280S/M frame IP66 Electric Motor WEG Model K49 W22 unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: WEG
YOM: 2014 (Brazil)
Model: K49 W22
Power: 110 KW (150 HP)
Speed: 2-pole (2980 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 184 A
Mounting: B3 Foot
Frame: 280S/M
Protection Rating: IP66
Insulation Class: H
Weight: 921 kg
Centre Shaft Height: 280 mm
Shaft DIA: 65 mm (by 140mm long)
Total Length: 1073 mm (incl. shaft)
Total Width: 748 (incl. standard RHS to D.E. box.... can be LHS or top mount also)
Total Height: 685 mm
Feet Measurements:
- Across 'A' - 457 mm
- Front to Back 'B' (2-holes) - 368mm and 419mm
- Front hole to shaft 'C' - 190 mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare. N/L test run in motor workshop. Factory Storage.
exStock Seaford VIC 3198 Australia
Available for immediate despatch - freight services available on request.
