110 kw 150 hp 4-pole 1485 rpm 415 volt B3 Foot Mount 280S/M frame IP56 Mining AC Electric Motor Toshiba Type ZWE280M-4 New unused
Category: AC Squirrel Cage Electric Motor

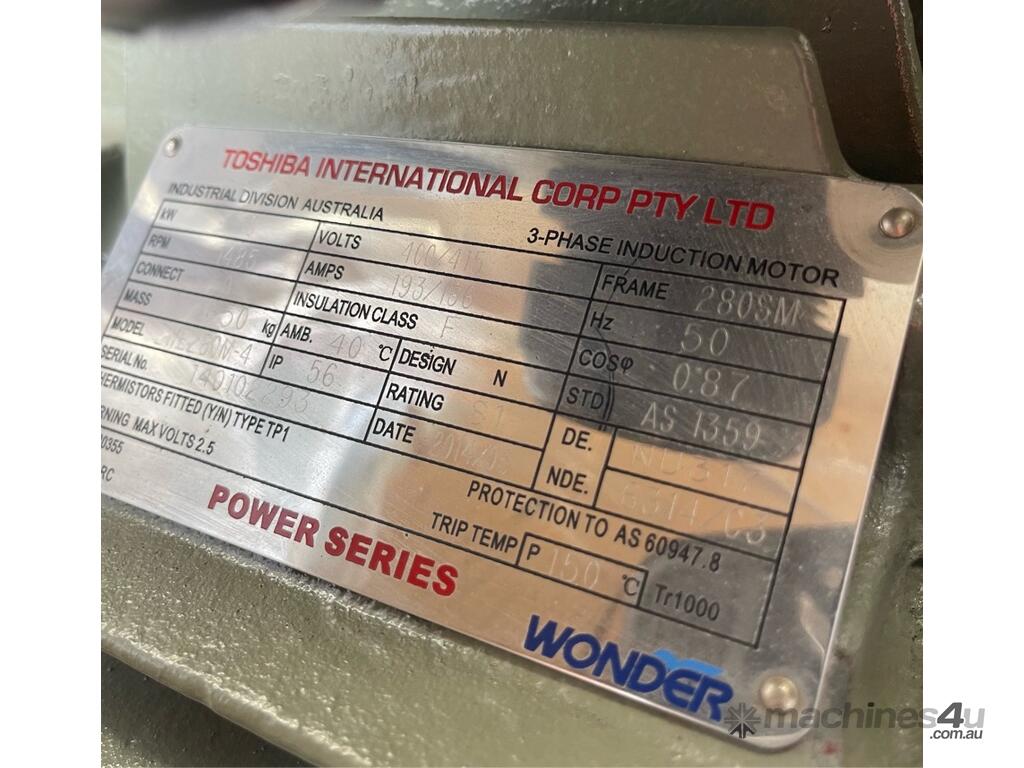

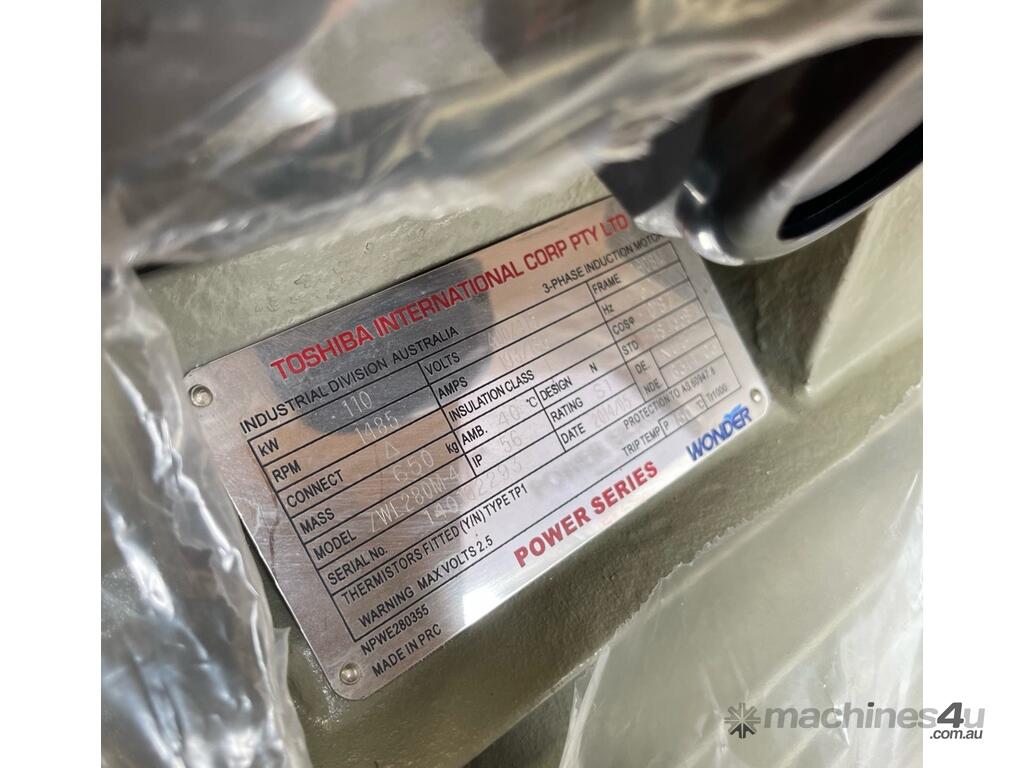

Make: Toshiba
Model: ZWE280M-4
Power: 110 KW (150 HP)
Speed: 4-pole (1485 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415 v
Full Load Amperage: 186 A
Mount: B3 Foot
Frame: 280S/M
Weight: 650 kg
Protection Rating: Mining IP56
Inclusions:
- Drive-End Roller Bearing NU317

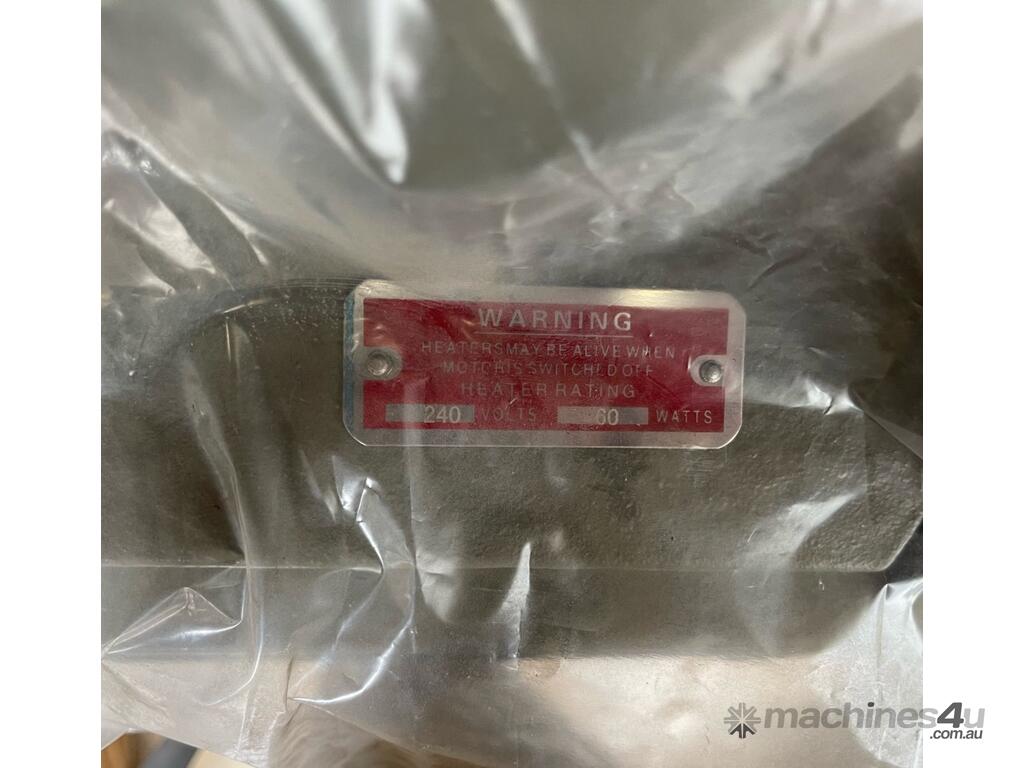

- Heaters
Critical DIMS:
Total Length: 1046 mm (incl. shaft)
Total Width: 542 mm
Total Height: 680 mm (incl. terminal box)
Shaft DIA: 80 mm
Shaft Length: 170 mm
Centre shaft height: 280 mm
Feet Measurements: Across 'A' - 457 mm, Front to Back (2-holes) - 368 mm and 419 mm
Front hole to shaft 'C' - 190 mm

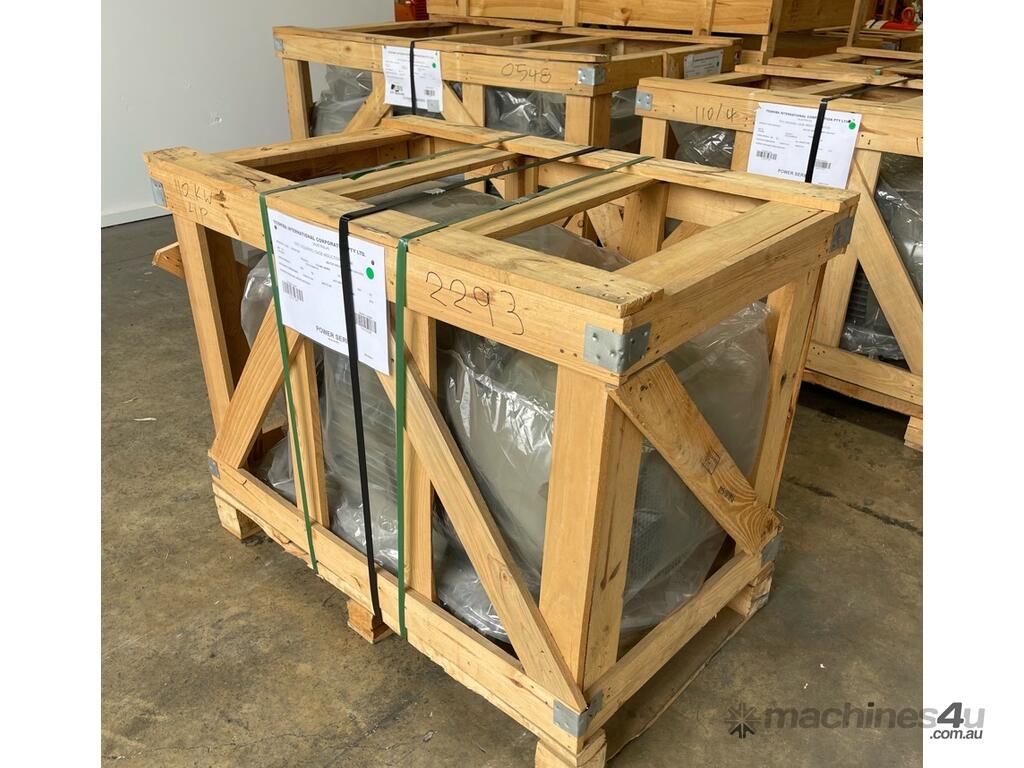

Available QTY: 3

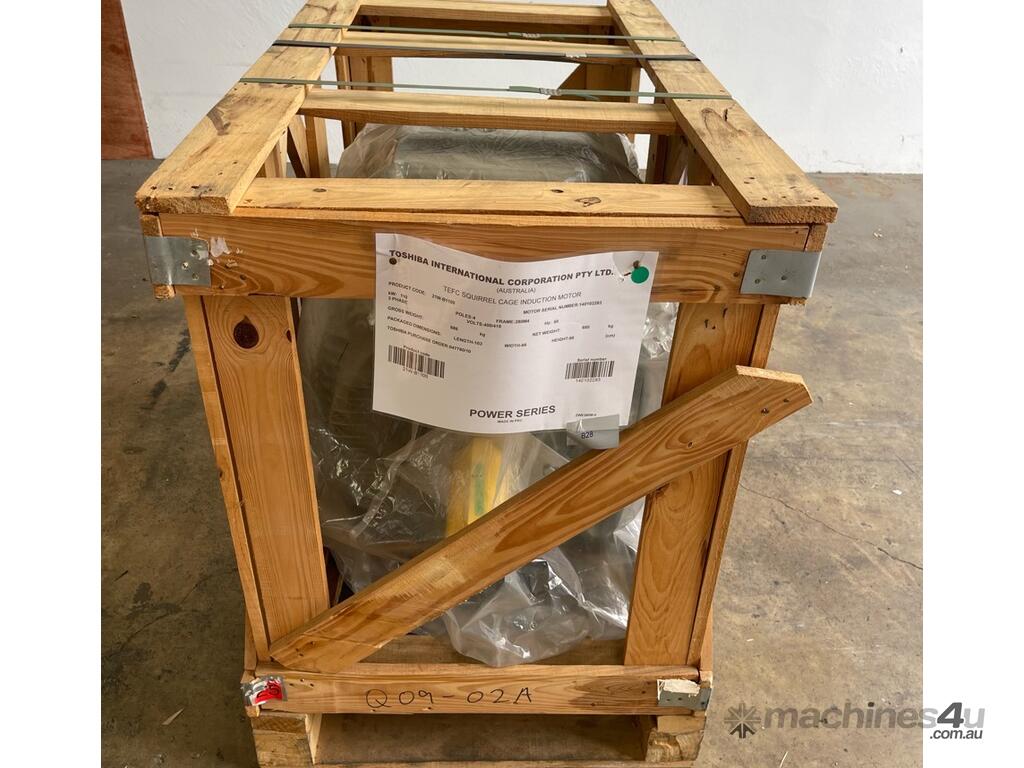

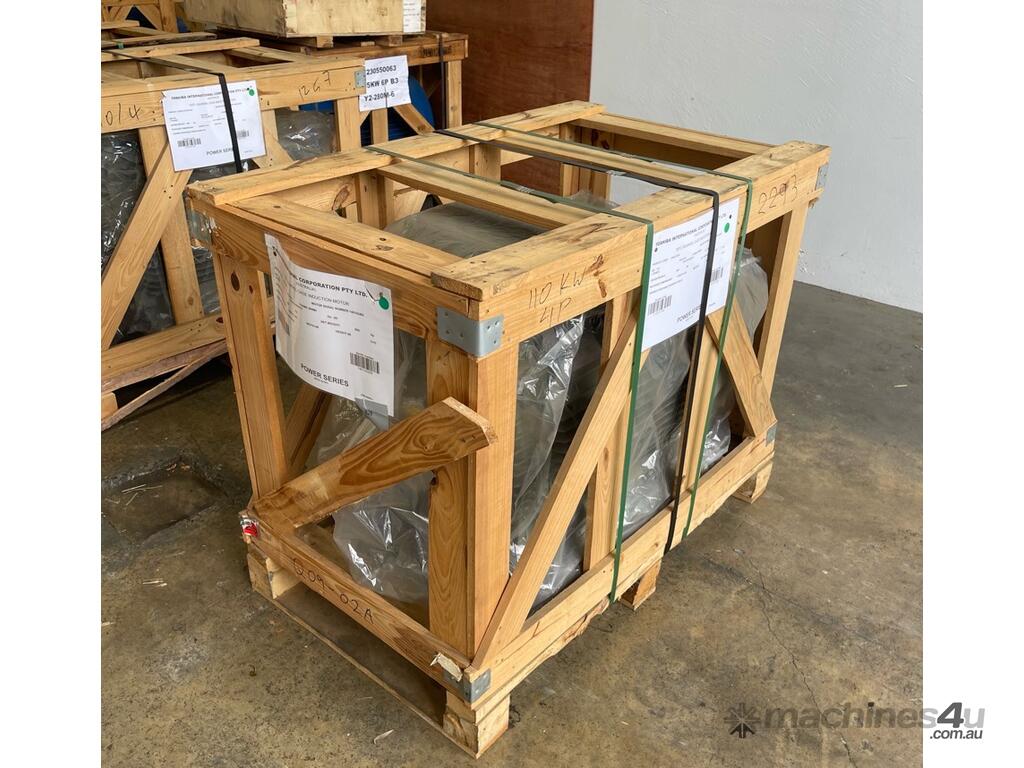

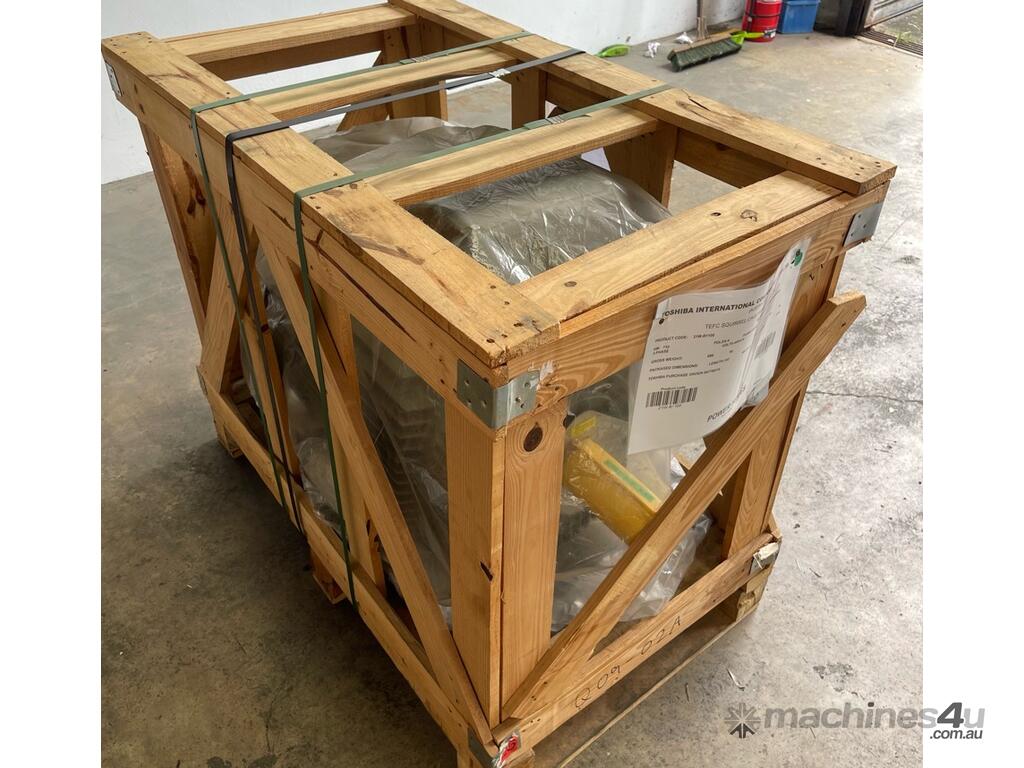

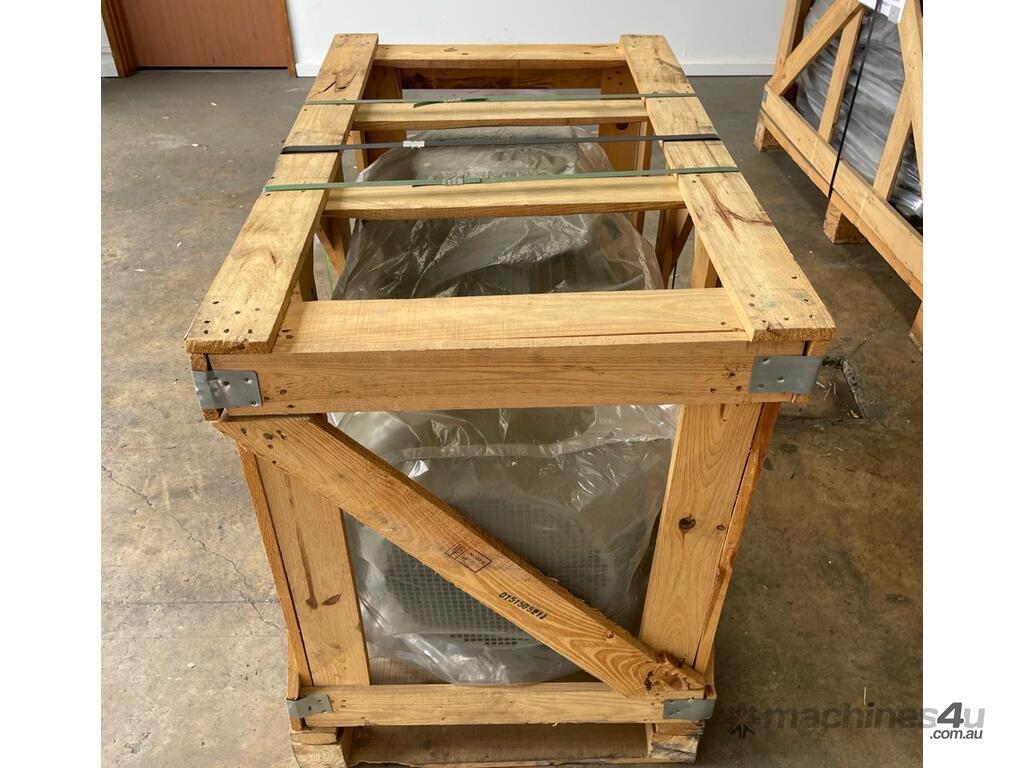

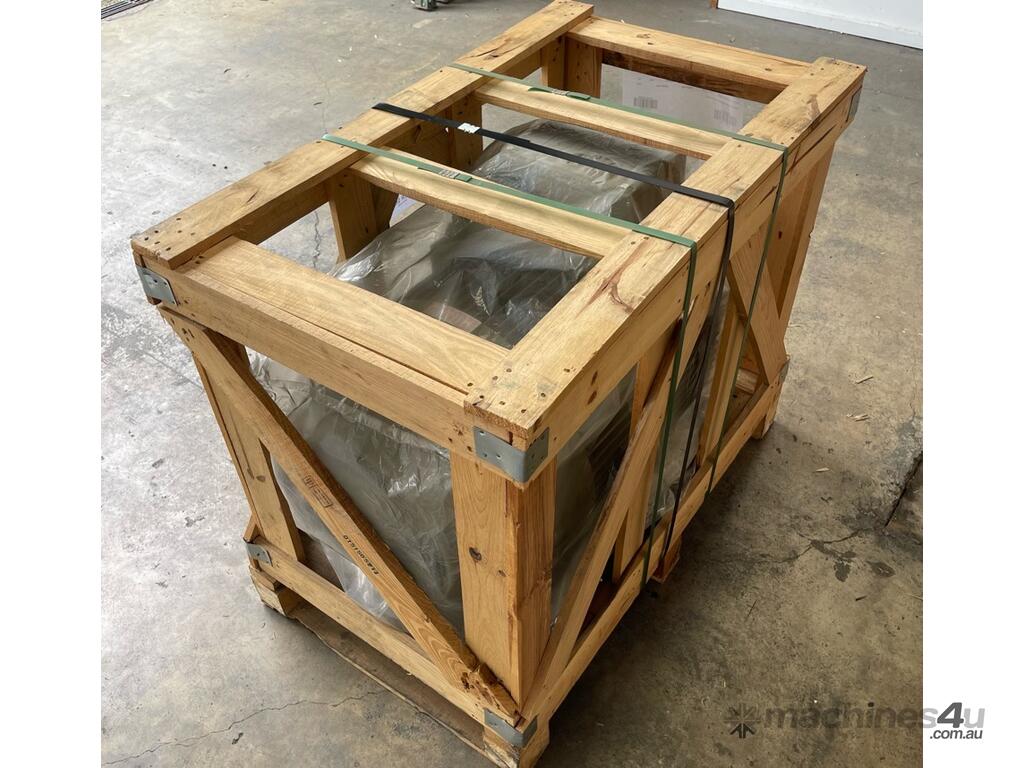

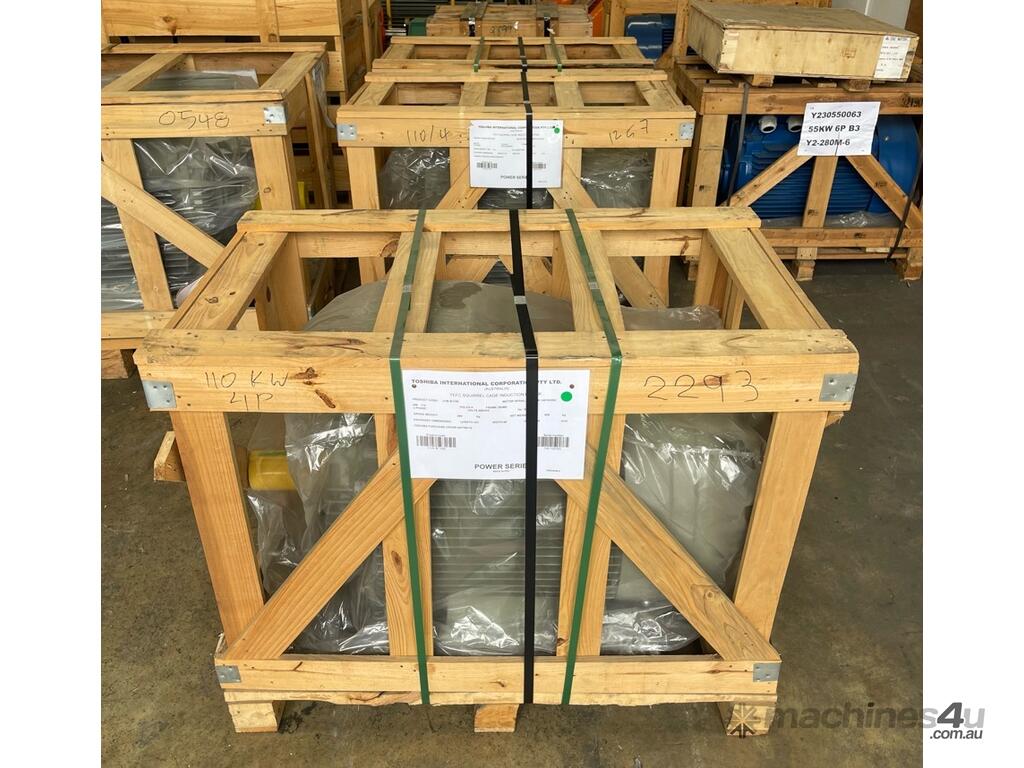

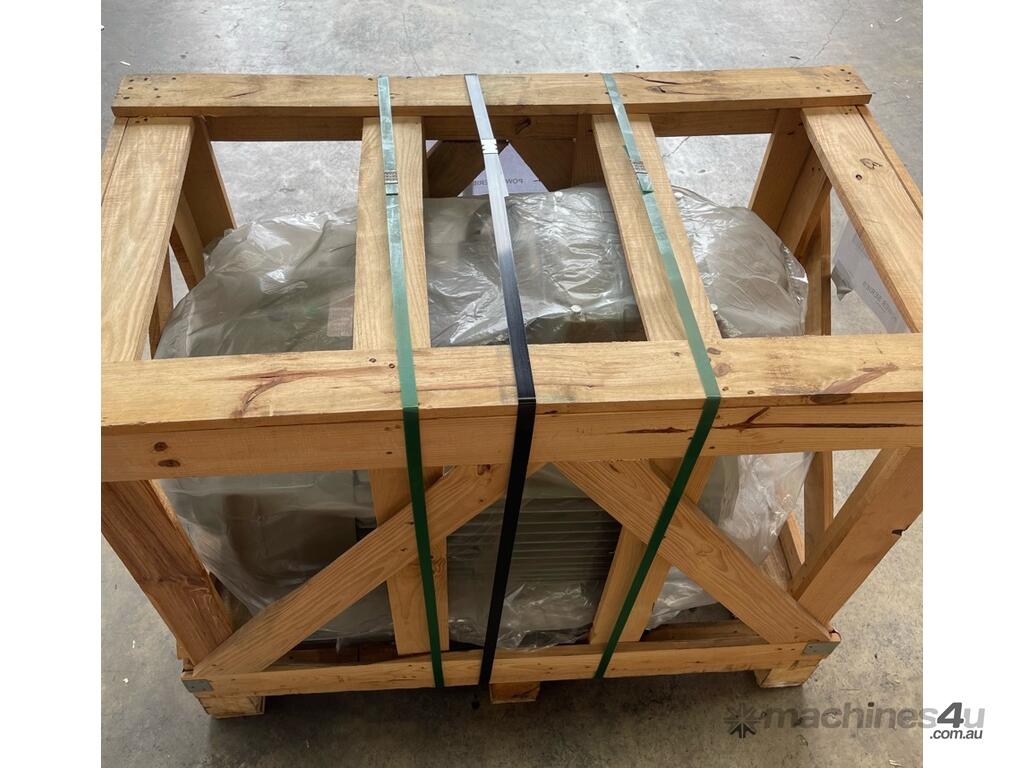

Condition: New/Unused in Crates - Warehouse Storage
exStock Seaford VIC 3198 Australia
Available for immediate supply - Freight services Australia wide available on request
