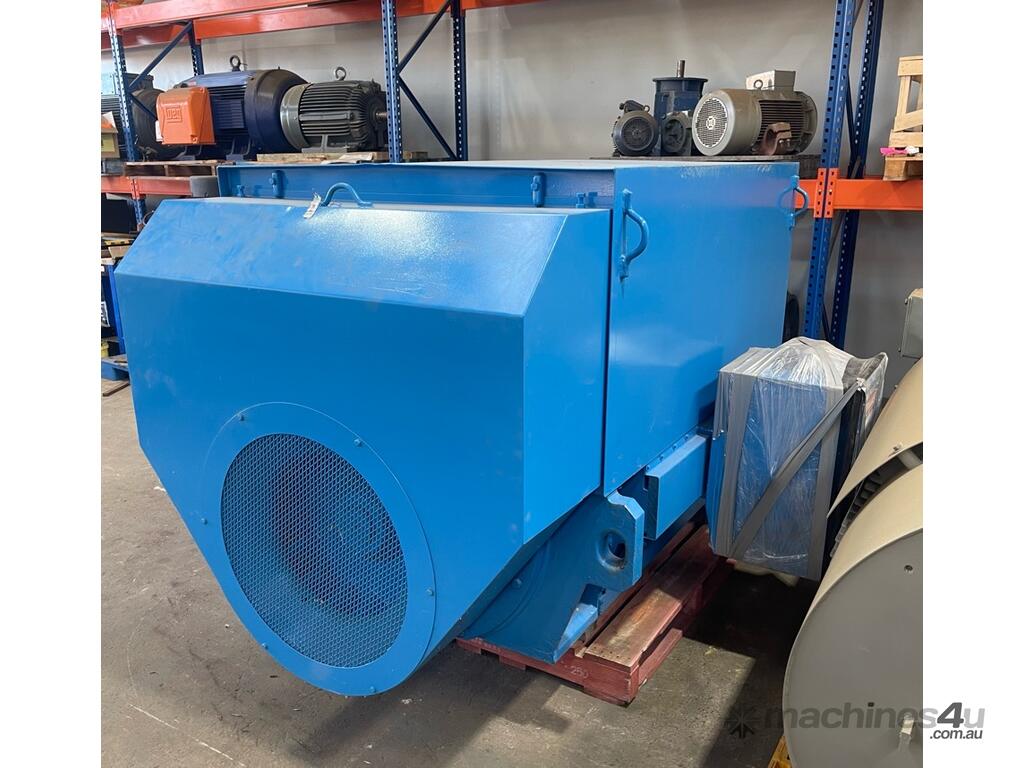

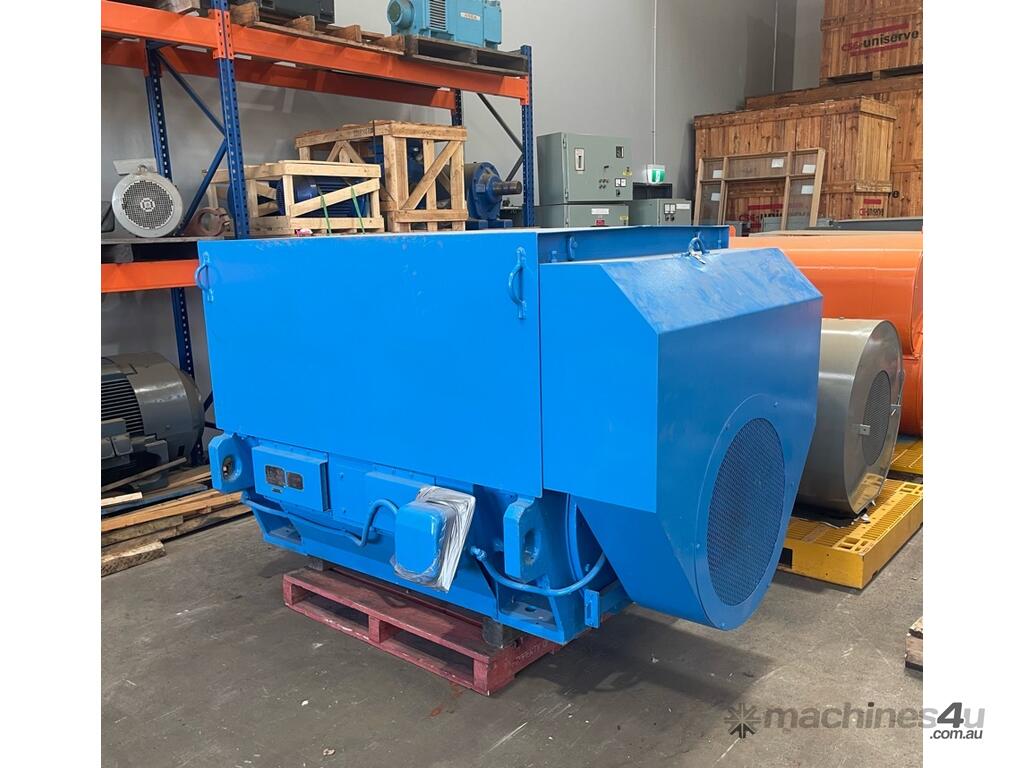

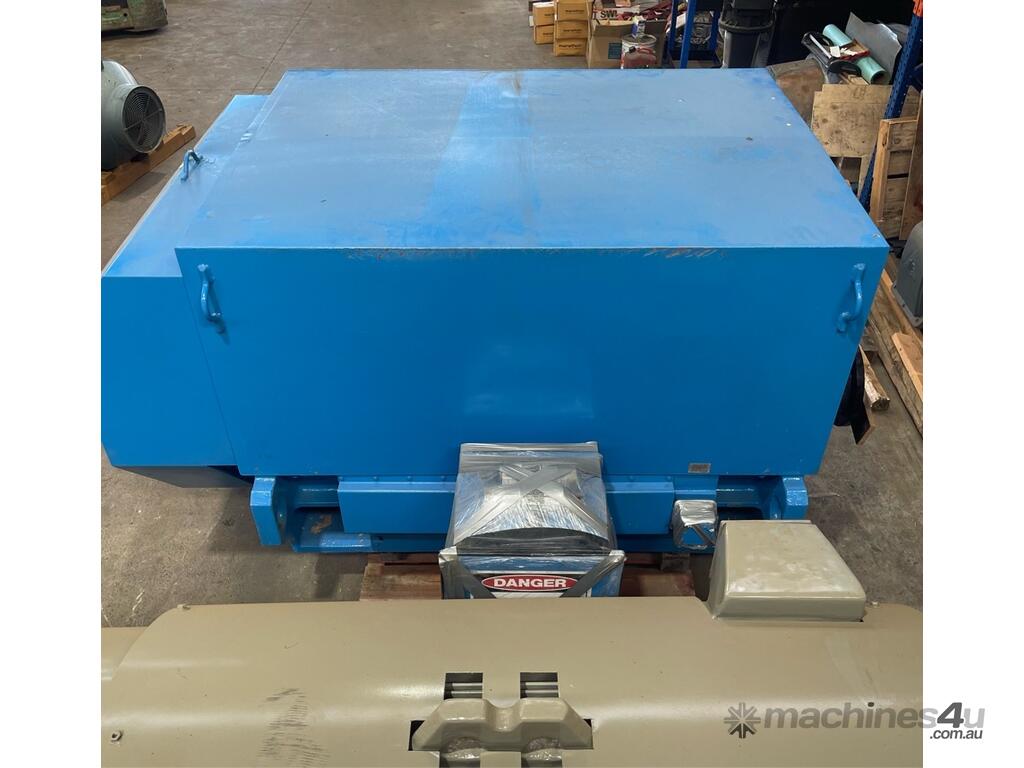

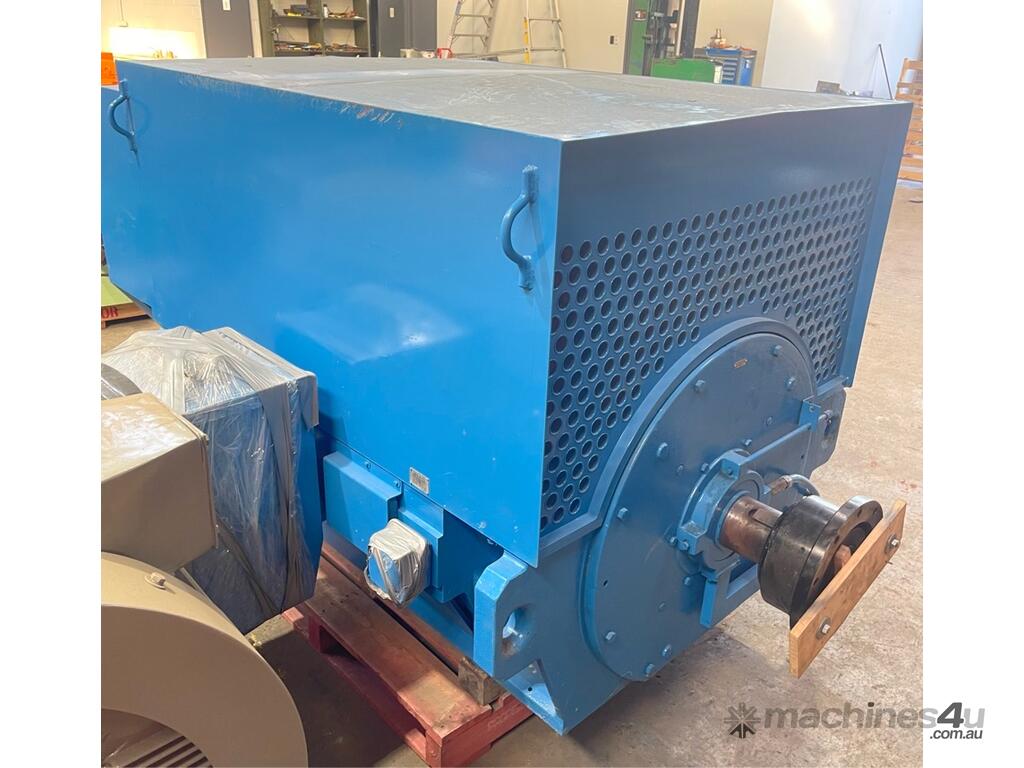

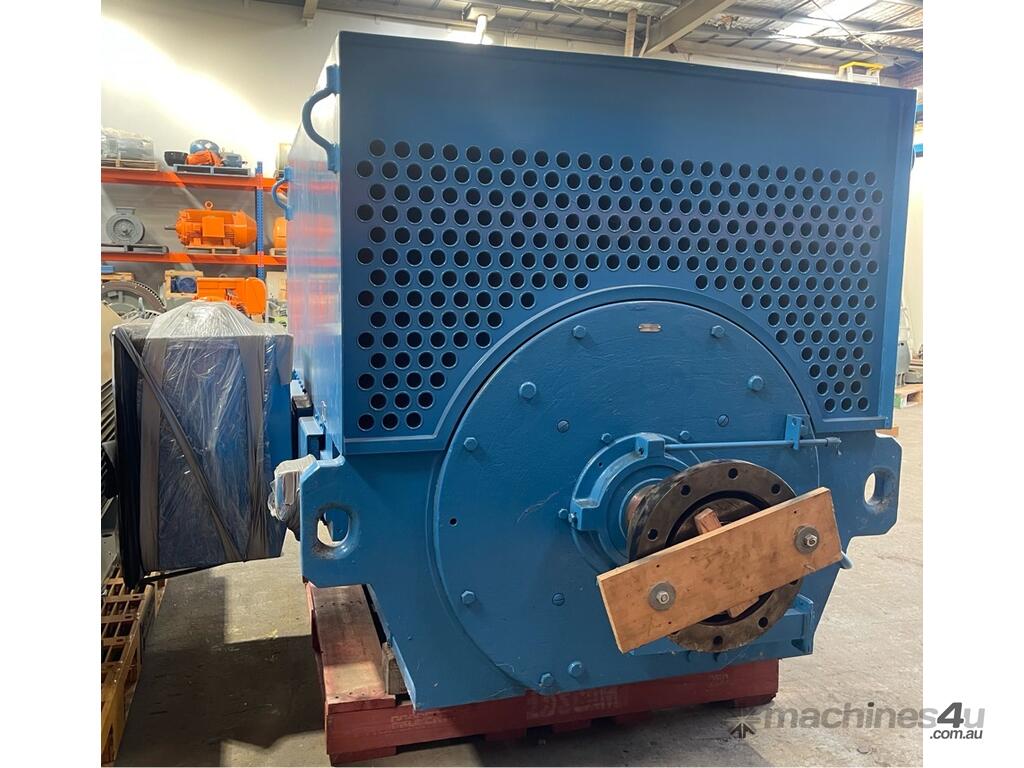

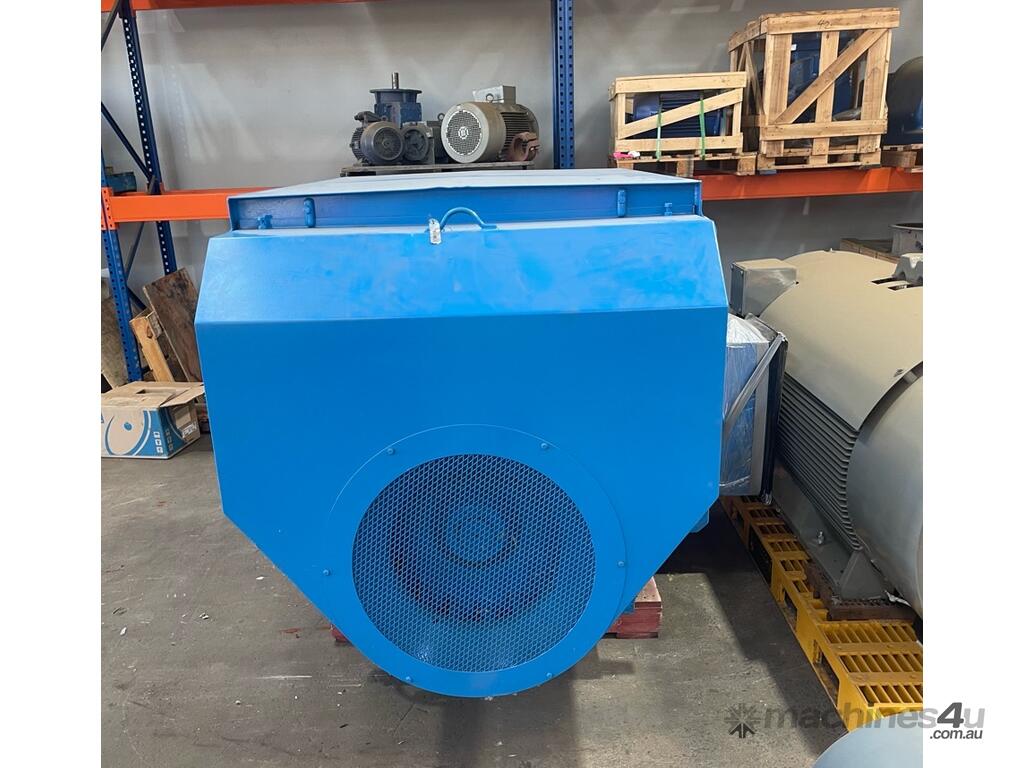

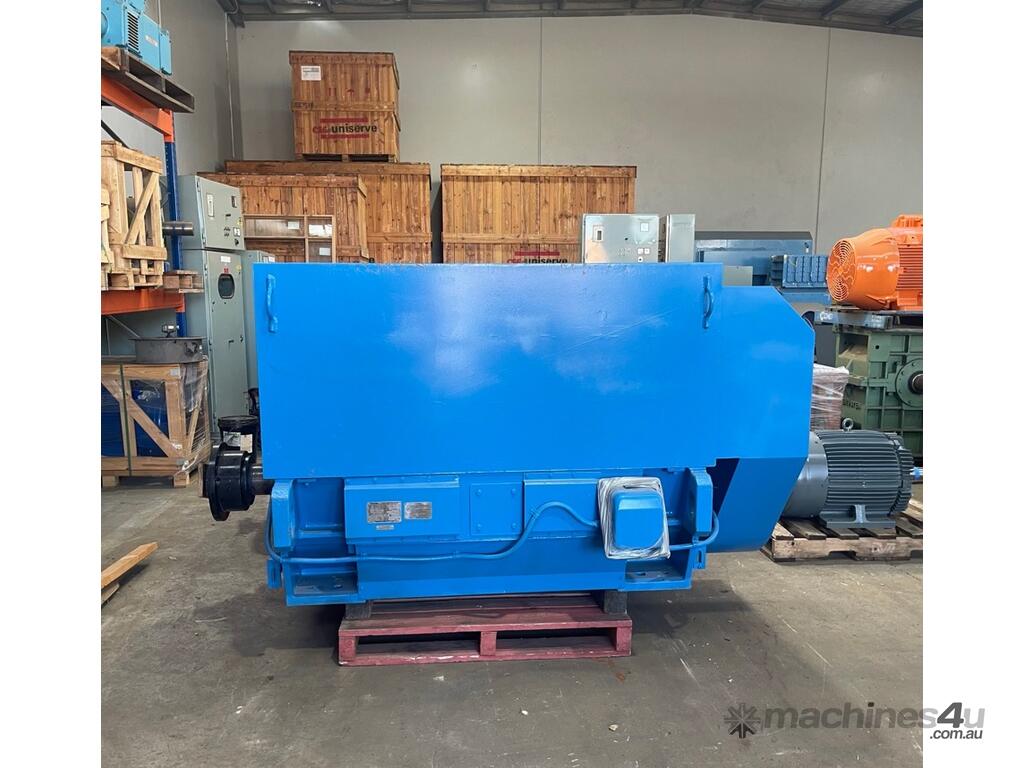

1100 kw 1500 hp 6-pole 988 rpm 3300v 3.3kv 400 frame AC Electric Motor Toshiba Type TIKK Form FCKNW Spec AS1359
Category: AC Squirrel Cage Electric Motor
3-phase induction motor

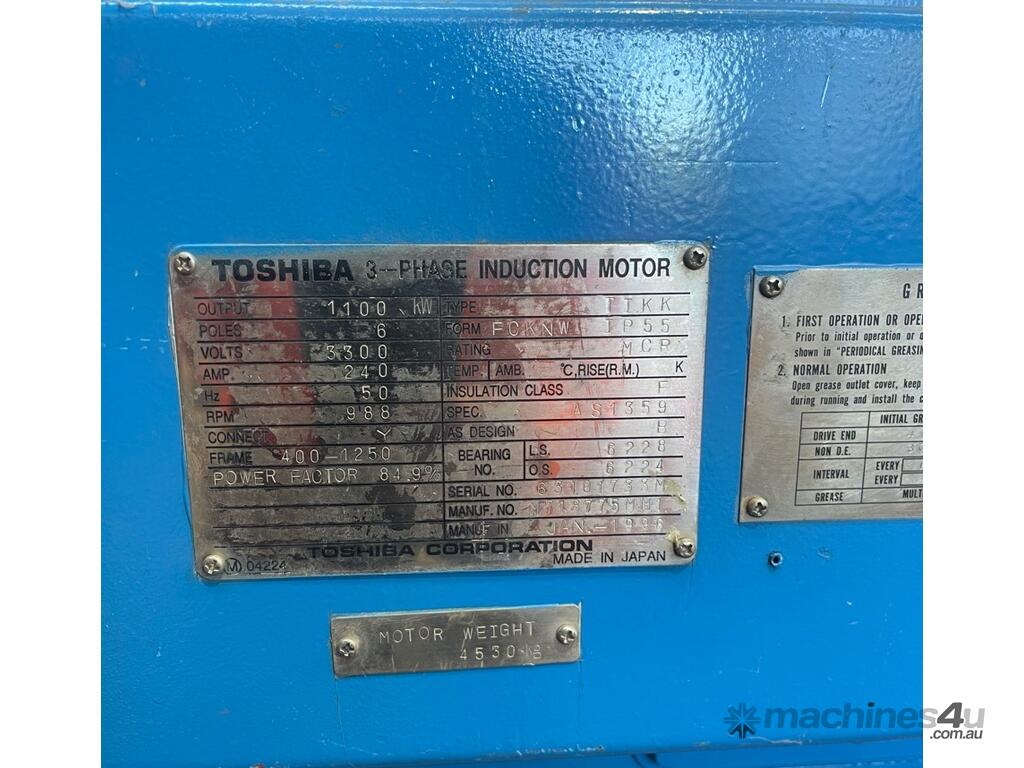

Make: Toshiba
Type: TIKK FCKNW AS1359
Origin: Japan
Power: 1100 KW (1500 HP)
Speed: 6-pole (988 rpm)
Rated Frequency: 50 hz
Rated Voltage: 3300v (3.3kv)
Full Load Amperage: 240 A
Mount: Foot Mount
Frame: 400-1250
Weight: 4530 kg
Critical Dimensions:
Shaft DIA: 130 mm
Shaft Length: 240 mm
Total Length: 2400 mm (incl. shaft)
Total Width: 1950 mm (incl. terminal boxes)
Total Height: 1320 mm
Feet Measurements:
Across 'A' - 800mm (approx), Front to back 'B' - 1200 mm, Front hole to shaft 'C' - 280mm (approx)
Available QTY: 1
Condition: Fully Reconditioned & Decommissioned critical spare. Warehouse Storage
Delivery Point: exStock Seaford 3198 VIC Australia
Freight services available on request
