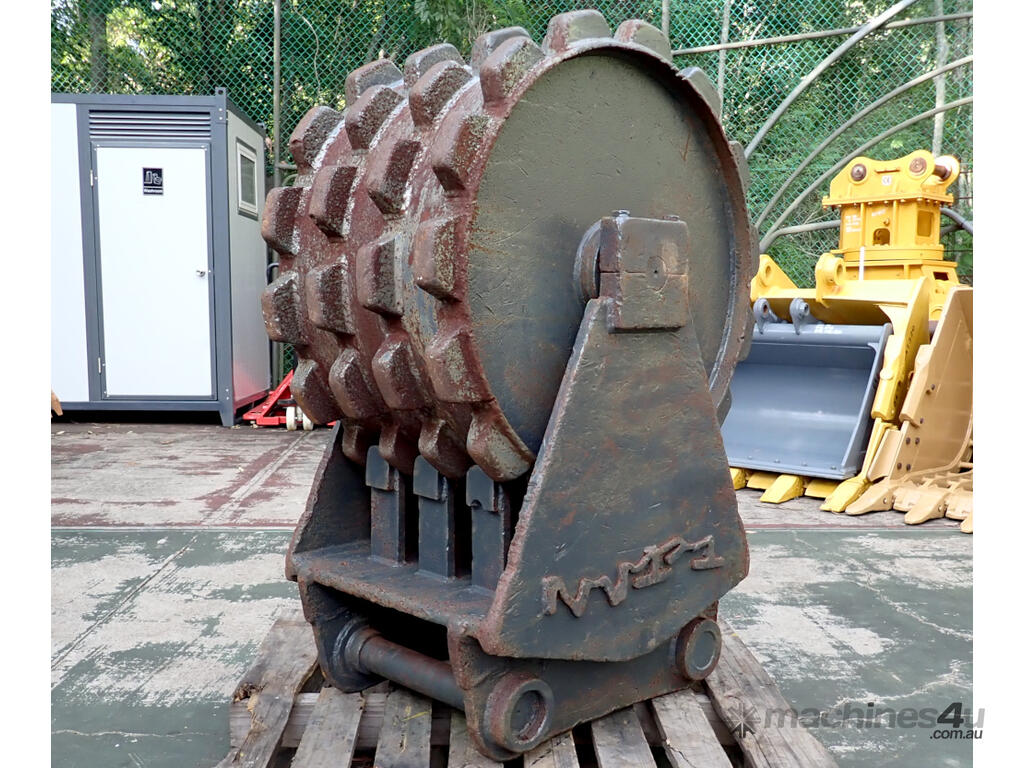

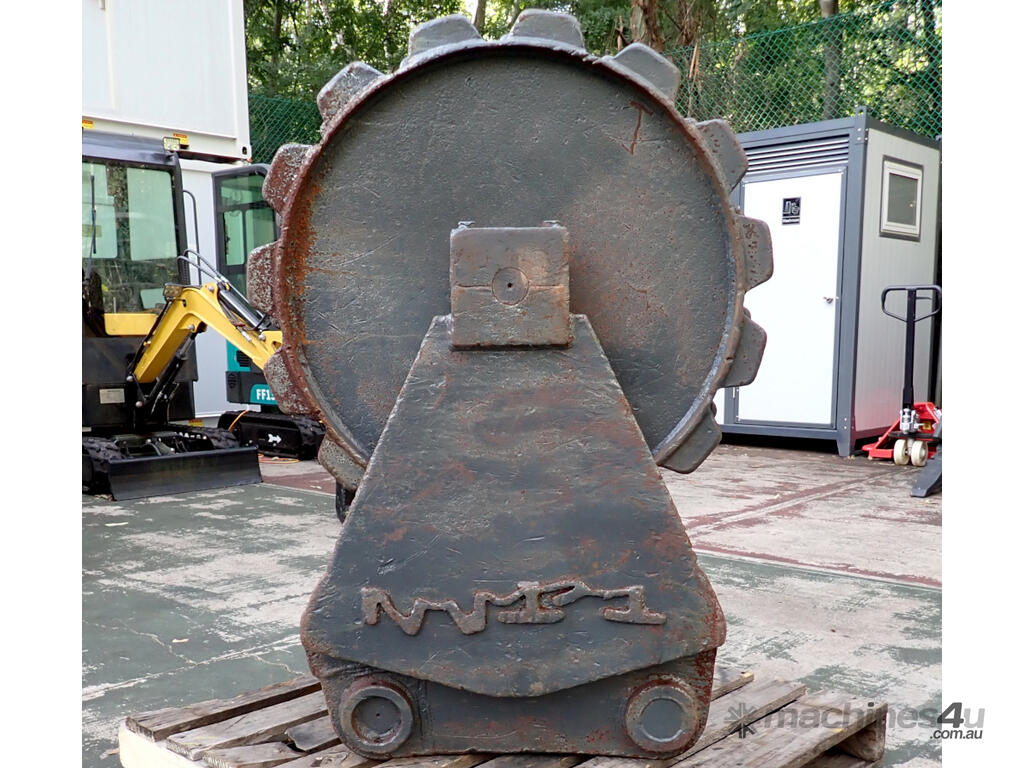

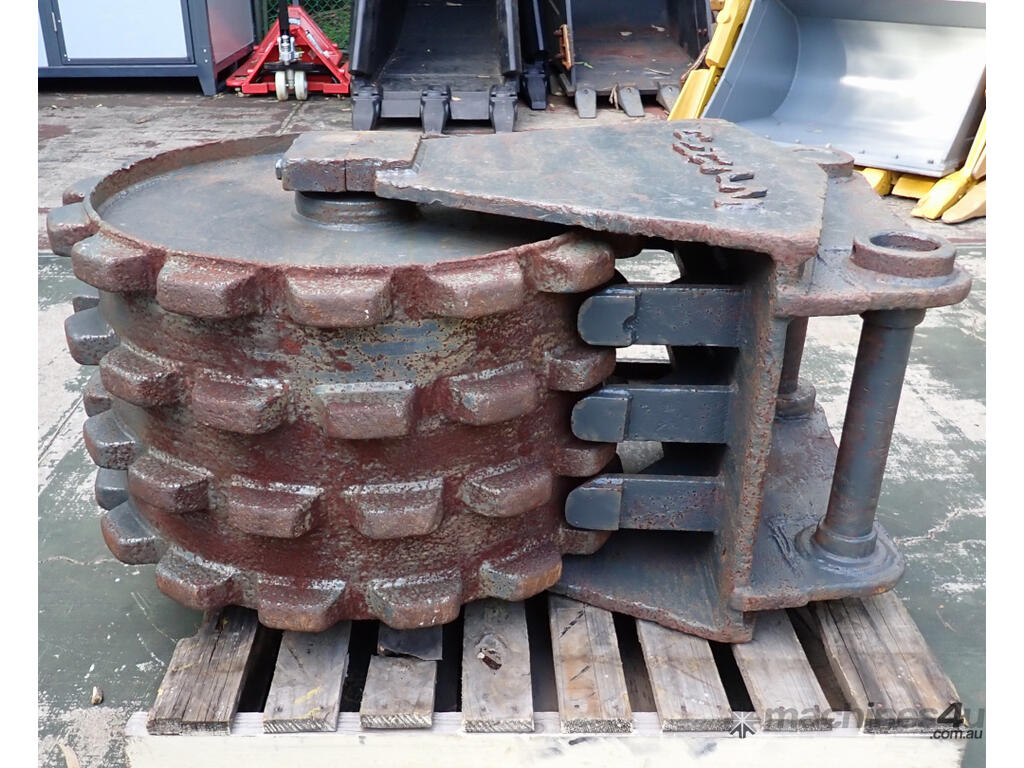

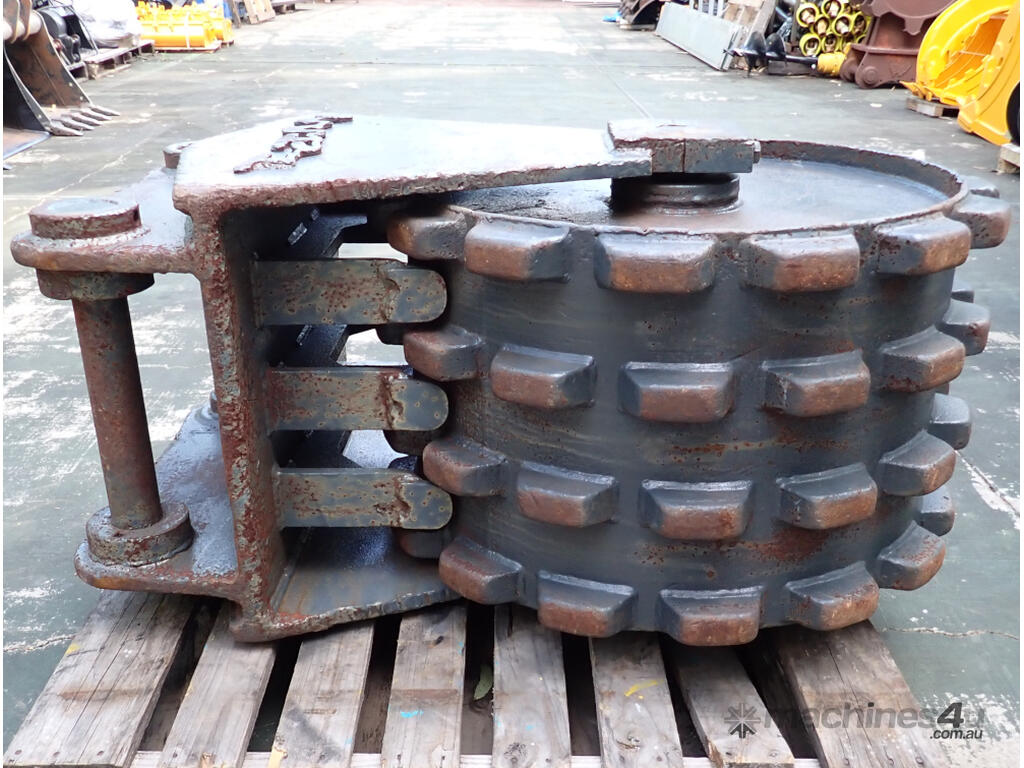

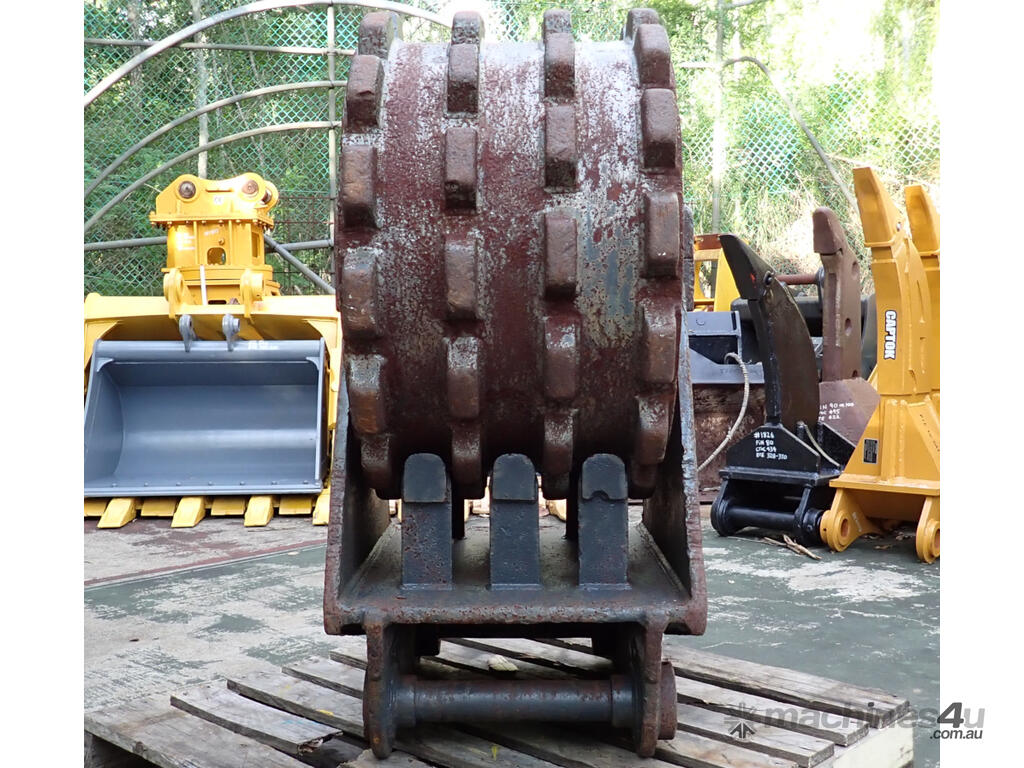

12-37 ton (70 or 80 or 90mm pin) 550mm Titan Excavator Compaction Wheel suit Kato

Used Titan Padfoot Drum Style Excavator Compaction Wheel suit 12-37 Ton machines.

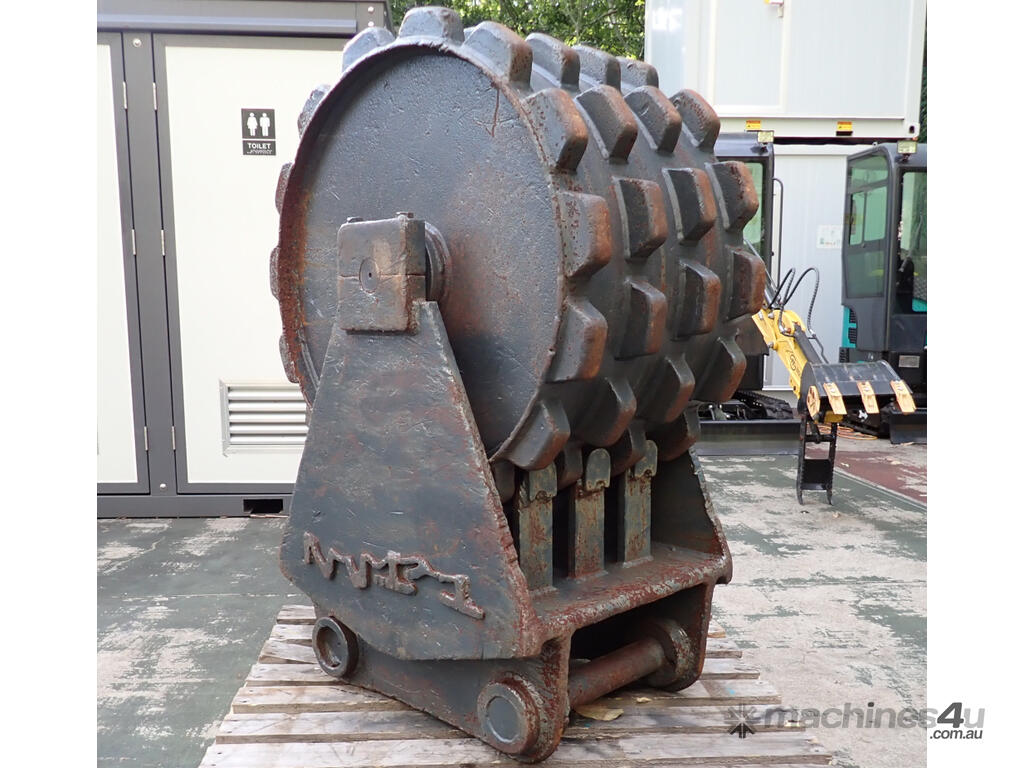

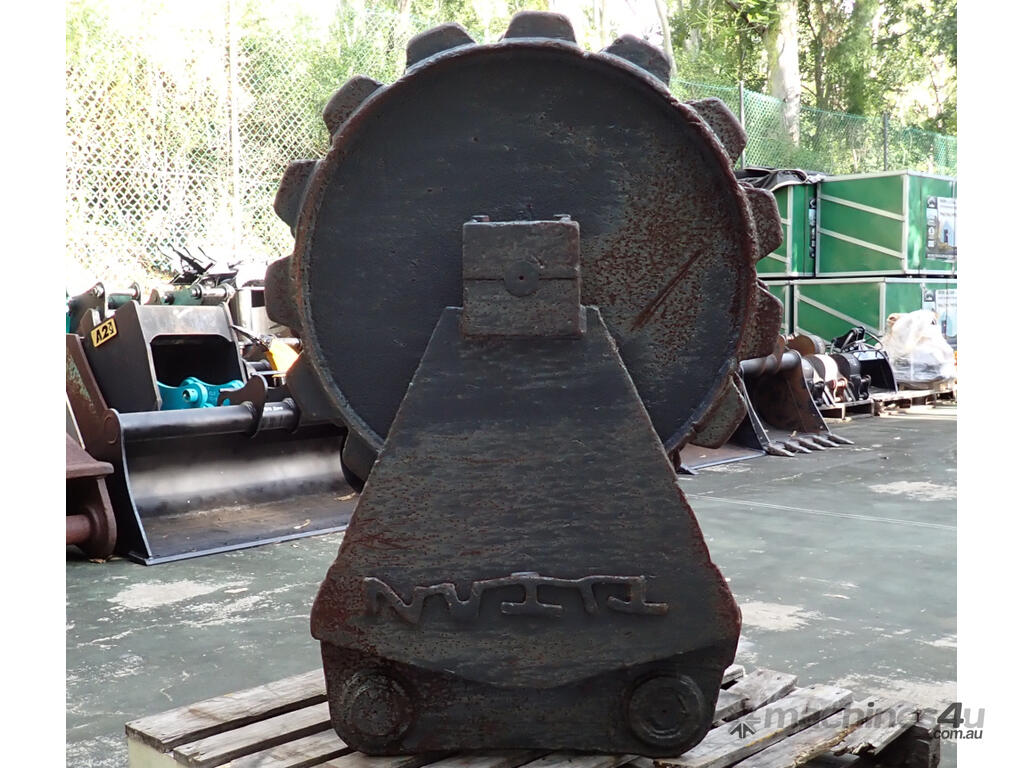

This is a big and heavy Compaction Wheel (weighs almost 1 ton!) and was originally setup for a much bigger machine with 90mm pins, but the previous owner changed it to 70mm pins (current).

It is ready to go for a 70mm pin machine, but could be setup back to 90mm pins or even 80mm, but would require some work as the pins have now been welded in.
So 2 options:
1.) All the welds would need to be ground out to free the current pins, then insert bigger pins.
...or...
2.) The current pins could be left in and some sections of 70mm ID (Inside Diameter) pipe/tube could be cut to the right length, then cut again in 2 pieces down the length of the tube, then the 2 half shells are welded over the current pins to fatten the pin diameter up to either 80mm or 90mm.

Conditions is used, it has a few bangs & dints but has plenty of life left.

This is a solid, well engineered, heavy duty Compaction Wheel, made in Australia by Titan Manufacturing (now ShawX).

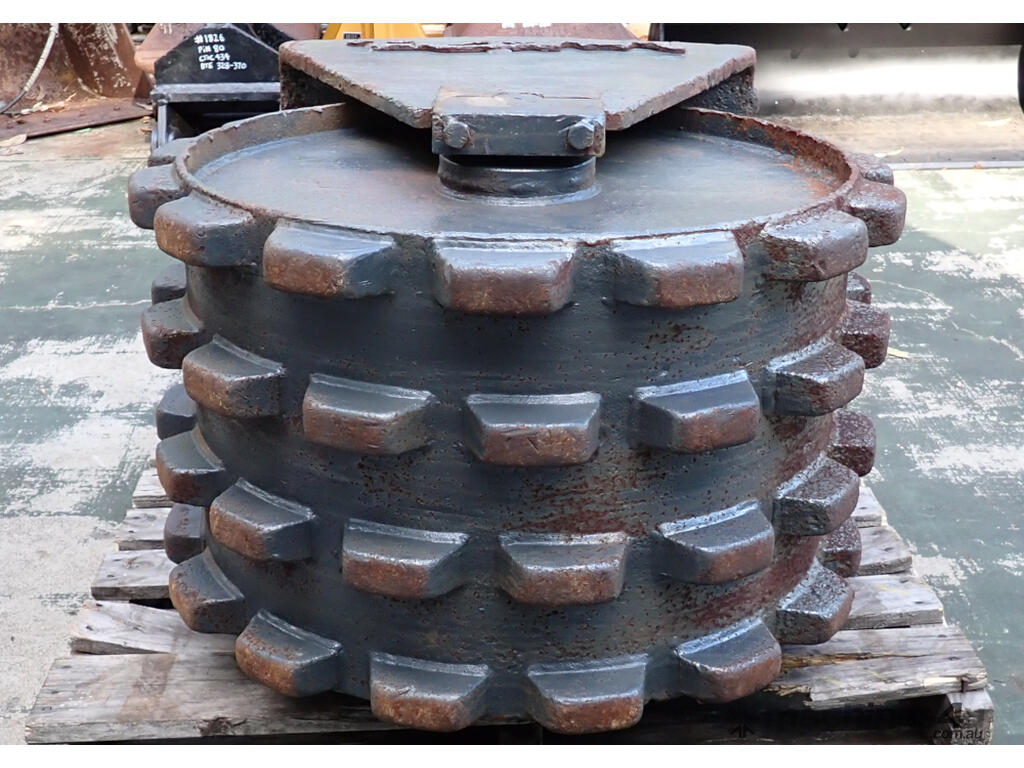

*** Drum:
* Width: 550mm.
* Curved Steel (Drum) Diameter: 808mm (not including pads).
* Curved Steel Plate Thickness: 10mm.
* Total Drum Diameter (including pads): 922mm.

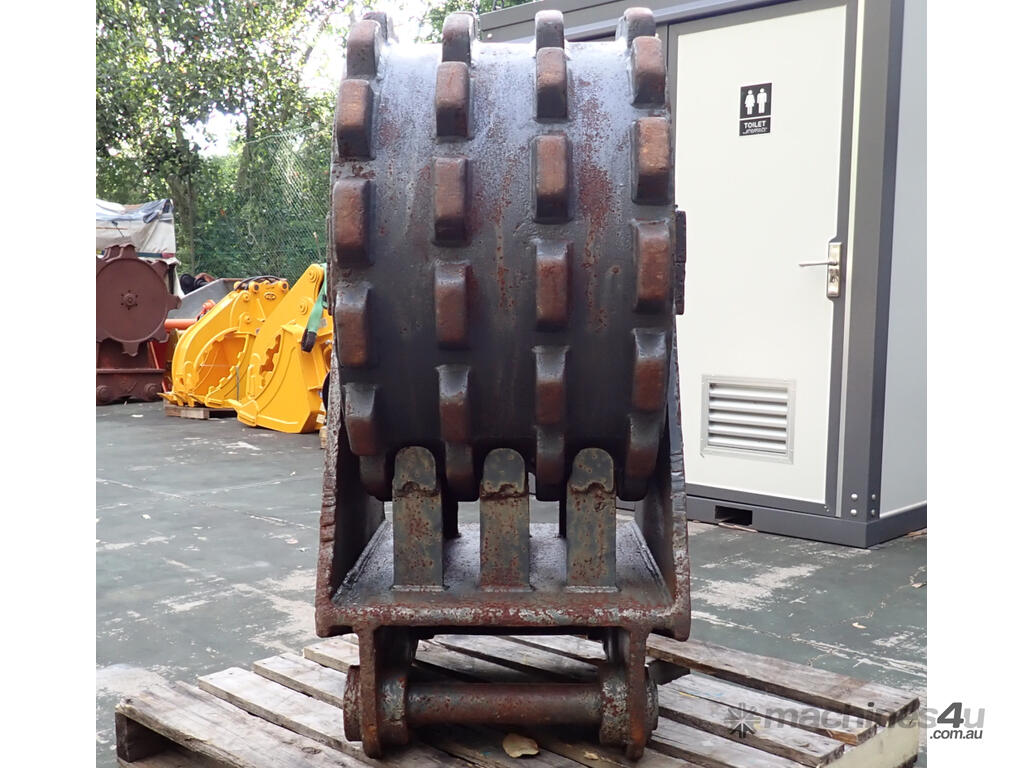

* 4 rows of pads.

*** Pads:
* Height: 57mm.
* Size at Top: 48mm wide x 90mm long.
* Size at Base: 48mm wide x 136mm long.


*** Current Headstock configuration:

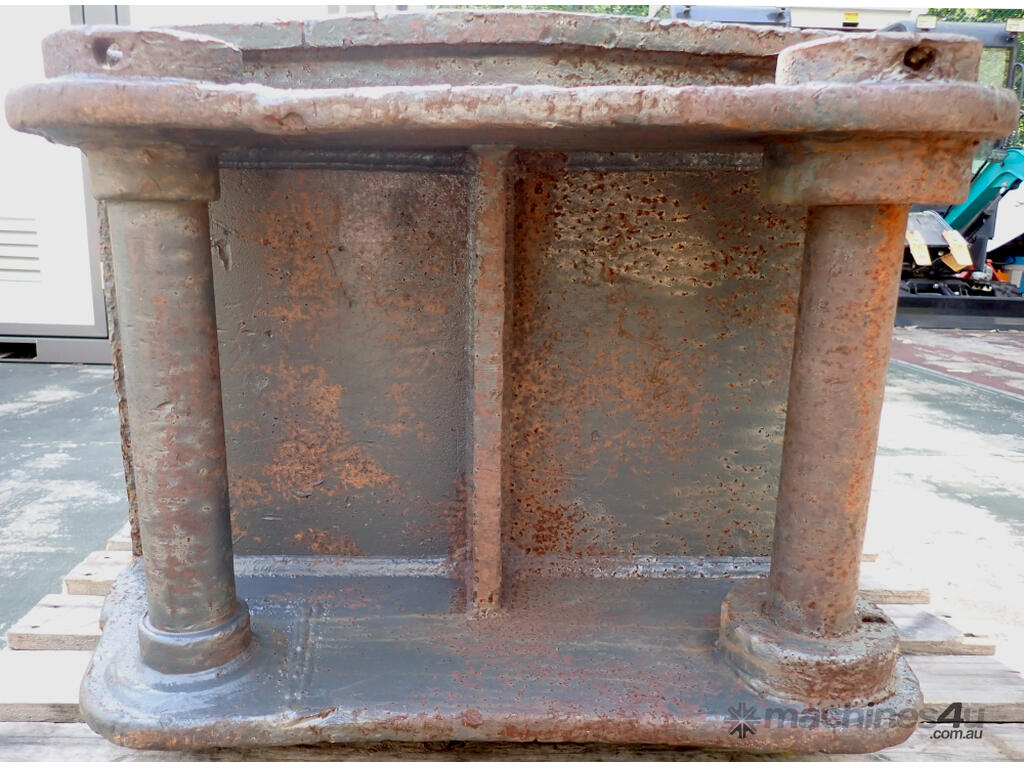

* Pin Diameter: 70mm.
* Pin Center to Pin Center (CtoC): 525mm.
* Between the Ears (BTE): 339mm between the Bosses (which can be shaved back up to 427mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).


*** As a 70mm Pin Configuration (current):
*
* Should fit: Kato 700, Kato 800, Kato 900.


*** As an 80mm Pin Configuration:
*
* Should fit: Hyundai R250LC-3 / R280LC / R290LC / R290LC-3 / R290LC-3LR, Kato 820, Komatsu PC290.
*
* Maybe fit: Caterpillar 320 / 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Doosan DX255 / DX255LC-3, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, John Deere 225C LC RTS, Kato HD1023, LiuGong 922 / 925 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 90mm Pin Configuration:
*
* Should fit: Case CX330, Caterpillar 235, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR / 320 / 330-3, Doosan DX300, Halla HE280, Hyundai R250LC-7 / R290LC-7, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK220 / SK250LC / SK290LC / SK300 / SK310 / SK320 / SK330 / SK330LC / SK350LC, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 330LX, Samsung SE280LC, Sumitomo SH300-3 / SH300LC-3 / SH330-5 / SH350HD-3.
*
* Maybe fit: Case 9033 / 9050B / CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / 330D w/DB Link / D Family Linkage, Daewoo DX300 LC, Daewoo Solar 280LC-2 / 280LC-3, Doosan DX300LC-3 / S300LC-V / S470LC-V, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, JCB JS300 / JS330, John Deere 240D LC / 270D LC, Kato HD1430, Kobelco SK230 / SK250 / SK260LC-8, Link-Belt 4300 QUANTUM, Samsung SE240LC / SE240-3 / SE280-3, Sumitomo SH300, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions (standing up): 658mm Wide, 922mm Deep (the total diameter of the wheel), 1337mm High. Weight: 932kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
