Thanks to a special gearcase, the Italian-Made Ritmo Basic 355 Easy Life Butt Welder manages the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows you to quickly and easily set the desired parameters.
The Easy Life system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. This machine has the capability to pre-set 50 customised welding phases.The Basic 355 Easy Life is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Machine Composition:
- A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
- An extractable heating plate
- An extractable milling cutter, with safety micro-switch

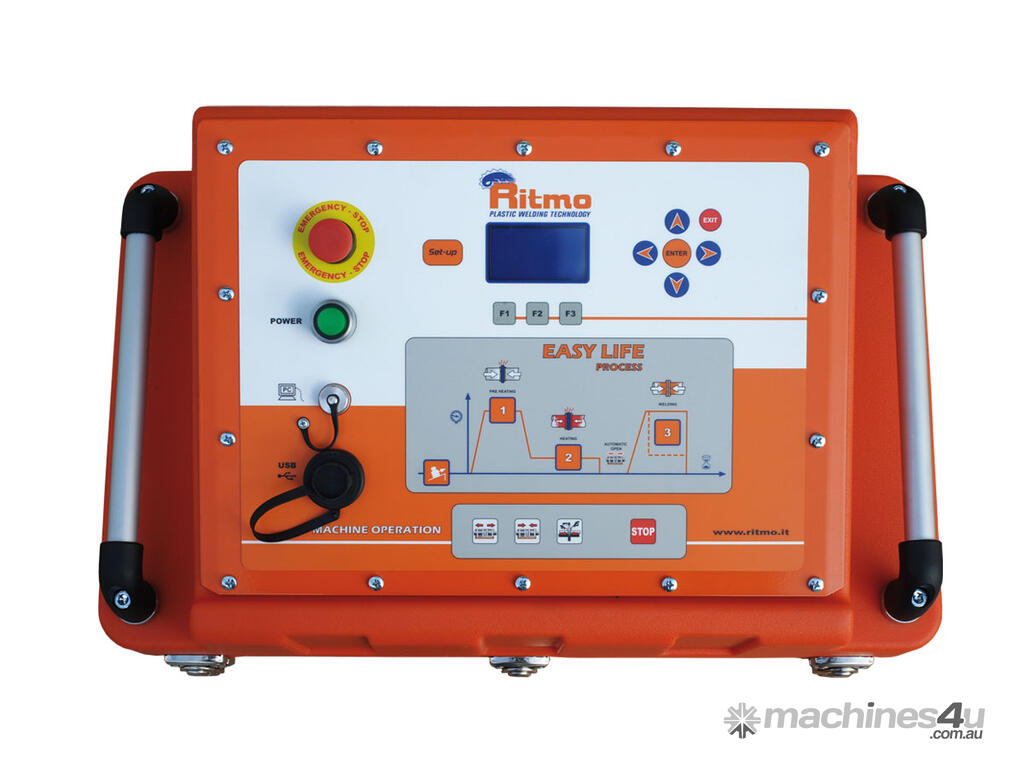

- An electrohydraulic gearcase EASY LIFE
- A hydraulic hoses with non – drip quick couplings
- Adapters SMARTLocK (RITMO patented) from Ø 125 to 315 mm, Master adapters Ø 250 mm
Accessories Available on Request:
- Tool for flange necks
- Trolley
- Rollers
Technical features:
Materials: HDPE - PP - PB - PVDF
Working range: Ø 125 ÷ 355 mm
Power supply: 230 VAC 50/60 Hz
Gearcase absorbed power: 1100 W
Total absorbed power: 5800 W
Memory: 4000 reports
Working temperature: 180° ÷ 280° C
Pressure working range: 0 ÷ 150 bar
Weight only body machine: 100 Kg
Weight gearcase: 37 Kg
Dimension machine: 1077 x 510 x 715 mm
Dimension gearcase: 585 x 384 x 463 mm
