12x7 Flat Top Trailer 3500KG 900mm Cage With Ramps BIGMAN TRAILER

About the 12×7 Flat Top Trailer

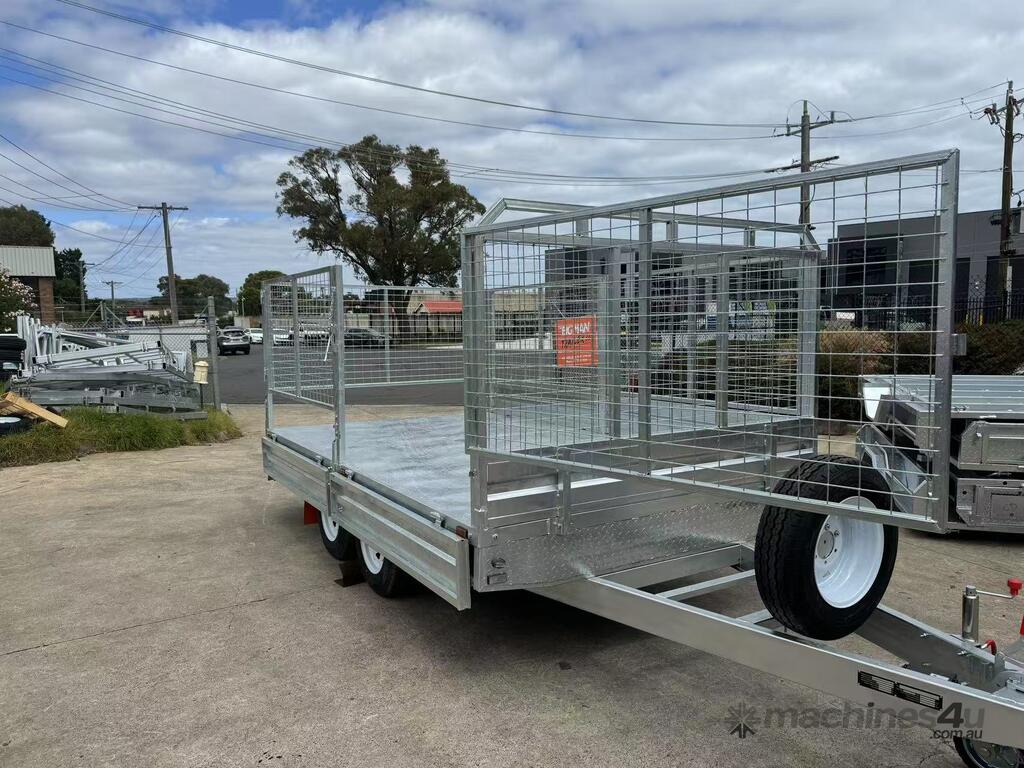

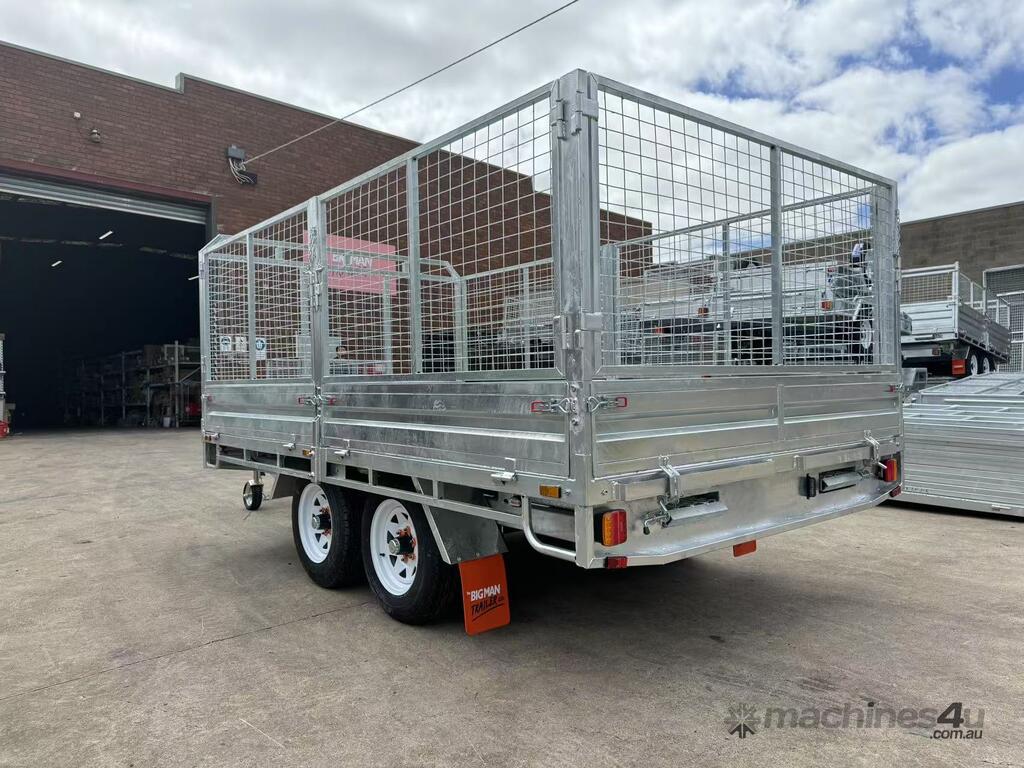

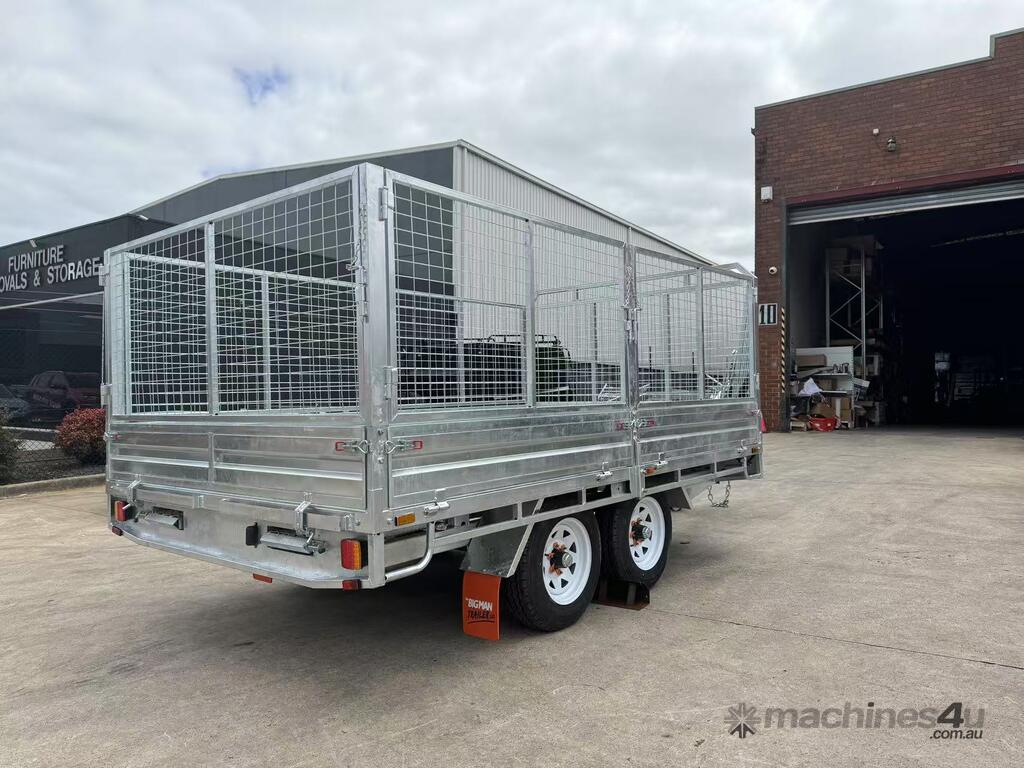

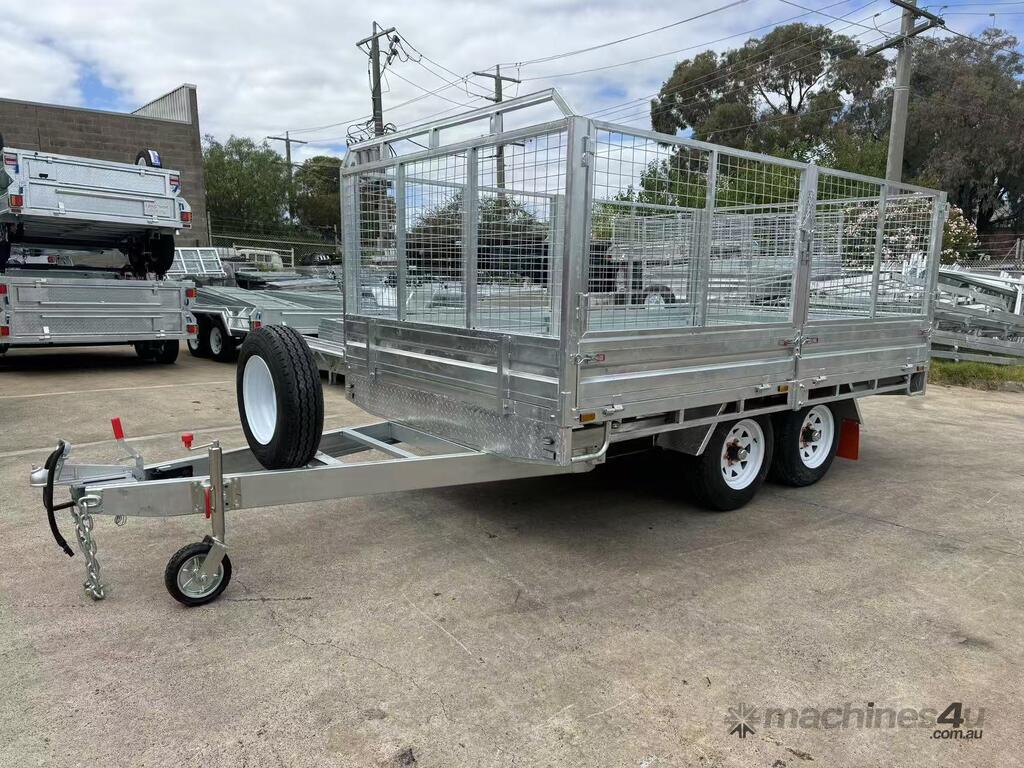

Experience the sheer power of the 12×7 Flat Bed Trailer. Merging the benefits of two trailers, this behemoth eases loading with its full flat design, opening from all four sides. With a robust 3500kg ATM, electric drum brakes on all four wheels, and a fully welded body, it stands unparalleled in its strength and sturdiness. Hot dipped galvanisation encompasses the entire body, including inside the rail, ensuring longevity. It’s further enhanced with an 1800mm drawbar, checker plate floor, removable 300mm side, and brand new 15” Sunraysia rims with light truck tyres. The 2000mm long, 300mm wide ramp makes loading a breeze, supporting up to 1000kg for a pair.

Full body hot dipped galvanised (include inside the rail)
24 months structural warranty
Free Heavy Duty jockey wheel
Brand new 15” Sunraysia rim and 195 light truck tyre
Removable 300mm side
Fully weld body
3500KG ATM with 12-inch electric drum brakes on 4 wheels
Breakaway unit fitted

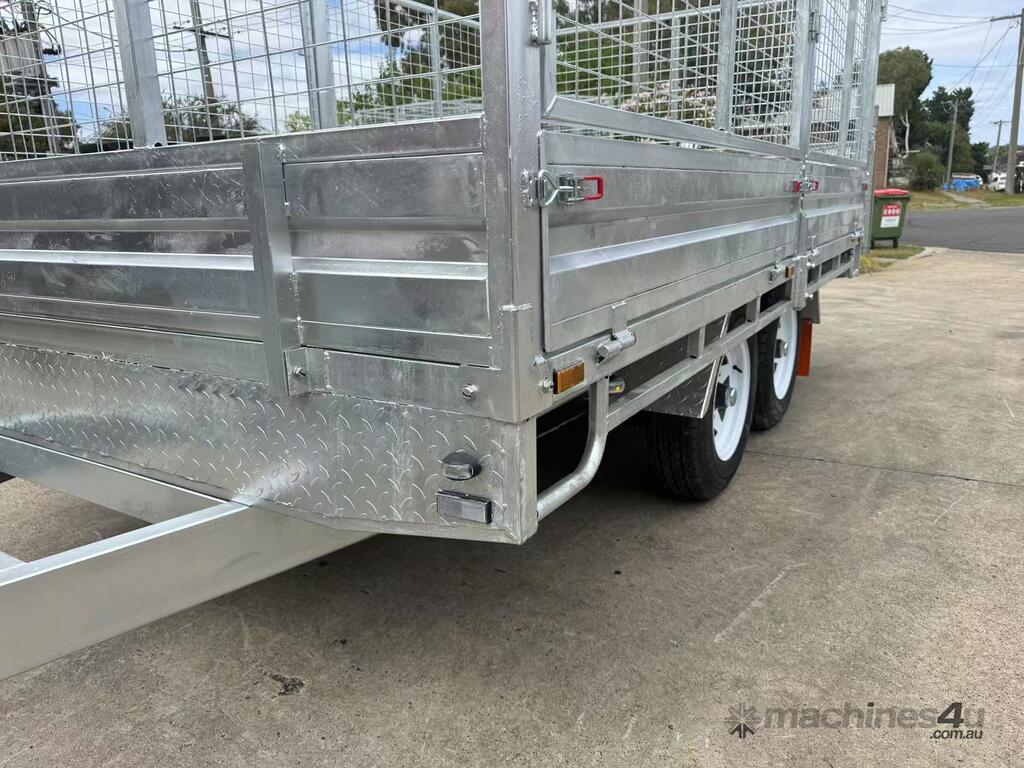

Checker plate floor

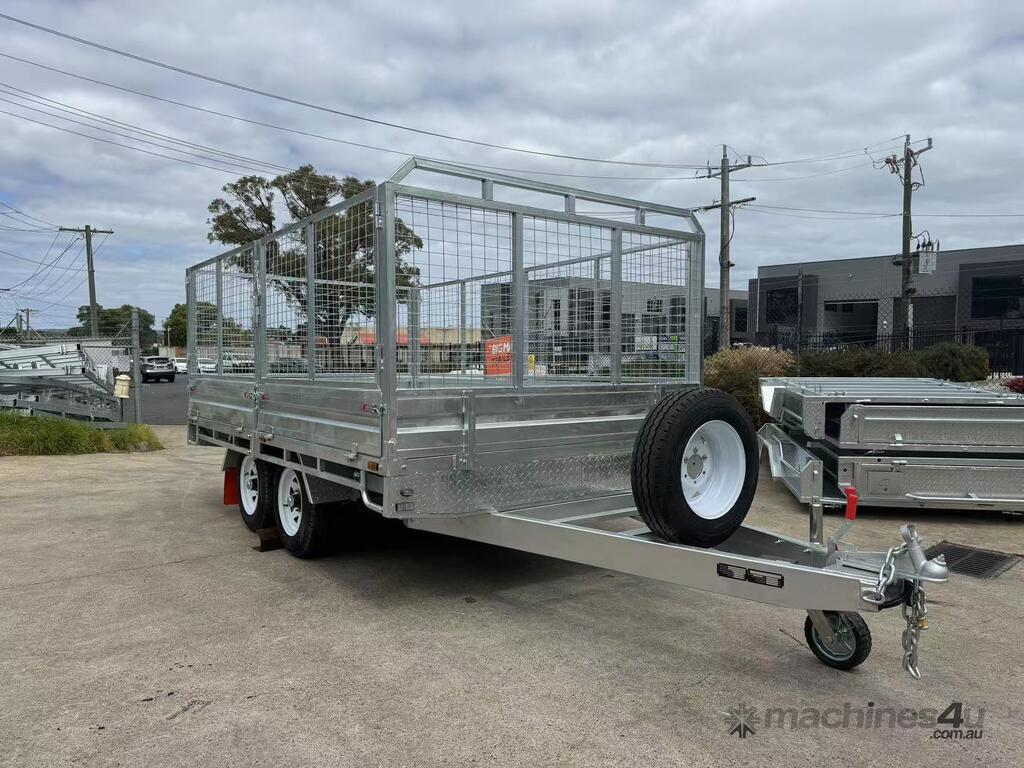

1800mm long drawbar

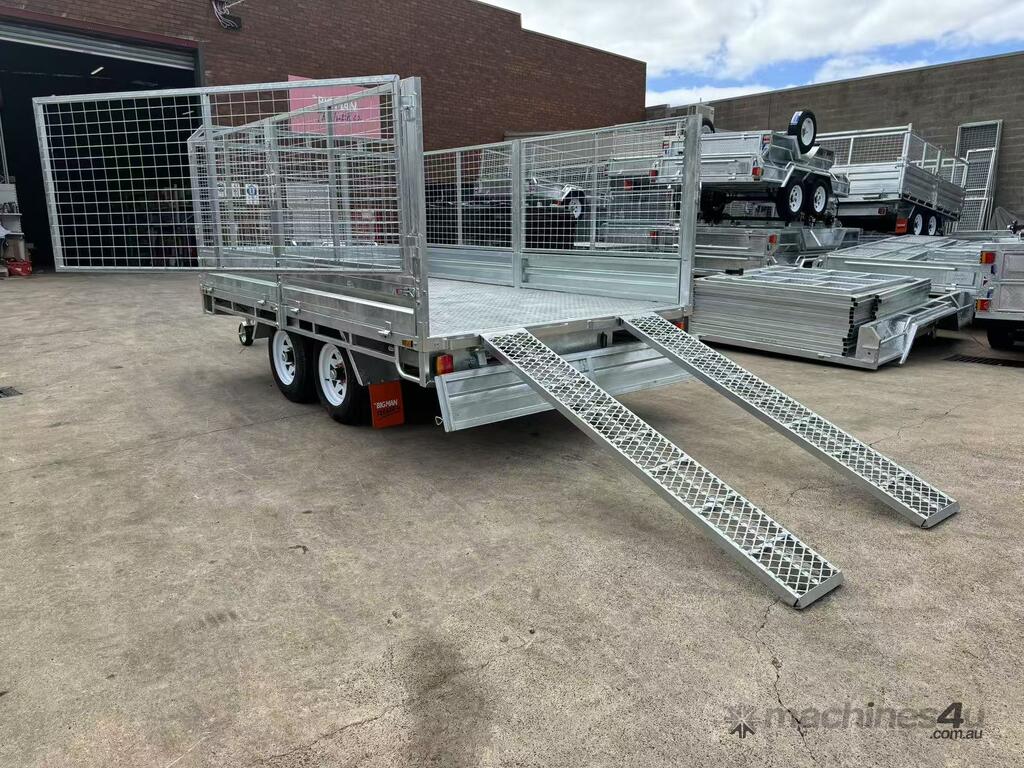

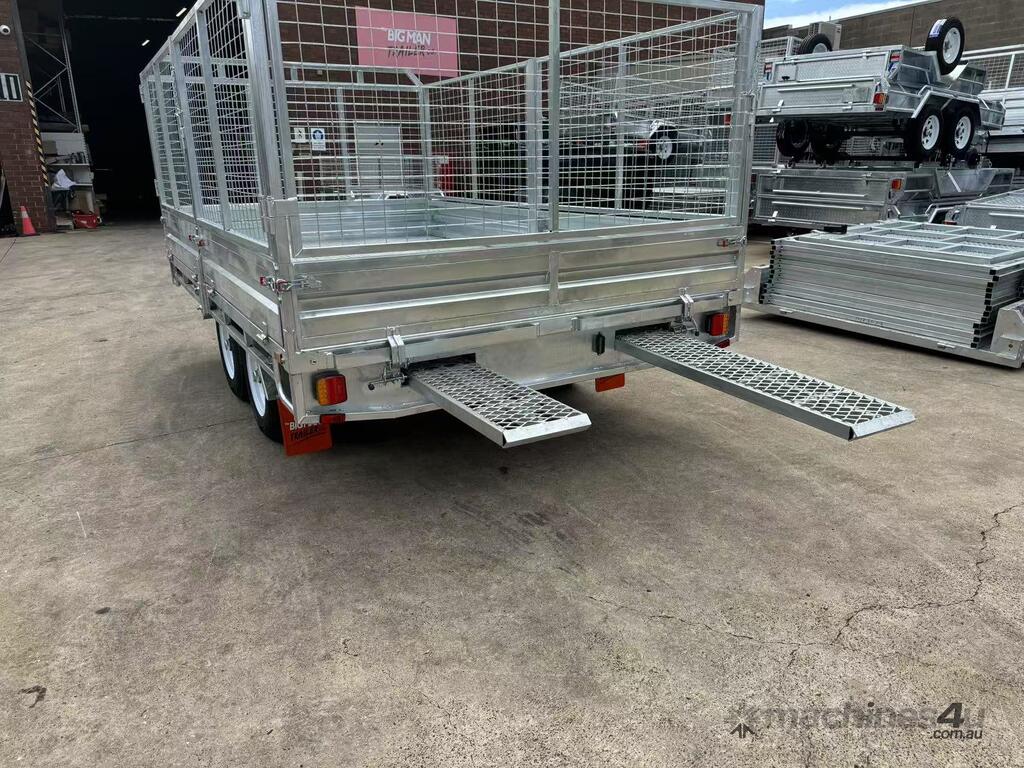

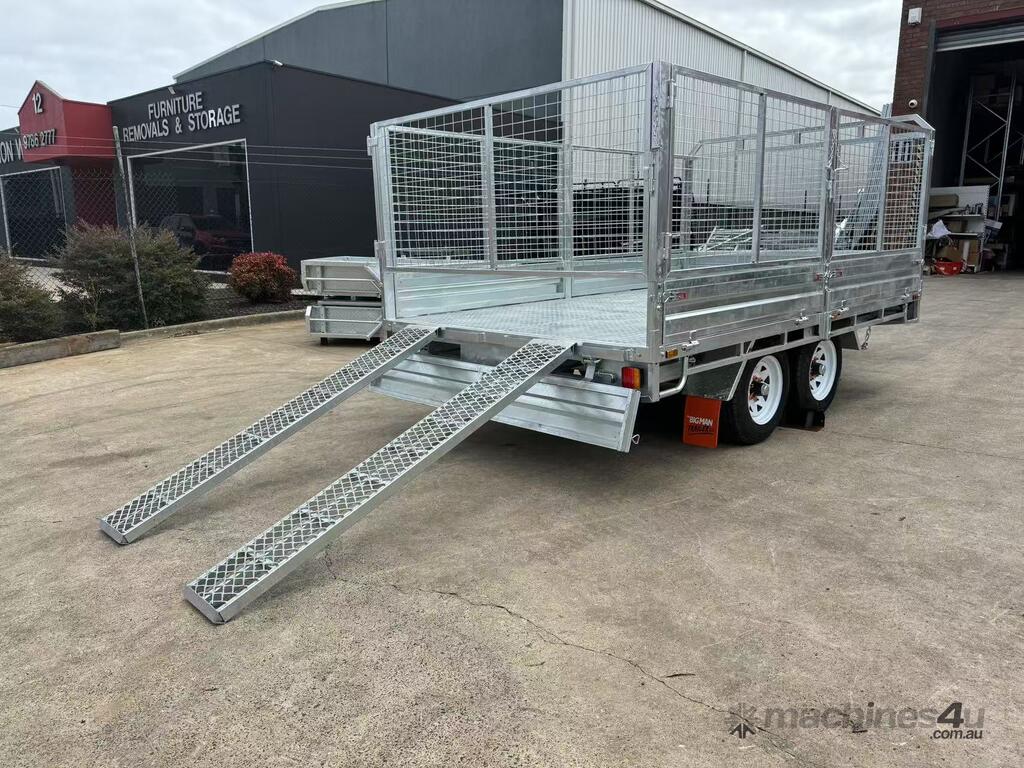

2000mm long 300mm wide loading ramp included (1000KG max. load for a pair)
Wheel nuts indicator included


Item Number FT12735
Trailer Size 12’ x 7’
Drawbar 150x50x4mm
Internal Size 3600mm x 2100mm
Surface Finish Hot Dipped Galvanised
Colour Silver
Lights LED ADR Light
Axle 60mm Solid
ATM 3500kg
Tare Mass 1110kg

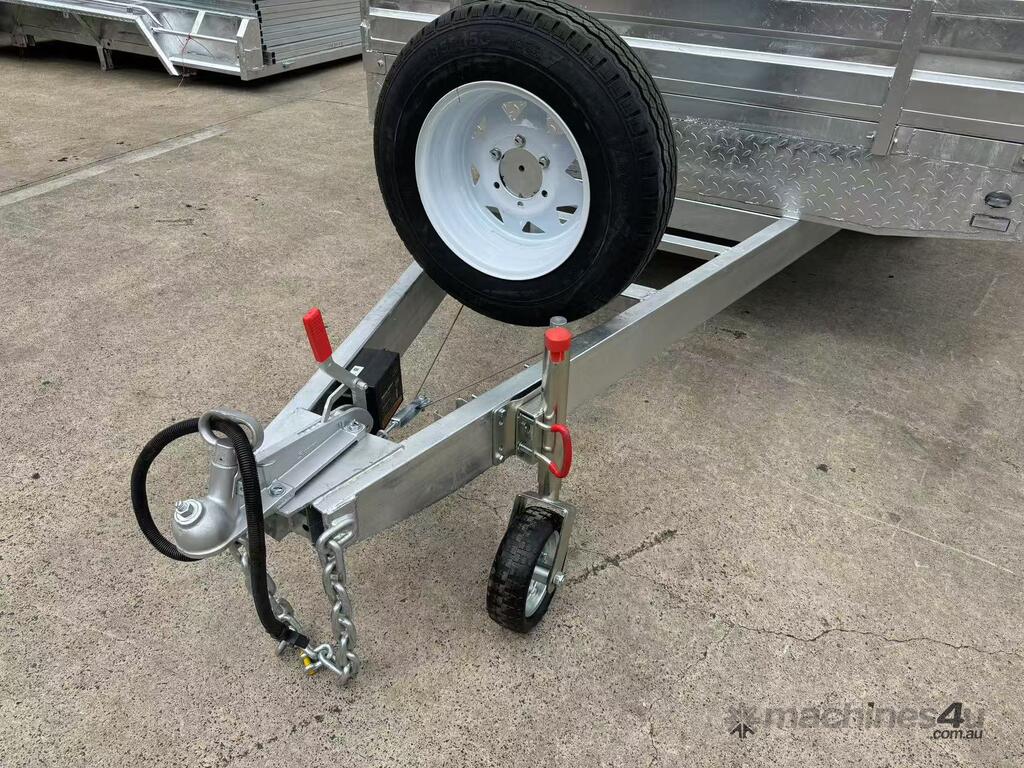

Jockey Wheel 10” Swivel
Fully Weld Yes
Checker Plate Full 2.5mm
Tilt body No

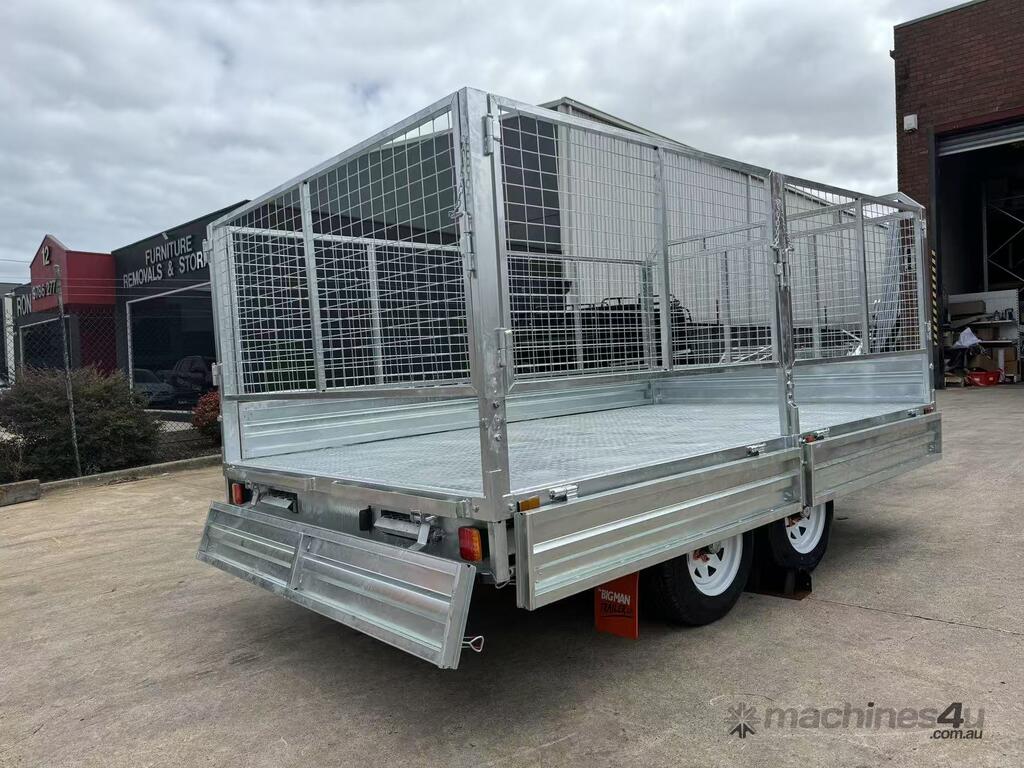

Side 300mm 2.5mm Removable with 900mm Cage

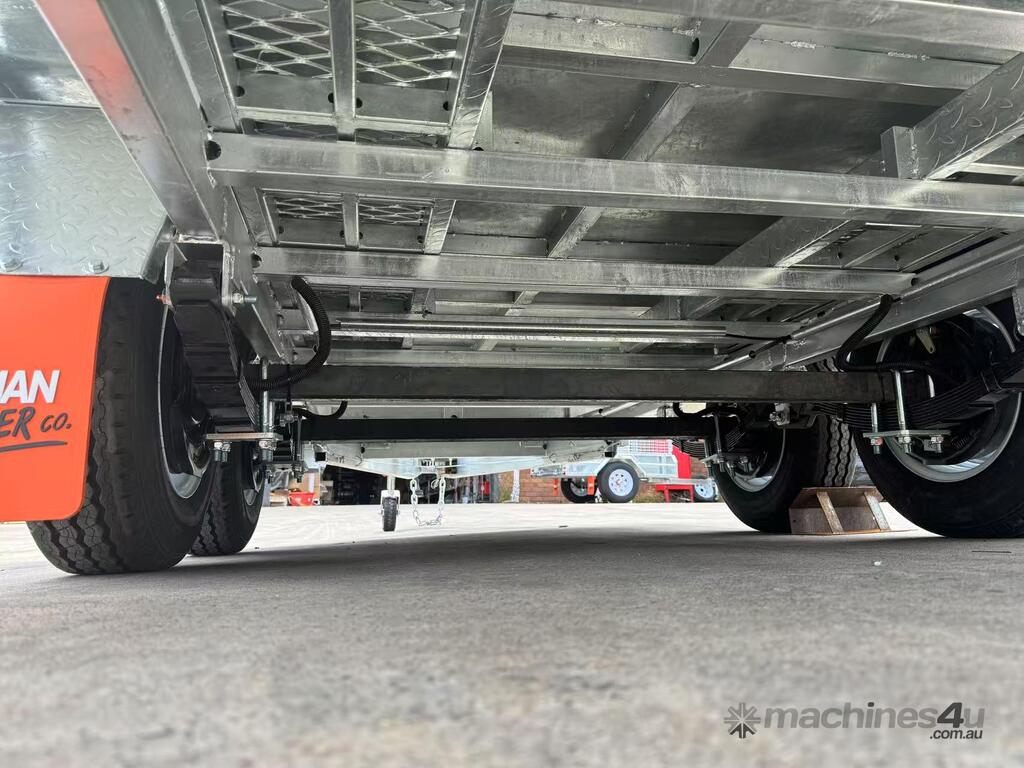

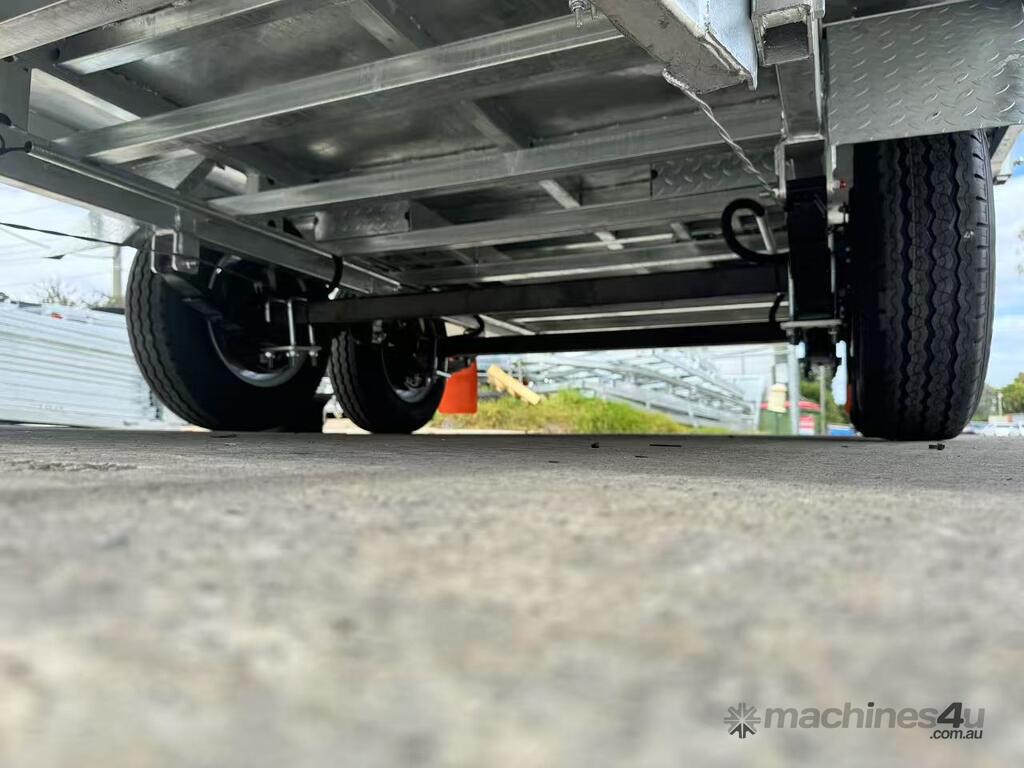

Suspension 9 leaf rocker roller
Cross Beam 70x50x3mm
Wheel & Tyre 195R15C Light Truck
Brake 12 inch Electric Drum Brake
Warranty 24 Months Structural
Extra 2000mmx300mm loading ramp (1000KG Max. load)

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.
