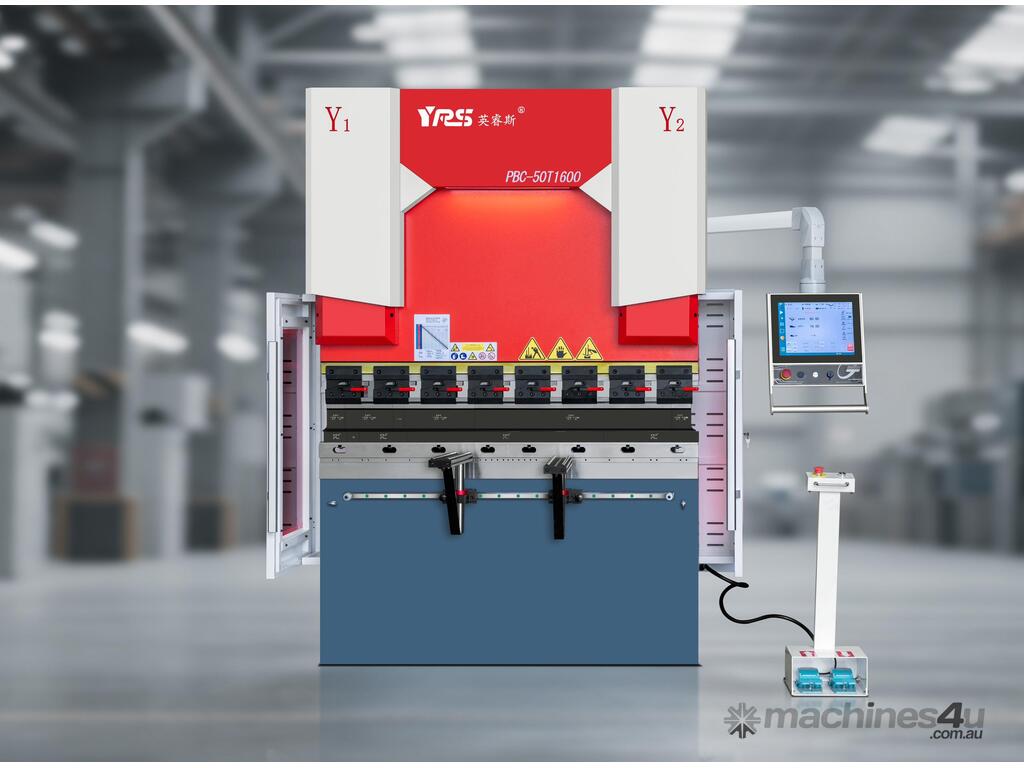

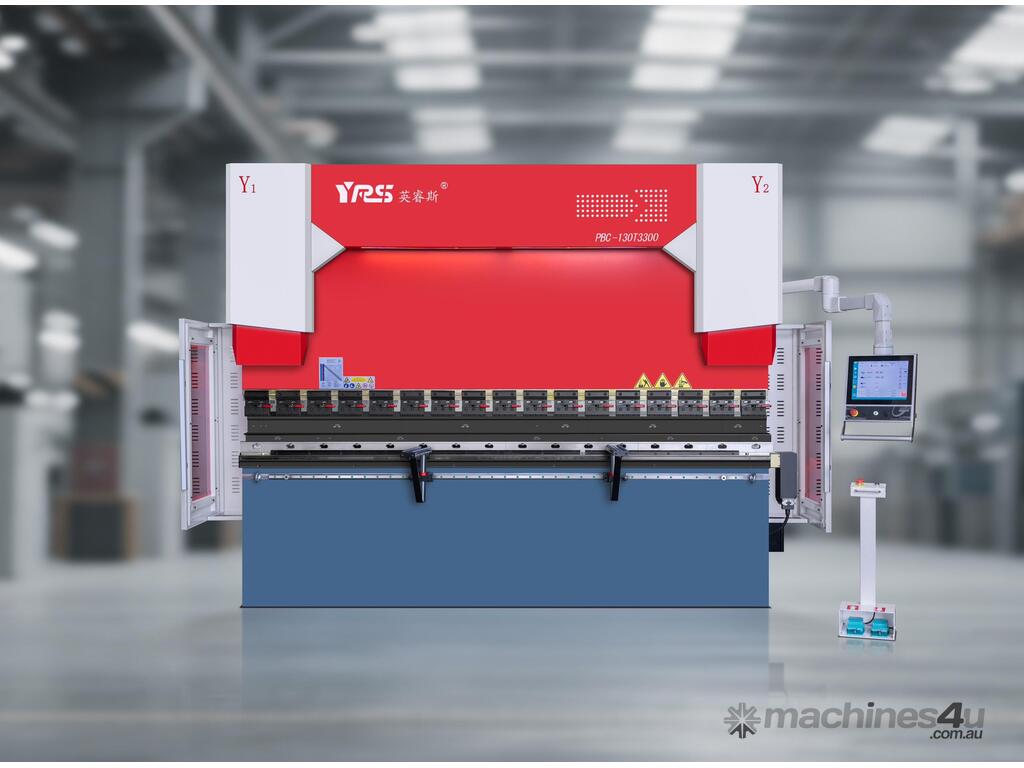

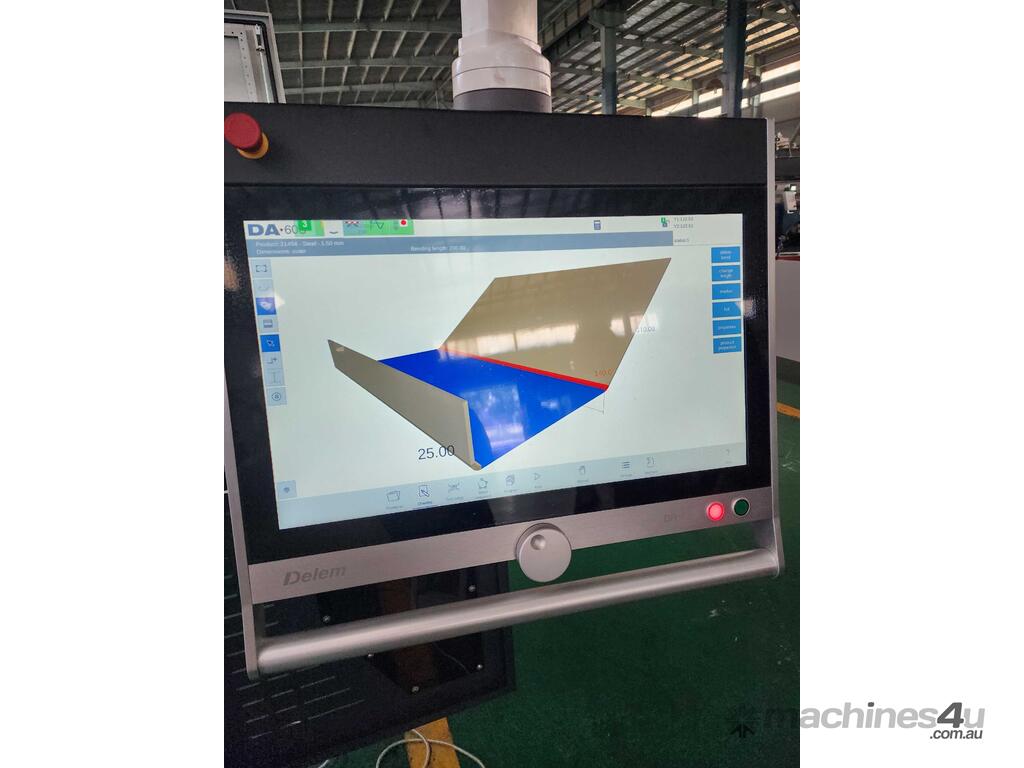

We are proud to introduce New YRS 13032 6+1 Axis Electro-hydraulic Synchronous CNC Press brake. Featuring energy saving hybrid servo hydraulic system, SCS920 touch screen controller with a 3D graphical interface and job drawing function, with a simple and easy to use interface, the ability to see a 3D graphical representation of the job reduces the error and material waste. This is high quality-built machine that uses high quality components and comes with a comprehensive list of standard features.
Features -

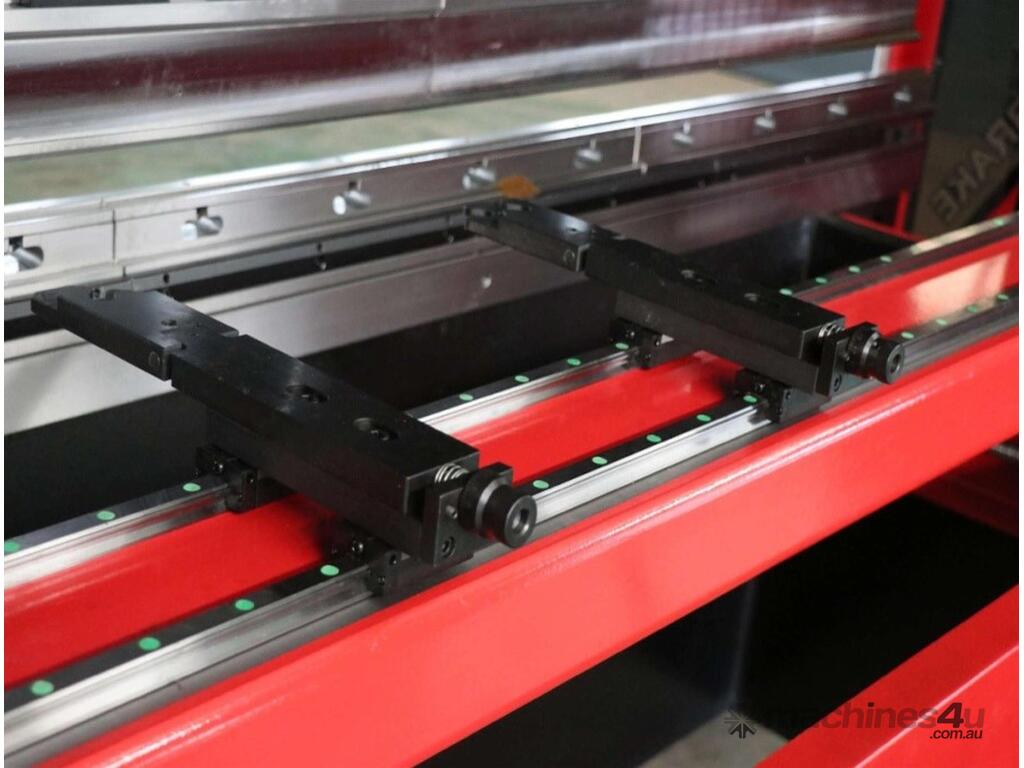

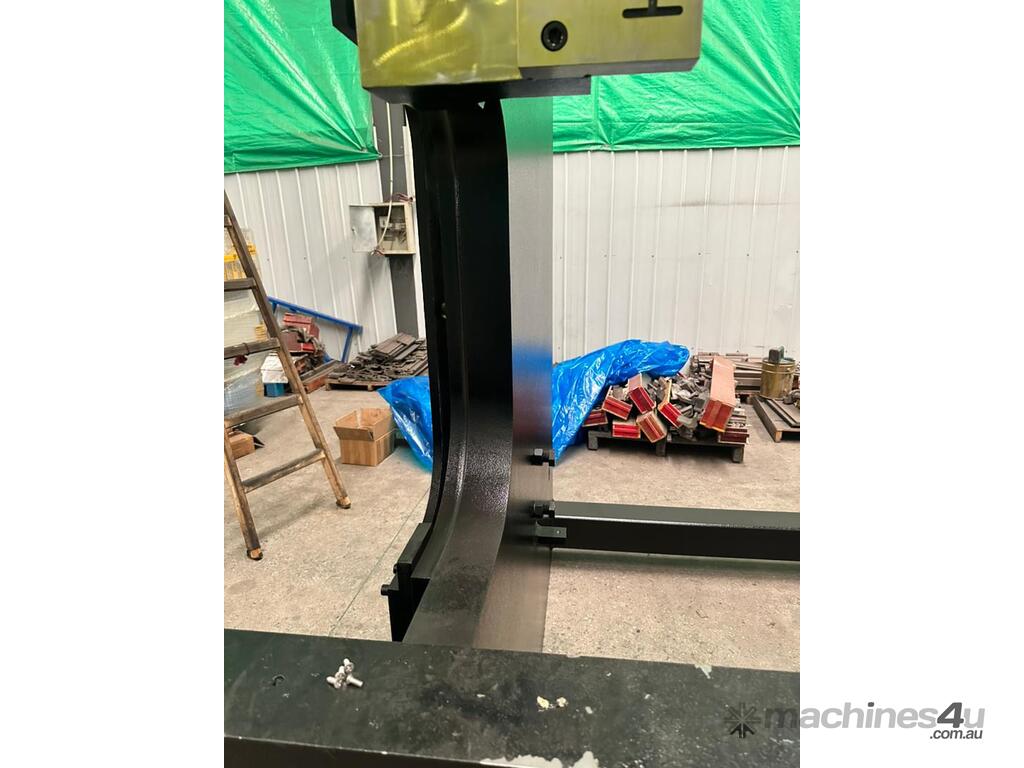

1. Linear guided front supports.

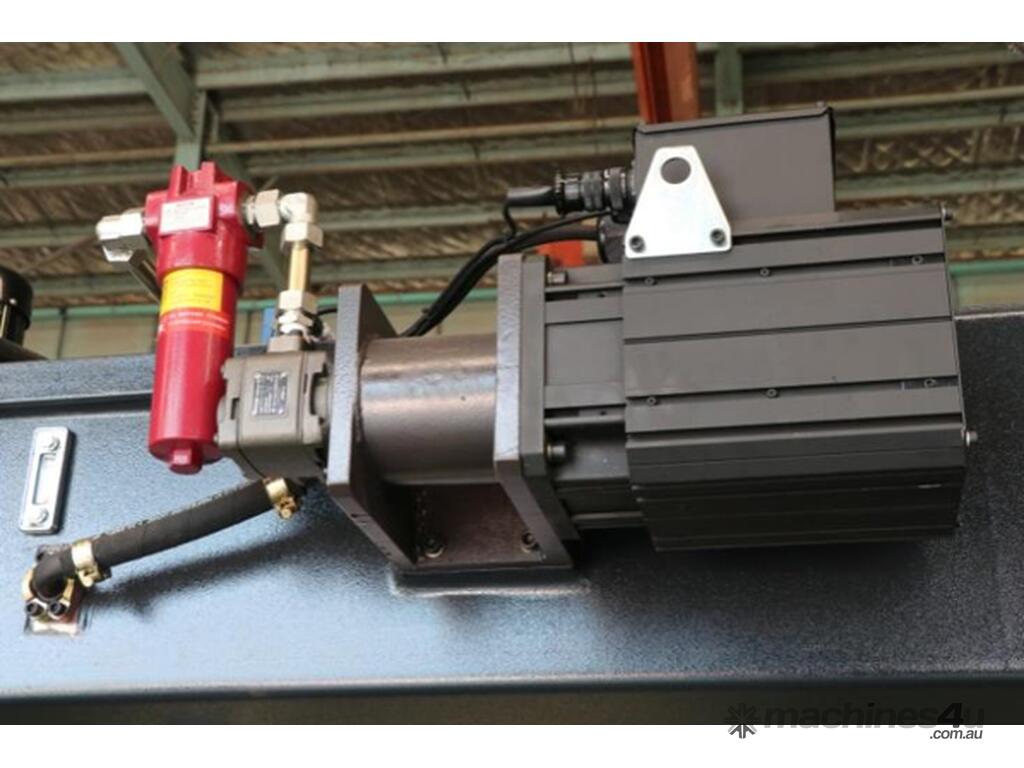

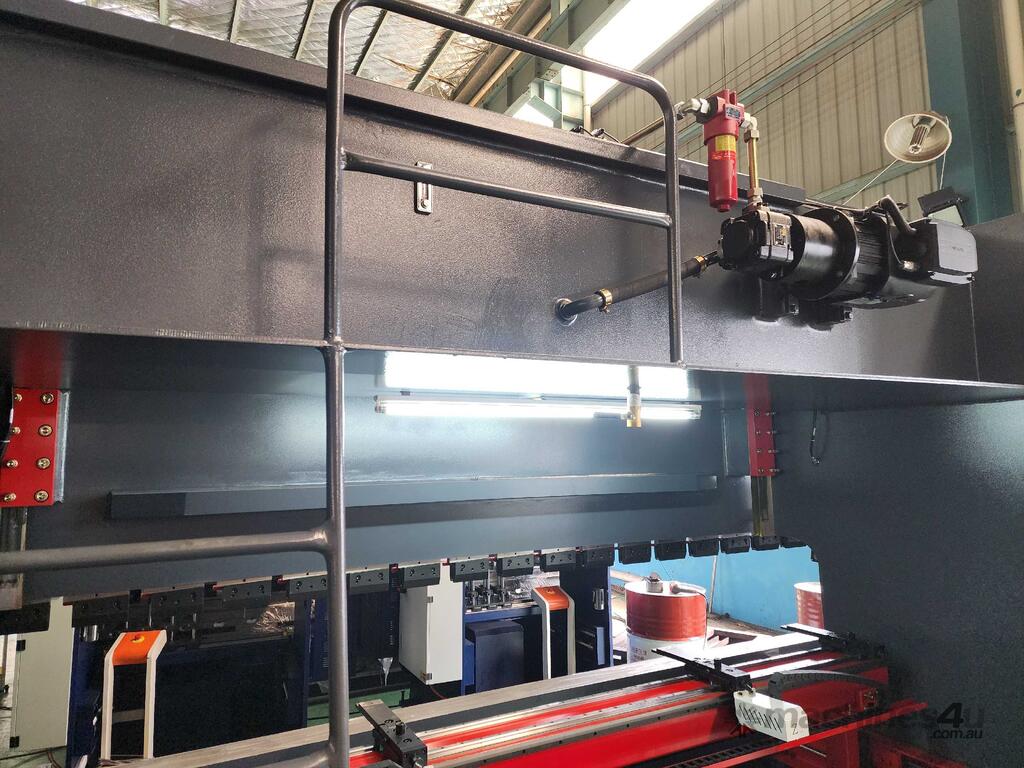

2. Servo hybrid energy saving hydraulic system

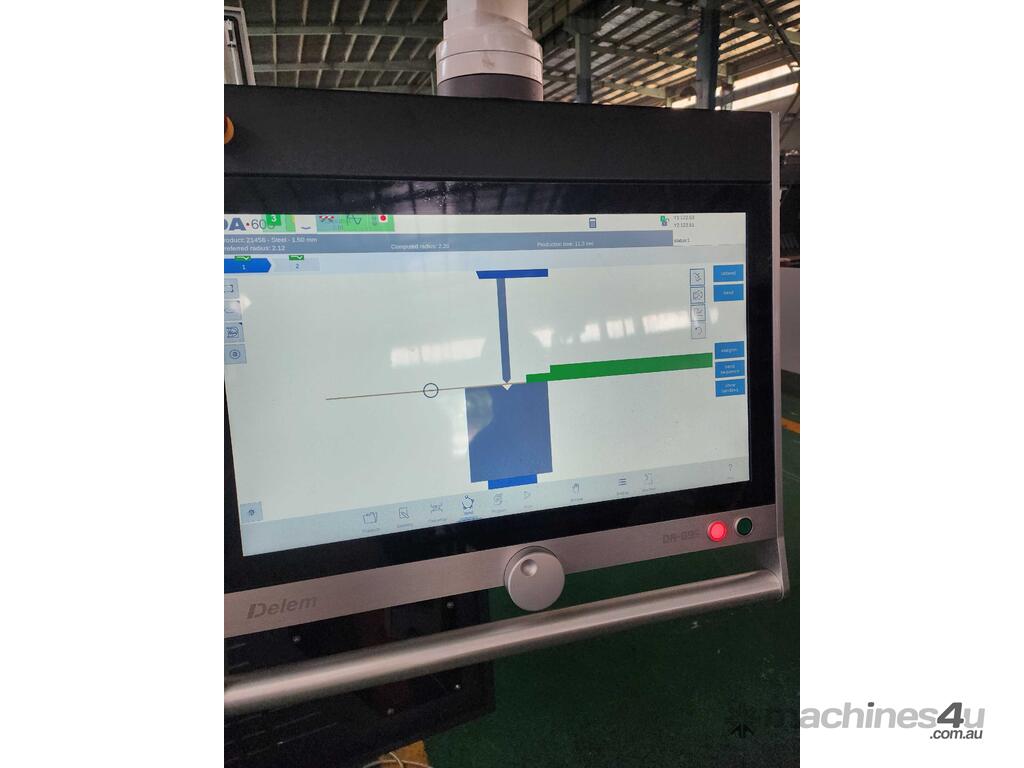

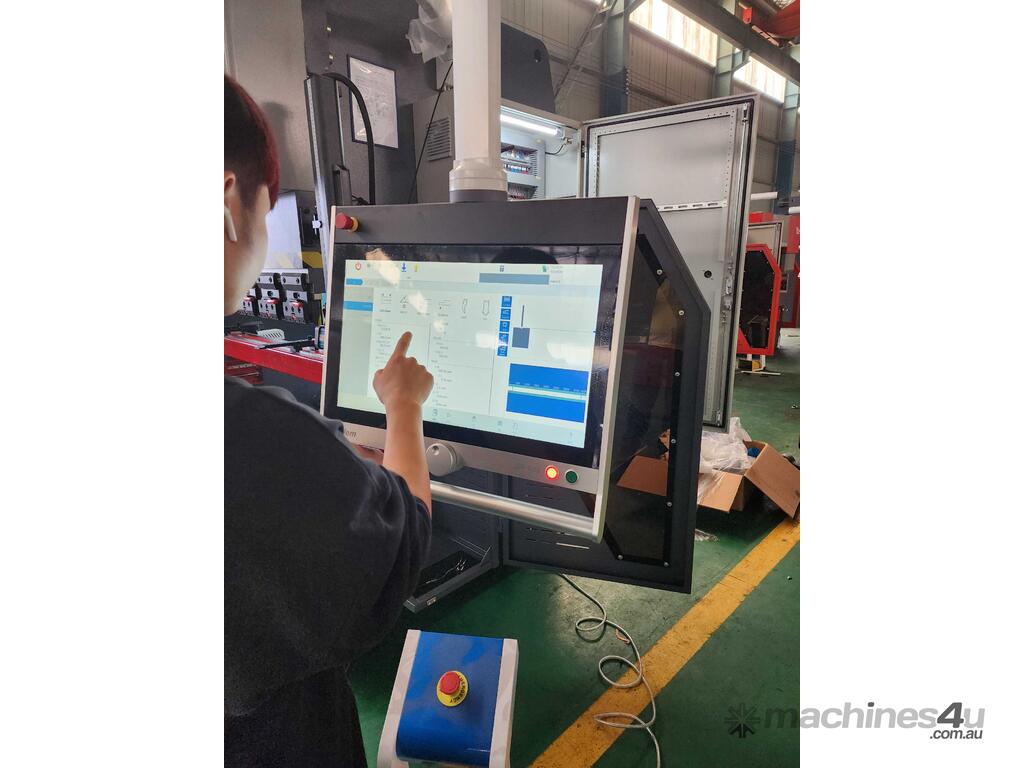

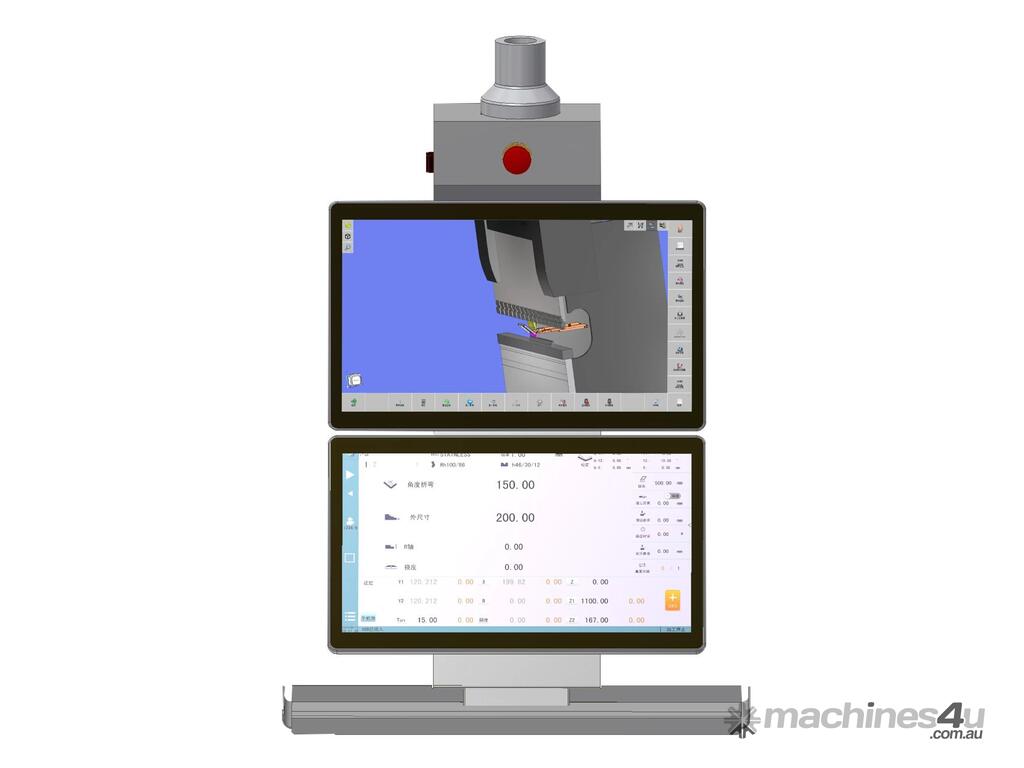

3. SCS920 controller

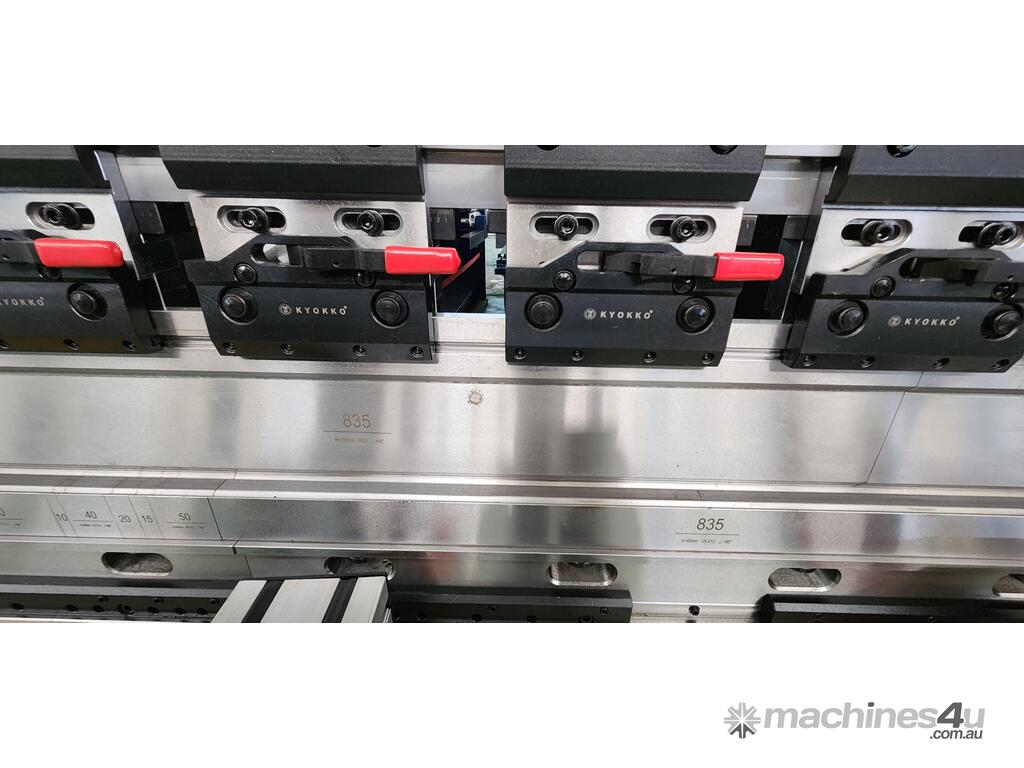

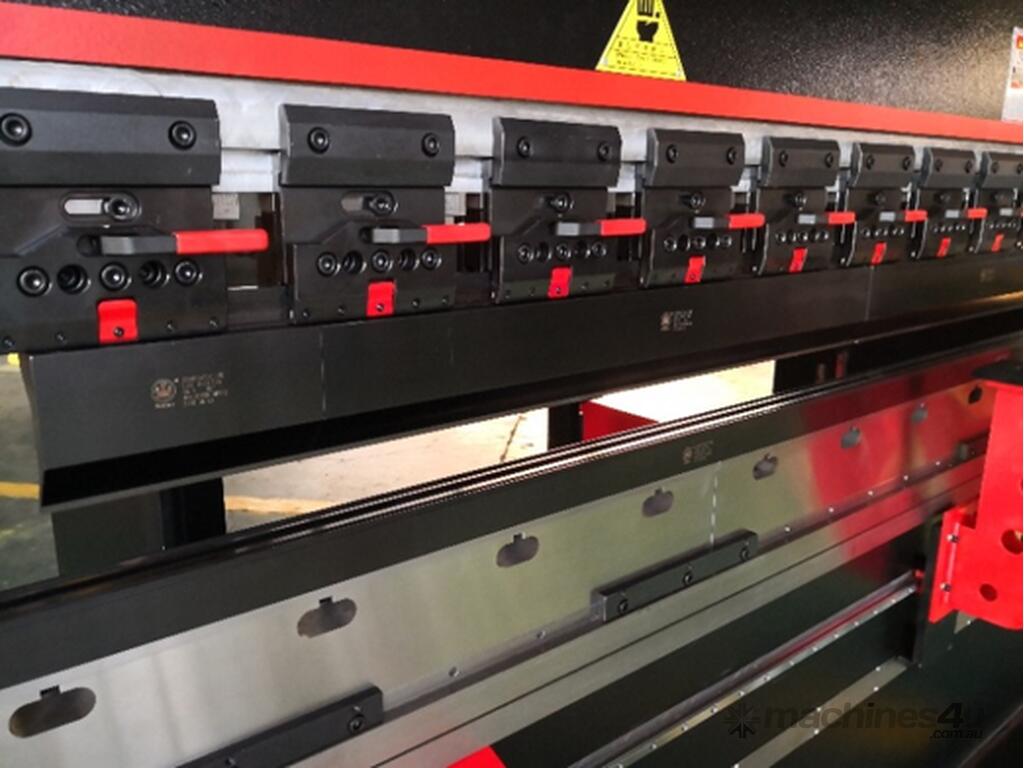

4. Quick release tool clamps
5. Sectional tooling
6. Safety side covers with interlock switch.

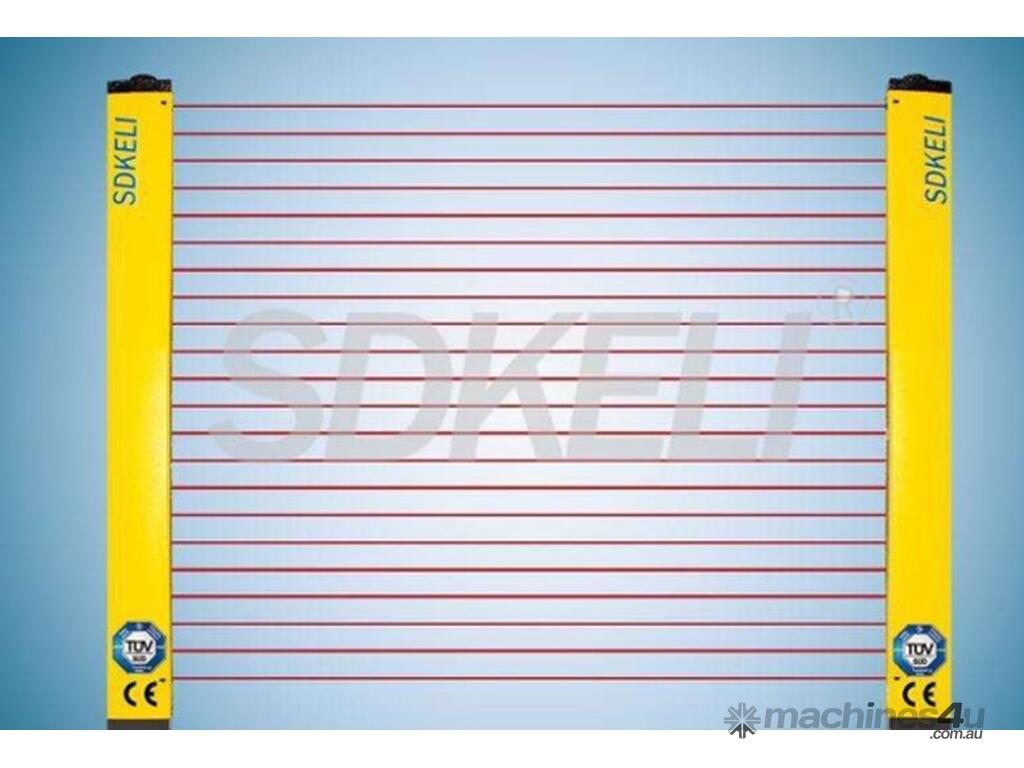

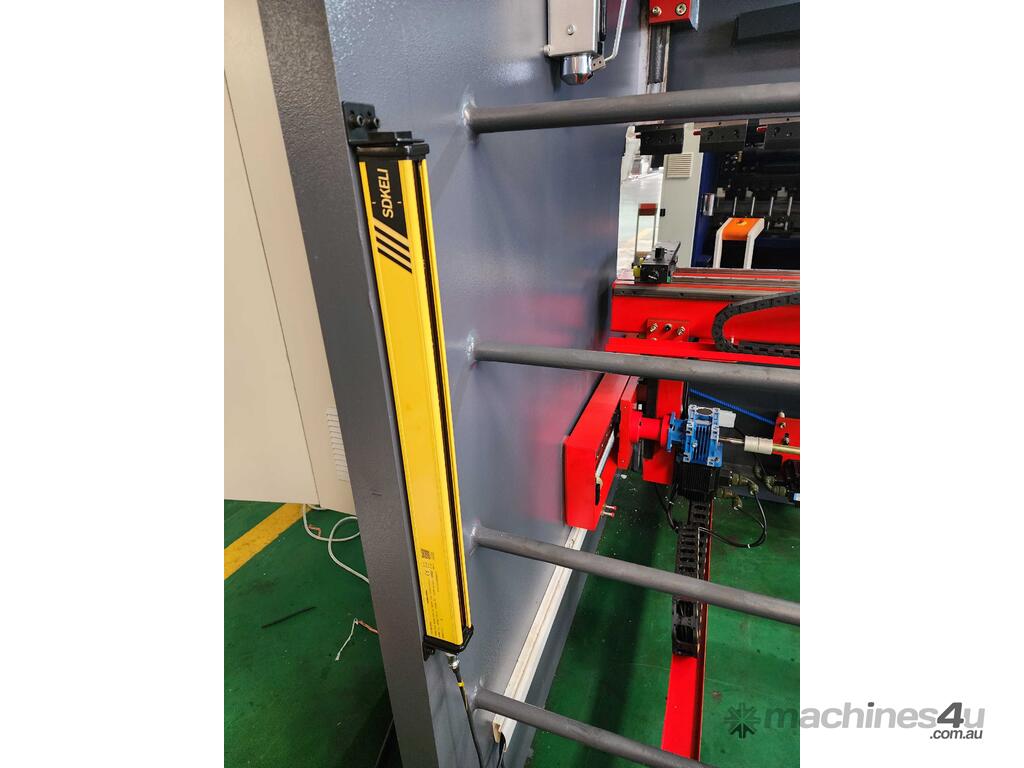

7. Safety light curtains.

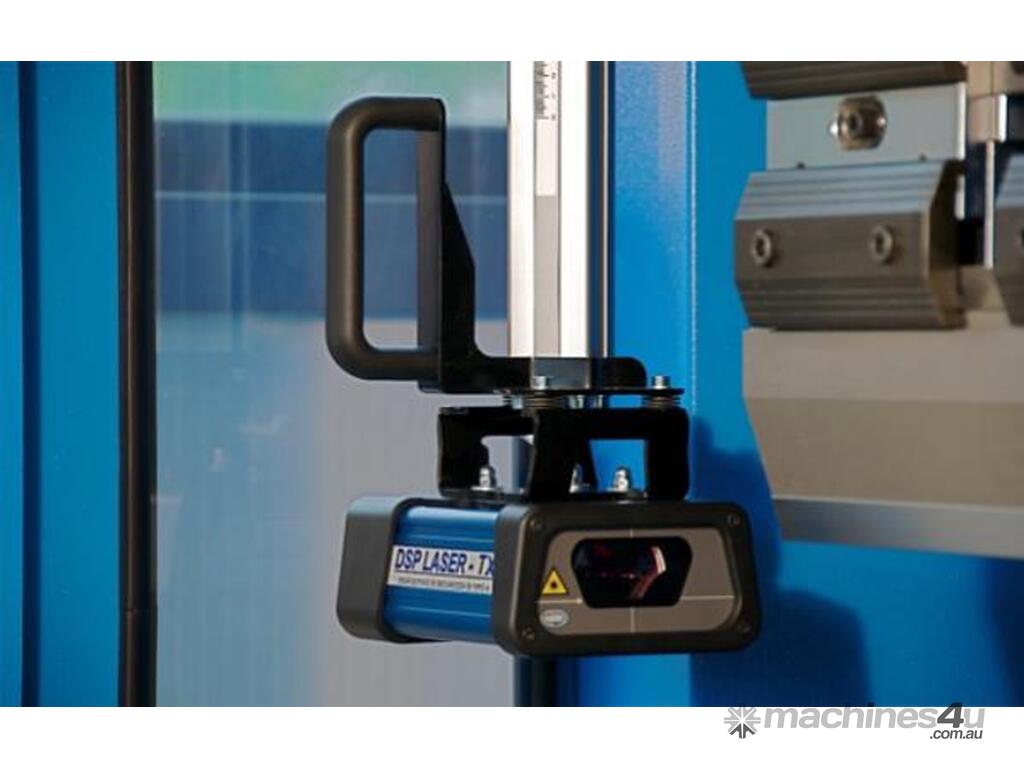

8. DSP Laser safe front guarding.
9. CNC controlled mechanical crowning system
10. Very quiet operation with energy saving Servo Hybrid hydraulic pump
Machine Specifications -
Nominal pressure 1300 KN
Table length 3200 mm
Distance between columns 2600 mm
Ram stroke 200 mm
Open height 450 mm
Throat depth 400 mm
Approach speed 120 mm/s
Return speed 110 mm/s
Pressing speed 10 mm/s
X Axis Stroke 500 mm
Speed 250 mm/s
R Axis Stroke 200 mm
Speed 60 mm/s
Length of machine 3600 mm
Width of machine 1800 mm
Height of machine 2900 mm
Machine weight 9000 kg
Main Servo motor power 15 Kw
*Different sizes, capacities and configurations available on your request!
