1313 Enclosed Fiber Laser - 2kW

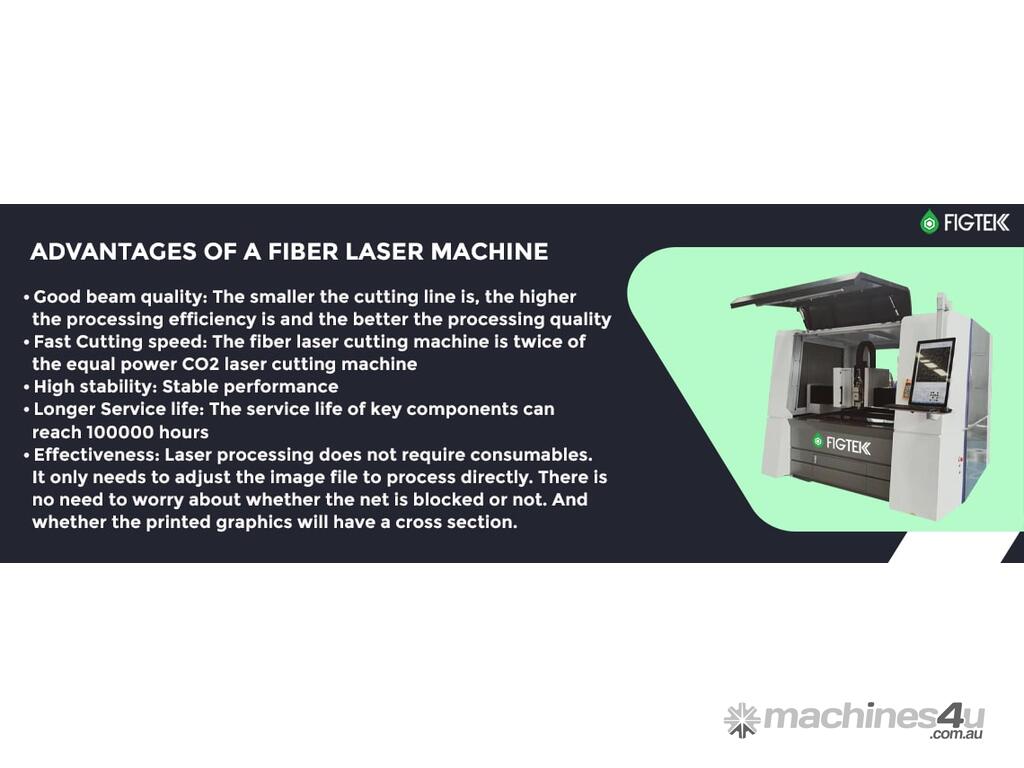

1313 Enclosed 2?kW Fiber Laser Cutting Machine

Overview

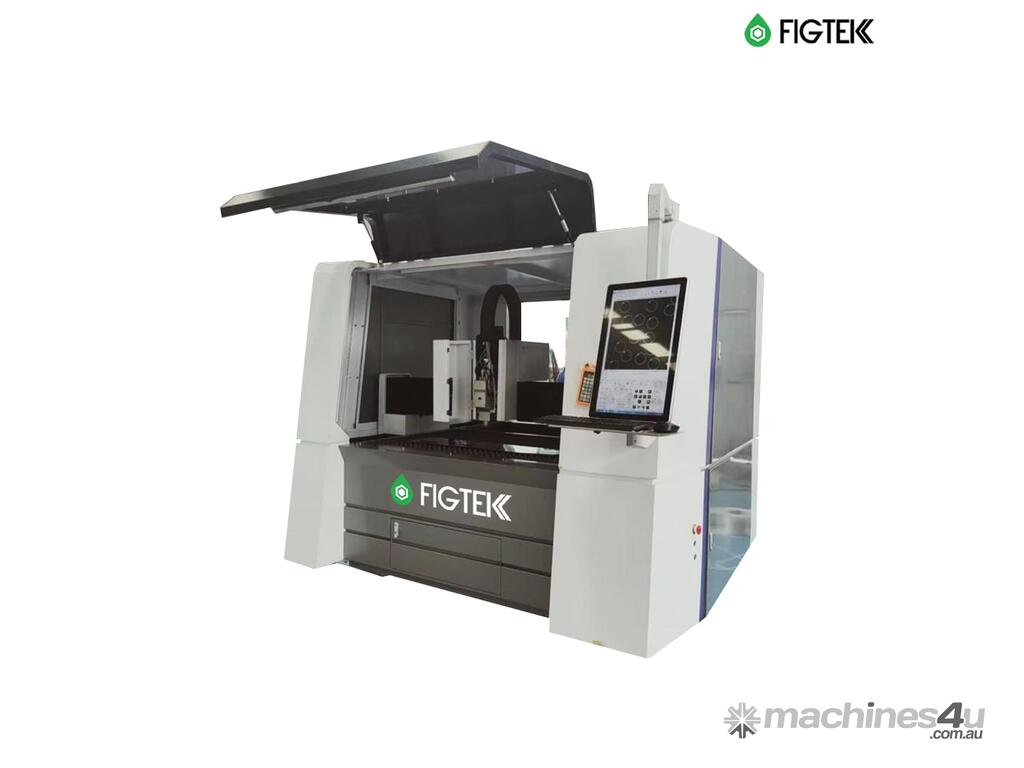

A high-performance, fully enclosed gantry-type fiber laser cutter with a 1?300?×?1?300?mm working area, powered by a 2?kW Raycus/MAX/IPG fiber laser. Engineered for precise, clean cuts on a broad range of metals, from carbon and stainless steel to aluminum, brass, copper, titanium, and more


Key Features

Working Area: 1?300?×?1?300?mm
Laser Power: 2000?W fiber laser source; options for 1?kW, 1.5?kW, 3?kW, 6?kW available

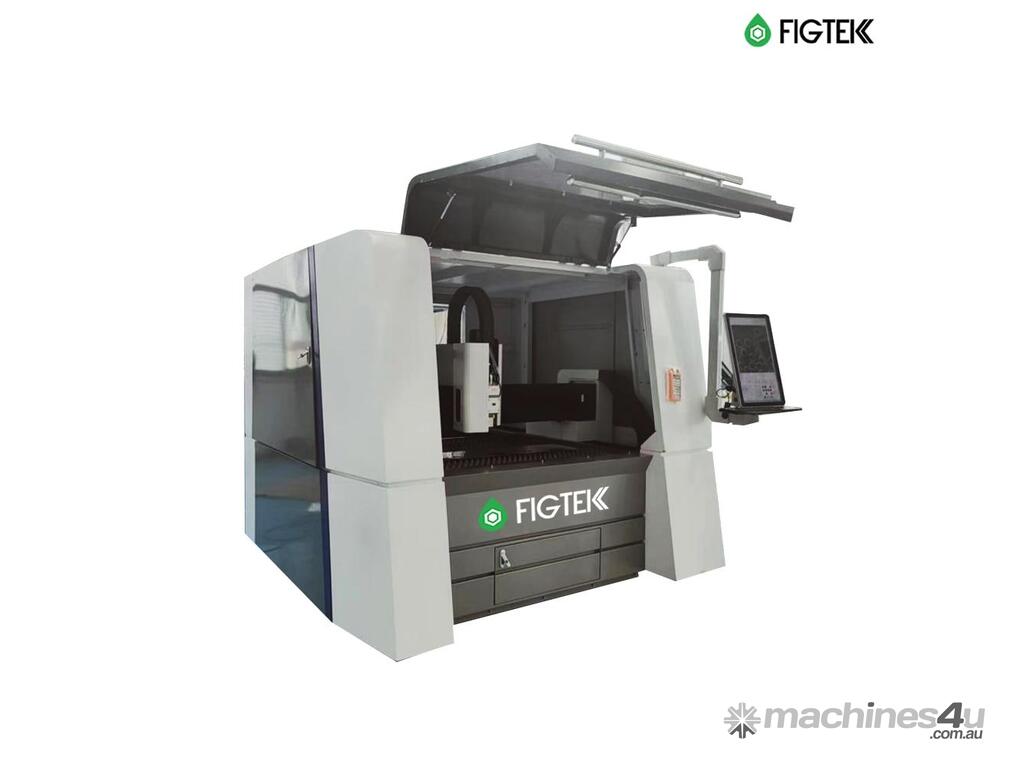

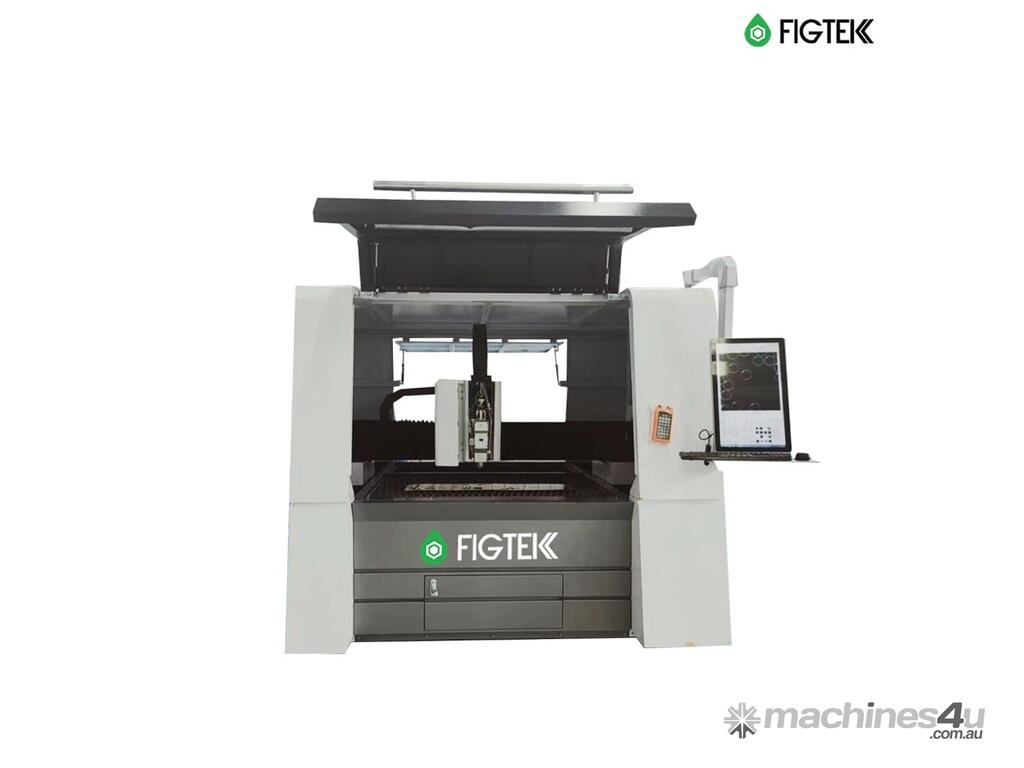

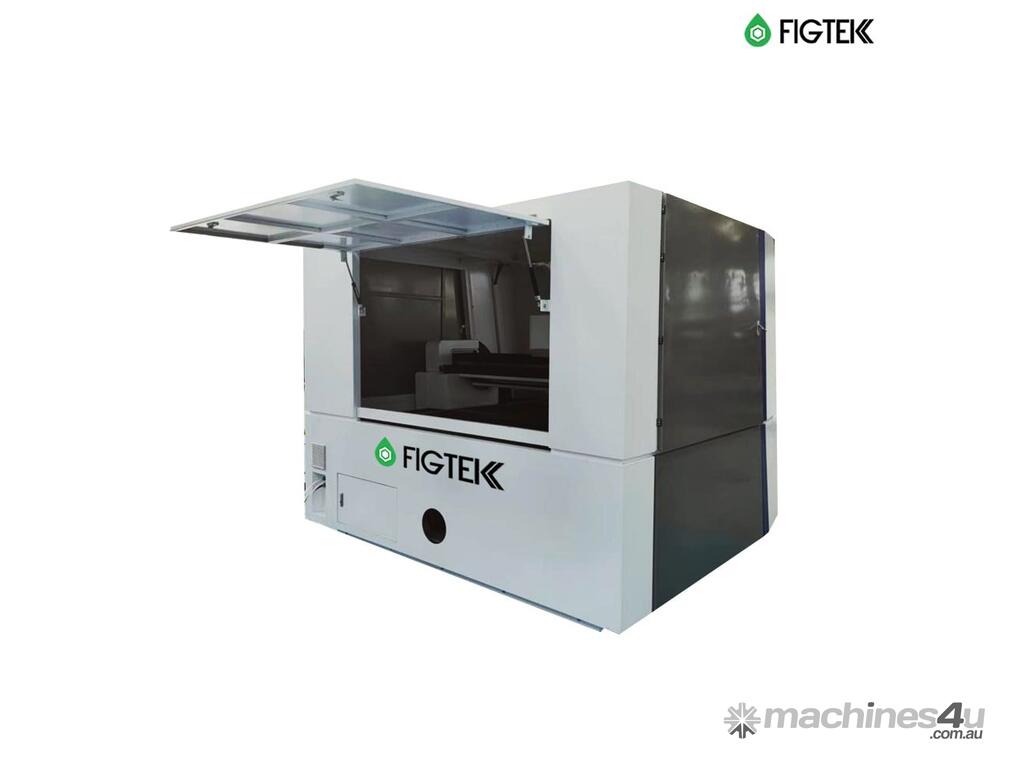

Enclosed Safety Design: Full-cover enclosure improves operator safety, reduces noise, and supports dust and fume extraction

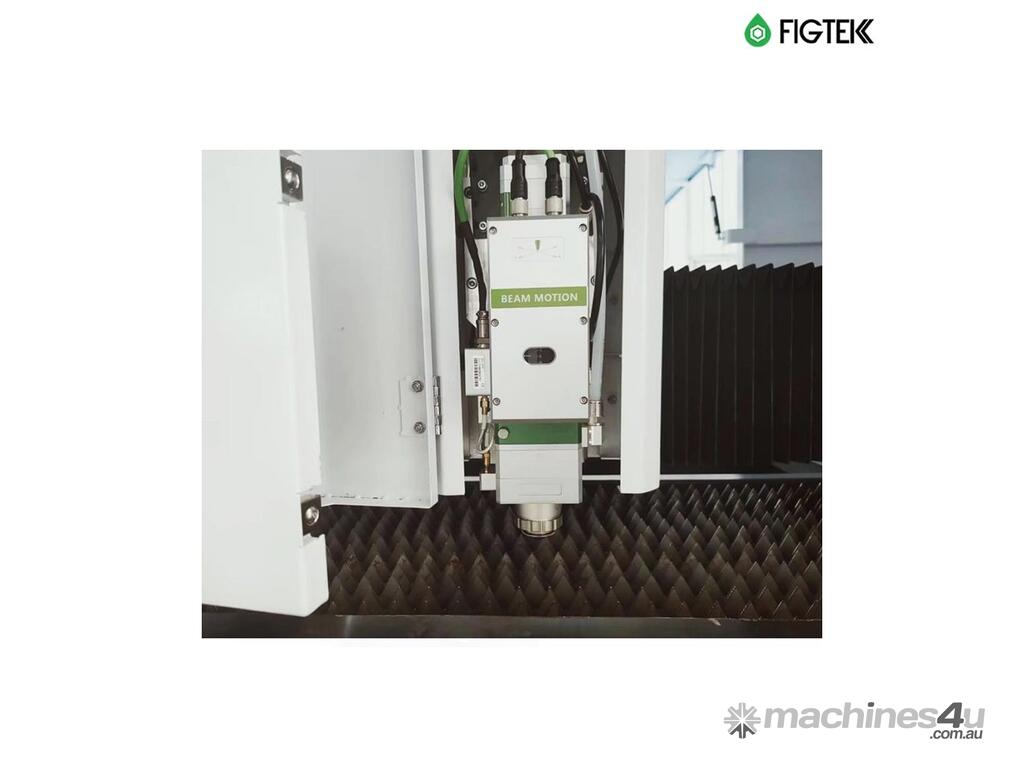

Automatic Autofocus Head: Motor-driven optics auto-adjust to maintain focal length for faster pierce and consistent cut quality
Robust Gantry Construction: Die-cast aluminium beam on Hiwin guide rails with Fuji or Yaskawa servo motors offers precision
Integrated Cooling & Lubrication: Water-cooled laser source paired with automatic oiling of linear guides ensures peak operational stability
Advanced Control System: Equipped with FSCUT/CypCut CNC controller; supports AI, DXF, DWG, PLT, BMP file formats
Durable Bed Components: Heavy-duty nail bed and stripping knives made thicker for better lifespan; conveyor models are available for efficient sheet handling

Performance & Applications

High-Speed Metal Cutting: Precision cutting of steel, stainless steel, aluminium, copper, brass, silicon, titanium, etc.
Ideal For: Sheet metal fabrication, architectural metalwork, automotive components, aerospace parts, signage, precision engineering, and more.
Excellent Edge Finish: Clean cuts with minimal burr and tight kerf tolerances.

Specifications at a Glance

Specification Detail
Working Area 1?300?×?1?300?mm
Laser Power 2?000?W (configurable)
Positioning Accuracy ±0.02?mm
Repeatability ±0.02?mm
Servo Motors Fuji or Yaskawa
Guide Rails Taiwan Hiwin linear guides
Cooling System Water-cooled (laser) + optional air/water for enclosure
Control Software FSCUT, CypCut; AI, DXF, DWG, PLT, BMP supported
Power Requirement 3-phase 380?V, 50/60?Hz (customizable)
Dimensions & Weight Approx. 2500?kg total (includes bed, enclosure)


Why Choose This Machine

Versatile Cutting Capability: Handles both reflective and non-reflective metals with high precision
Industrial Reliability: Automations like auto-focus and auto-lubrication reduce downtime
Operator-Friendly Design: Enclosed build ensures safety without sacrificing visibility or access
Scalable Setup: Options for conveyor bed or higher-power laser for heavier duty cutting needs

Suitability
Perfect for workshops and light industrial environments that demand a safe, precise, and efficient cutting solution for a broad array of metal fabrication tasks.
