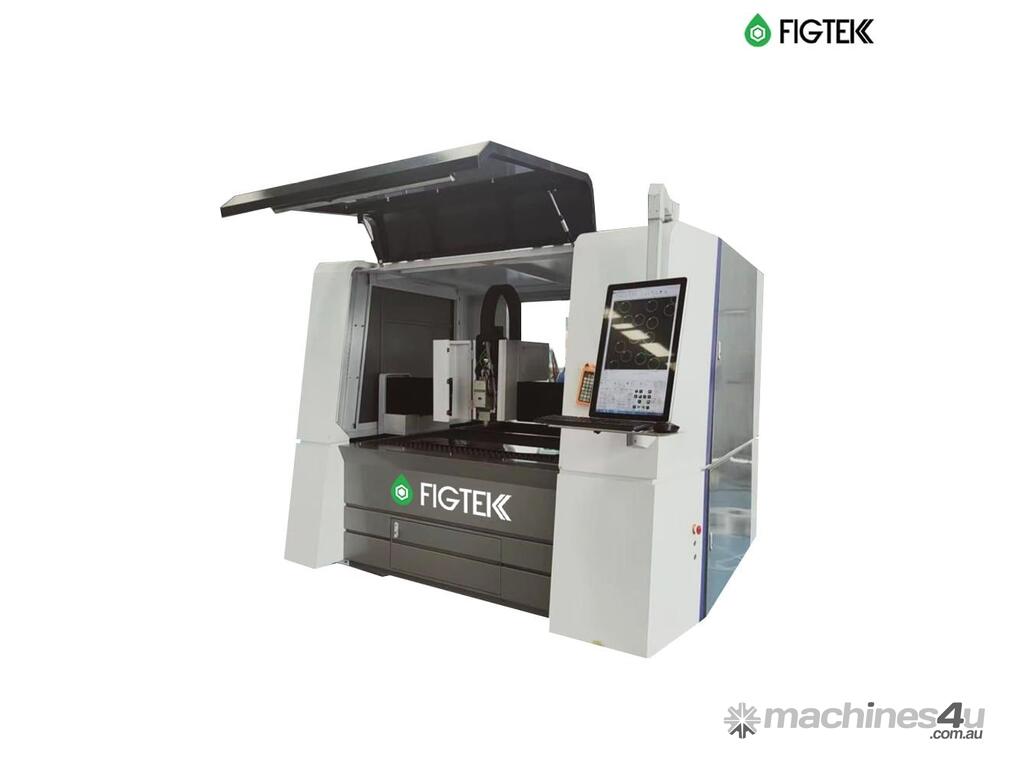

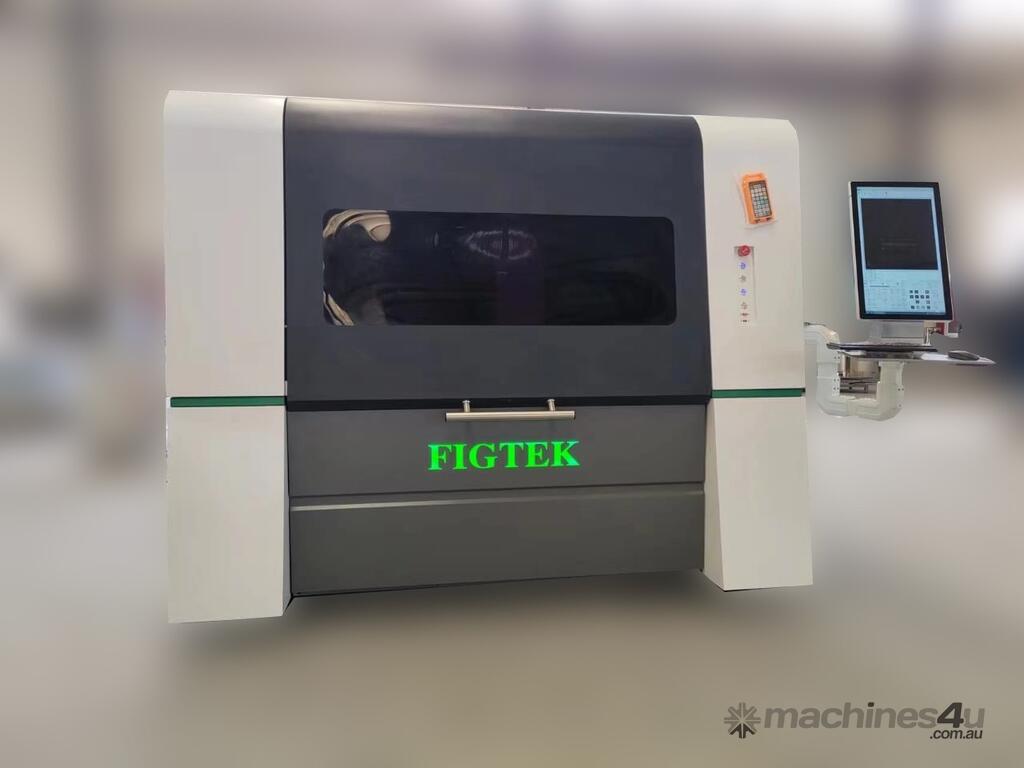

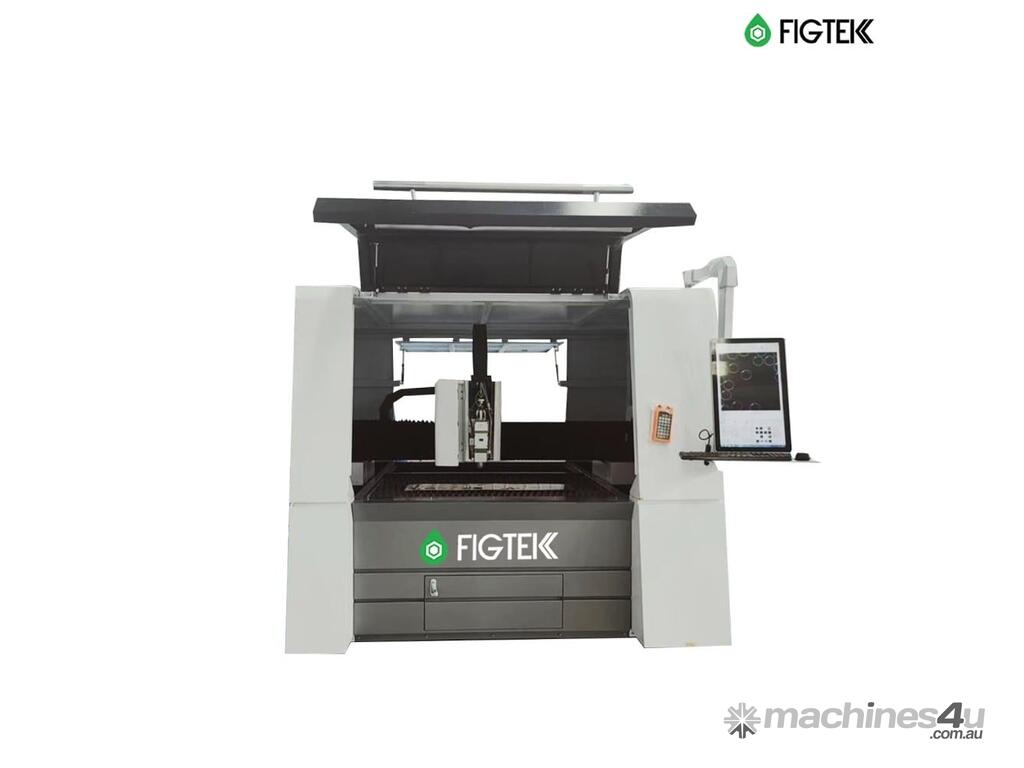

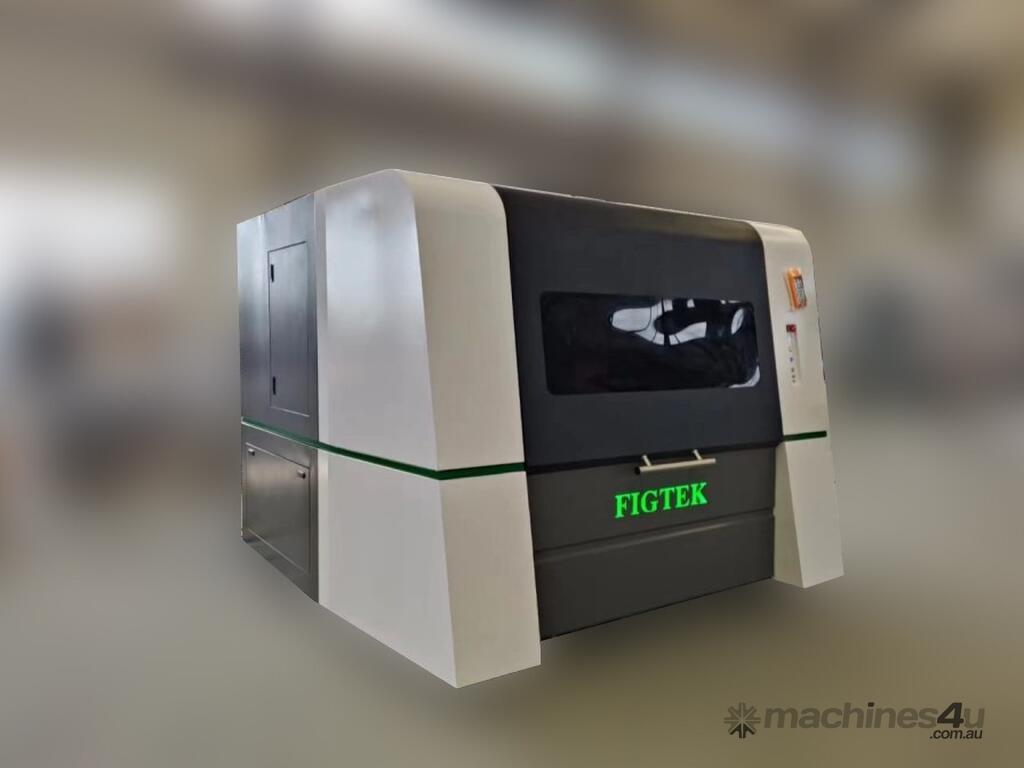

1313 Enclosed Fiber Laser - 3kW

A compact yet powerful fully enclosed gantry-style fiber laser cutter with a 1300 × 1300mm working area and 3kW Raycus laser source. The machine combines strong cutting capability with operator safety, making it ideal for small- to medium-sized workshops.

Key Features

Working Area: 1300 x 1300 (51" × 51") – spacious enough for standard industrial panels.
Laser Power: 3kW (with options for 1–6kW configurations).

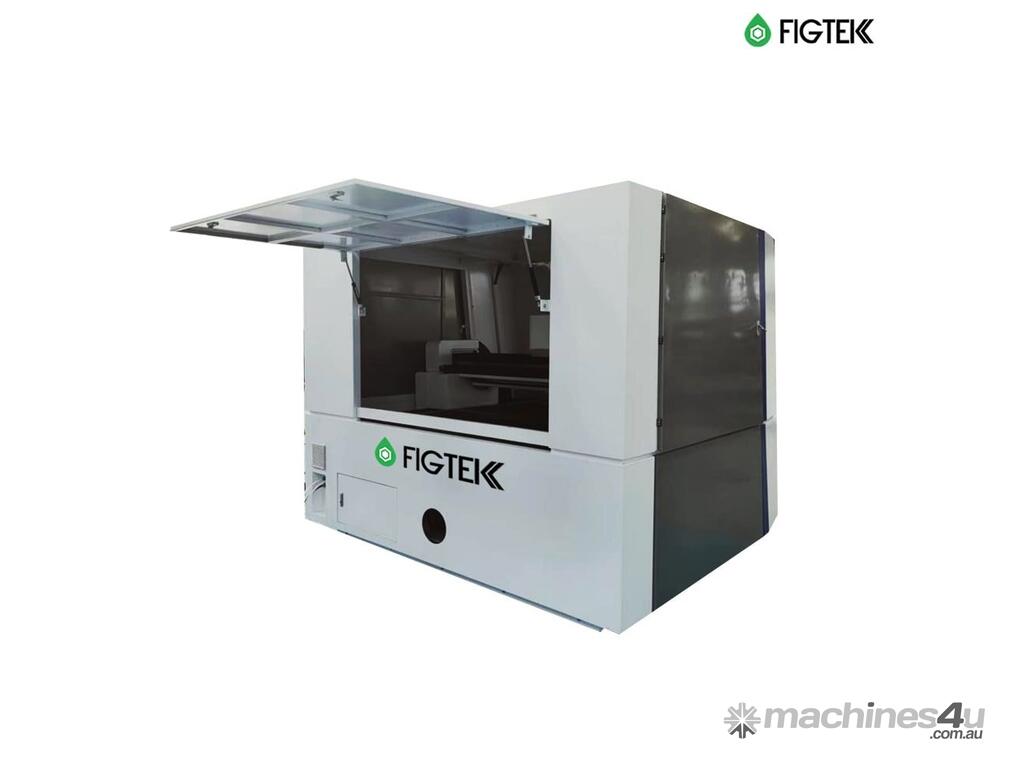

Enclosed Design: Full safety enclosure reduces noise, dust, and ensures laser containment.

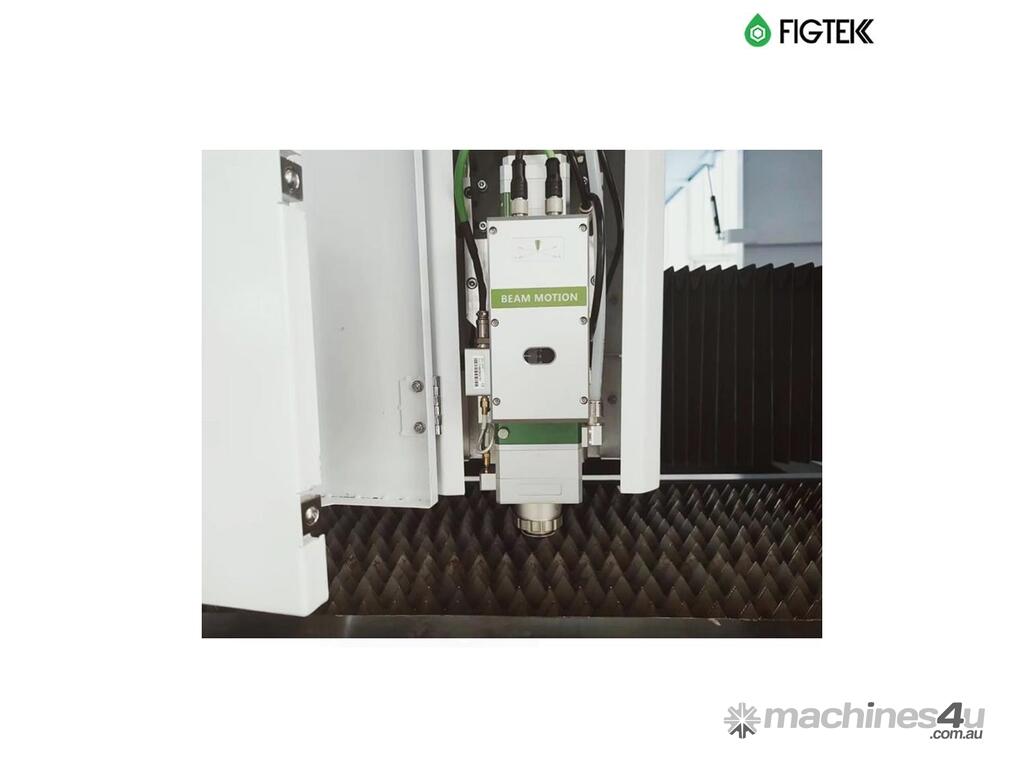

Automatic Autofocus Head: Motorized focusing for optimal cut quality and speed.
Precision Motion System: Driven by dual Fuji servo motors and guided by Taiwan Hiwin rails; ensures ±0.02mm accuracy.
Integrated Cooling & Lubrication: Industrial chiller for laser cooling plus automatic lubrication prolongs reliable operation.
CNC Control System: Works with FSCUT/CypCut, supports AI, DXF, DWG, PLT, BMP formats for flexible file handling.
Durable Workbed: Tough nail bed and knife-strip components offer longer service life; optional conveyor bed available.

Technical Highlights
Specification Details
Cut Area 1300 x 1300mm

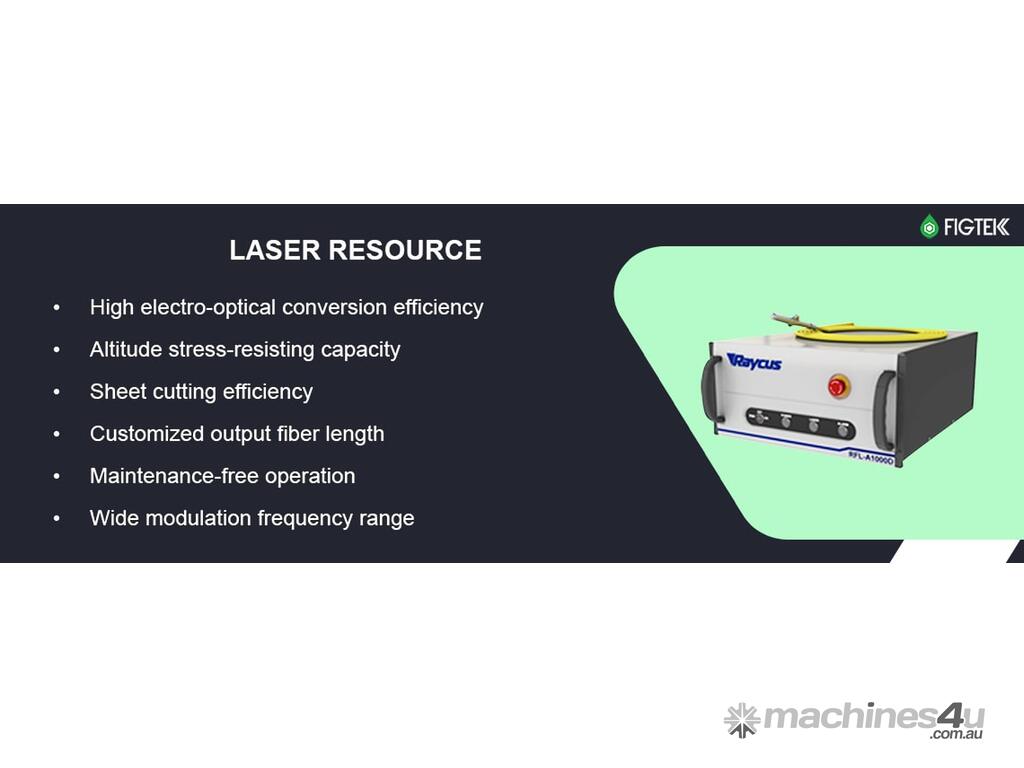

Laser Source 3kW Raycus
Positioning Accuracy ±0.02mm
Repeatability ±0.02mm
Motion System Dual Fuji servo + Hiwin linear rails
Auto-Focus Head Motor-driven laser head
Cooling System Industrial chiller for laser; water/air cooling for enclosure
CNC Controller FSCUT / CypCut; multi-file format support
Enclosure Full cover with extraction-ready design
Power Requirement 3-phase, 415V, 50/60Hz
Footprint Compact 1325×1350mm body; approx. 3×2m including machine frame
Weight ~1,100kg

Applications

Ideal for cutting a wide range of metals:
Stainless steel, carbon steel, aluminium, brass, copper, titanium, silicon steel
Applications include metal fabrication, signage, HVAC, automotive & aerospace components, kitchenware, elevator parts, precision engineering and more.

Why Choose the 1313 Enclosed 3kW Fiber Laser?

Space-Efficient: Designed to deliver industrial power even in workshops with limited floor space.
insertionmachine
High-Precision Output: Excellent cut quality, smooth edges, minimal burr – suitable for demanding projects.
Operator Safety: Full enclosure keeps operators safe and promotes a cleaner working environment.
Reliable Performance: Industrial-grade motion, cooling, and lubrication systems reduce downtime.
Scalable Options: Customizable configurations for laser power, bed setup, and accessories to match job needs.
