132 kw 175 hp 2-pole 2980 rpm 415 volt Foot Mount 315S/M frame IP66 Mining AC Electric Motor WEG Model KTE61 W22M Unused
Category: Squirrel Cage AC Electric Motor
3-phase induction motor
Make: WEG
Model: KTE61 W22M
Power: 132 KW (175 HP)
Speed: 2-pole (2980 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 212 A
Mounting: B3 Foot
Frame: 315S/M
Protection Rating: IP66 Mining
Weight: 1122 kg
Notes: Set up for Variable Speed Drive application
Critical DIMS:
Shaft DIA: 65 mm
Shaft Length: 140 mm
Total Length (incl. shaft): 1246 mm
Total Width (incl. RHS to D.E. terminal box): 858 mm
Total Height: 750 mm
Feet measurements: Across 'A' - 508 mm, Front to back 'B' - 406 mm and 457 mm
Front hole to shaft 'C' - 216 mm
Available QTY: 1

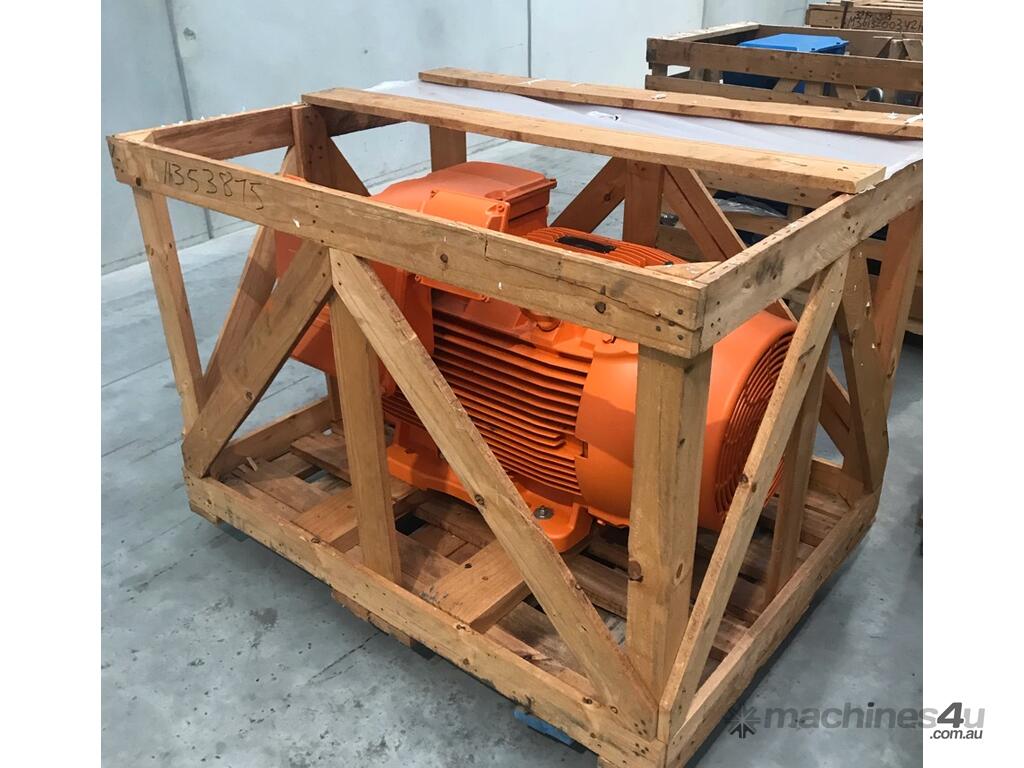

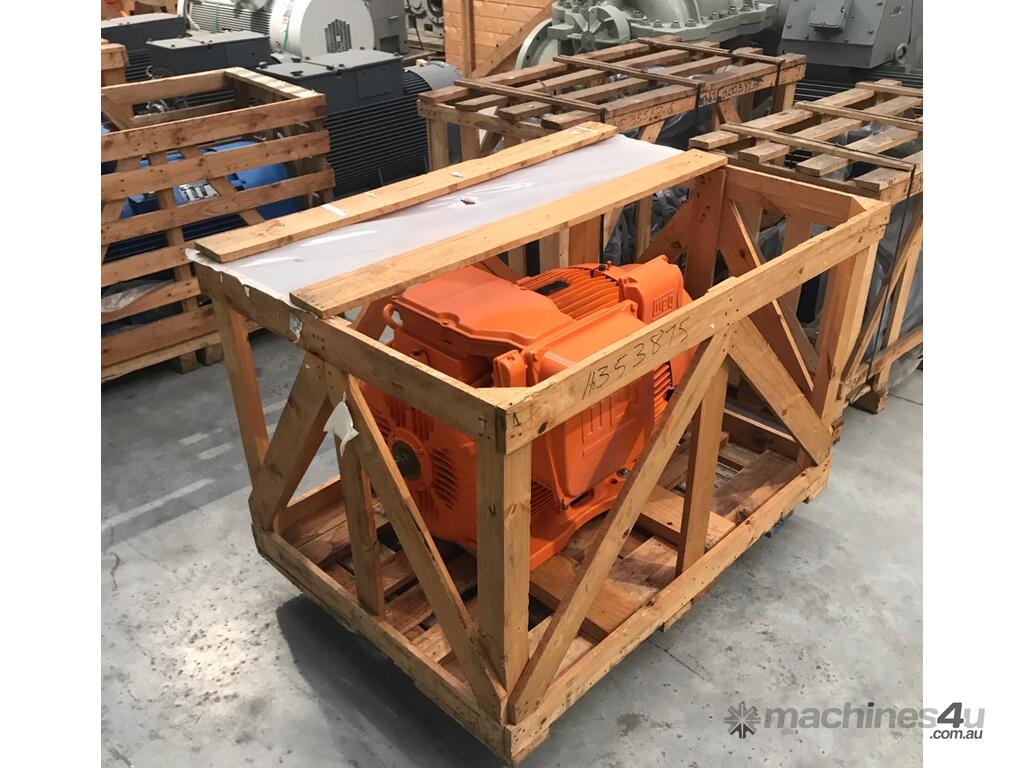

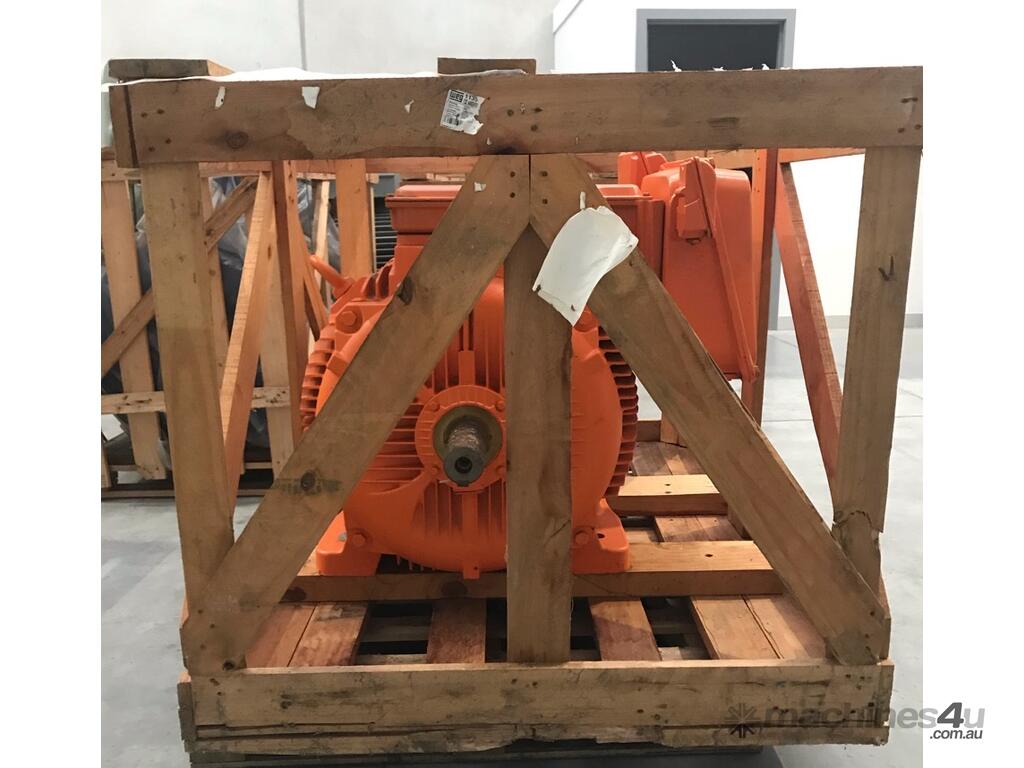

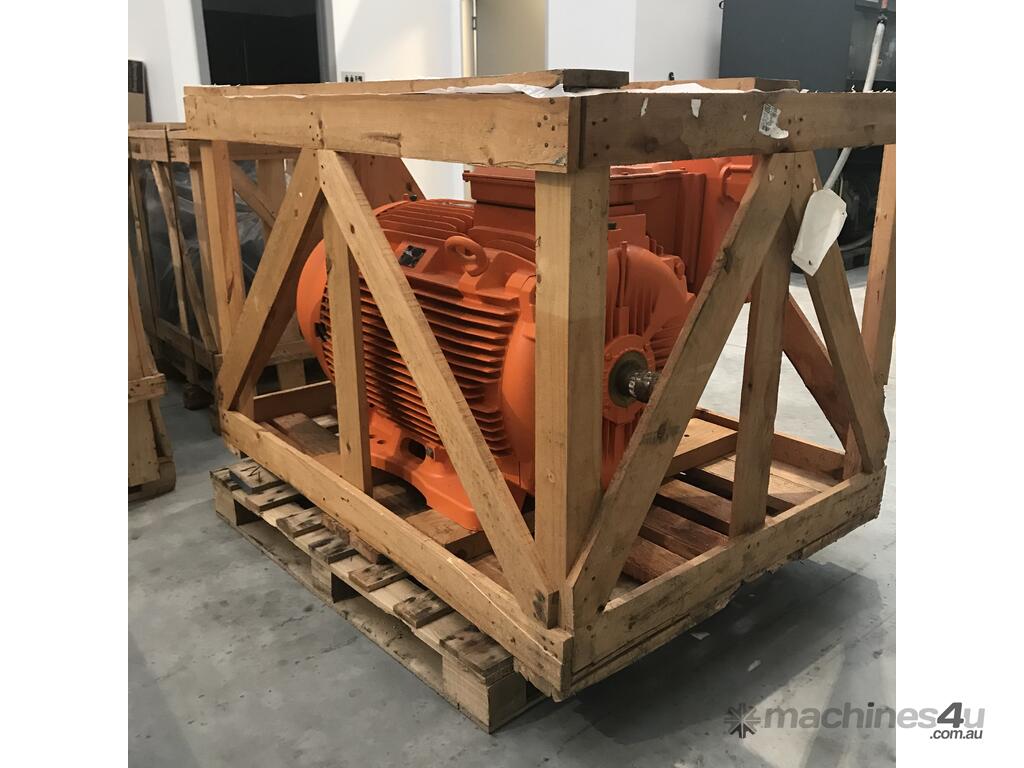

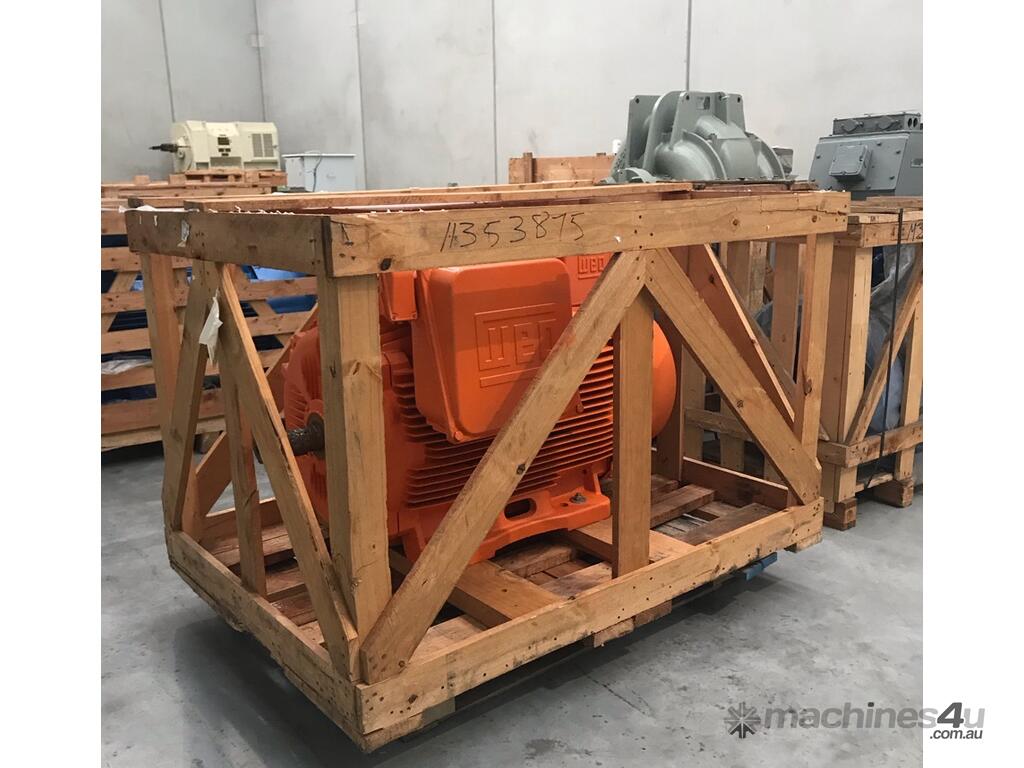

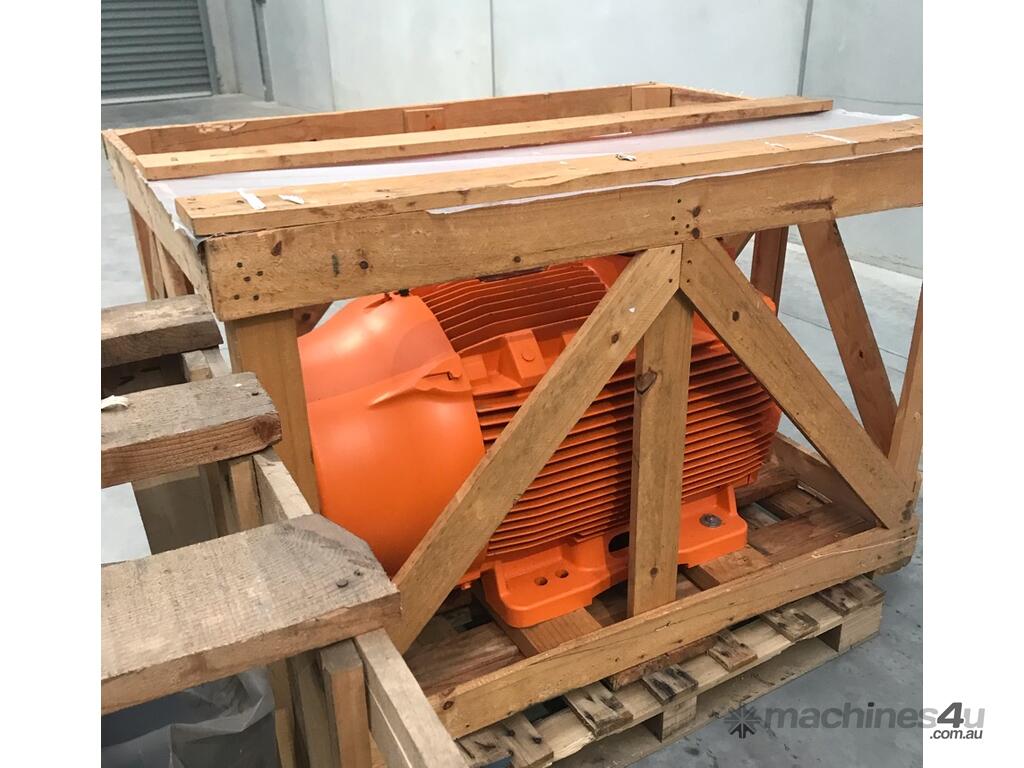

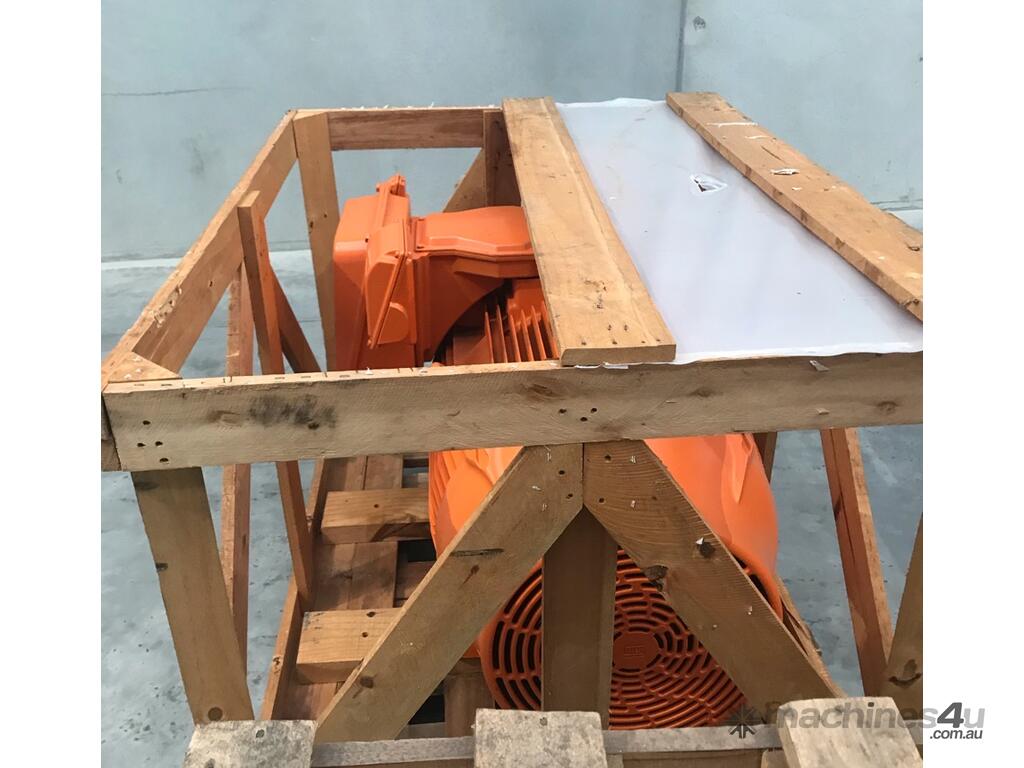

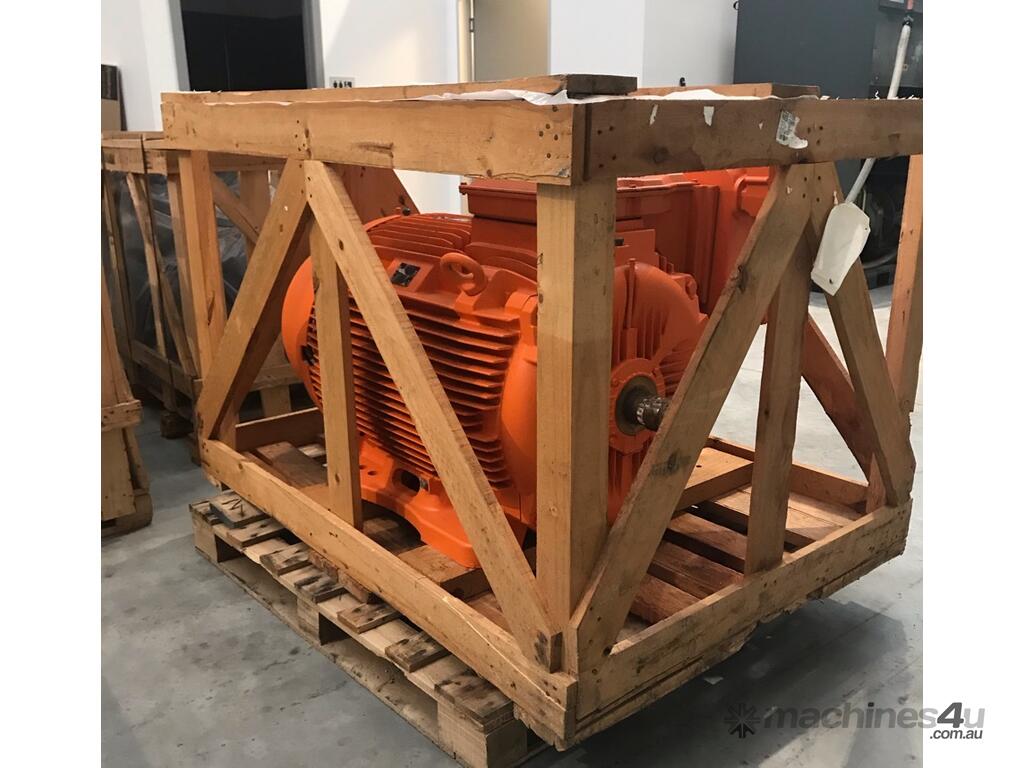

Condition: New/Unused in crate. Warehouse storage.
exStock Seaford 3198 Victoria, Australia
Freight services Australia wide available on request
