1390 CO2 Laser Engraving & Cutting Machine – Version 2

Inclusions:
Red light position

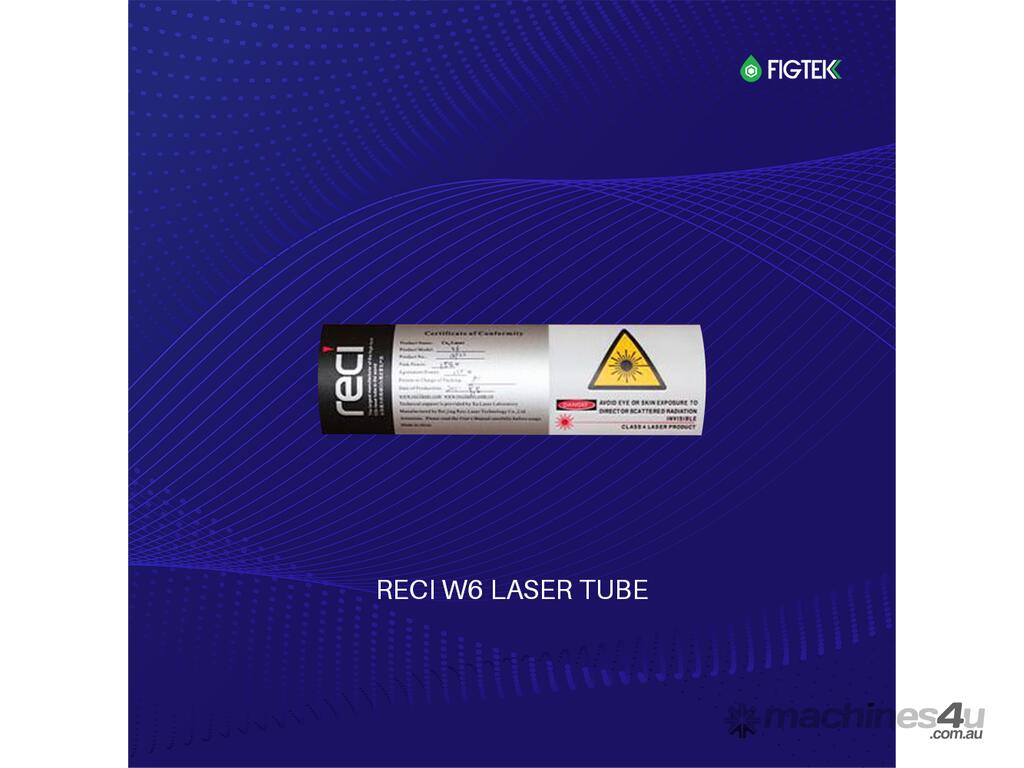

RECI W6 150W laser tube

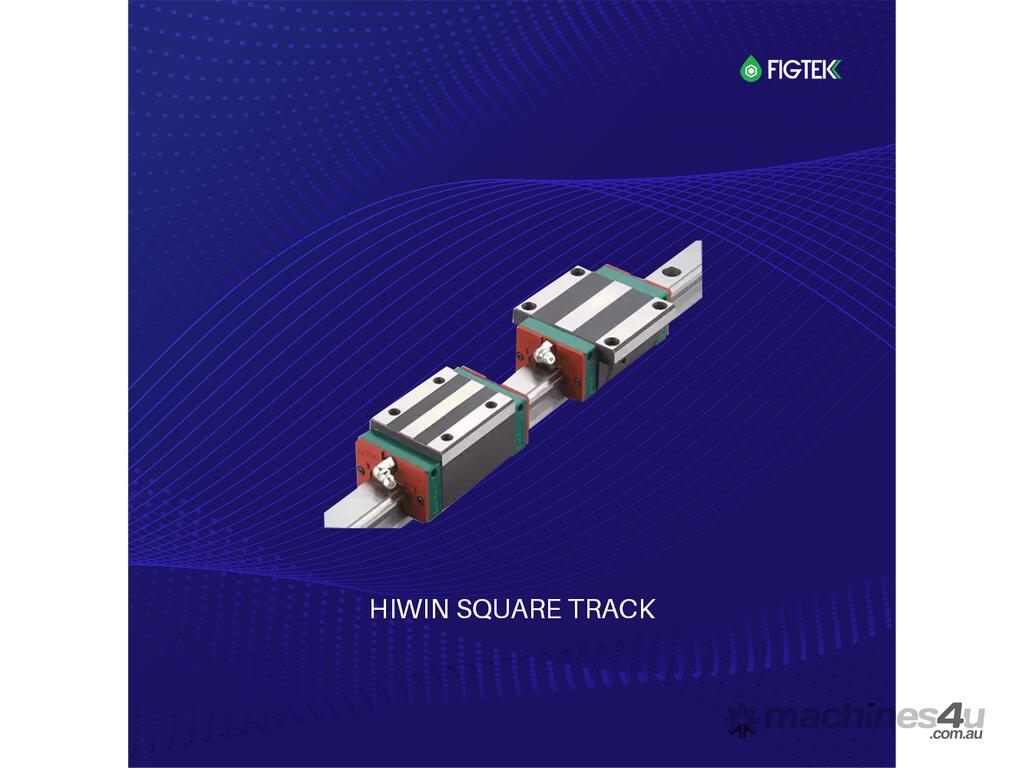

Guide way: Hiwin Square track

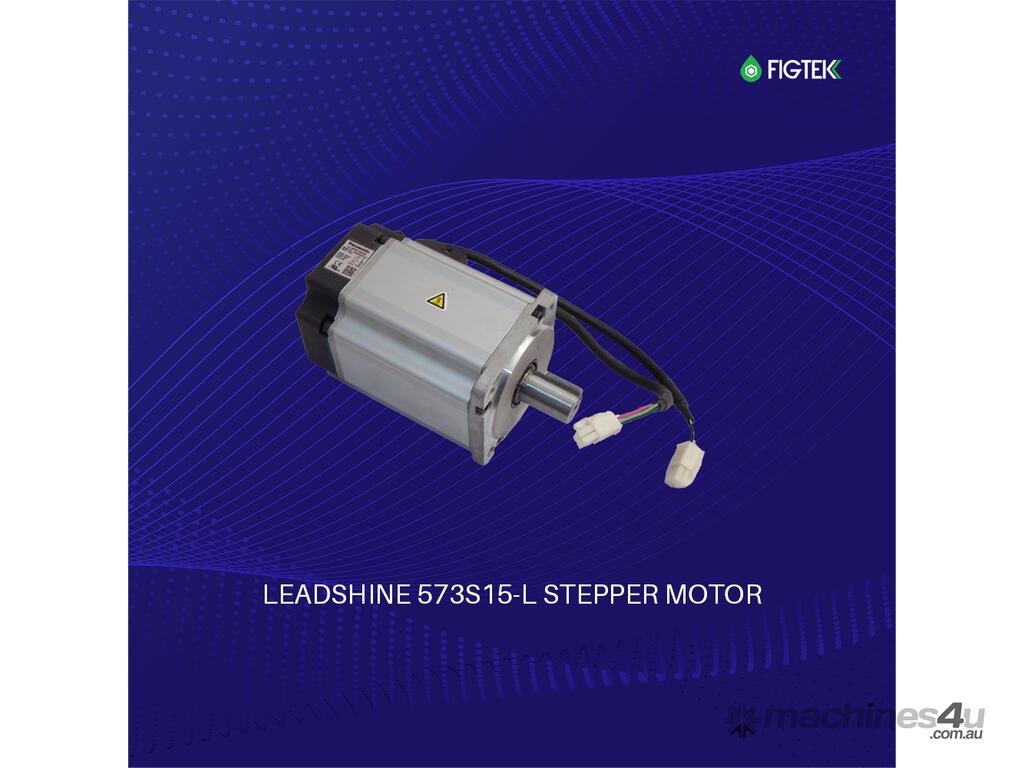

Leadshine stepper motor/driver

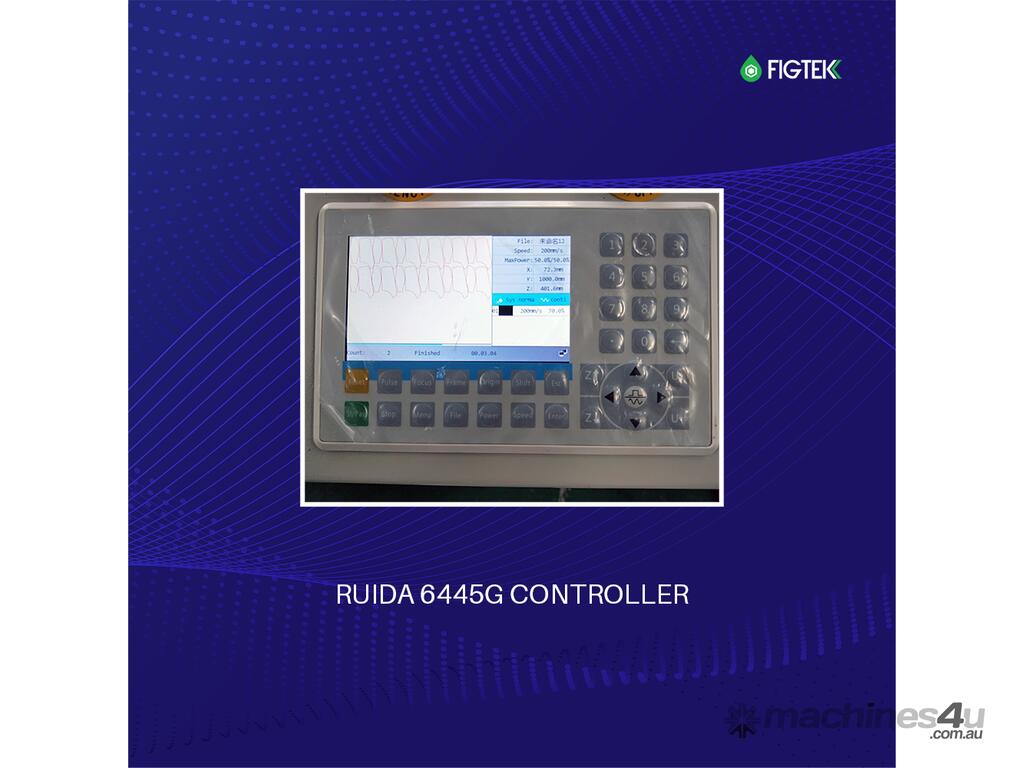

Ruida 6445G Control System

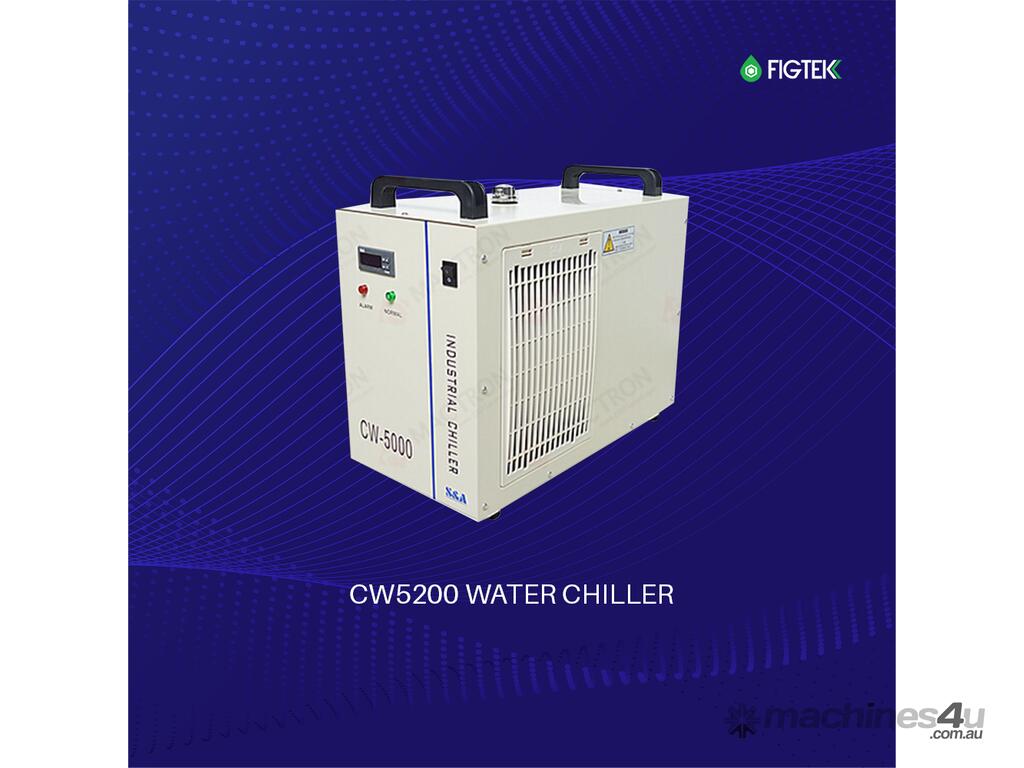

Water Chiller CW5200

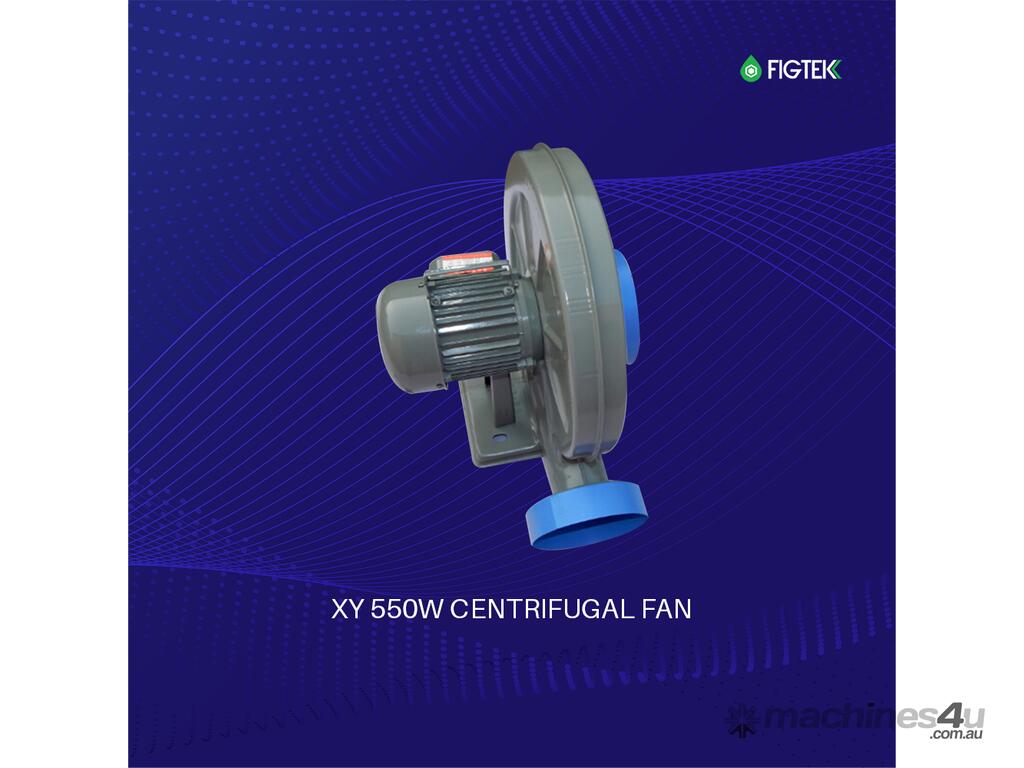

550W Fan.
Air Compressor
UpTable

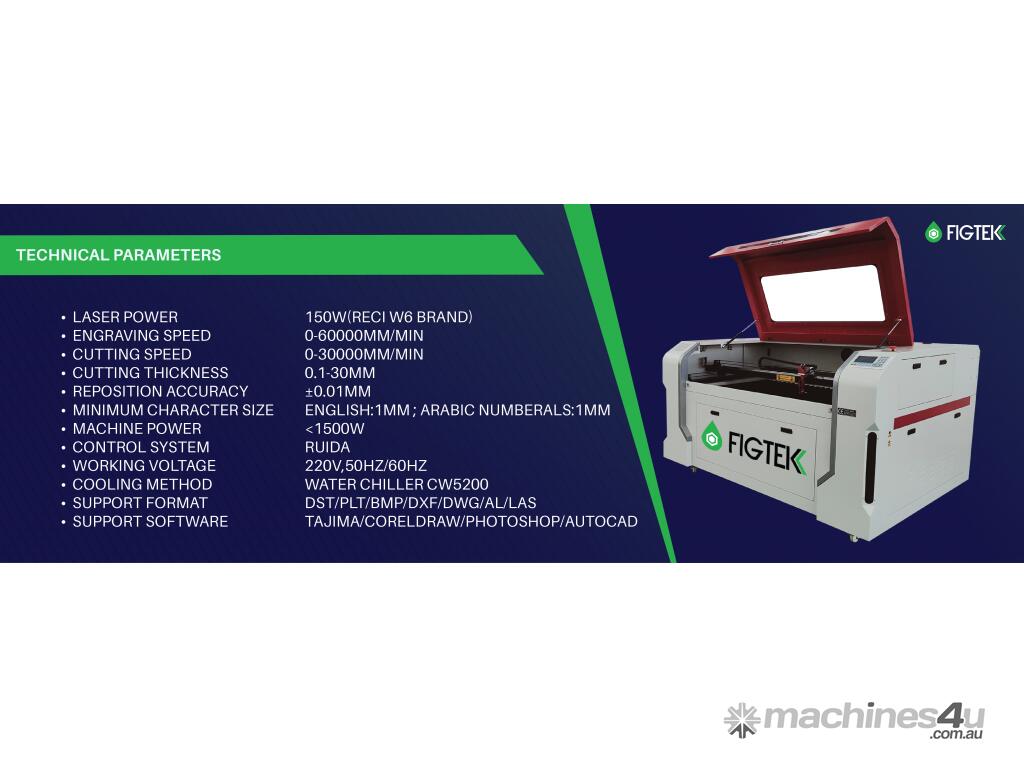

Technical Parameters:

Laser Power: 150W (RECI W6 Brand)
Engraving Speed: 0-60000mm/min
Cutting Speed: 0-30000mm/min
Cutting thickness: 0.1-30mm
Reposition Accuracy: ±0.01mm
Minimum Character Size: English:1mm; Arabic numberals:1mm
Machine Power: <1500W
Control System: Ruida
Working Voltage: 220V,50HZ/60HZ
Cooling method: Water Chiller CW5200
Support format: DST/PLT/BMP/DXF/DWG/AL/LAS
Support software: TAJIMA/CORELDRAW/PHOTOSHOP/AUTOCAD

This machine uses a Square Rail:

Square guide rails can outperform in specific circumstances that demand higher rigidity and more compactness in terms of load capacity relative to size. In general, profile rail guide rails offer higher load capacity, accuracy and stiffness, and a longer life expectancy.

Applications:

Professionally used in cloth processing, large cut, leather industry, shoe industry, decoration industry, furniture industry, advertisement industry, packing and printing industry, model industry, craft industry, paper memory card, etc.

Applicable Materials:

Glass, organic glass, leather, cloth, acrylic, wooden, MDF, PVC, stainless steel etc.

Advantages of having a CO2 Laser on a CNC Machine:

CO2 lasers are high-quality industrial lasers which are robust and durable. The cutting-edge quality mostly never needs any rework to be done.

Services we provide:
We offer installation and training
We deliver machines anywhere in Australia
We also commission it to ensure the machine is performing as it should at your factory.
We also ensure calibration is done
We train and up-skill you on how to use the machine and software on-site


The Facts:

We build the machines from scratch
Wired to Australian Standard
All machines undergo heaps of testing and calibration
Engineers with over 30 years experience
Plug and Play option available - Ask us what's this about
We import to the customer - Out of the container and to you.

Top 3 reasons why Customers love us:
Local Brand: Australian Local Support
Quality: Highest quality materials used
Reasonable Price: Using the highest quality parts and chips, our profits are under 7.5%.

Why Buy Our Laser Cutter?
Australian Local Support
Only the best quality parts used
Engineers with over 15 years of experience
Custom-built to your specifications
3 - year Australian warranty - If installation package is chosen
