15-32 ton (80mm pin) 1400mm Excavator GP Digging Bucket

Used 1400mm Excavator GP Digging Bucket suit 15-32 Ton machines.

*** THE GOOD

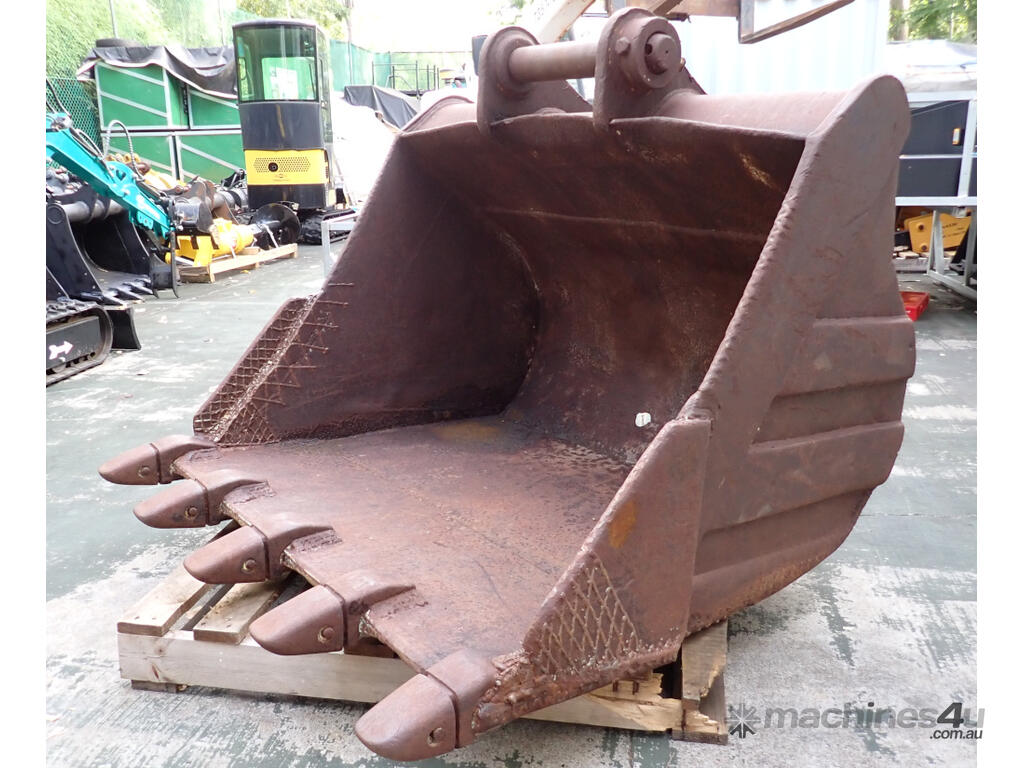

* There are welded on Side Cutters.

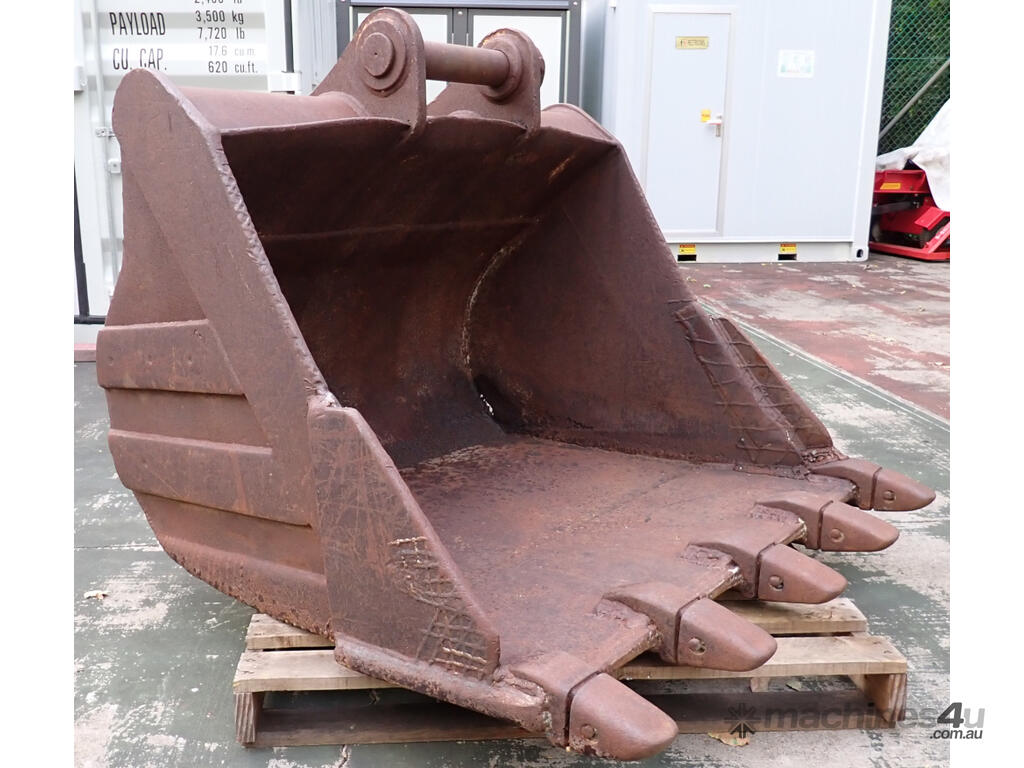

* It has a Deep Profile for higher capacity (see pics# 4 & 9).
* It has Tapered sides so mud slides out easily, and 2 drainage holes at the back if you are dredging a dam.

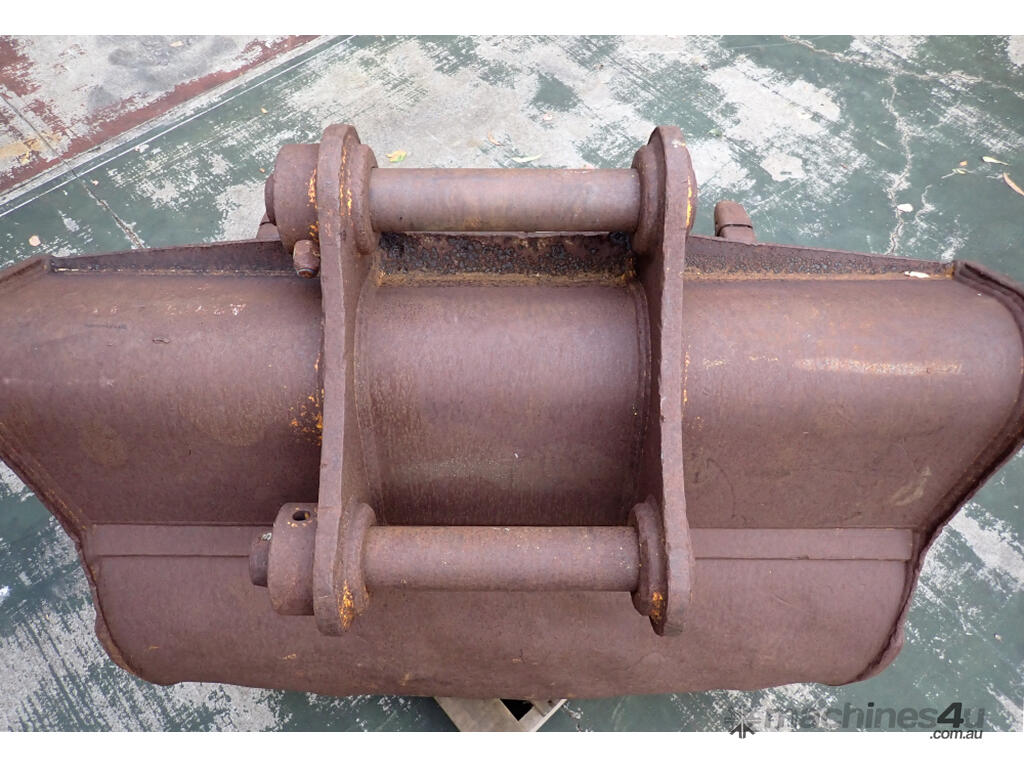

* The headstock, pins and upper & middle structure are all in good condition and still very thick.

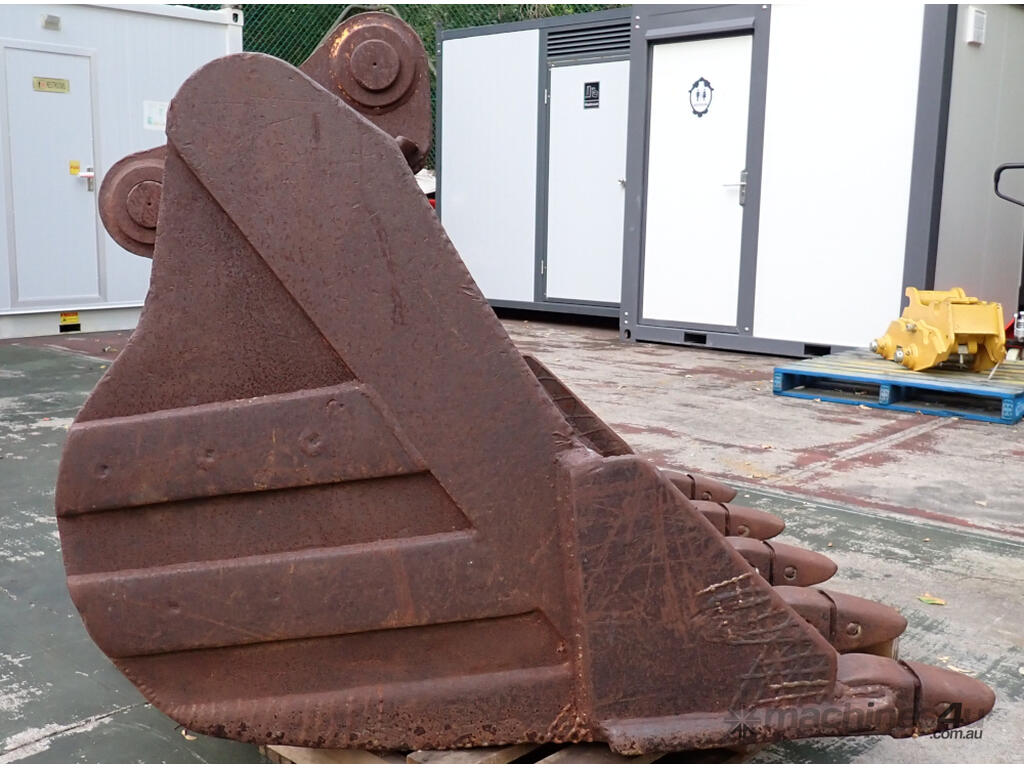

* There are 3 extra wear plates welded to each of the sides and there are extra wear strips welded underneath for durability (bottom strips are worn, see pics# 10).

*** THE BAD
* The teeth are worn and could use replacing soon.

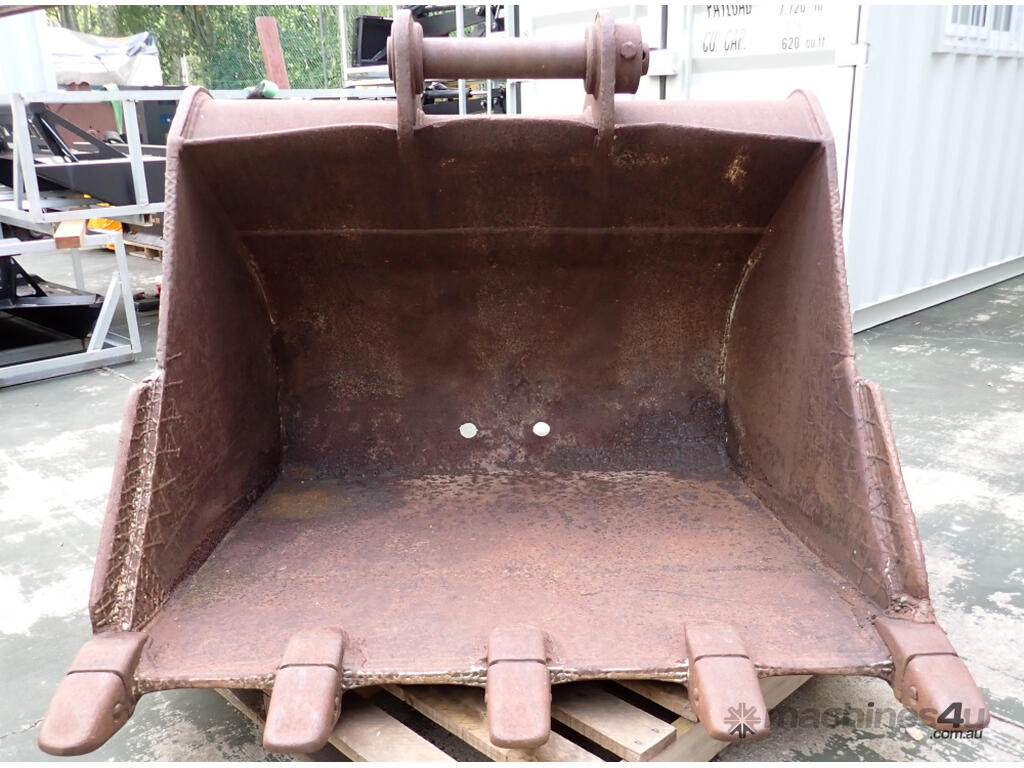

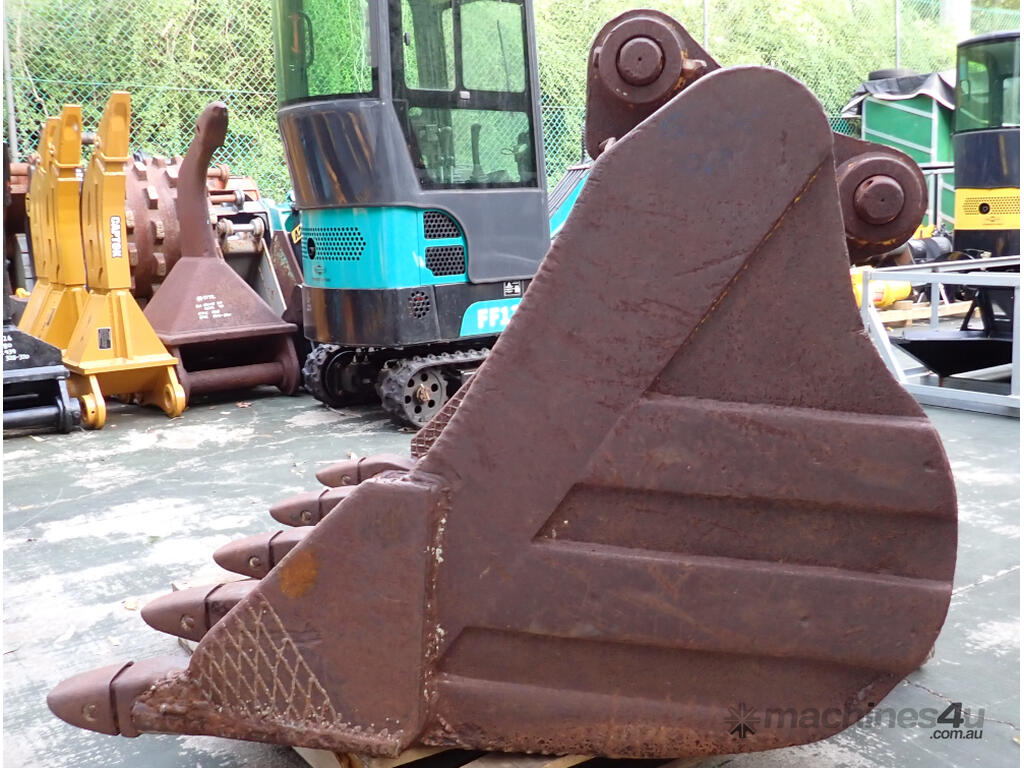

* There is some pitting on the inside bottom and 1 side panel has worn through near the back (could use some welding, see light just coming through in pics# 3, 8-10).

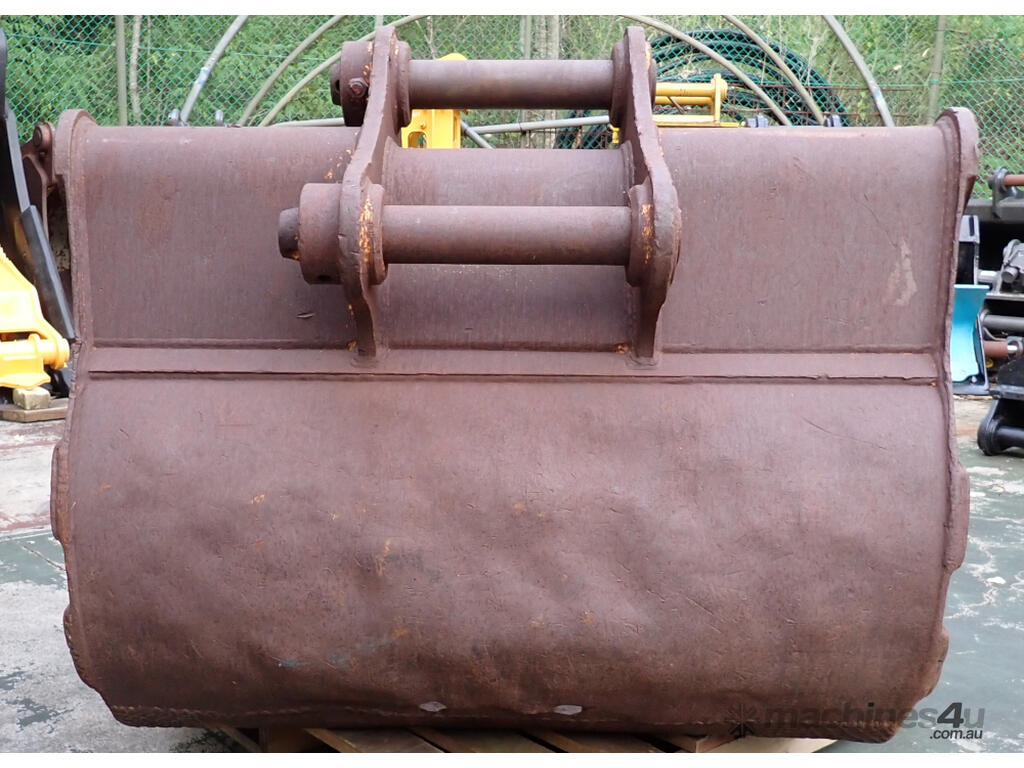

* The lower back has a few bangs and could possibly use some extra reinforcing if it is to be used for hard ground.

Aside from the bottom and lower back showing some wear and the blunt teeth, the rest of this bucket is in reasonable shape, and weighing 830kgs, there is still a lot of solid metal left.
Ready to go for occasional light-medium duty work, or with a fresh set of teeth and some welding to reinforce the weaker spots, this bucket will have plenty of work left to do.
The price has been reduced to allow fitting new teeth, and for the imperfections that depending on your use, may or may not require some additional welding.


*** Current Headstock configuration:
* Pins: 80mm
* Pin Center to Pin Center (CtoC): 459mm
* Between the Ears (BTE): 334mm Between the inside Ear Bosses (which can be shaved back up to 380mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9021, CX210, CX210B, CX225SR, Daewoo Solar 170LC-V, Solar 170W-3, Solar 175LC-V, Solar 200W-3, Solar 200W-V, Solar 220LC-V, Solar 225LC-V, Solar 225NLC-V, Solar 225SLR, Solar 250LC-V, Solar 255LC-V, Doosan DX180LC, DX180LC-3, DX180W-3, DX190W, DX210W, DX225, DX225LC-3, S175LC-V, S180W-V, S210W-V, S225LC-V, S255LC-V, S470LC-V, Halla HE280, Hitachi EX200, FH200, EX215, FH215, Zaxis 200, Zaxis 200 & LC, Zaxis 210, Zaxis 225US LC, Hyundai R210LC-7, JCB JS200, JS200LC, JS210, JS220, JS220LC, JS235, John Deere 200C LC, 200D LC, Komatsu PC200, PC200 Mighty, PC200-3, PC200-5, PC200-6, PC200-7, PC200LC-8, PC210, PC210-6, PC240, PW210, Link-Belt 210LX, Samsung SE210 Early Series, SE210-3, SE210LC-2, SE210LC-3, Sumitomo SH200, SH200-3, SH200LC-3, SH210-5, SH225X-3, Terex TXC 175LC, TXC 180LC, TXC 225LC, TXC 255LC, Volvo EC210, EC210B, EC210C, ECR235C, EW230C, MX225LS, SE210LC-3.
*
* Maybe fit: Case CX160, Caterpillar 318B L, 320, 320B w/ B Link, 320B w/ C Link, 320C w/ C Link, 320D w/ B Link, 321, 321 w/ Mass Linkage, 322B w/ B Link, 322C w/ B Link, 322C w/ Reach Linkage, 324D w/ Reach Linkage, 325B w/ C Link, 325C w/ C Link, 325C w/ Reach Linkage, 330C, 330D w/ Long Linkage, E300 Series, B Family Linkage, C Family Linkage, Doosan DX255, DX255LC-3, Hitachi Zaxis 225USR, JCB JS150LC, JS160, JS160LC, JS180, John Deere 225C LC RTS, Kobelco 200SRLC, SK200, SK210, SK210LC, SK210LC-VI, SK235SR, Komatsu PC220-3, PC220-5, PC220LC-6, PC220LC-7, PC220LC-8, PC250-6, PC270, PC270LC-6, PC270LC-7, PC280, Link-Belt 160LX, 160X2, 225SA, 2700 QUANTUM, 2800 QUANTUM, LiuGong 922, 925, New Holland EH215LC, Sumitomo SH150, SH160, SH200-2, SH200LC, SH215U-1, SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1448mm Wide (at the cutting edge below the side cutters), 1445mm Deep, 1150mm High. Weight: 830kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
