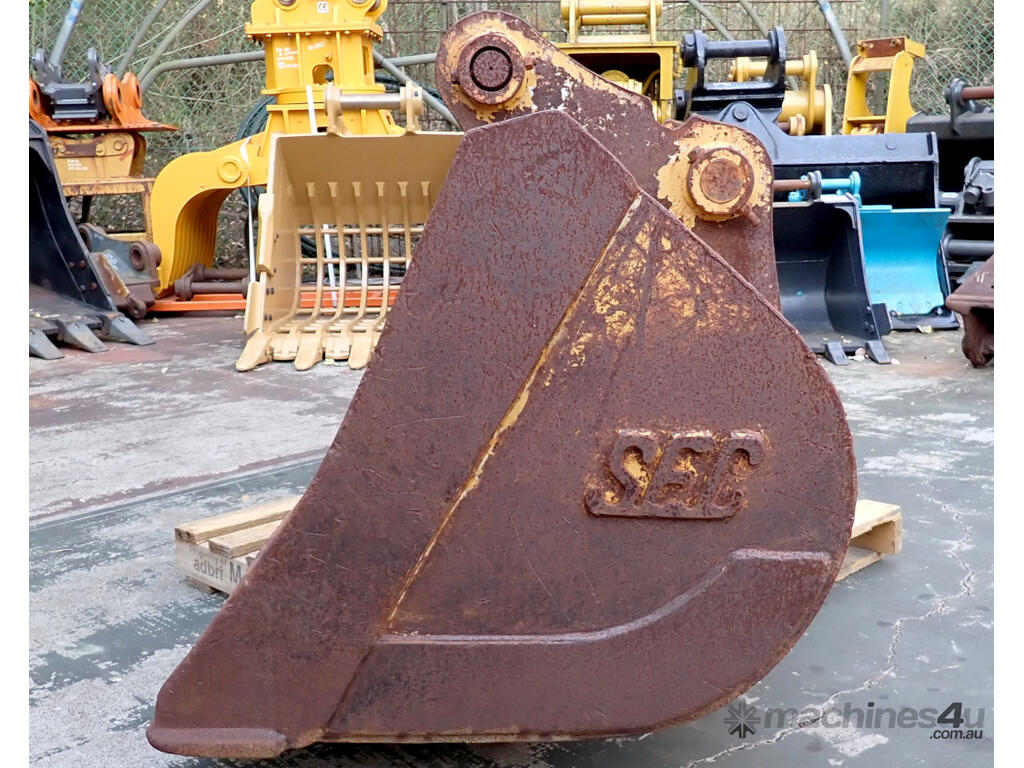

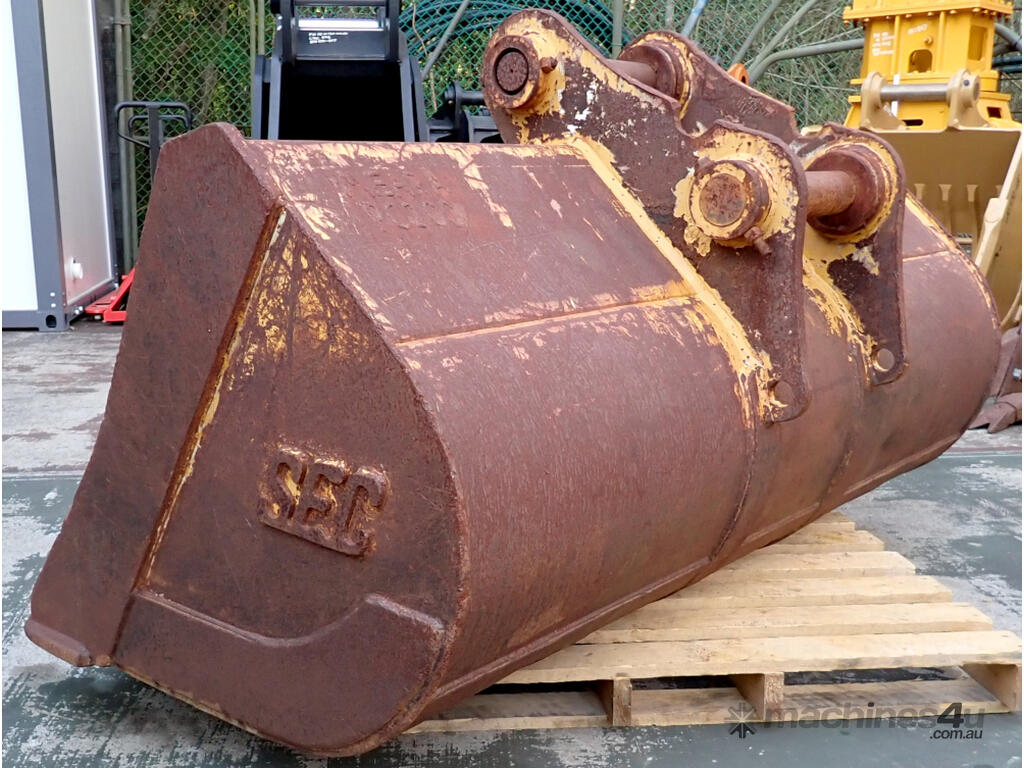

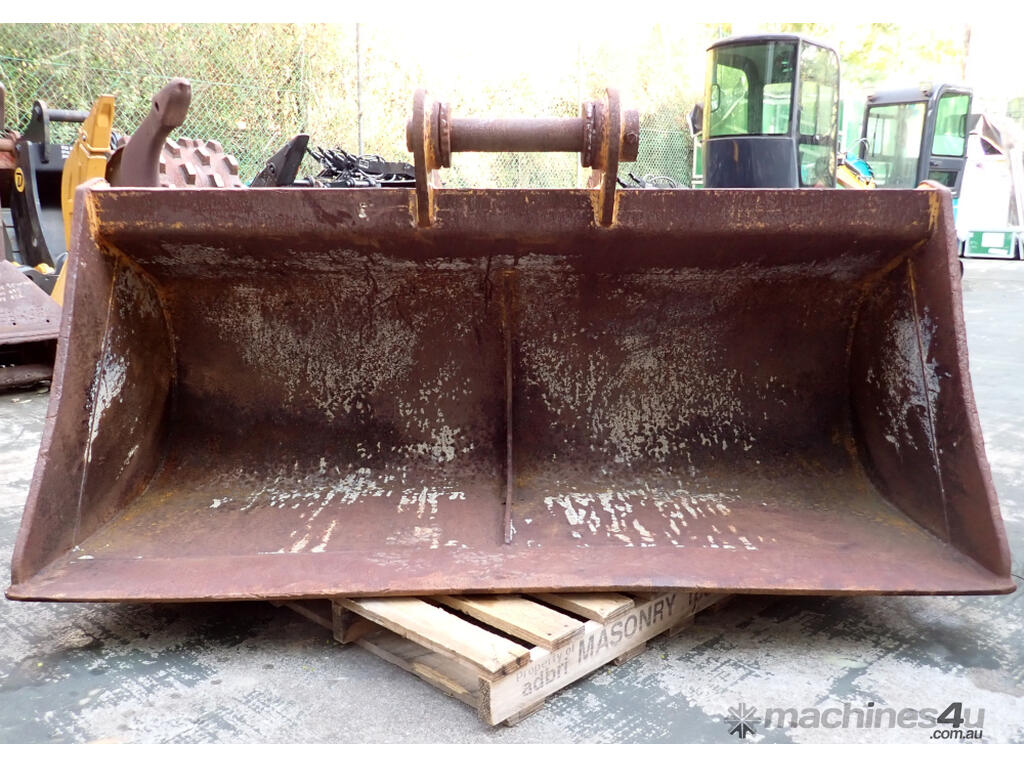

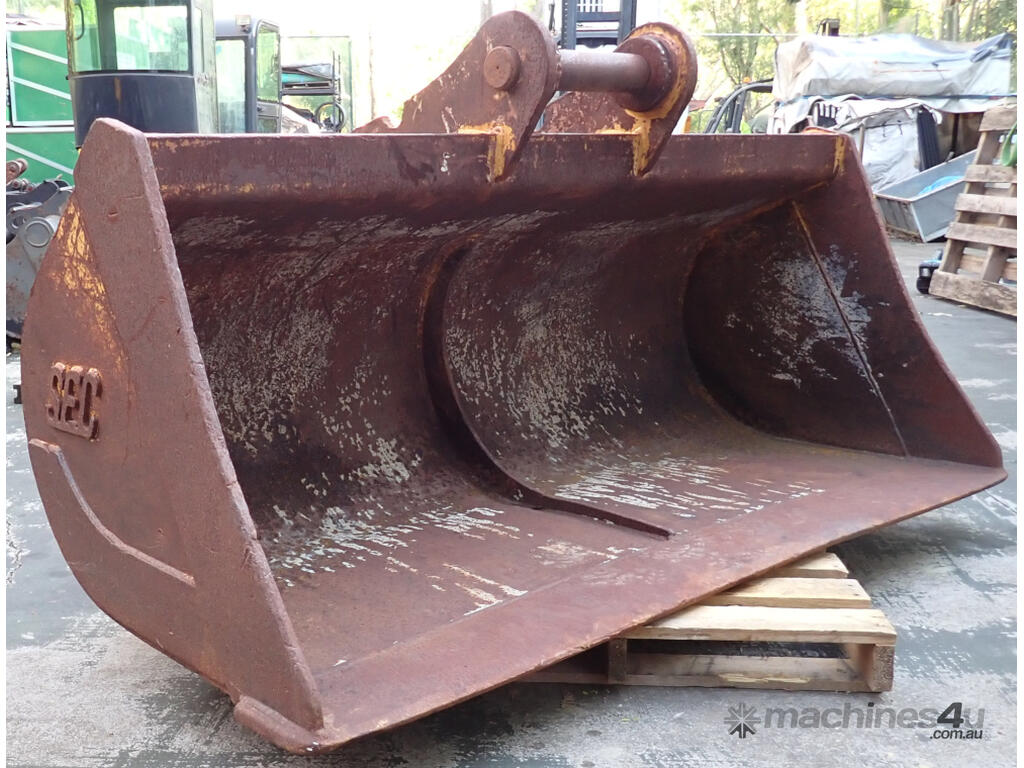

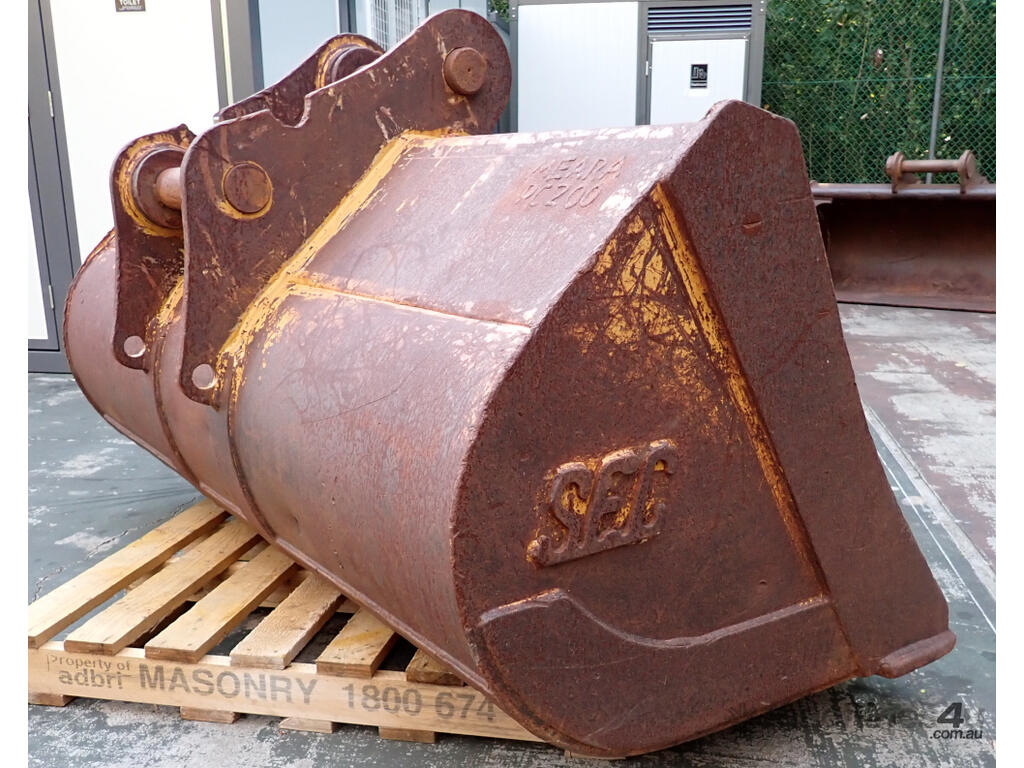

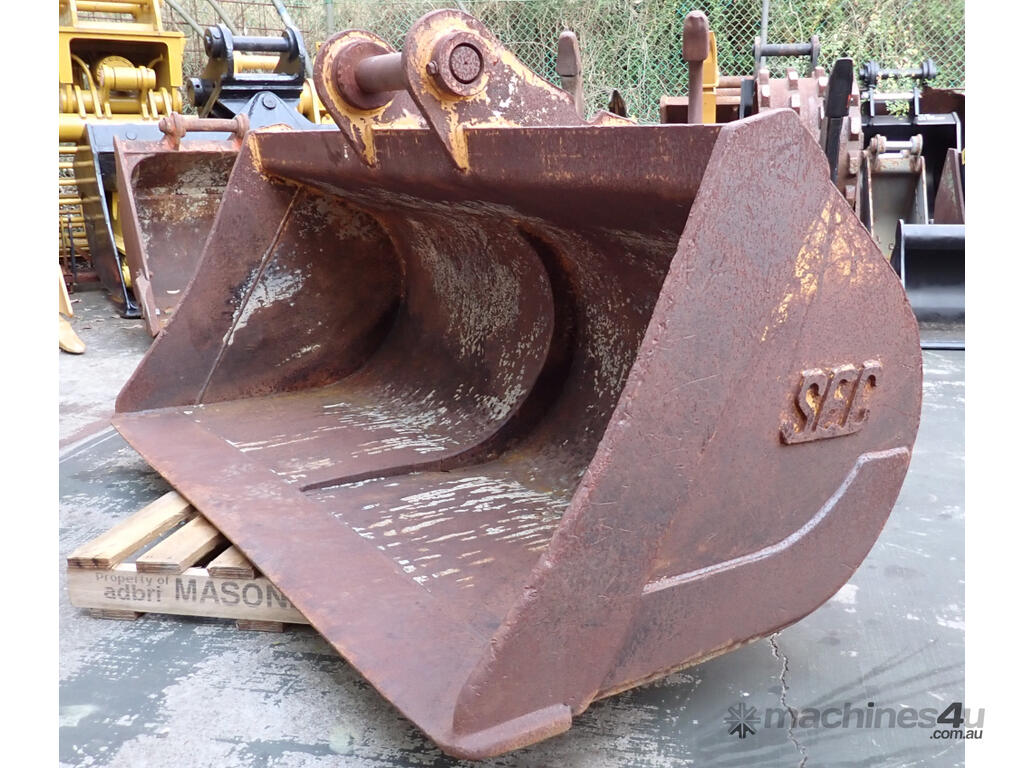

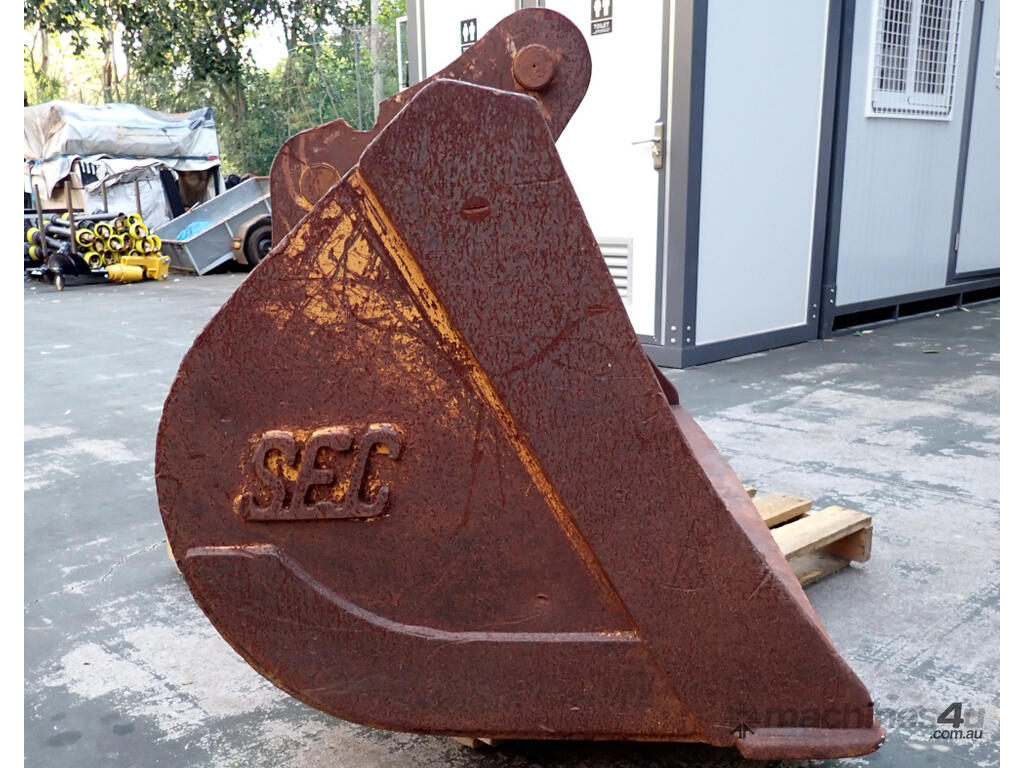

15-32 ton (80mm pin) 2100mm SEC Excavator Mud Batter Bucket

Used 2100mm SEC Excavator Mud Batter Bucket suit 15-32 Ton machines.
Condition is used and aside from a few bangs underneath, it is in good overall condition with plenty of life left.

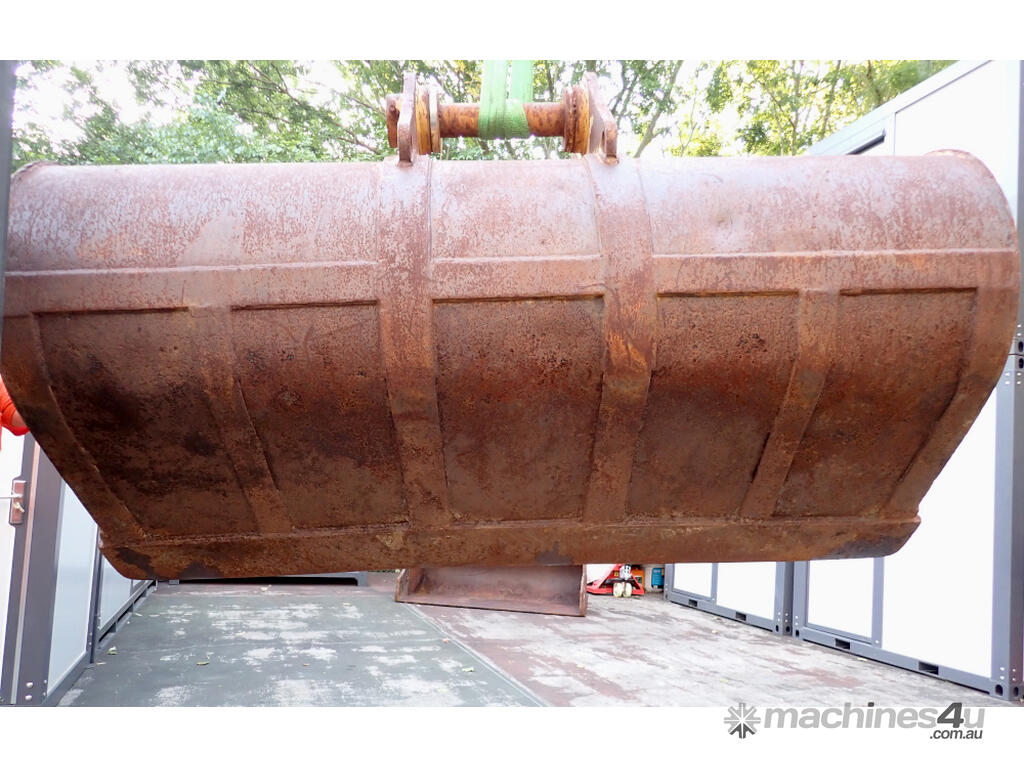

There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

There are also 2 lifting eye hooks at the bottom of the Ear Plates (see pics# 5 & 8).

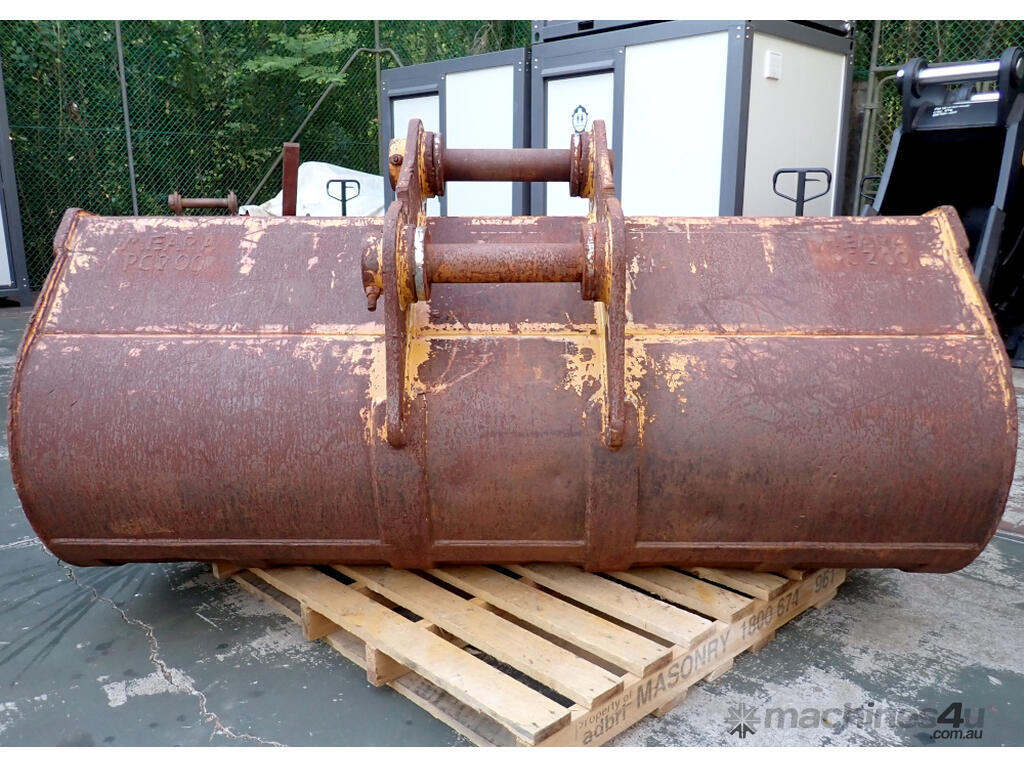

The pins currently have 20mm thick shims (spacers) tack welded to the bosses to reduce the Between The Ears (BTE) width to 314mm (see pic# 7). But these could easily be removed to open up the BTE width to 356mm. Further, shaving the inside bosses right back to the Ear Plates would allow a BTE width up to 419mm.

A well built & engineered bucket made by the Californian Company: SEC Bucket.


*** Current Headstock configuration:

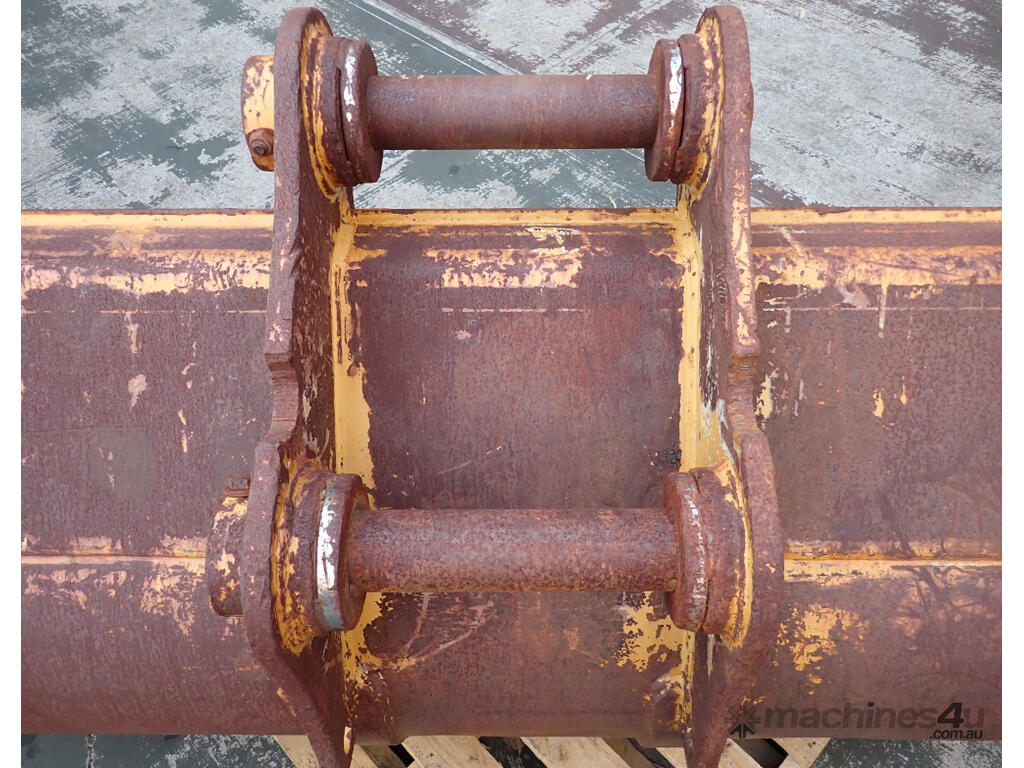

* Pins: 80mm
* Pin Center to Pin Center (CtoC): 479mm
* Between the Ears (BTE): 314mm Between the 20mm thick shims. Removing these spacers would open the BTE width to 356mm Between the inside Ear Bosses (which can also be shaved back up to 419mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, John Deere 200C LC / 200D LC / 225C LC RTS, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3.
*
* Maybe fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Hyundai R210LC-7 / R250LC-3 / R280LC / R290LC / R290LC-3 / R290LC-3LR, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kato 820, Kobelco 200SRLC / SK200 / SK210LC / SK210LC-VI, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PC290 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 2140mm Wide, 1080mm Deep, 1096mm High. Weight: 740kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
