15-36 ton (80mm pin) 1200mm OZ Buckets Excavator GP Digging Bucket

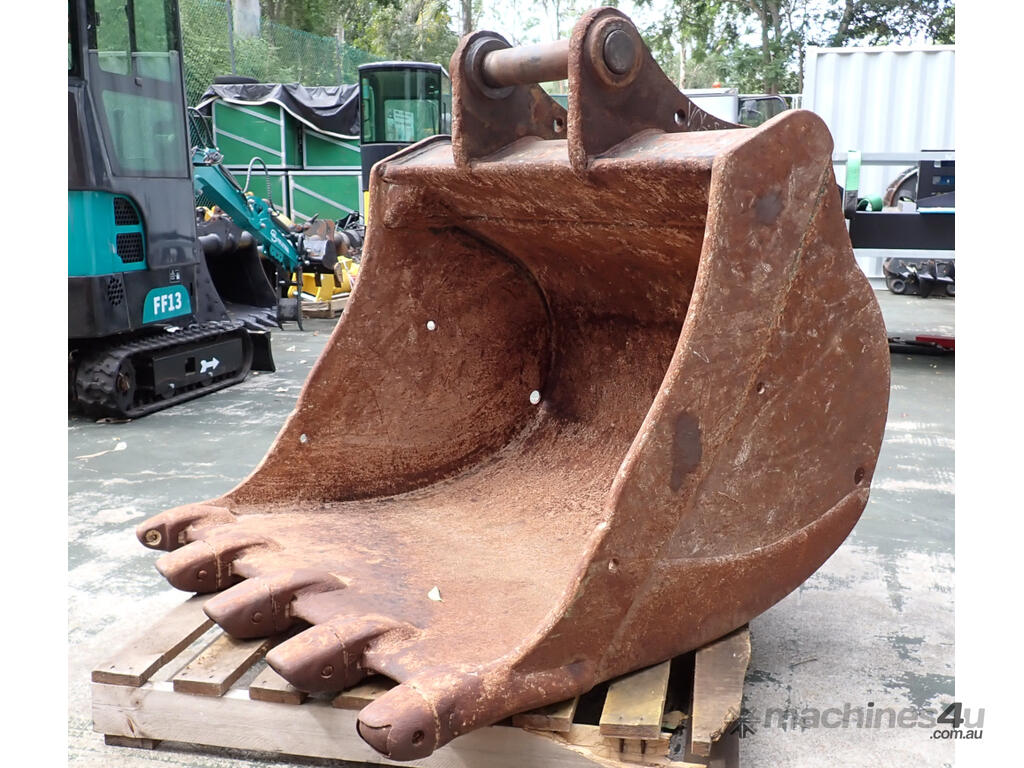

Used 1200mm OZ Buckets Excavator GP Digging Bucket suit 15-36 Ton machines.

This is a used, but well engineered, quality bucket Made in Australia by OZ Buckets.

*** THE GOOD

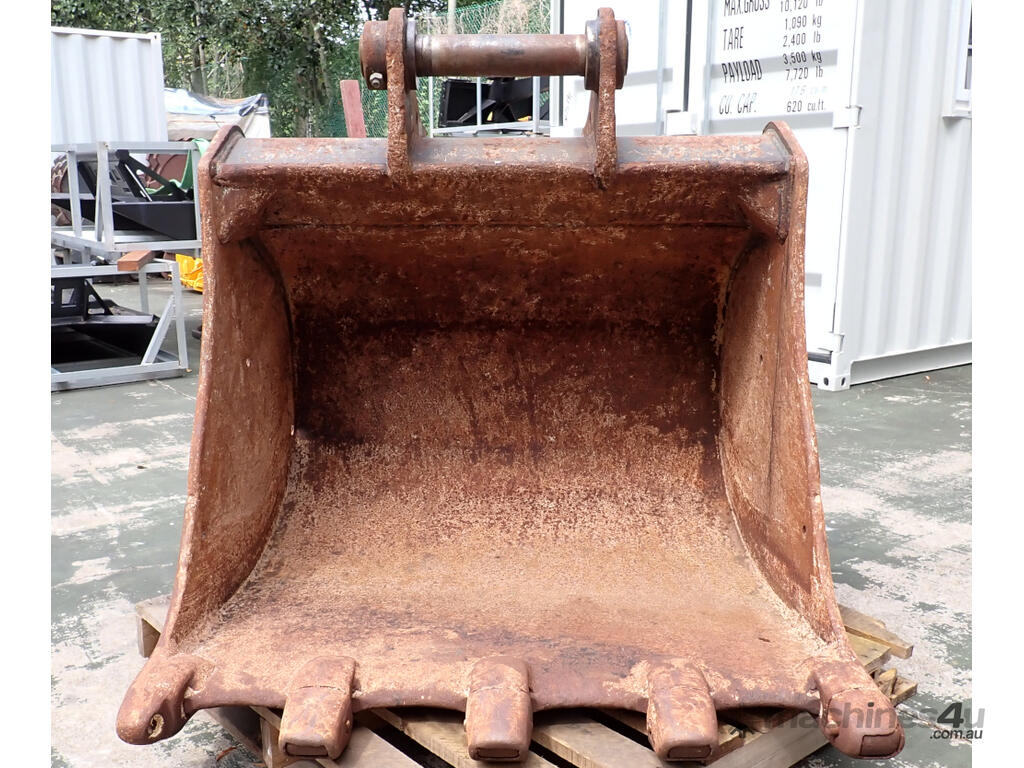

* It has a Deep Profile for higher capacity (see pics# 4 & 9).

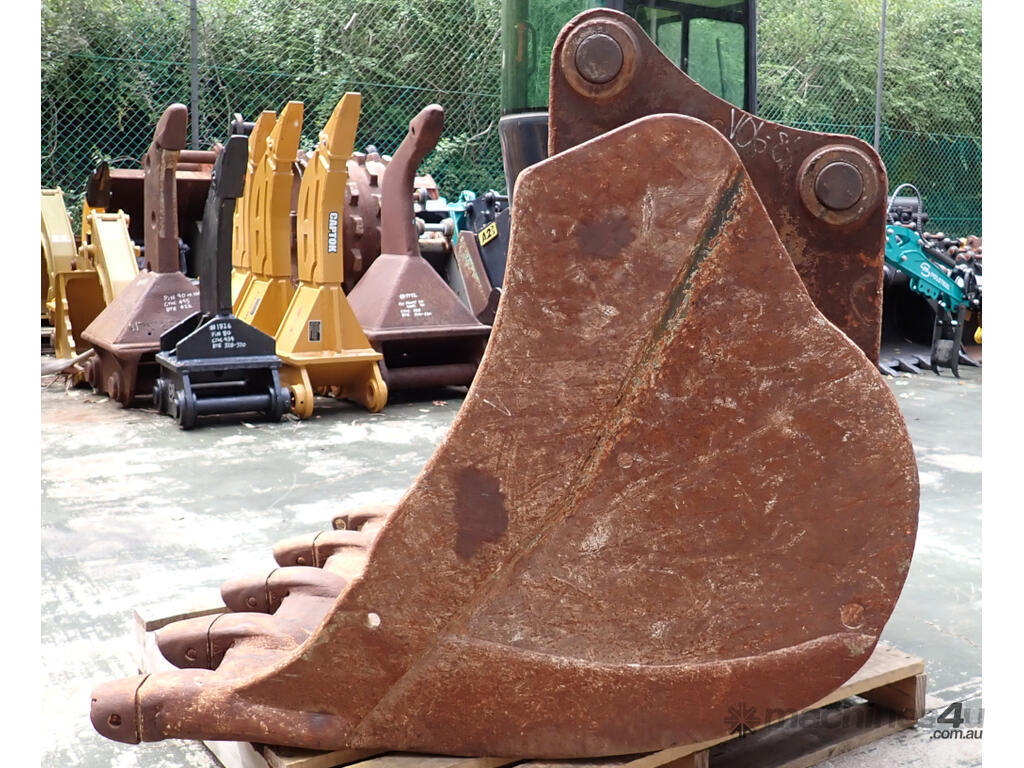

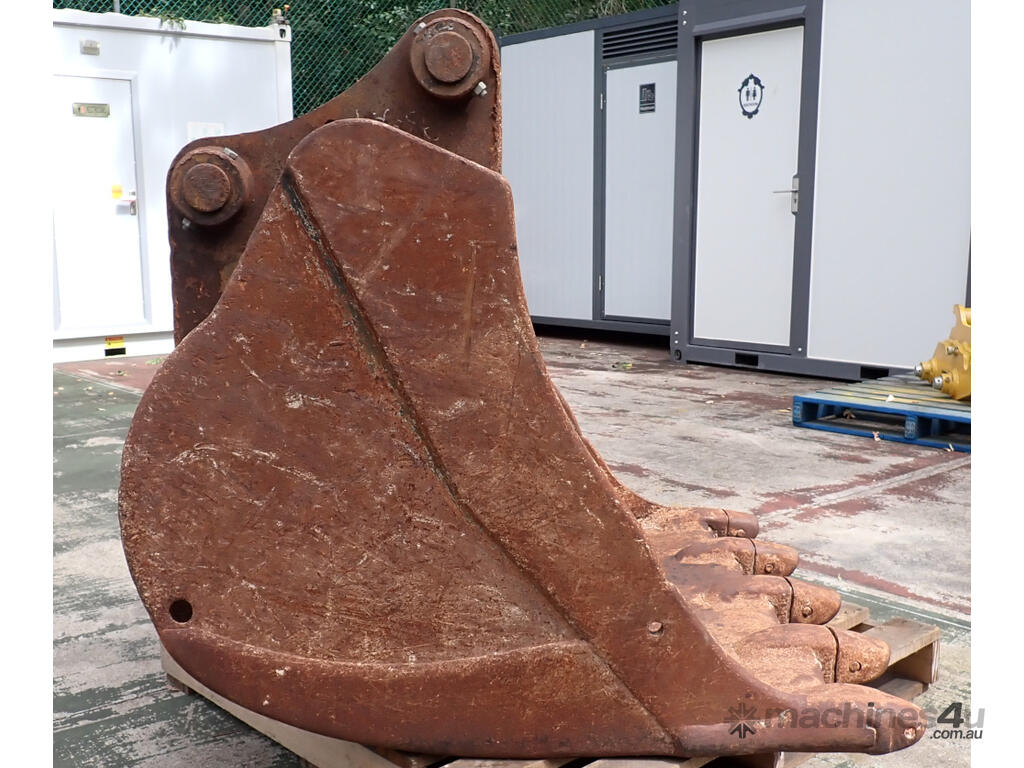

* It has Tapered sides so mud slides out easily, and 2 drainage holes at the back sides if you are dredging a dam.

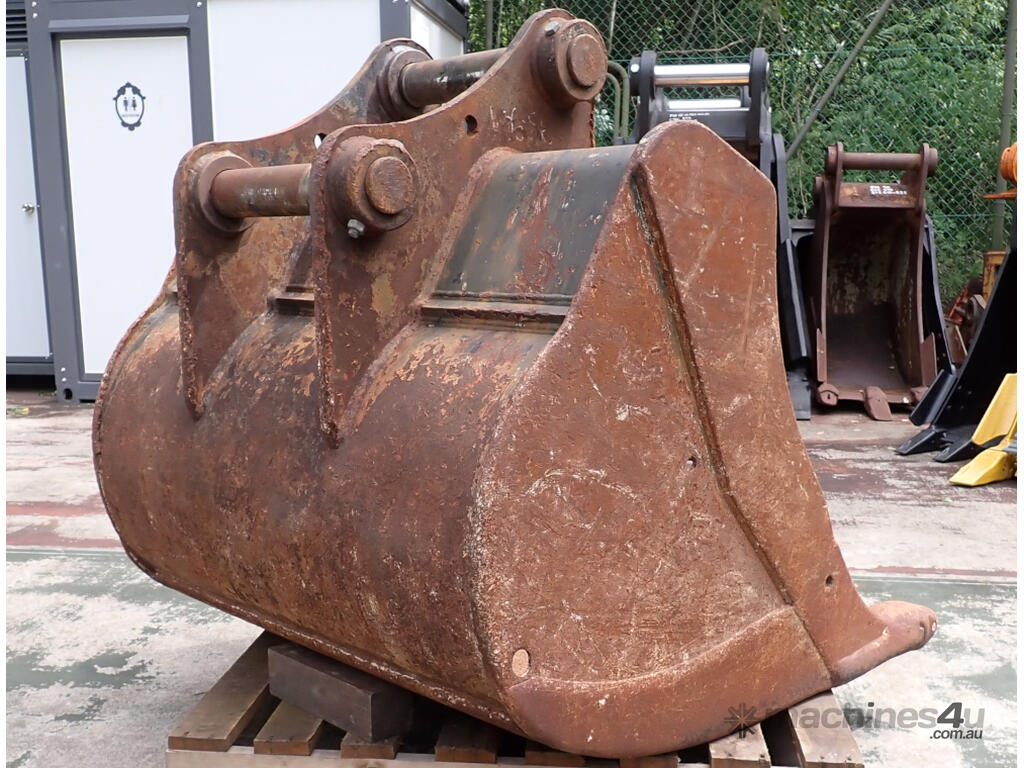

* There is some general wear but he headstock, pins and overall structure are all in good condition and still very thick.

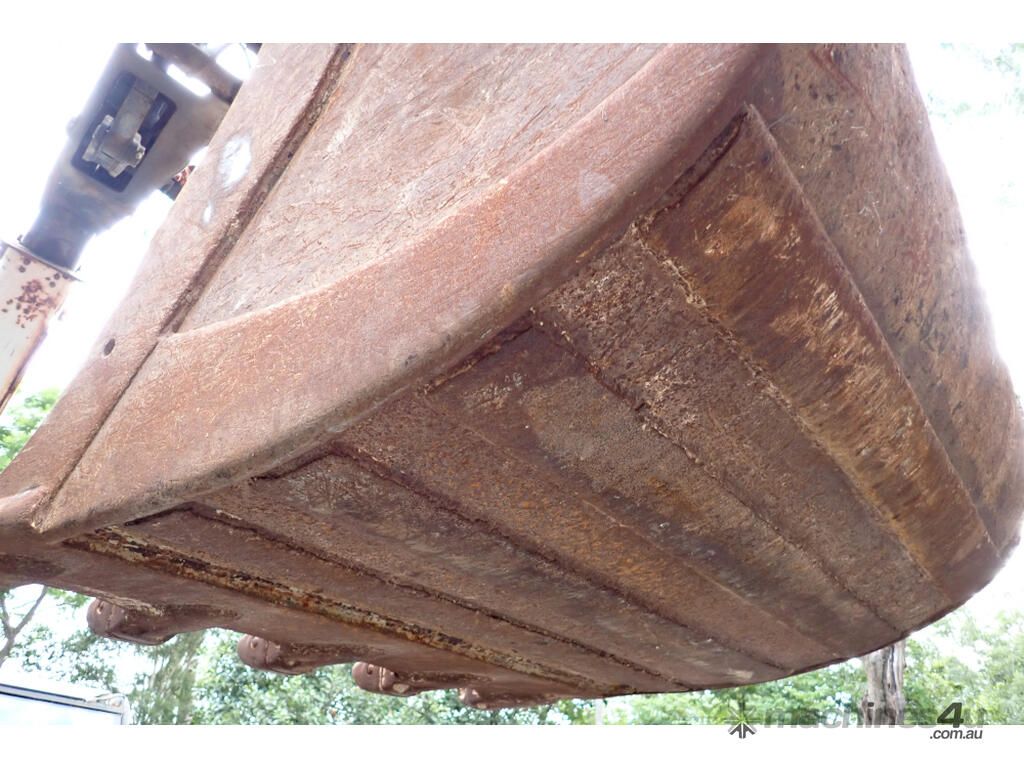

* There are extra wear plates welded to the lower of each of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

*** THE BAD
* 1 tooth is missing and the rest of the teeth are very worn and will need replacing soon.

Aside from some overall wear and the worn teeth / single missing tooth, the rest of this bucket is structurally in good shape, and weighing 796kgs, there is still a lot of solid metal left.
With a fresh set of teeth, this bucket will have plenty of work left to do. The price has been reduced to allow fitting new teeth.

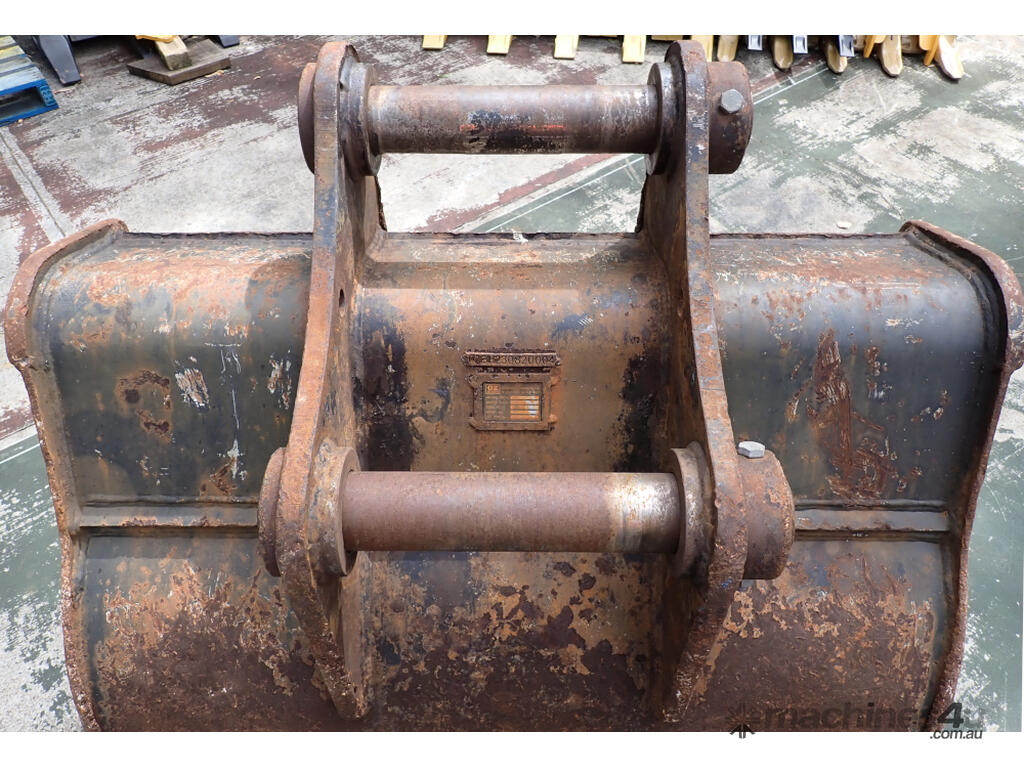

*** Current Headstock configuration:
* Pins: 80mm
* Pin Center to Pin Center (CtoC): 464mm
* Between the Ears (BTE): 328mm Between the inside Ear Bosses (which can be shaved back up to 380mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9021, CX210, CX210B, CX225SR, Caterpillar 336, Daewoo Solar 170LC-V, 170W-3, 175LC-V, 200W-3, 200W-V, 220LC-V, 225LC-V, 225NLC-V, 225SLR, 250LC-V, 255LC-V, Doosan DX180LC, DX180LC-3 / DX180W-3, DX190W, DX210W, DX225, DX225LC-3, S175LC-V, S180W-V, S210W-V, S225LC-V, S255LC-V, S470LC-V, Halla HE280, Hitachi EX200, EX215, FH200, FH215, Hitachi Zaxis 200, 200 & LC, 210, 225US LC, 225USR, Hyundai R210LC-7, John Deere 200C LC, 200D LC, 225C LC RTS, Komatsu PC200, PC200 Mighty, PC200-3, PC200-5, PC200-6, PC200-7, PC200LC-8, PC210, PC210-6, PW210, Link-Belt 210LX, LiuGong 922, 925, Samsung SE210 Early Series, SE210-3, SE210LC-2, SE210LC-3, Sumitomo SH200-3, SH200LC-3, SH210-5, SH225X-3, Terex TXC 175LC, TXC 180LC, TXC 225LC, TXC 255LC, Volvo EC210, EC210B, EC210C, ECR235C, EW230C, MX225LS, SE210LC-3.
*
* Maybe fit: Case CX160, Caterpillar 318B L, 320, 320 w/ B Link, 320B w/ B Link, 320B w/ C Link, 320C w/ C Link, 320D w/ B Link, 321, 321 w/ Mass Linkage, 322B w/ B Link, 322C w/ B Link, 322C w/ Reach Linkage, 324D w/ Reach Linkage, 325B w/ C Link, 325C w/ C Link, 325C w/ Reach Linkage, 330C, 330D w/ Long Linkage, E300 Series, B Family Linkage, C Family Linkage, Doosan DX255, DX255LC-3, Hyundai R250LC-3, R280LC, R290LC, R290LC-3, JCB JS150LC, JS160, JS160LC, JS180, JS200, JS200LC, JS210, JS220, JS220LC, JS235, Kato 820, Kobelco 200SRLC, SK200, SK210, SK210LC, SK210LC-VI, SK235SR, Komatsu PC220-3, PC220-5, PC220LC-6, PC220LC-7, PC220LC-8, PC240, PC250-6, PC270, PC270LC-6, PC270LC-7, PC280, Liebherr 912, 912 LITRONIC, 922 LITRONIC, Link-Belt 160LX, 160X2, 225SA, 2700 QUANTUM, 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150, SH160, SH200, SH200-2, SH200LC, SH215U-1, SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1220mm Wide (at the cutting edge), 1323mm Deep, 1204mm High. Weight: 796kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
