15-39 ton (80mm or 90mm pin) AHE Excavator Compaction Wheel

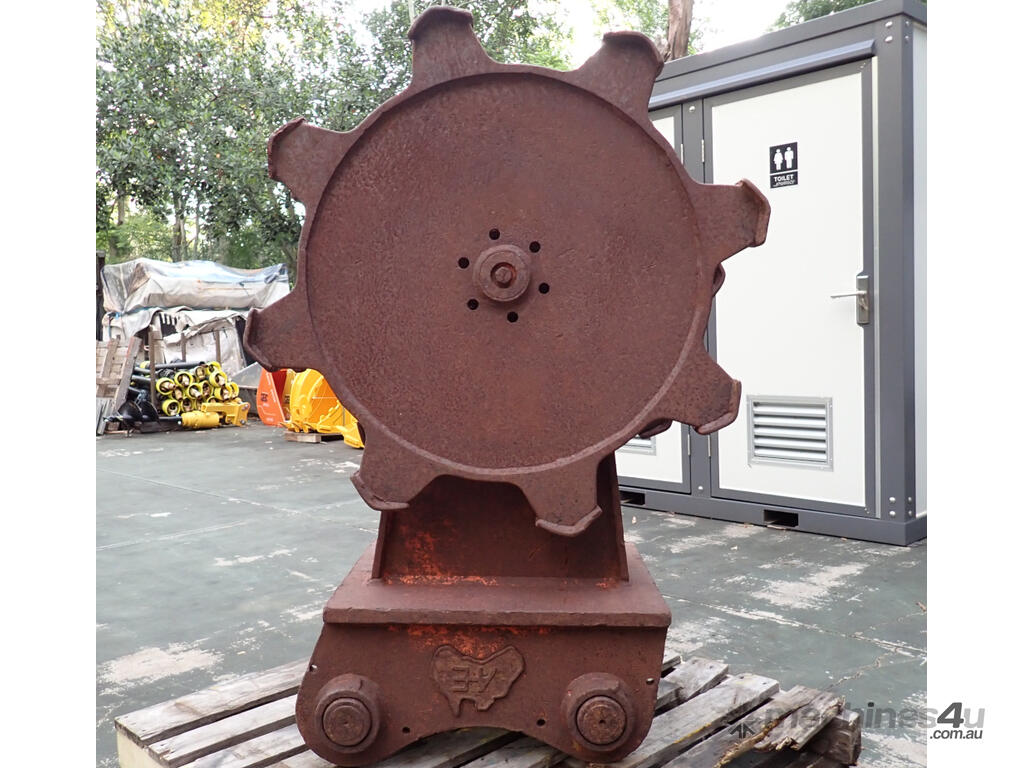

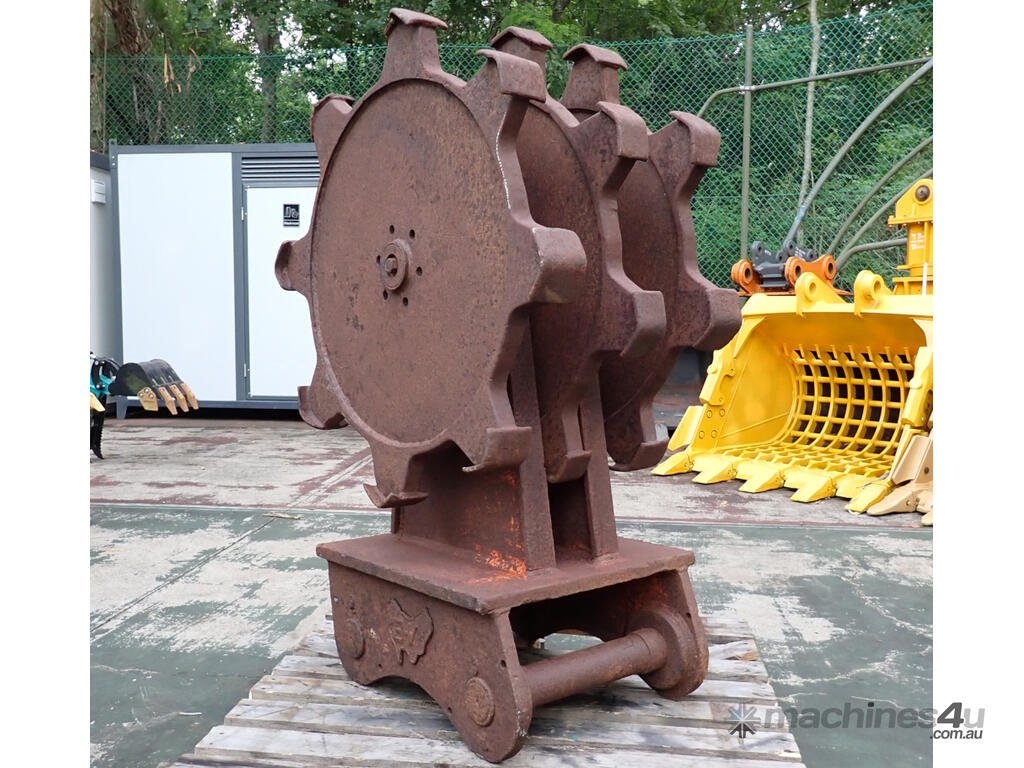

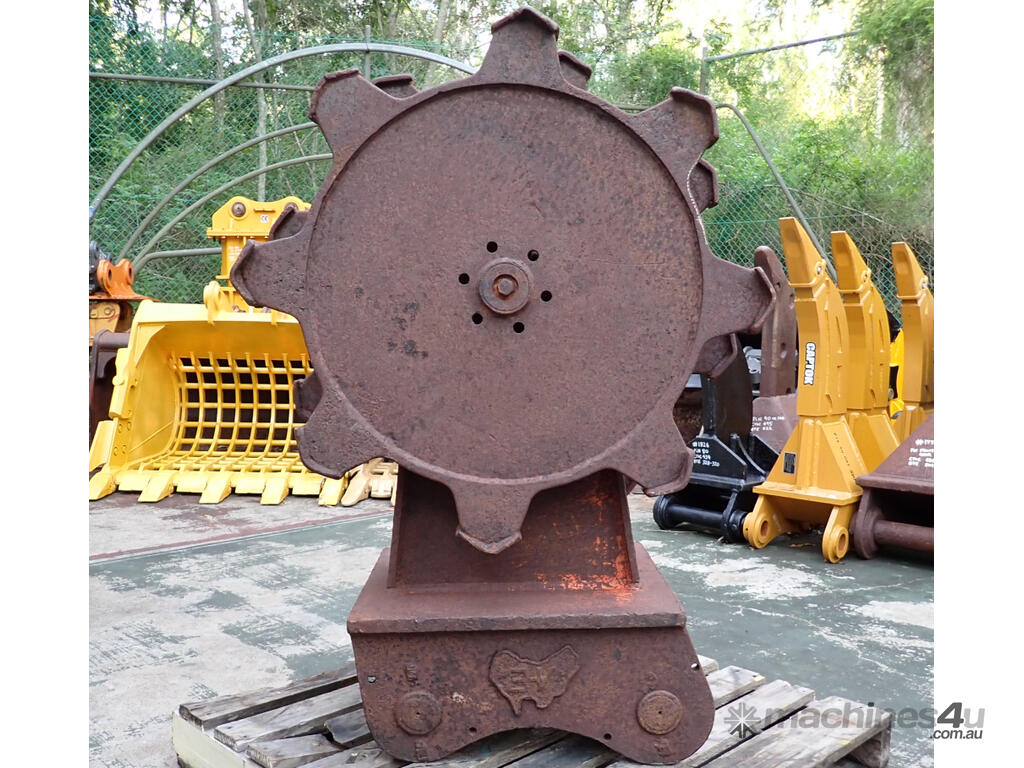

Used Deep Penetration style, AHE Excavator Compaction Wheel suit 15-39 Ton machines.

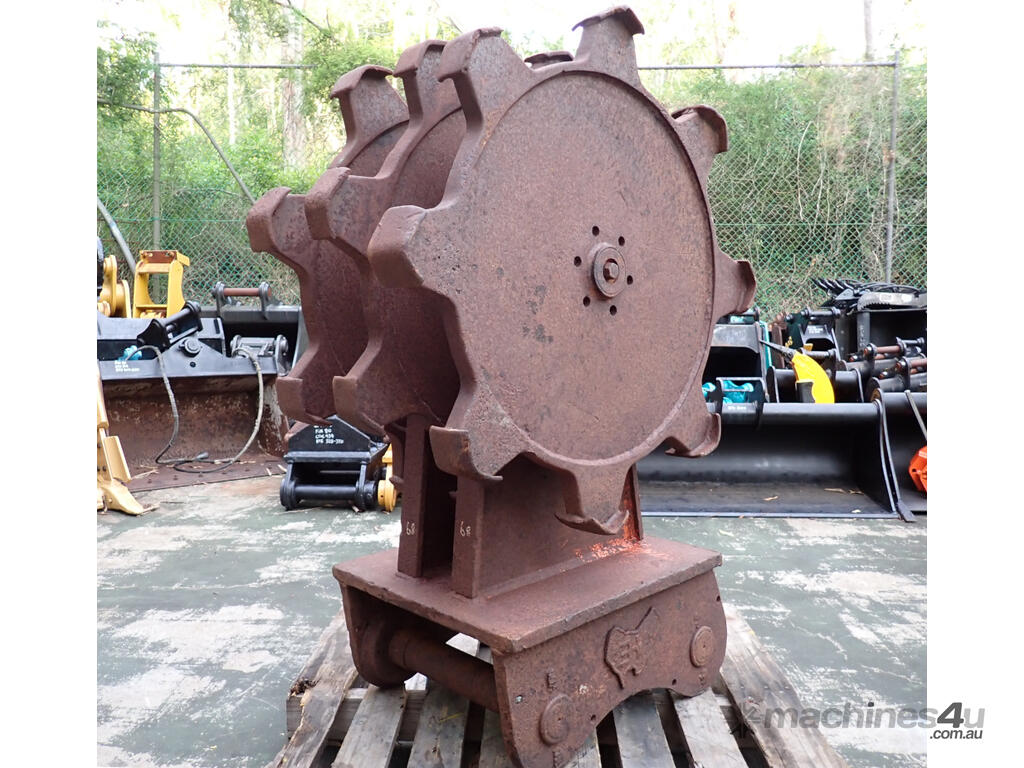

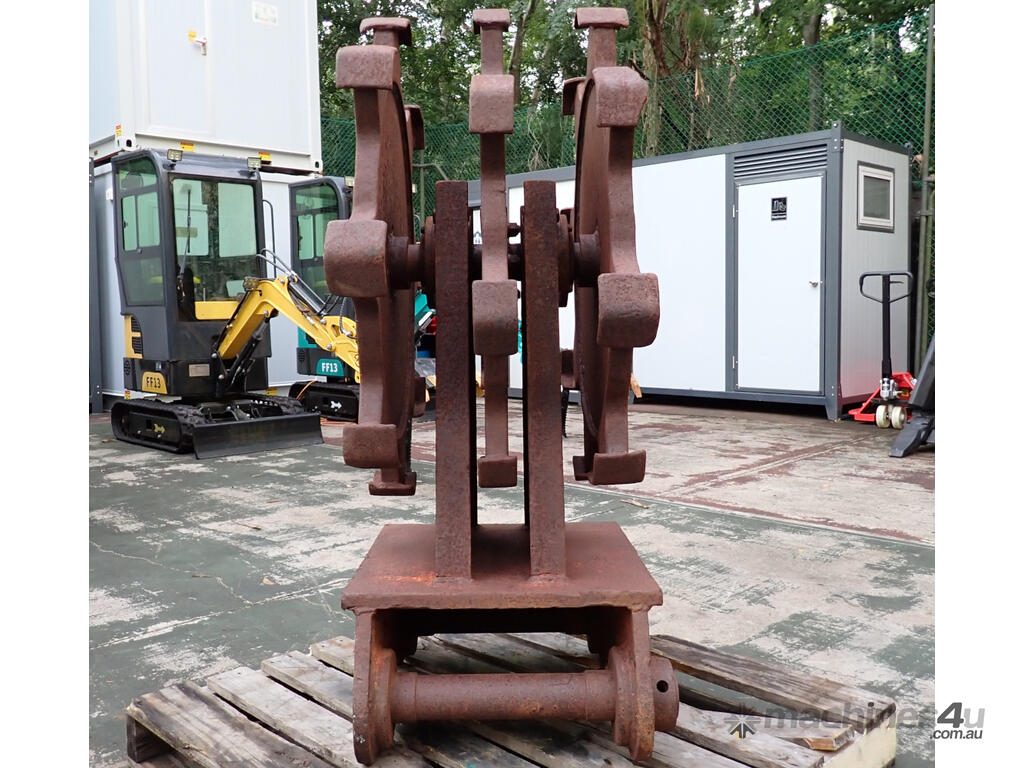

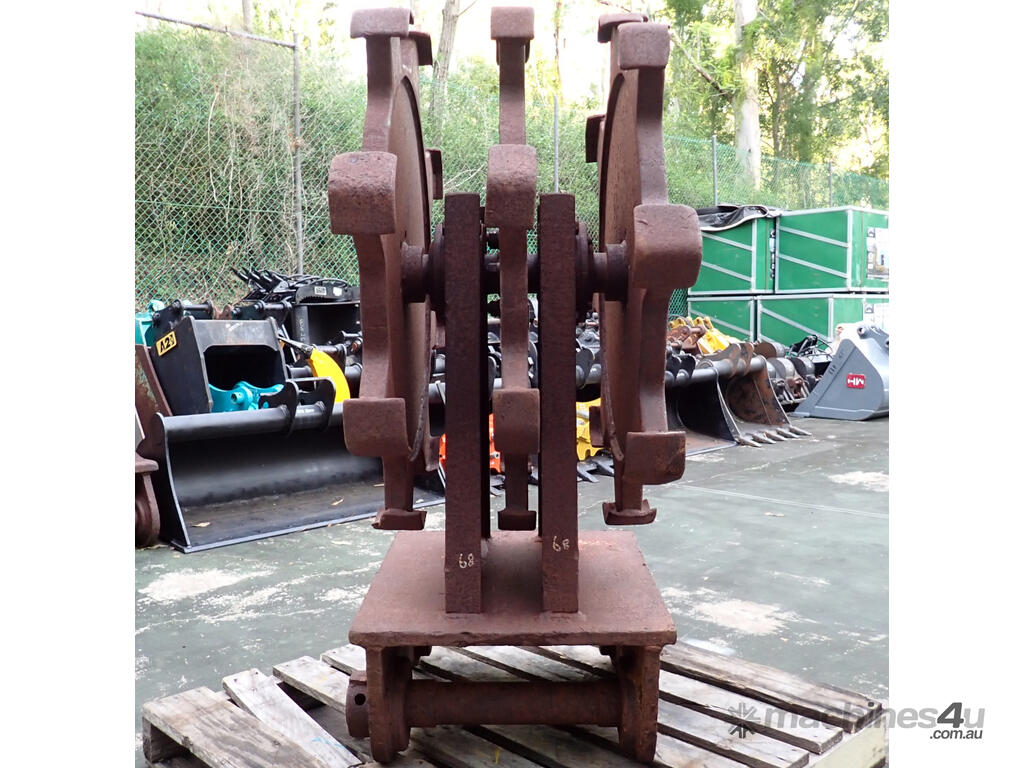

It has 3 rows of 8 pads and a total compaction width of 550mm.

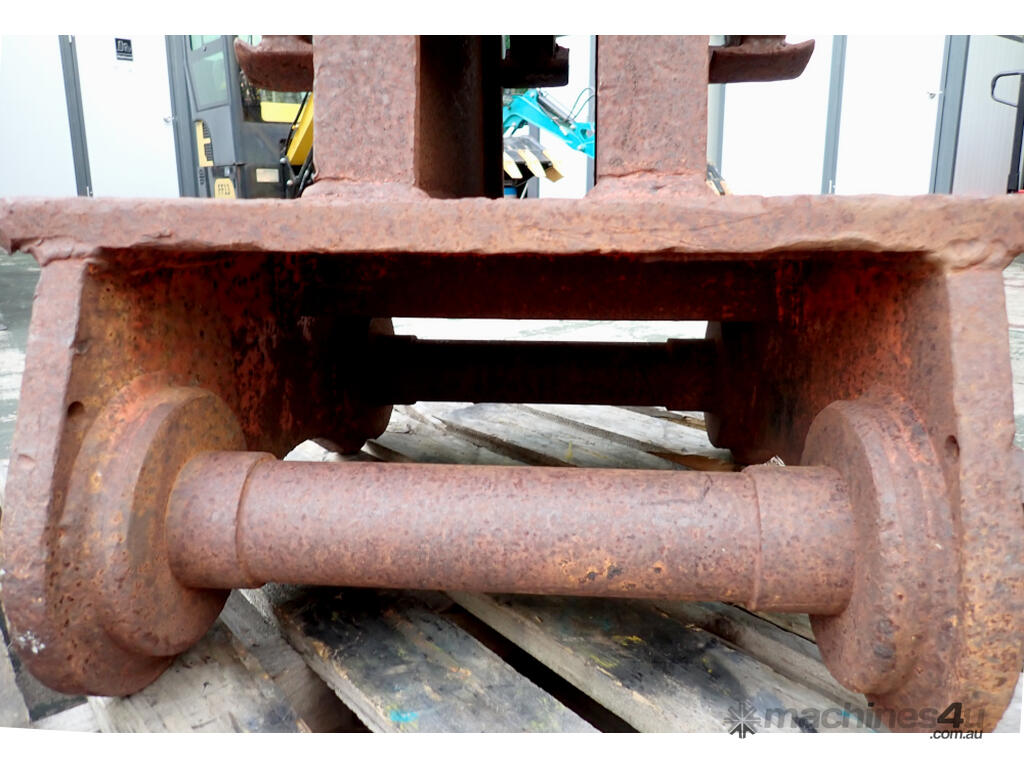

It made with 90mm pins fitted but the middle of the pins has been lathed down to 80mm (see pic# 9), so it is ready to go on an 80mm pin machine, but could easily be configured back to 90mm by inserting two 90mm pins.

Conditions is used, it has a few bangs & dints but rolls smooth and has plenty of life left.

This is a solid, well engineered, heavy duty Compaction Wheel, made in Australia by Atlas Heavy Engineering (AHE): ahe1.

Roller Assembly:
* Width: 550mm.
* Total wheel diameter (tip of pad to tip of opposite pad): 1023mm.
* Pad depth protruding past outer rim of round wheel: 122mm.


*** Current Headstock configuration:
* Pin Diameter: 90mm, but lathed down to 80mm (see pic# 9).
* Pin Center to Pin Center (CtoC): 474mm.
* Between the Ears (BTE): (width of the lathed to 80mm section): 313mm.
* Between the Ears (BTE): Between the Bosses: 411mm (which can be shaved back up to 470mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).


*** As an 80mm Pin Configuration (current):
*
* Should fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, John Deere 200C LC / 200D LC / 225C LC RTS, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3.
*
* Maybe fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Hyundai R210LC-7 / R250LC-3 / R280LC / R290LC / R290LC-3 / R290LC-3LR, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kato 820, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PC290 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As an all 90mm Pin Configuration:
* (remove the current pins and insert 90mm pins into the 90mm pin holes):
*
* Should fit: Case CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / D Family Linkage, Daewoo Solar 280LC-2 / 280LC-3, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, John Deere 240D LC / 270D LC, New Holland EC240LC / EC270LC, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5.
*
* Maybe fit: Caterpillar 330D w/DB Link, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, New Holland FX350, O & K RH 9PMS, Samsung SE240LC / SE240-3 / SE280LC / SE280-3, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions (standing up): 619mm Wide, 1023mm Deep, 1457mm High. Weight: 766kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
