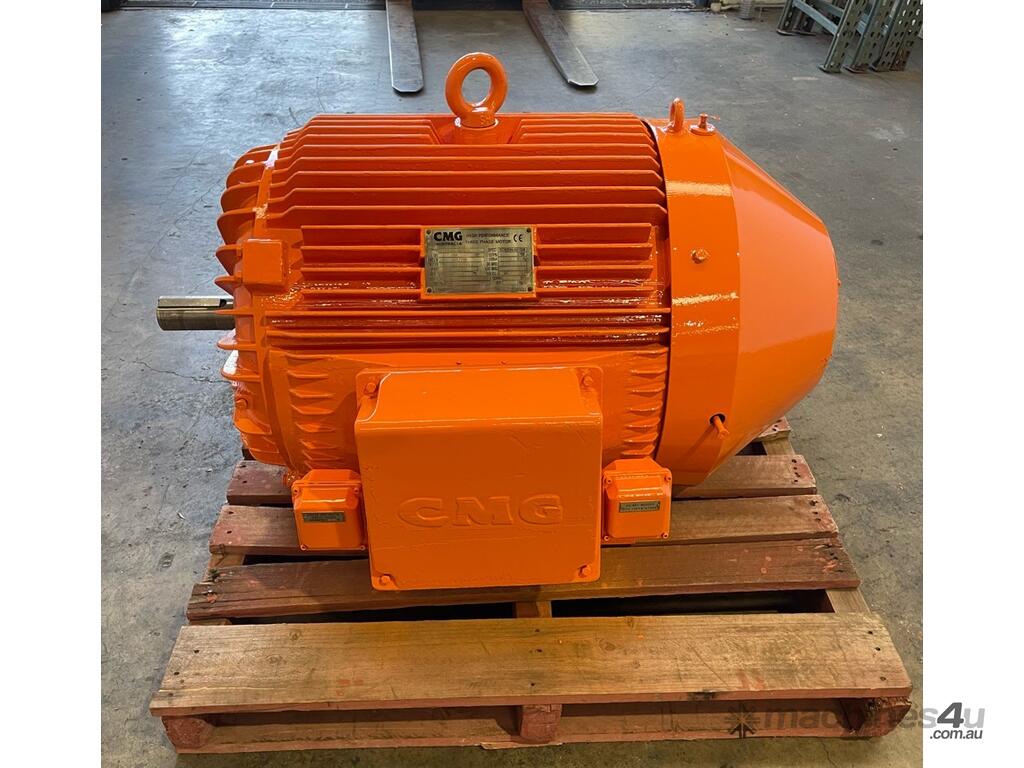

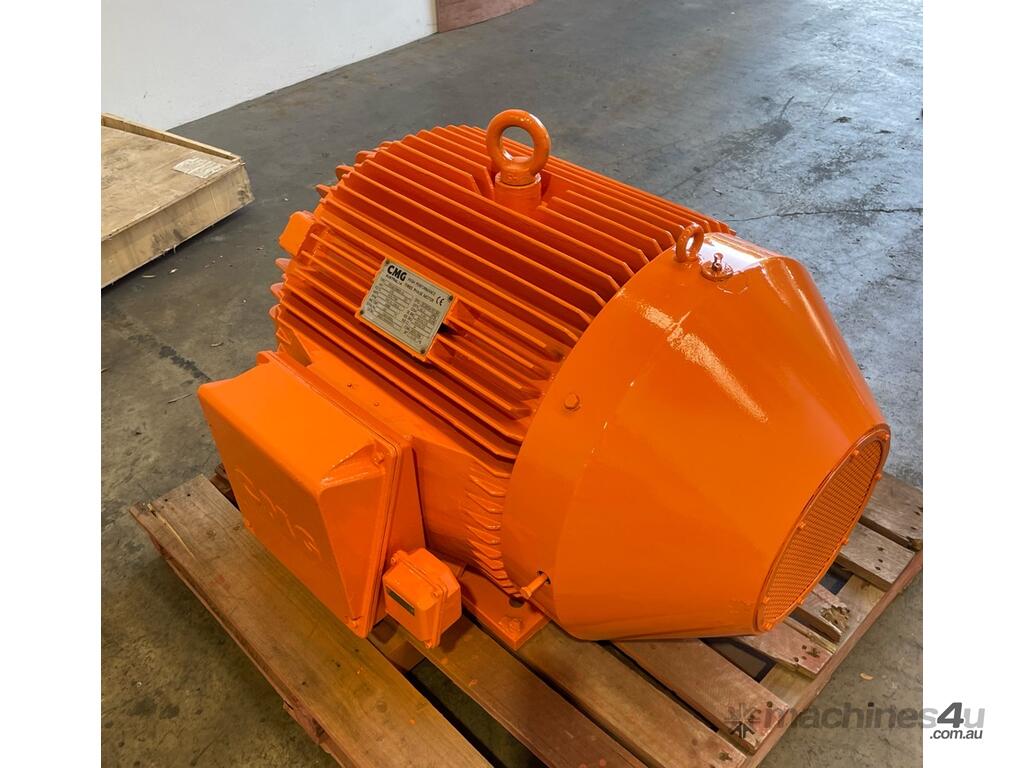

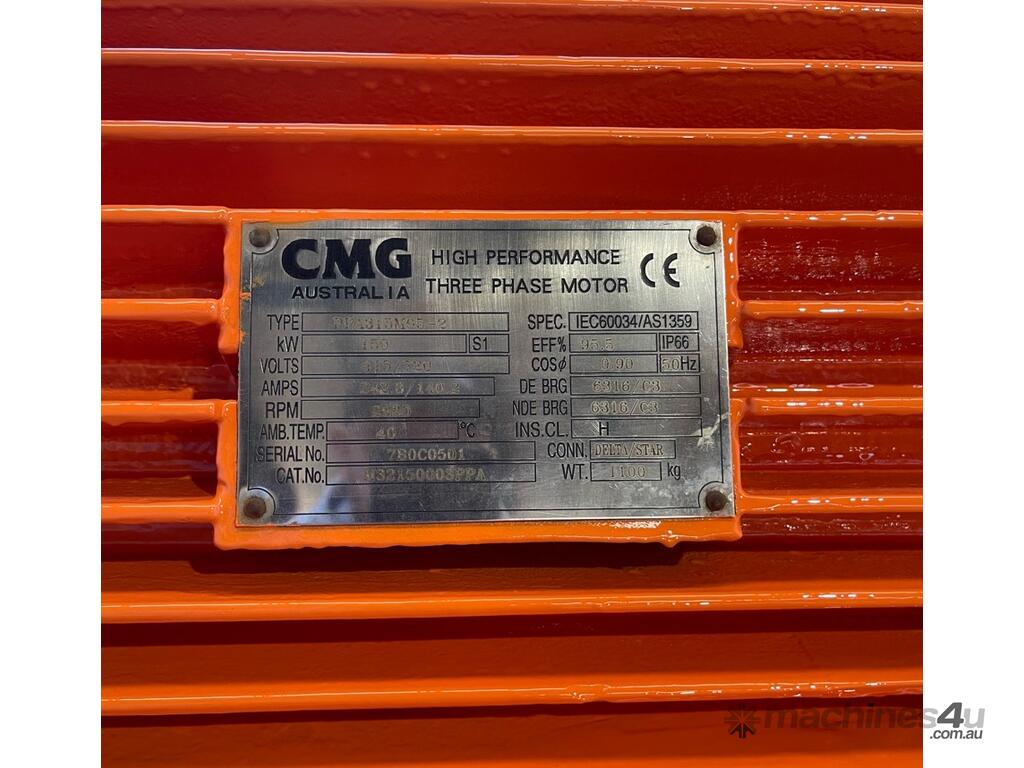

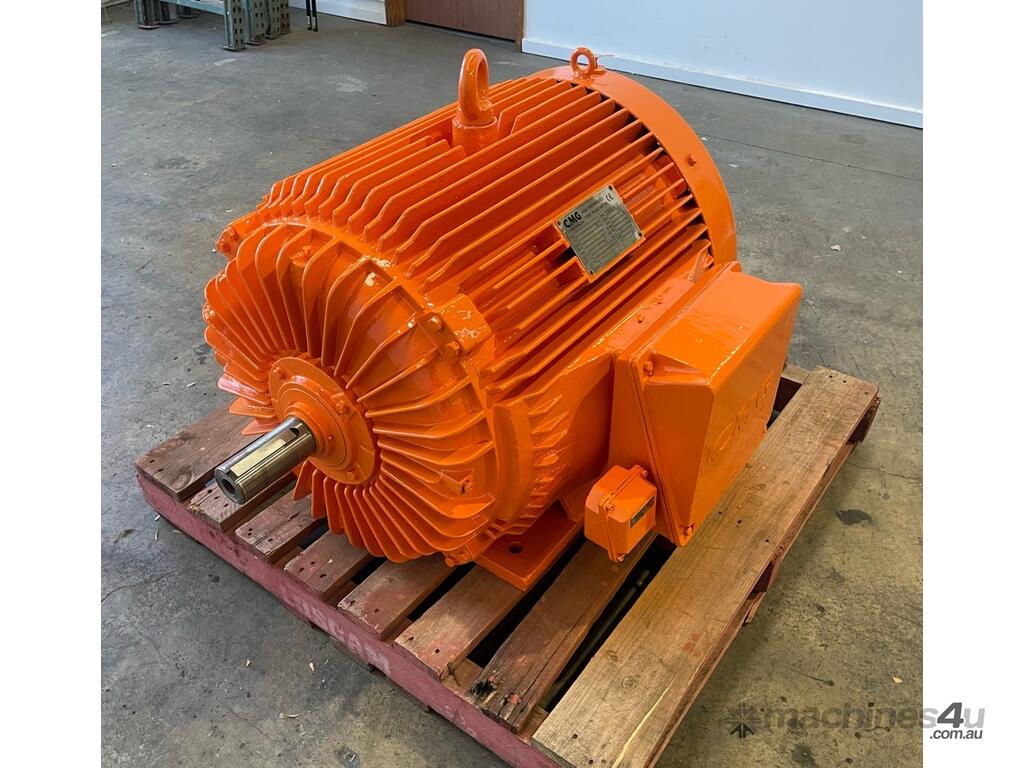

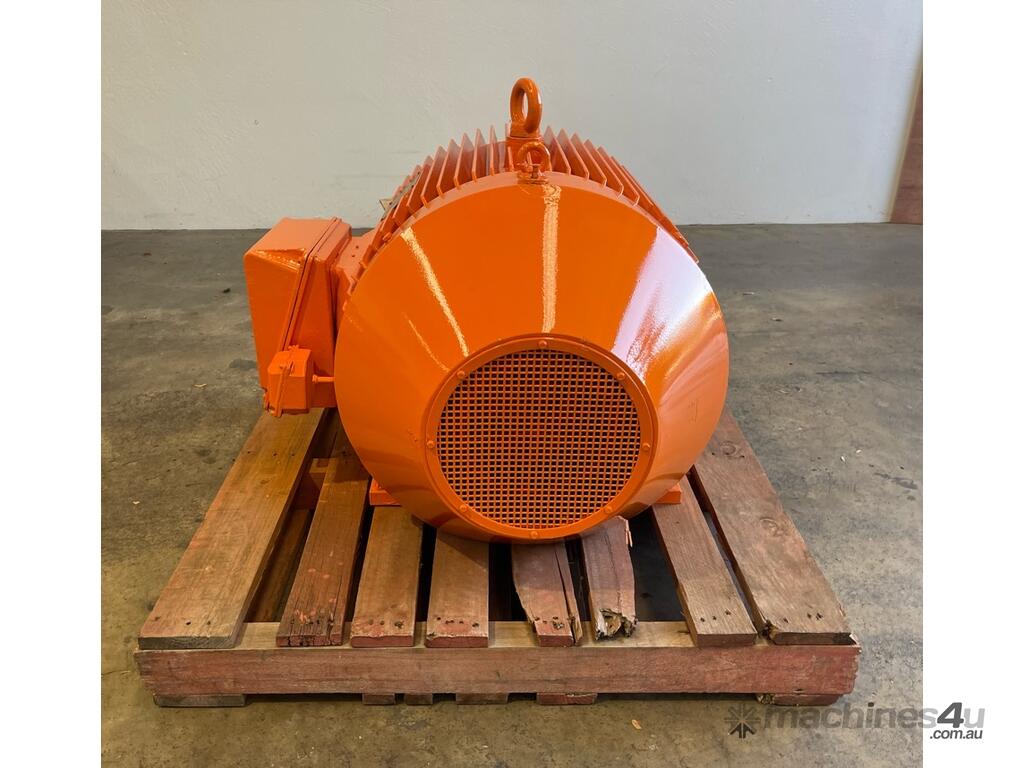

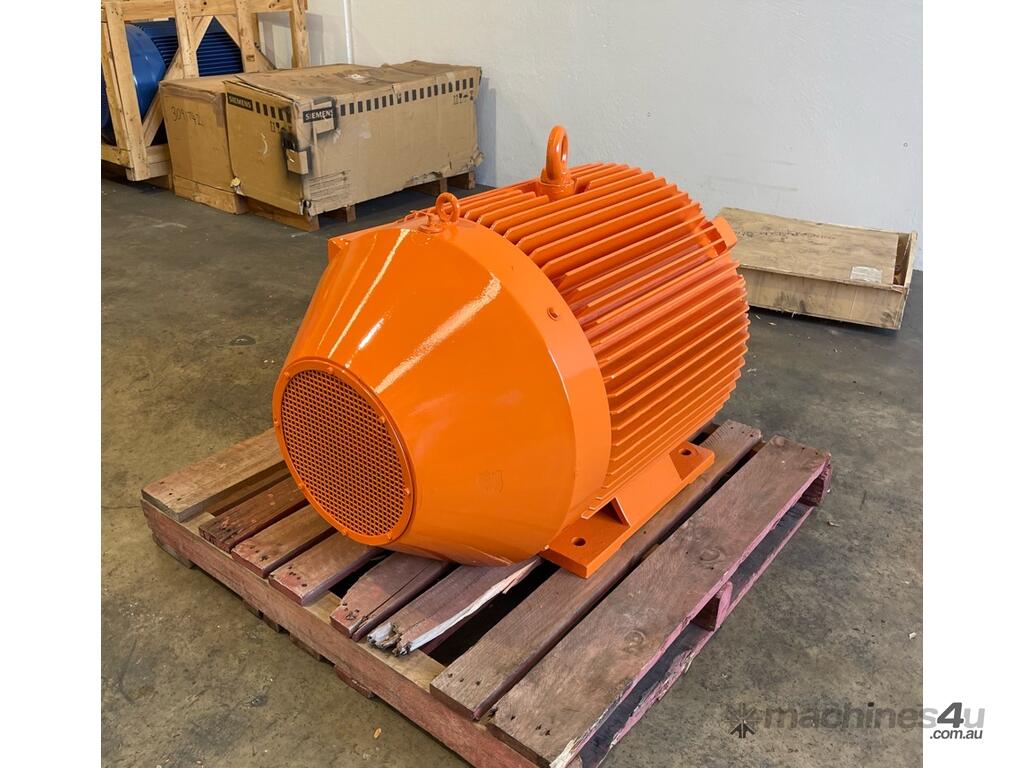

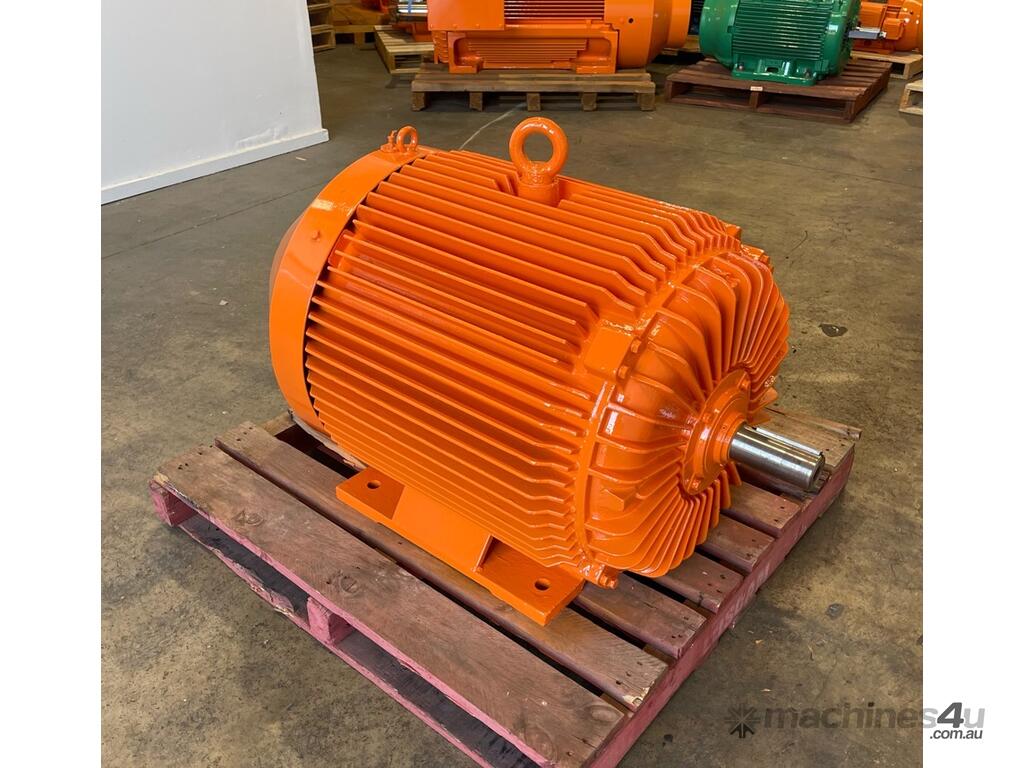

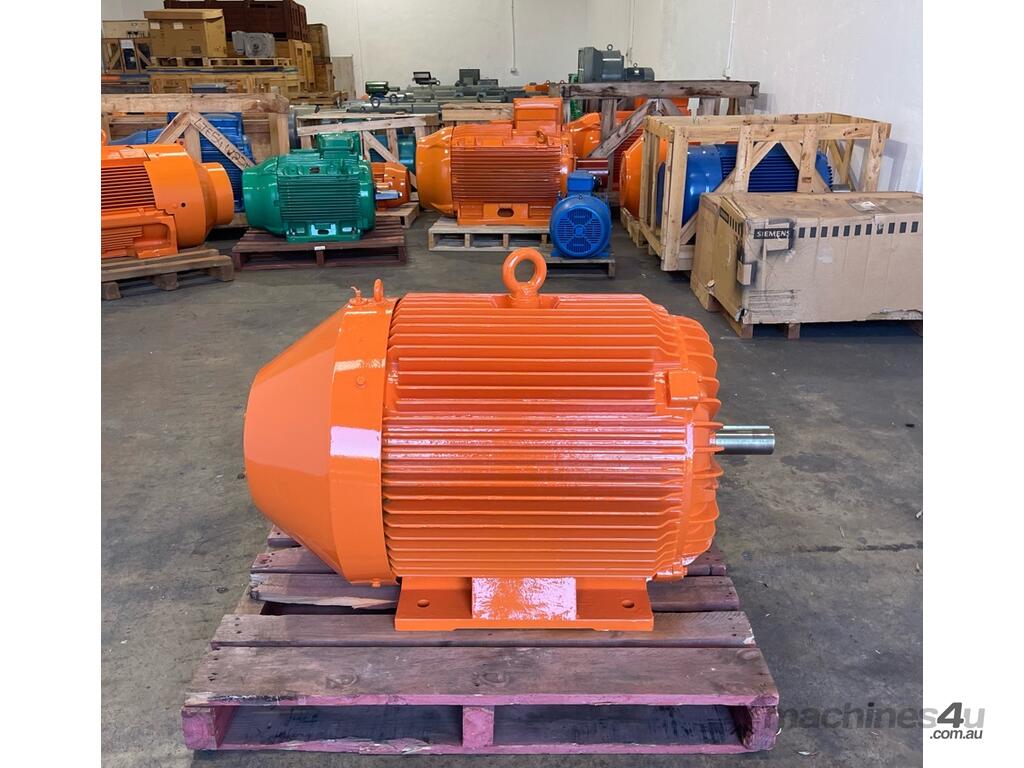

150 kw 200 hp 2-pole 2980 rpm 415 volt Foot Mount 315M frame IP66 Mining AC Electric Motor CMG PPA series Model PPA315M65-2
Category: AC Squirrel Cage Electric Motor
3-phase Induction Motor
Make: CMG
Series: CMG PPA
Model: PPA315M65-2
Power: 150 KW (200 HP)
Speed: 2-pole (2980 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 242.8
Mount: B3 Foot Mount
Frame: 315M
Protection Rating: IP66 Mining
Insulation Class: H
Terminal Box Orientation: Standard RHS to D.E
Total Length: 1205 mm (incl. shaft)
Total Width: 921 mm (incl. RHS box)
Total Height: 775 mm
Feet Measurements;
- Across "A' - 508 mm
- Front to Back 'B' - 457 mm
- Front hole to shaft 'C' - 216
Shaft DIA: 65mm (by 140mm long)
Available QTY: 1
Condition: Decommissioned critical spare. N/L test run in motor workshop. Warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - Freight services available on request
