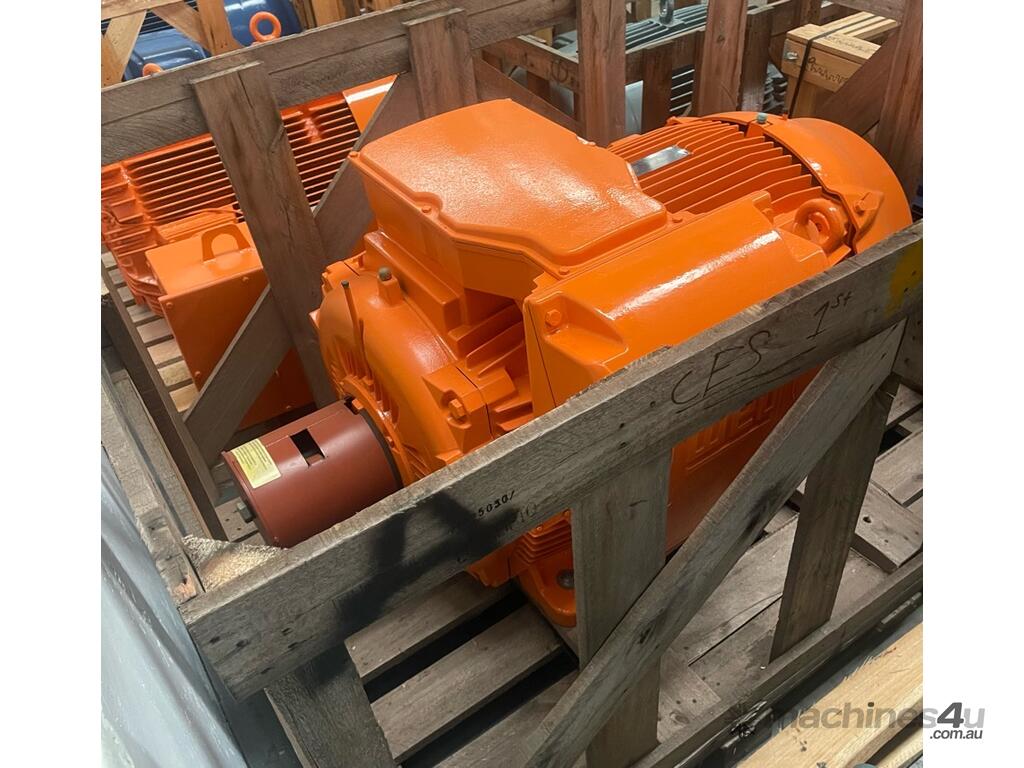

150 kw 200 hp 8-pole 745 rpm 415 volt Foot Mount 355M/L frame IP66 Mining AC Electric Motor WEG Model KTE52B W22M unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: WEG
Model: KTE52B W22M
YOM: 2018
Origin: Brazil
Power: 150 KW (200 HP)
Speed: 8-Pole (745 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 275 A
Mount: B3 Foot
Frame: 355M/L
Weight: 1904 kg
Insulation Class: H
Protection Rating: IP66 Mining
Critical DIMS:
Shaft DIA: 100mm
Shaft length: 210mm
Centre Shaft Height: 355mm
Total Length: 1482mm (incl. shaft)
Total Width: 970mm (incl. standard RHS to D.E. terminal box)
Total Height: 884mm
Feet Measurements: Across 'A' - 610mm, Front to Back 'B' (2-holes) - 560mm & 630mm
Front hole to shaft 'C' - 254mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare. N/L test run in Motor Workshop. Factory storage.
Delivery Point: exStock Seaford VIC 3198 Australia
Freight: Available for immediate despatch - Freight services available on request
