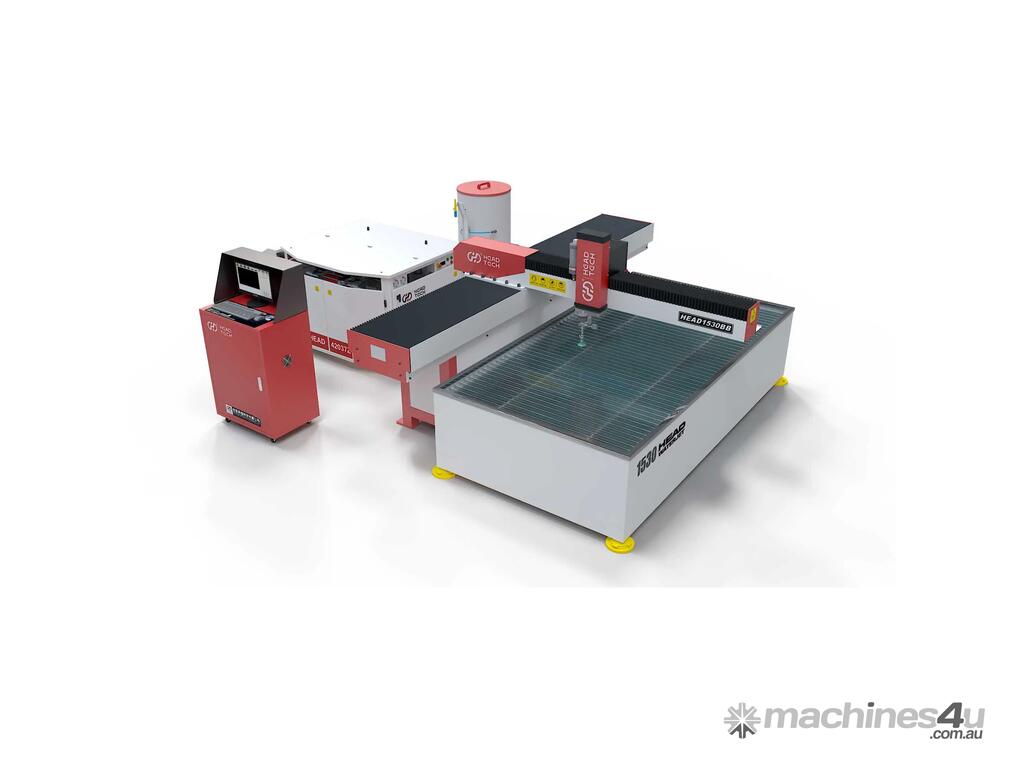

The HEAD1530BB is a cantilever-style waterjet cutting machine designed for precision and versatility. Engineered by HEAD Waterjet, this model offers advanced features and reliable performance, making it a top choice for industries with diverse cutting needs.
Technical specifications
The high-pressure pump is characterized by
Nominal power
37 kW / 50 HP
•Hydraulic pump of variable flow and compensated pressure
Maximum working pressure
4136 bar
•High / low pressure selection that allows piercing
Maximum flow
4.1 L/min
•Electrical inversion of the cutting head
Hydraulic tank capacity
211 L
•Noise level below 80dB
Pressure accumulator volume
1 L
•Leakage detection in de high-pressure circuit
Water inlet pressure
2.4 – 5.5 bar
•Long lasting high pressure seals
Nominal current
72 A
•System to uninstall de piston without uninstalling the cylinder
Protection at 380 V / 50 Hz
80 A
•Air / oil heat exchanger
Noise level
76 dB
•Cost-effective Cutting System
Over ten years experience in water jet equipment industry.
First enterprise who masters the core technology of both UHP & High Flow output in China.
Our machine is easy to operate and use more safe.
We have our own factory, provided OEM/ODM manufacturer.
Professional technician team provide 24/7 service.
Cutting materials:Stainless steel , brass, aluminum,stone ,plastic , glass.etc
Cutting thickness:0-150mm
Max. pressure:300-400mpa
Cutting accuracy: +/-0.1mm
Max.flowrate: 3.7 L/Min
Max. orifice diameter:0.33mm(0.013”)
