1500mm x 3000mm Combination CNC Plasma & Engraving Head - Heavy Duty Build

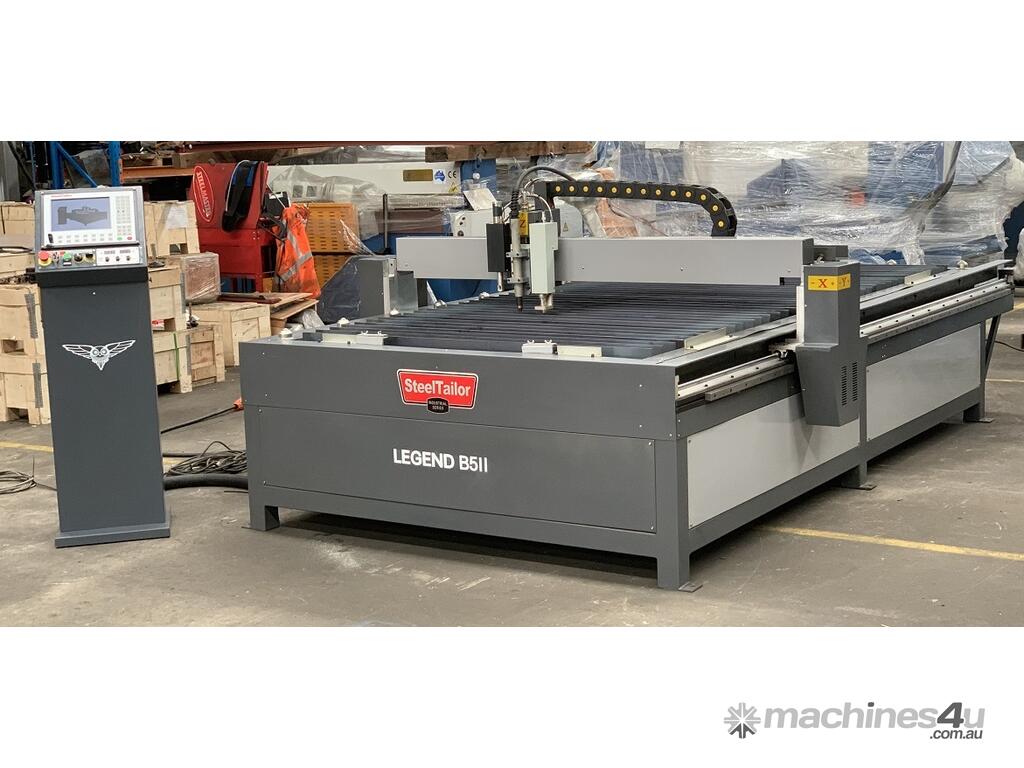

Plasma CNC – STEELTAILOR LEGEND B52E - 1500mm x 3000mm Table, Engraver Head, Fastcam Software
CNC, 10.3” Screen, With Auto Nesting, Torch Height Control (THC), 3 Cutting Heads, No Power Source

Australian supported Fastcam CNC operating system!
Australian supported back up service and parts!

**CURRENTLY ON SPECIAL - $3,000 OFF THE RRP OF $26,850.00 + GST**


Description
If you have been waiting for the all-in-one plasma - look no further - No wonder its called the LEGEND B52 - One Machine Works As Two! Cut as thin as 0.5mm and as thick as the power source we hook up to our machine. Your call! Not to mentioned the added etching engraving head (FREE) for all basic numbering, fold lines and more.
Three modes of cutting:

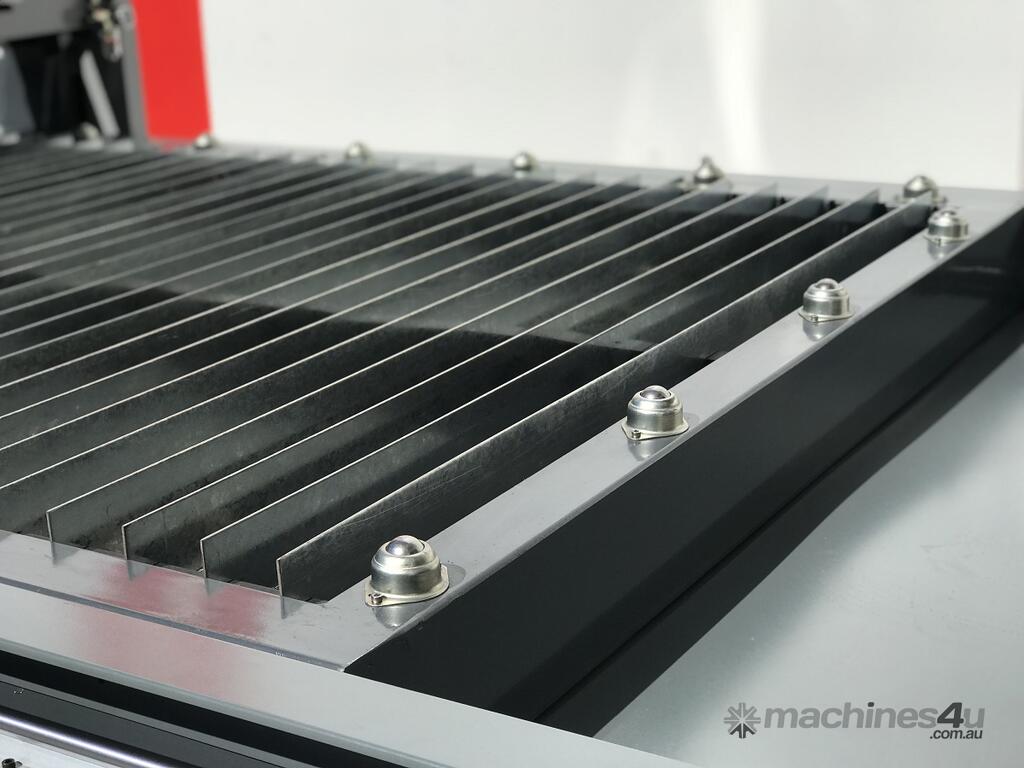

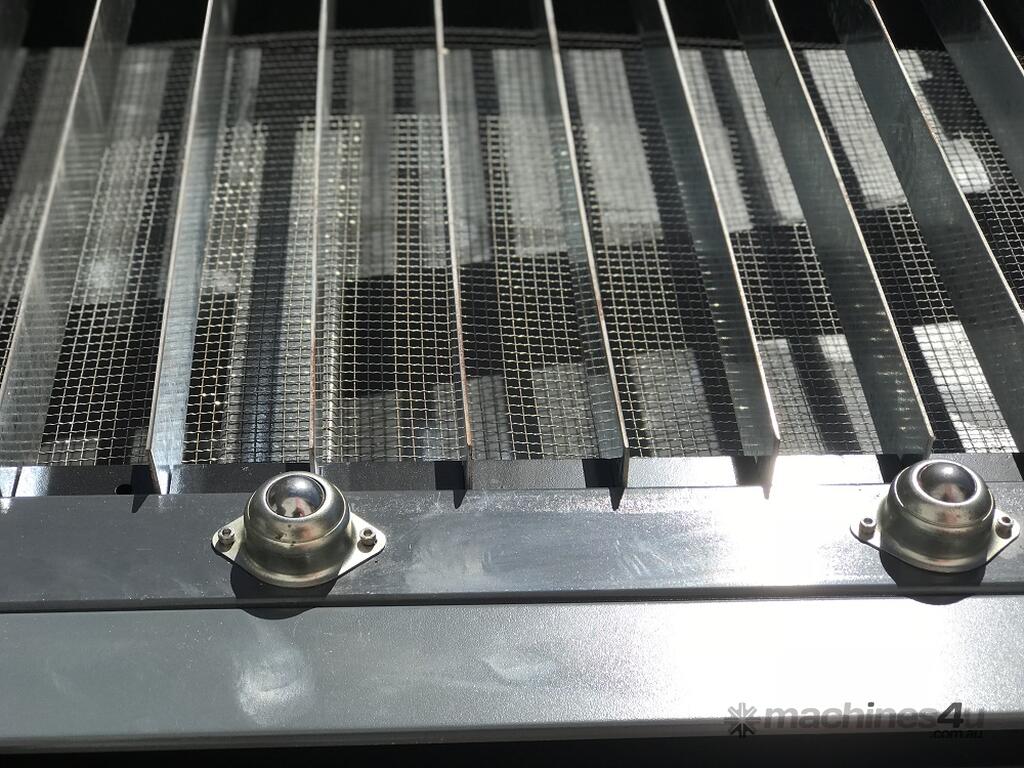

Water jacket, Platen, Arc voltage sensing THC. This Plasma cutting machine table offers ball design, cutting material loading/unloading easier.
Offering Arc voltage sensing THC, fine plasma cutting performance along with simple design, cutting mode switching very easy.

Features
? Power Source Plasma added in additional to this based on customers’ cutting requirements
? 1500mm x 3000mm cutting table
? Large 10.3” LCD Screen

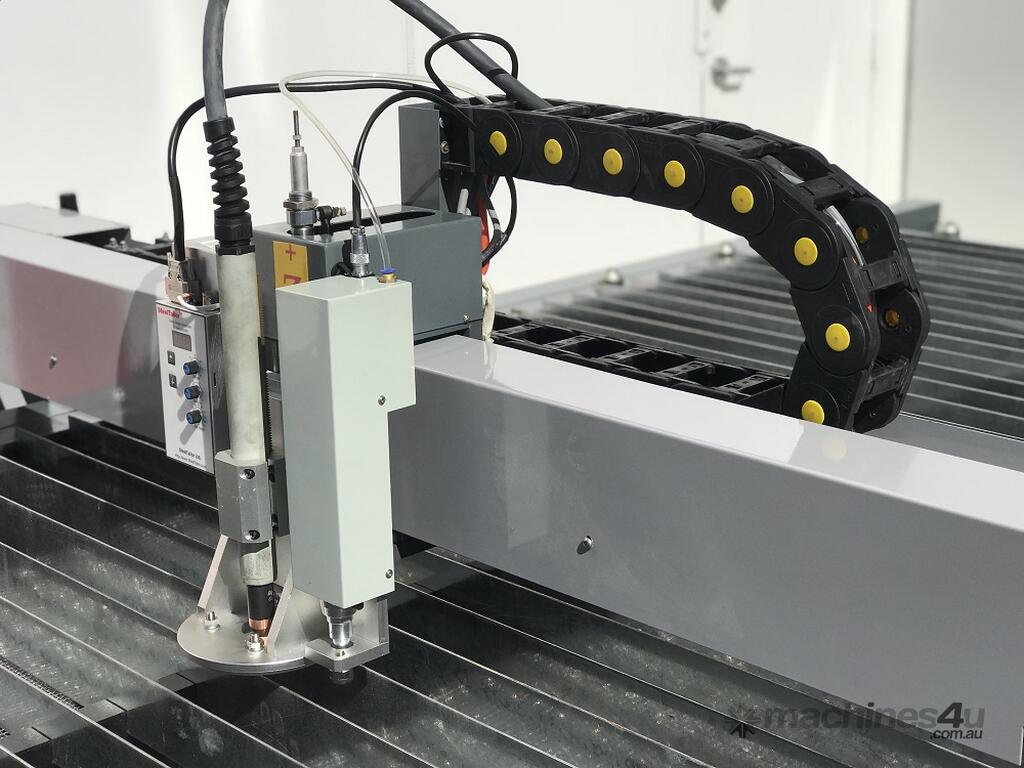

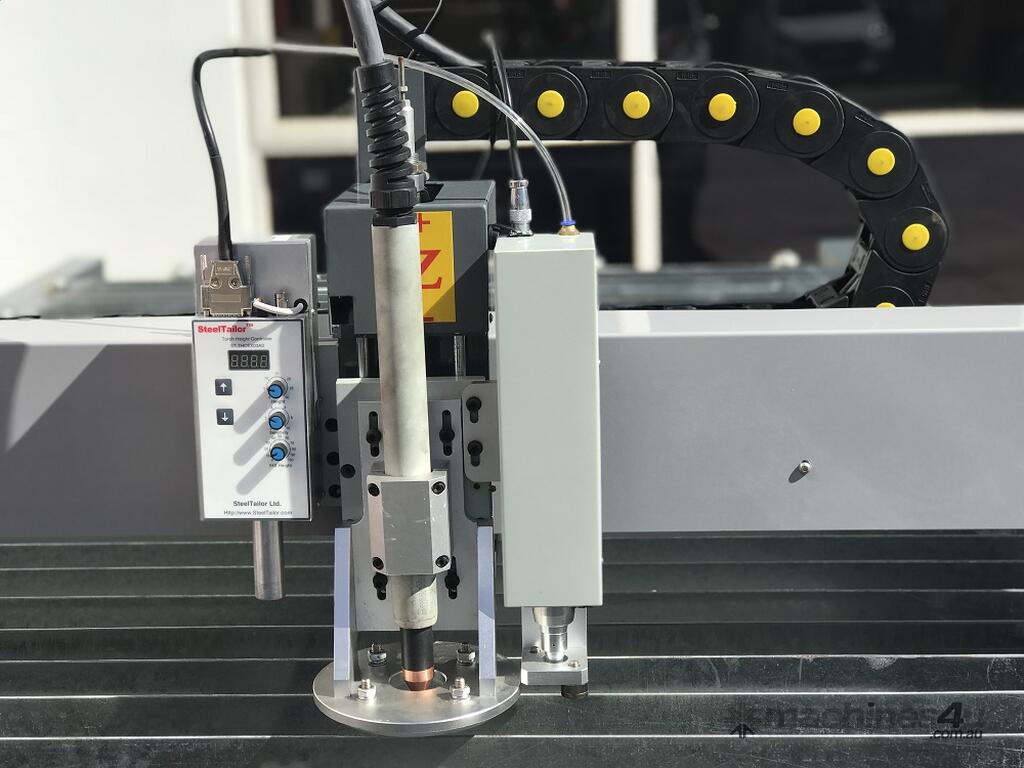

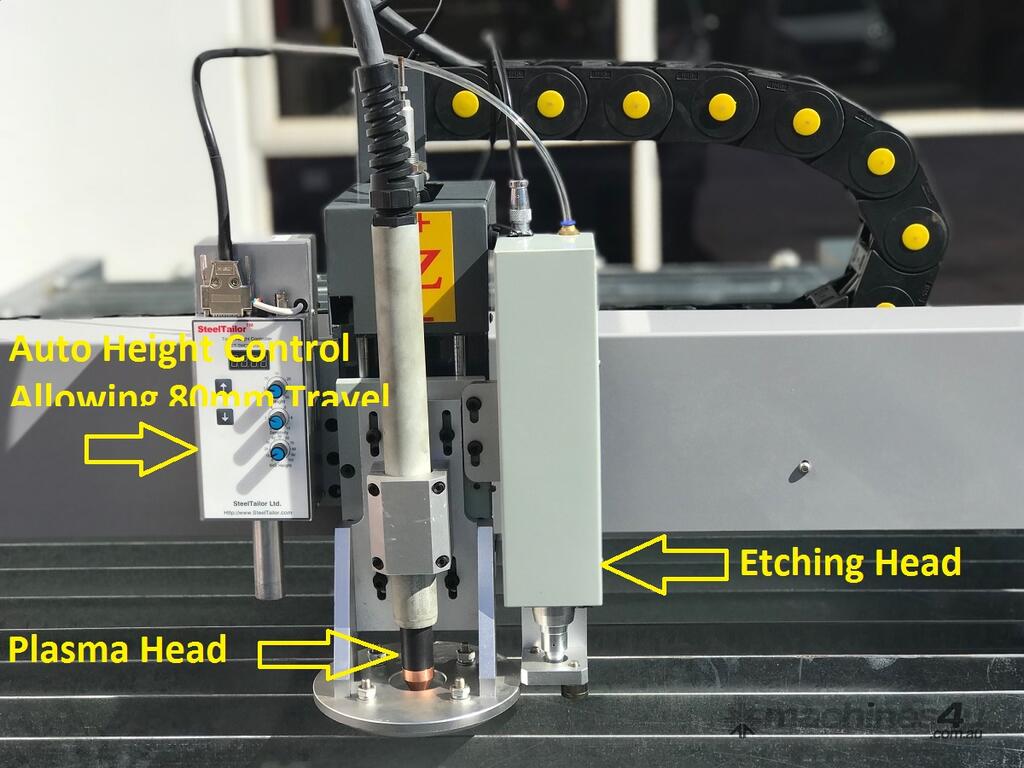

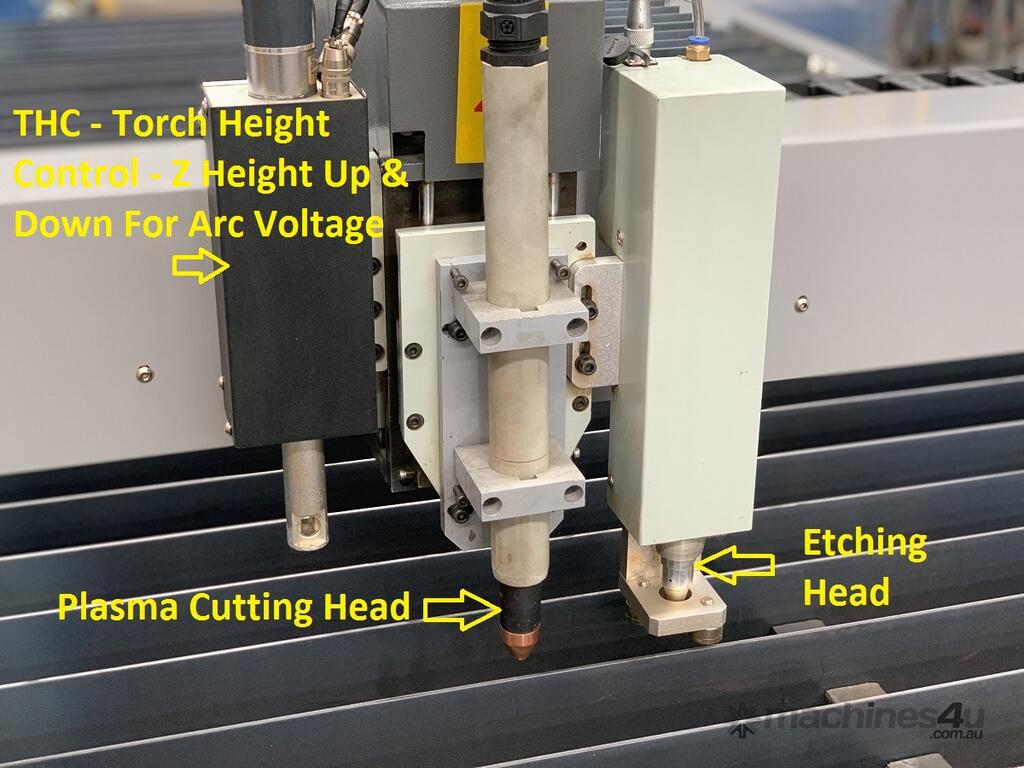

? Etching engraving head fitted

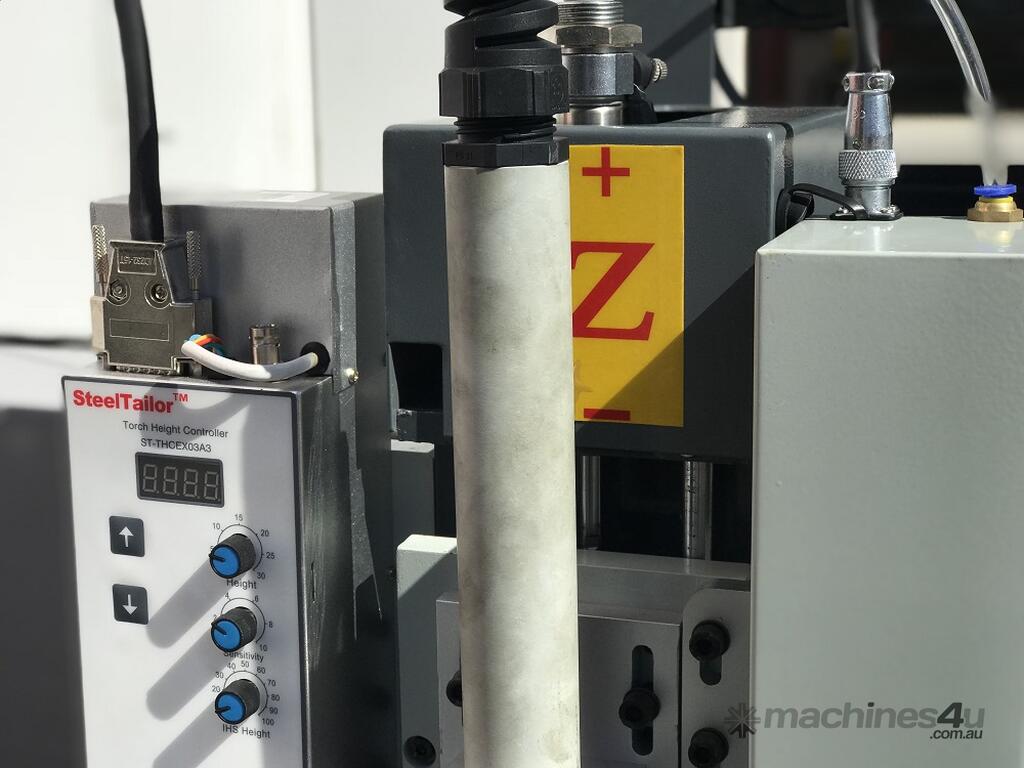

? THC torch height control fitted
? Anti-collision device fitted
? Water jacket supplied also for thin sheet cutting
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? FastCam Professional Offline Software Included FREE with every machine purchase.

Technical data
? cutting area – 1500mm x 3000mm
? bed area – mm x 3300mm
? Z travel - 80mm
? Large 10.3” LCD Screen
? larger engineered tables available to suit thicker plate
? cutting speed - 0 ~ 8000mm / min
? Rapid approach speed – 12,000mm / min
? accuracy – 0.2mm
? dimensions - 3400mm x 1900mm
? crate shipping dimensions - 3600mm x 2100mm x 1600mm x Kg
? weight – 1680Kg
? table power source – 240volt
? plasma power source – 32amp - volt
? 12 month warranty

CNC Software
? Fastcam Professional (Auto-Nesting)
? Save drawings to USB
? All popular DXF and DWG files supported.

Webpage:
.fastcam/fastcam.html

You can also see the changes in the promotional video here:
? Upgrage to Fastcam 8 for $1 - ./watch?v=GHAPFg4PrYA
? Engraving Head - drive./open?id=0Bxjl6-O373yUcDdLR1k0eFlid1U

Services required to be provided by customer
? electrical connection.

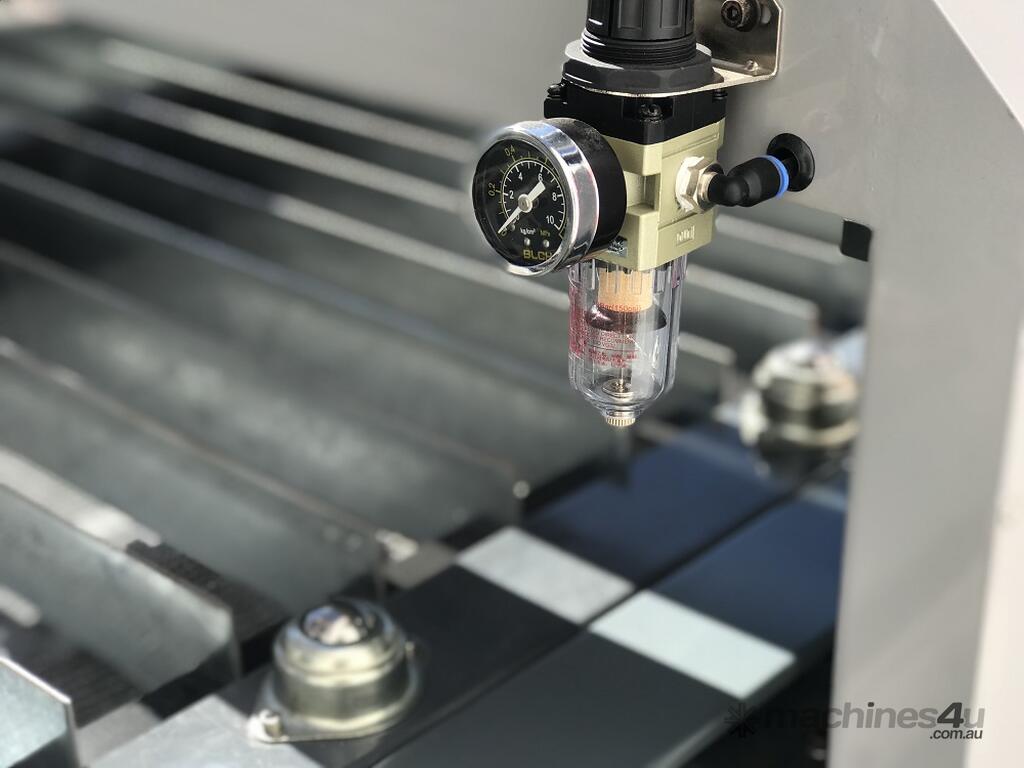

? compressed air.
? fume extraction provisions.
? Asset can offer you the above additional items on request.

Recommended Add On Accessories
?21+0602 - FastCAM V8 Professional Production Pack For Processed Steel, Draw, Edit, Nest, Cost & Output CNC, Video - Outline V4 on . Perpetual License Product, for $999 USD
?21+0604 FastCAM Outline V4 Perfect For All Artistic & Signage Applications Perpetual License Product, for $199 USD / Yearly Online
?21+0605 FastCAM FontGEN - Sign Cutting - Perfect for generating DXF text files Perpetual License Product, for $39 USD / Yearly Online
?21#0717 - AngleBlade 100EPro Power Source Consumables Production Pack Consisting of Assorted Cutting Tips,
To Suit PMX45~105, 6 Months allowance Based on General day to Day Cutting
?25-0258 - Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
?25+0258 - Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
?25+0259 - Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
?21-0805 - CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
?21-0806 - CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
?25-0259-AM - Power System Model NB7/270 - 35 CFM Piston Compressor. 7.5 H.P- v
?25-0220 - AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0112 - Digital LCD Vernier Caliper - 150mm Length.
?Full Range of Consumables Available In Store or Online
