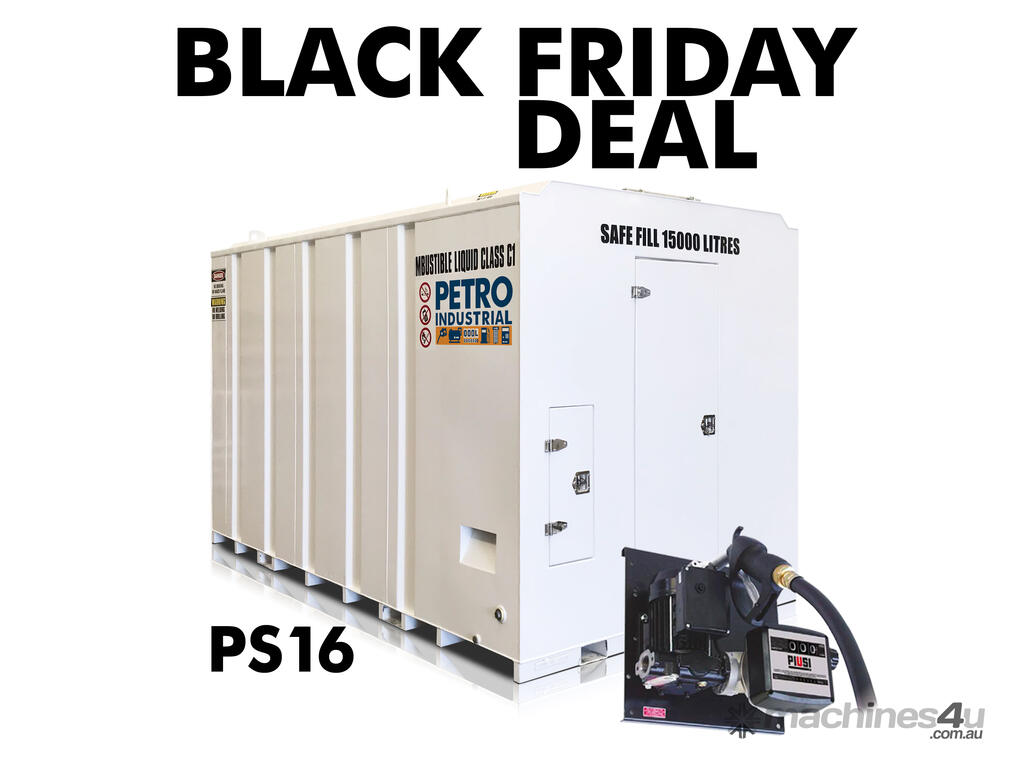

16,000L STORE Diesel Storage Self-Bunded TANK with PIUSI ST Pump Kit – 15,000L Safe Fill

An innovative small footprint, full height pump bay storage tank perfect for home base refuelling.

This Black Friday Deal includes the High Flow 80lpm PIUSI Pumpkit - comes with pre-pump y strainer, 230V Piusi pump, mechanical meter, 4m hose and auto shut-off gun.
Pump supplied with standard 3m power lead and 3 PIN Australian. Options for Solus ATG and FMS.
Fully installed and wet tested, plug and play on-site.

TANK FEATURES:

PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
COMPLIANCE - Designed and built in accordance with AS1940, AS1692 and AS1657
BUND - Galvanised grated bunded area with drain
FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
SPARE SUCTION - Spare DN25 (1") Suction Outlet
SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
MANWAY - 600mm dia manway with internal ladder
DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
INTERSTITIAL VENT - Interstitial emergency vent
VENT - Primary tank free air vent
DECALS - Statutory safety decals
FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site. The lifting lugs are NOT certified to lift the tank with fuel.
HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
PAINT - Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
