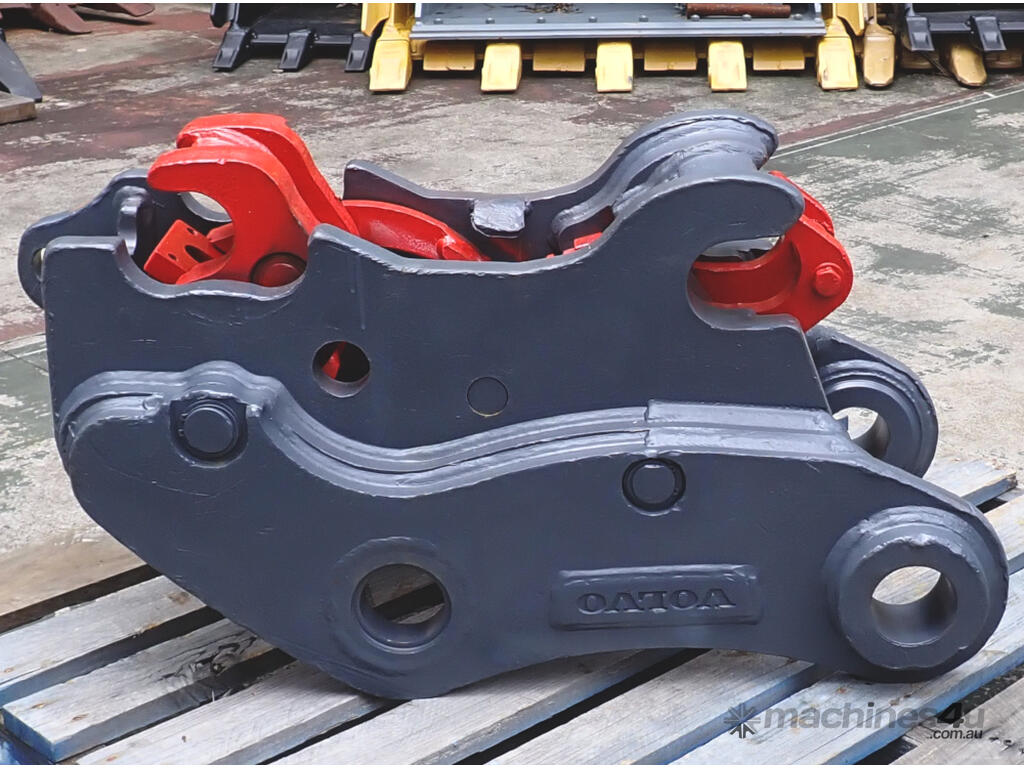

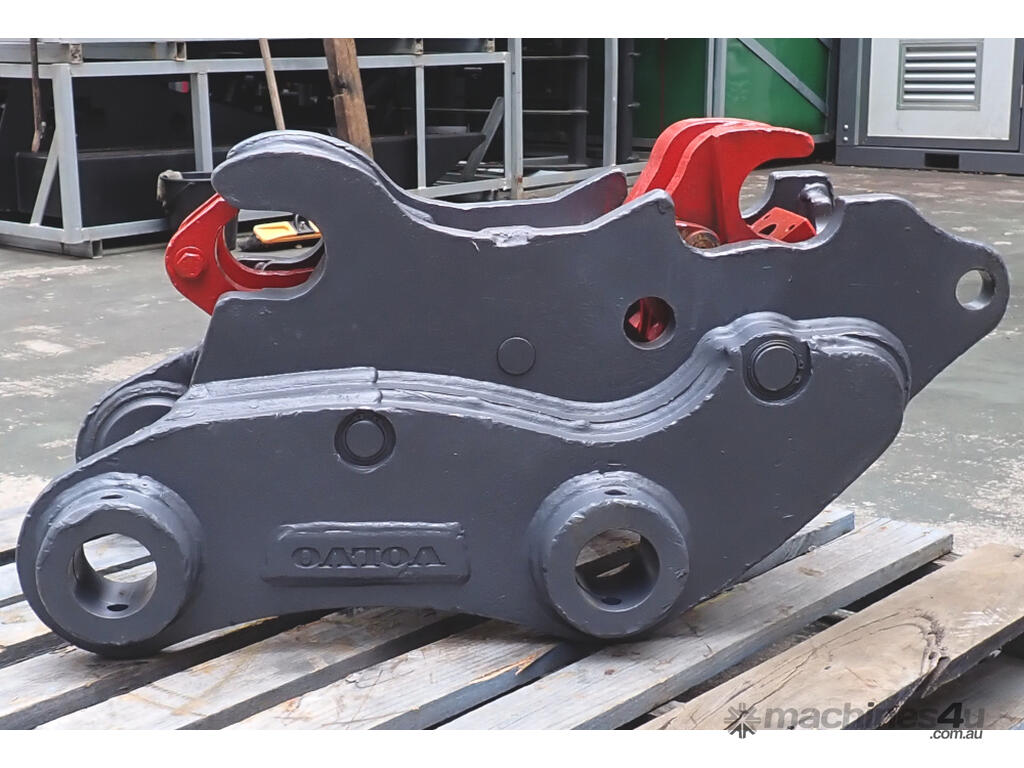

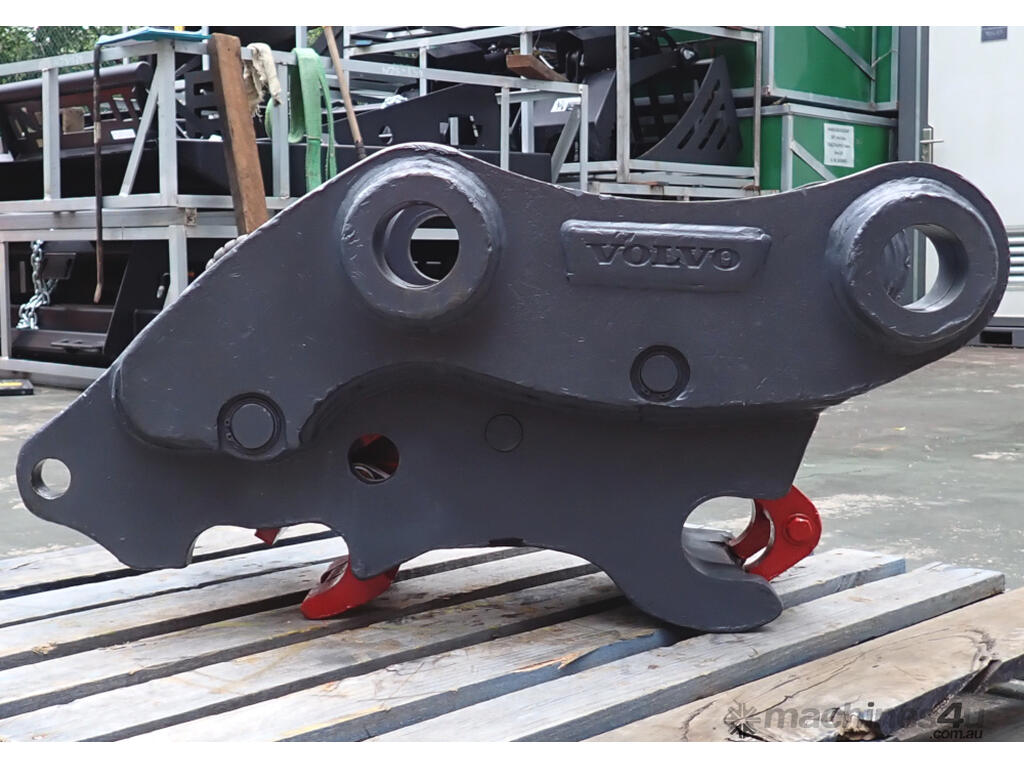

16-32 ton (80mm pin) Volvo Hydraulic Excavator Quick Hitch Coupler

Used 80mm pin Volvo Hydraulic Excavator Quick Hitch Coupling to suit 16-32 Ton machines.

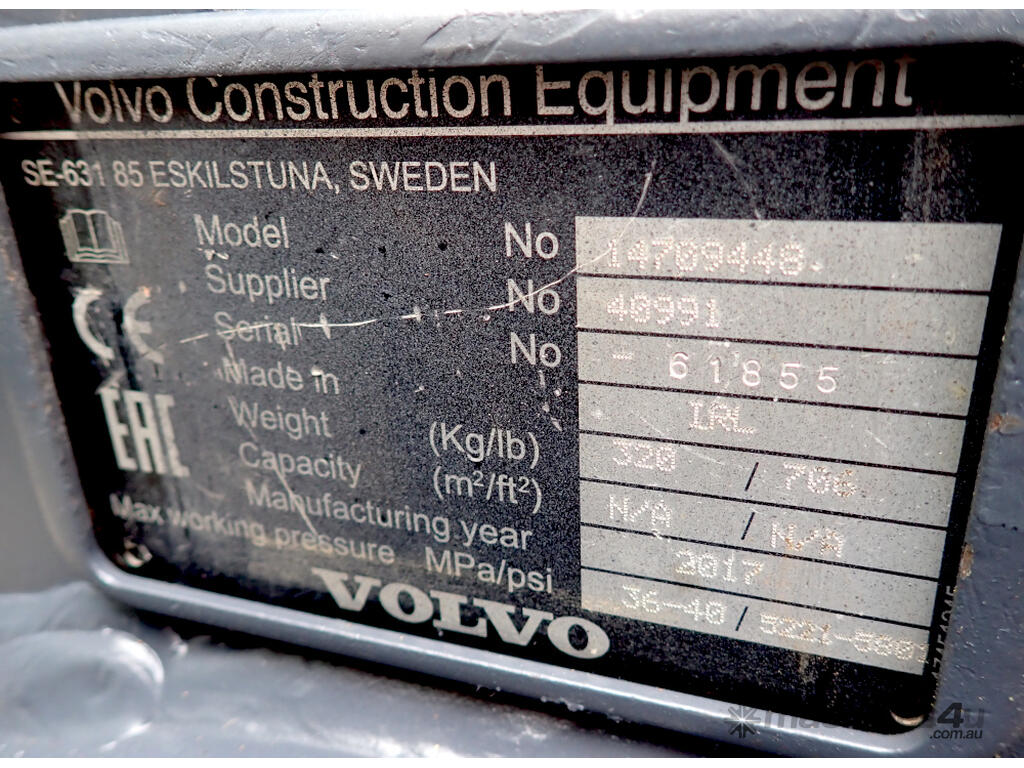

* Strong and well engineered. Made in Ireland for Volvo Sweden.

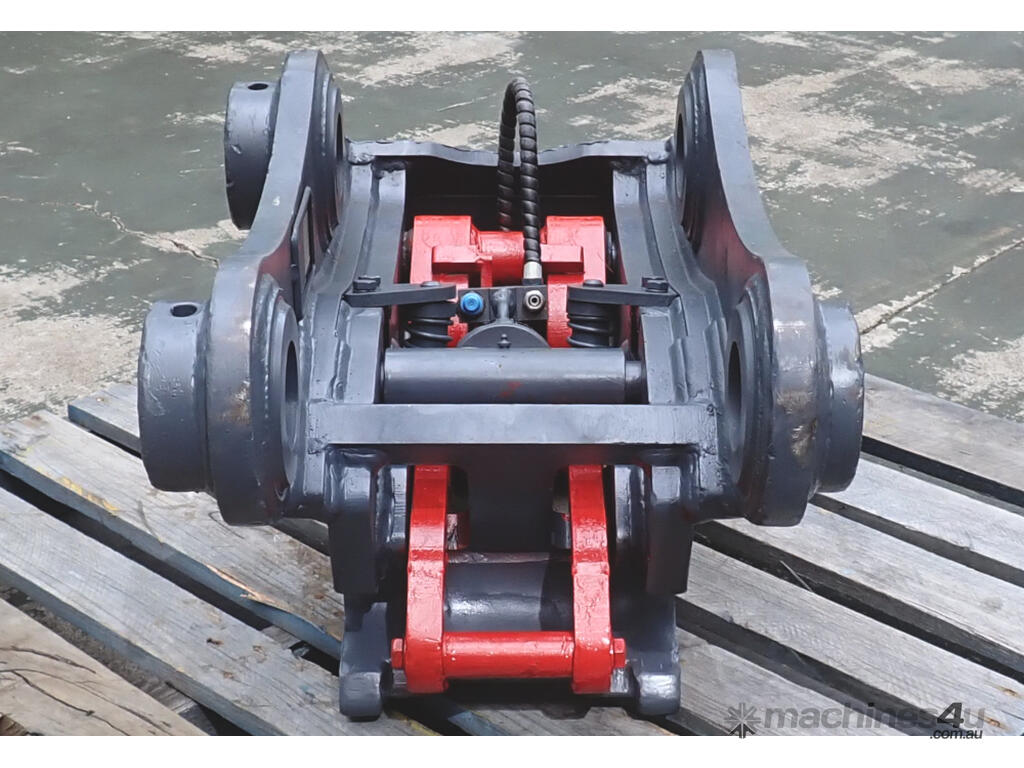

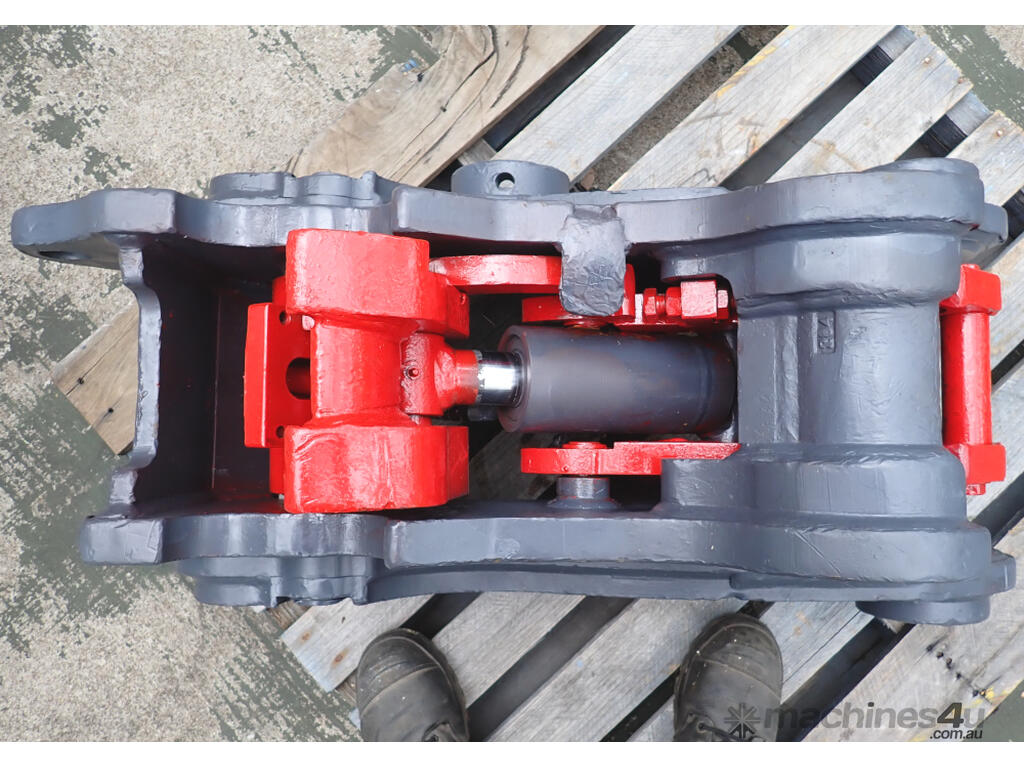

* Has an auto locking mechanism.
* There is a rear Lifting Eye Hook.

The hitch body has a few dings & bangs, but is otherwise in great condition with plenty of life left.

However, there is a hairline stress crack in a weld around around the rear pin hold hook mechanism.

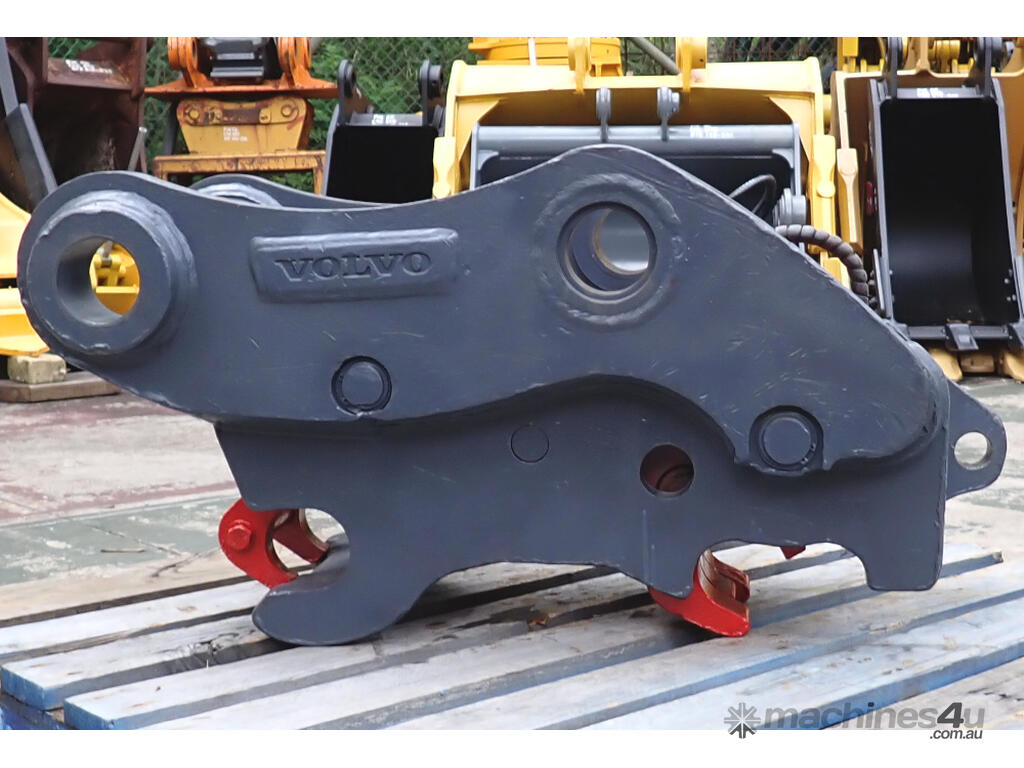

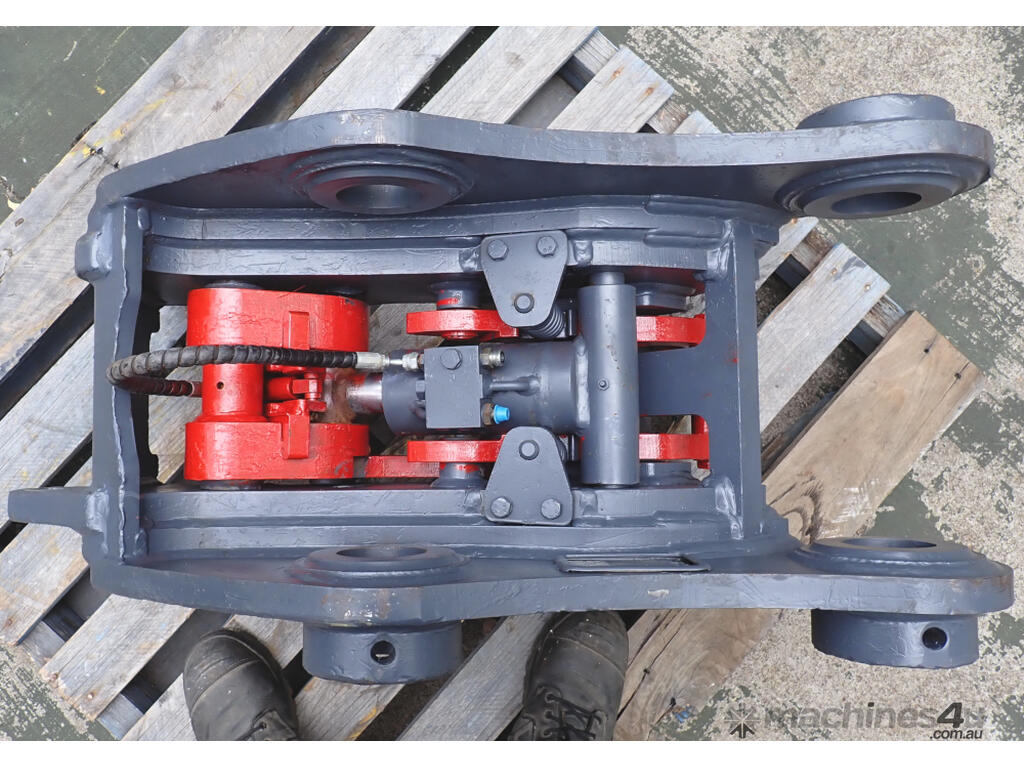

Looking at the left side of pic#4: the crack is on the red mechanism, right under the black hose (the hose is hiding it).

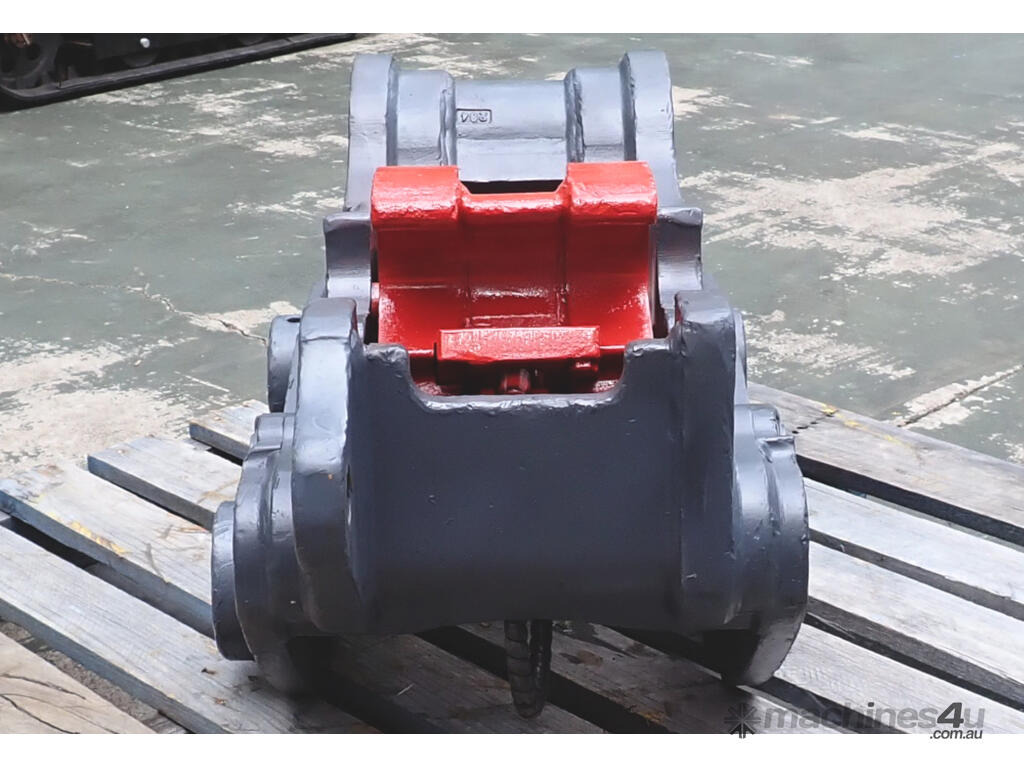

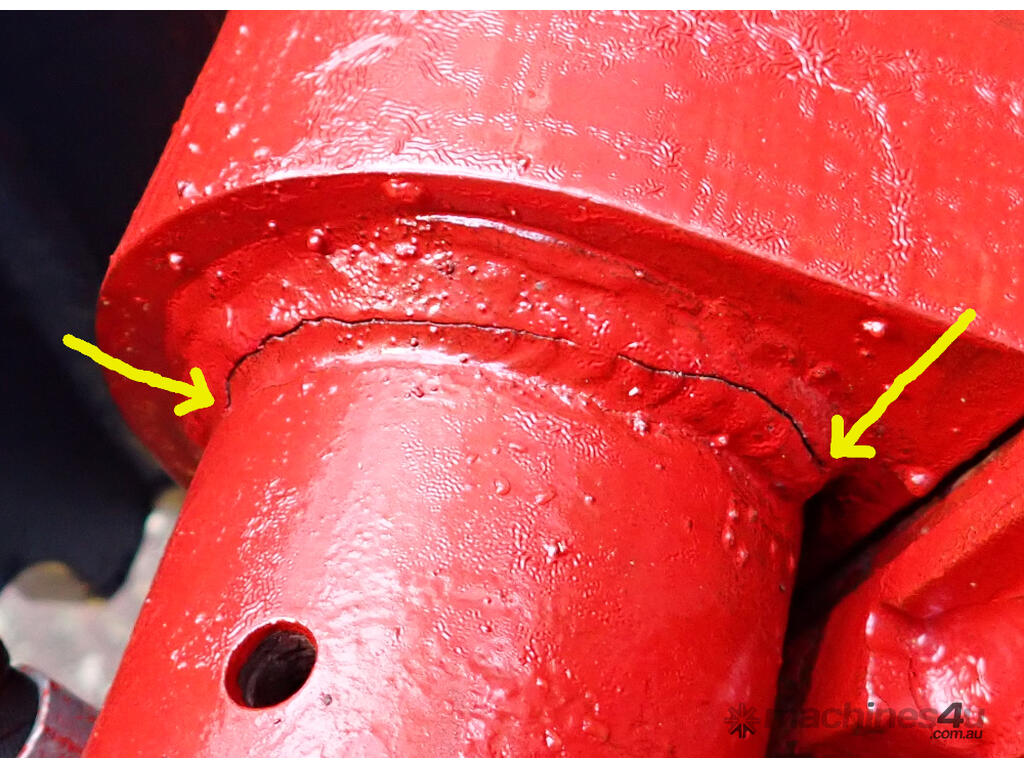

Pic#5 shows a closeup of the crack. The crack runs from in between the yellow arrows, the rest of the way round still seems un-fractured and very much connected.
As the main body is in good shape, this would be a simple "grind-out-the-crack then weld" job for someone who knows what they are doing.
The price has been reduced by $2,000 which will more than cover any costs to repair.


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 80mm.
* Pin Center to Pin Center (CtoC): 480mm.
* Between The Ears (BTE): 326mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 359mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 80mm.
* Between The Ears (BTE): 299mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Doosan DX255 / DX255LC-3, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, John Deere 200C LC / 200D LC / 225C LC RTS, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3.
*
* Maybe fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Hyundai R210LC-7, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kato 820, Kobelco 200SRLC / SK200 / SK210 / SK210LC-VI, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PC290 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC and possibly other machines with similar pin spacings.


Hitch dimensions: 1006mm long, 512mm wide, 500mm high. Weight: 316kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
