16-39 ton (90mm or 80mm pin) 1950mm Excavator Mud Batter Bucket

Used 1950mm Excavator Mud Batter Bucket suit 16-39 Ton machines.

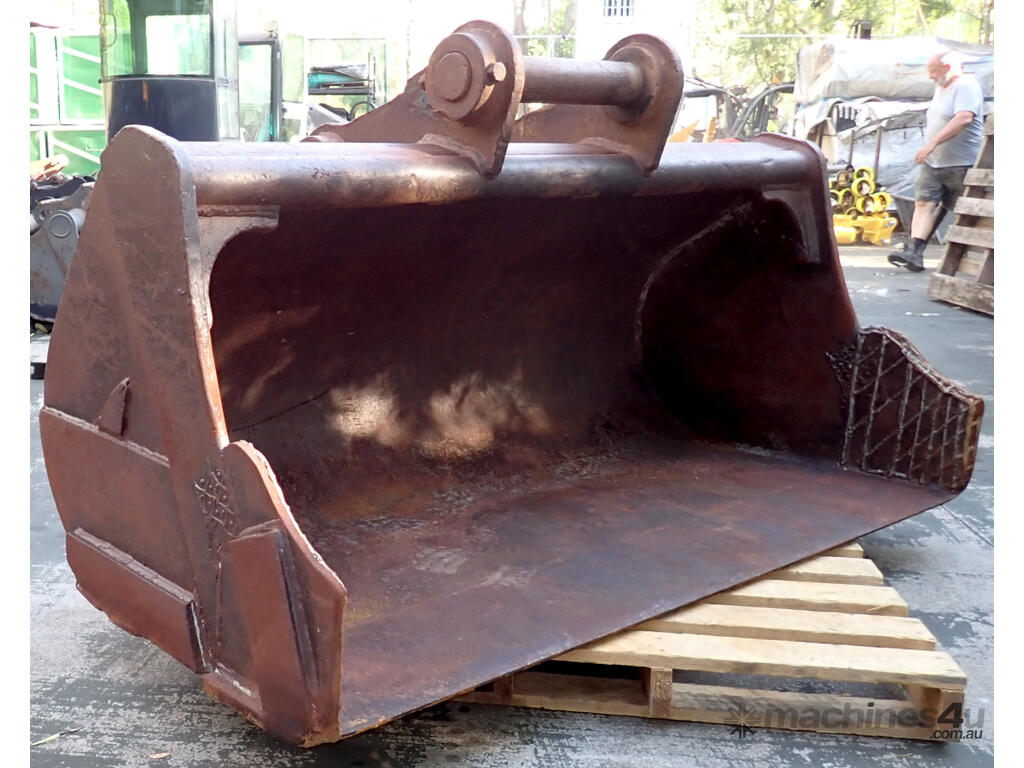

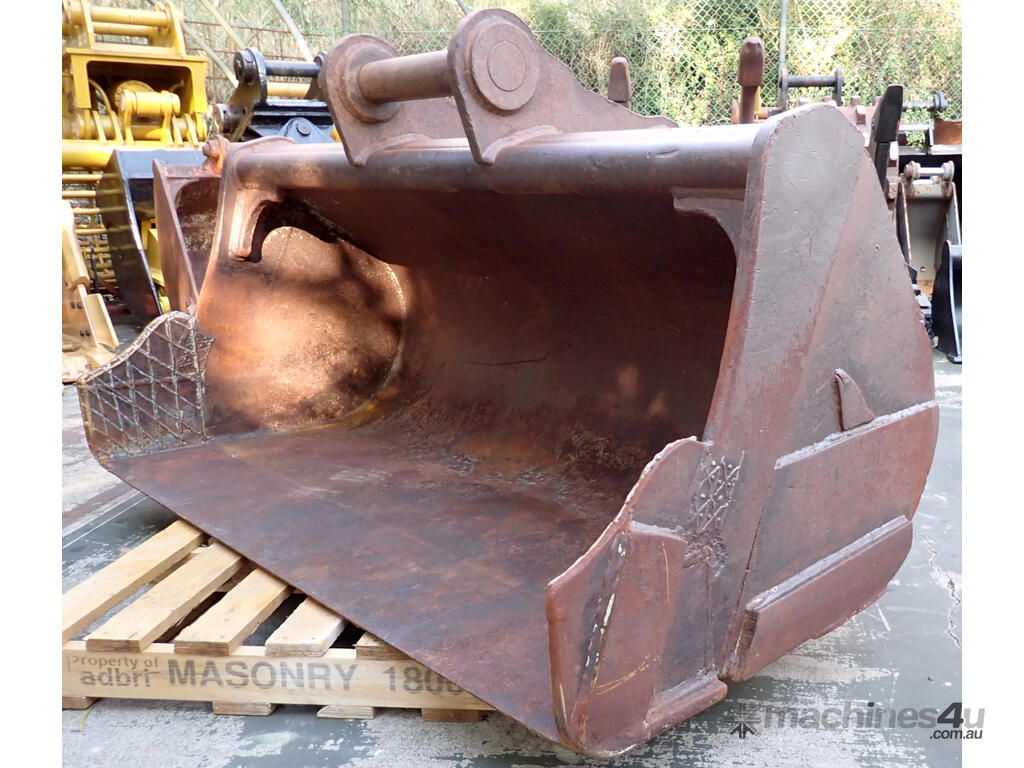

This sturdy Mud Bucket is in great shape and has extra wear reinforcing added to extend is life even further.

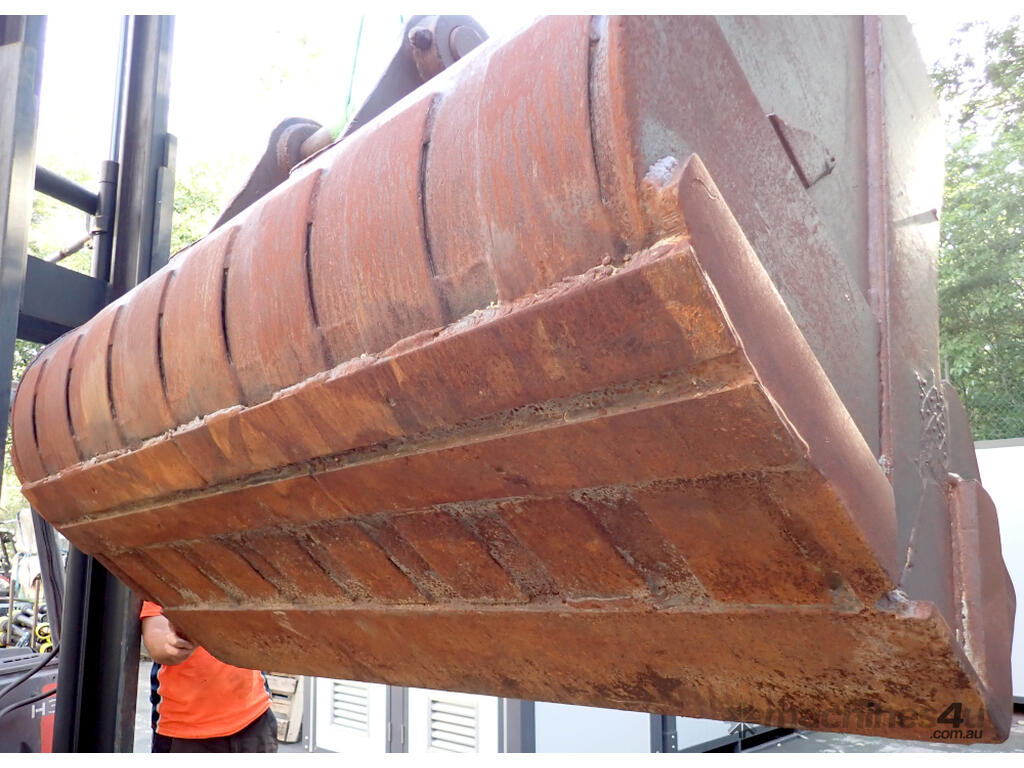

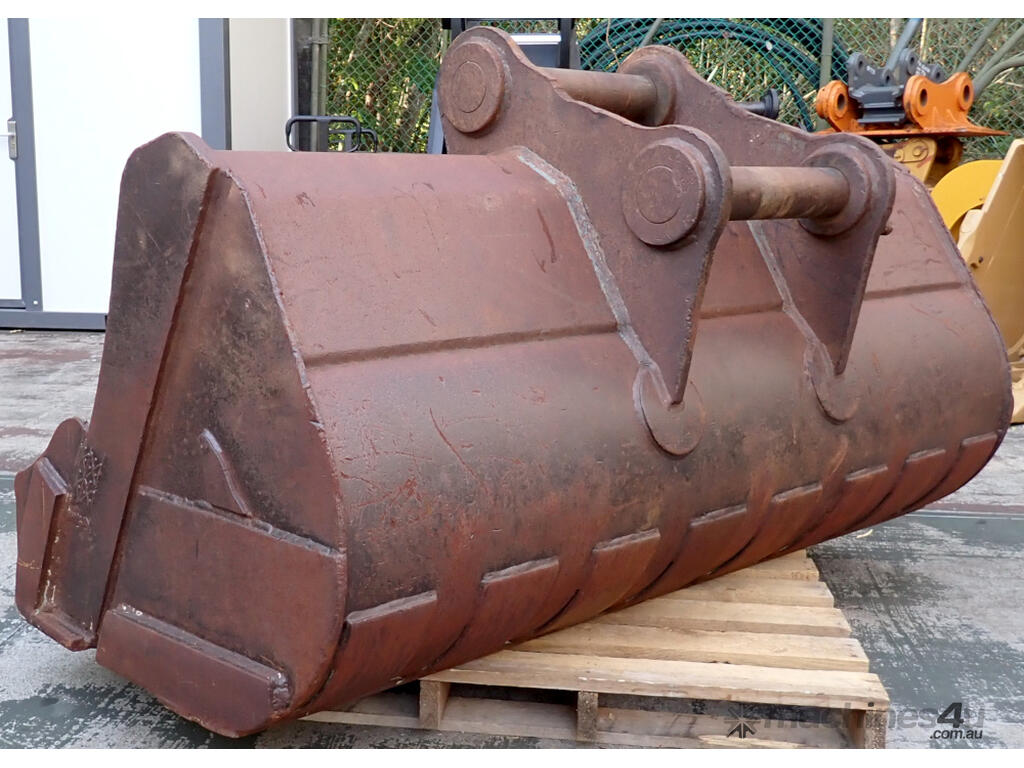

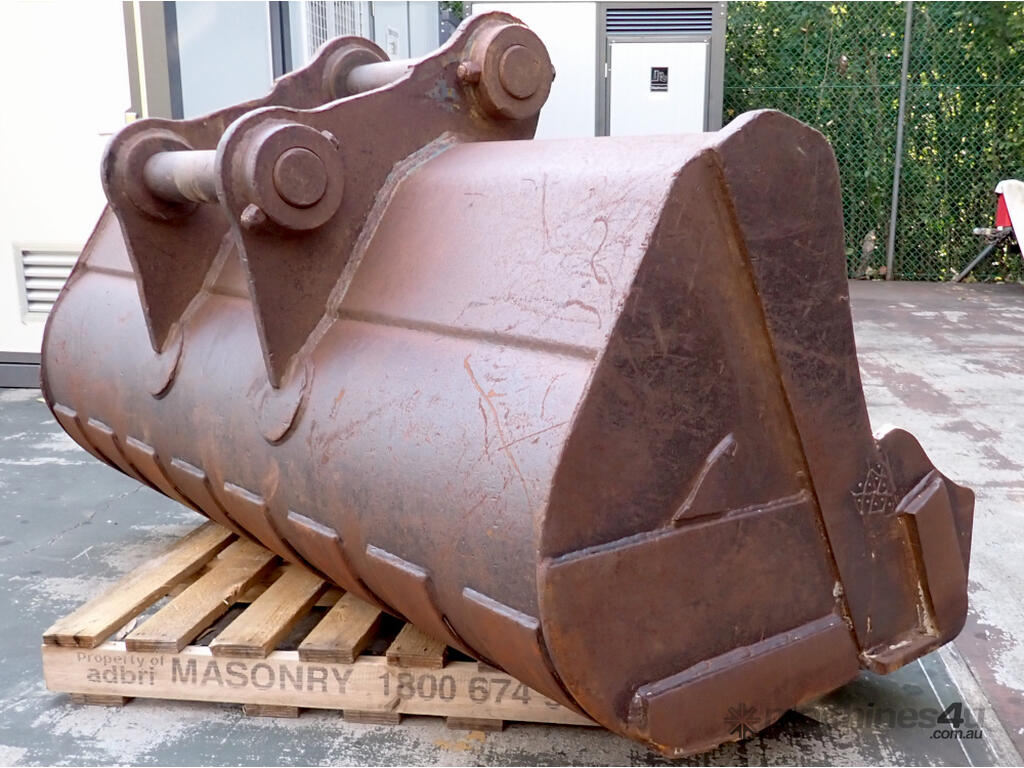

It already had extra wear strips welded on the sides, and all underneath for great durability (see pic# 10).

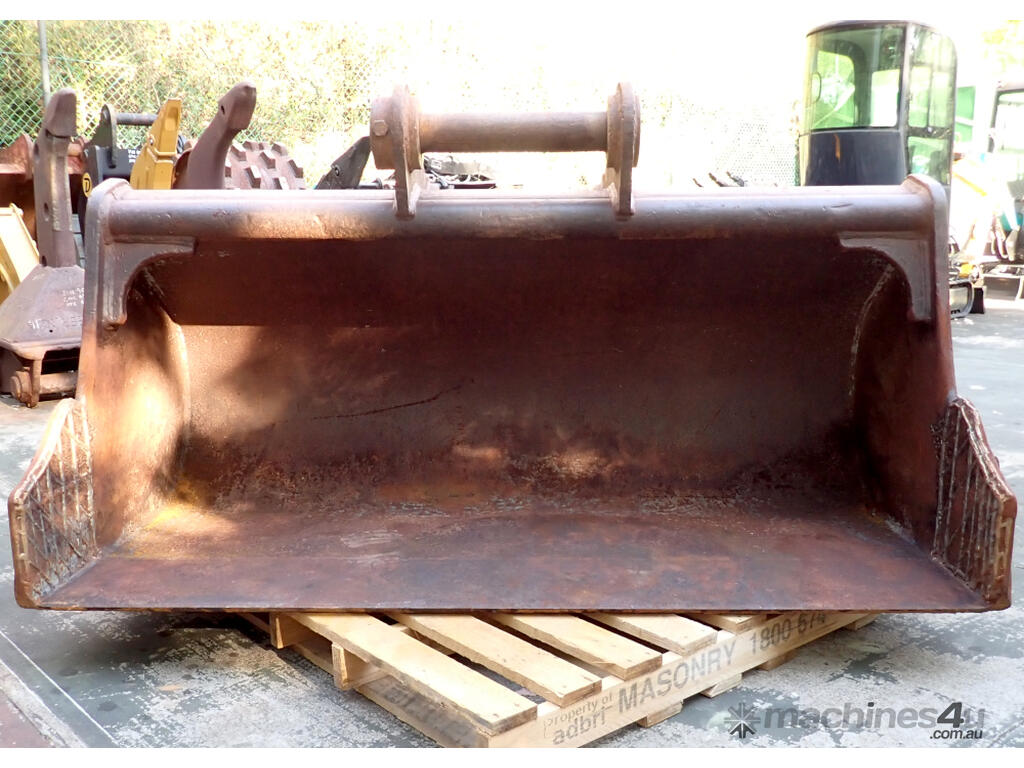

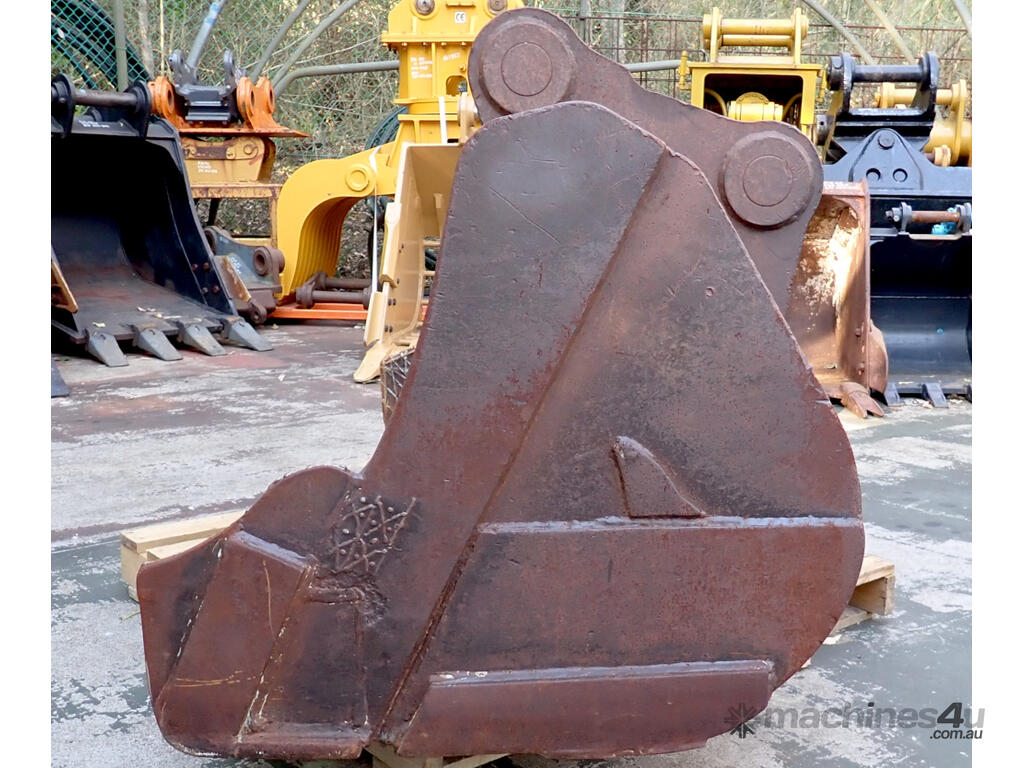

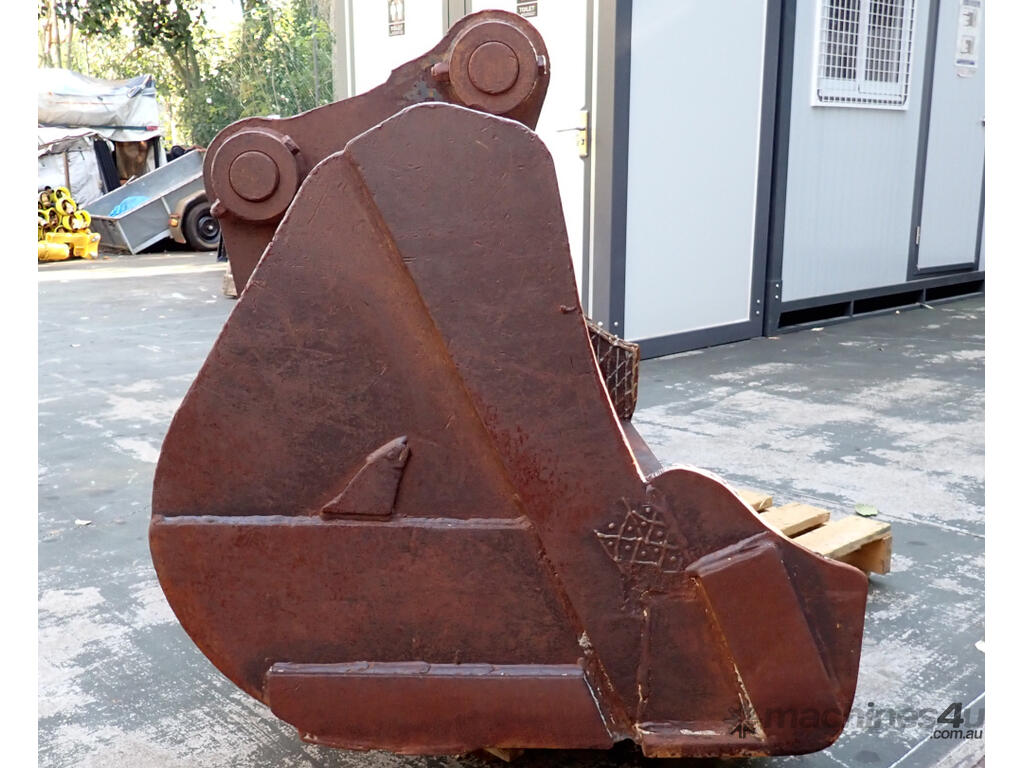

But the previous owner also added extra front lower side cutting edges and welded thick plates onto those and the bottom of the sides.

Currently has 90mm pins fitted, but the Pin CtoC distance suits many 80mm pin machines so could easily be changed by lathing the middle of the pins down to 80mm.

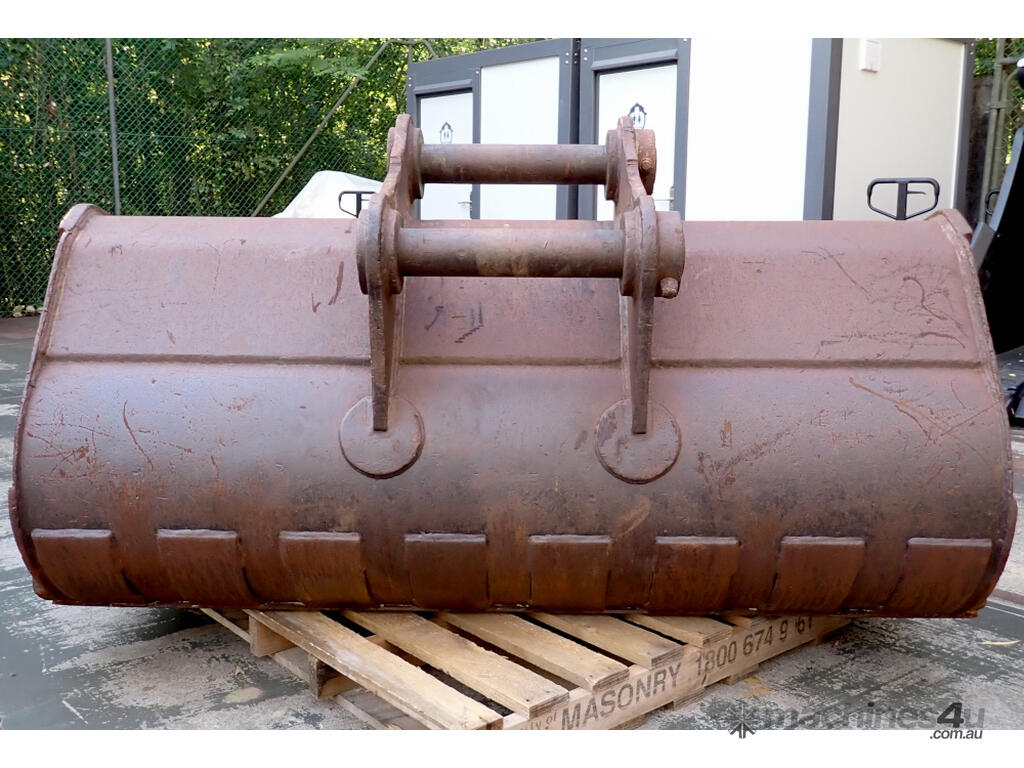

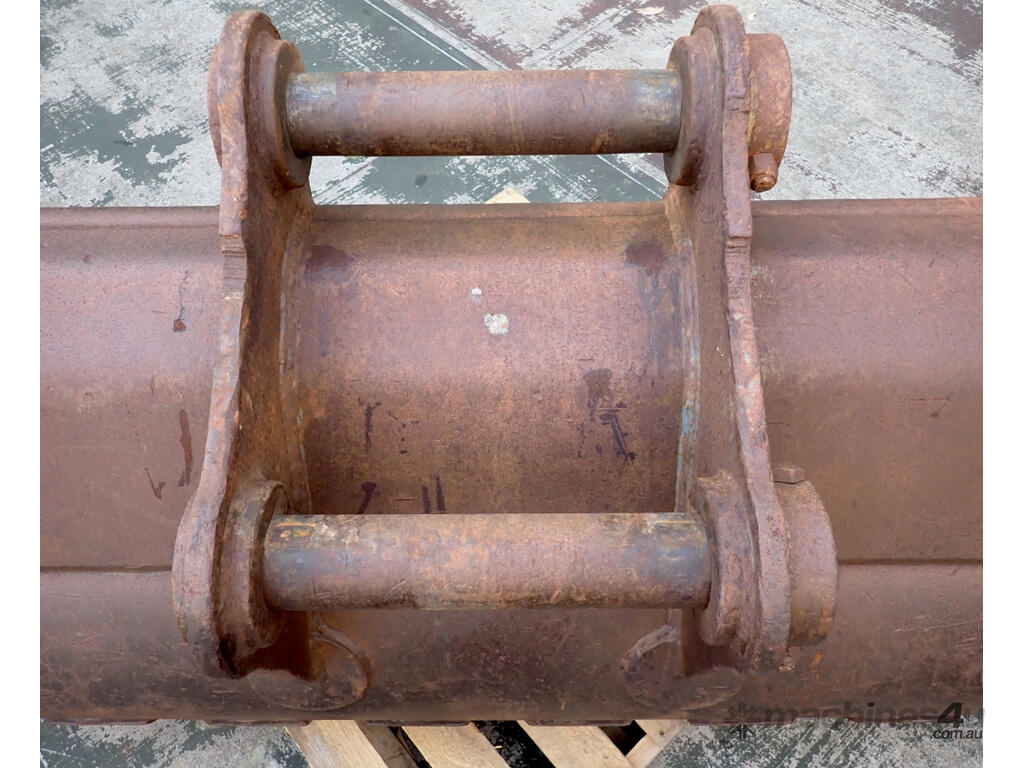

*** Current Headstock configuration:
* Pins: 90mm
* Pin Center to Pin Center (CtoC): 474mm
* Between the Ears (BTE): 413mm Between the inside Ear Bosses (which can be shaved back up to 465mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / D Family Linkage, Daewoo Solar 280LC-2 / 280LC-3, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, John Deere 240D LC / 270D LC, New Holland EC240LC / EC270LC, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5.
*
* Maybe fit: Caterpillar 330D w/DB Link, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, New Holland FX350, O & K RH 9PMS, Samsung SE240LC / SE240-3 / SE280LC / SE280-3, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3 and possibly other machines.


*** As an all 80mm Pin Configuration:
* (lathe the middle of the 90mm pins down to 80mm):
*
* Should fit: Caterpillar 320 / 320 w/B Link / 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 & LC / 210 / 225US LC / 225USR, John Deere 200C LC / 200D LC / 225C LC RTS, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / ECR235C / EW230C / MX225LS / SE210LC-3.
*
* Maybe fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320B w/B Link / 320D w/B Link / 321 / 322 w/S Link / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Hyundai R210LC-7, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kato 820, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 /
PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PC290 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3 and possibly other machines.


Dimensions: 2020mm Wide, 1005mm Deep, 1080mm High. Weight: 854kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
