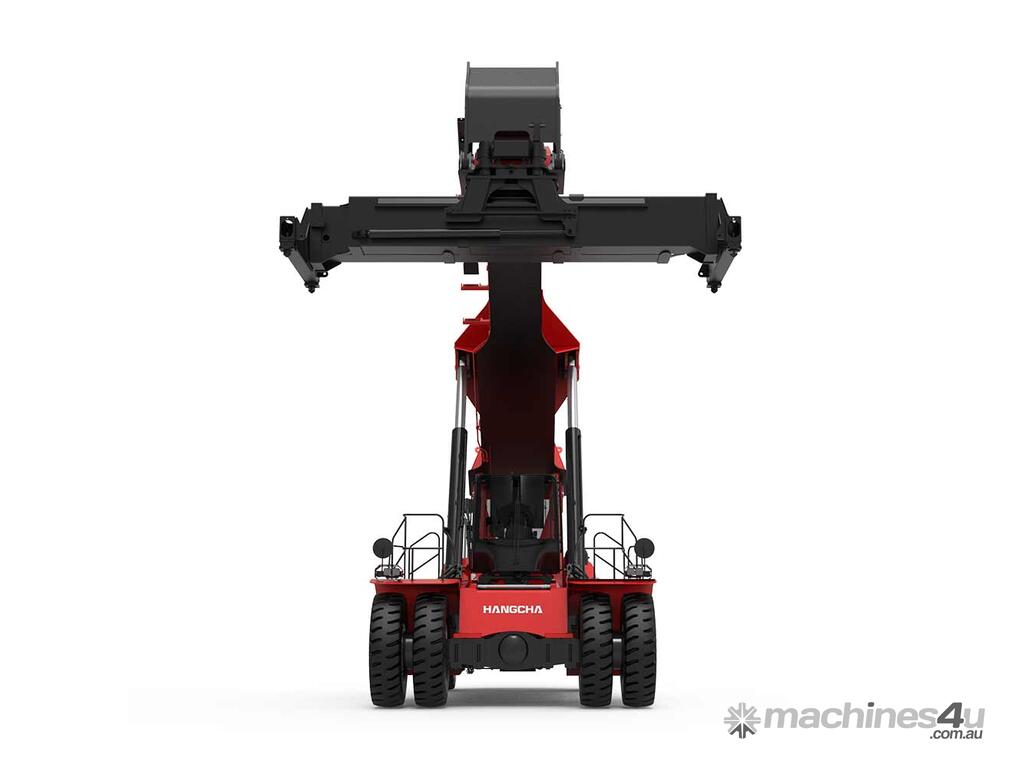

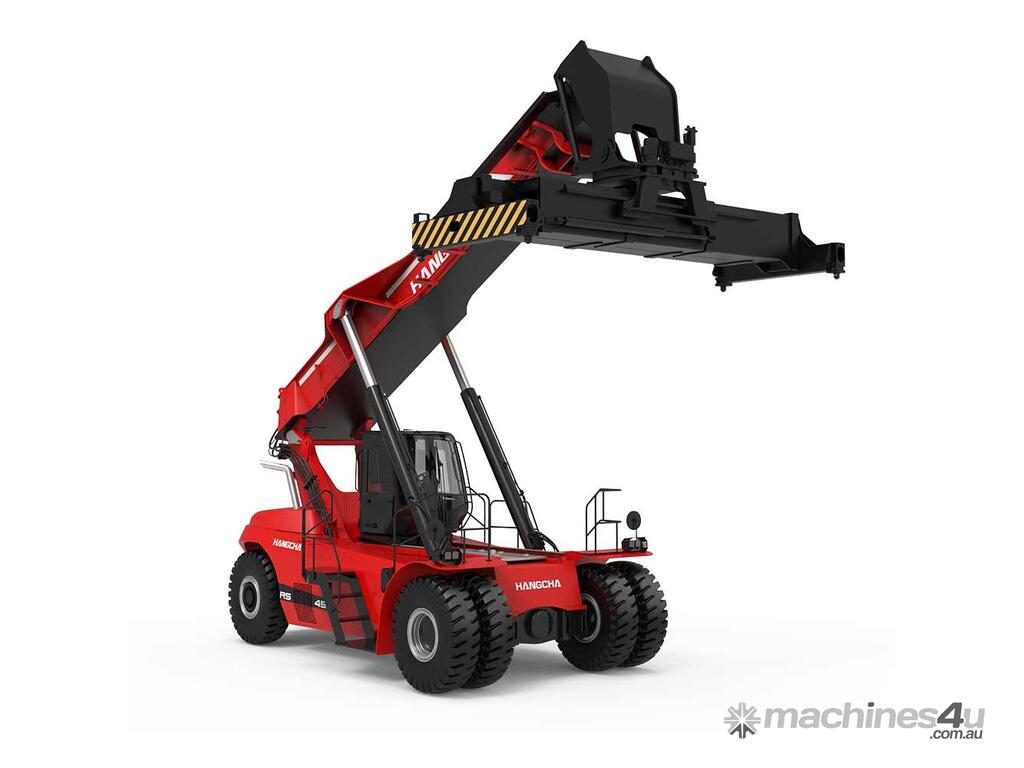

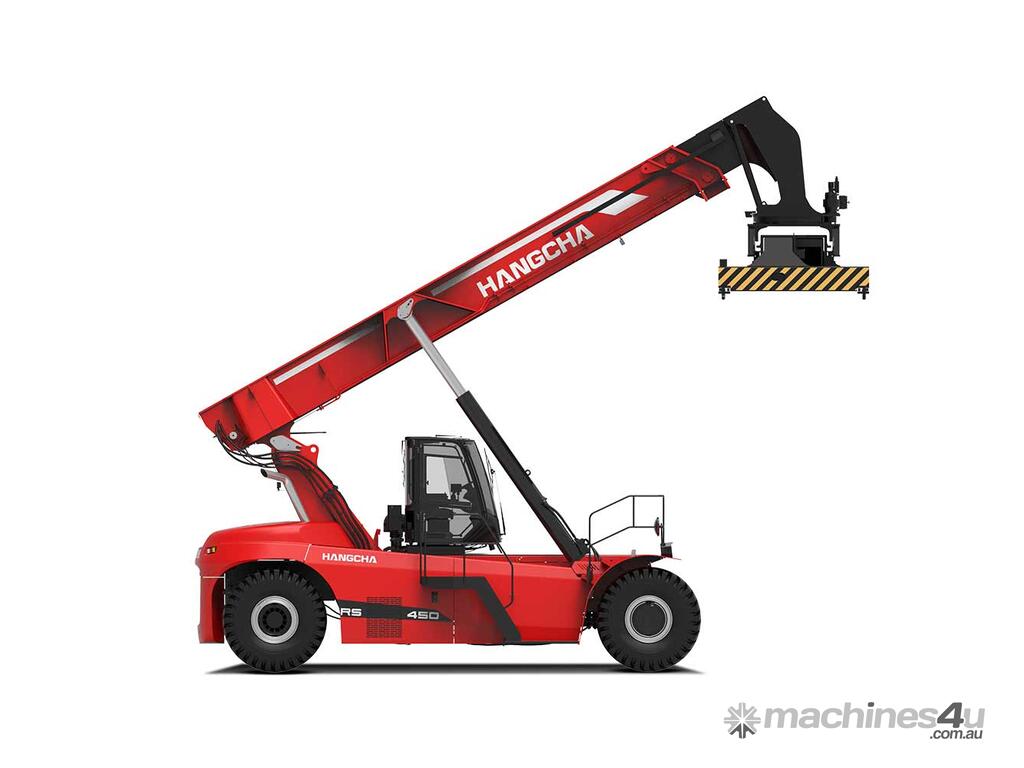

16 - 45 Tonne Hangcha Diesel Container Reach Stacker

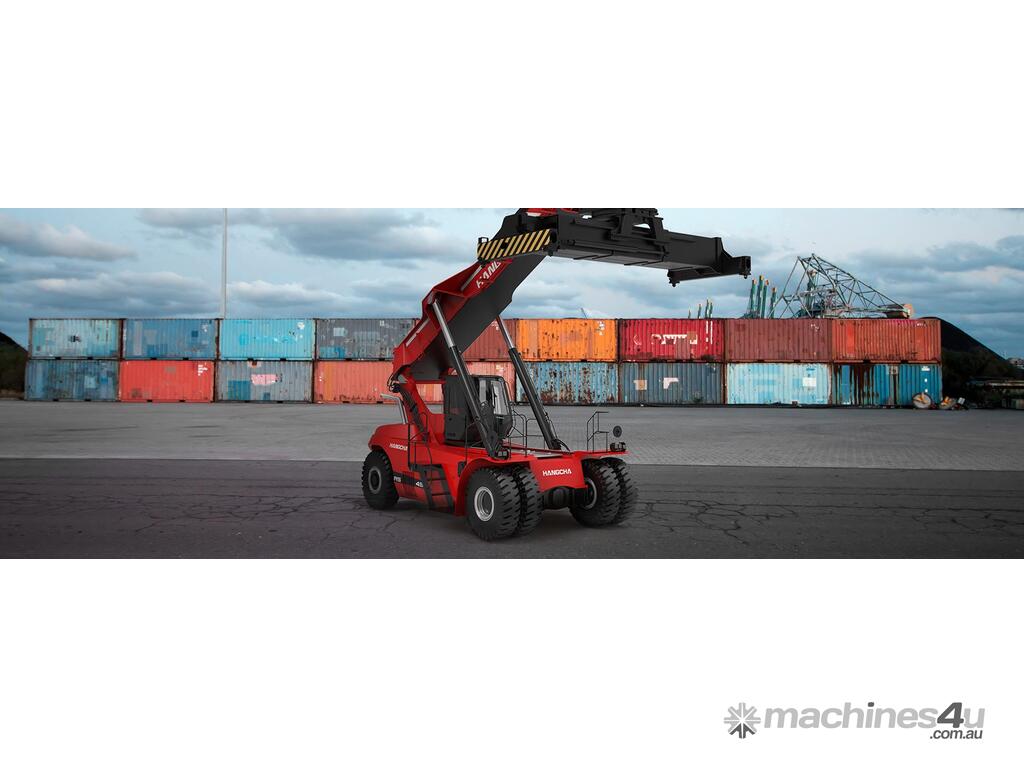

The RS4531CH-XRW86 Reachstacker is a newly developed product based on Hangcha’s X series platforms. It inherits the appearance of the X series family, making it stylish, top-tier, and powerful. It incorporates key parts from internationally renowned brands, ensuring exceptional performance and guaranteed quality. With advanced control technologies, it provides a safe, reliable, comfortable, and efficient operation. The primary purpose of this reach stacker is to handle and stack 20? and 40? ISO heavy containers, satisfying the demands of high-intensity and long-term operations at ports, docks, railway and highway transfer stations, storage yards, and more.

Strong power system:

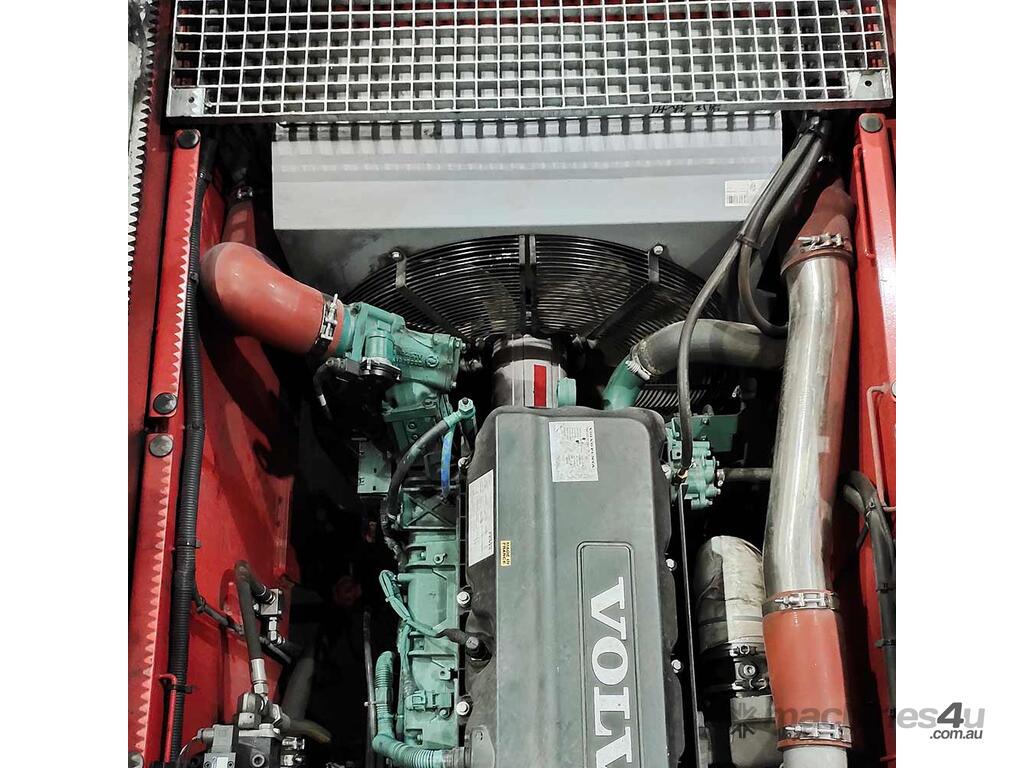

- The VOLVO TAD1151VE engine offers excellent performance and fuel efficiency, along with advanced fault diagnosis and protection features. It has a displacement of 10.8L, six in-line cylinders, and low emissions, meeting EPA3, EU?A, and China Stage III emission standards.
- It is equipped with a high-quality Donaldson two-stage heavy-duty air filter and a highly efficient cyclone pre-filter.

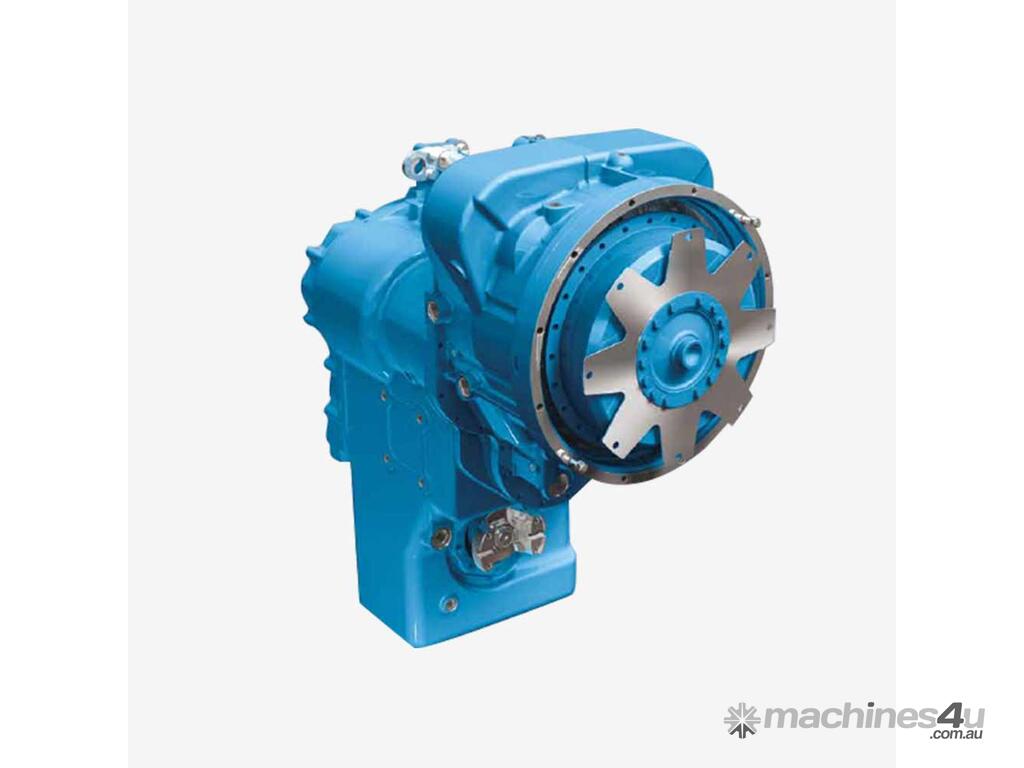

- The DANA36000 gearbox has a reliable structure and delivers stable performance. The German KESSLER heavy-duty reinforced drive axle comes with a two-stage decelerating system and a multi-disc wet driving brake. Its brake oil filtration system and independent brake oil cooling system are designed for heavy-duty operations.
- The 800L super-large fuel tank allows for continuous and long-term work, reducing downtime.


ELME new-generation container spreader:
- For the new-generation ELME817 series telescopic container spreader, the design has been optimized for the telescopic beam, turntable, and other components. This optimization has increased the structural strength, reduced the weight by 16% compared to the previous generation, and extended the service life by 30%.
- The arrangement of the oil cylinder has been modified to improve maintenance efficiency.
- The hydraulic system design has also been optimized to minimize pressure loss and enhance energy efficiency, resulting in a more economical and productive spreader system.
- With the inclusion of electro-hydraulic proportional control, the speed is adjustable, and the rotation angle of the spreader can be accurately controlled with smooth movements.
- The latest Neuron programmable controller has been incorporated, allowing for the development of additional optional features. Fault code information is provided according to the J1939 protocol, making fault identification quick and easy.
- To ensure safe operation, the spreader is equipped with a twist-lock interlock device (mechanical and electro-hydraulic) and real-time action indicators. These features prevent the lifting of a container when fewer than four corners are locked and prevent the opening of the twist-lock while the container is lifted.
- To avoid accidents, the lift interrupter halts the lifting operation if the twist-lock is not fully engaged. The lifting operations can only be performed when the twist-lock is fully locked or unlocked.

Comprehensive electrical safety system:
- A 24-volt electrical system, a 110-amp AC generator, a main power switch, and a cabin emergency switch
- Sophisticated CAN bus communication is utilized to gather the operational status of the input/output components of the engine, gearbox, spreader, and vehicle. This information is then displayed on a high-definition color screen for the convenience of the operator. The system also includes fault protection measures to prevent potential safety accidents.
- The dynamic anti-tipping protection control system ensures safety during operation. It includes overload protection, which prevents the boom from moving in a dangerous direction while allowing movement in a safe direction.
- The system also features a load indicator. The indicator can be illuminated in three different colors to communicate different conditions: green indicates normal system functionality, orange indicates a warning that requires attention, and red indicates a situation that requires immediate action.
- The display provides various information such as boom length, actual load, maximum load, boom height, jaw angle, outreach, load percentage bar, and alarm codes.

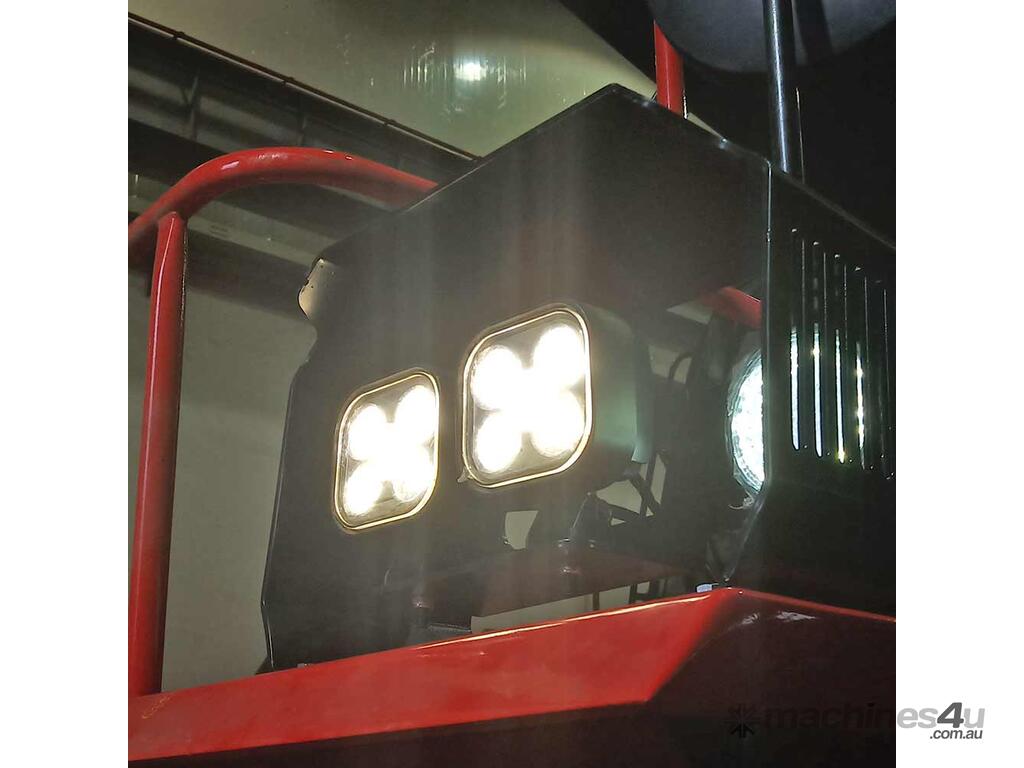

- Furthermore, the lighting system is centrally controlled. It consists of an integrated button panel and ergonomic control switches that ensure comfortable and easy operation. The LED lighting system is controlled via the CAN bus and incorporates diagnostic functions for short-circuits and open circuits.
