160 kw 220 hp 2-pole 2985 rpm 415 volt B3 Foot Mount 315ML frame IP55 AC Electric Motor Toshiba Type SWE315L1-2 New Unused
Category: AC Squirrel Cage Electric Motor
Make: Toshiba
Model: SWE315L1-2
YOM: 2016
Power: 160 KW (220 HP)
Speed: 2-pole (2985 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415 v
Full Load Amperage: 268 A
Mount: B3 Foot
Frame: 315ML
Weight: 1210 kg
Protection Rating: Mining IP55
Critical DIMS:
Total Length: 1311 mm (incl. shaft)
Total Width: 807 mm (incl. standard RHS to D.E. terminal box)
Total Height: 620 mm
Shaft DIA: 65 mm
Shaft Length: 140 mm
Centre shaft height: 315 mm
Feet Measurements: Across 'A' - 508 mm, Front to Back (2-holes) - 457 mm and 508 mm
Front hole to shaft 'C' - 216 mm
Available QTY: 1

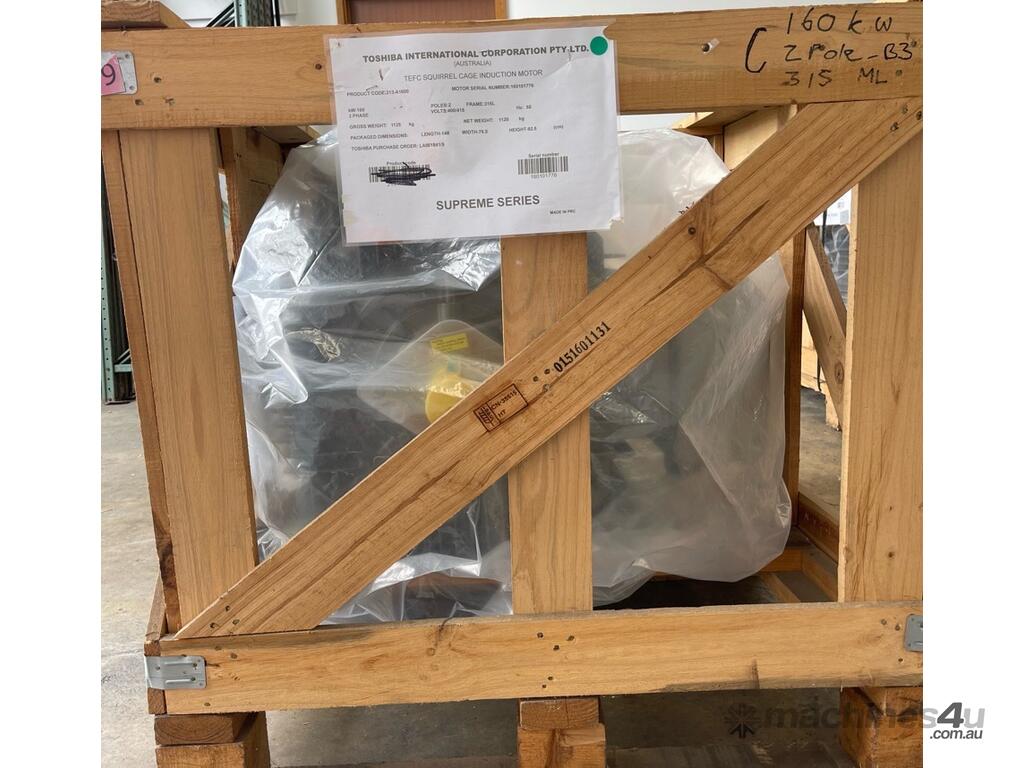

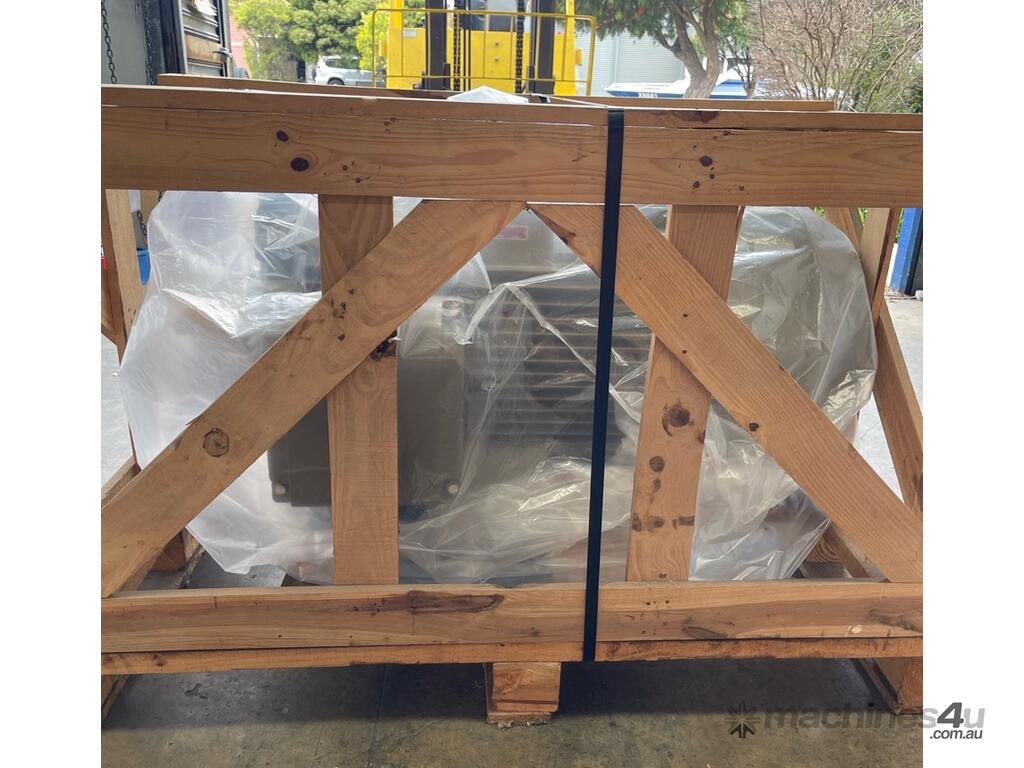

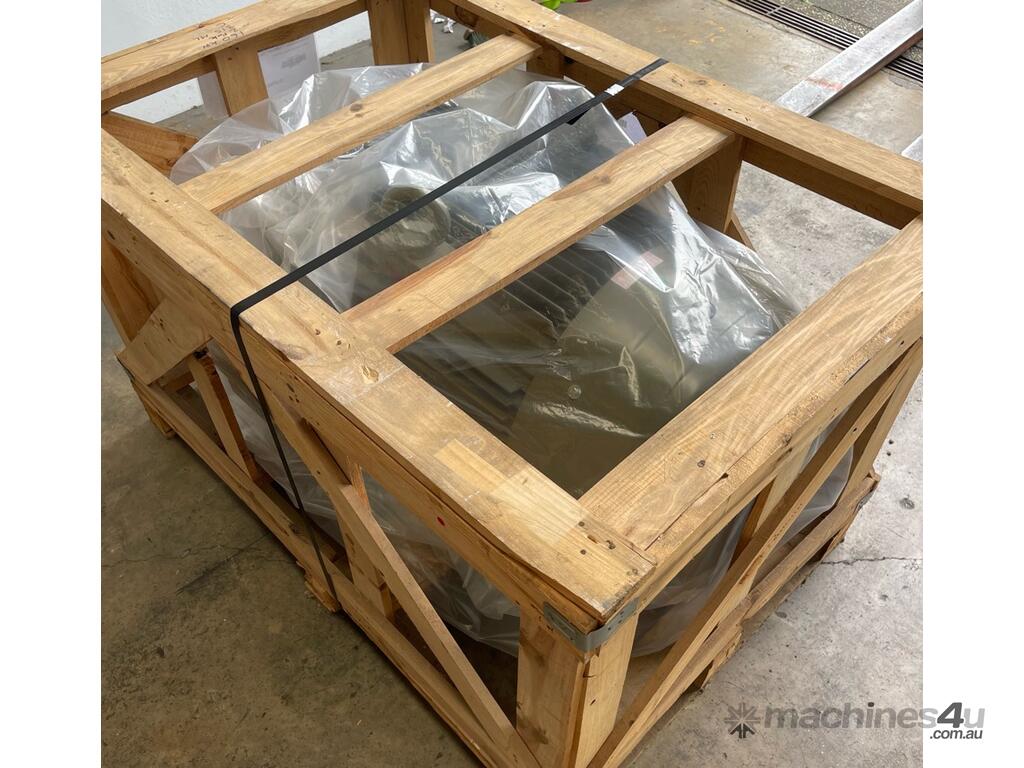

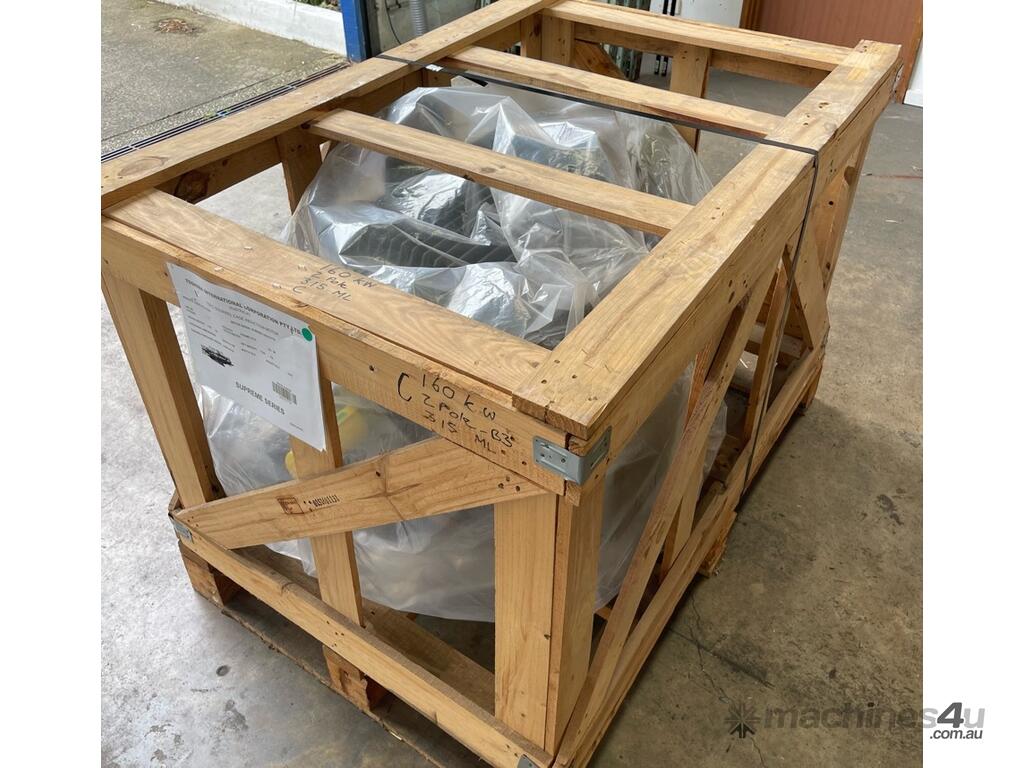

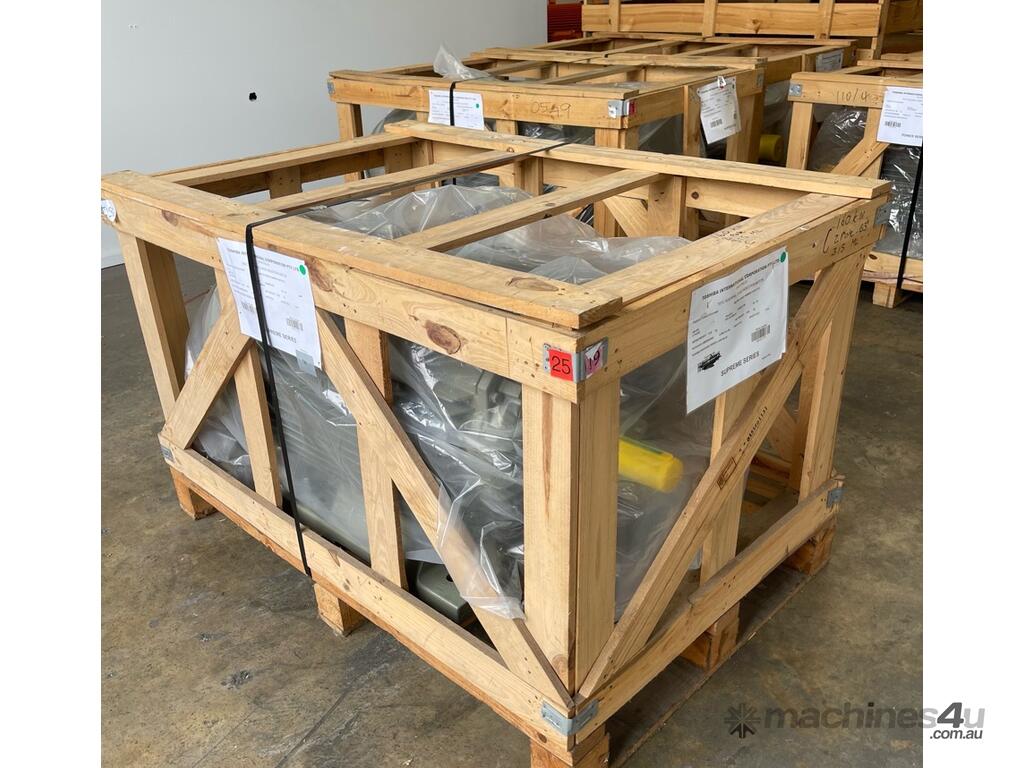

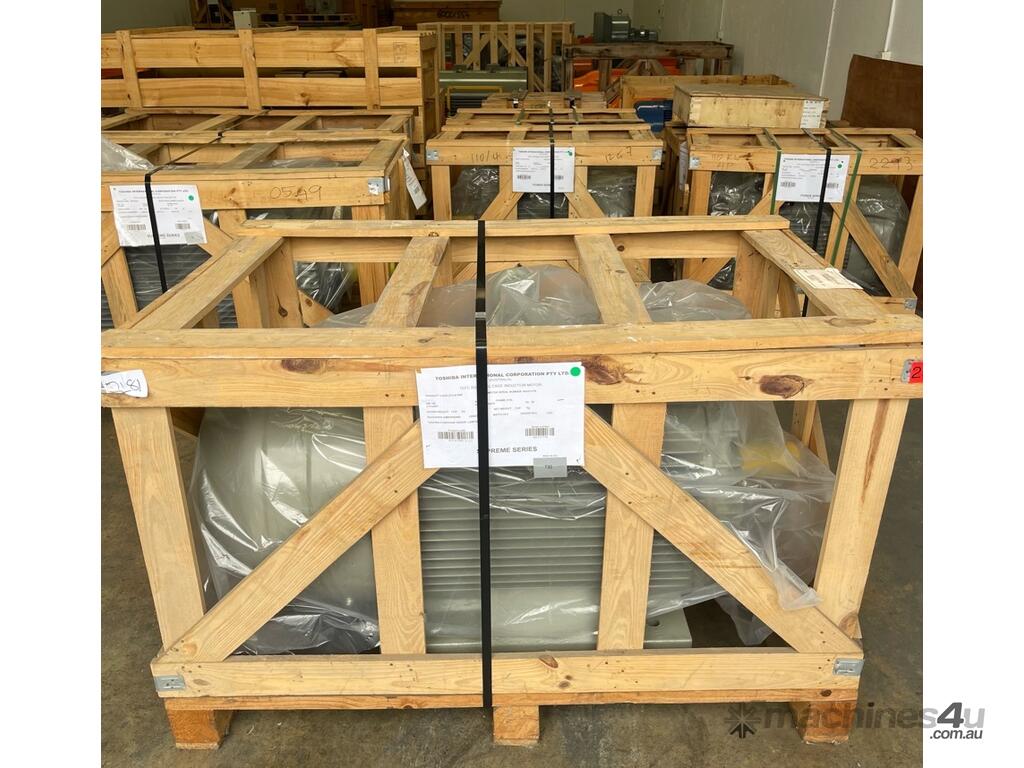

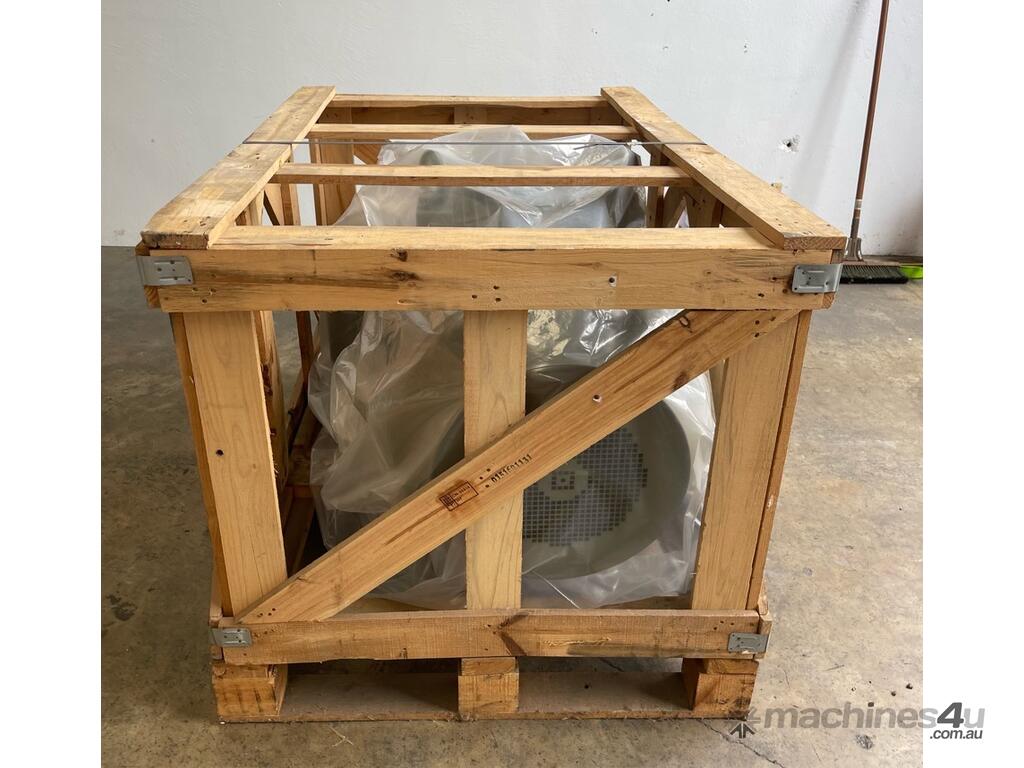

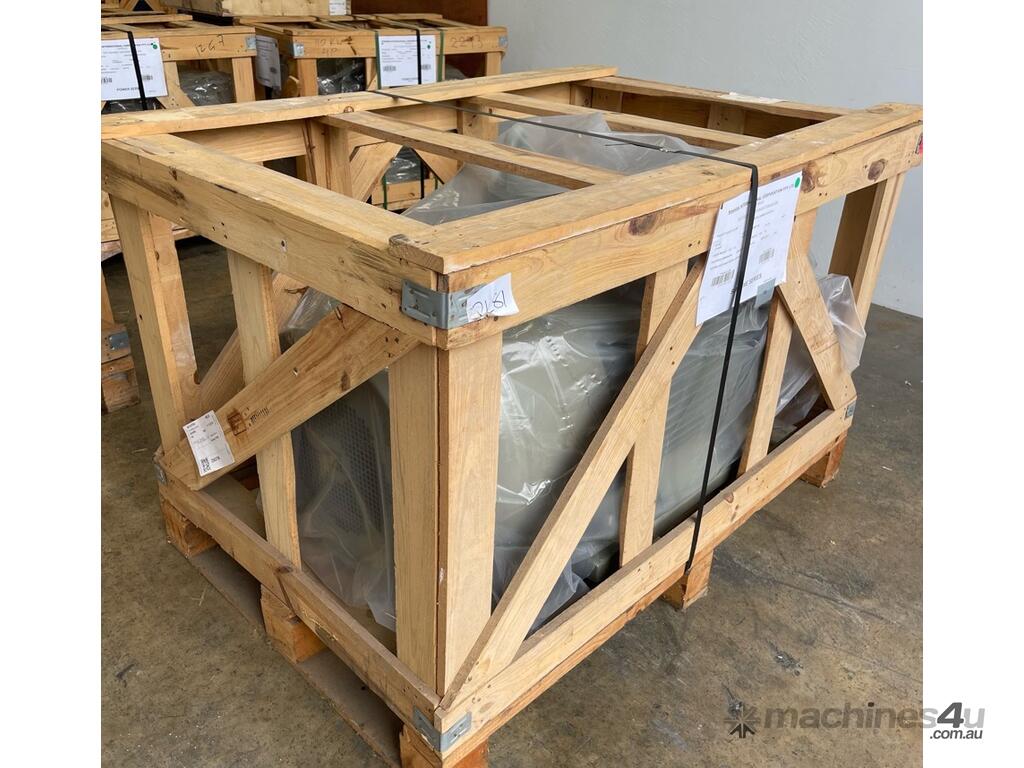

Condition: New/Unused in Crate - Warehouse Storage
exStock Seaford VIC 3198 Australia
Available for immediate supply - Freight services Australia wide available on request
