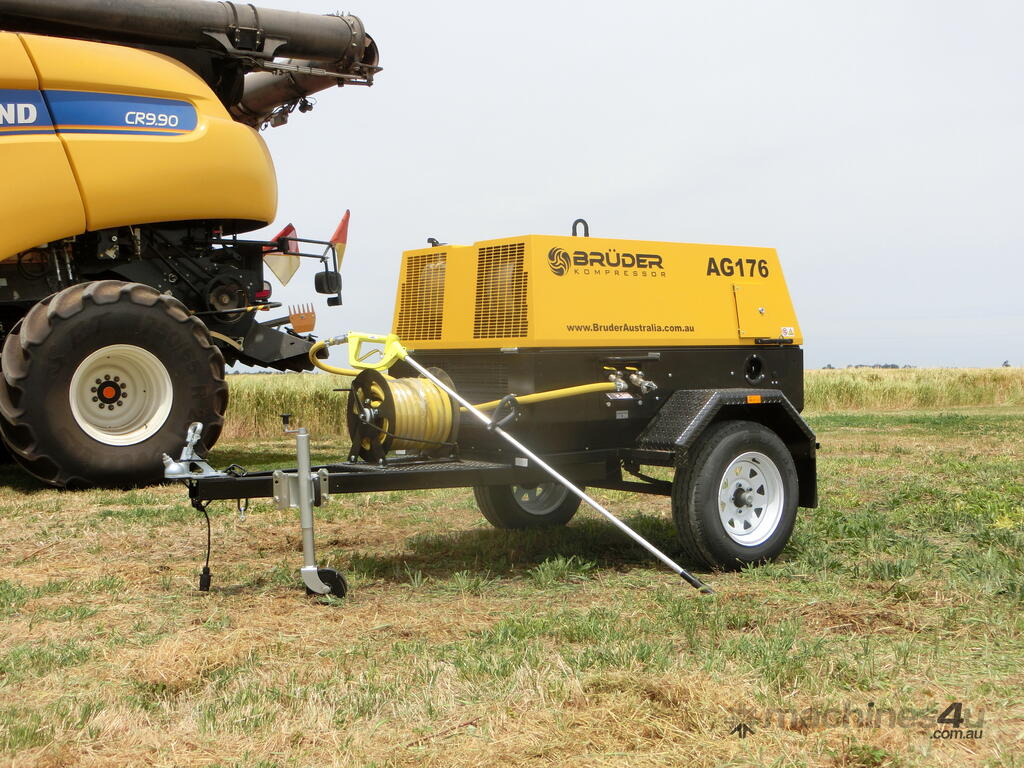

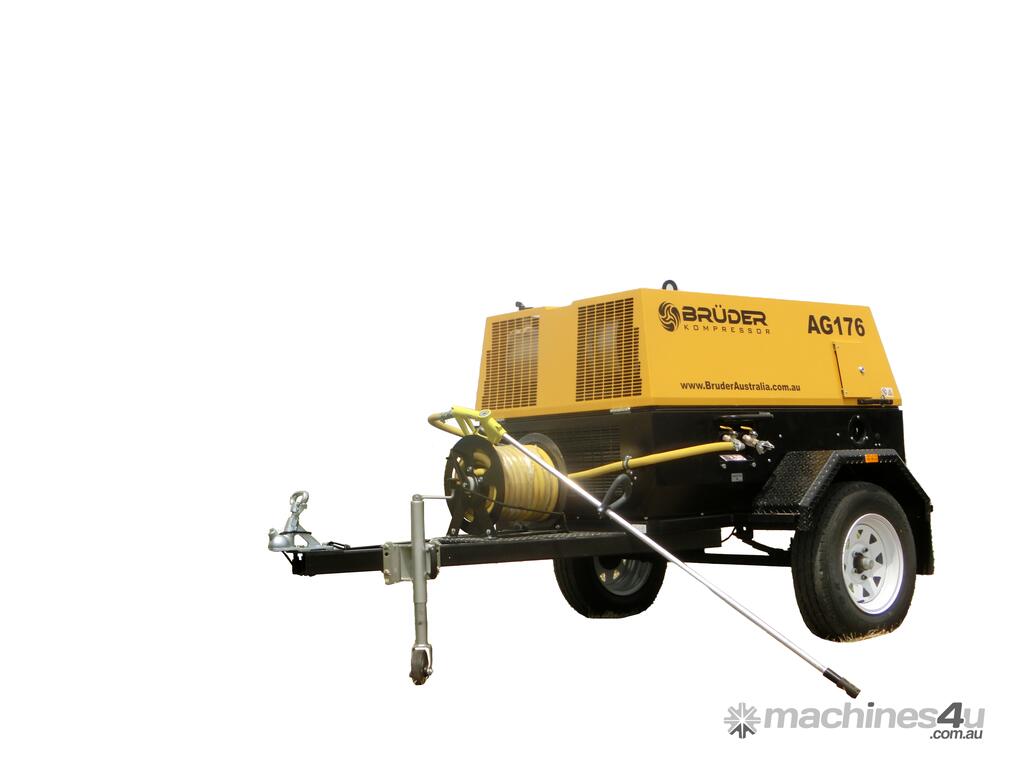

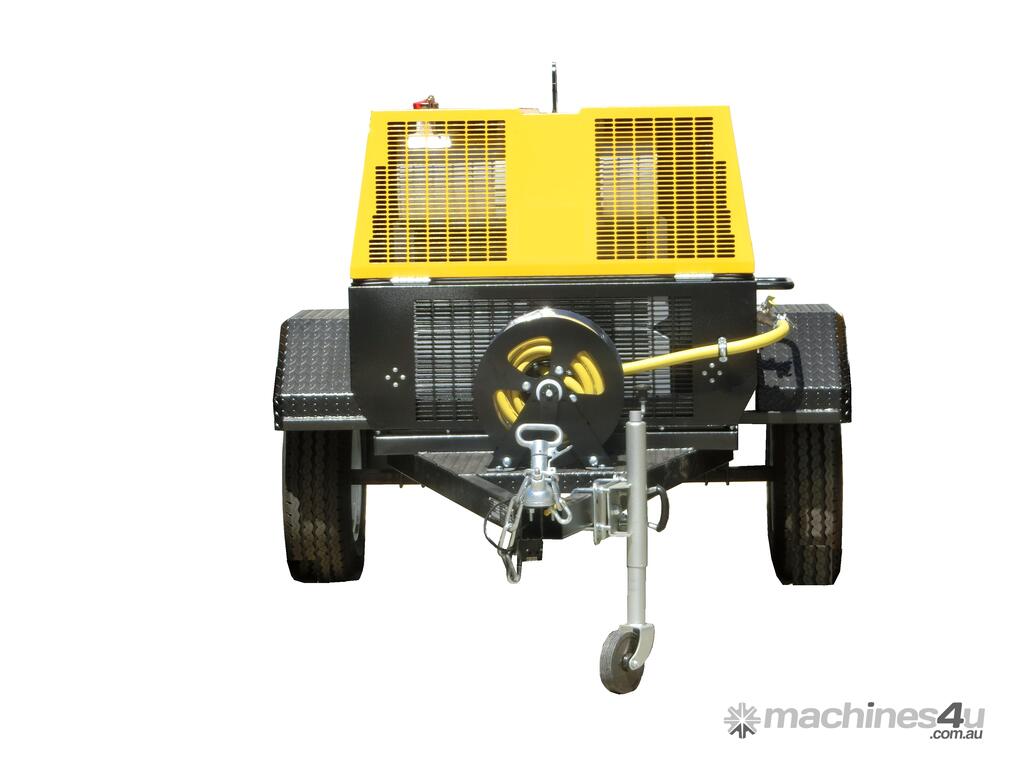

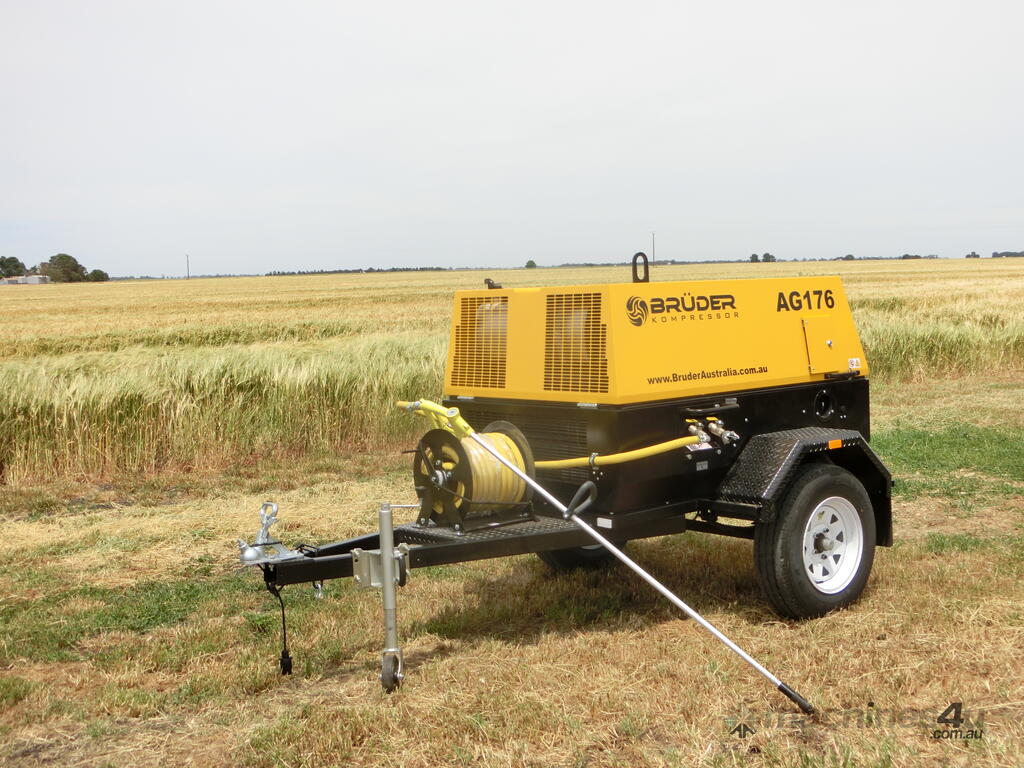

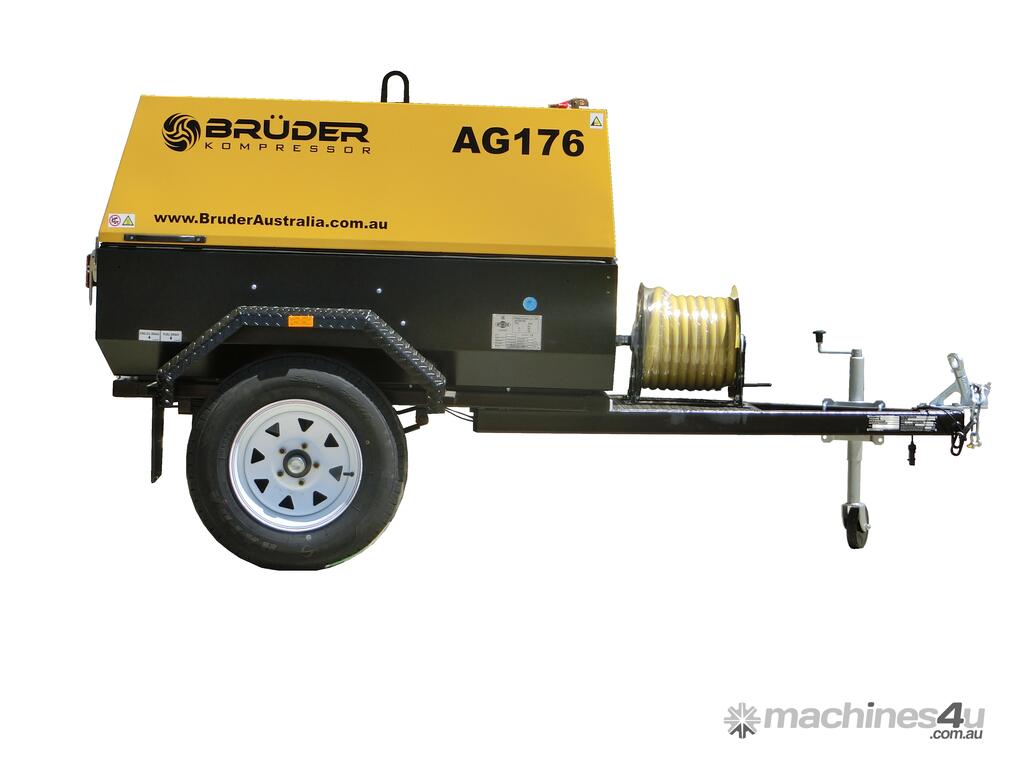

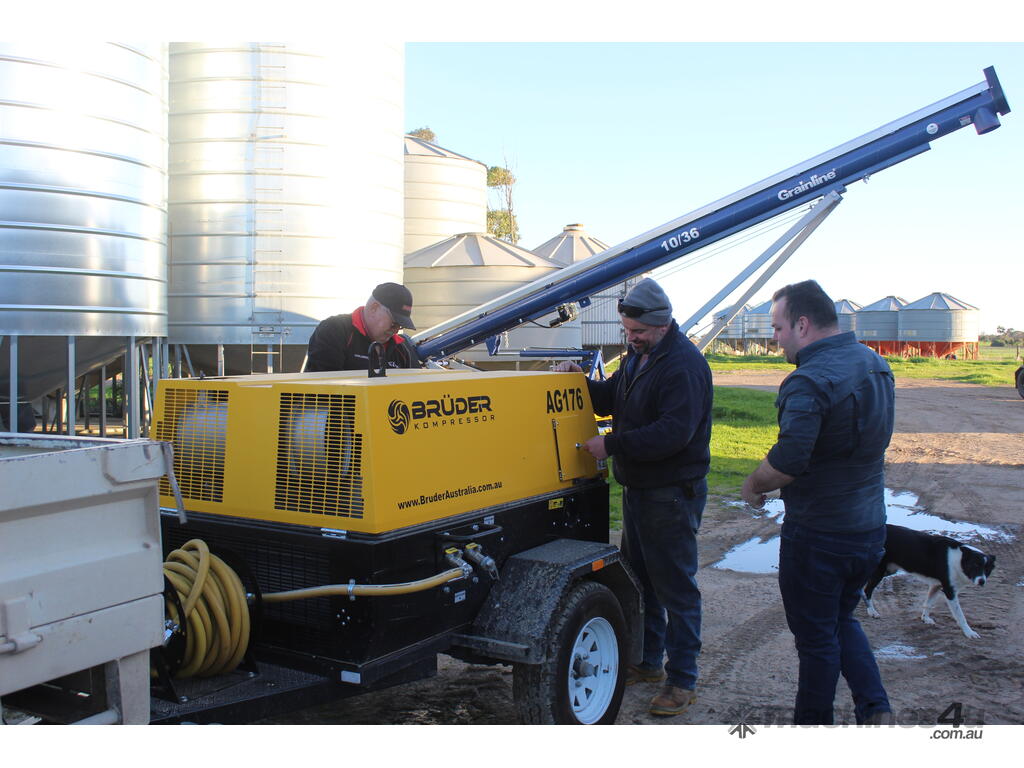

176CFM Rotary Screw Compressor, Diesel Driven, Mounted on Standard Trailer

Our Brüder AG176 is our most popular compressor for blowing down headers, balers, bins and other harvest equipment to remove built-up debris and reduce fire risk.

The Brüder Kompressor has been developed in response to the growing need for a dependable, tough and practical machine for use in Australia’s harsh agricultural environment.

Compact yet powerful, the standard size AG176 Kubota-driven rotary screw compressor pumps out 176 cubic feet per minute – the ideal flow rate for effective cleaning and machinery blowdown. With a unique cooling system and filters designed for hot and dusty conditions, the Brüder AG176 thrives in high ambient temperatures, ensuring reliability during long, hot days in the field.

QUICK SPECS:
Free Air Delivery: 176cfm (5m3/min)
Working Pressure: 7 bar (101 PSI)
Engine: Kubota V1505-T Turbo Diesel
Engine Rated Power at 3000RPM: 36.4 HP (27 kW)

SUPERIOR HARVEST COMPRESSOR FEATURES:
Single piece steel canopy – for easy access to all service parts
Vertical top exit exhaust – reduces fire risk when standing in dry crop
Unique airflow design and firewall – provides optimal cooling in high ambient temperatures

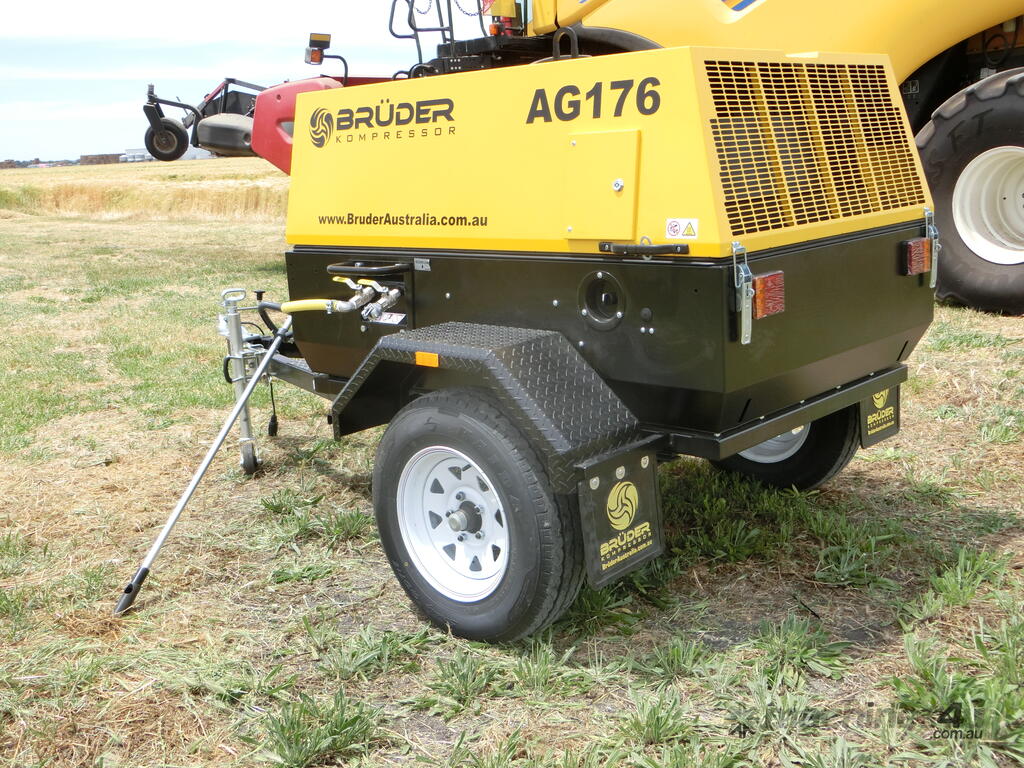

Side mounted valves and outlets – for operator safety and ease of access
Kubota turbo diesel – lightweight, compact, reliable, and powerful with established service network
IntelliDrive Nano – user friendly digital control system to protect and regulate compressor
70 litre poly fuel tank – longer running hours, visible fuel level

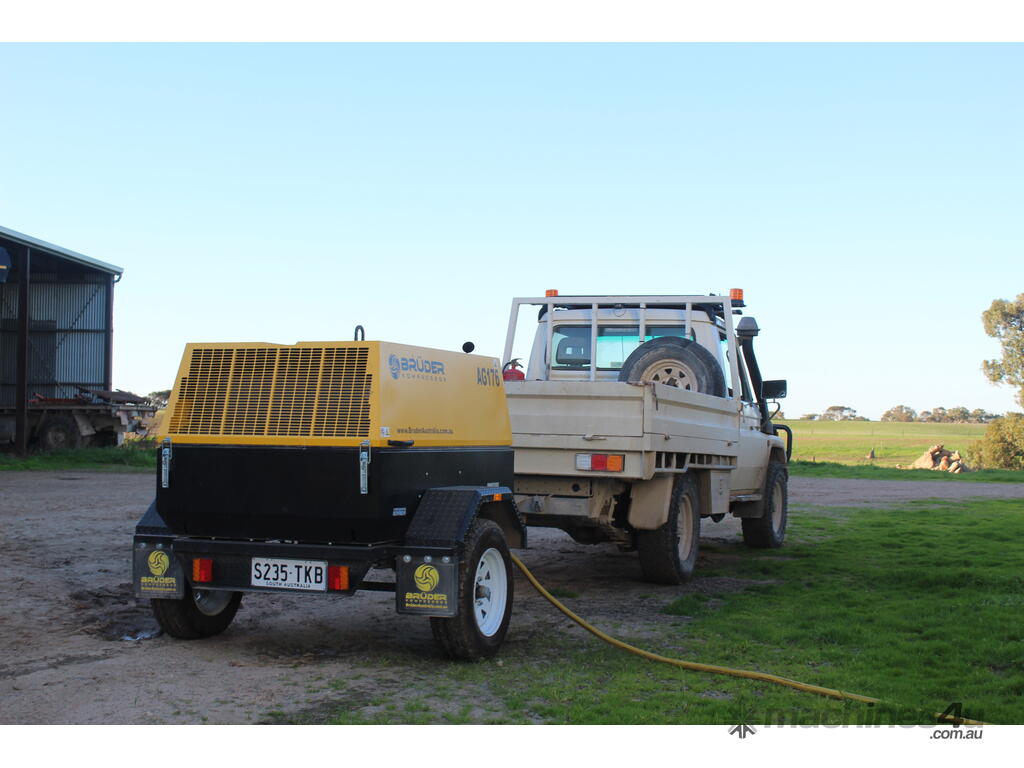

Road registerable trailer, specifically designed for harsh environments with features like 4-leaf springs, welded steel wheel arches, high ground clearance, LED lights, plus a platform on the front for mounting accessories
Steel wheels with all-terrain tyres
Spin-on filters – easy servicing and replacement

TECHNICAL PARAMETERS:
AG176 (7 bar)
Air end: B100
Nominal capacity [m3/min]: 5
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 10
Ambient temperature [C]: -10 to +50
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 7.2
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.6
Outlet valves: 2 x G3/4" BSP

ENGINE DETAILS:
Type/Model: Kubota 1505-T
Cylinders: 4
Load speed [rpm]: 3000
Idle speed [rpm]: 1500 ± 50
Oil filling volume [Litres]: 6.7
Fuel tank volume [Litres]: 70
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/44

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 98
Sound pressure level LPA [dB(A)/20 uPa]: 78
