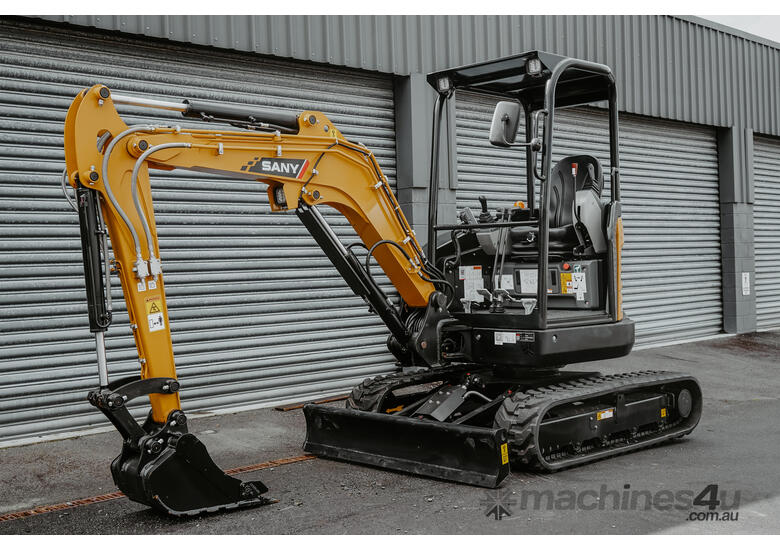

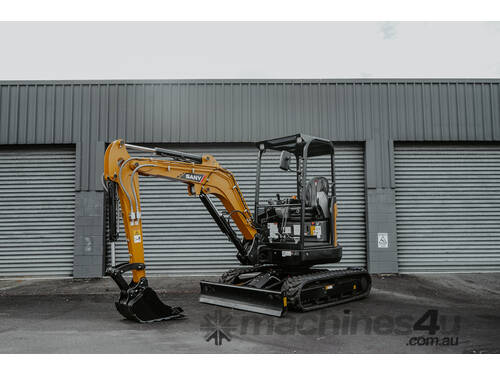

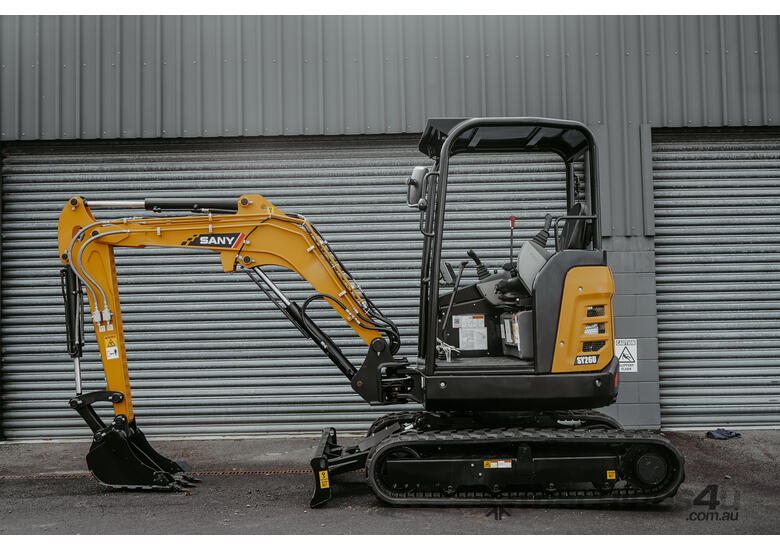

2.8T SY26U Canopy Mini Excavator – Fully Equipped with Attachments, Limited Stock!

Need a high-performing, towable mini excavator? We're clearing out SY26U Canopy models to make room for new stock! Each unit comes with a 5-year/5000-hour key component factory warranty.

SY26U Canopy EOFY Stock Clearance Package:
+ Hydraulic Hitch
+ 300mm GP Bucket
+ 450mm GP Bucket
+ 1.2m Mud Bucket

Key Specs:
Engine: YANMAR 3TNV80F
Engine Power: 20.3 HP
Operating Weight: 2760KG

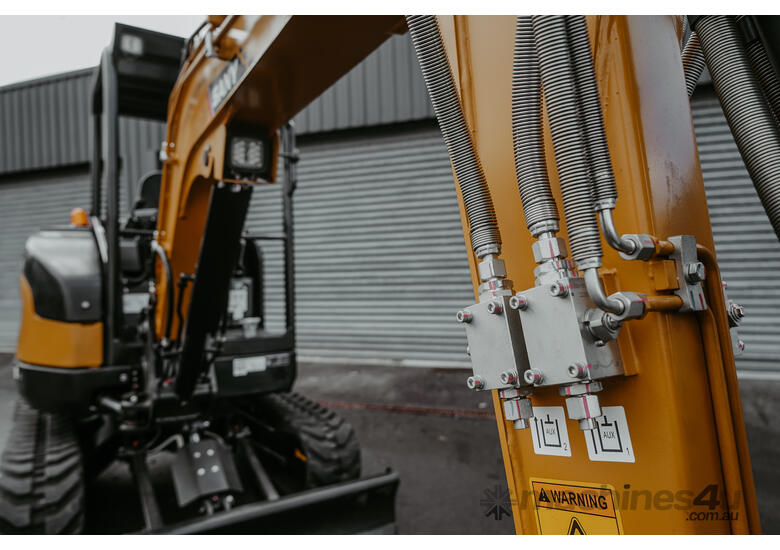

AUX 1 on Joystick
AUX 2 on Joystick

Limited stock available – act fast! Contact us today for a free no obligation quotation

ENGINE
Displacement 1.267L
Engine model Yanmar Tier 5
Rated power 15.2kW/2500rpm

OPERATION RANGE
Height at min. swing radius 3200mm
Max. depth of blade down 330mm
Max. digging depth 2820mm
Max. digging height 4410mm
Max. digging reach 4850mm
Max. dumping height 3100mm
Max. excavating distance 4850mm
Max. ground clearance of blade up 360mm
Max. vertical digging depth 2585mm
Min. swing radius 2110mm
Operating weight 2780kg

DIMENSIONS
Blade height 300mm
Cab height
Min. ground clearance 290mm
Tail swing radius 775mm
Track length 1960mm
Transport height 1620mm
Transport length 4285mm
Transport width 1550mm
Upper width 1375mm

UNDERCARRIAGE/WORKING DEVICE
Arm length 1300mm
Boom length 2100mm
Bucket capacity
Roller gauge
Track gauge 1250mm
Track width 300mm

PERFORMANCE
Arm digging force 14.2kN
Bucket digging force 24.3kN
Cooling system 4.1 L
Engine oil 3.4L
Fuel tank capacity 34.0L
Gradeability 35 degrees
Ground pressure 25.5kPa
Hydraulic tank capacity 30
Swing speed 10RPM
Travel speed 2.4/4.5 KM/H

HYDRAULIC SYSTEM
Hydraulic motors - swing 10RPM
Hydraulic motors - travel 2.4/4.5km/hr
Main pump - maximum flow 72 L/min

Vertu Equipment is a 100% locally owned dealer for SANY Excavators and construction equipment across Victoria, Australia, NZ, and the Pacific. We offer industry-leading value, superior support, and a commitment to quality and service. Contact us today.
