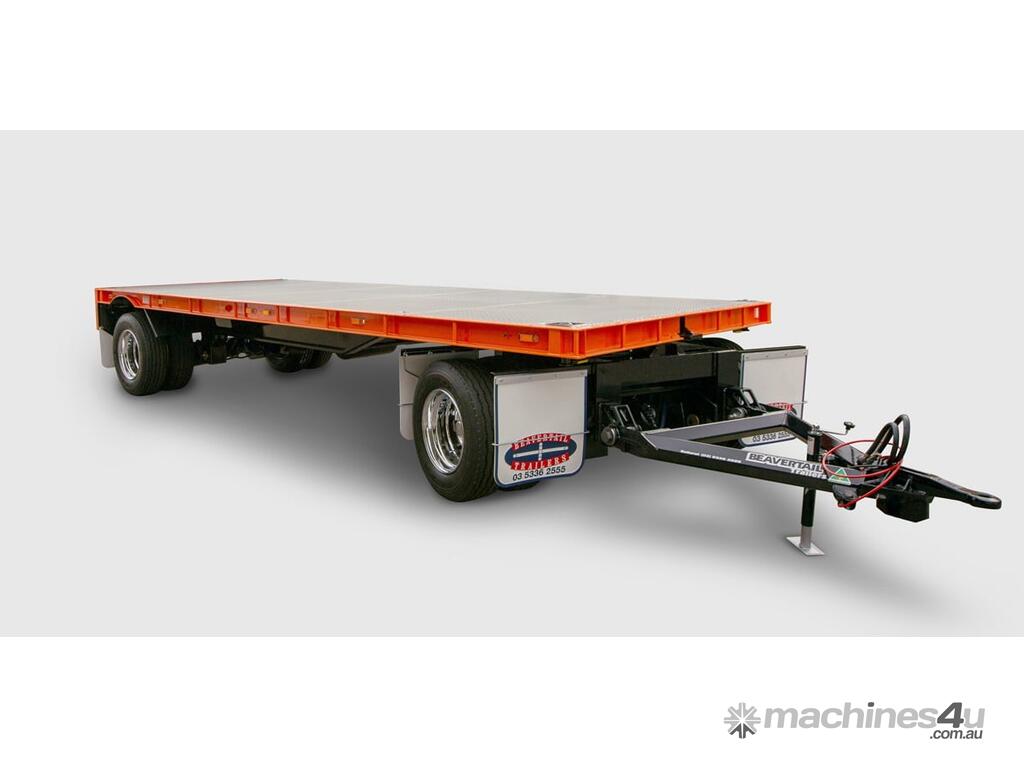

New Not Specified Unknown Dog Trailer for sale - 2 Axle Dog Trailer

025 Beavertail 2 Axle Dog Trailer
100% Australian-Made. Built to Last. Backed by 37 Years of Experience.

Unmatched Performance, Tailored to You
Since 1987, Beavertail Trailers has engineered thousands of heavy-duty trailers for Australia’s toughest industries. Every trailer is crafted in Ballarat, Victoria, using Australian steel and premium components. No compromises. No shortcuts. Just relentless durability

Base Model Specifications
Starting at $65,500 + GST

ATM: Up to 18 tonnes*.
Dimensions:
Total Length:11.0m* (Truck and trailer combo compliant with 19.0m limit).
Deck: 7.5m
Beavertail: 1.5m.
Drawbar: 1.7m.
Width: 2.5m*.
Hitch: Pintle hook, Ringfeder
Chassis & Build:
Main Chassis: Fabricated beams.
Floor: 5mm checker plate, flush finished with in-deck tie-down points.
Coaming Rails: 150mm PFC with integrated tie-down points.
Cross Members: 100 x 50 x 3mm.
Axles & Suspension:
19.5” eight-stud axles rated to more than 9 tonnes.
9-leaf underslung spring suspension.
Ramps & Backboard:
3000mm x 780mm hydraulic double-acting ramps with battery pack and 5mm checker plate.
Stainless steel ramp hinge bar, load binder dogs, and chains included.
Braking System: Full air brakes with EBS and auto slack adjusters.
Dolly:
Fabricated dolly with pneumatic double acting dolly lock,
JOST ballrace turntable,
Front and rear mudflaps with anti-sail brackets.
Wheels & Tyres:
Steel rims.
265/70 R19.5” tyres.
Laser axle alignment for enhanced durability and performance.
Electrics & Lighting:
LED multi-volt harness system with ADR-compliant signage and reflectors.
Combination taillights.
Electrical plug and air fittings suited to your truck.
Paint & Finish:
Industrial-grade two-pack polyurethane paint – your choice of colour.
Safety & Convenience:
Drawbar top wind swivel mount landing leg.
1500mm Front drop-in hurdle / 75x75x4 Front hurdle.
175-amp Anderson plug for charging battery systems.
Rear stabilizer legs and mudguards with Beavertail mud flaps.
Comprehensive owner’s manual, safety chains, and 2 years structural warranty.
*Total length, width, Carry Capacity and ATM of the trailer may vary.
Excludes stamp duty, registration, and delivery (available at cost).
Photos are for reference only, and the price applies to base variants only.

Standard Inclusions (Click to expand)
Fabricated dolly with pneumatic double acting dolly lock
JOST ballrace turntable
19.5” eight-stud axles rated to more than 9 tonnes
265/70 R19.5” tyres
3000mm x 780mm hydraulic double-acting ramps with battery pack and 5mm checker plate
9-leaf underslung spring suspension
Full air brakes with EBS and auto slack adjusters
Front and rear mudflaps with anti-sail brackets
Drawbar top wind swivel mount landing leg
1500mm Front drop-in hurdle / 75x75x4 Front hurdle
2 years structural warranty

Optional Extras (Click to expand)
Airmax suspensions
Alloy or chrome rims
Additional toolboxes
Spare tyre and carrier
3-point sidestep
Bi-Fold ramps 4.0m
Side gates
Rope rail
Container pins
Rear drop-in hurdle
Polished 60L water tank
Wider, single-length ramps
Hubo meter
Right way scale digital/analog
Oversize kit (flags, signage, and beacon)
Hammer well or custom-designed auger racks
Custom paint colours and detailing
Wheel nut indicators (recommended)
And many more.....

Specifications
ATM Up to* 18 tonne
Beavertail Length 1.5 m
Overall Length* 11 m
Overall Length (Feet) 35.4 ft
Deck Length 7.5 m
Deck Width* 2.5 m
Deck Type 5mm checker plate flush floor
Drawbar Length 1.7 m
Carry Capacity Up To* 13 tonne
No. of Axles 2
Brakes Full air brakes with EBS and auto slack adjusters
Suspension Underslung Spring
Coupling Options Ringfeeder
