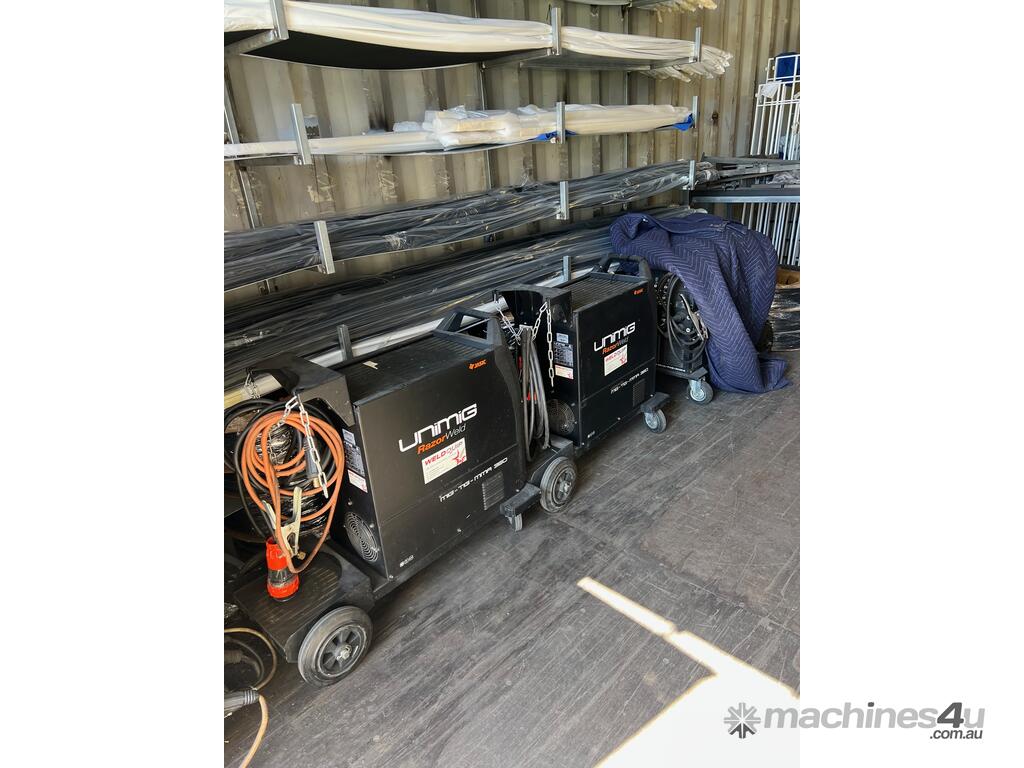

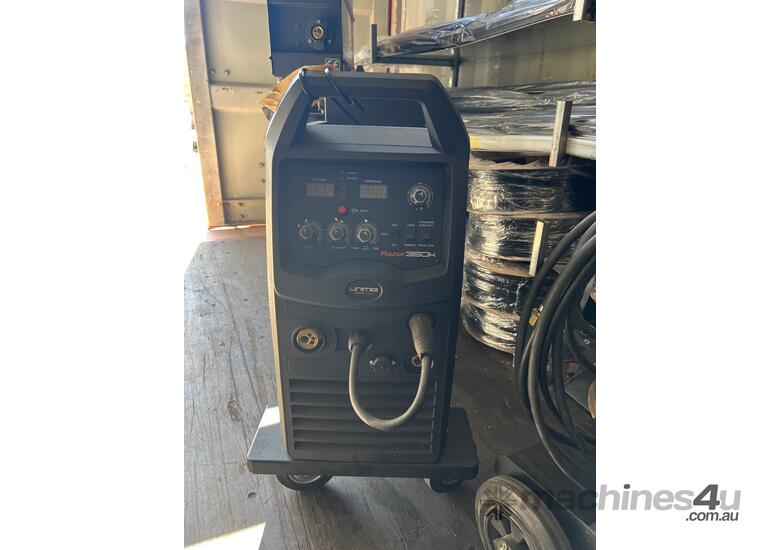

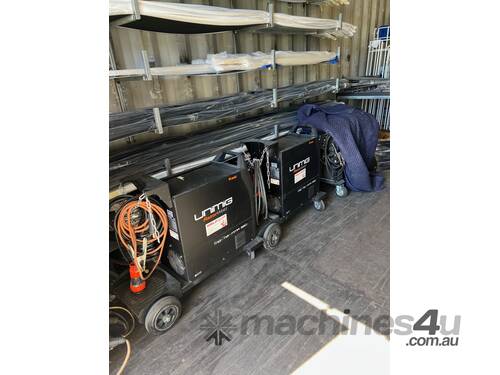

Purchased in Febuary 2022 and they have been sitting in storage for 6 months as we switched over to 240v welders so no longer required, machines are in near new condition & working perfectly!
Description

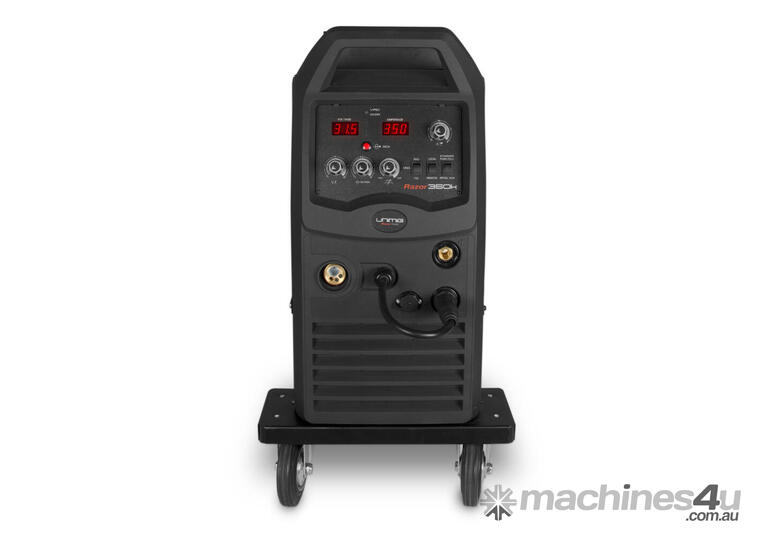

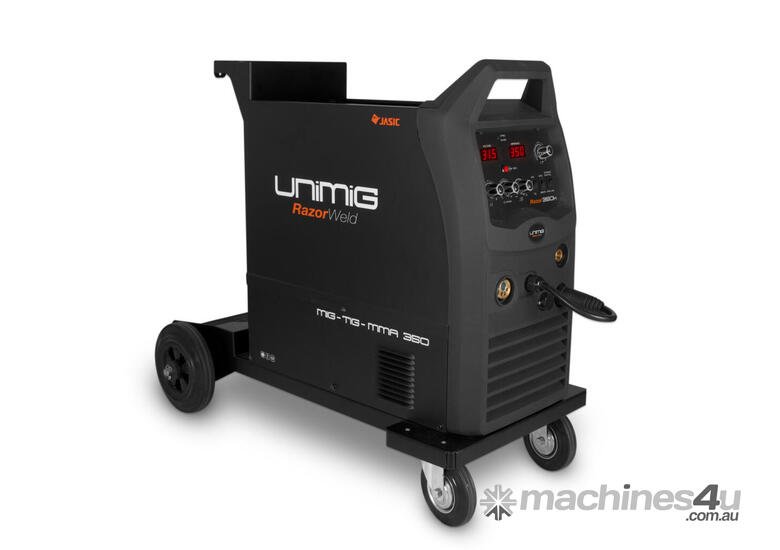

The RAZOR™ 350 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 350 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three-Phase
SUPPLY PLUG
32 AMP
RATED INPUT POWER (kVA)
15.0
Ieff (A)
13.7
RATED OUTPUT
50A/16.5V – 350A/31.5V
NO LOAD VOLTAGE (V)
64
PROTECTION CLASS
IP21S
INSULATION CLASS
F
POWER FACTOR
0.75
MINIMUM GENERATOR (kVA)
20.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
50-350A
MIG DUTY CYCLE 40°C
40% 350A
MIG WIRE SIZE RANGE
0.6-1.2mm
MIG WIRE SPOOL SIZE
5kg / 15kg
MIG WELDING THICKNESS RANGE
1-16mm
DRIVE ROLLER SIZE
30/22 (x2)
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC Lift Arc
TIG WELDING CURRENT RANGE
20-350A
TIG DUTY CYCLE 40°C
40% 350A
TIG WELDING THICKNESS RANGE
2-10mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-350A
STICK DUTY CYCLE 40°C
40% 350A
STICK ELECTRODE RANGE
2.5-6.0mm
STICK WELDING THICKNESS RANGE
2-16mm
SIZE & WEIGHT
DIMENSIONS (mm)
900x400x670mm
WEIGHT (kg)
60kg
MACHINE FEATURES
WIRE DRIVE
4 Geared
VRD
Yes
SPOOL GUN CONNECTION
Yes
PUSH / PULL GUN CONNECTION
Yes
BURNBACK ADJUSTMENT
Yes
WIRE INCH
Yes
INDUCTANCE CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
Package Contents:
RAZOR™ 350 Compact MIG/TIG/STICK Welder
300 Amp Earth Clamp & Lead
