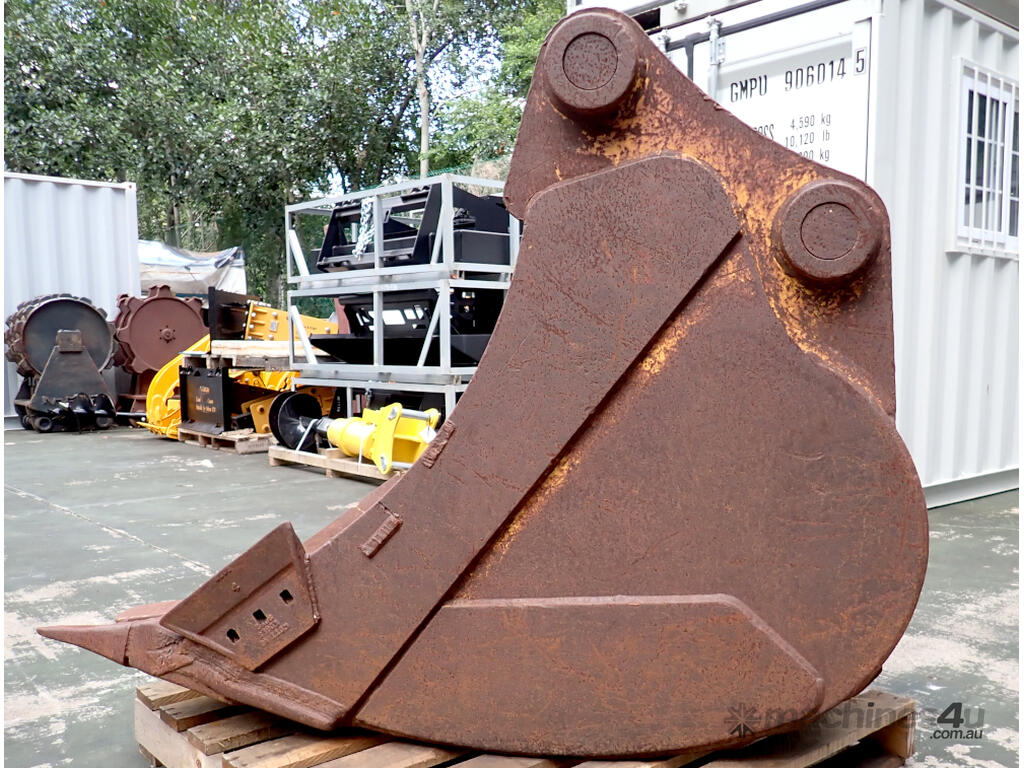

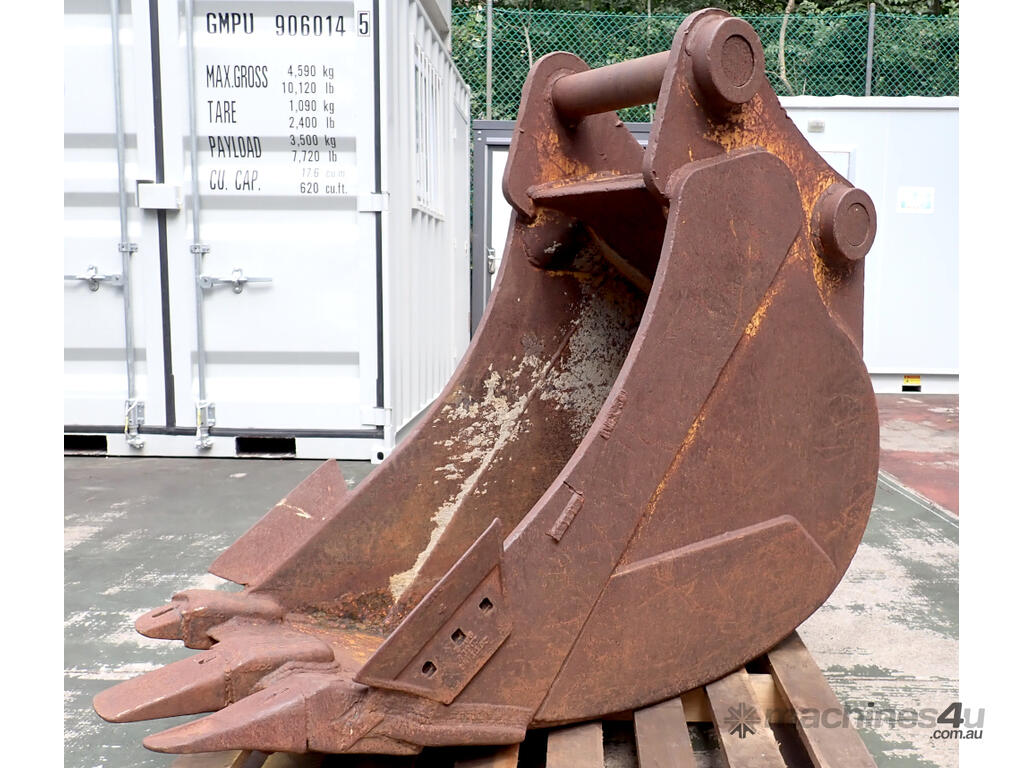

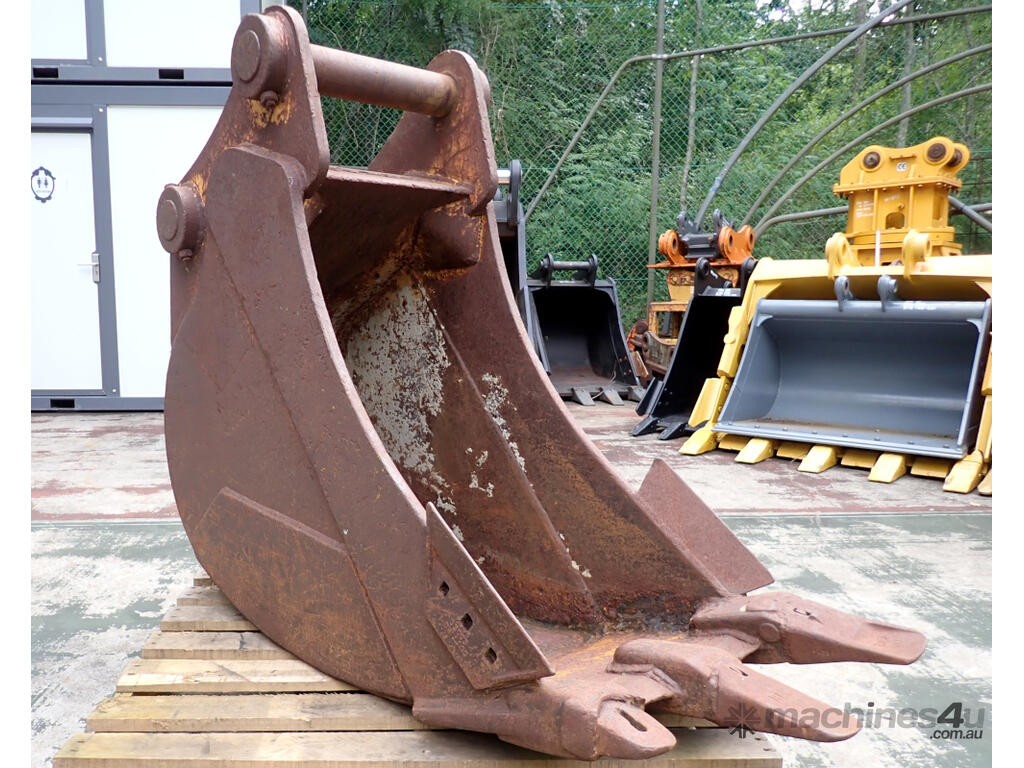

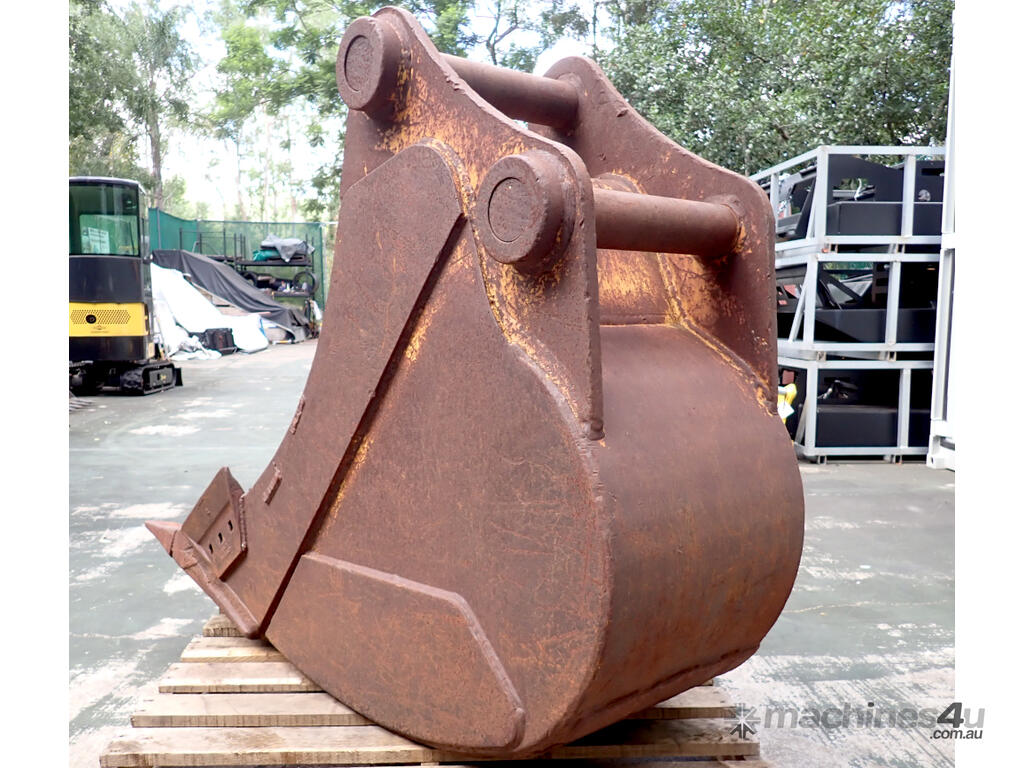

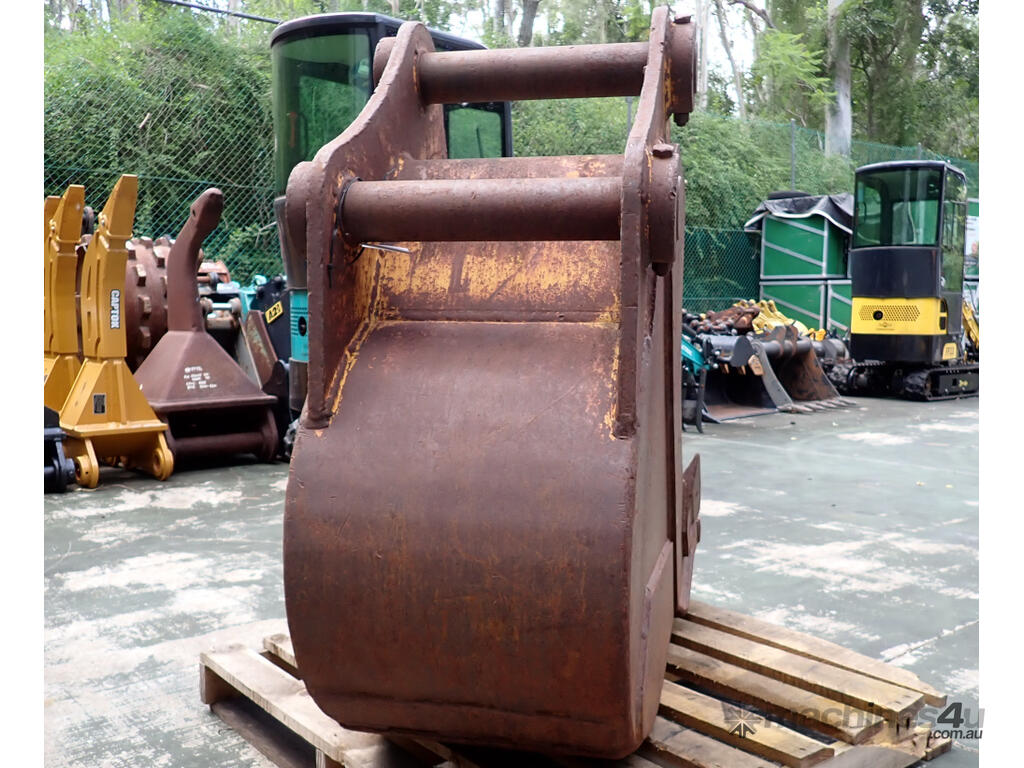

20-39 ton (90mm pin) 530mm Excavator GP Digging & Trenching Bucket

Used 530mm sturdy Excavator GP Digging & Trenching Bucket suit 20-39 Ton machine.

*** THE GOOD
* There are welded on Side Cutters.

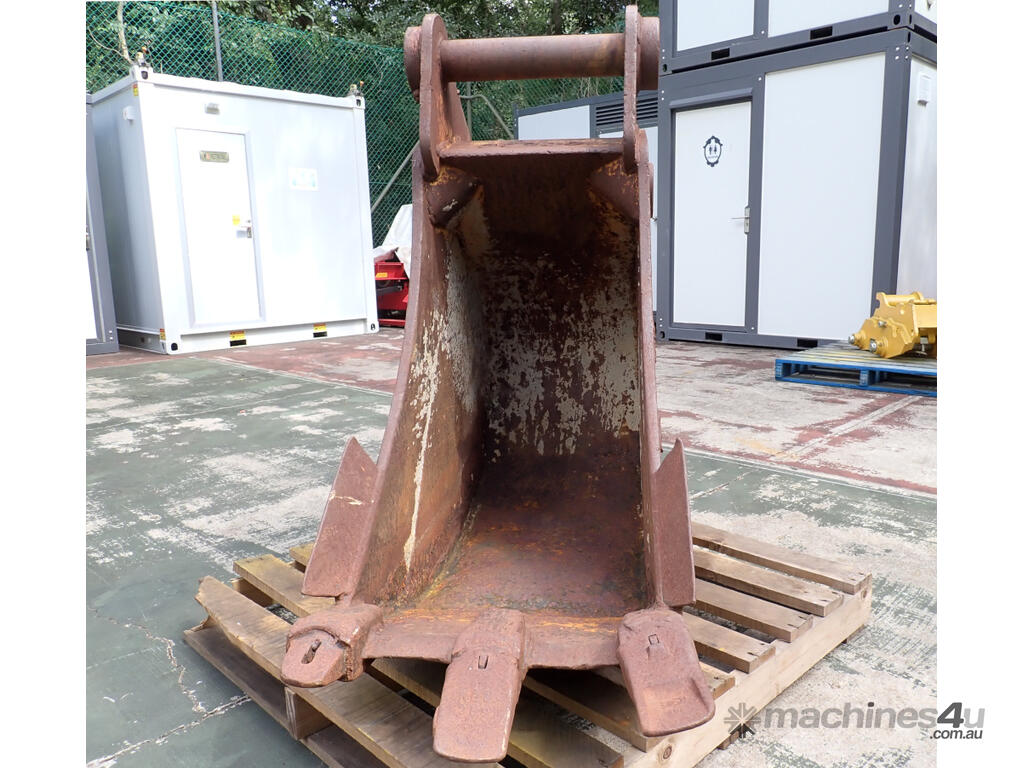

* It has a Deep Profile for higher capacity (see pics# 4 & 8).

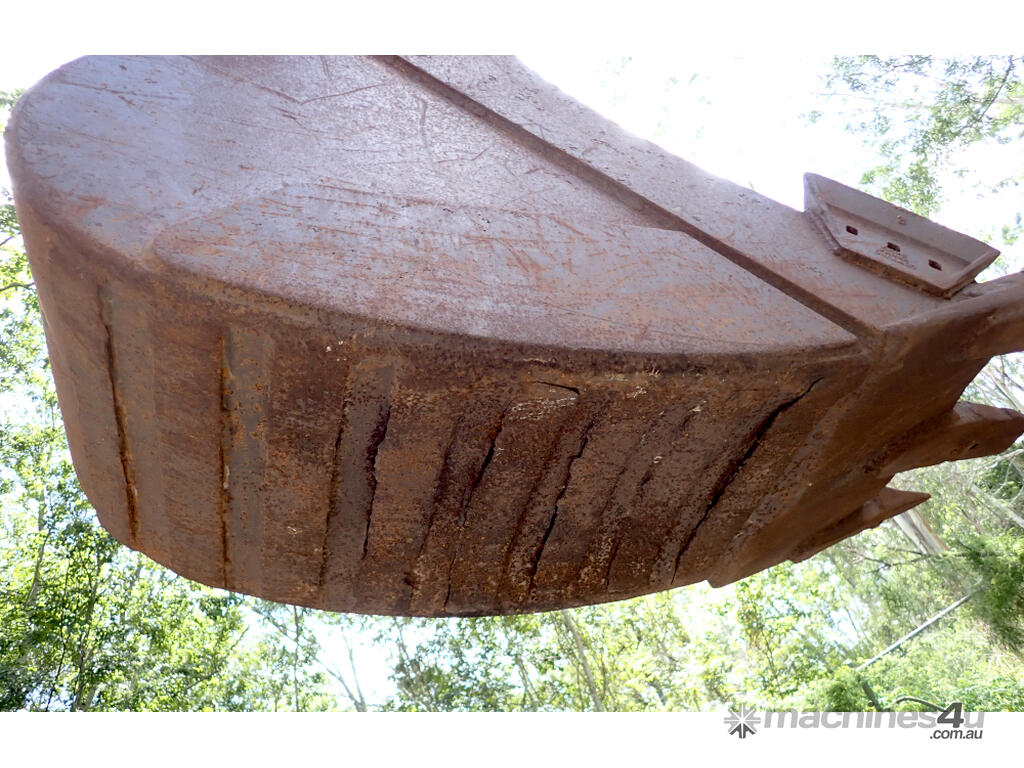

* There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pics# 9 & 10).

*** THE BAD
* It is missing a tooth.
* There is some pitting on the inside bottom from water sitting in it.

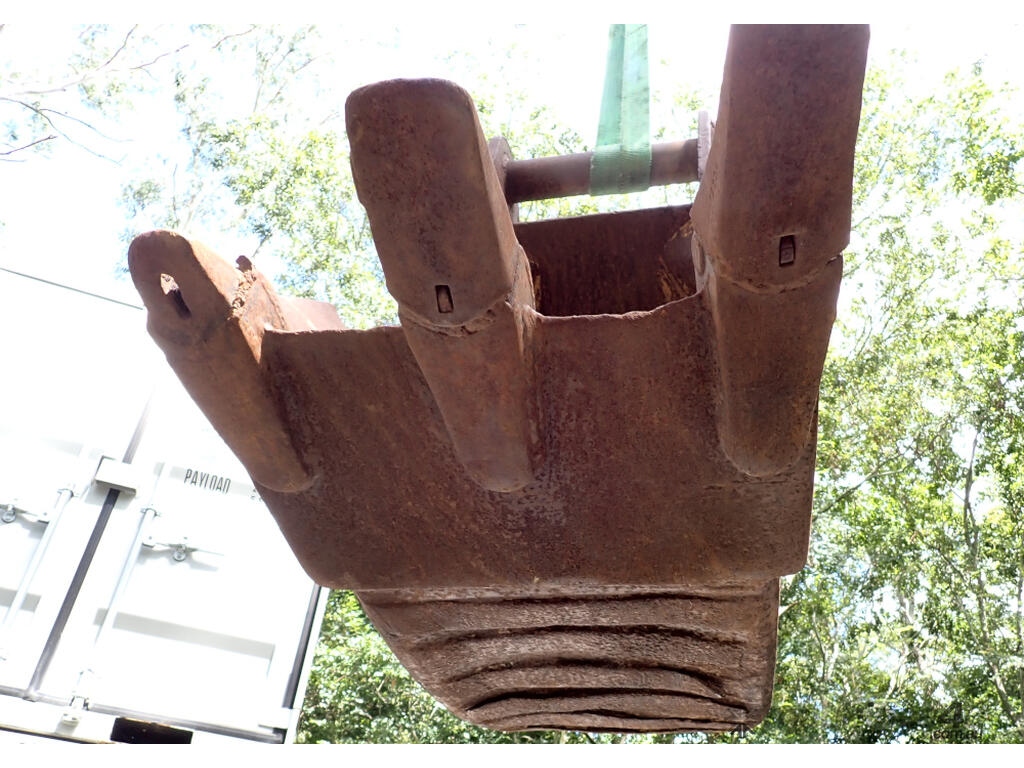

* The bottom has been pushed up (see pics# 2, 9, 10), not a huge problem but if you are planning heavy use, the underside wear strips could use a few welds to sure them up.

Aside from the dented in bottom and the missing tooth, this bucket is in overall reasonable shape, is still very sturdy and has plenty of life left.
The price has been reduced to allow fitting a new tooth, and for the imperfections that depending on your use, may or may not require some additional welding.

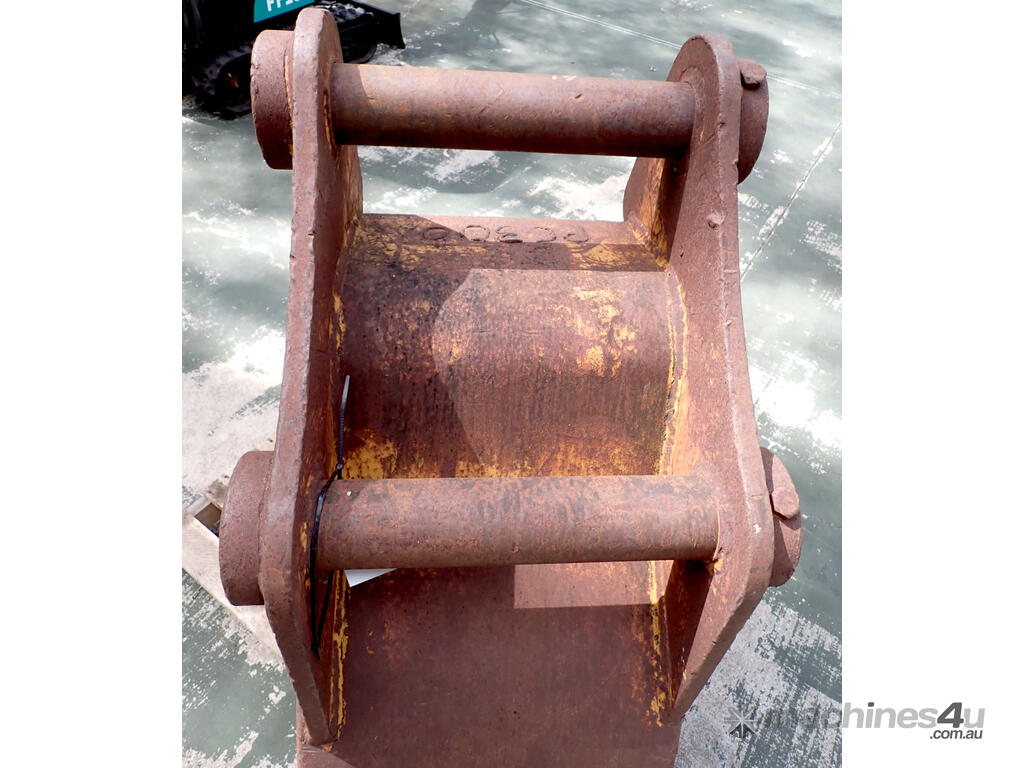

*** Current Headstock configuration:
* Pins: 90mm
* Pin Center to Pin Center (CtoC): 470mm
* Between the Ears (BTE): 415mm Between the inside Ear Bosses (which can be shaved back up to 425mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Daewoo Solar 280LC-2 / 280LC-3, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), John Deere 240D LC / 270D LC, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, New Holland EC240LC / EC270LC, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5.
*
* Maybe fit: Case CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / 330D w/DB Link / D Family Linkage, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Samsung SE240LC / SE240-3 / SE280LC / SE280-3, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 613mm Wide (at the side cutters), 1605mm Deep, 1285mm High.
Weight: 564kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
