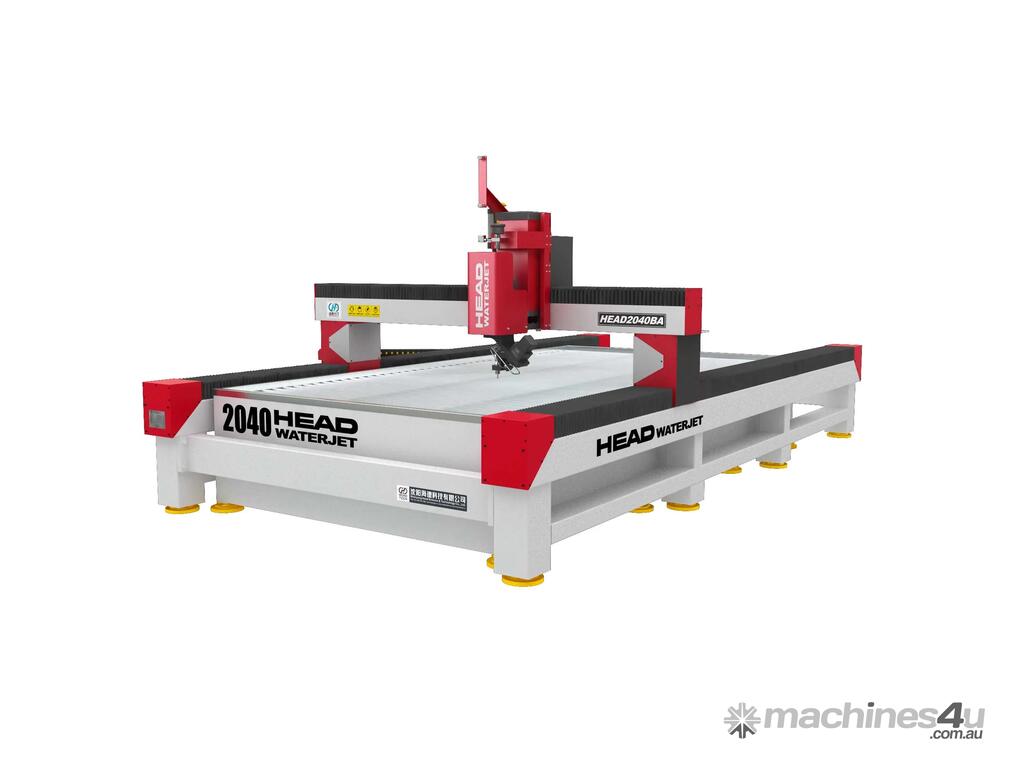

The HEAD2040BA Waterjet Cutter is designed for efficient and precise cutting, ideal for processing a wide range of materials. Its high-pressure pump system, intelligent CNC technology, and high-precision cutting capabilities ensure excellent cutting quality and stability. The compact platform design is perfect for environments with limited space, while the abrasive feeding system and optional features such as laser height measurement and safety protection enhance operational convenience and safety. Whether for thin or medium-thickness materials, the HEAD2040BA delivers outstanding performance, making it the ideal choice for high-precision cutting across industries.
Equipment composition
The HEAD Waterjet Cutting Machine is designed for precision, durability, and efficiency. It includes:
High-Pressure Pump: Powered by Siemens motor and OMRON PLC, with components from Japan and the U.S., ensuring stability and reliable performance.
Cutting Table: Features a dual linear Z-axis guide, reducing deformation over time, and a welded metal Y-axis frame for improved stability and cutting precision. The lightweight, rigid X-beam is made from extruded aluminum alloy for high performance.
CNC System: Equipped with Weihong professional software and Schneider components, offering precise and easy-to-use control.
Abrasive Supply System: Guarantees stable abrasive flow, ensuring smooth, high-quality cuts.
Soft Water System: Extends pump life and reduces maintenance costs.
With advanced features like laser height measurement, remote control, and optional five-axis cutting heads, the HEAD Waterjet Cutting Machine delivers top-tier performance for a variety of cutting needs. Invest in precision and efficiency today!
High Pressure Pump
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting heads
1-10 cutting heads (1 for standard machine)
Model HEAD2040BA
Working area 2000*4000mm
Equipment size 3300*5400*2200mm
Equipment weight 2280kg (single platform without water tank)
AC five-axis travel 1600*3600*150mm
3-axis travel 2000*4000*150mmmm
Power 220/380/400/415/480V-50/60HZ-3PH
Repeat positioning accuracy ±0.05mm
Platform load-bearing capacity 500kg/?
Cooling model Air cooling/Water/Oil cooling
