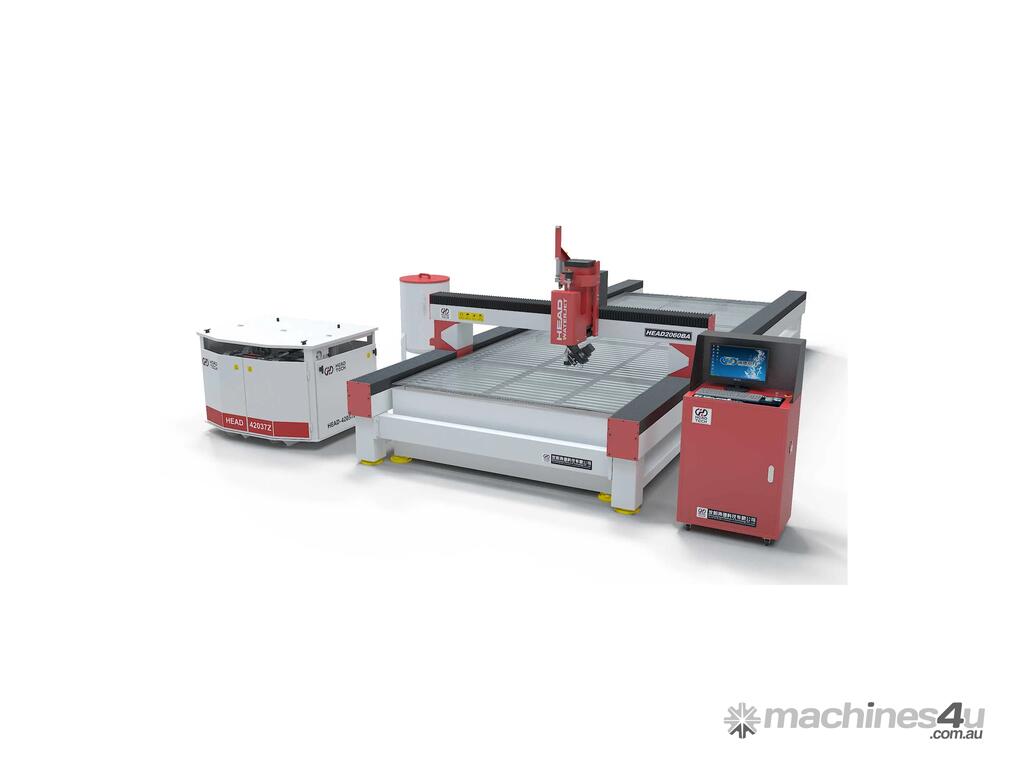

2000*6000mm Metal Waterjet Cutting Machine

HEAD Waterjet’s metal cutting machine utilizes advanced waterjet technology, enabling precise bevel cuts of 45~60 degrees and seamless edges, making metal components more refined and durable. Waterjet cutting also minimizes material waste and enhances productivity. For applications requiring high precision and strength, such as metal fabrication or industrial parts, waterjet-cut metal offers superior results.

Equipment composition

HEAD2060BA CNC cutting platform, CNC system, High-pressure pump?Cutting head system (optional 5AB/5AC five-axis cutting head)

1. High Pressure pump: OMRON/Siemens PLC, Siemens motor, Japan Yuken reversing valve, U.S. booster pump, to ensure the high quality of the pump.

2. Cutting table: Panasonic servo motor, Hiwin linear guide, ABBA ball screw, automatic lubrication system, Z-axis double linear (most of them are single linear guide, easy to be deformed by long-term use), Y-axis welded metal+concrete structure cutting table (most of them are only welded metal), to improve the stability and precision. x-beam is made of one-time extruded aluminum alloy with low weight and high rigidity.

3. CNC controller; professional brand Weihong software, Schneider electrical components, etc.

4. Abrasive supply, upper and lower air supply, to ensure stable supply of abrasive to ensure cutting quality.

5. We provide you with soft water system to improve the service life of pump and spare parts.

Technical Parameters

Model HEAD2060BA
Working area 2000*6000mm
Equipment size 3300*7900*2200mm
Equipment weight 3390kg (single platform without water tank)
AC five-axis travel 1600*5600*150
Power 220/380/400/415/480V-50/60HZ-3PH
Repeat positioning accuracy ±0.05mm
Platform load-bearing capacity 500kg/
Cooling model Air cooling/Water/Oil cooling

HEAD Waterjet’s metal cutting machine utilizes advanced waterjet technology, enabling precise bevel cuts of 45~60 degrees and seamless edges, making metal components more refined and durable. Waterjet cutting also minimizes material waste and enhances productivity. For applications requiring high precision and strength, such as metal fabrication or industrial parts, waterjet-cut metal offers superior results.
