2006 HOLYTEK 1300 wide Thicknesser/ Sander combo machine

Holytek 1300NK Thicknesser / Wide Belt Sander Combo (2006) – 1300mm Industrial – 2 Head – 44kW


For sale is a Holytek 1300NK industrial thicknesser / wide belt sander combo, a heavy-duty production machine suited to joinery shops, furniture makers, benchtop manufacturers and high-volume timber processing. This unit has been a reliable workshop machine and is set up for efficient dust extraction and consistent finishing. We are downsizing and have not been using it enough in the last few years, Replacement value $65k


Key Specs

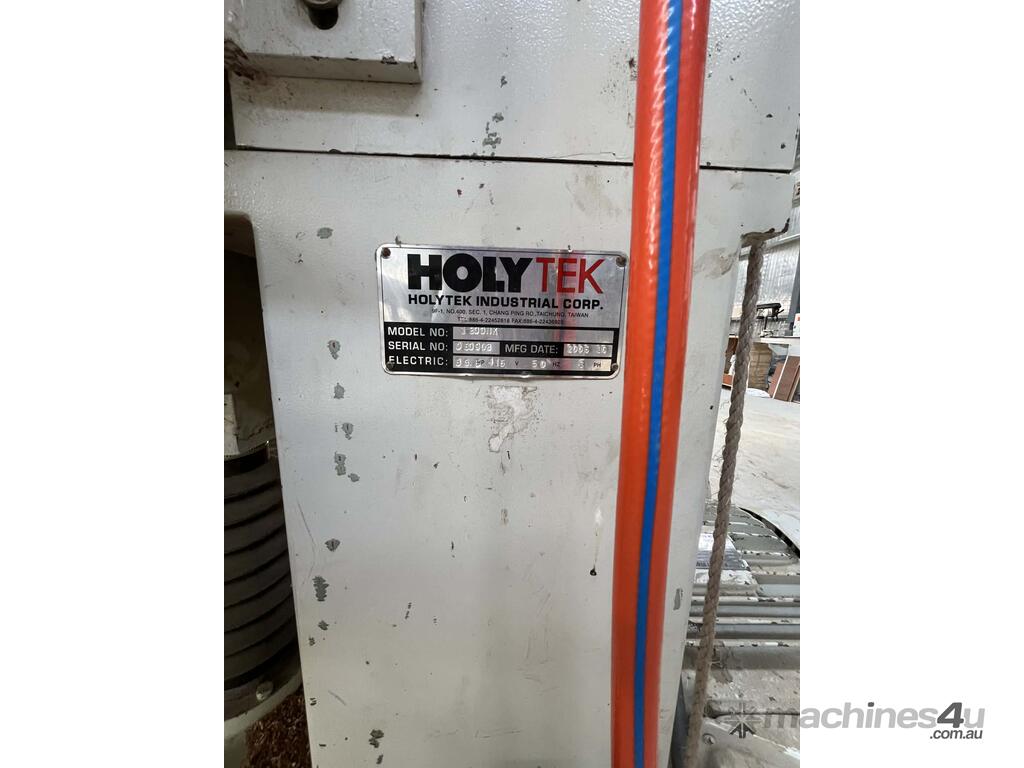

Make/Model: Holytek 1300NK
Year Manufactured: 2006
Weight: 5.2 tonne
Capacity: 1300mm wide x 150mm thick
Main Motors: 2 x 22kW (44kW total)
Belts: 1320 x 2134mm long belts (run cooler and last longer) 4 spare
Head Configuration (2 Head)
Head 1: Planer head with 14 x 14 x 2.0mm tungsten TOK inserts
Head 2: Combination sanding head with contact roller + platen
Condition / Maintenance
All main bearings replaced (2019)
Contact roller re-rubbered (2019)
Primarily used for sanding benchtops and table tops but very infrequent use in the last 4 years
We typiy run 120 grit after the planer head, which produces a great finish four new belts valued at $2500
Dust Extraction Setup (Included)

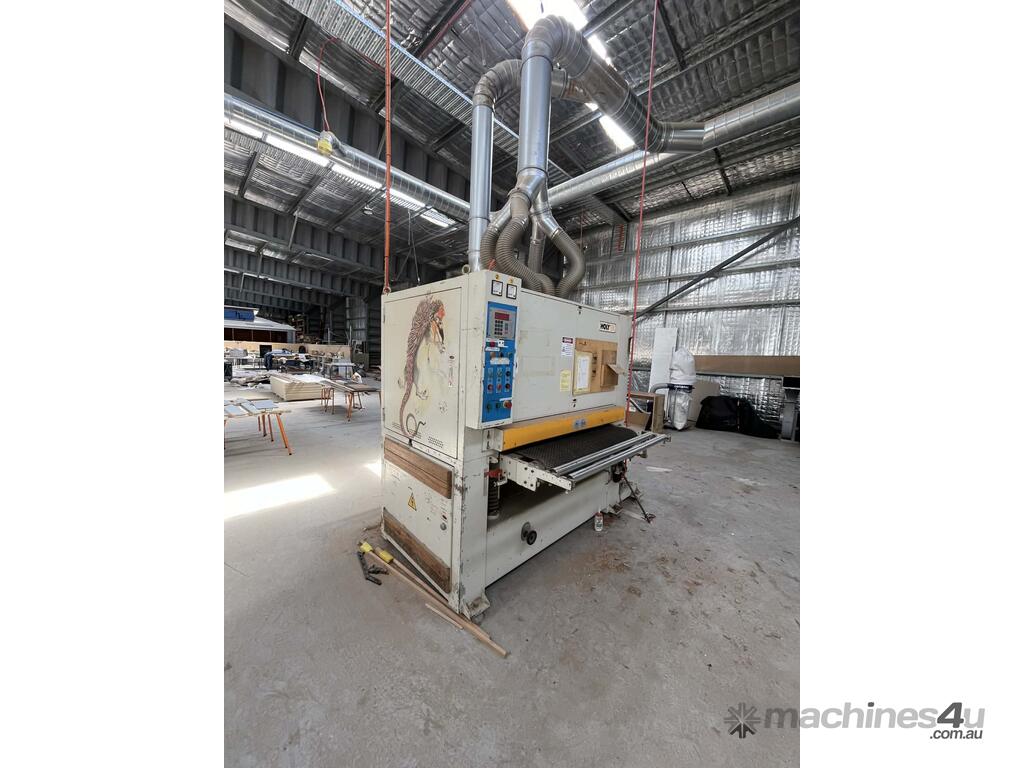

The machine is currently set up with manifolds and ducting as follows:
200mm duct off Head 1
250mm duct off Head 2
Both join into a 315mm main duct
Then increases to 350mm with a 350mm pneumatic blast gate
