2006 Haas SL-20 CNC Lathe

CNC MACHINERY SALES AUSTRALIA PRESENTS - HAAS model : SL20 CNC Lathe

Date of manufacture : August 2006

Swing Over Front Apron : 584 mm

Swing Over Cross Slide : 241 mm

Max Cutting Diameter : 262 mm

Max Cutting Length : 508 mm

Bar Capacity : 51 mm

Chuck Size : 210 mm

Between Centers : 610 mm

X-Axis Travel : 214 mm

Z-Axis Travel : 508 mm

Rapid Traverse Rates : 30.5 m/min (X & Z)

Spindle Speed : 5,000 RPM

Spindle Motor Power : 14.9 kW

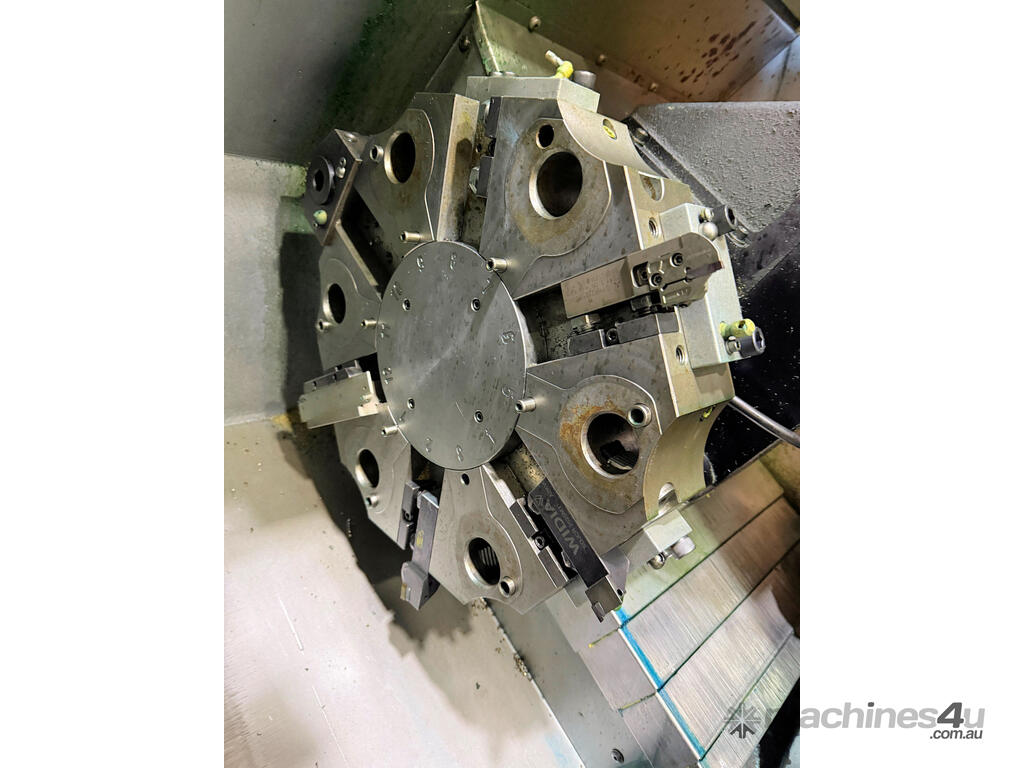

Number of Tools : 10-position turret

Tool Index Time : 1 second

Machine Dimensions LxWxH : 3149 × 1574 × 1828 mm

Machine Weight : 4083 kg

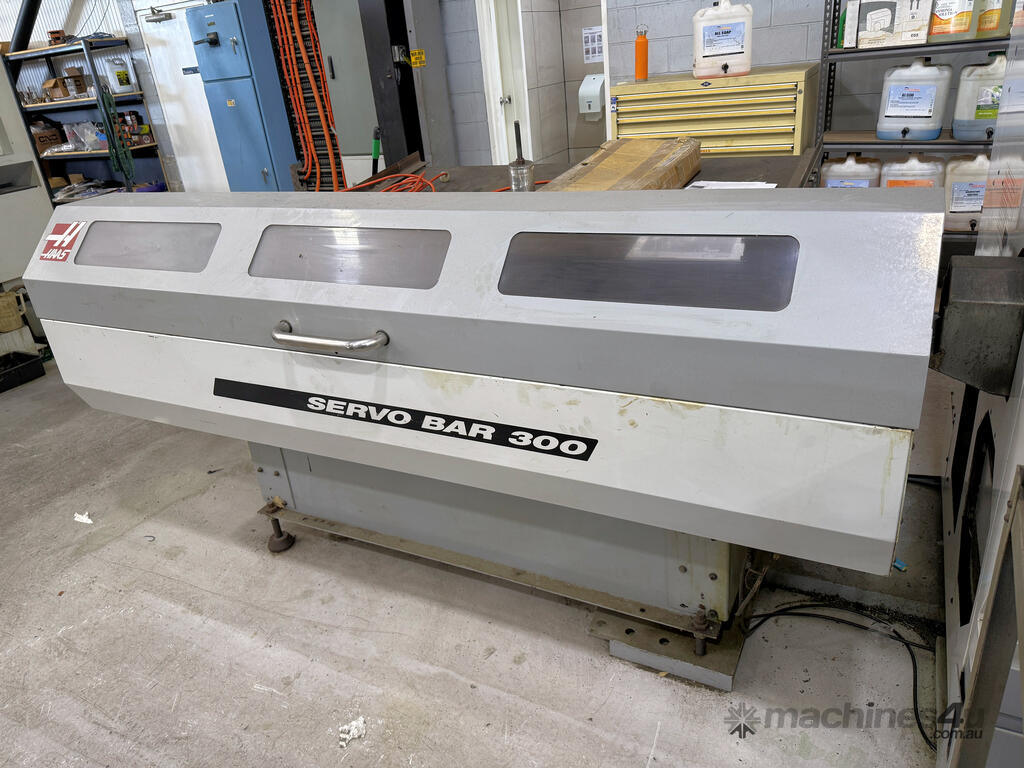

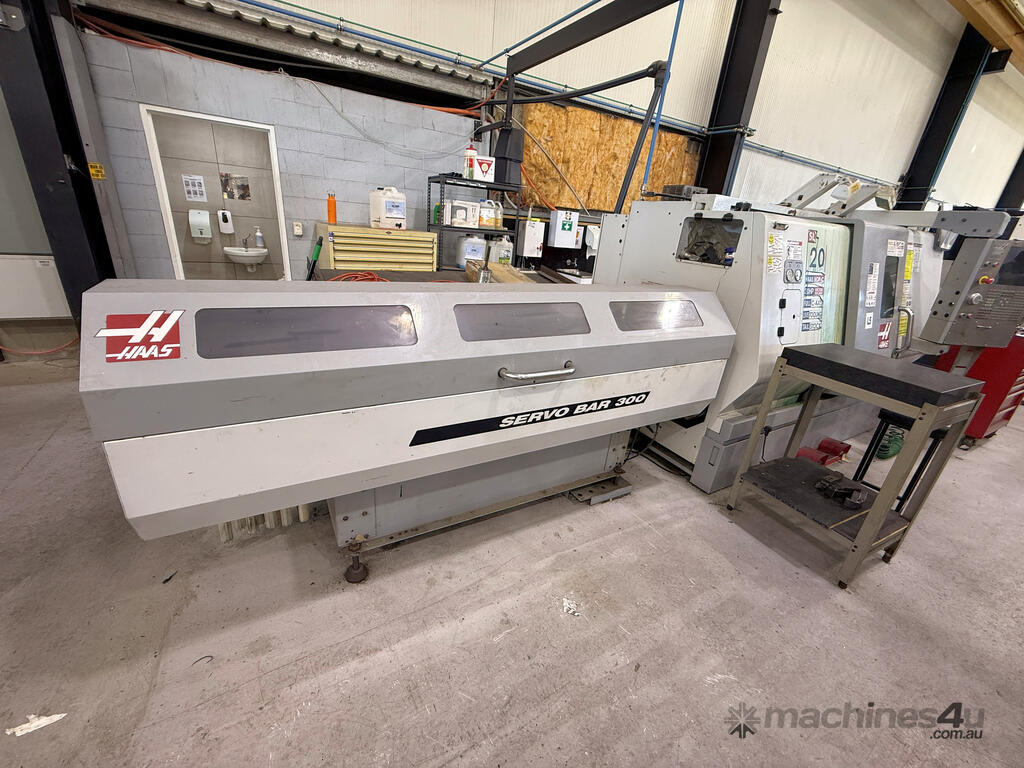

Servo Bar 300 Bar Feeder with tube liners

Location Queensland
