2008 Reisen 620 DGSA Semi Automatic Beam Cutting Bandsaw (Mitre, Angle bundle cut)

2008 Reisen 620 DGSA Semi Automatic Beam Cutting Bandsaw

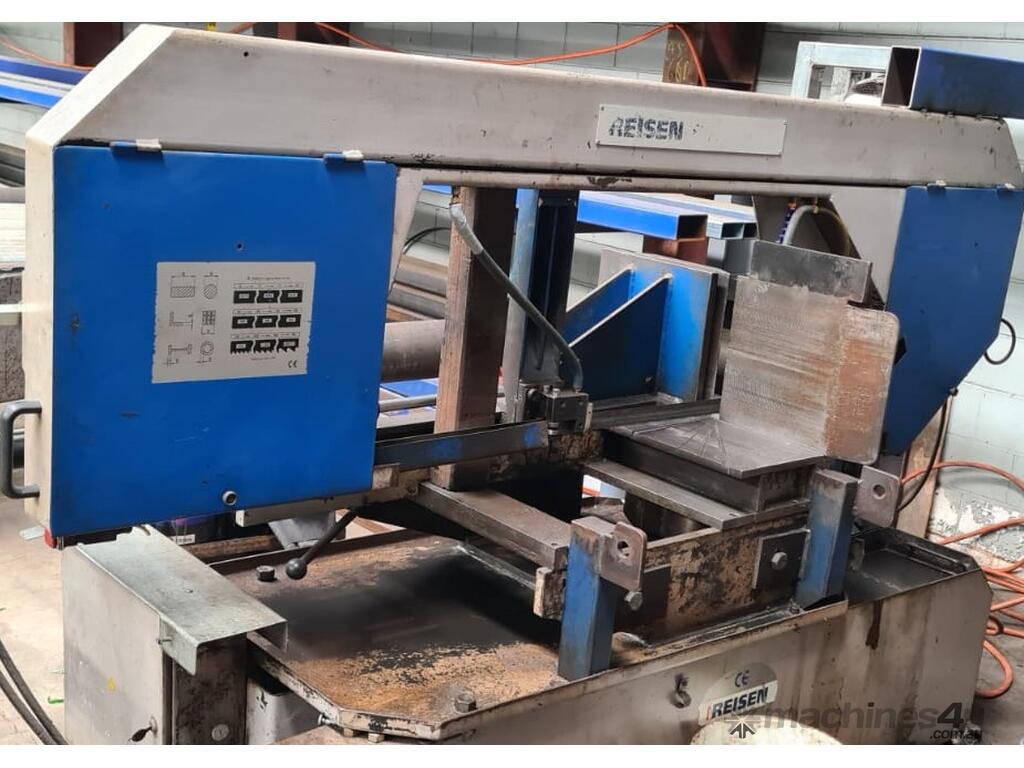

This 2008 Reisen 620 DGSA is a heavy-duty, semi-automatic beam cutting bandsaw designed for precision and efficiency in structural steel and metal fabrication. Built with reliability and ease of use in mind, this saw is ideal for workshop environments requiring repetitive, high-volume cutting with clean, accurate results.

Blade Length 5120 x 34mm
Dimensions: Approx 3000mm Long
Weight: 1040kg

NC CONTROL HYDRAULIC CLAMPING
DOM: 2008
BLADE LENGTH, 5120 x 34 x 1.1mm, 415V

Key features:

Swivelling head for mitre cutting to 45 degree

Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)

610 x 380mm (W x H) Rectangle Capacity

Coolant system incorporating a wash down hose with trigger gun

Robust Construction: Rigid twin-column design ensures straight, vibration-free cuts even under high load.

Semi-Automatic Operation: Hydraulic control for clamping, bow feed, and return simplifies repetitive cutting tasks.

Large Cutting Capacity: Capable of handling beams, pipes, and solid stock up to approximately 620 mm width (subject to verification).

Double Mitre Capability: Offers mitre cutting (left and right) for angular precision on structural beams and profiles.

Hydraulic Vice: Provides secure, fast clamping for safer and more efficient operation.

Operator Control Panel: User-friendly interface with controls for feed rate, pressure, and mitre adjustment.

Coolant System: Integrated system to extend blade life and improve cut finish.

Reliable Motor & Drive: Industrial-grade motor provides smooth and consistent power for demanding applications.

Condition:
Well-maintained, fully operational, and available for inspection. Ideal for fabrication shops, construction firms, and steel service centers.
