200mm Woodworking Jointer WDP-768 C/W Helical Cutterhead & Mobile Base

Kang Industrial Planer Jointer WDP-768

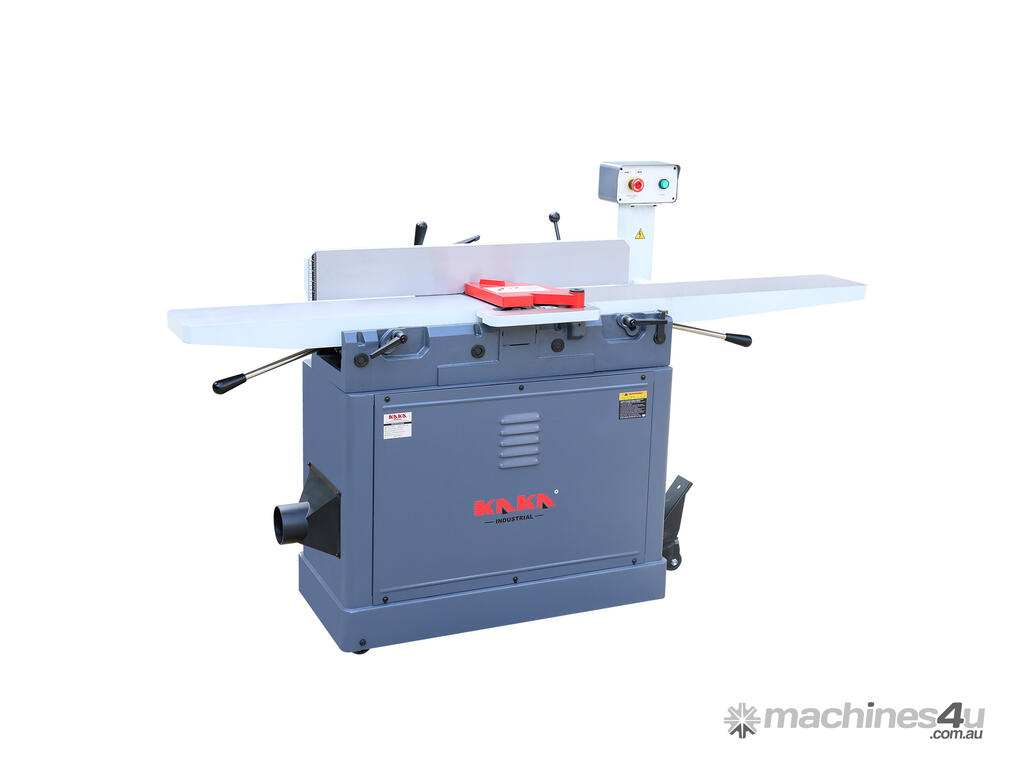

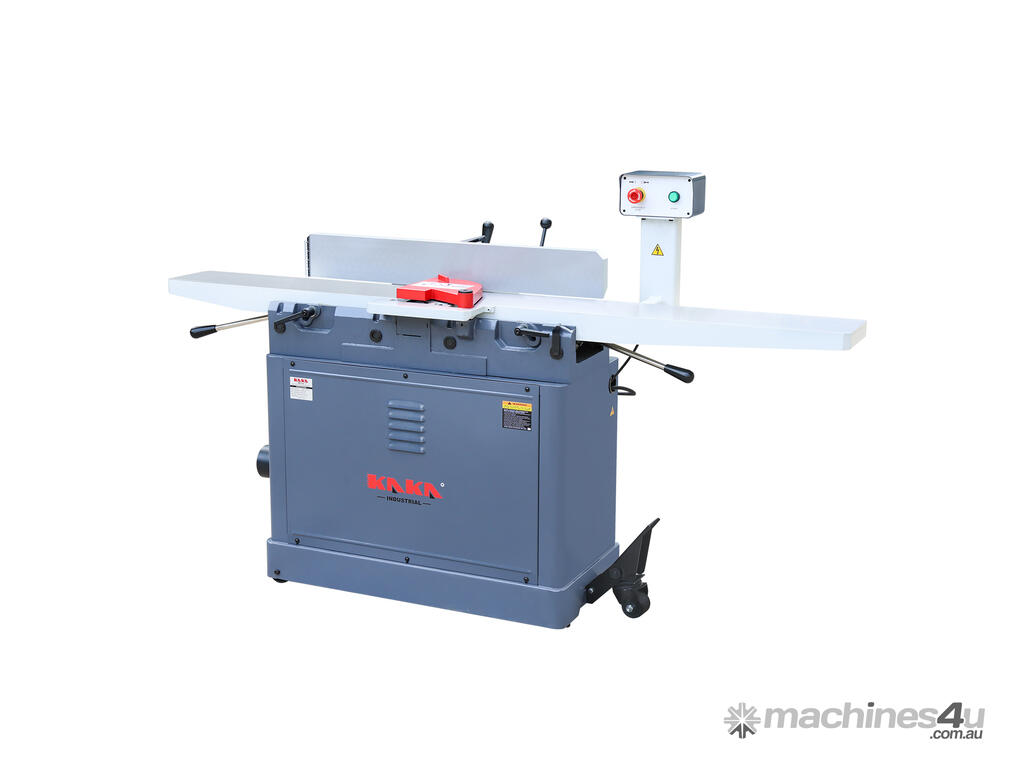

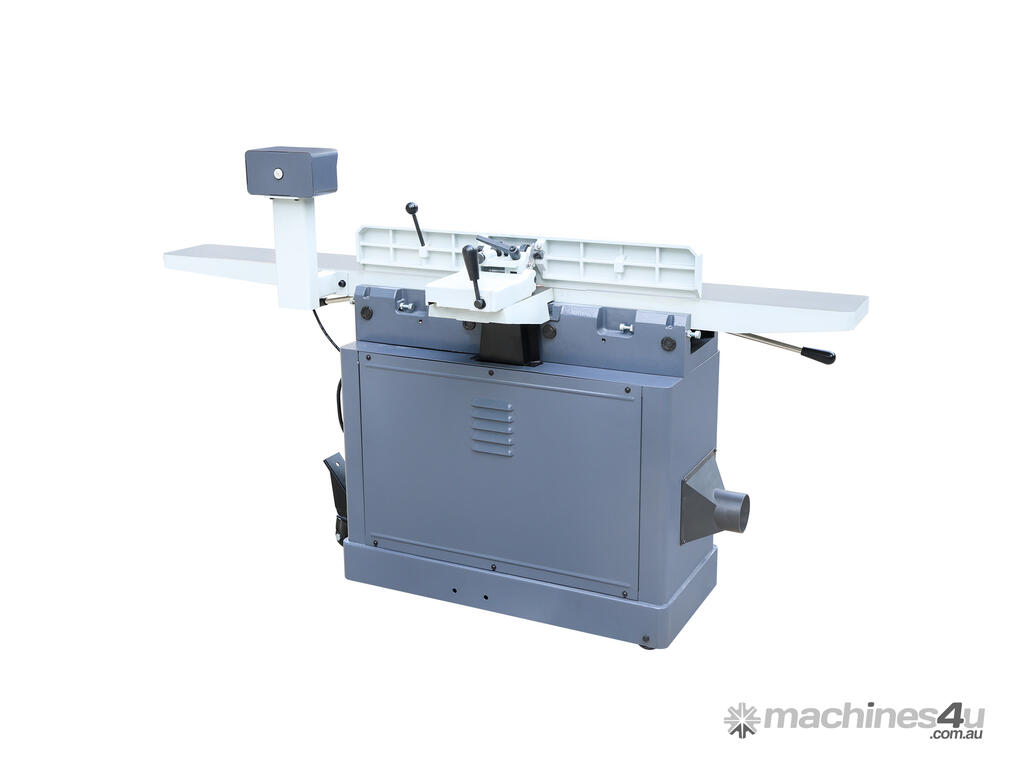

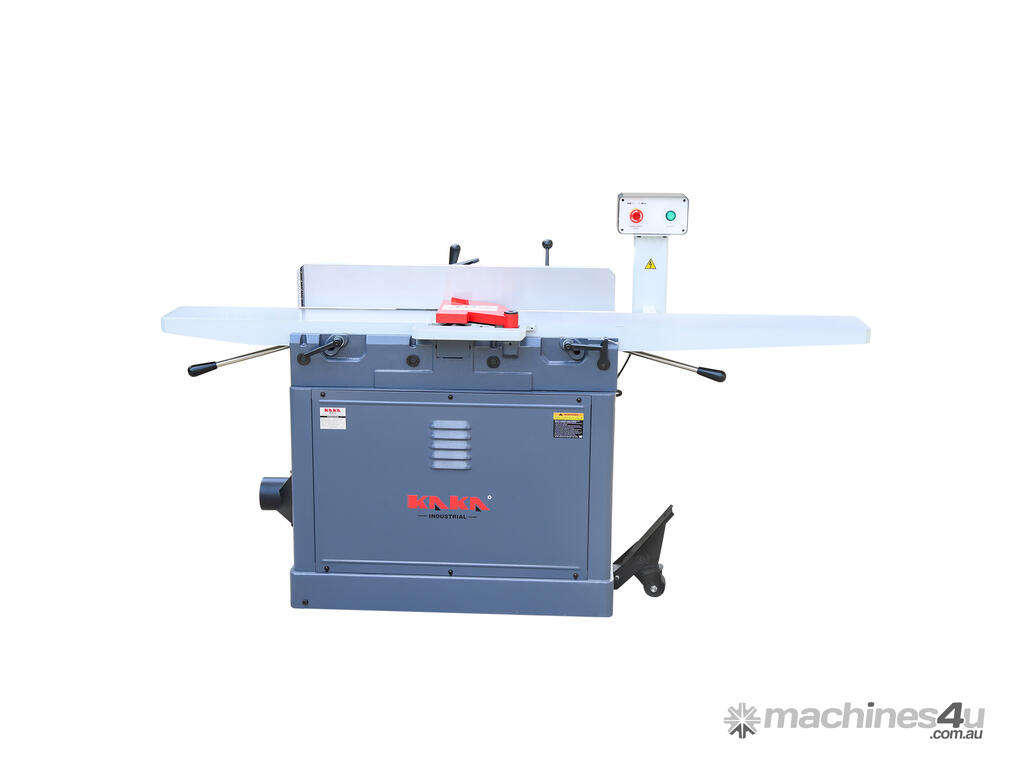

The KANG WDP-768 is a heavy-duty 200mm floor-standing jointer designed for serious woodworkers and small professional shops. It features an extra-long 1930mm precision-ground cast-iron table (with a generous 1000mm infeed table), a powerful 3 HP 240V single-phase motor, and a 4-row helical cutterhead with 36 indexable carbide inserts.

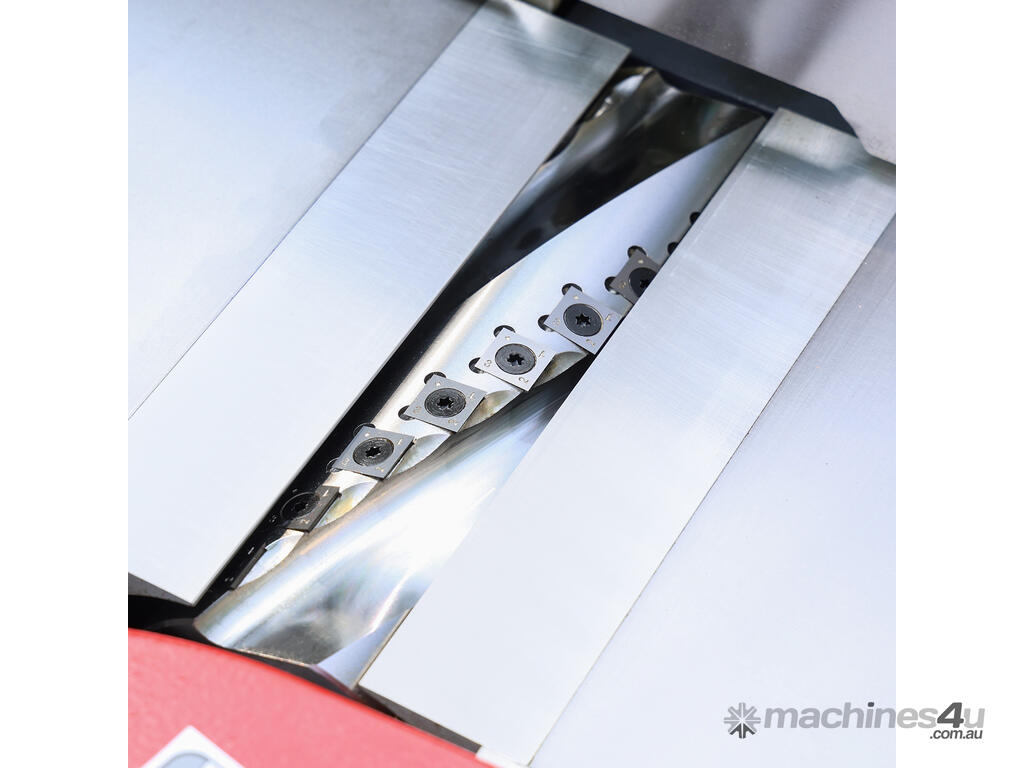

Superior Finish with Helical Cutterhead Jointer. The 4-row helical design with 36 carbide inserts cuts with a shearing action instead of chopping like straight knives. This results in dramatically reduced tear-out, especially on figured or difficult woods, a smoother “sanding-ready” surface, and much quieter operation.

Easy Table Adjustments with Parallelogram Design. Unlike traditional dovetail ways, the parallelogram tables maintain perfect alignment with four points of contact and use simple lever adjustments.

Handles Long & Wide Wood Stock Effortlessly. The massive 1930mm table length (with 1000mm infeed) provides excellent support for long boards, reducing snipe and making jointing easier and more accurate.

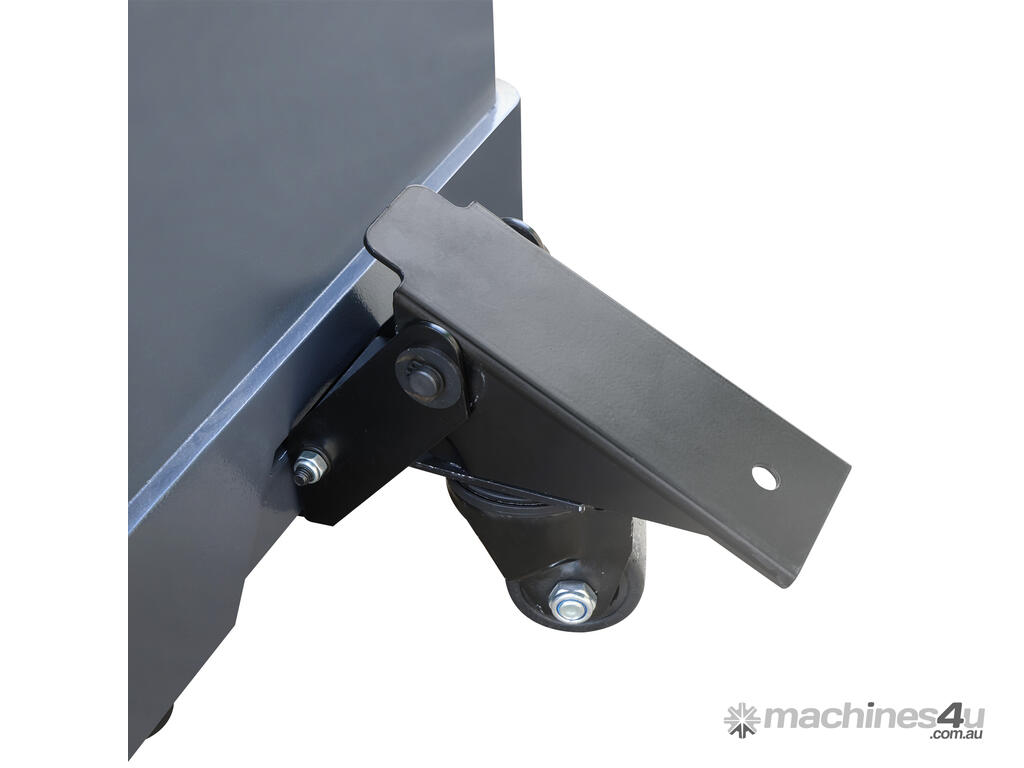

Built-in Mobility Wood Jointer. Integrated mobile base with heavy-duty casters lets one person move this large machine easily without needing a separate base kit.

Powerful & Reliable Performance Jointer Planer. The 3 HP motor has plenty of torque for 200mm wide hardwoods without bogging down. Users consistently praise its smooth, quiet running and out-of-the-box accuracy.

Features

Runs on 240V single-phase power

Helical cutterhead, fully protected across its whole width by a spring return guard

1930mm cast iron infeed and outfeed tables support long timber for straighter joints

Adjustable in & out feed tables

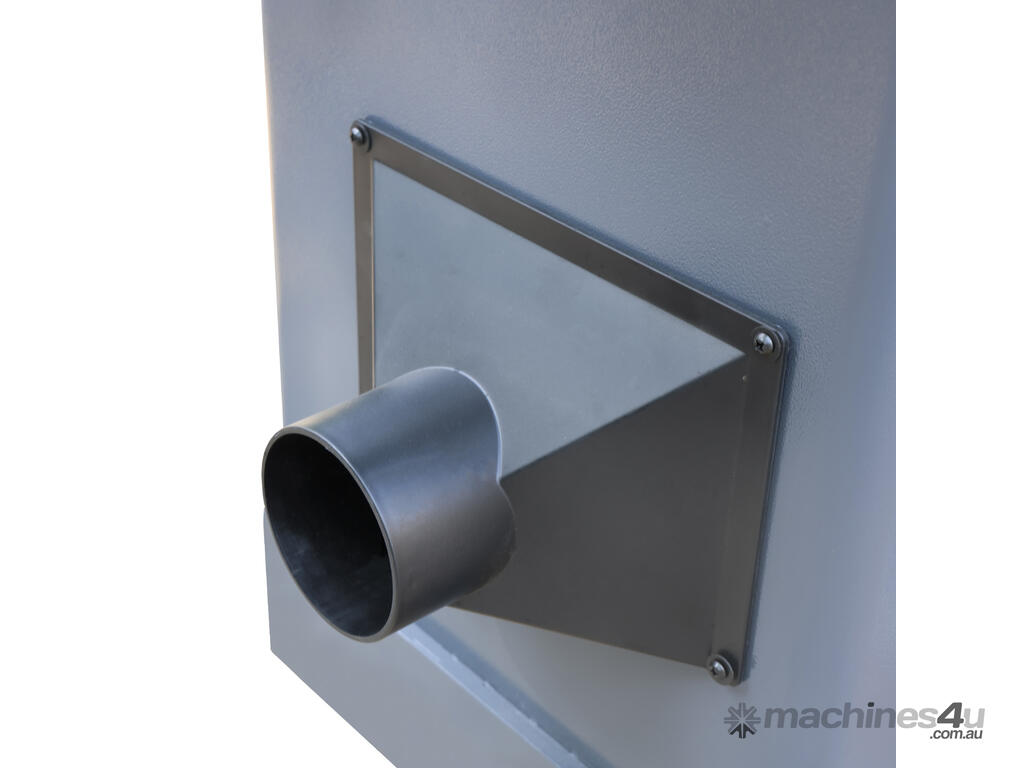

Fully enclosed base enhances safety, and built-in dust chute makes dust collection efficiency

Built-in mobile base for convenient repositioning in the workshop

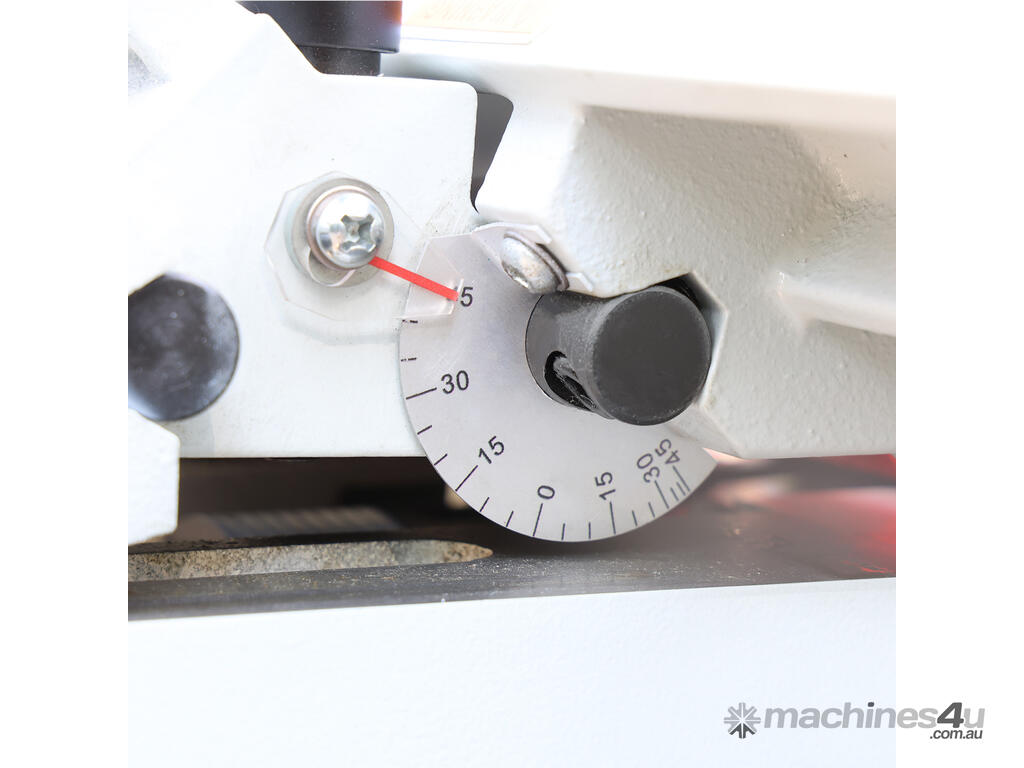

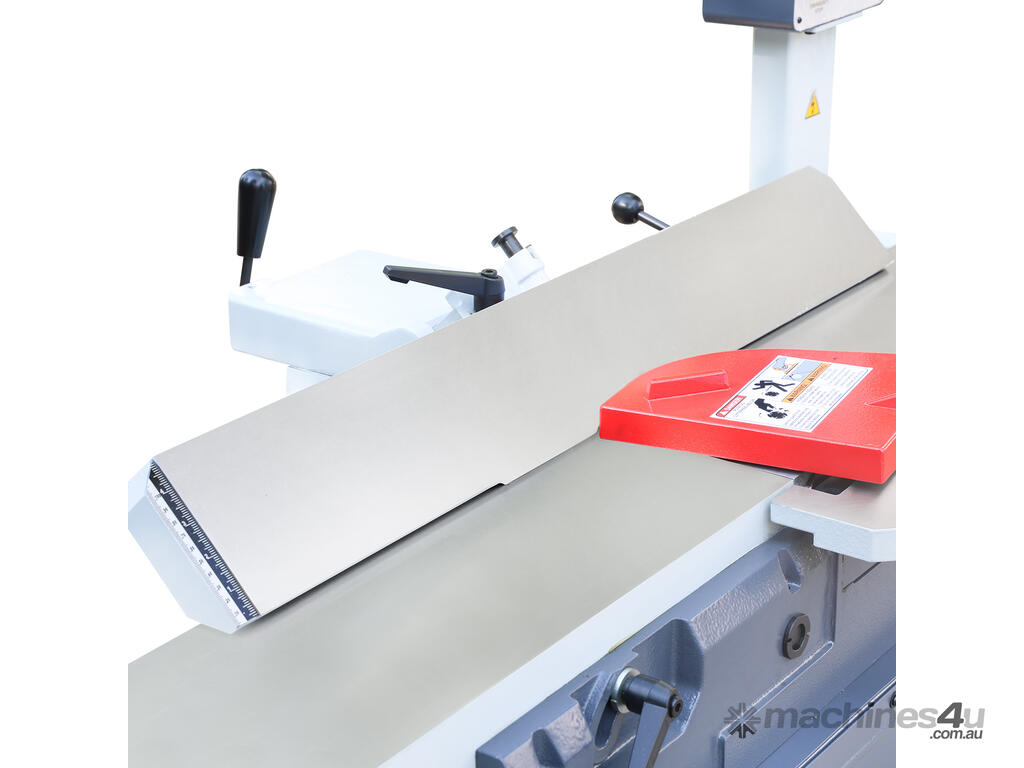

Rack-and-pinion fence for smooth and accurate angle adjustment, 45 degrees L & R

Standard with safety push blocks

Specifications
SKU 473022
Model WDP-768
Max. cutting width 200 mm
Max. cutting depth 3 mm
Min. stock length 254 mm
Min. stock thickness 12 mm
Cutter Head Spiral Cutter Head
Insert size & type 14x14x2mm, Indexable carbide
Cutter speed 4800 rpm
Fence tilt 45 degrees, Left & Right side
Table size 1930x203 mm
Fence size 915x127 mm
Packing size 103x54x82 cm (body), 206x62x34 cm (table)
N.W./G.W. 230/280 kg
