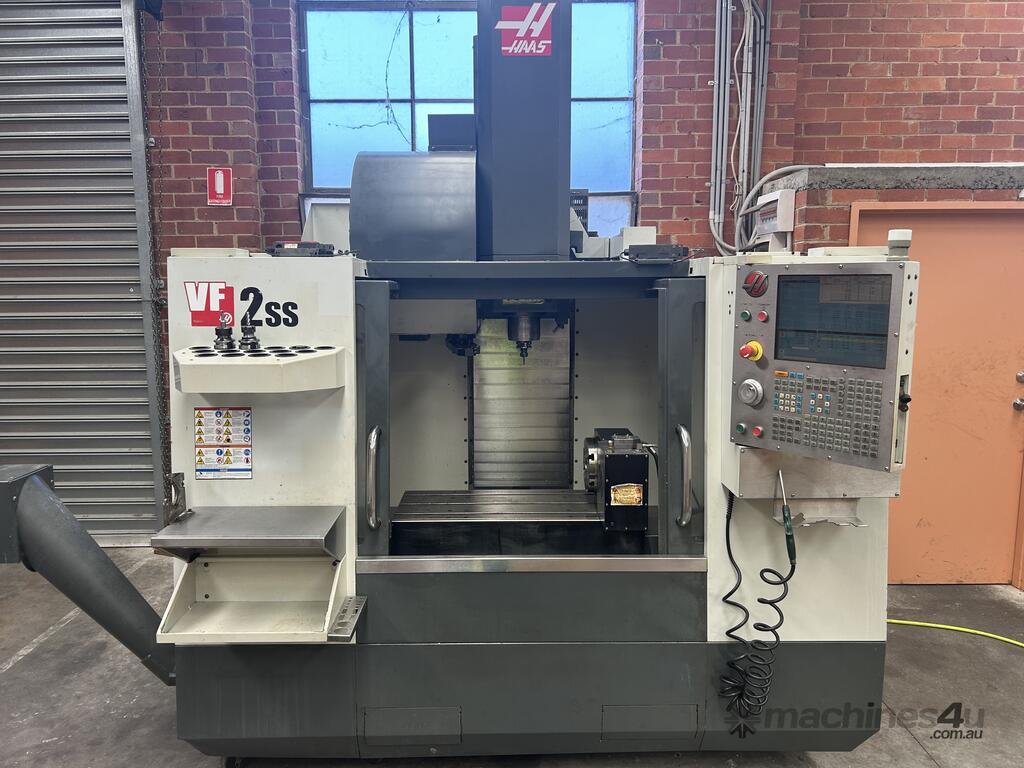

HAAS VF2SS
4th Axis function available
High speed 24+1 side mount tool changer
12000 rpm spindle
High speed machining unlocked
Machine is in great condition and has machined aluminium most of its life. Machine is still powered up and can see running
No tools or vises included
HAAS HRT210 4th axis not included, also available for sale
Freight:
Ship to Sydney: $3000 + gst
Ship to Adelaide: $3500 + gst
Ship to Brisbane: $6000 + gst
Specs:
X Axis Travel: 762mm
Y Axis Travel: 406mm
Z Axis Travel: 508mm
4th Axis available - plug and play
Rapid Rate X Axis: 35,560 mm/min
Rapid Rate Y Axis: 35,560 mm/min
Rapid Rate Z Axis: 35,560 mm/min
Table Size: 914 x 457
Max Table Load: 680kg
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 21,158 mm/min
Max Weight 680kg
Max Thrust X 905kg
Max Thrust Y 905kg
Max Thrust Z 1400kg
Chip-to-Chip 3.6 s
Coolant Cap 208L
Amps 3 Phase 35A (High)
Dimensions: 2692 x 2565 x 2565mm
Weight: 3538kg
