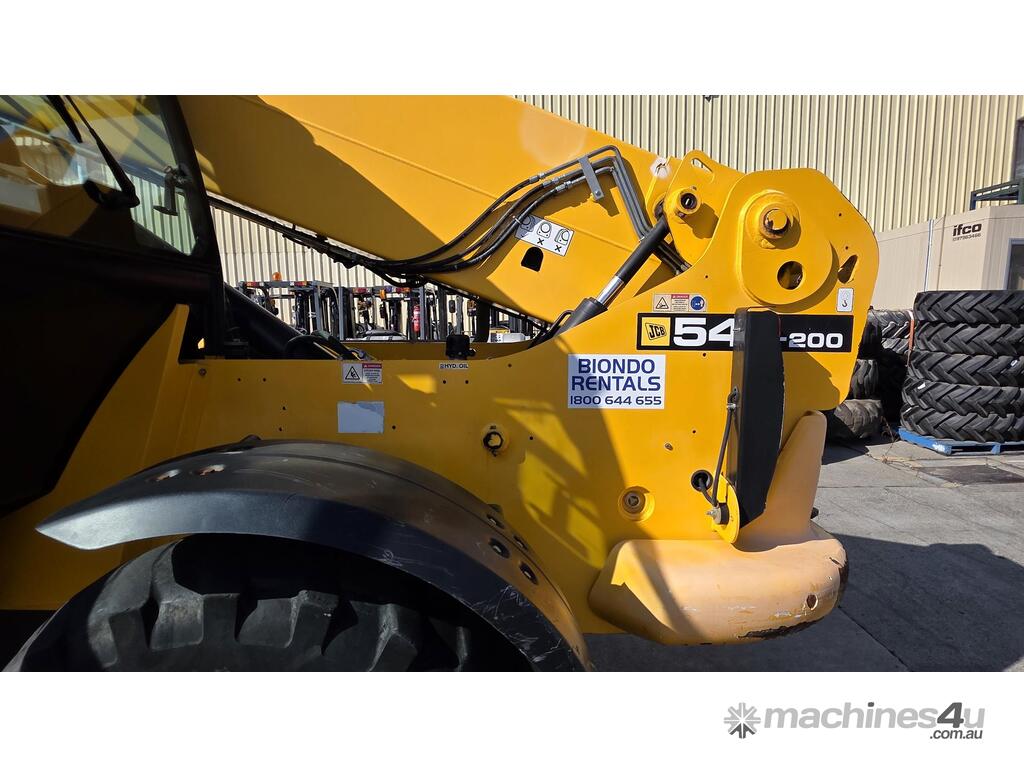

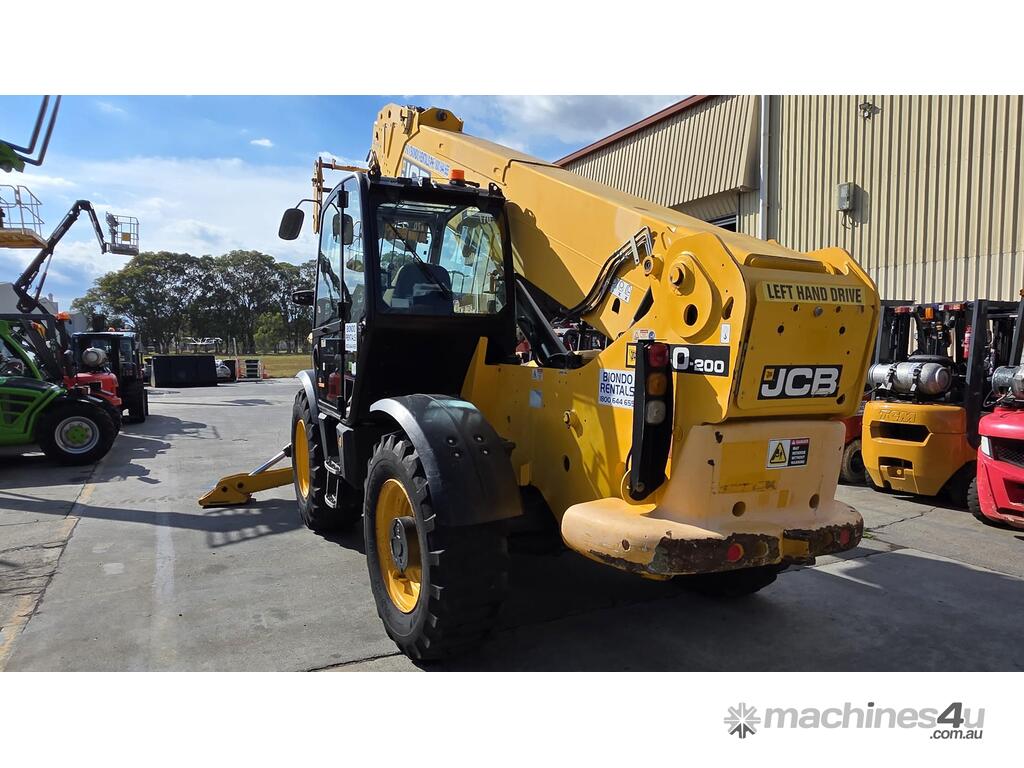

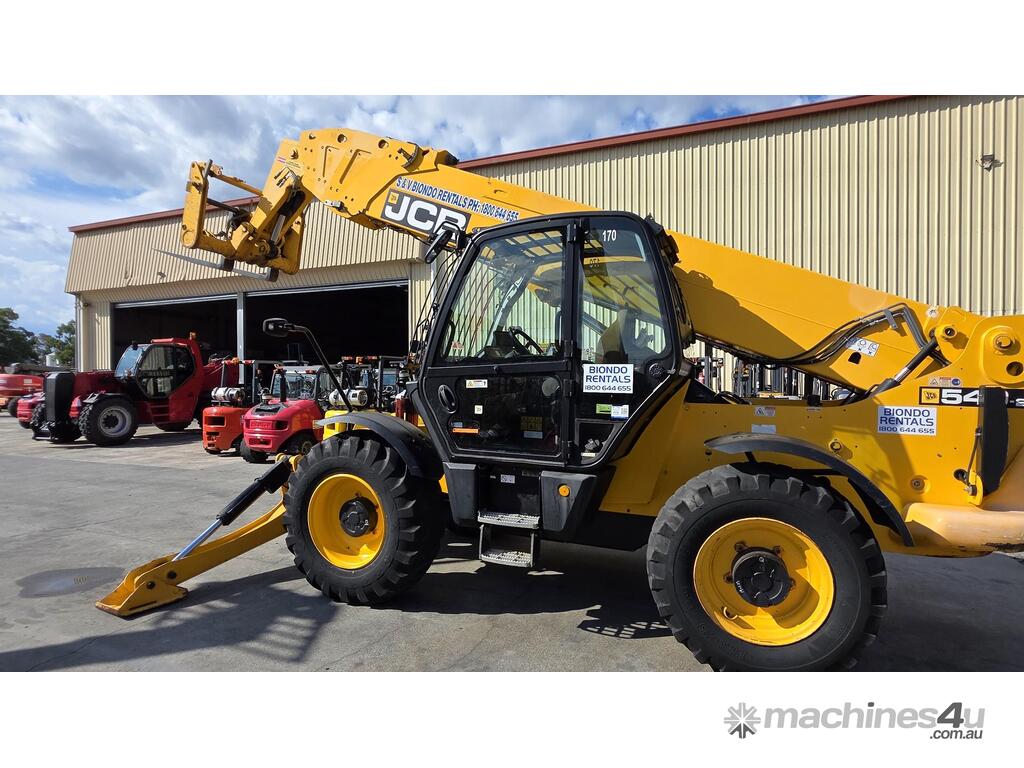

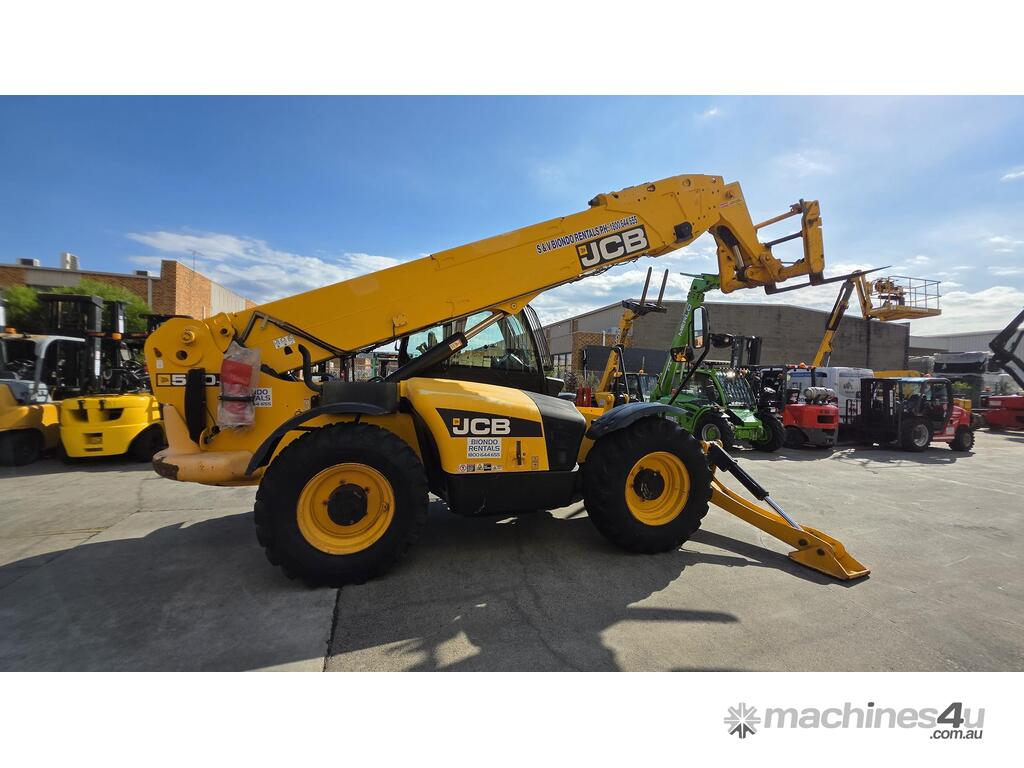

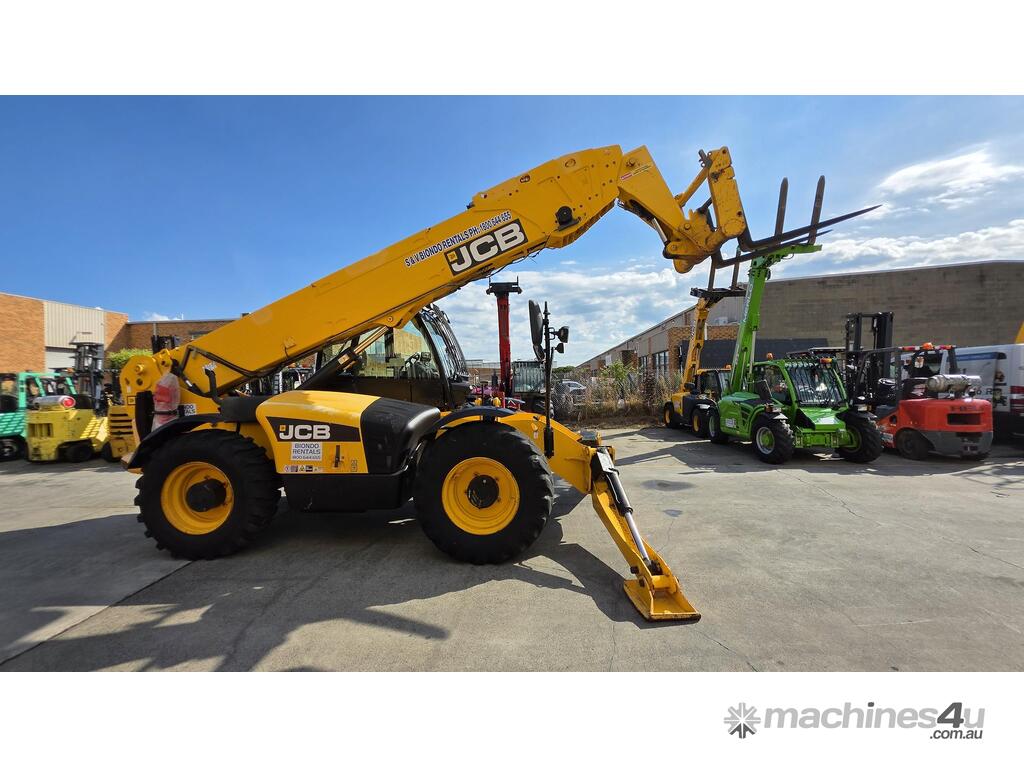

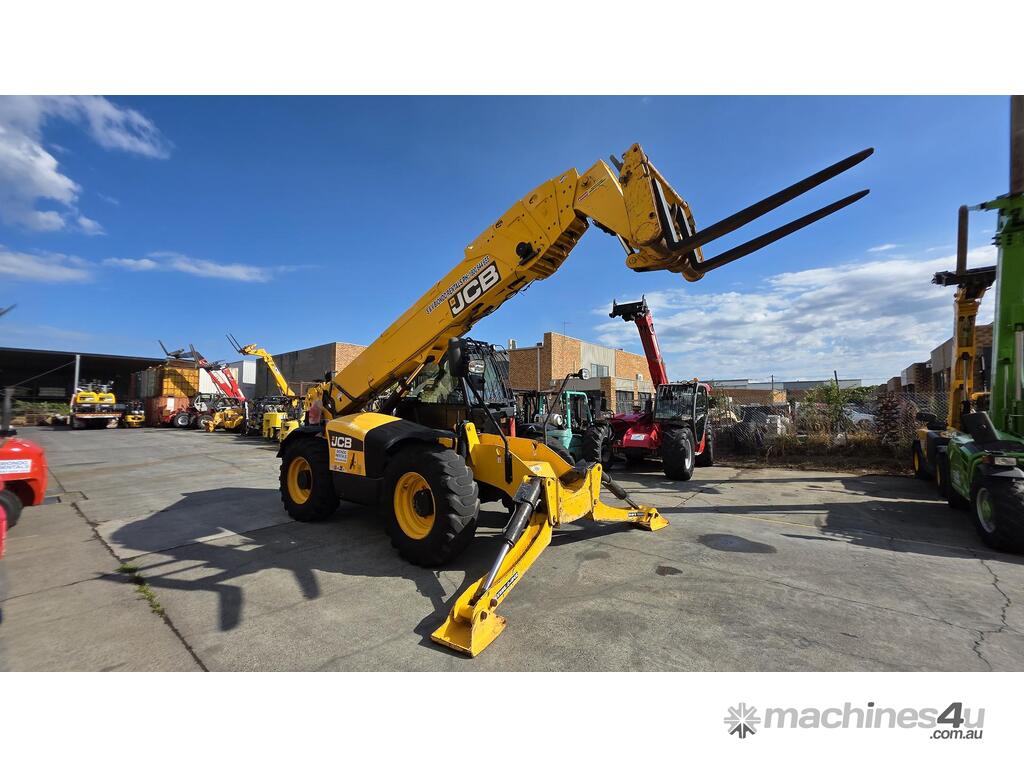

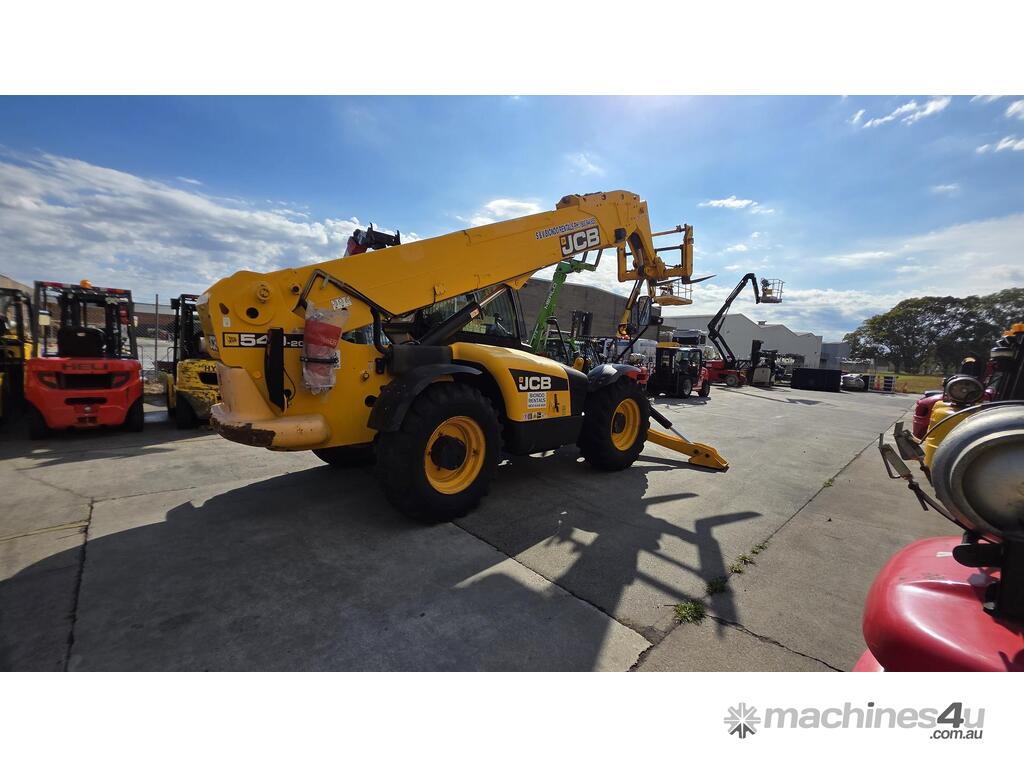

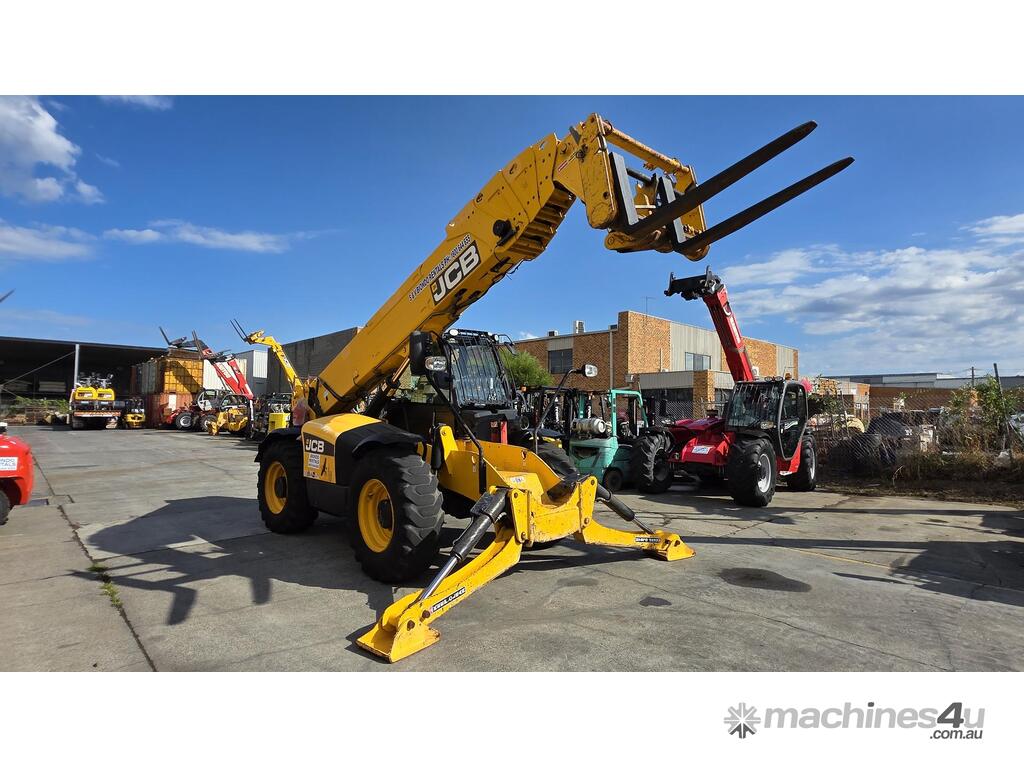

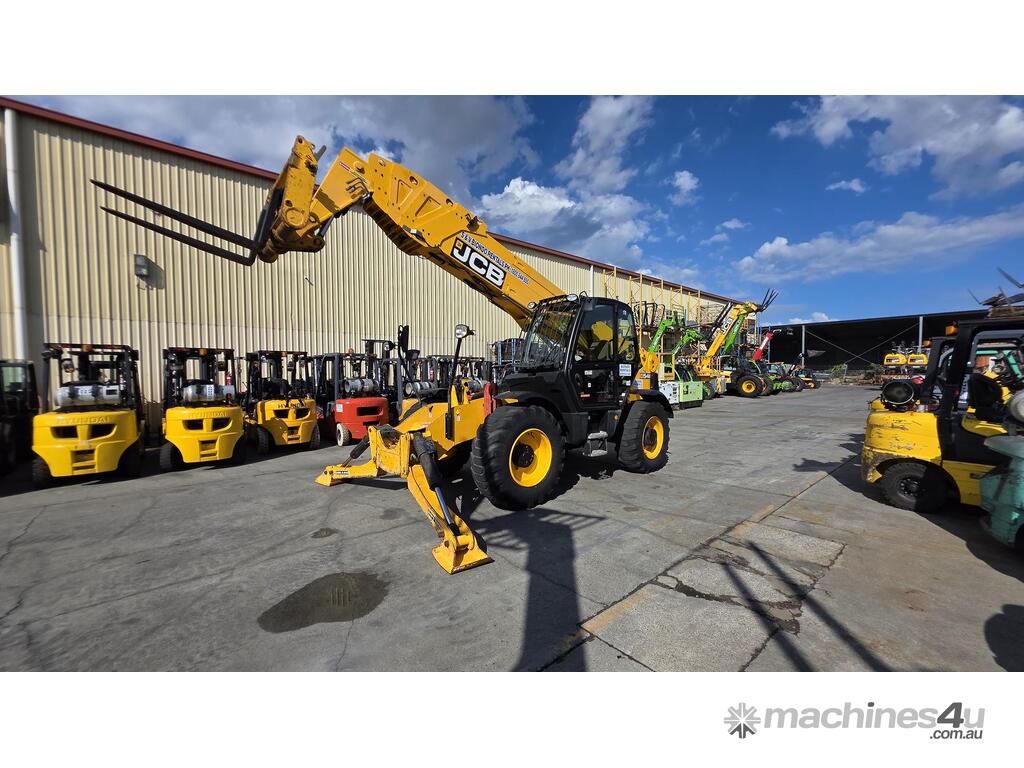

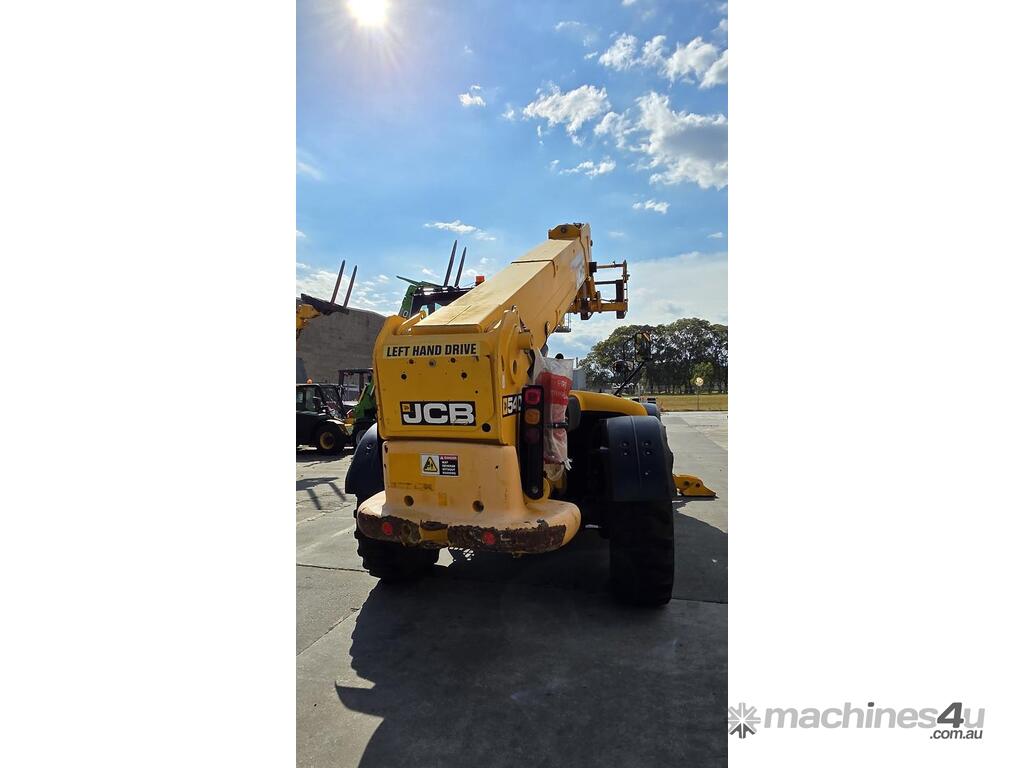

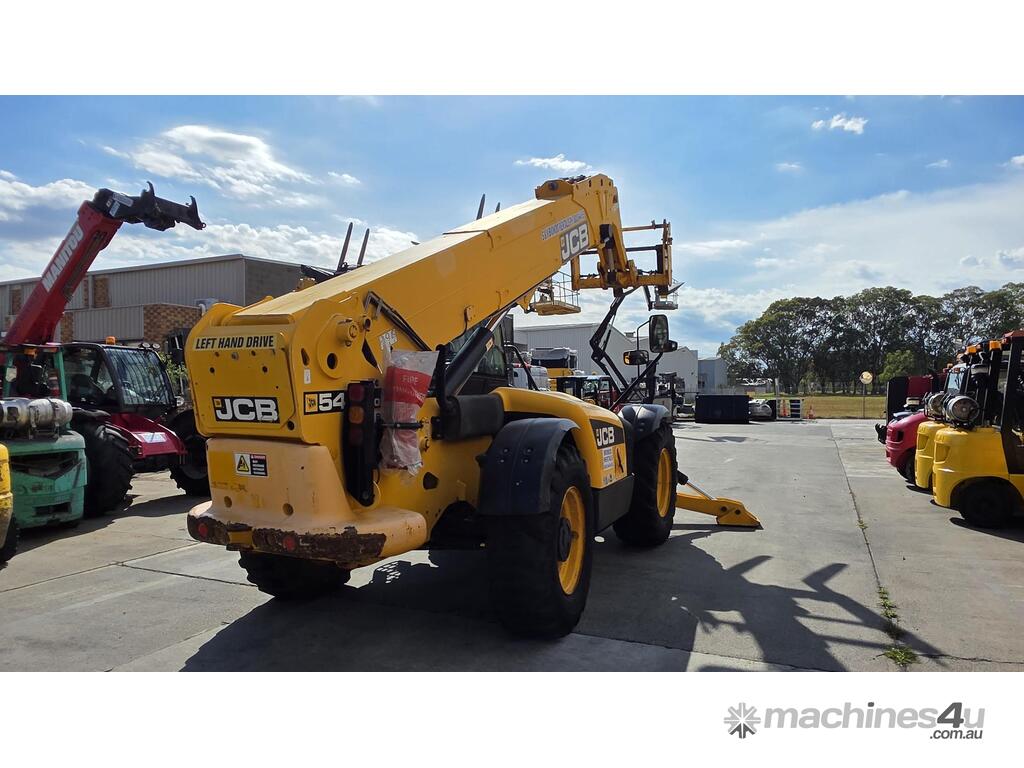

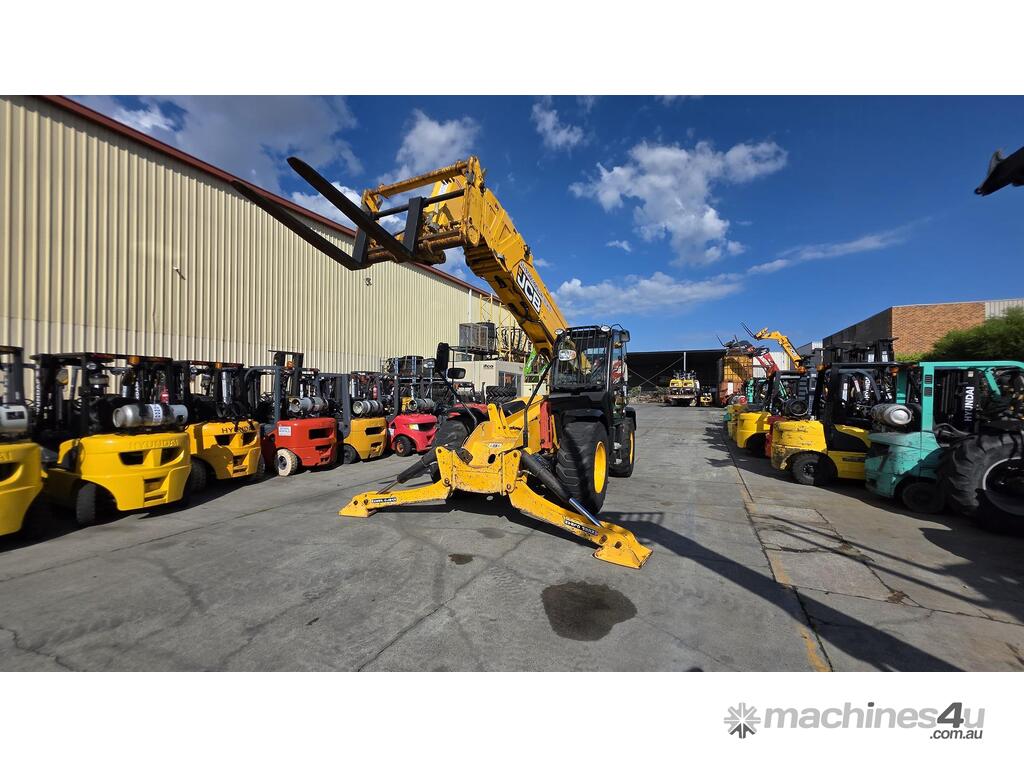

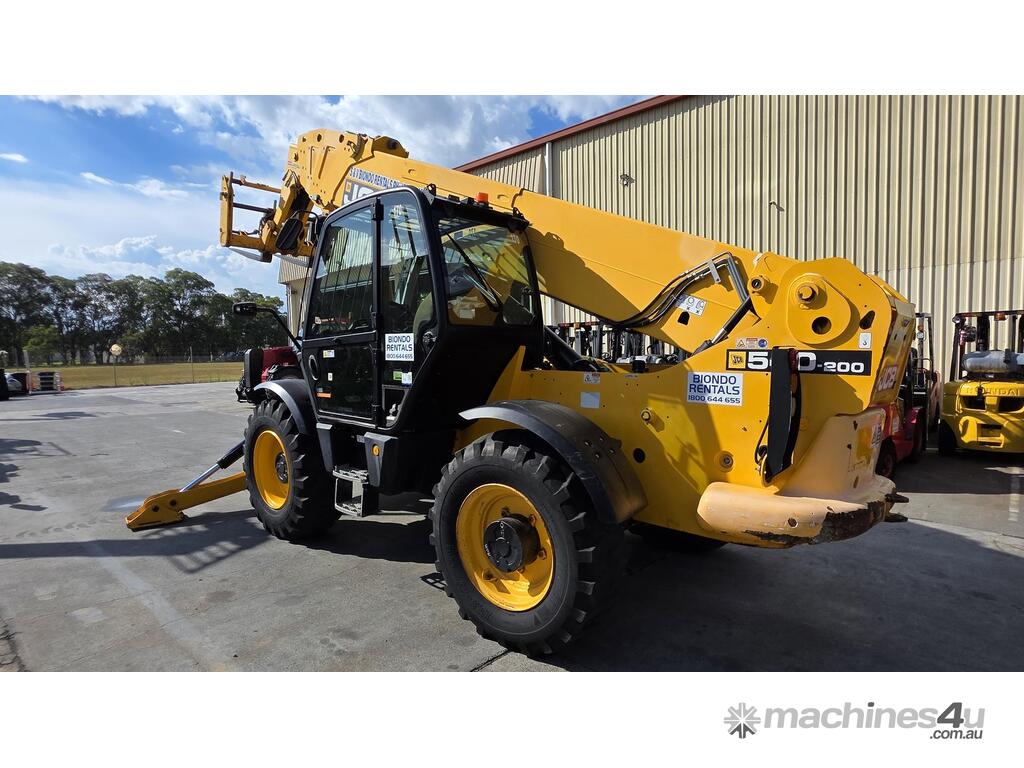

JCB 540-200 Telehandler – 20m Reach | 4-Ton Capacity | 4WD
Make: JCB
Model: 540-200
Year: 2013
Serial No.: SB320/40232U2514313
Operating Weight: 12,985 kg
Hours: 3895
This JCB 540-200 is a high-capacity, long-reach telehandler ideal for construction, infrastructure, precast, industrial maintenance and high-rise developments. With an impressive 20-metre lift height and 4-ton maximum lift capacity, this unit is built for serious material-handling performance.
Equipped with full 4WD, excellent stability and JCB’s reliable build quality, it delivers power, precision, and reach in one complete package.
Performance & Lifting
Max Lift Capacity: 4,000 kg
Lift Height: 20.0 m
Placing Height: 19.1 m
Max Forward Reach: 15.9 m
Reach at Max Lift Height: 2.82 m
Reach With 1-Tonne Load: 10.65 m
Lift Capacity at Full Reach: 200 kg
Lift Capacity to Full Height: 1,500 kg
Dimensions
Overall Height: 2.72 m
Overall Width (over tyres): 2.44 m
Overall Length (to front of carriage): 6.81 m
Wheelbase: 2.75 m
Ground Clearance: 0.41 m
Outside Turning Radius: 4.1 m

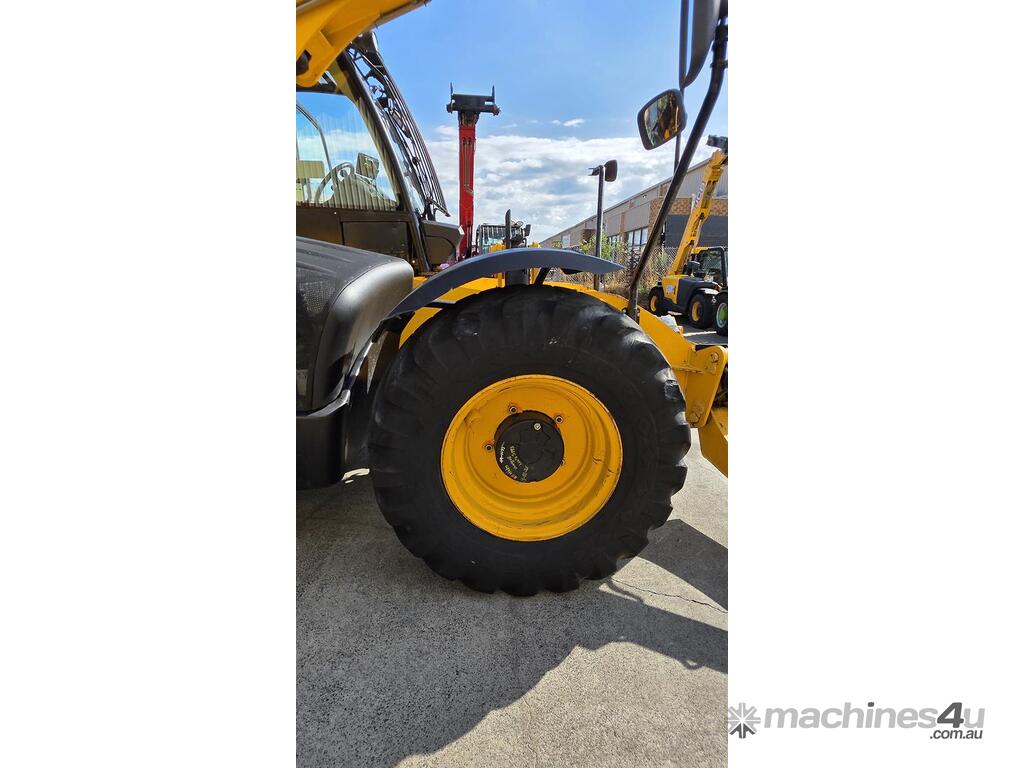

Tyres & Build
Tyre Size: 25"
Front Track: 1.97 m
Front Wheel Centre to Carriage: 2.39 m
Rear Wheel Centre to Rear Face: 1.67 m
Capacities:
Fuel Tank: 146 L

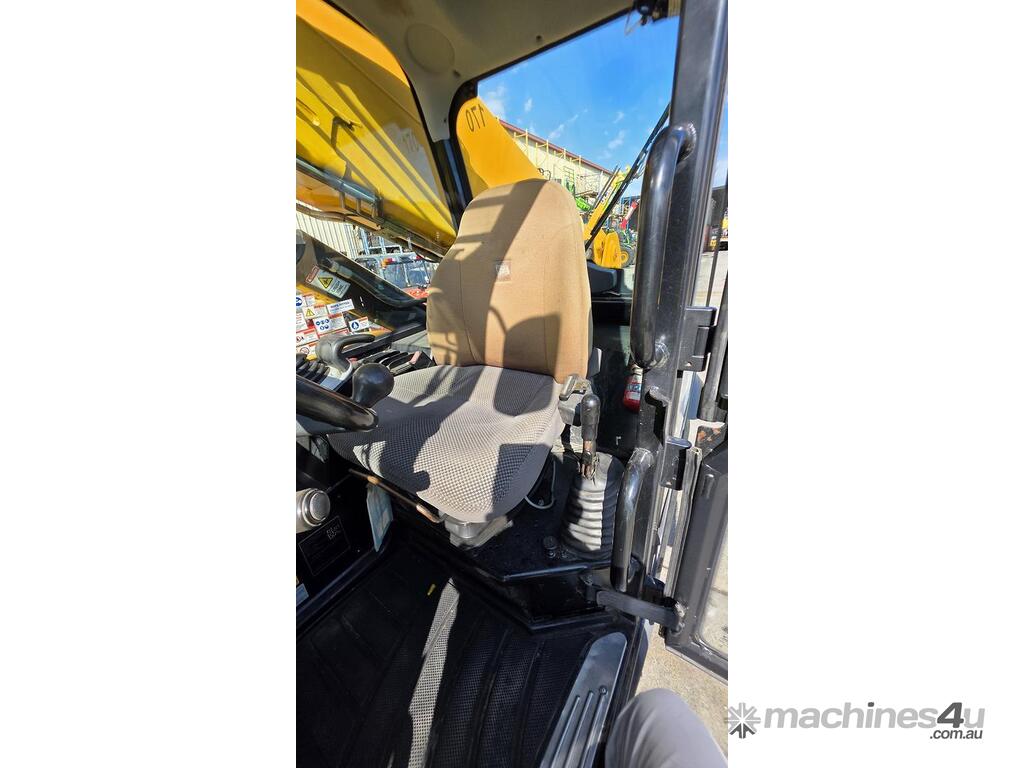

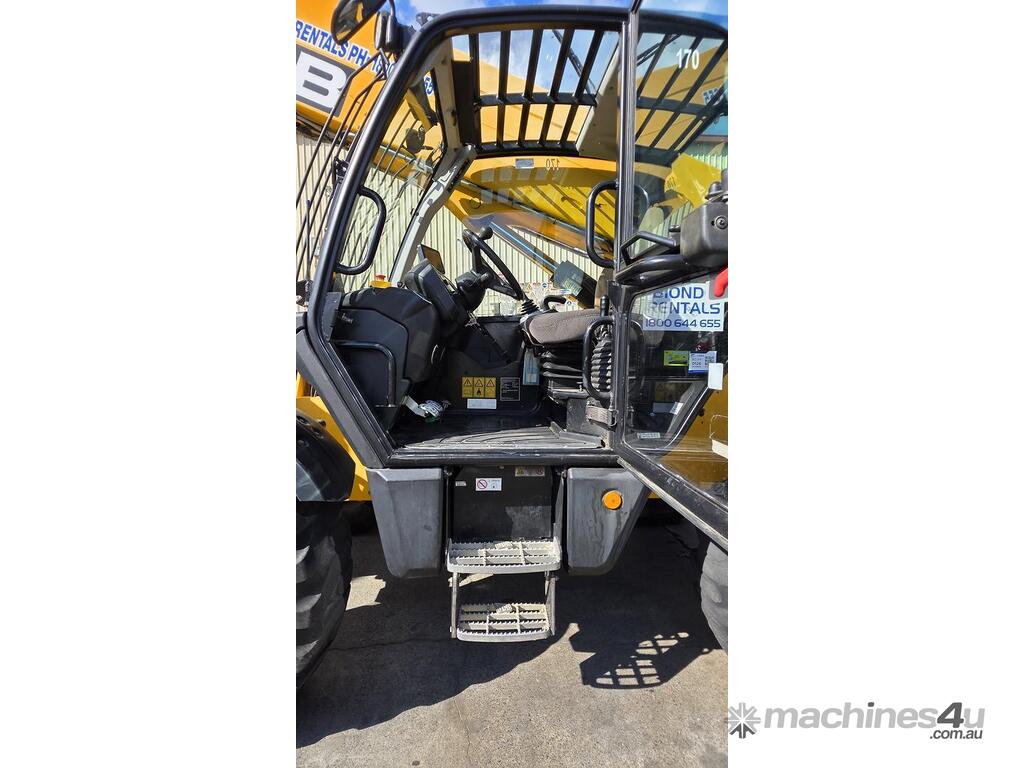

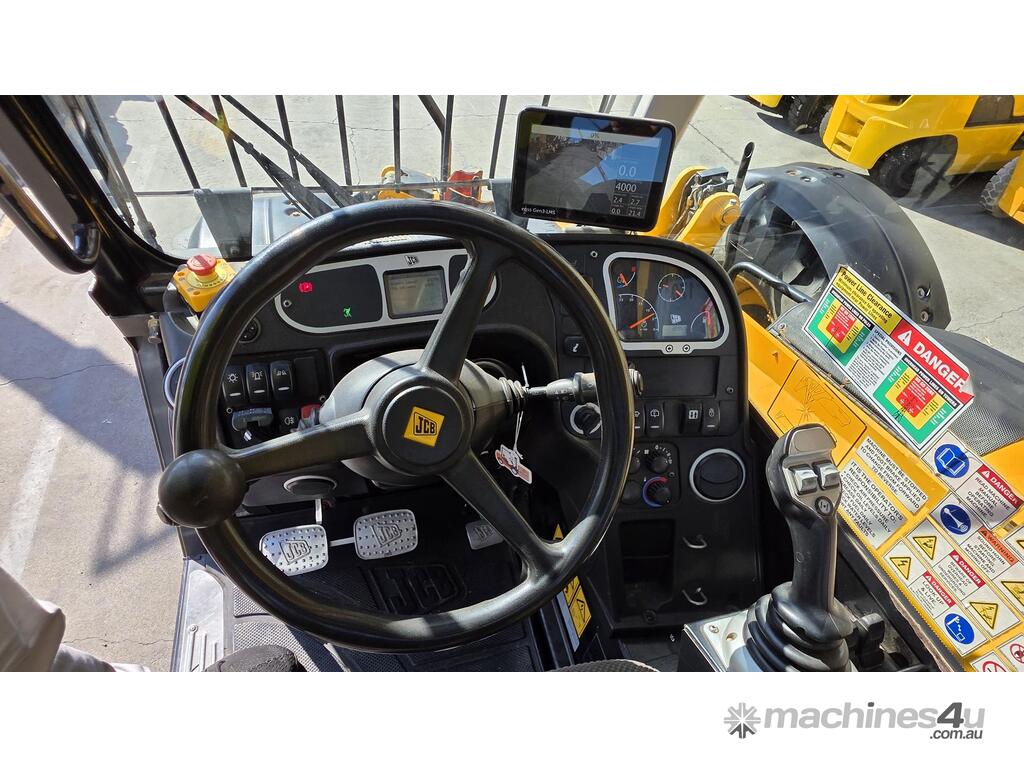

Cab & Features
Inside cab width: 0.94 m
Fitted with:
Headlights
Flashing beacon
Reverse beeper
GPS tracking unit
Condition
Well-maintained rental fleet machine
Straight, clean and work-ready
Filters listed in spec sheet (air, oil, fuel)
Full service details available on request
Ideal For
Construction sites
High-rise projects
Civil works
Precast & panel erection
Agriculture & industrial material handling
Call Rentals | Sales today to secure an inspection, request more photos, or get a transport quote.
Call Biondo Rentals | Sales today to secure an inspection, request more photos, or get a transport quote.
