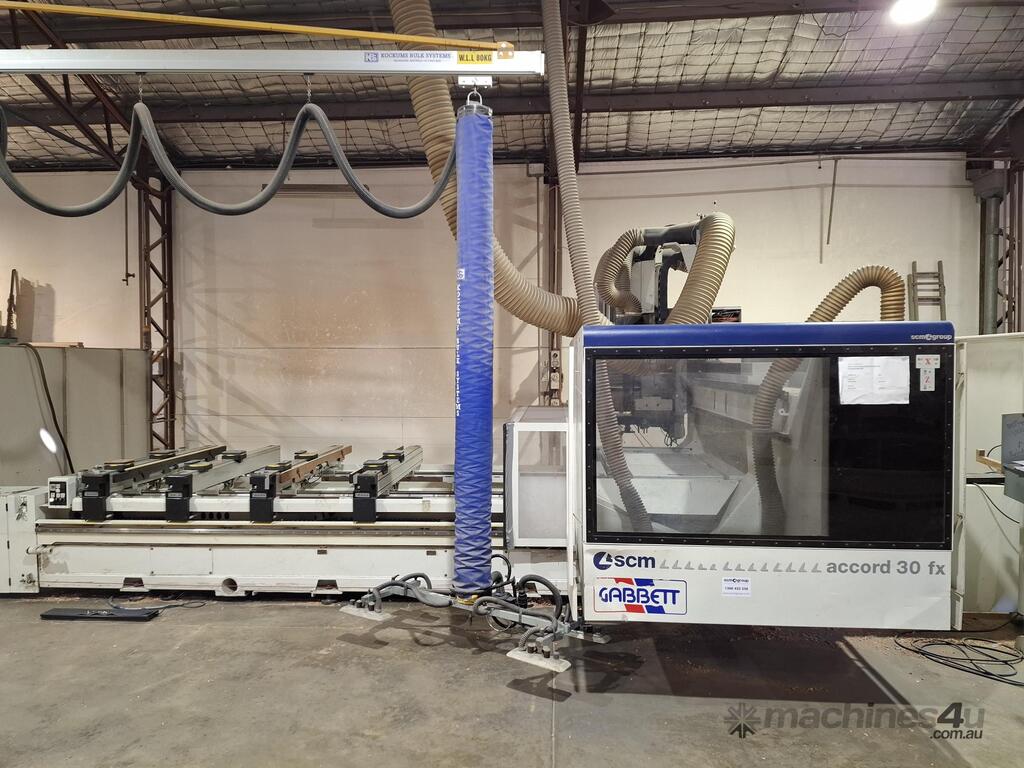

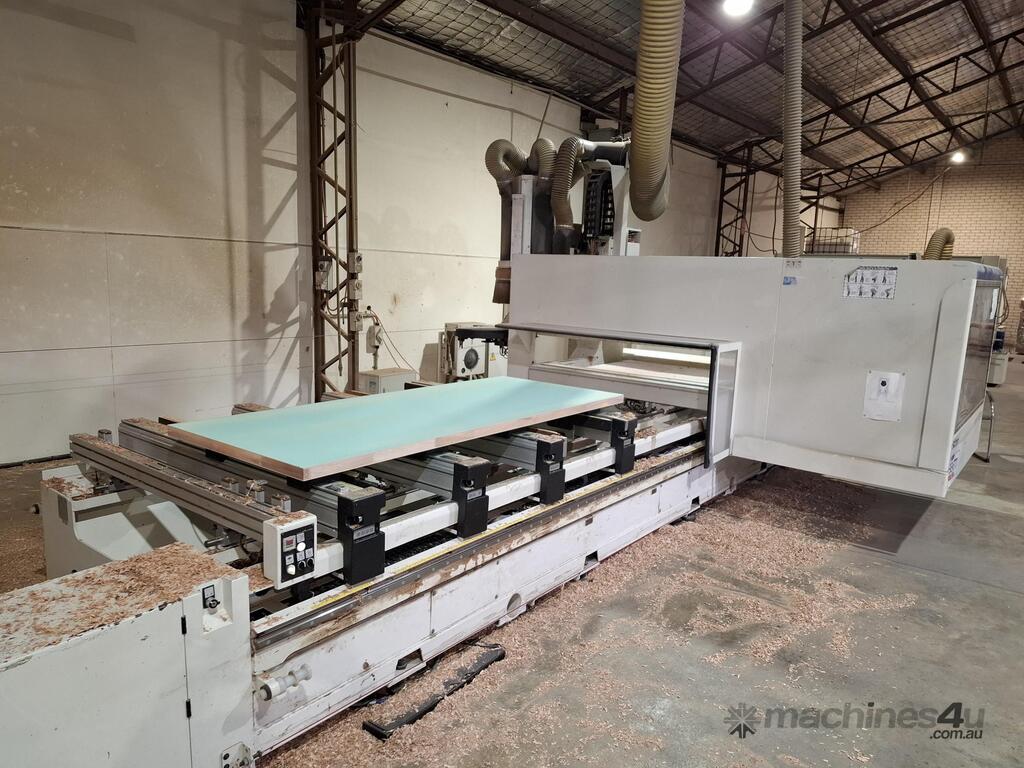

2013 SCM Accord model 30FX Heavy Duty 5 Axis CNC Router

DESCRIPTION:
Fantastic 5 axis opportunity for starting business!
A used 2013 SCM ACCORD MODEL 30FX Heavy duty 5 AXIS CNC router in very good condition, regularly serviced by SCM Group Australia.
CNC-machining centre for manufacturing windows, doors, stairs, elements of solid wood and overall for all processings where strong removal is required.
Machine can be decomissioned, delivered and installed by SCM Group Australia.
Equipment
5-axis spindle
Diverse drilling heads
Photobumpers to signal the presence of the operator

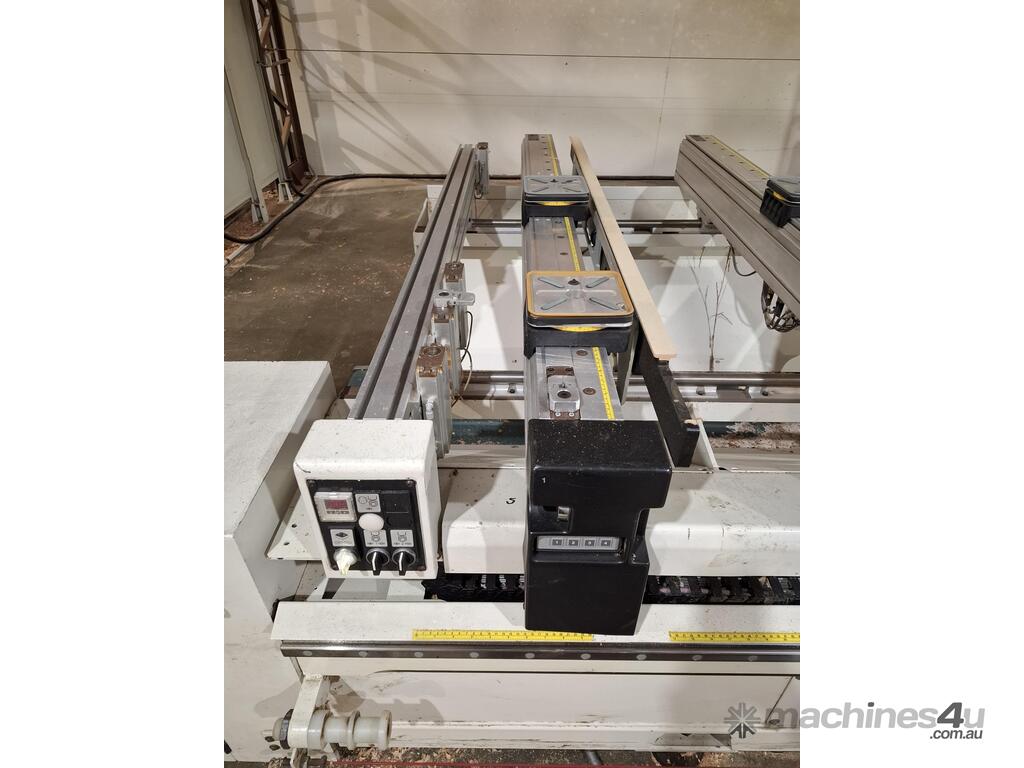

Laser line and reference stop for arches
Vacuum Pump 250 M3/H HIGH CAPACITY
Lubricating System - Consists of a centralised system for lubricant distribution, equipped with an automatic delivery pump
Dust Conveyor System
The Control unit with integrated PC with XILOG PLUS software interface.
Ergonomic Console Play & Motion
Air conditioning System

WORKTABLE SIZE & TECHNICAL DATA:
Worktable size and technical data
X axis table size 3680mm
Y axis table size 1680 mm
Component passage with accessories H=50mm 250mm

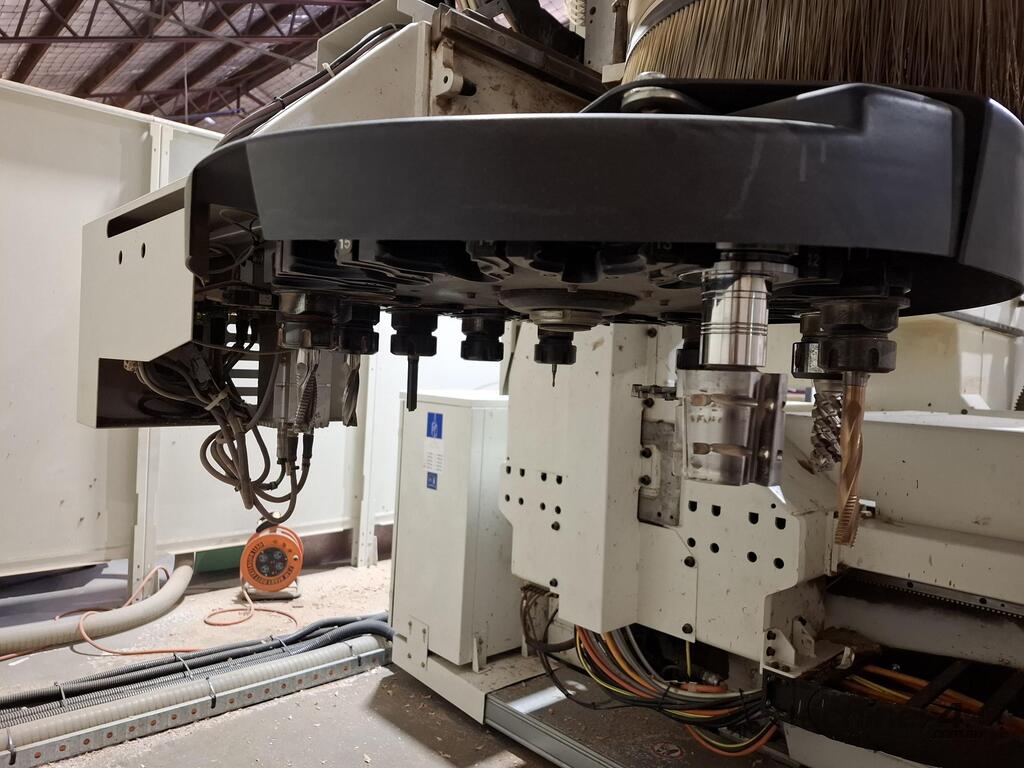

Rapid 16 Tool Change with 16 Positions at rear
F16 Drilling unit with independent vertical movement along the Z Axes
Vacuum Pump 250 M3/H HIGH CAPACITY

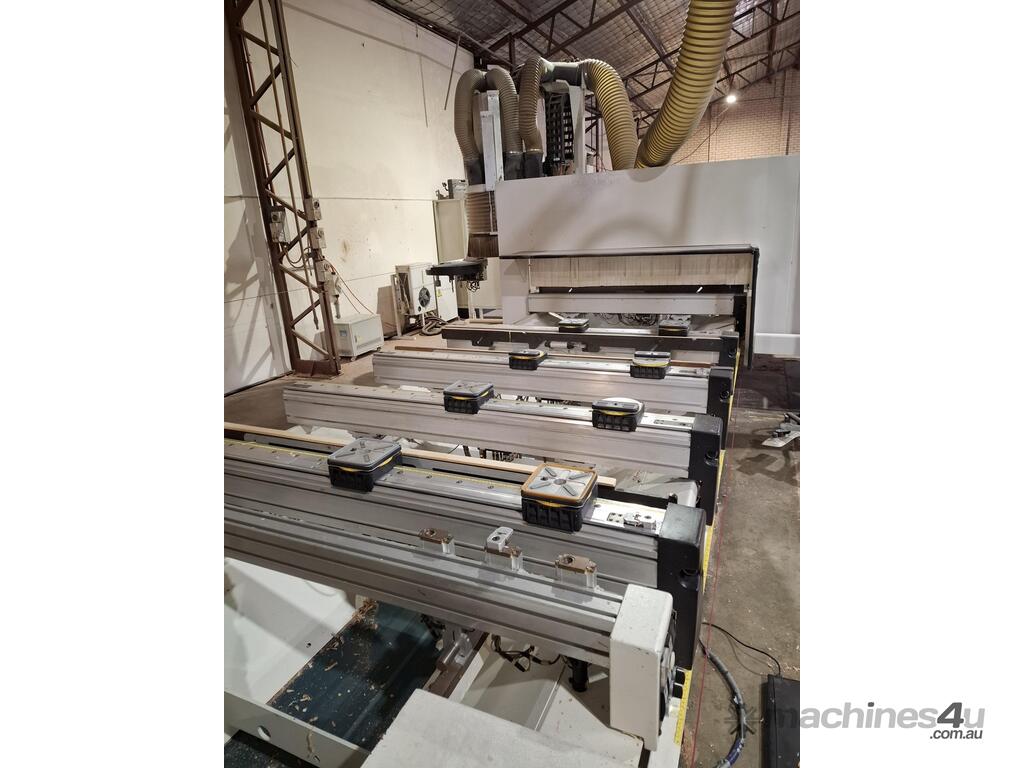

FX START Worktable L=1600mm
4 pneumatic lifting devices for heavy and big panels
ERGONOMIC Console Play & Motion is 20 cm long, weighs 750gr.
Duo Prisma K 5 axes heavy duty Electro-Spindle Routing Unit

Quick release tool holder type HSK F 63
Rotation speed 600 - 20,000 r/p/m
Power (S1) 11 kw (15 hp)
Maximum power at 7,500 rpm 7 kw (9.5 hp)
Maximum power at 15,000 rpm 11 kw (15 hp)
Inverter 15 KW
C axis stroke 640°
B axis stroke 270°
C-axes equipped with TTS locking System (Total
Torque System – SCM patent)
Lubricated for life
Right and left rotation
Static inverter for stepless speed and rapid shutdown
of rotation
Liquid cooling with forced circulation though a heat exchange

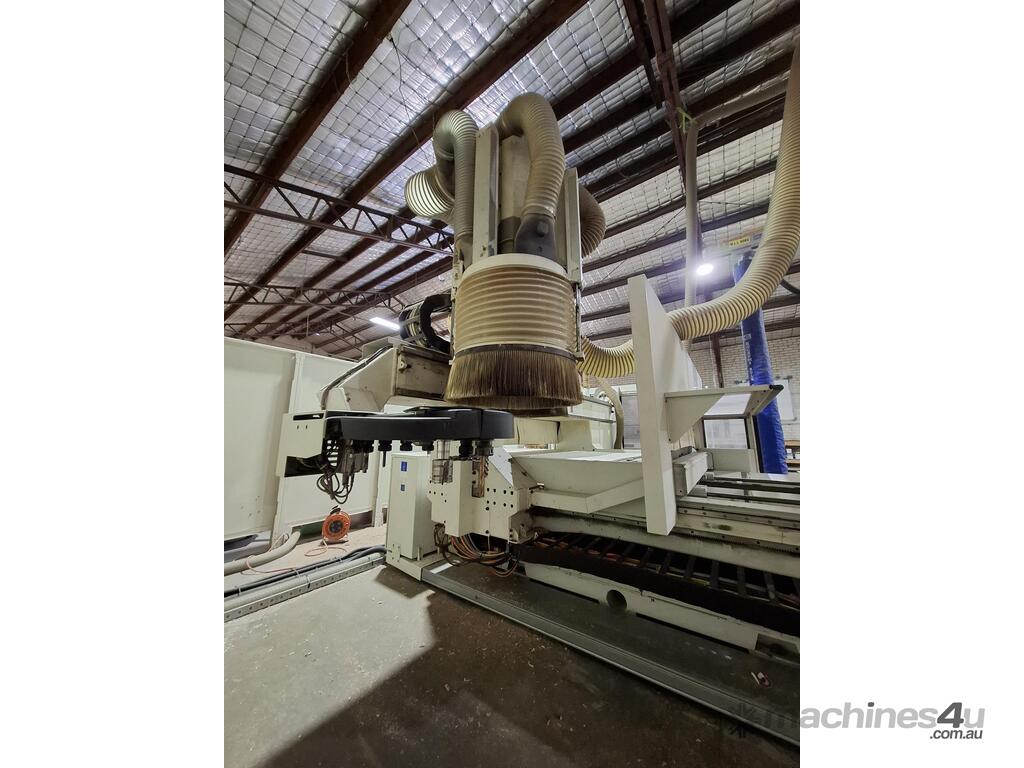

Automatic exhaust hood with several positions and ON-OFF by work piece program.
Centralized exhaust system with automatic air flow activation/disactivation on working units present with a 250 mm outlet

If you would like to purchase this machine or have any enquiries please contact Jiri George Cycon on .
