2015 Caterpillar 930K

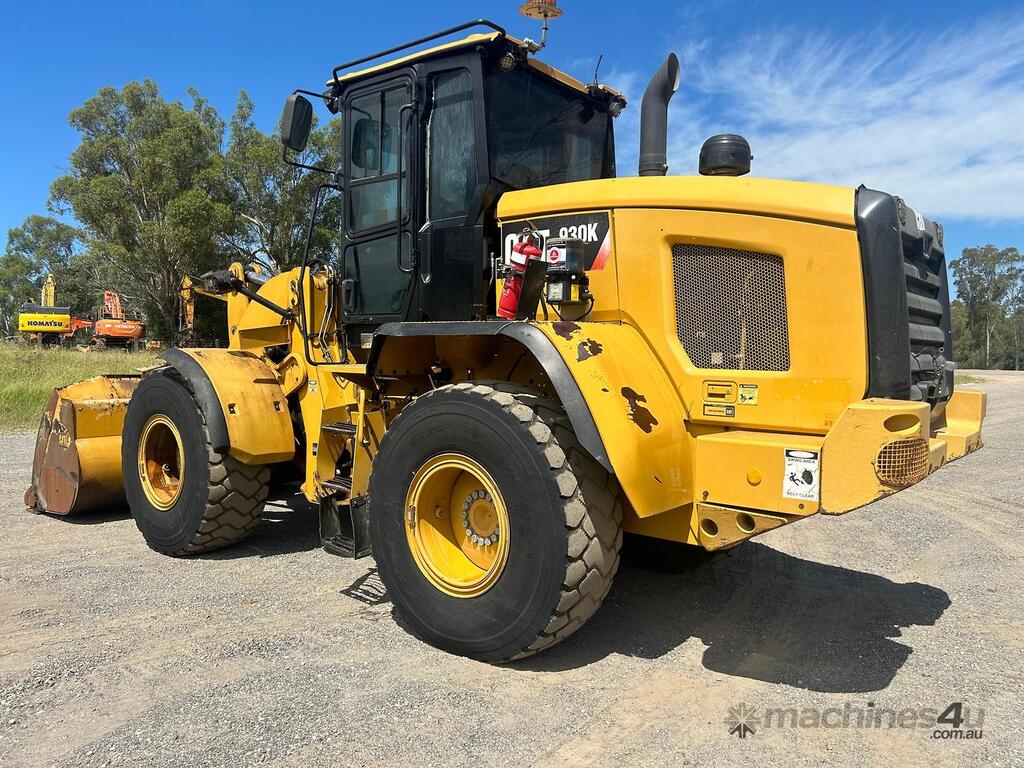

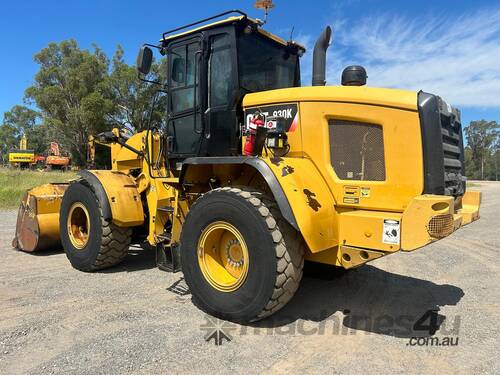

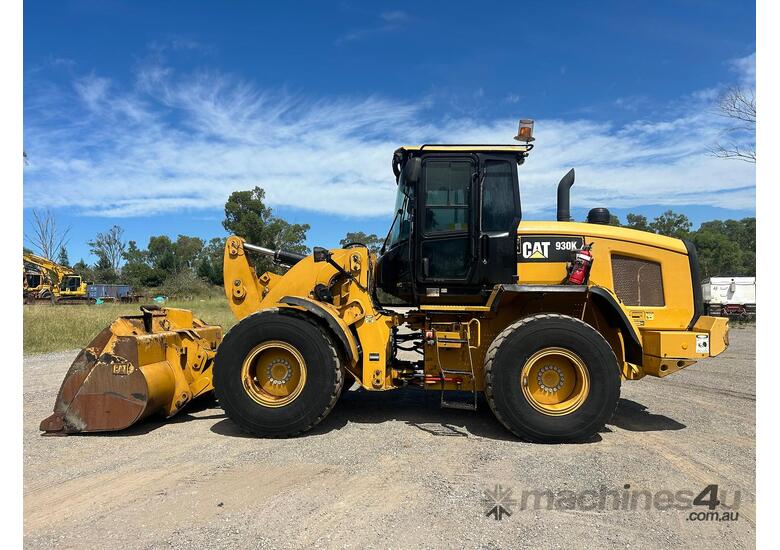

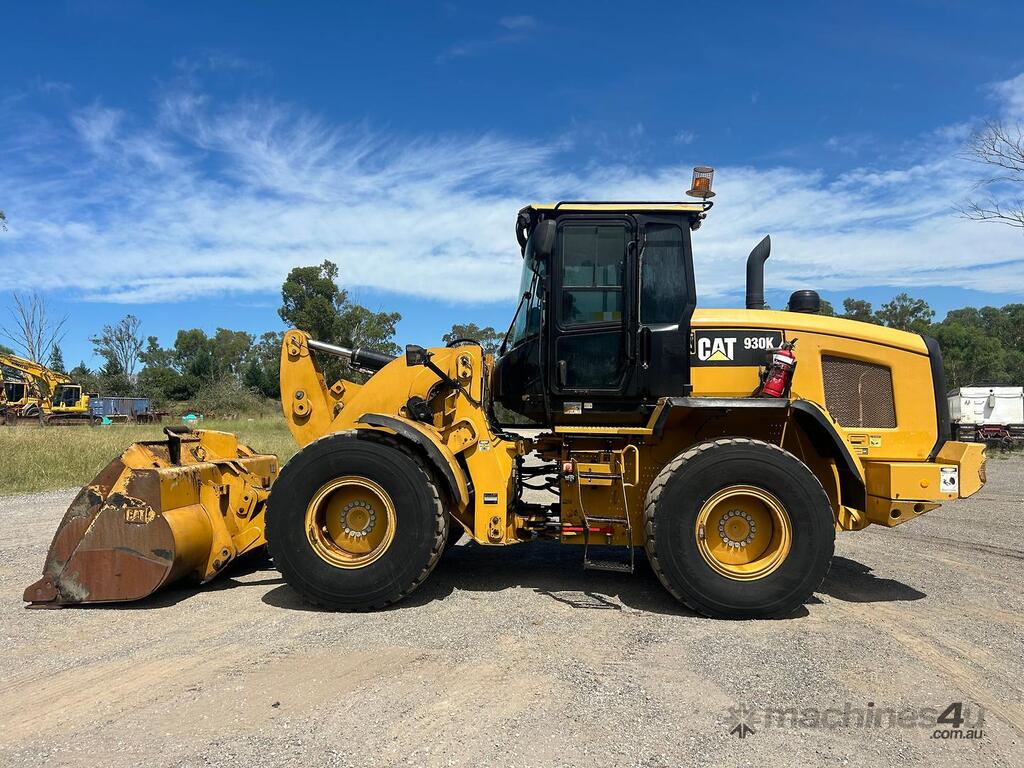

2015 Caterpillar 930K Wheel Loader

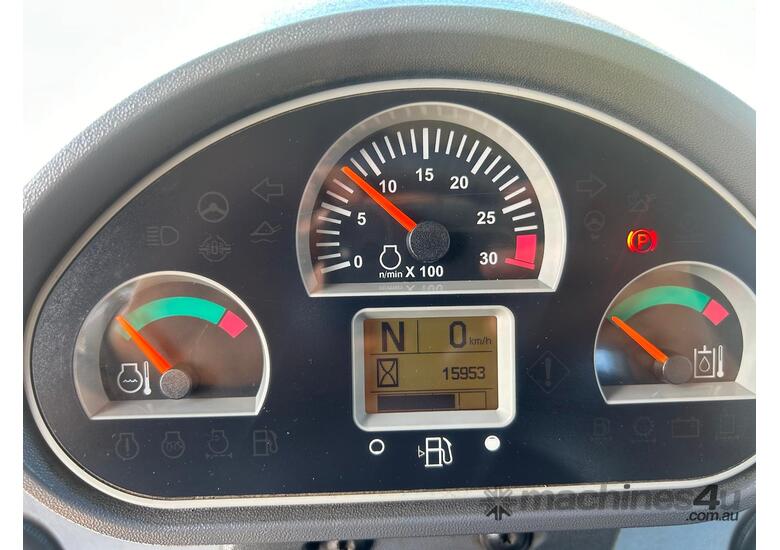

15,953 Hours

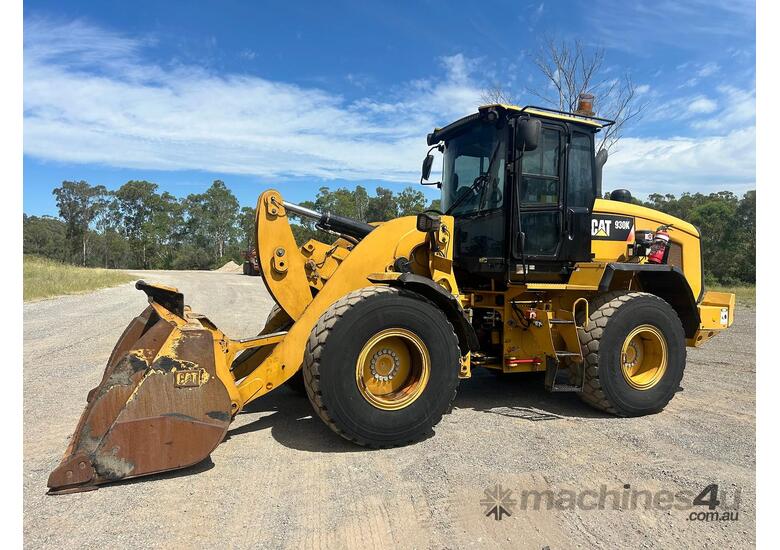

- General Purpose Bucket

Tidy Wheel Loader for the age and hours!

$69,500 + GST Ex Sydney
Can arrange Freight country wide!


Dimensions
Dimensions
Bucket Pin Height - Maximum Lift
12.8ft in

Carry Height
1.5ft in

Centerline Of Front Axle To Hitch
4.91ft in

Digging Depth
3.8in

Dump Angle At Maximum Lift
49degrees

Dump Clearance At Maximum Lift - 45 Degrees
9.25ft in

Height - Center Of Axle
2.21ft in

Height - Top Of Rops/Fops
10.9ft in

Length - Rear Axle To Bumper
6.5ft in

Overall Height - Bucket Raised
16.8ft in

Overall Length
24.66ft in

Rack Back Angle - Carry
45degrees

Rack Back Angle - Maximum Lift
54degrees

Reach At Maximum Lift And 45 Degrees Dump
3.4ft in

Wheel Base
9.81ft in

Specifications
Engine
Number Of Cylinders
6

Engine Make
2236

Engine Model
C7.1 ACERT

Net Power
152hp

Gross Power
154hp

Max Torque
580lb ft

Displacement
402cu in

Net Torque
551lb ft

Bore
4in

Stroke
5in

Eec 80/1269
156hp

Rated Net Power
154hp

Sae J1349
154hp

Iso 9249 (1997)
156hp

Operational
Operating Weight
28948lb

Fuel Capacity
51.5gal

Hydraulic System Fluid Capacity
43.6gal

Cooling System Fluid Capacity
8.5gal

Transmission Fluid Capacity
2.2gal

Front Axle/Diff Fluid Capacity
6.9gal

Rear Axle/Diff Fluid Capacity
6.9gal

Tire Size
20.5

Transmission
Number Of Forward Gears
4

Number Of Reverse Gears
4

Max Speed - Forward
25mph

Max Speed - Reverse
25mph

Forward - 1
8mph

Reverse - 1
8mph

Steering
Steering Angle - Each Direction
40degrees

Steering Cylinder, Two, Bore
2.8in

Maximum Working Pressure
3500 psi

Steering Articulation
40degrees

Transmission
2
8mph

3
17mph

4
25mph

Standard Transmission Maximum Travel Speeds
25mph

Weights
Operating Weight
30479lb

Tires
Size
20.5 R25, radial (L-3)

Buckets
Bucket Capacities
2.1 m3 - 5.0 m3 2.7 yd3 - 6.5 yd3

Hydraulic System
Relief Valve Setting
3626psi

Pump Flow Capacity
50gal/min

Raise Time
5.7sec

Dump Time
1.7sec

Lower Time
2.7sec

Operating Specifications
Static Tipping Load - Full Turn
18444lb

Articulation Angle
40degrees

Reach - Full Lift And 45 Degrees Dump
3.4ft in

Dump Clearance At Full Lift And 45 Degrees Dump Angle
9.3ft in

Service Refill Capacities
Cooling System
7.9gal

Fuel Tank
51.5gal

Crankcase
5.3gal

Hydraulic Tank
23.8gal

Hydraulic System - Including Tank
43.6gal

Transmission
2.2gal

Front
6.9gal

Rear
6.6gal

Cab
Rops
SAE J1040 MAY94, ISO 3471-1994

Fops
SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II

Loader Hydraulic System
Pump Flow - Implement Pump
50 gal/min

Maximum Working Pressure
3626 psi

Raise
5.1 s

Dump
1.5 s

Lower, Empty, Float Down
2.7 s

Total
9.3 s

Bore (1)
4.7in

Stroke (1)
28.7in

Bore (2)
5.9in

Stroke (2)
21.9in

Hydraulic Cycle Time
9.3 sec
