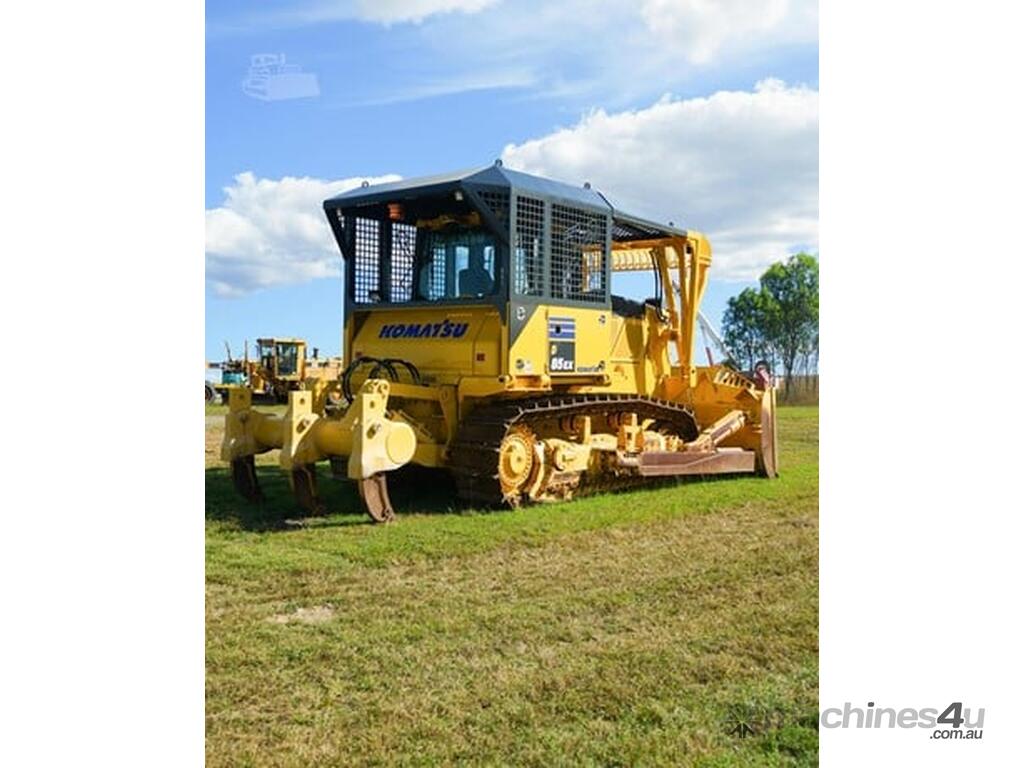

2015 KOMATSU D85EX-18 Crawler Dozers

Year
2015
Manufacturer
KOMATSU
Model
D85EX-18
Hours
360
Condition
Used
Description
Komatsu D85EX-18

Genuine Low 360 Hours
Semi U/ Sigma Blade with Dual Pitch
Multi Shank Ripper
Brand New Canopy manufactured by Shawx

We have a Brand New ShawX Manufactured Folding stick rake designed for this machine in stock available to purchase at additional cost.

Located Ipswich, Inspections Welcome
Price is plus GST

Torque converter dozers for your heavy jobs
Need a larger powerful dozer that’s still cost efficient? The D85EX-18 is a great choice. You’ll appreciate its 11-liter engine, large capacity power-pitch blade, fuel efficient automatic shift transmission and economical PLUS (Parallel Link Undercarriage System) rotating bushing undercarriage option.

Engineered for powerful dozing
Excellent blade capacity
Quiet cab with smooth ride and great visibility
Automated blade control with iMC

Model Komatsu SAA6D125E-7*
Type 4-cycle, water-cooled, direct injection
Aspiration Komatsu variable geometry turbocharged, air-to-air aftercooled
No. of cylinders 6
Bore x stroke 4.49 x 5.69 in
Piston displacement 674 in³
Governor All-speed and mid-range, electronic
Horsepower:
SAE J1995 / Gross 267 HP
ISO 9249 / SAE J1349* / Net 264 HP
Rated rpm 1,900 rpm
Fan drive type Hydraulic
Lubrication system:
Method Gear pump, force lubrication
Filter Full-flow

Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth protects seals and improves durability.

Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.
Hydraulic control units:
All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 87.4 US gpm at rated engine rpm.
Relief valve setting 3,270 psi
Control valves:
Spool control valves for SIGMADOZER®, semi-u tilt or straight tilt dozer
Blade lift Raise, hold, lower, and float
Blade tilt Right, hold, and left
Rear attachment Raise, hold, and lower


uel tank 124.1 US gal
DEF tank 6.2 US gal
Coolant 17.2 US gal
Engine 10.0 US gal
Damper case 0.42 US gal
Torque converter, transmission, bevel gear, and steering system 15.8 US gal
Final drive (each side) 9.5 US gal
Hydraulic oil capacity (refill): 18.2 US gal
Ripper equipment (additional volume):
Multi-shank ripper 2.9 US gal

Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn.

Hydrostatic Steering System (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counterrotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.

Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase and a planetary gear, multipledisc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.

Travel speed: Forward: Reverse:
1st 2.1 mph 2.7 mph
2nd 3.8 mph 5.0 mph
3rd L 4.8 mph 5.7 mph
3rd 6.3 mph 8.1 mph

Suspension Oscillating equalizer bar and pivot shaft
Track roller frame Monocoque, large section, durable construction
Rollers and idlers Lubricated
Track shoes Lubricated tracks. Unique seals prevent entry of foreign abrasive material into pin to bushing clearances to provide extended service life. Track tension is easily adjusted with grease gun.
Number of track rollers (each side) 7
Type of shoes (standard) Single grouser
Number of shoes (each side) 41
Grouser height 2.8 in
Shoe width (standard) 26 in
Ground contact area
(ISO 16754) 7,120 in²
Ground pressure (tractor)
(ISO 16754) 7.5 psi
Track gauge 6 ft. 7 in
Length of track on ground 10 ft.



Tractor weight:
Including ROPS cab, rated capacity of lubricant, hydraulic control unit, coolant, full fuel tank, operator, and standard equipment. 53,770 lbs.
Operating weight:
Including SIGMADOZER® and fixed multi-shank ripper (EX) or straight tilt dozer and long drawbar (PX) ROPS cab, operator, standard equipment, rated capacity of lubricant, hydraulic control unit, coolant, and full fuel tank. 68,165 lbs.
