2017 HYUNDAI 33LF-7 LPG FORKLIFT – 3.3T – CONTAINER MAST 4.7M – SIDESHIFT – 5,368 HRS

2017 HYUNDAI 33LF-7 LPG FORKLIFT 3.3T CONTAINER MAST 4.7M / SIDESHIFT / FORK POSITIONING / 5,368 HRS

2017 Hyundai 33LF-7 LPG forklift configured with container mast, integrated sideshift, fork positioning and heavy-duty solid tyres.

This is a serious 3.3 tonne unit designed for freight yards, steel handling, transport depots and industrial warehouse applications requiring higher lift capacity and robust drivetrain strength.

SPECIFICATIONS:

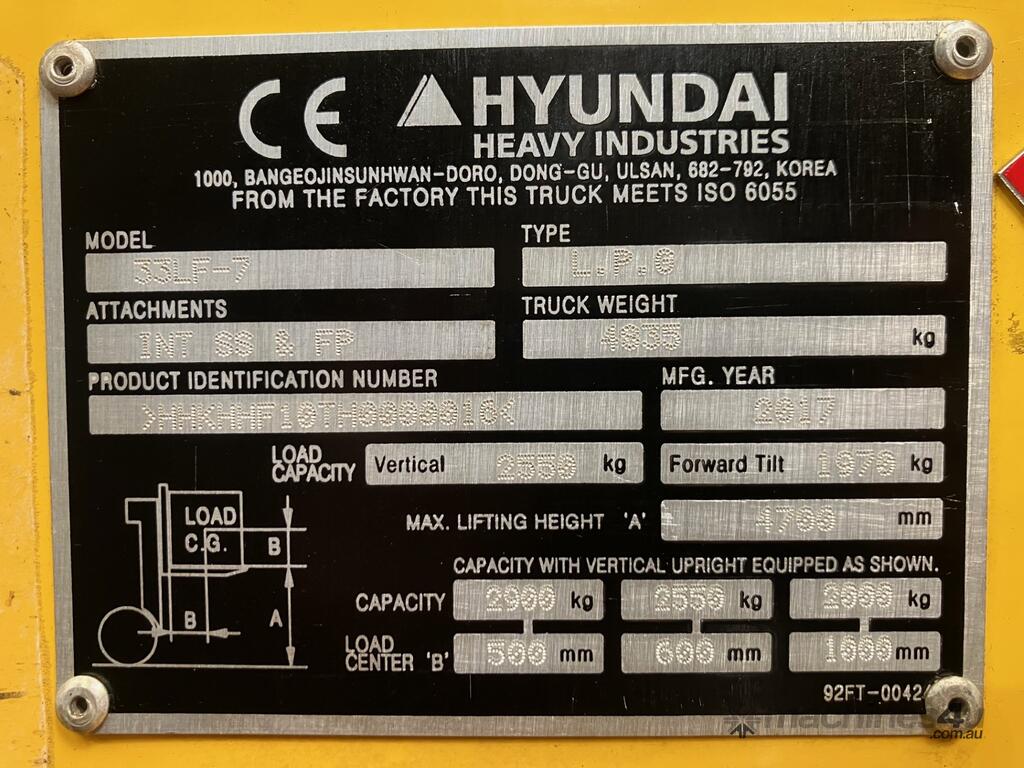

Make: Hyundai Heavy Industries
Model: 33LF-7
Year of Manufacture: 2017
Serial / PIN: HHKHF19TH00000184
Fuel Type: LPG
Rated Capacity: 3,300kg 500mm load centre
Forward Tilt Capacity: 1,979kg
Max Lifting Height: 4,705mm (Container Mast)
Truck Weight: 4,935kg
Engine Hours: 5,368.8 hrs
Tyres: Front: 28 x 9-15 Solid / Rear: 6.5-10 Solid
Wet disc service brakes
Ratchet wet disc parking brake

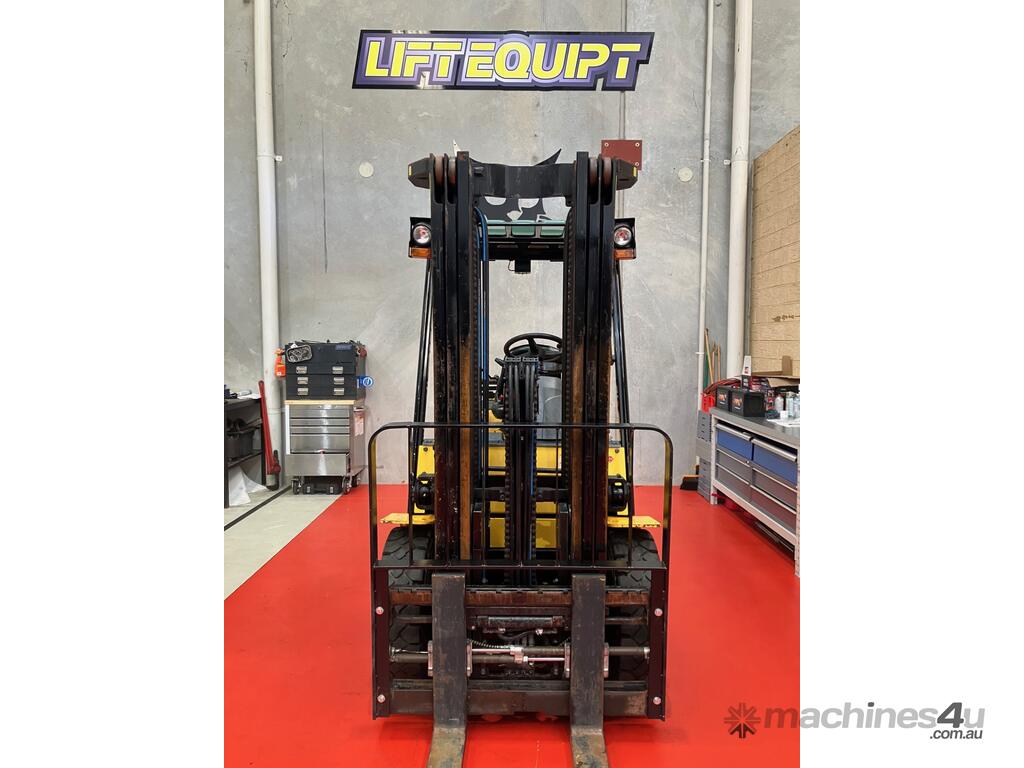

MAST & ATTACHMENTS:

4.7m Container Mast (Triplex)
Integrated Sideshift (INT SS & FP as per plate)
Load Centres: 500mm / 600mm / 1,000mm
Tilt Angle: 6° Forward / 10° Back
Max Height (standard mast reference): 4,385–4,485mm depending config

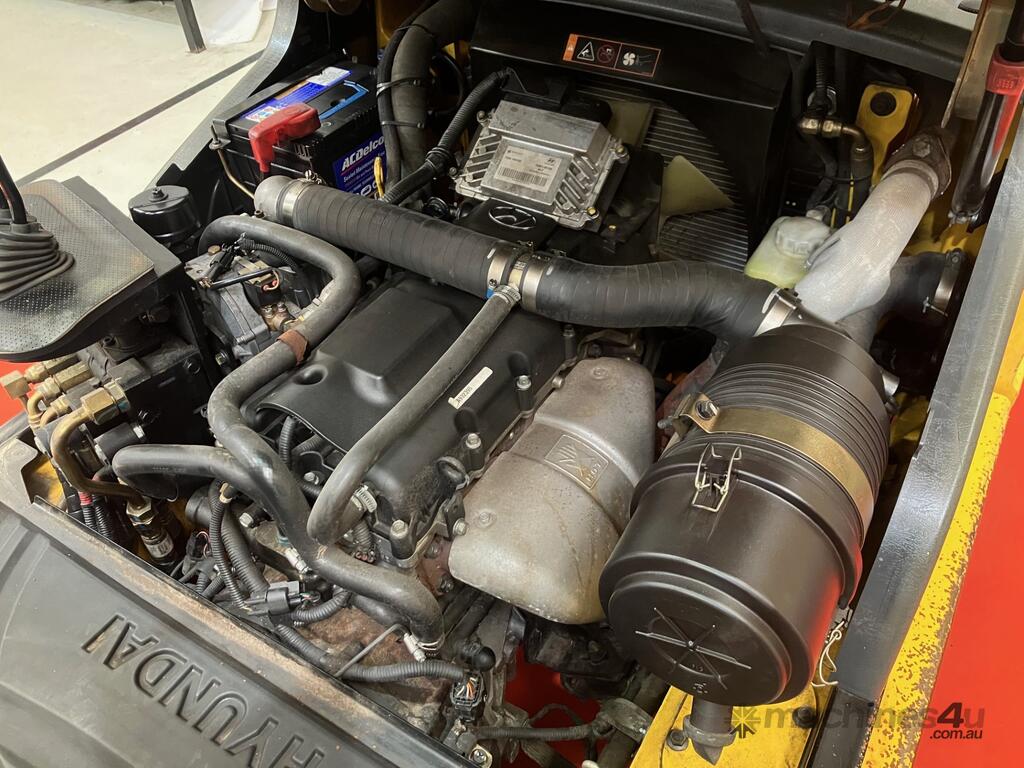

ENGINE & TRANSMISSION:

Engine: Hyundai L4KB (Theta)
4 cylinder, 4-cycle, water cooled
2,359cc displacement
60PS 2,300rpm
19 kgf·m torque 1,800rpm
Transmission: Power shift
Single lever electrical adjustment
Gear ratio FR/RR: 1.308:1
Torque Converter: KAPEC 280DB
3 element, 1 stage, 2 phase
Stall ratio 2.9:1
Drive Type: Front wheel drive
Axle Ratio: 14.2:1

DIMENSIONS (33LF-7 Series):

Overall Length: 2,732mm
Overall Width: 1,230mm
Wheelbase: 1,700mm
Min Turning Radius: 2,434mm
Overhead Guard Height: 2,180mm
Ground Clearance (Loaded): 145mm

HYDRAULICS & STEERING:

Gear type hydraulic pump
Max operating pressure: 250 bar
Mechanical sectional control valve
Hydrostatic power steering
Steering angle: 79° both directions

OPERATOR FEATURES:

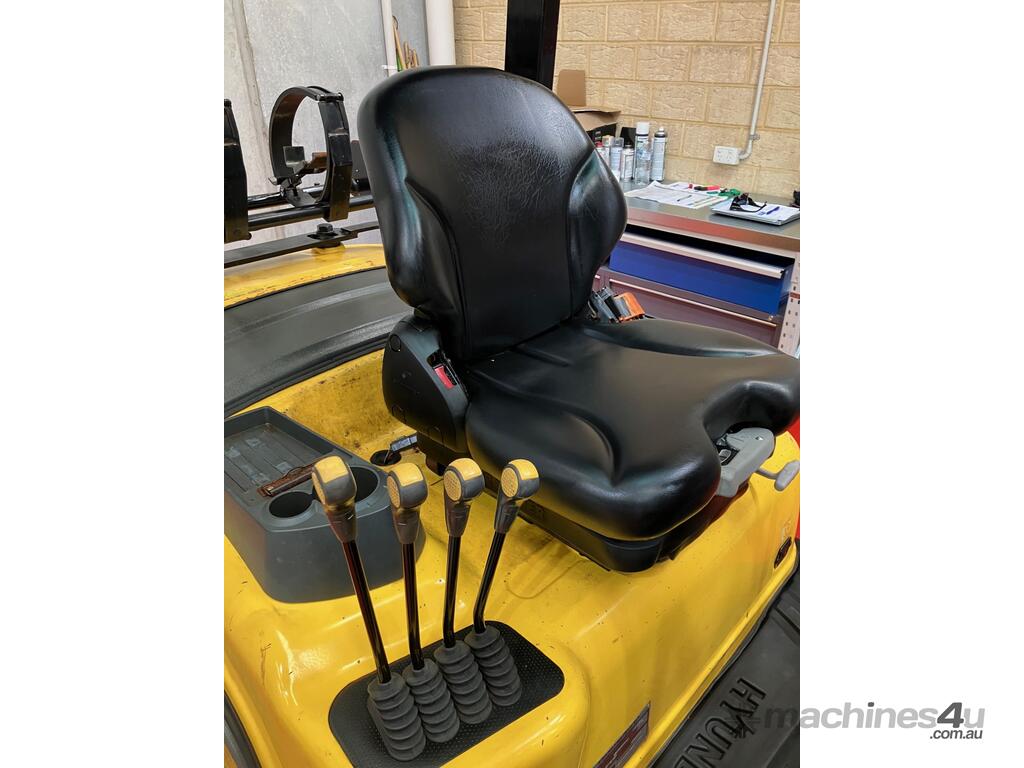

Ergonomic suspension seat
Multi-function hydraulic levers
Clear Hyundai instrument cluster
Beacon & work lights
Overhead guard with visibility panels
LPG bottle bracket

IDEAL APPLICATIONS:

? 3T+ palletised freight
? Container unloading
? Steel & fabrication yards
? Manufacturing facilities
? Logistics depots
? Heavy warehouse operations

This is not a light-duty 2.5T unit — the 33LF-7 is a true 3.3T industrial platform with stronger chassis, drivetrain and counterweight mass.

ENQUIRE TODAY
Hyundai 3.3T container mast forklifts in this configuration are highly sought after.
Available for inspection and ready for delivery.
