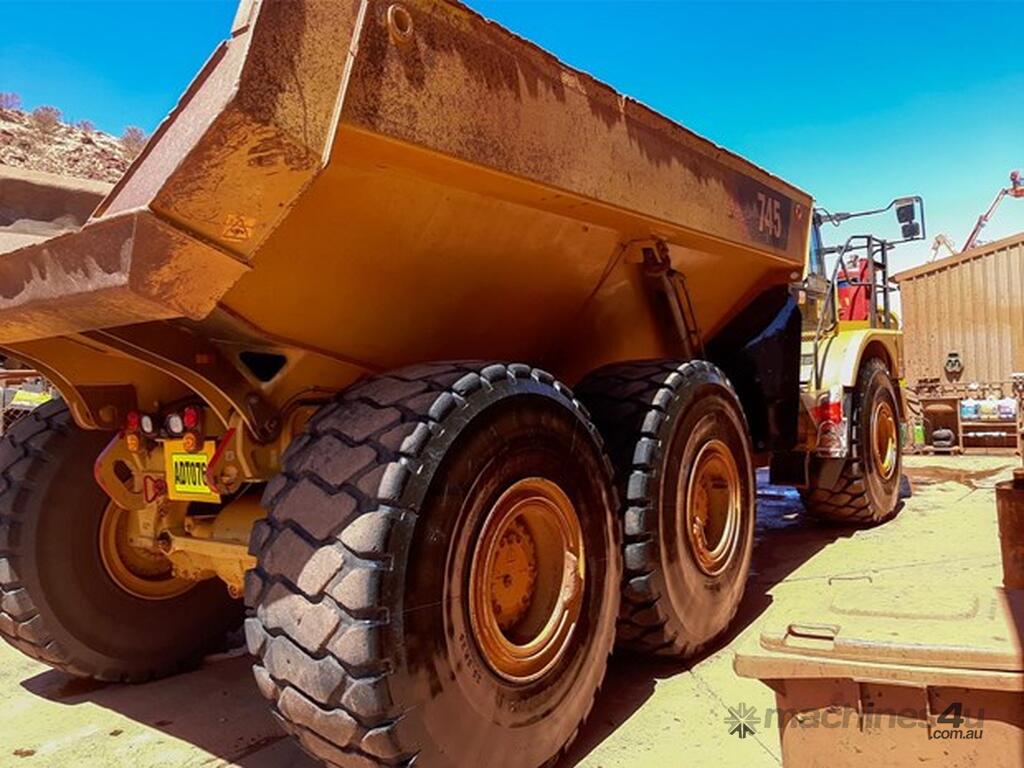

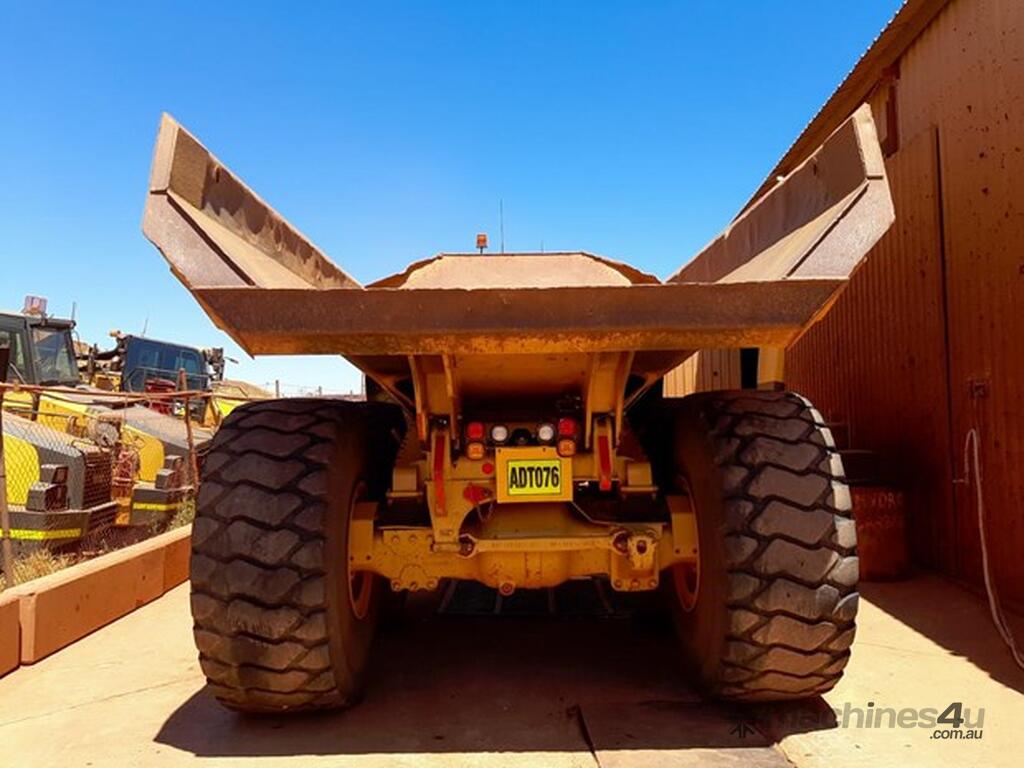

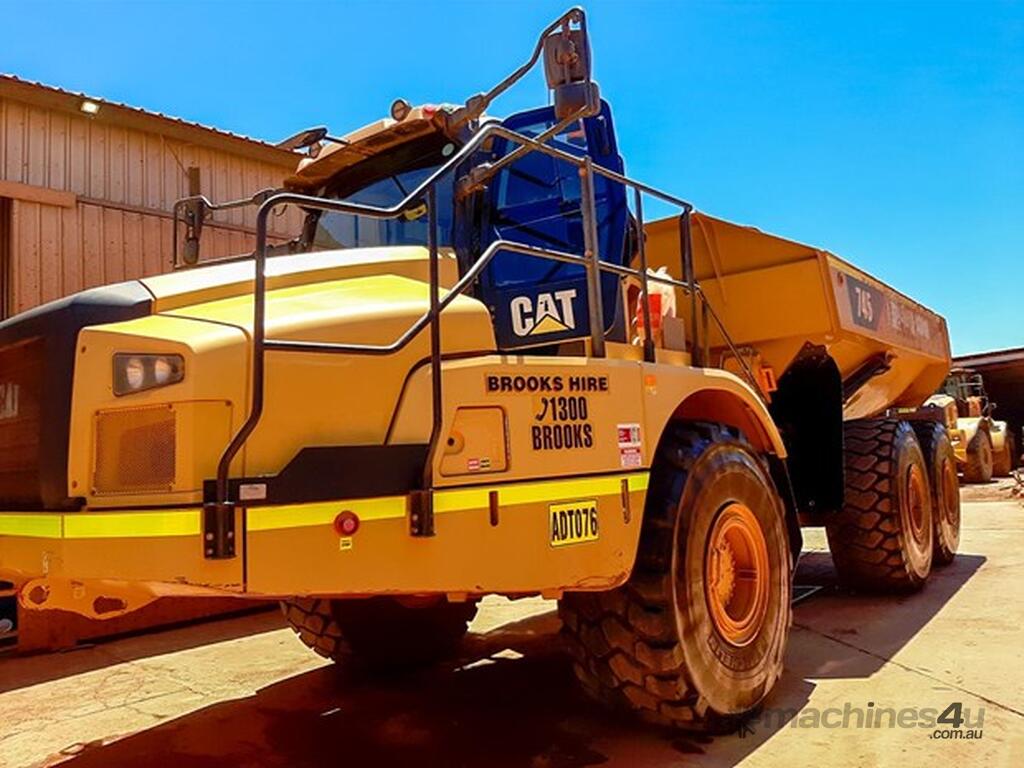

Equipped with a powerful Caterpillar engine, this 745 C 33.4t machine can provide 382kW or 512 horse power for the articulated dump truck.
SPECIFICATIONS
Weight 32.87 t
Standard tyres 29.5 R25
Dump capacity 25 m³
Travel speed 54.8 km/h
Net load 41 t
Transport length 11.429 m
Transport width 3.422 m
Transport height 4.041 m
Turning radius outside 9.082 m
Loading height 3.165 m
Engine manuf. Caterpillar
Engine type C18 Acert
Engine power 381 kW
Engine power 511 HP
Displacement 18.1 l
Revolutions at max torque 1700 rpm
Cylinder bore x stroke 145x183 mm
Emission level Tier 2
Brooks Equipment Sales specialise in the sale of new and used mining and construction equipment. They are authorised dealers for the world’s third largest construction equipment manufacturer, XCMG, offering excavators, loaders, rollers, graders, haul trucks, articulated dump trucks, access equipment, forklifts, and skid steers. Brooks Equipment also sell quality new equipment from Husqvarna, Italdem, Genmac, Chicago Pneumatic, and Euromacchine, including compactors, generators
