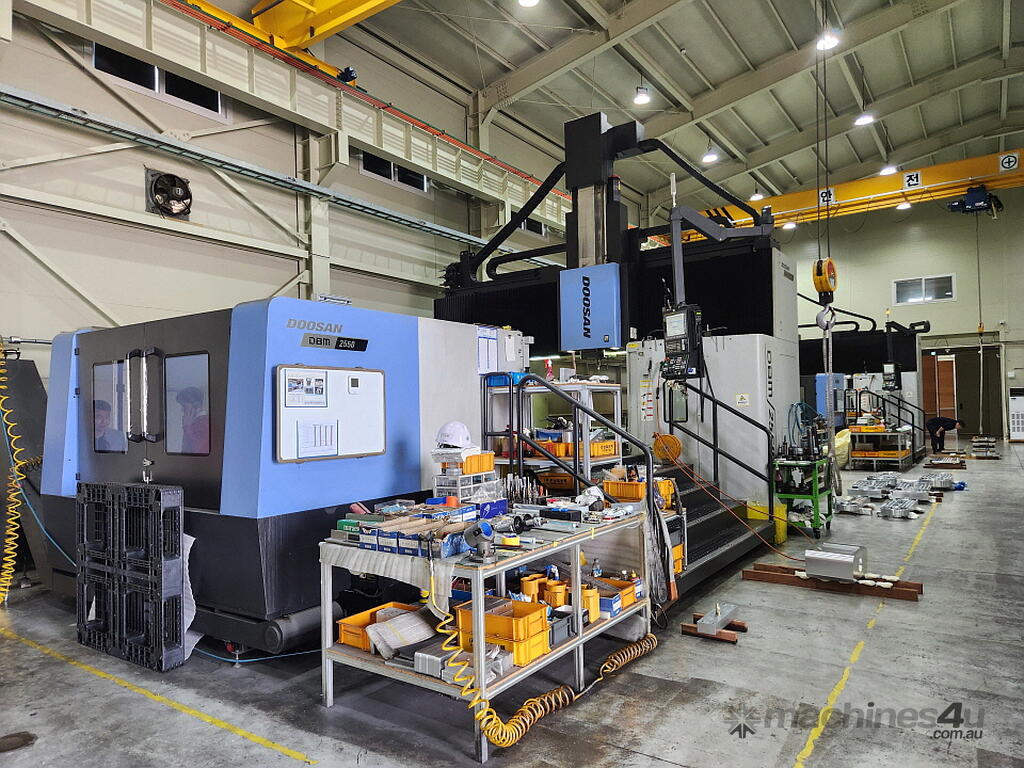

CNC MACHINERY SALES AUSTRALIA PRESENTS - Doosan Model : DBM-2540 Multi Purpose Double Column Machining Centre
Date of manufacture : September 2019
Table size : 2000mm x 5000mm / 25,000kg load
Travels X/Y/Z : 5250mm x 3000mm x 800mm
Spindle speed : 8000rpm
BT50 taper
Ram size : 380mm x 380mm
37/55kw motor
60 tool ATC
Semi cover with rear top roof
Scales X/Y/Z1/Z2 axis
90 degree angle head (6000rpm)
AAC (swing 2 station)
Part program 8M
20 bar through spindle coolant
Renishaw tool length measurement
DSQ 2
Chip conveyor
Fanuc 31iB control
Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.
Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.
*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
