2019 HNK Model VTC-20/25 Turn Mill CNC Vertical Borer

CNC MACHINERY SALES AUSTRALIA PRESENTS - HNK Model : VTC-20/25 Turn Mill CNC Vertical Borer

Date of manufacture : November 2019

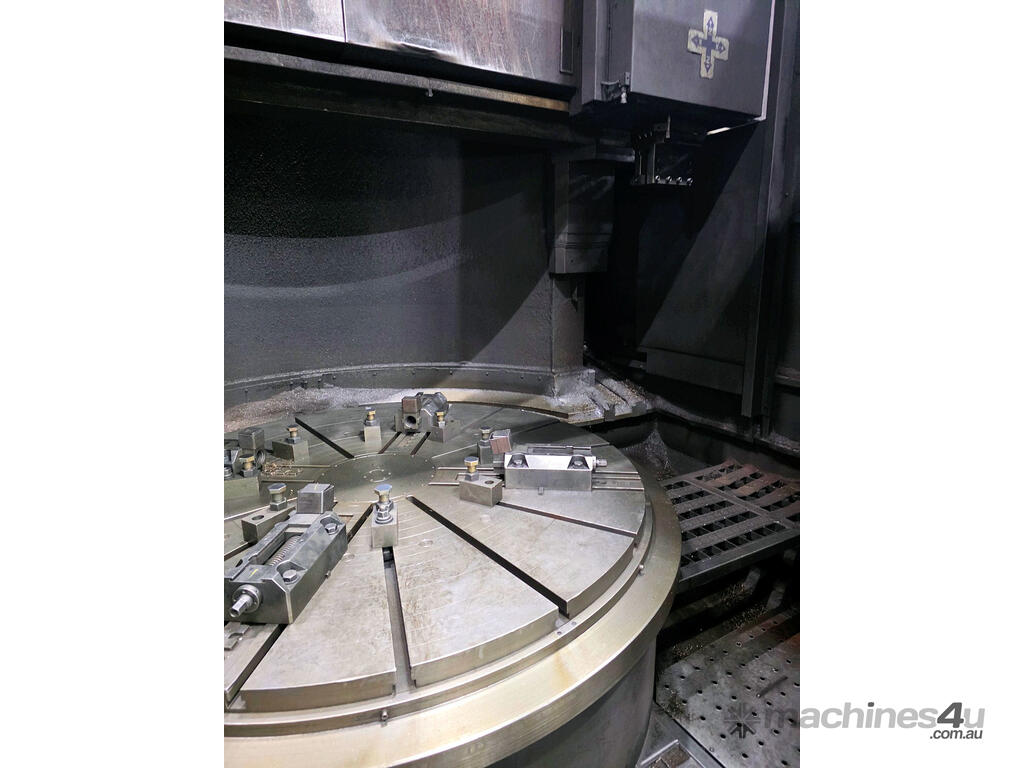

Table diameter : 2000mm, manual chuck / 12,000kg load / 0.001 degree index

Max swing : 2500mm

Max cutting height : 1800mm

X/Z travel : -200~2150/1000mm

Table speed : 1-200rpm

Milling spindle : 15-1500rpm

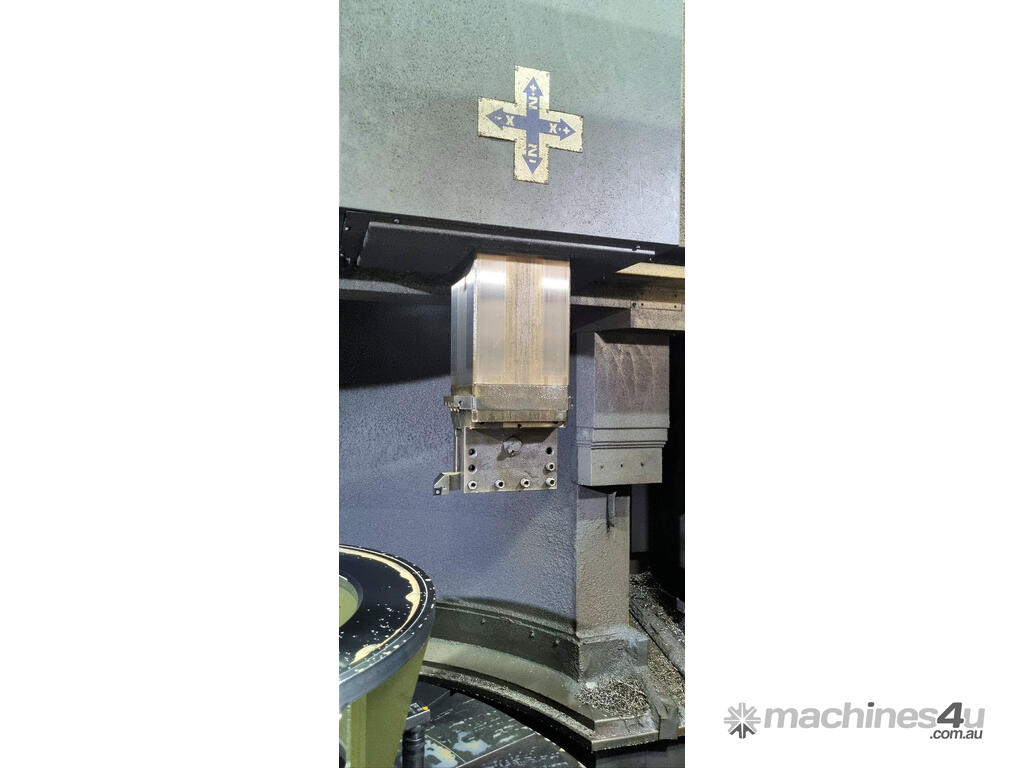

Ram size : 240mm x 240mm

Table motor : 45/55kw

Mill motor : 15/18.5kw

Through spindle coolant

Scales

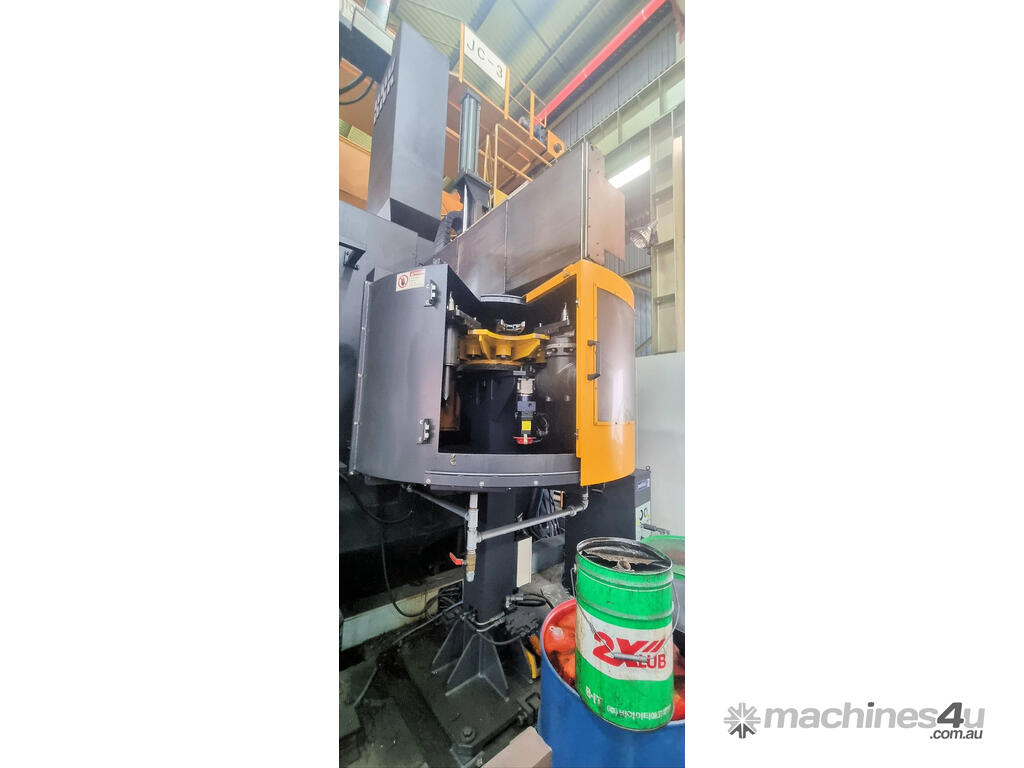

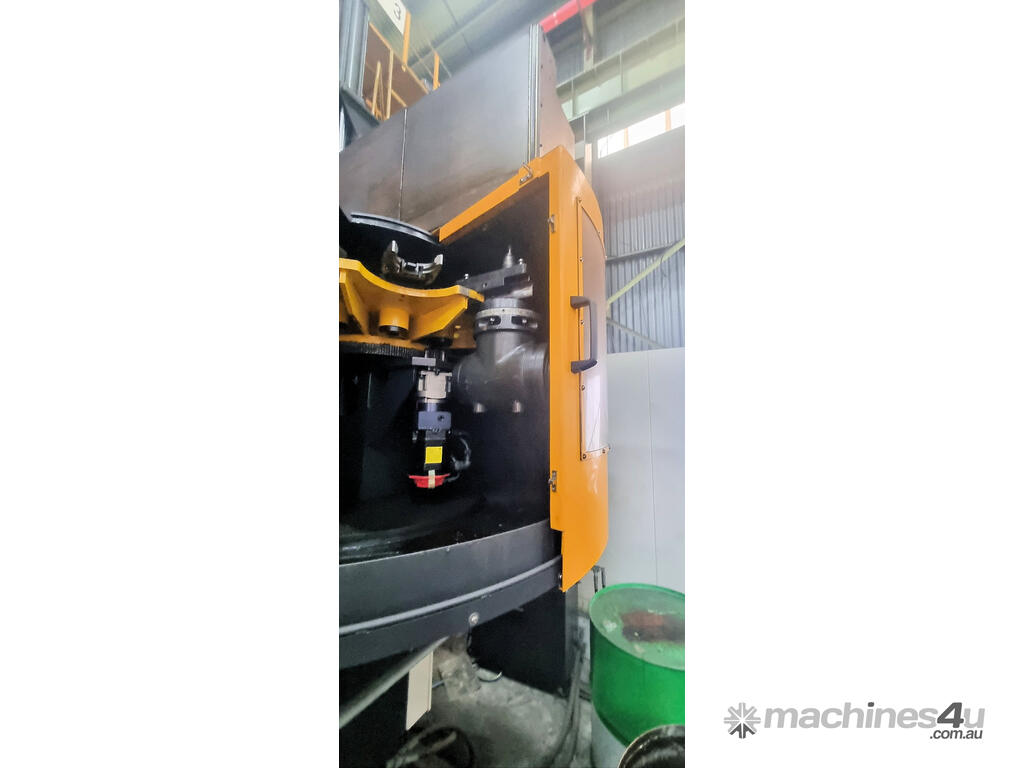

18 tool ATC

Chip conveyor

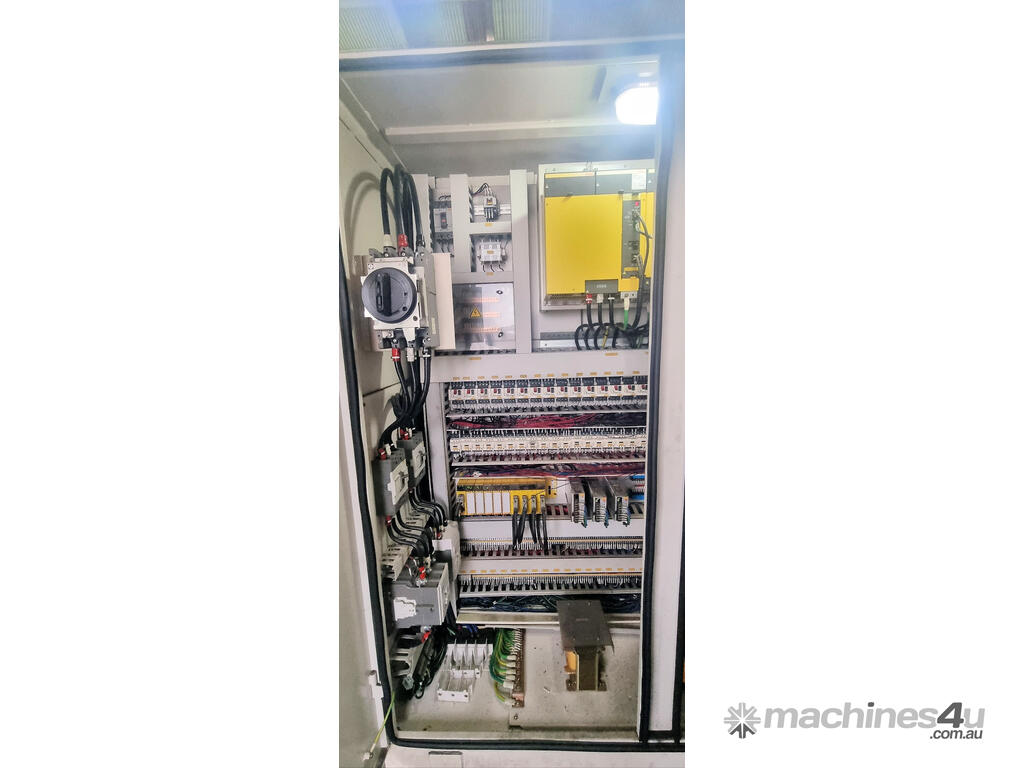

Fanuc 31iA control

Delivery, commissioning, training and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
