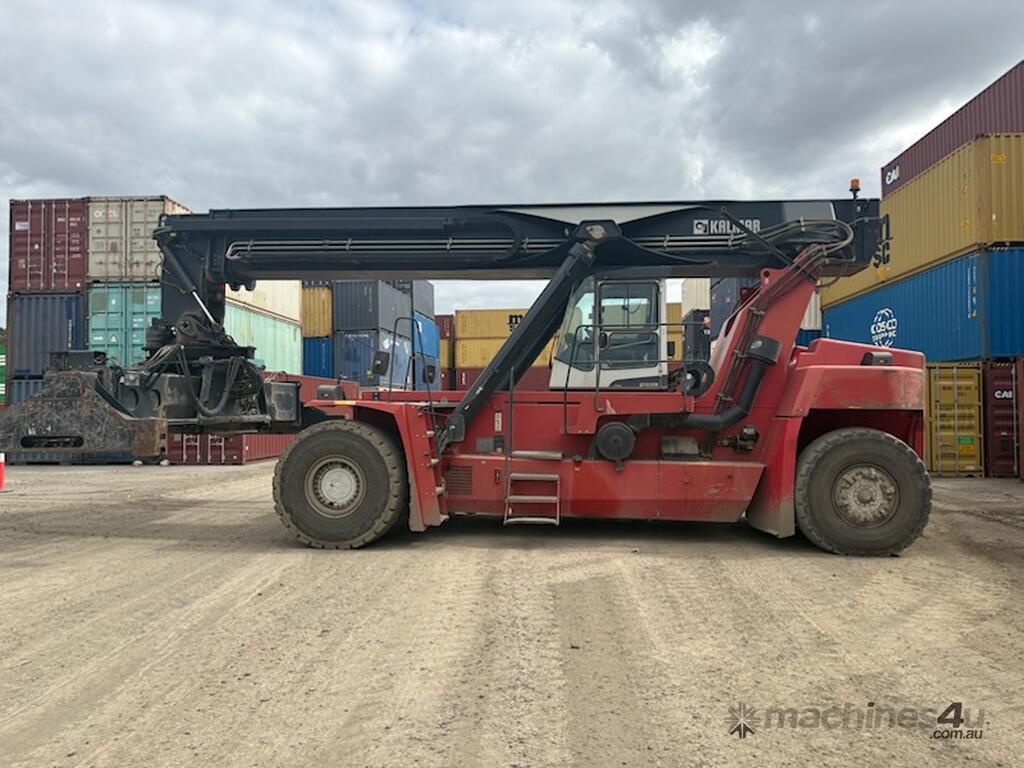

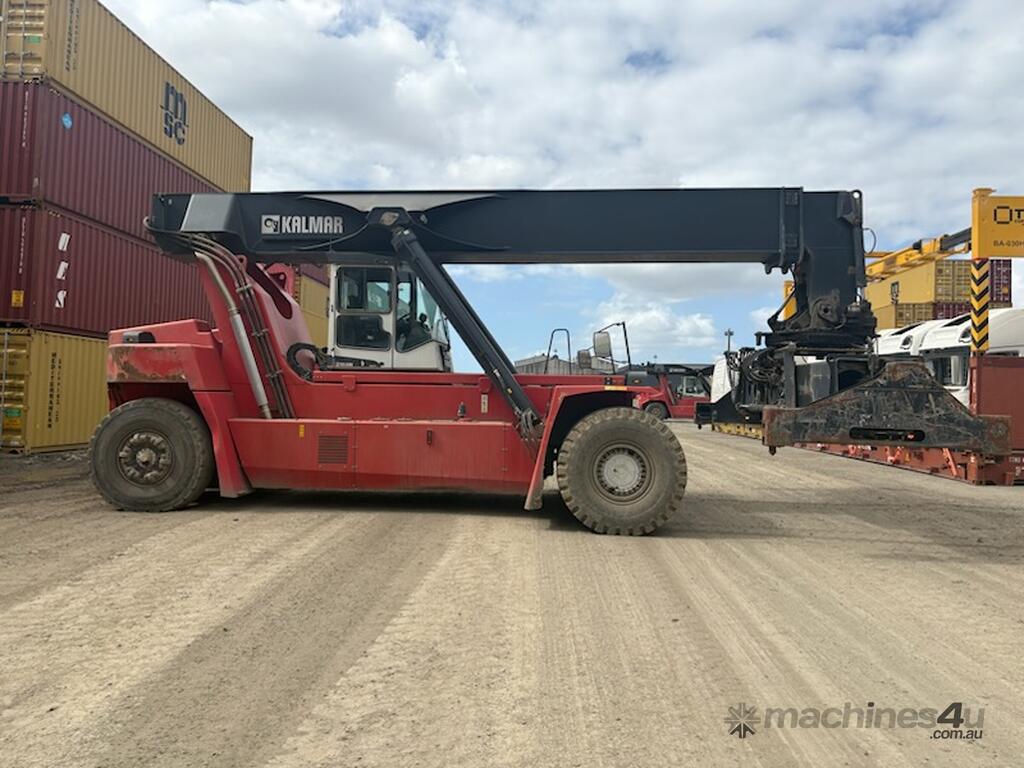

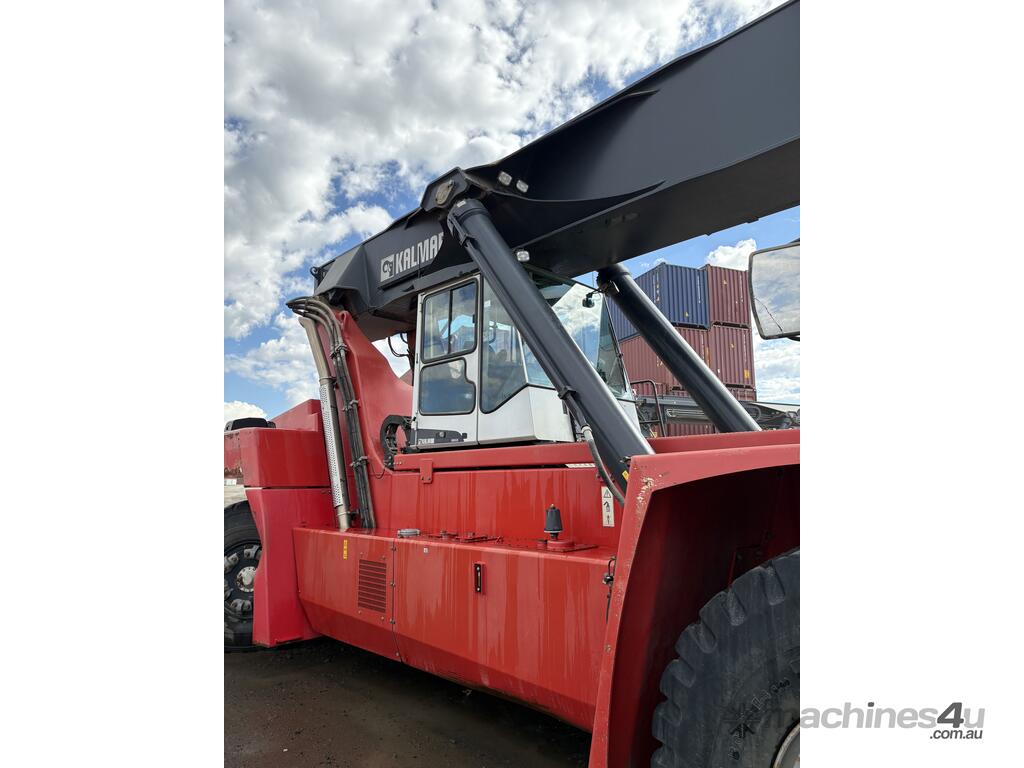

The Kalmar DRU450-62S5 is a robust, heavy-duty Reach Stacker capable of lifting 45,000 kg. The lift capacity and advanced lifting capabilities make this machine ideal for handling large and heavy loads in demanding environments.
Key Features:
45,000 kg lift capacity
5 high container stacking
Powerful and efficient hydraulic system
Durable design for tough conditions
Ideal for heavy industries like logistics, ports, and construction
Kalmar DRU450-62S5 Technical specifications
Adding ballast N.A
Centre of gravity 77.36 inches / (1965 mm) c
CO emissions Euro V
Construction height 144 inches / (3650 mm) c
Cylinder bore stroke length N.A
Engine N.A
Engine category TAD-1180-VE
Engine displacement 10840 cc / (10.84 l) c
Engine horsepower 235000 Watts / (235 kW) c
Engine horsepower 238 kw / (319.511 HP) c
Engine manufacturer Volvo
Fleet Management N.A
Length x width x height N.A
Lifting height 49.54 ft / (15.1 m) c
Maximum engine torque 1581 Nm c
Maximum Reach horizontal 15.09 ft / (4.6 m) c
Nominal load at COG 99208 lbs / (45 t) c
Number of cylinders 6
Torque Revolution 1450 rpm c
Total width 163 inches / (4150 mm) c
Transmission N.A
Travel speed with / without load 26/18 km/h
Turning radius 30.84 ft / (9.4 m) c
tyres size 18x25".PR40/E4
Weight 153221 lbs / (69.5 t) c
Weight N.A
Wheel base 20.51 ft / (6.25 m) c
