2021 Commercial Meat Packaging Tray Sealing Line - Wedderburn Caveco

This line is in excellent working condition. It was built in 2021.
It was sealing trays of meat products.

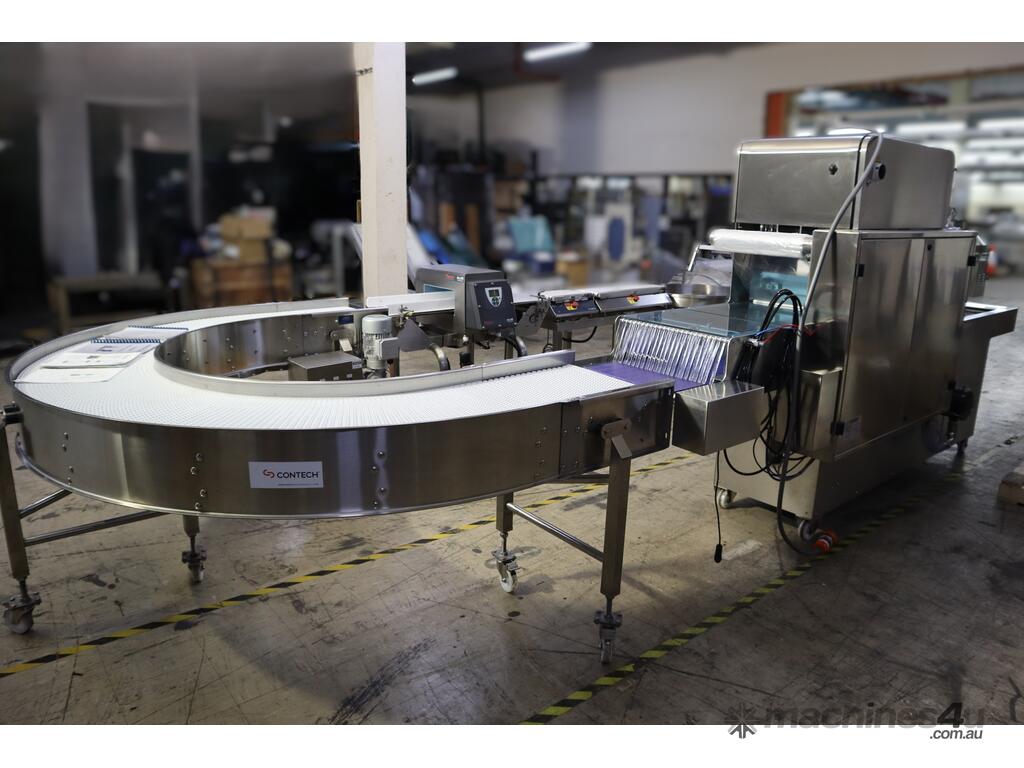

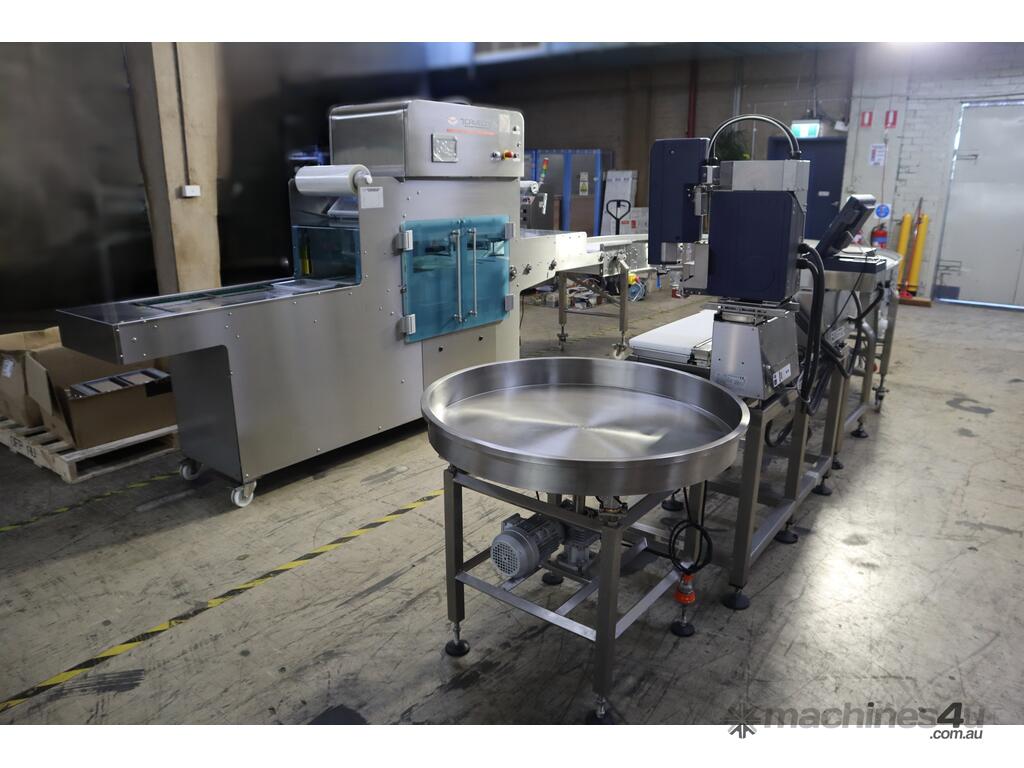

The line consists of:
- Caveco Tray Sealer
- Thermo Scientific Metal Detector
- DIGI Weigher & Labeller

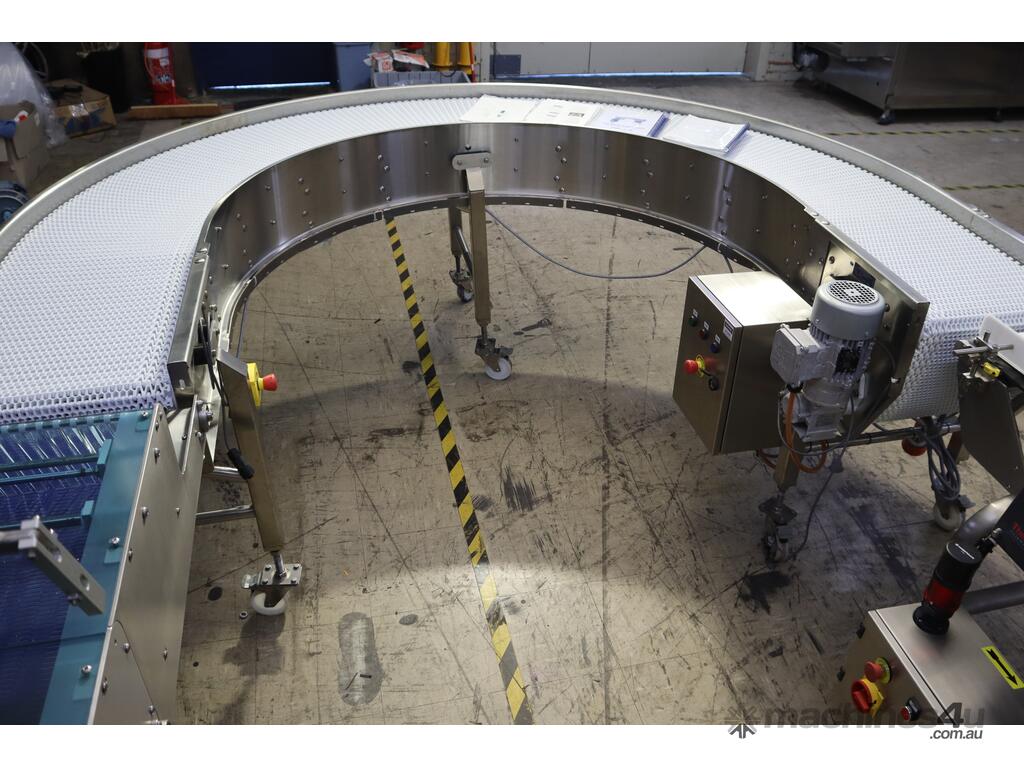

- Curved 180 degree belt conveyor

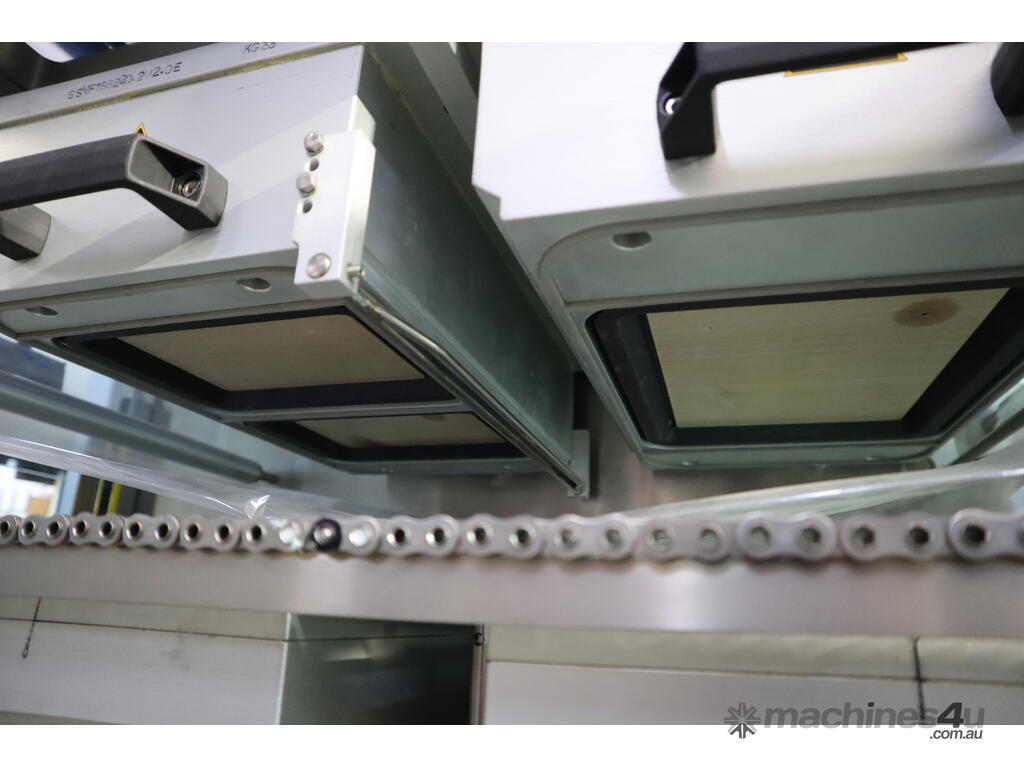

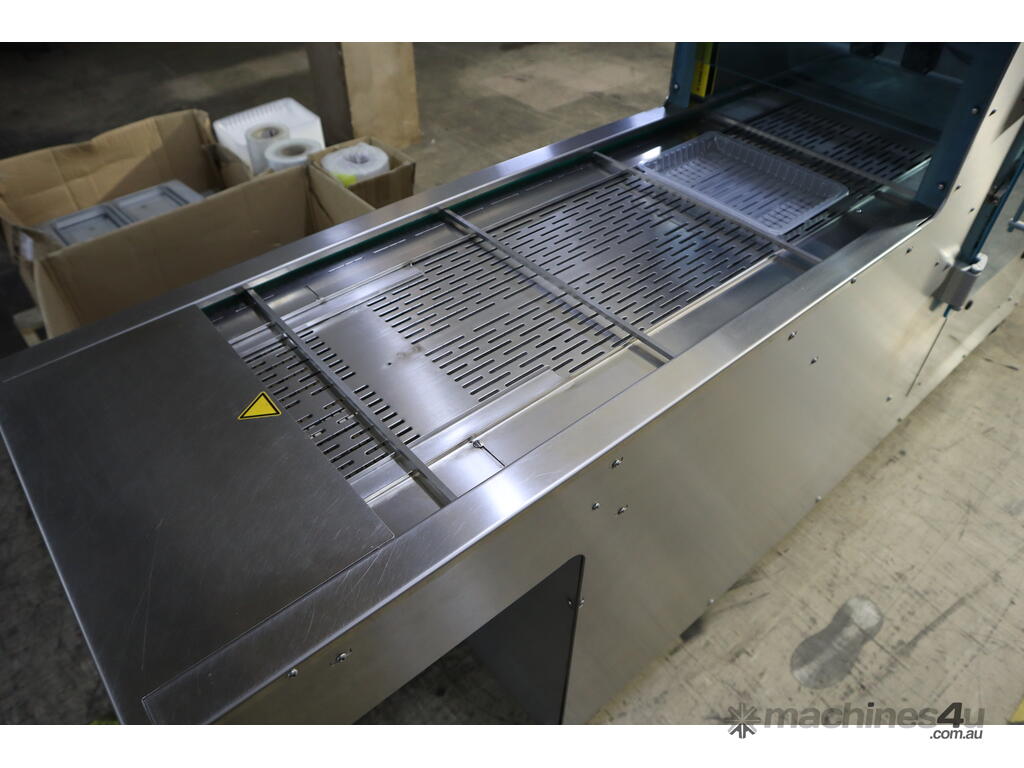

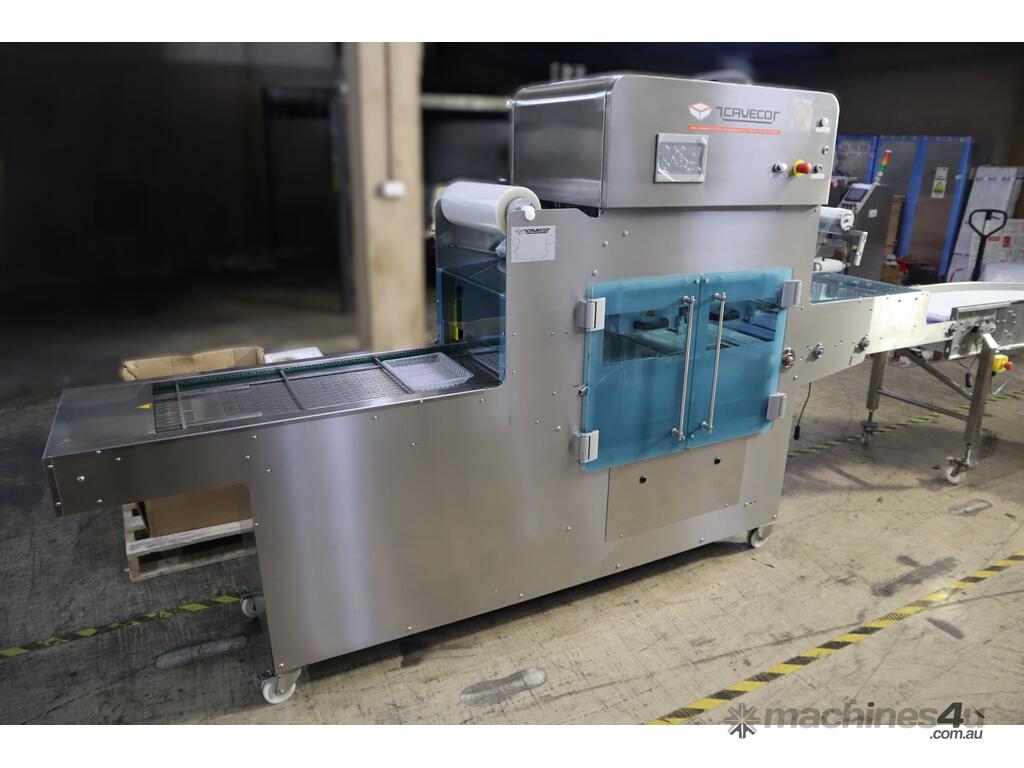

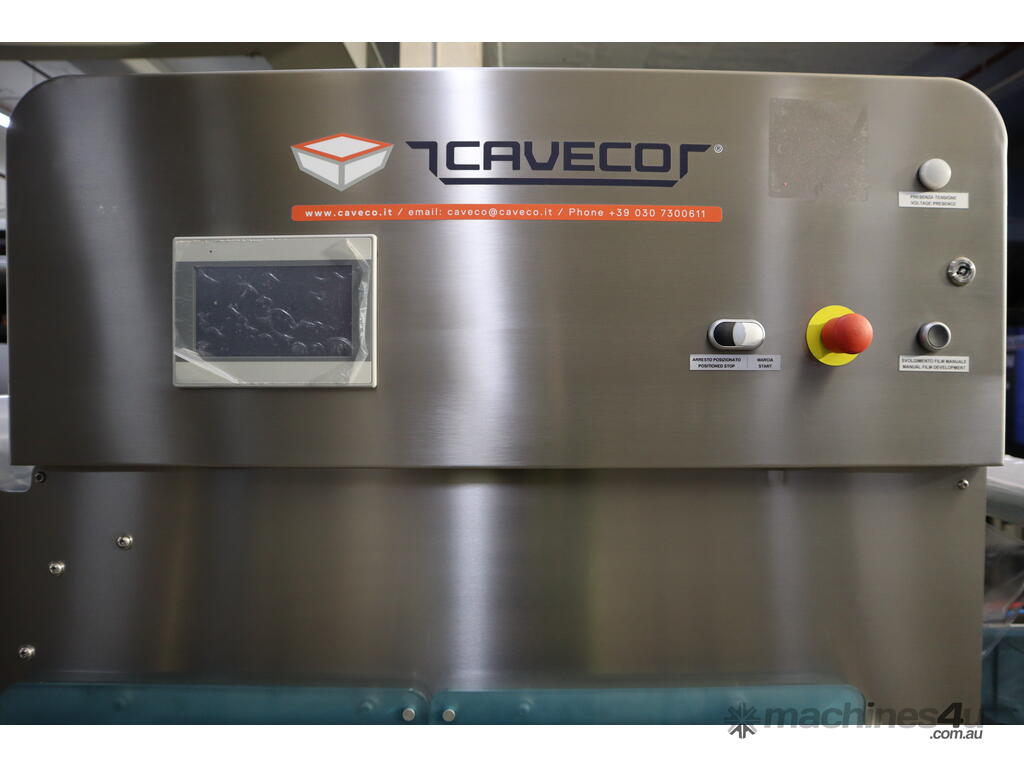

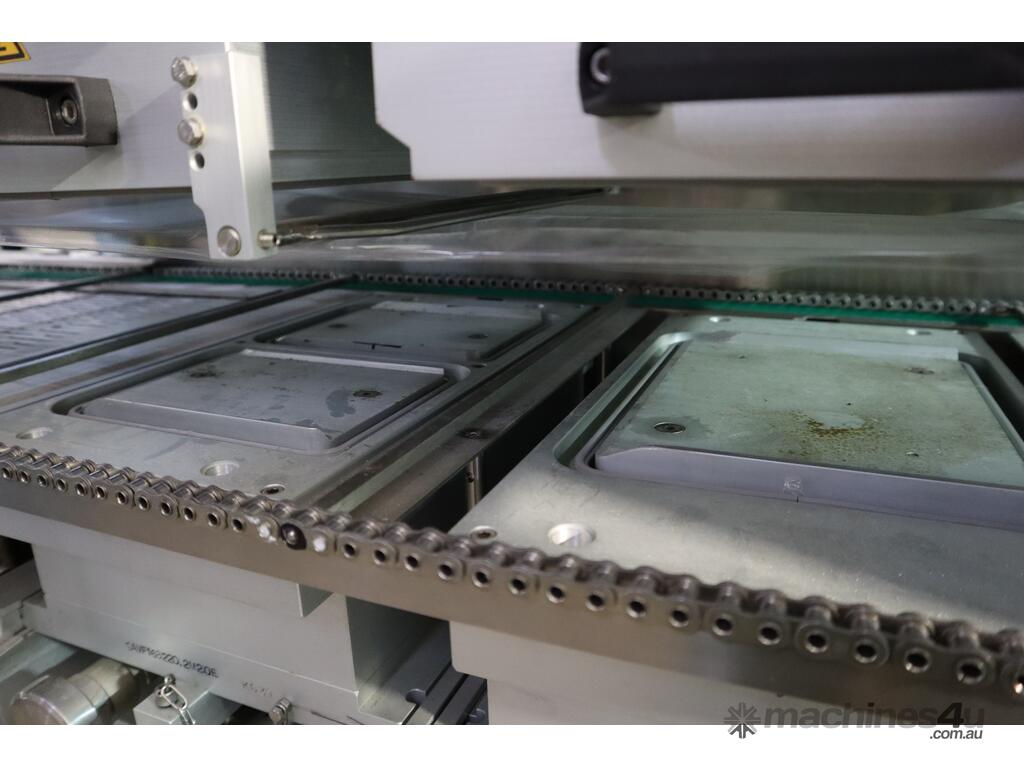

Tray Sealer

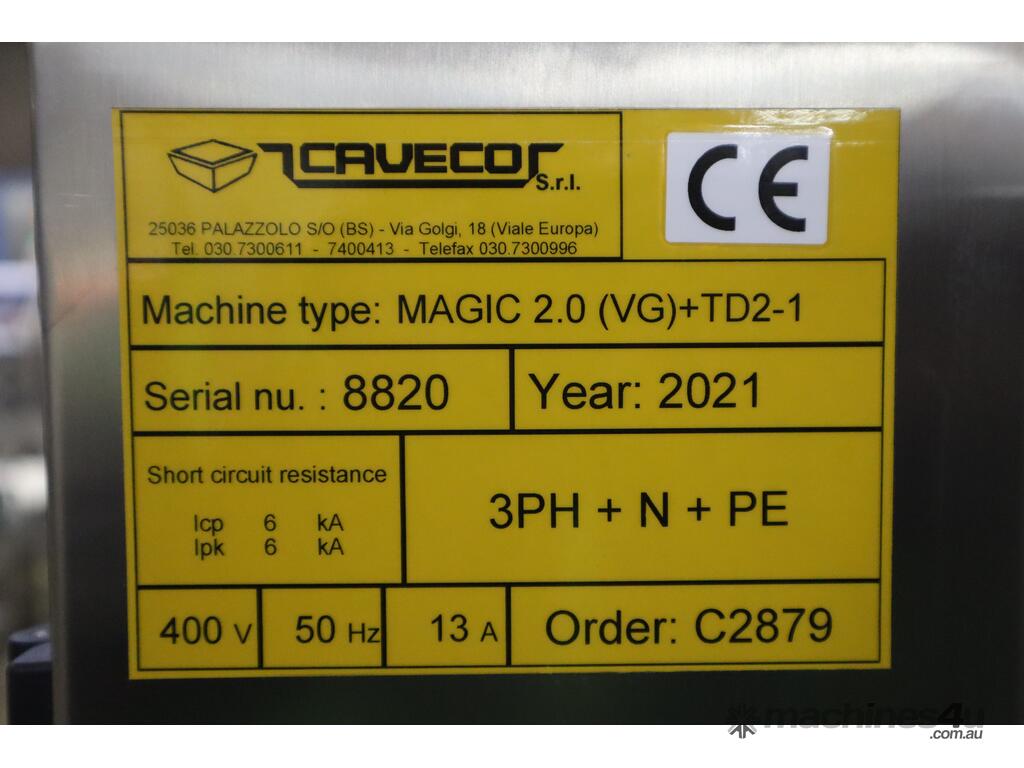

Make: Caveco
Model: Magic 2.0
Year: 2021
Power: 400V 13A

Magic 2.0 is the innovative compact heat-sealing machine that automatically recognises and packages trays of different shapes or heights without requiring a die-set change or settings.

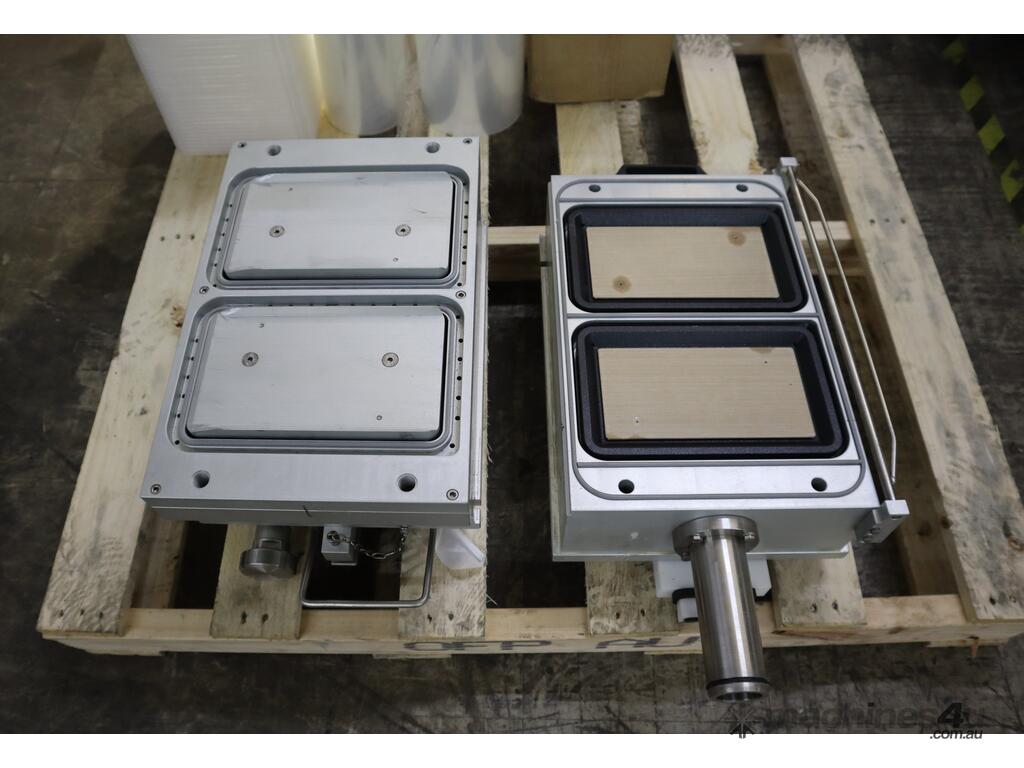

Moreover, by inserting two identical die-sets (which takes less than a minute), production capacity can be doubled.

Agile and fast, Magic 2.0 packages a wide range of foods (meat, fish, dairy products, daily meals, gastronomic products, etc.) in heat-sealing, m.a.p (ATP) and skin mode on plastic trays or cardboard (with and without product protrusion).

Magic 2.0 is able to work in the following ways:

tray-sealing only: it is able to seal trays made of plastic, aluminum or coupled cardboard.
modified atmosphere packaging (m.a.p): which we seal the film on a preformed tray by replacing the air contained in the tray with a gas mix that preserves and extends the product's shelf life.
skin system, with and without protrusion over the edge: the system allows to create, with the use of a specific film for this application, a skin effect where film perfectly following the shape of the packaged product.

The machine is able to guarantee up to 15 cycles per minute on tray-sealing only, up to 12 cycles per minute on m.a.p and up to 7 cycles per minute on skin, according to the characteristics of the product and packaging materials.

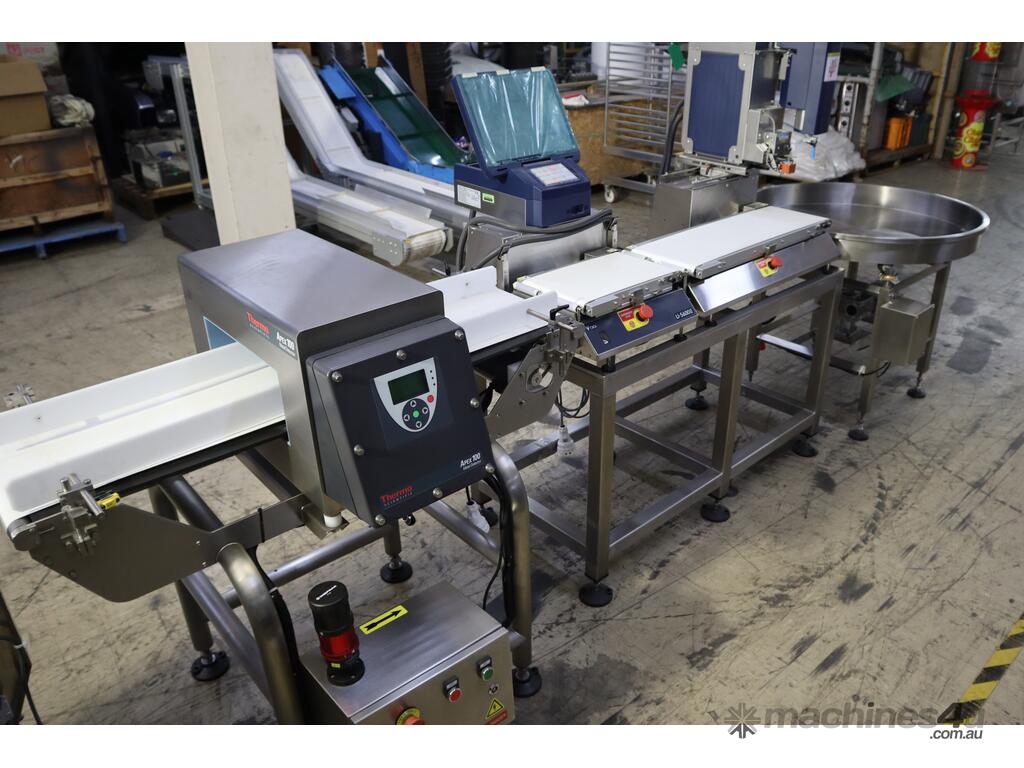

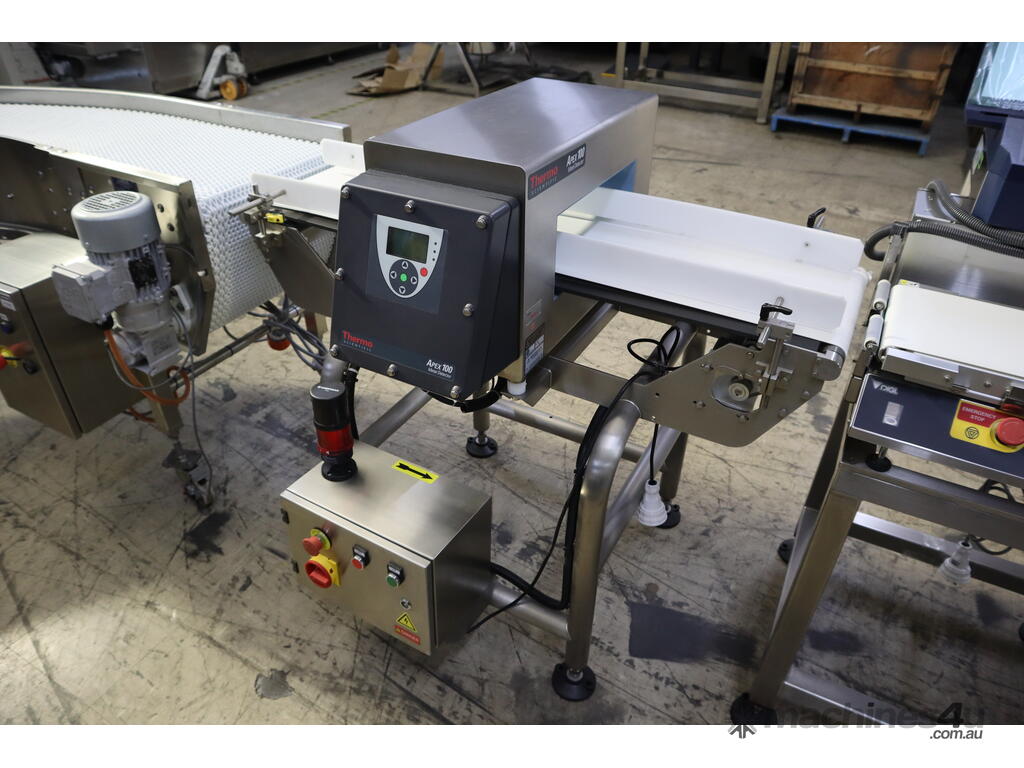

Metal Detector

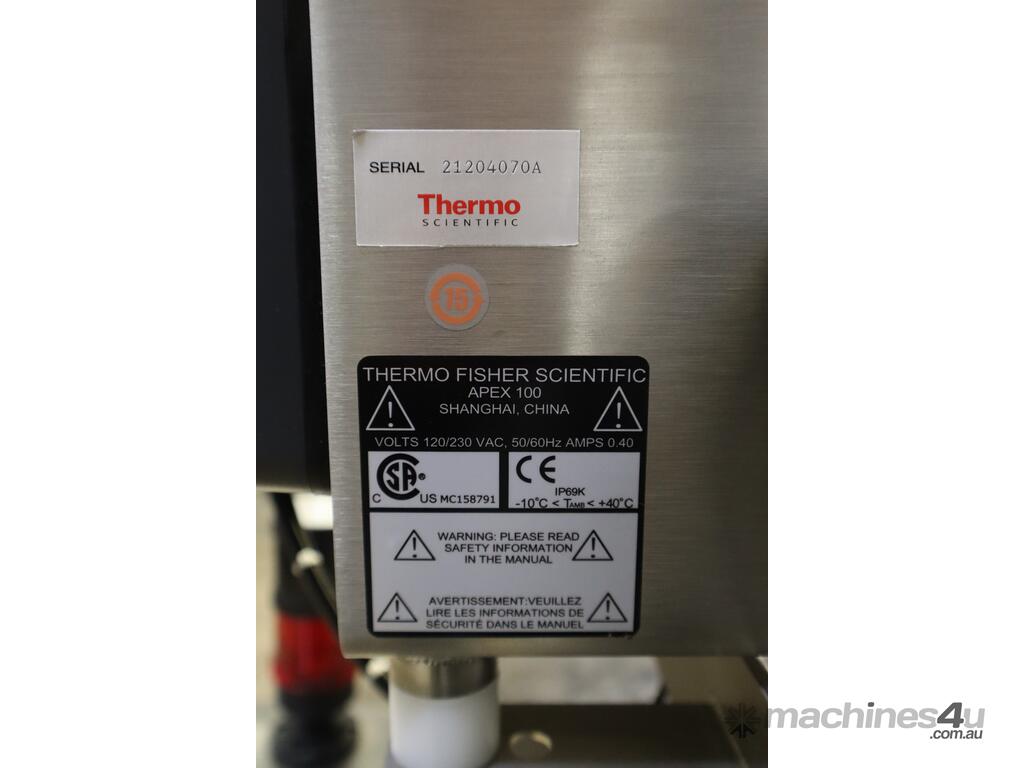

Make: Thermo Scientific
Model: Apex 100
Power: 230V 0.4A

To deliver greater accuracy in detecting contaminants in wet and salty products, the APEX 100 features the innovative Intellitrack XR (IXR) technology. This technology learns and cancels the sinusoidal X (reactive) and R (resistive) product signals, and only detects the metal contaminants. To maintain high accuracy over time, the IXR tracks product changes and adjusts the product signals to eliminate the risk of contaminants going undetected.

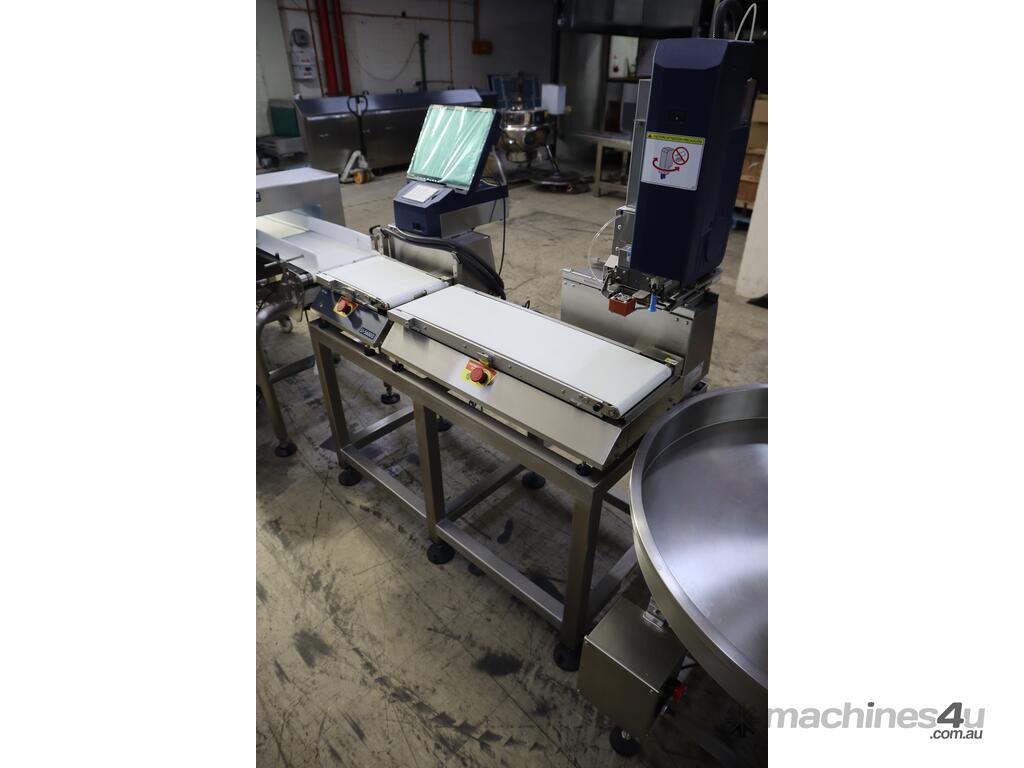

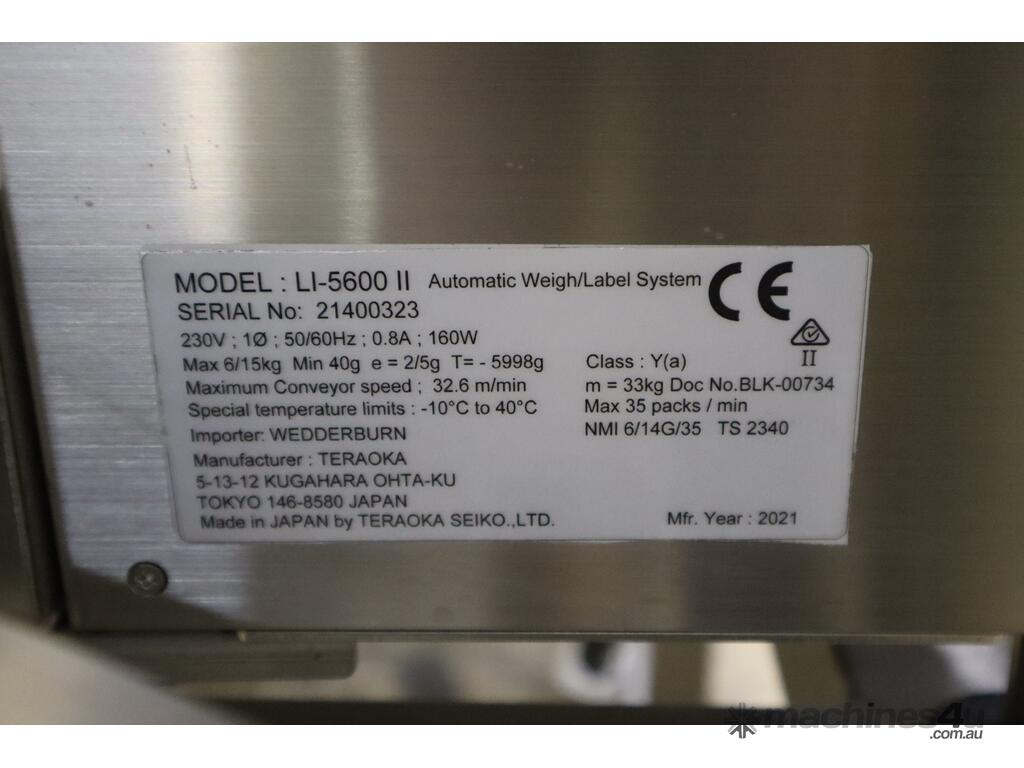

Weigher & Labeller
Make: DIGI Teraoka (Imported by Wedderburn)
Model: LI-5600 II
Year: 2021
Capacity: Max. 35 packs per minute
Weight Capacity: 6/15kg Max, 40g Min

The LI-5600II maximizes the efficiency of in-store pre-packaging operation and has a compact, space-saving design. Its compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-5600II is also highly compatible with existing equipment such as MAP packaging machines.

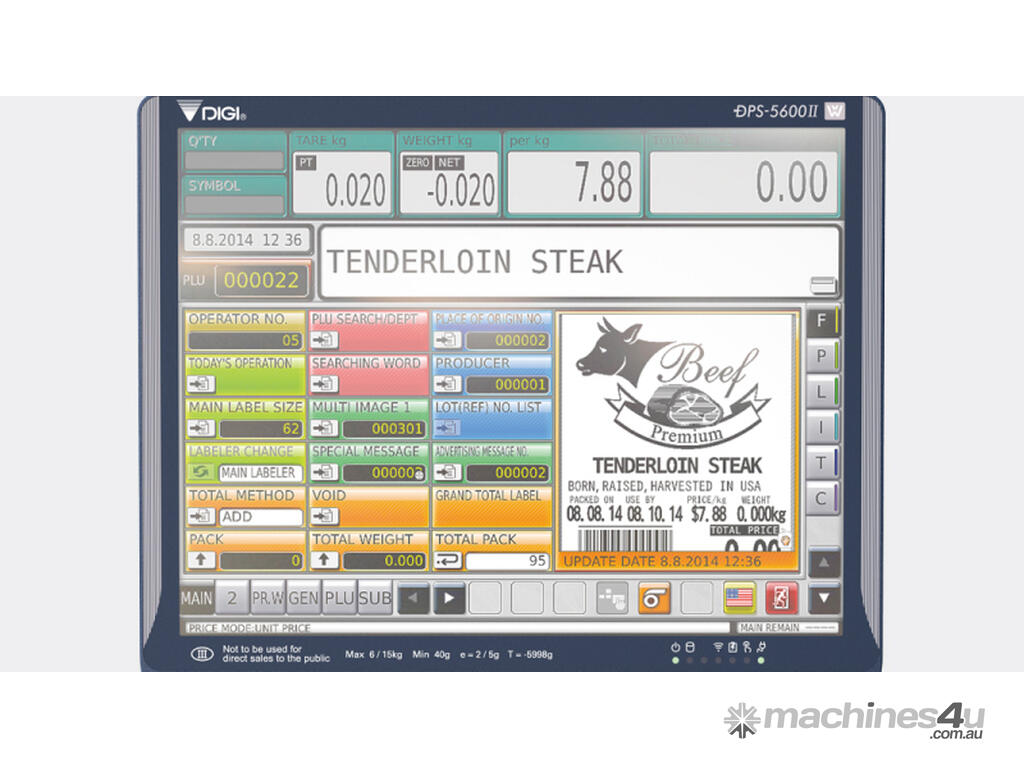

- 15” Large Full Colour Touch Screen

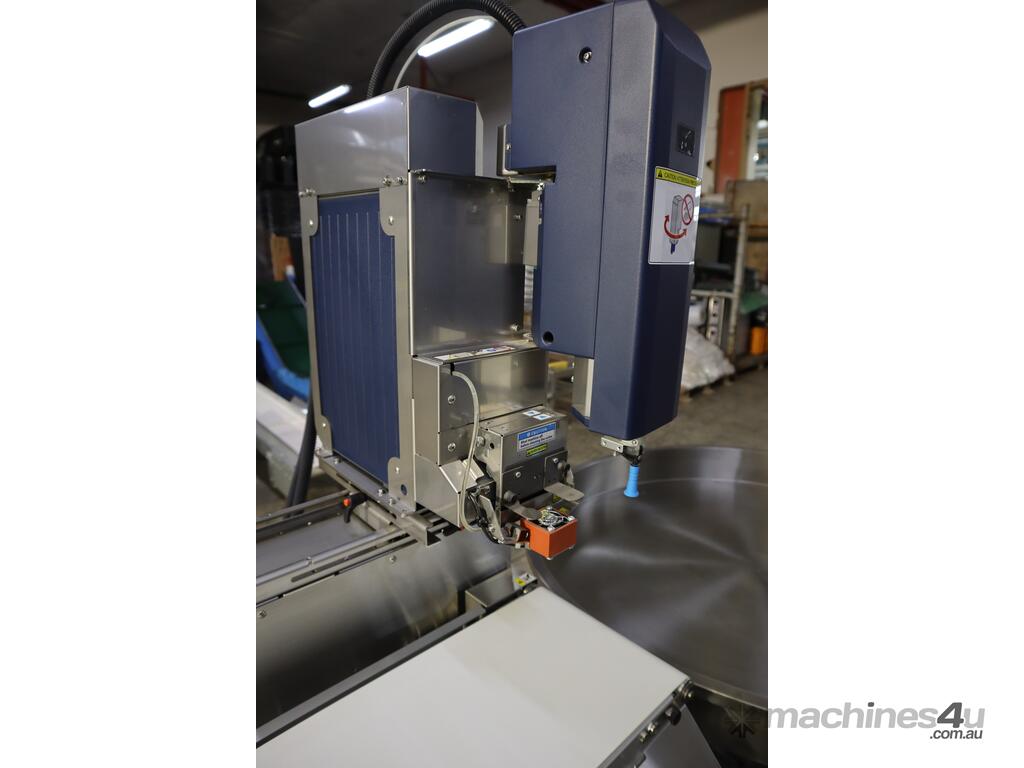

- 360 degree Rotating Labelling Arm
- Capable of labelling trays up to 150mm high
