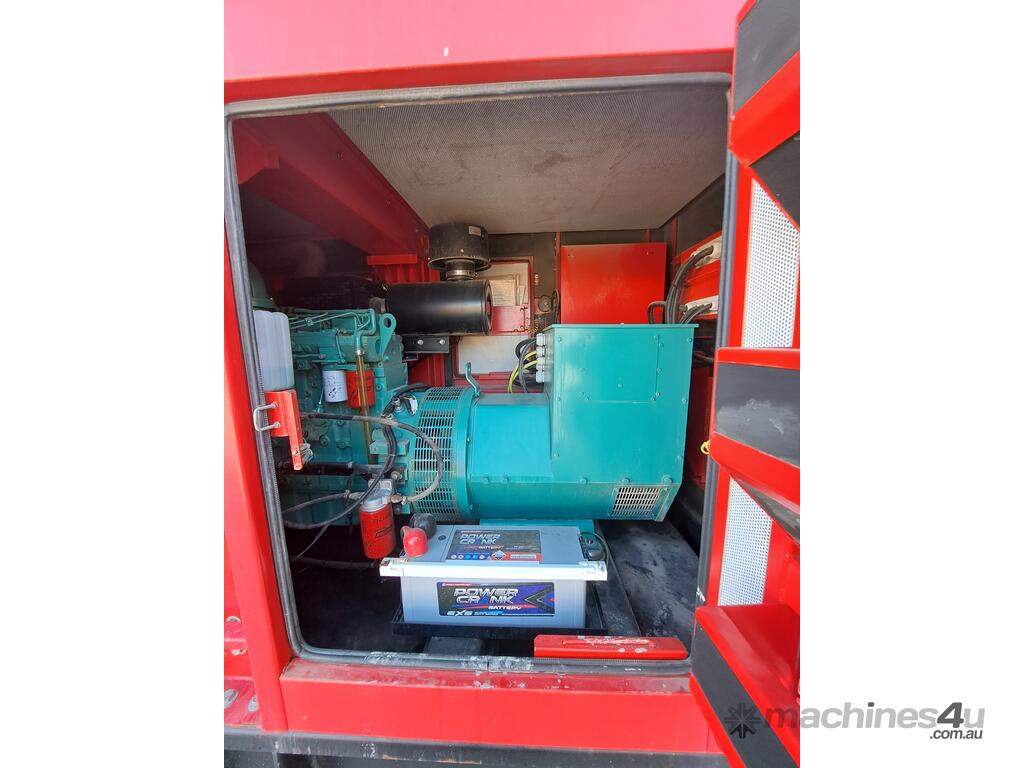

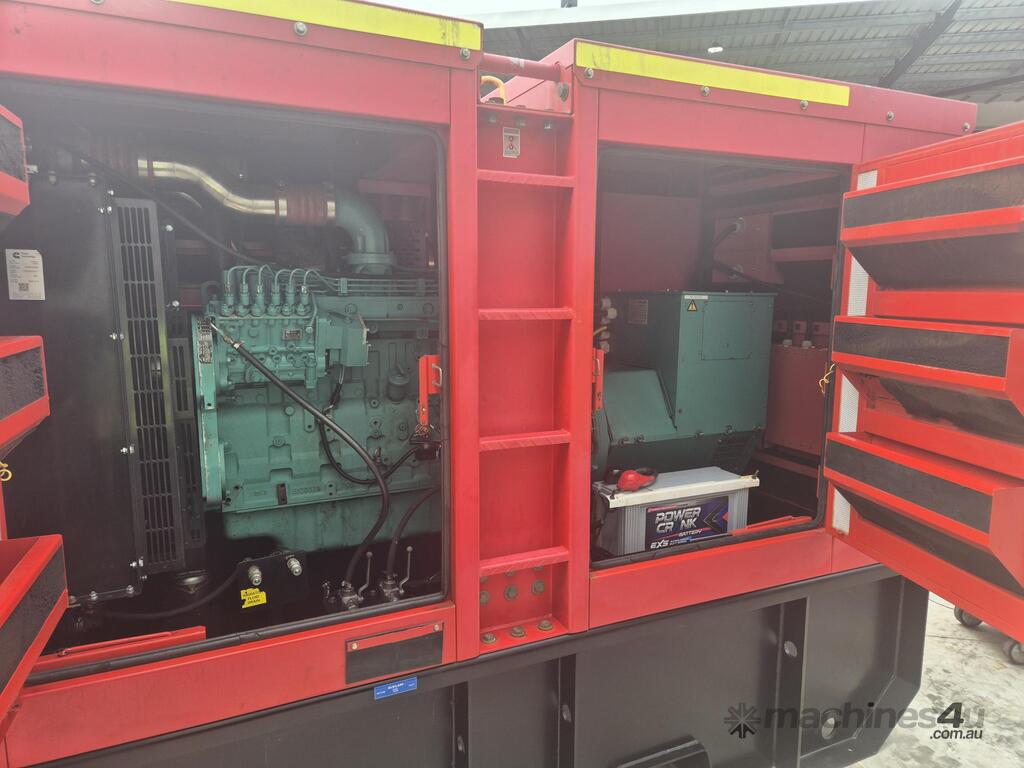

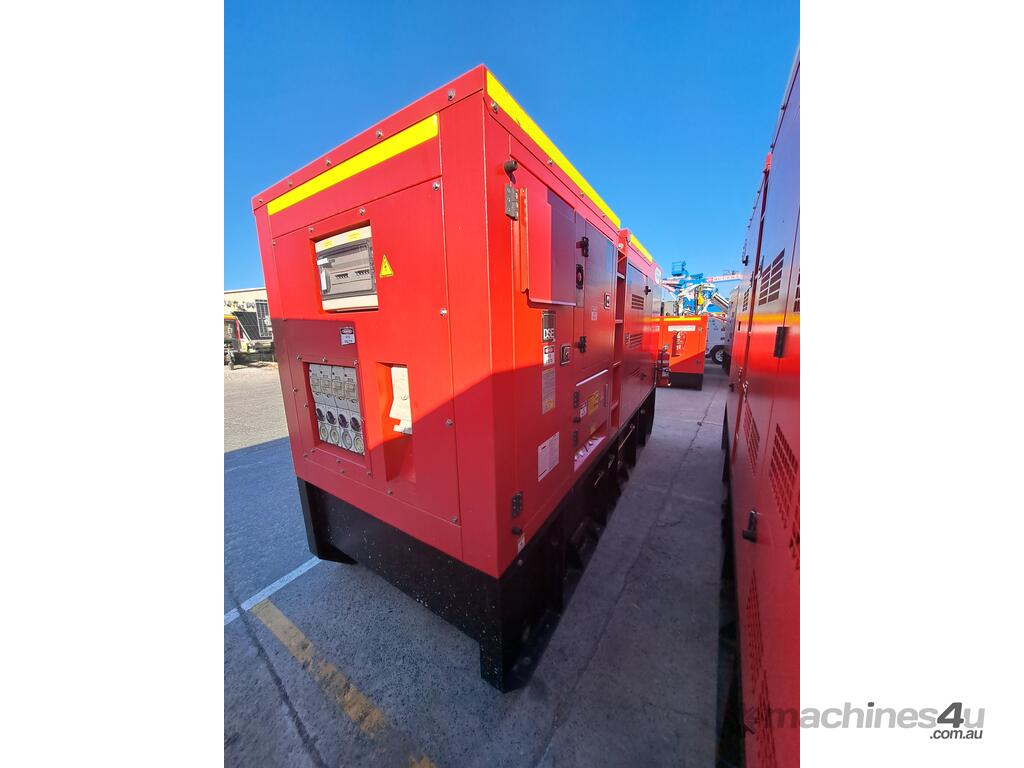

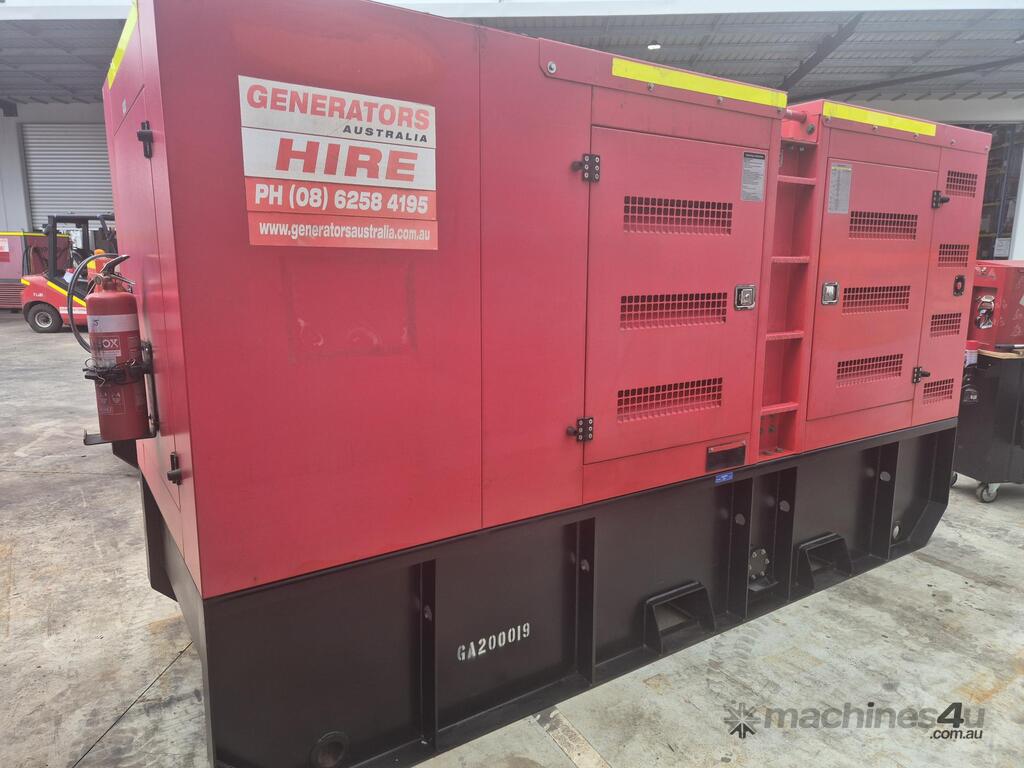

The Globe Power GP220CS Standby Diesel Generator delivers reliable backup performance with superior efficiency and durability. Designed and built in Australia, it’s powered by a Cummins 6CTAA8.3G2 turbocharged, air-to-air aftercooled engine and paired with a GP274H1 alternator to provide 160 kW / 200 kVA prime power and 176 kW / 220 kVA standby power.
Engineered for long operational life, it features an electronic governor, 6-cylinder configuration, and 23.8L oil capacity, ensuring consistent output and smooth performance. The self-excited alternator offers ±0.5% voltage regulation, Class H insulation, and IP21 protection, guaranteeing stable, high-quality power delivery.
A large 1100L fully bunded fuel tank supports extended runtimes with 34 L/h consumption at 75% load, while the sound-attenuated IP65-rated canopy maintains low noise at 70 dB(A) from 7 meters. Safety and ease of operation come standard with ISO compliance, AS3000 RCD outlet protection, emergency stop, and an ATS (Automatic Transfer Switch) system.

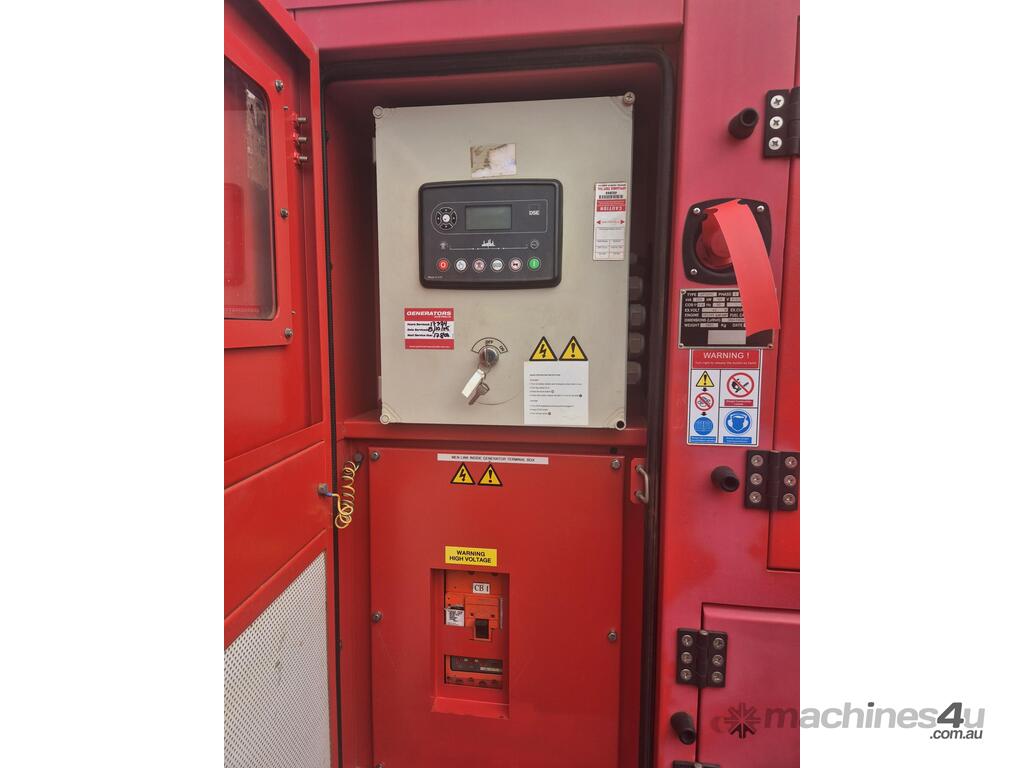

The GP220CS also includes the DSE6020 operator control system for intelligent monitoring and user-friendly operation. Optional upgrades—like 3-way fuel valves, load sharing, and multi-unit synchronization—make this model ideal for scalable installations.
Key Features:
- Prime Power: 160 kW / 200 kVA
- Standby Power: 176 kW / 220 kVA
- Engine: Cummins 6CTAA8.3G2, turbocharged, air-to-air aftercooled
- Fuel Tank Capacity: 1100L fully bunded
- Fuel Consumption: 34 L/h 75% load
- Alternator: GP274H1, self-excited, AS440 regulator, Class H insulation
- Sound Level: 70 dB(A) 7m
- Dimensions (L×W×H): 3800 × 1400 × 2150 mm
- Dry Weight: 3560 kg

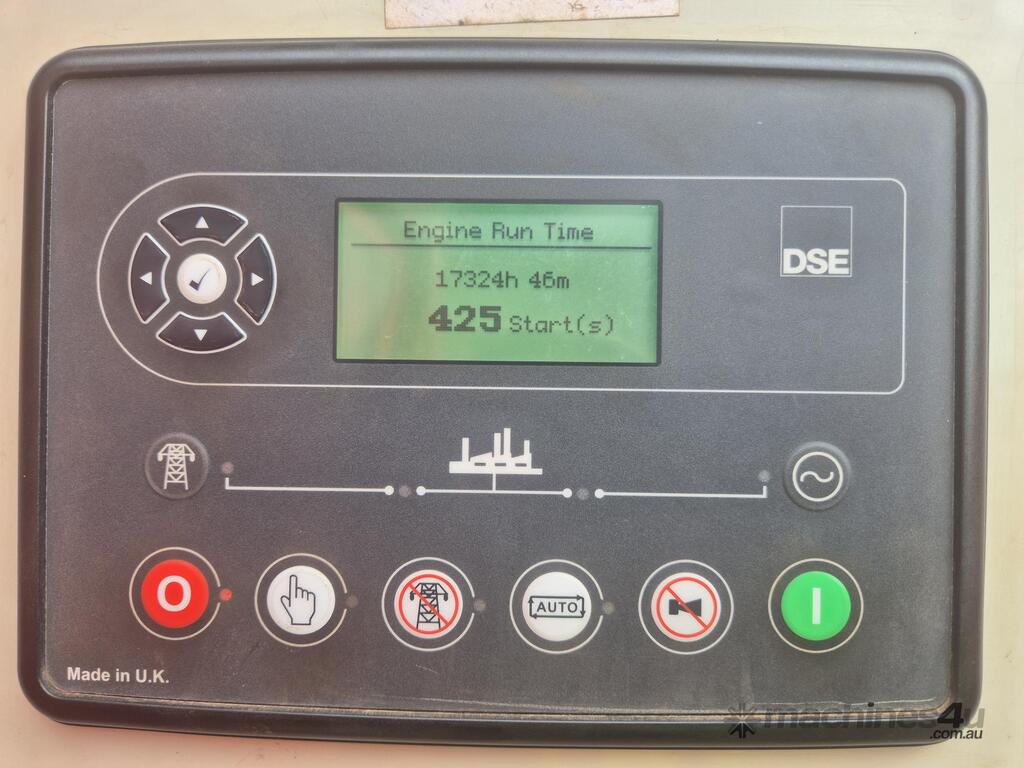

- Control System: DSE6020 controller
- Protection: IP65 canopy, IP21 alternator

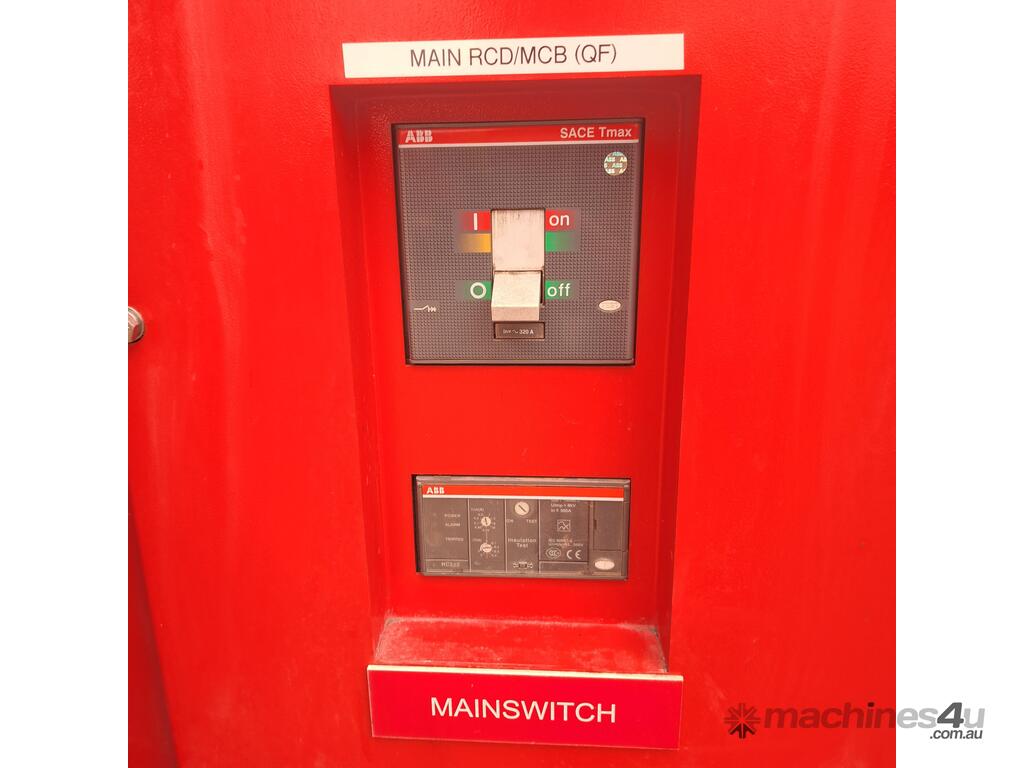

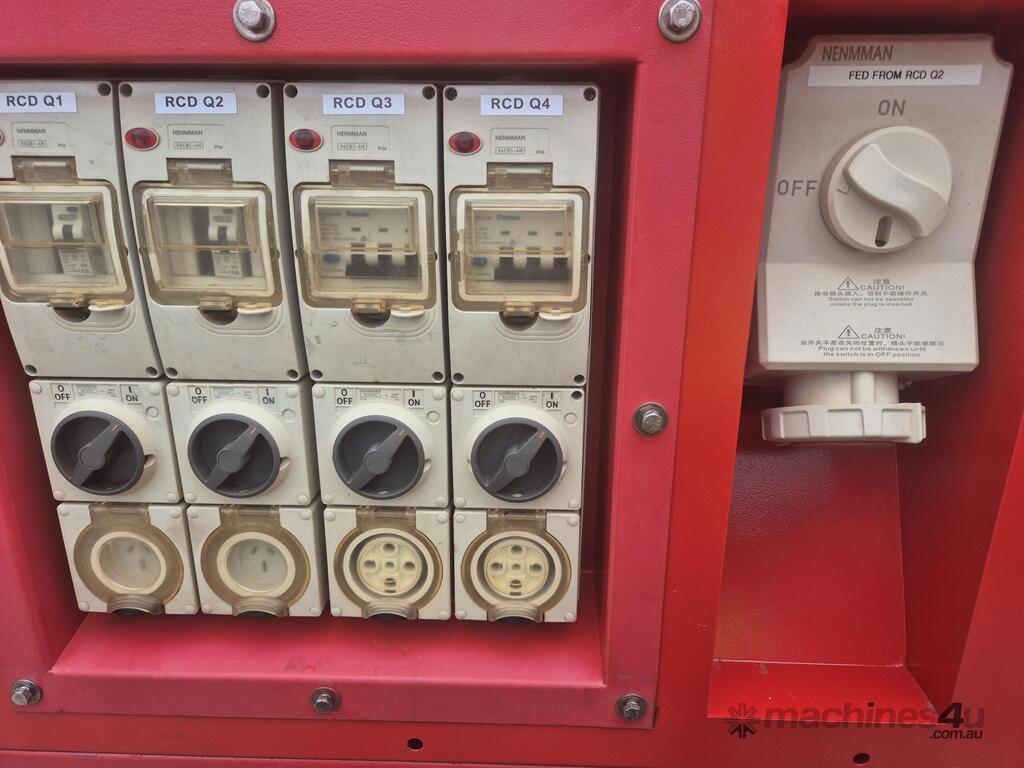

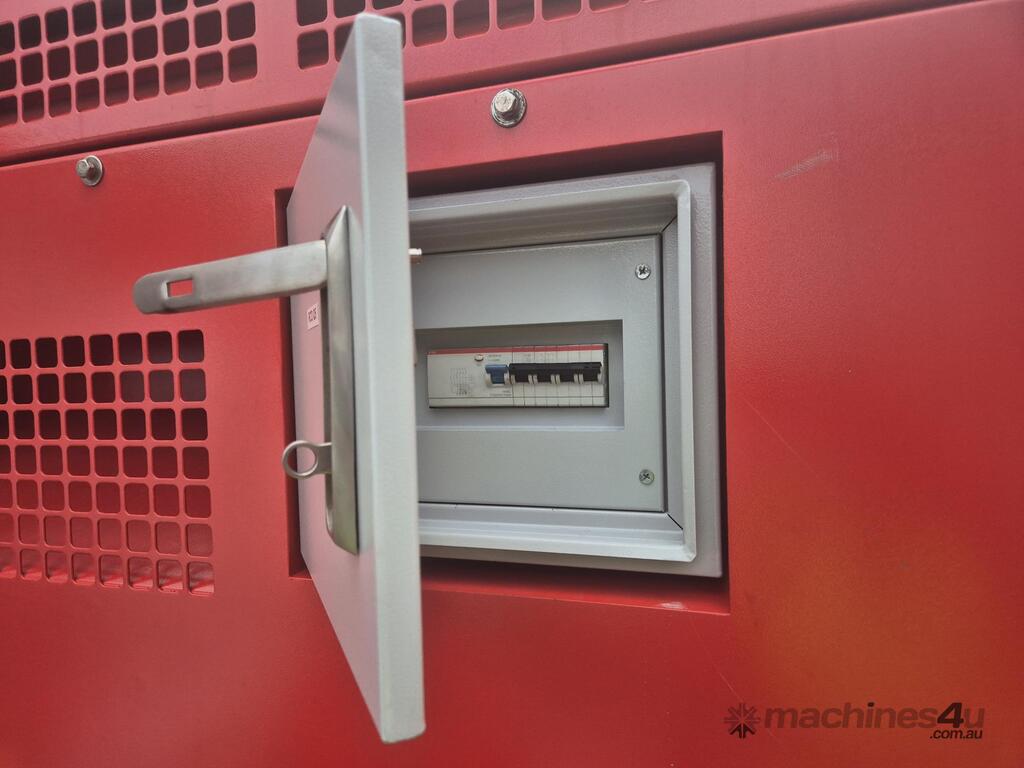

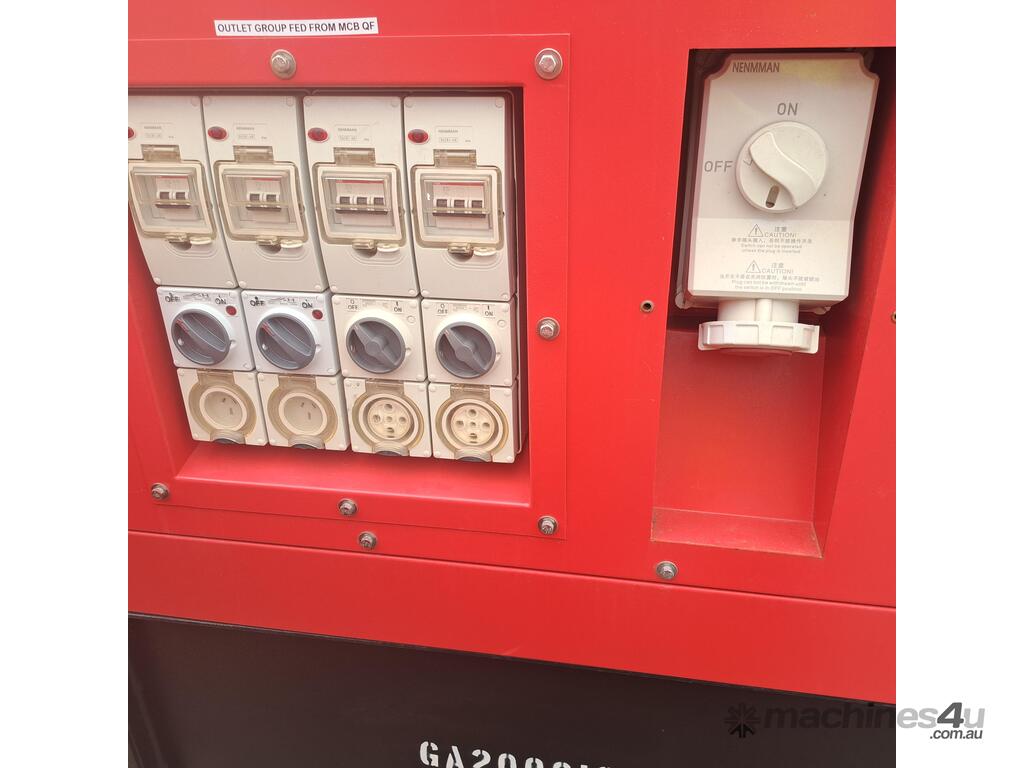

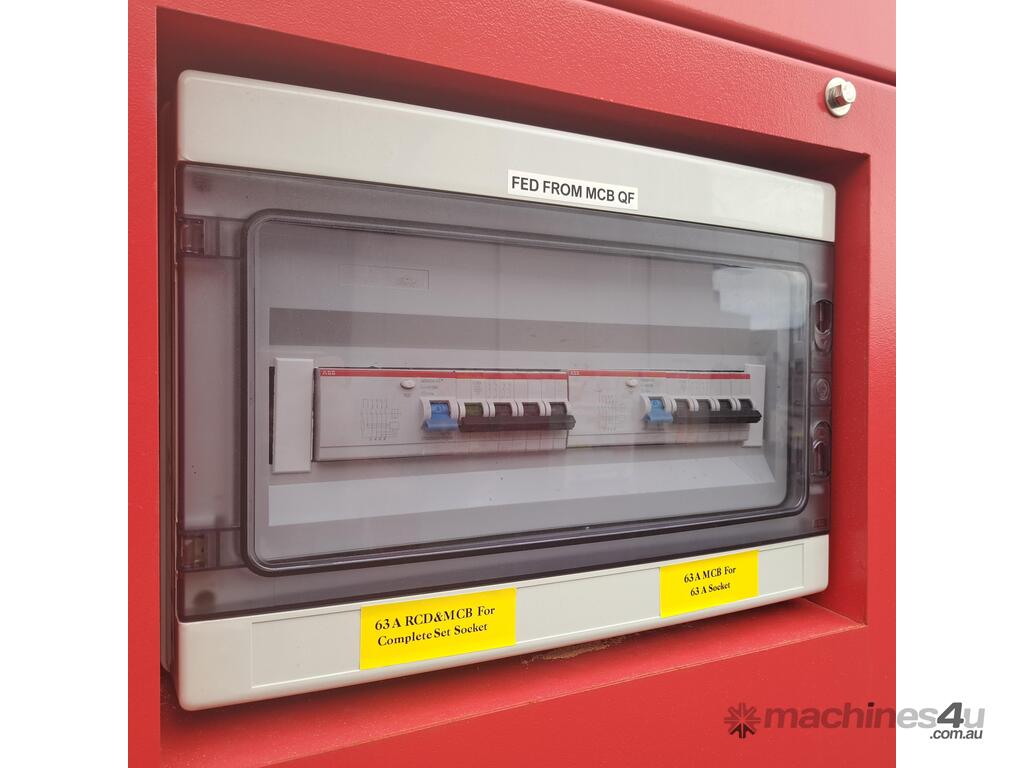

- Safety: ISO compliant, AS3000 RCD outlets, ATS fitted

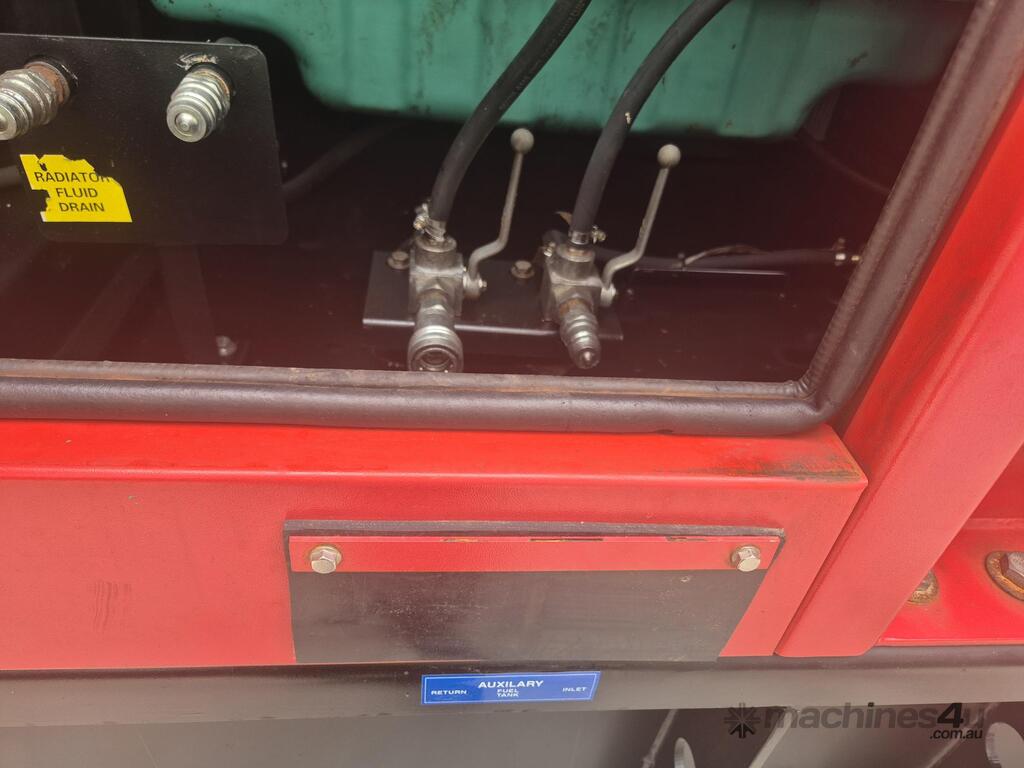

- Options: 3-way fuel valves, load share, multi-unit sync
Call Mark for further info
